Model Bosch HBL746AUC/01 Range Oven – Common Parts & Diagrams
Diagram 1

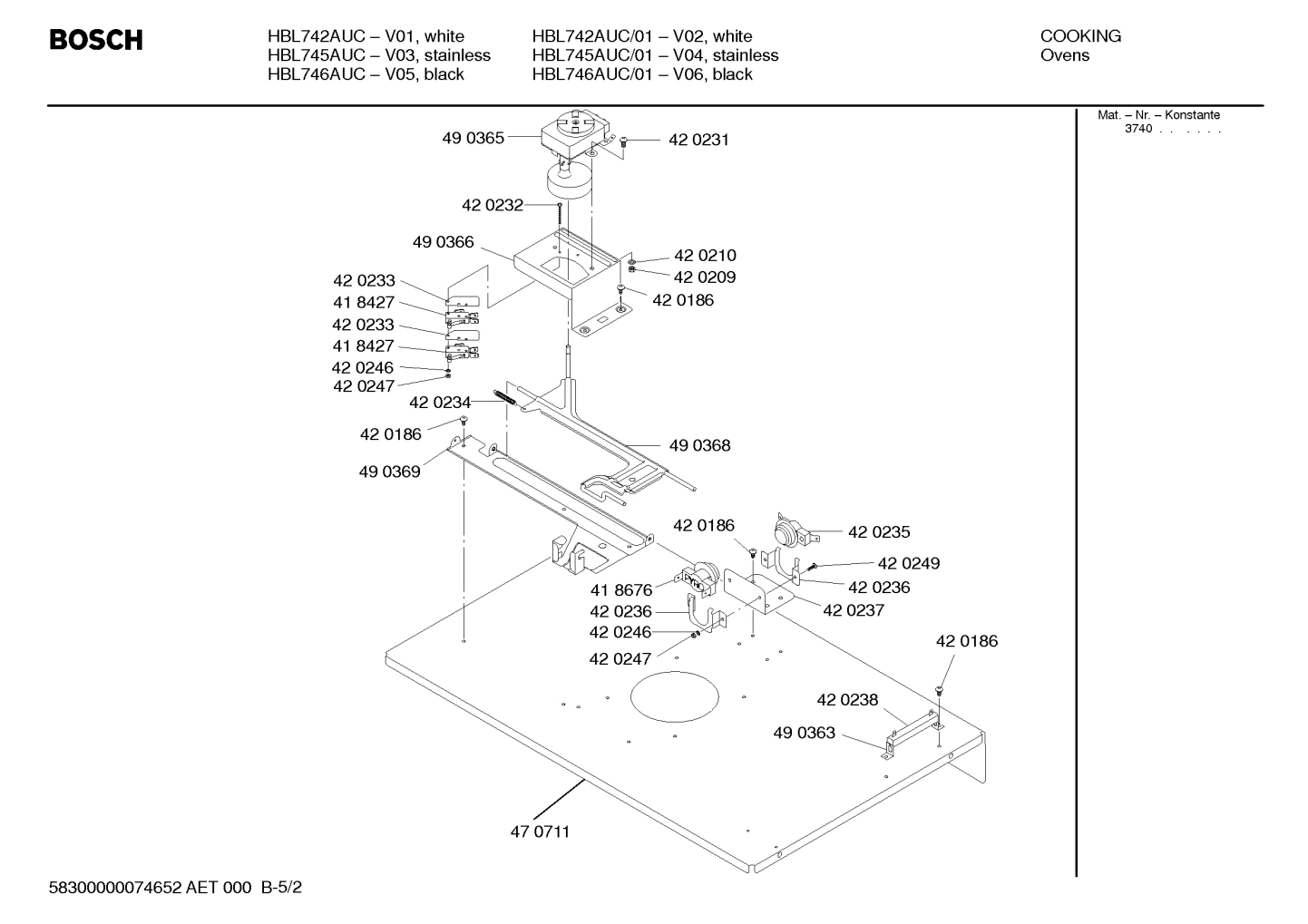

Diagram 2

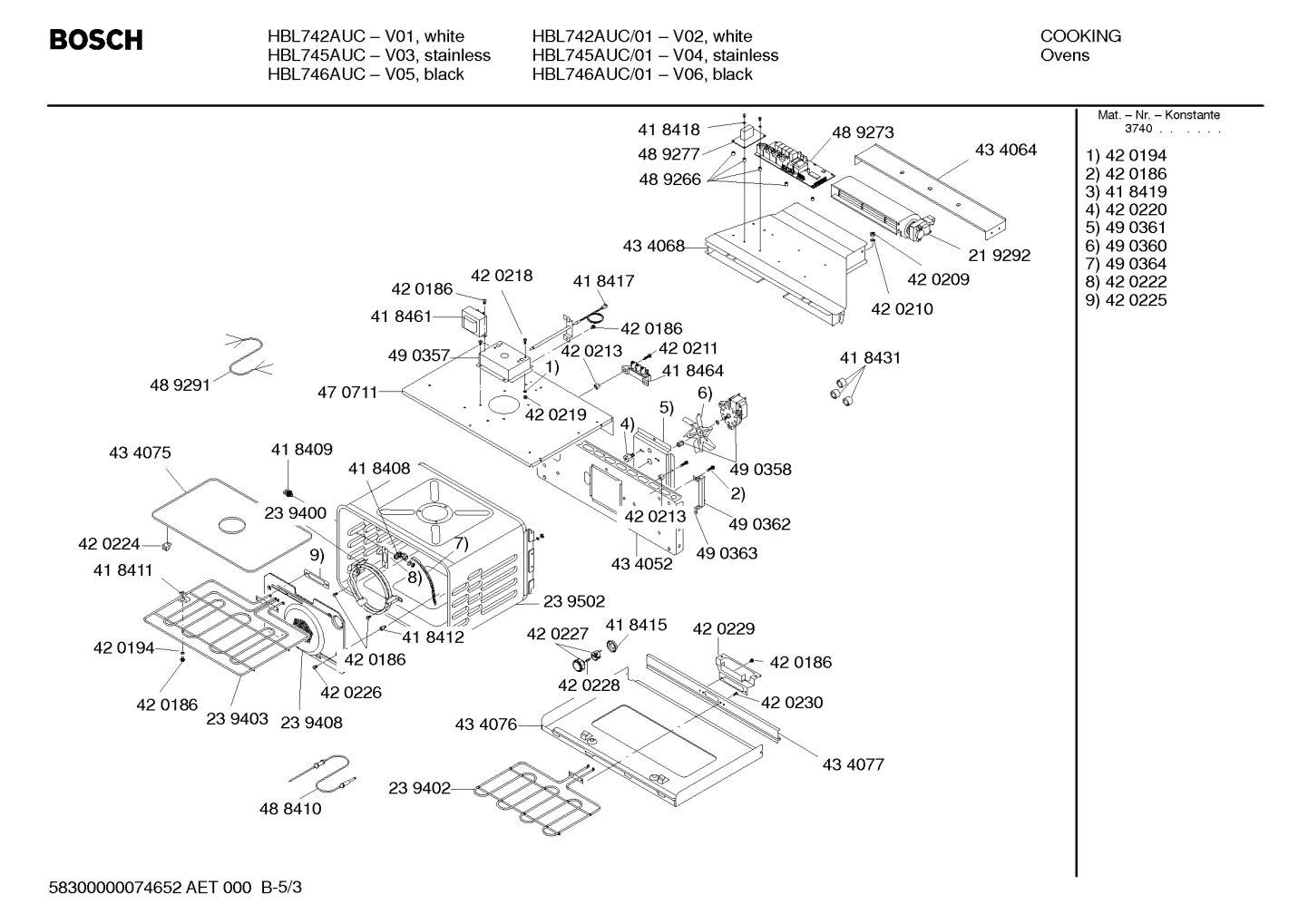

Diagram 3

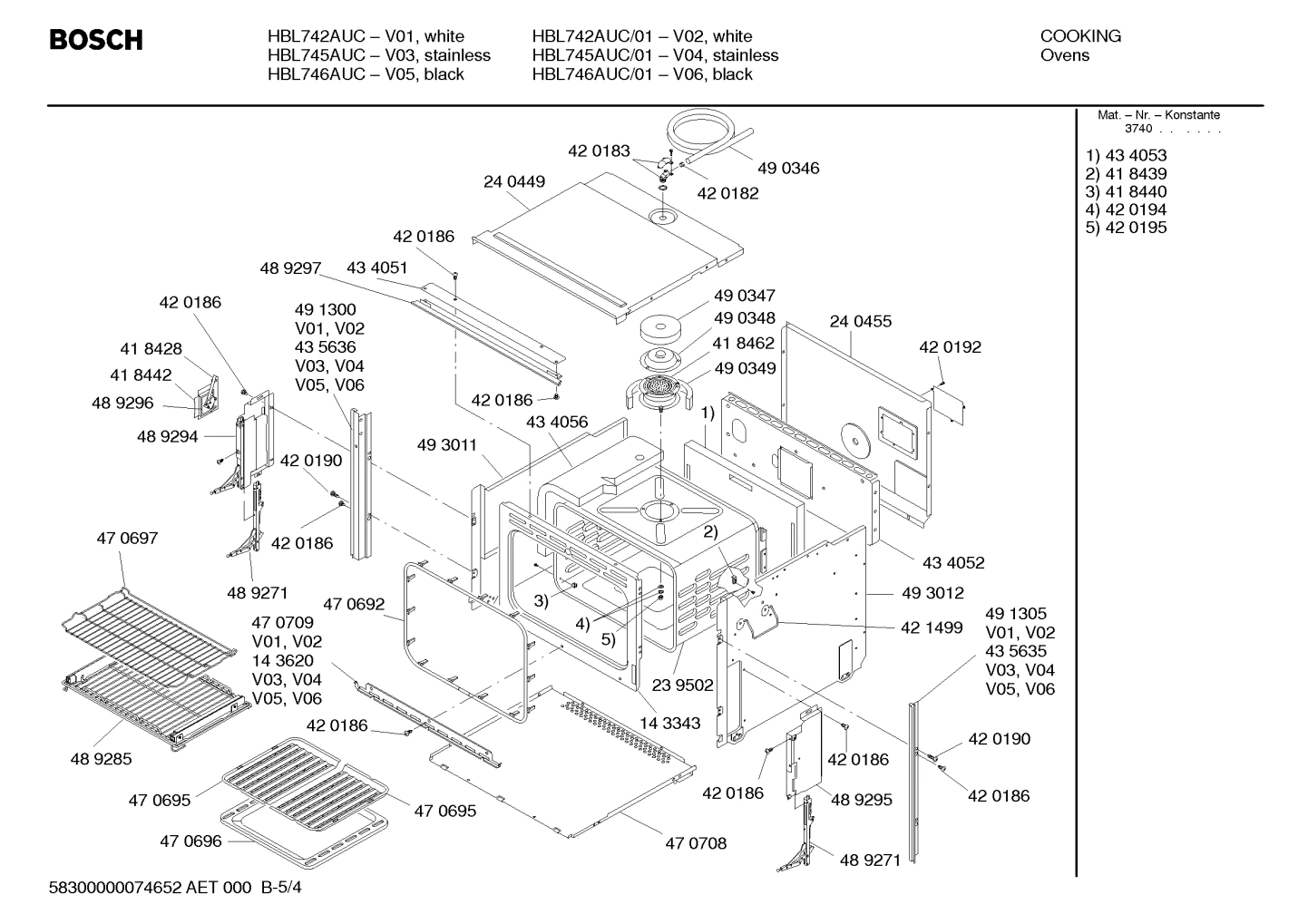

Diagram 4

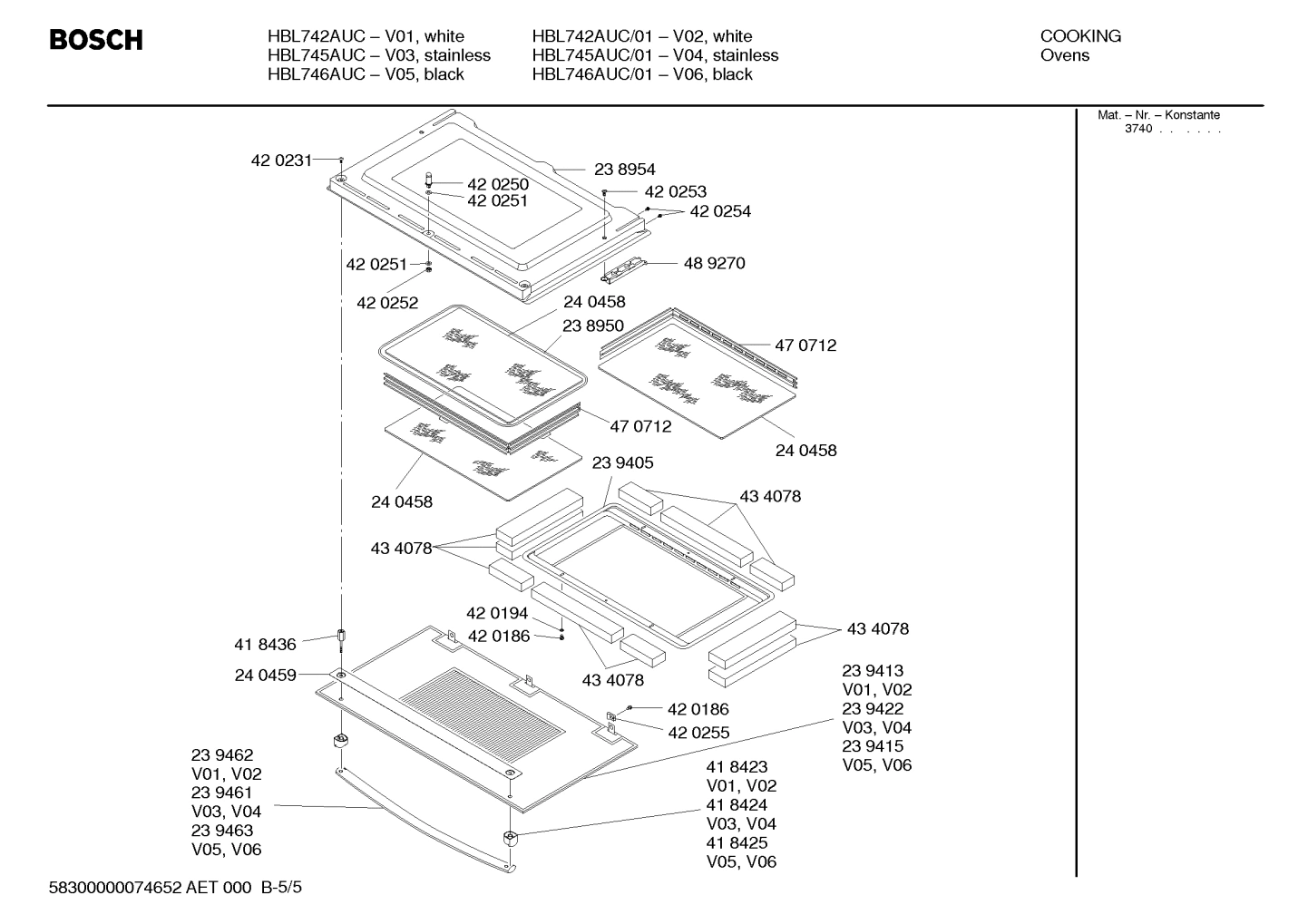

Diagram 5
Common parts from model Bosch HBL746AUC/01 Range Oven
0108
Switch BOS 00418428 Contact Us For Availability
0112
Door hinge BOS 00493358 Contact Us For Availability
0131
Seal-door BOS 00470692 Contact Us For Availability
0136
Frying pan BOS 00470695 Contact Us For Availability
0137
Drip pan BOS 00470696 Contact Us For Availability
0138
Handle BOS 00421499 Contact Us For Availability
0140
Door hinge BOS 00493360 Contact Us For Availability
0141
Support BOS 00435635 Contact Us For Availability
0201
Sheet BOS 00434064 Contact Us For Availability
0202
Fan BOS 00219292 Contact Us For Availability
0203
Control unit BOS 00489273 Contact Us For Availability
0204
Washer BOS 00418418 Contact Us For Availability
0205
Relay BOS 00489277 Contact Us For Availability
0206
Spacer BOS 00489266 Contact Us For Availability
0209
Ventilation duct BOS 00434068 Contact Us For Availability
0210
Frequency filter BOS 00418431 Contact Us For Availability
0211
Screw BOS 00420211 Contact Us For Availability
0212
Terminal box BOS 00418464 Contact Us For Availability
0213
Spacer BOS 00420213 Contact Us For Availability
0214
Temperature sensor BOS 00418417 Contact Us For Availability
0216
Transformer BOS 00418461 Contact Us For Availability
0217
Support BOS 00490357 Contact Us For Availability
0218
Screw BOS 00420218 Contact Us For Availability
0220
Nut BOS 00420219 Contact Us For Availability
0222
Fan motor BOS 00490358 Contact Us For Availability
0223
Fan BOS 00497261 Contact Us For Availability
0224
Support BOS 00490361 Contact Us For Availability
0225
Screw BOS 00420220 Contact Us For Availability
0226
Screw BOS 00420221 Contact Us For Availability
0227
Resistor BOS 00490362 Contact Us For Availability
0229
Panel BOS 00434052 Contact Us For Availability
0230
Case BOS 00239502 Contact Us For Availability
0231
Ventilation duct BOS 00490364 Contact Us For Availability
0232
Cap BOS 00418408 Contact Us For Availability
0233
Seal BOS 00420222 Contact Us For Availability
0234
Connection piece BOS 00418409 Contact Us For Availability
0236
Reflector BOS 00434075 Contact Us For Availability
0237
Clip BOS 00420224 Contact Us For Availability
0238
Clamp BOS 00424151 Contact Us For Availability
0239
Sealing BOS 00420225 Contact Us For Availability
0240
Heating element BOS 00239403 Contact Us For Availability
0241
Cover BOS 00239408 Contact Us For Availability
0242
Screw BOS 00420226 Contact Us For Availability
0243
Screw BOS 00418412 Contact Us For Availability
0244
Cover BOS 00418415 Contact Us For Availability
0245
Lamp housing BOS 00420227 Contact Us For Availability
0247
Tray BOS 00434076 Contact Us For Availability
0248
Temperature sensor BOS 00418410 Contact Us For Availability
0249
Heating element BOS 00239402 Contact Us For Availability
0250
Bracket BOS 00420229 Contact Us For Availability
0251
Screw BOS 00420230 Contact Us For Availability
0252
Strip-decor BOS 00434077 Contact Us For Availability
0253
Cable harness BOS 00489291 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0305
Retaining washer BOS 00420210 Contact Us For Availability
0306
Nut BOS 00420209 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0310
Retaining washer BOS 00420246 Contact Us For Availability
0311
Nut BOS 00420247 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Latch BOS 00490368 Contact Us For Availability
0314
Guide BOS 00490369 Contact Us For Availability
0315
Temperature sensor BOS 00420235 Contact Us For Availability
0316
Screw BOS 00420249 Contact Us For Availability
0317
Bracket BOS 00420236 Contact Us For Availability
0318
Support BOS 00420237 Contact Us For Availability
0319
Temperature sensor BOS 00418676 Contact Us For Availability
0320
Resistor BOS 00420238 Contact Us For Availability
0321
Support BOS 00490363 Contact Us For Availability
0322
Dividing wall BOS 00470711 Contact Us For Availability
0401
Switch-selector BOS 00418416 Contact Us For Availability
0402
Bracket BOS 00418413 Contact Us For Availability
0404
Bracket BOS 00418433 Contact Us For Availability
0406
Relay BOS 00489261 Contact Us For Availability
0407
Display module BOS 00489262 Contact Us For Availability
0408
Display-film strip BOS 00489268 Contact Us For Availability
0409
Support BOS 00489281 Contact Us For Availability
0410
Spacer BOS 00418426 Contact Us For Availability
0412
Ring BOS 00418420 Contact Us For Availability
0413
Control unit BOS 00143692 Contact Us For Availability
0414
Ring BOS 00418421 Contact Us For Availability
0415
Knob BOS 00418422 Contact Us For Availability
0450
Grid BOS 00489288 Contact Us For Availability
0501
Door-inner BOS 00238954 Contact Us For Availability
0502
Screw BOS 00420231 Contact Us For Availability
0503
Pin BOS 00420250 Contact Us For Availability
0504
Washer BOS 00420251 Contact Us For Availability
0505
Nut BOS 00420252 Contact Us For Availability
0506
Screw BOS 00420253 Contact Us For Availability
0507
Screw BOS 00420254 Contact Us For Availability
0508
Hinge BOS 00489270 Contact Us For Availability
0509
Seal BOS 00238950 Contact Us For Availability
0510
Glass panel BOS 00240458 Contact Us For Availability
0511
Spacer BOS 00470712 Contact Us For Availability
0512
Reflector BOS 00239405 Contact Us For Availability
0513
Insulating part BOS 00434078 Contact Us For Availability
0514
Retaining washer BOS 00420194 Contact Us For Availability
0515
Screw BOS 00420186 Contact Us For Availability
0516
Clip BOS 00420255 Contact Us For Availability
0517
Door BOS 00239415 Contact Us For Availability
0518
Screw BOS 00418436 Contact Us For Availability
0519
Retaining plate BOS 00240459 Contact Us For Availability
0520
Spacer BOS 00418425 Contact Us For Availability
0521
Handle-door BOS 00239463 Contact Us For Availability
0522
Instruction manual BOS 00419209 Contact Us For Availability
0523
Installation instructions BOS 00419208 Contact Us For Availability
0524
Screw BOS 00420257 Contact Us For Availability
× ![]()
