Model Bosch HBL645AUC/01 Range Oven – Common Parts & Diagrams

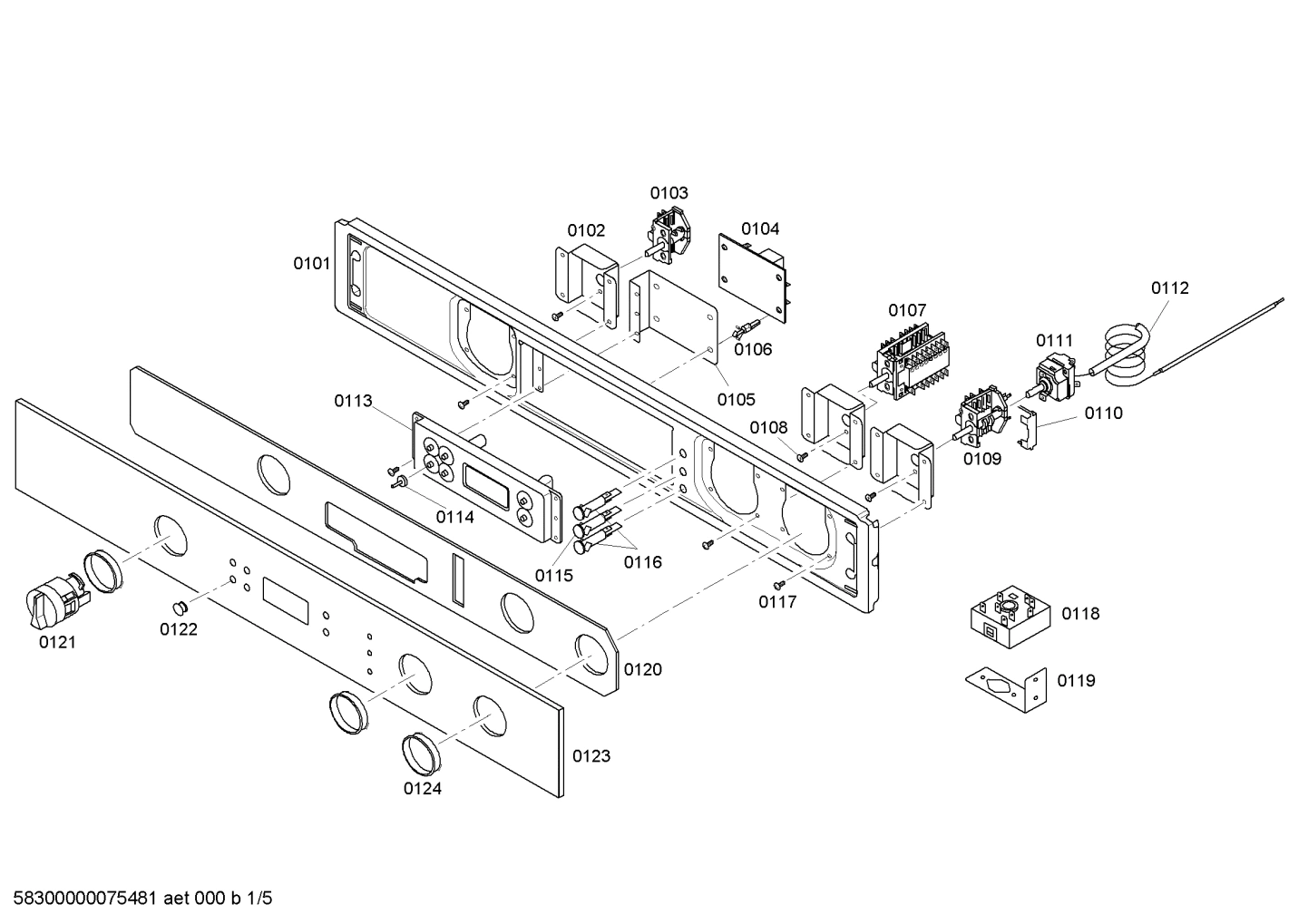

Diagram 1

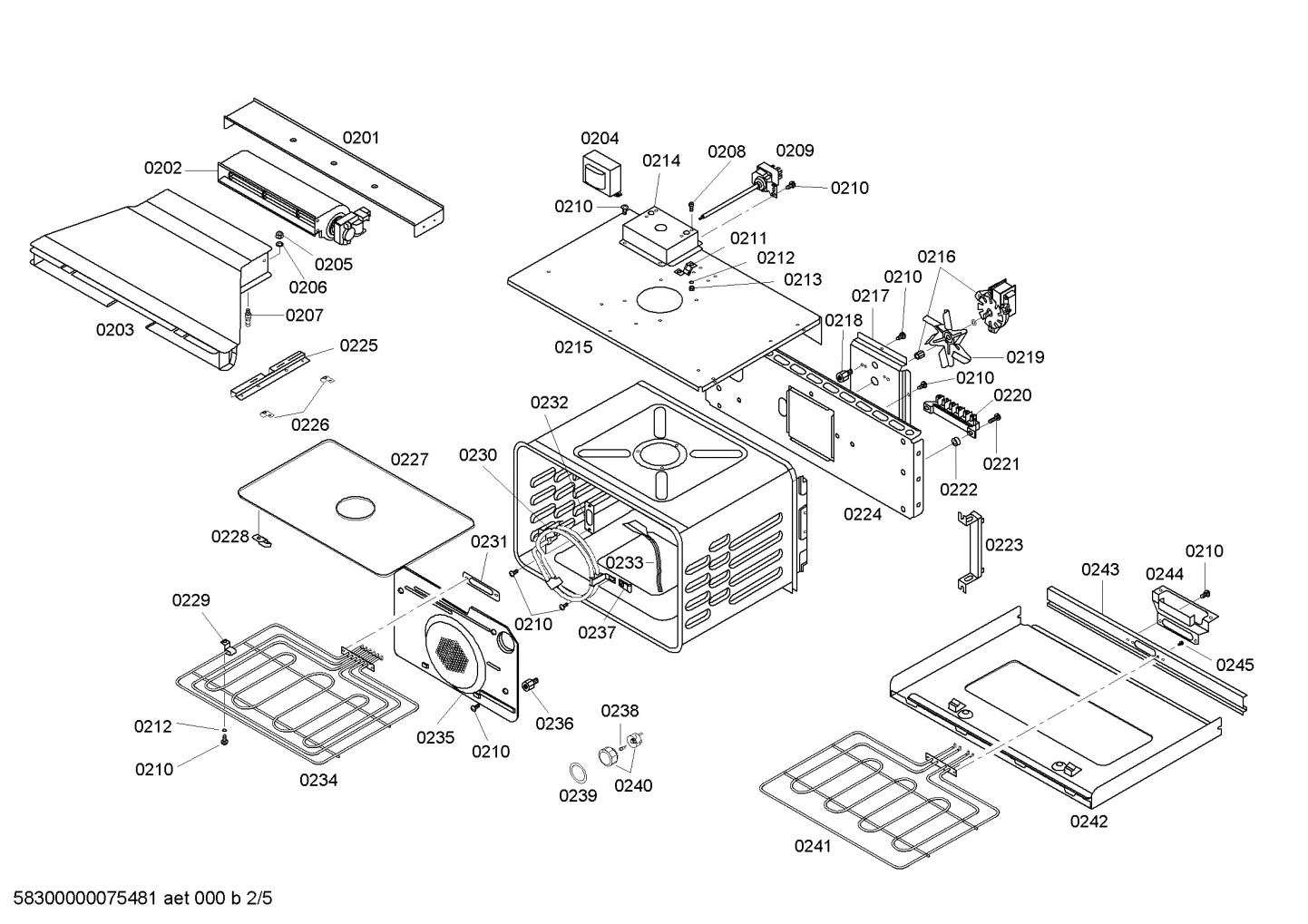

Diagram 2

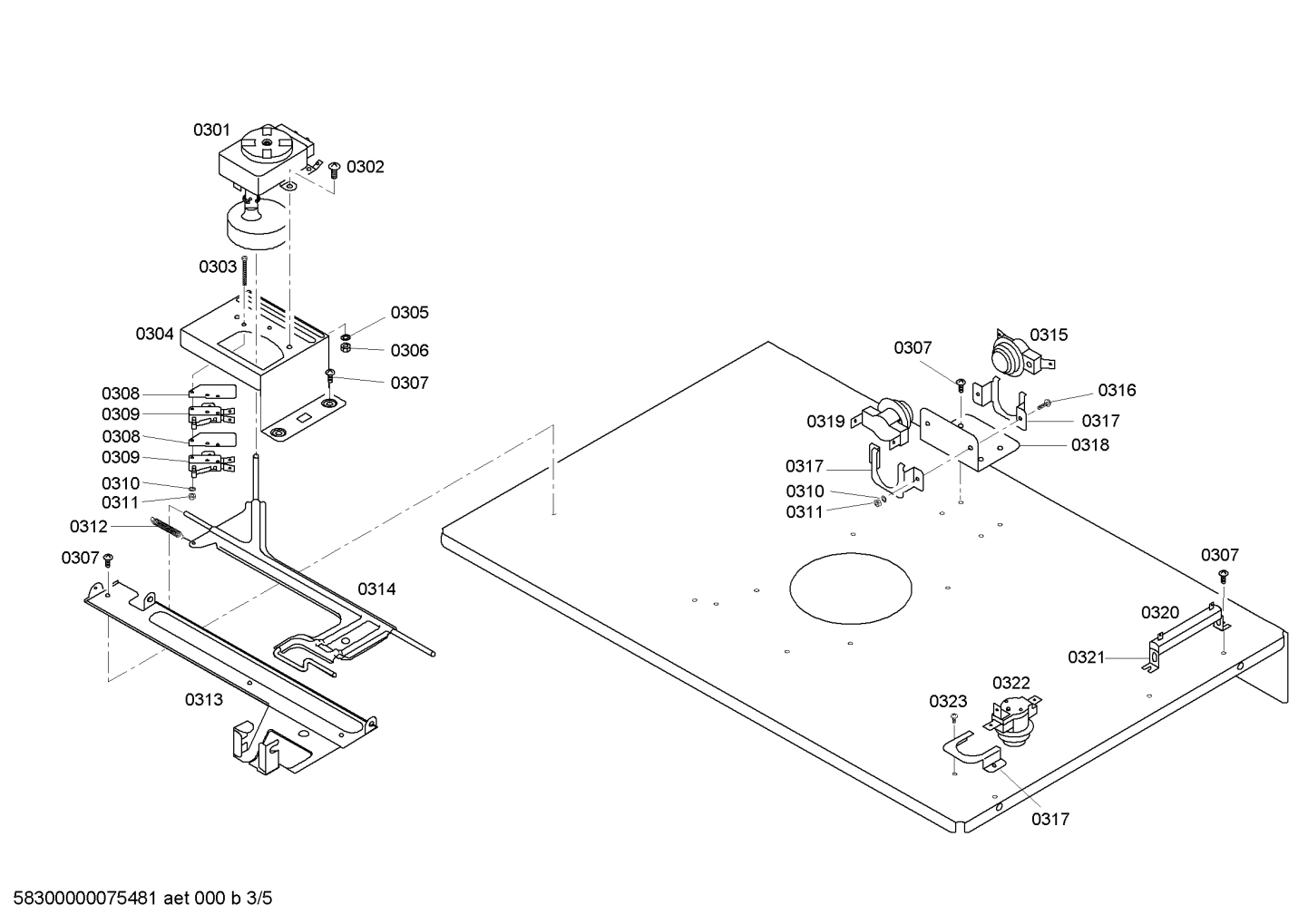

Diagram 3

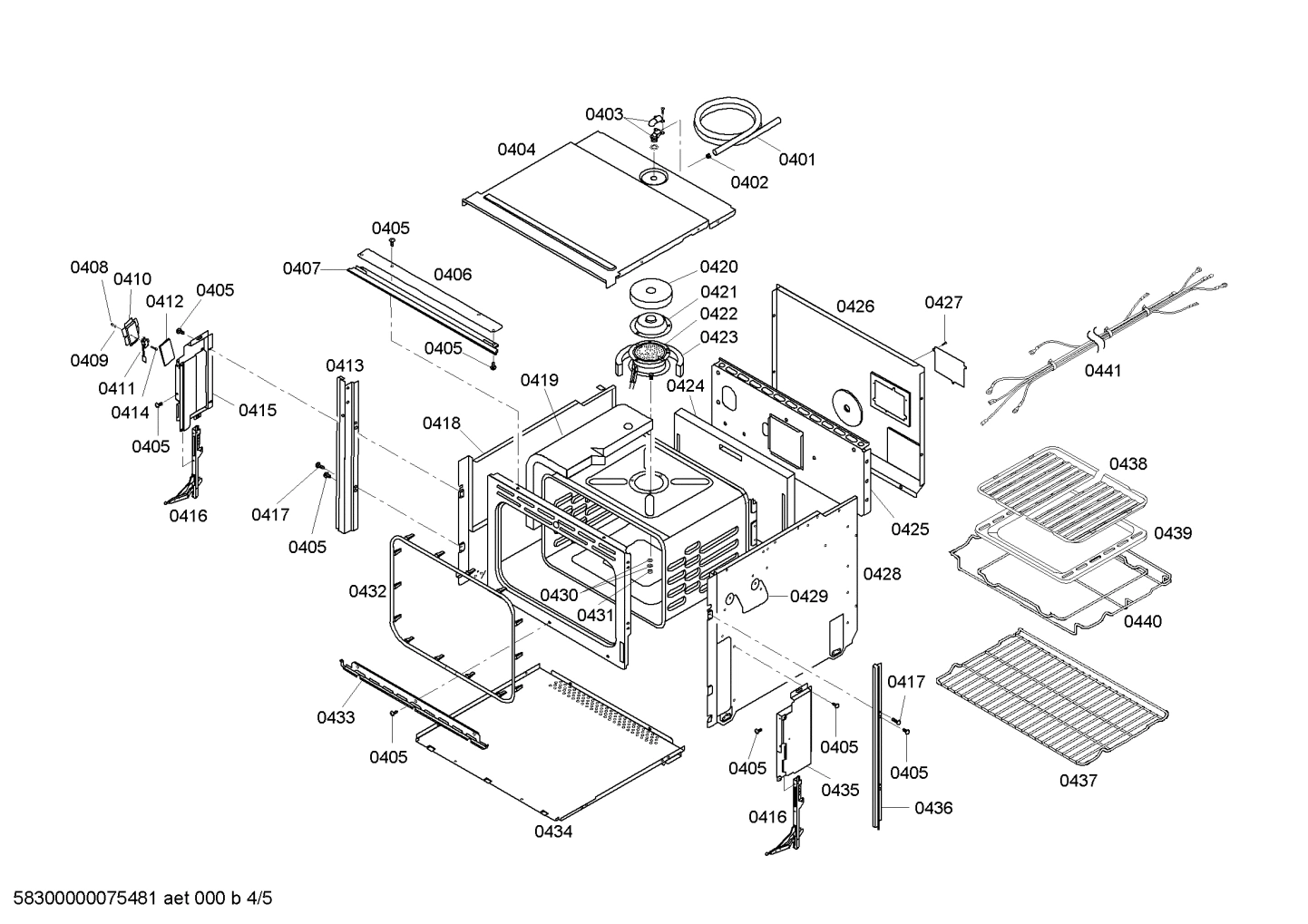

Diagram 4

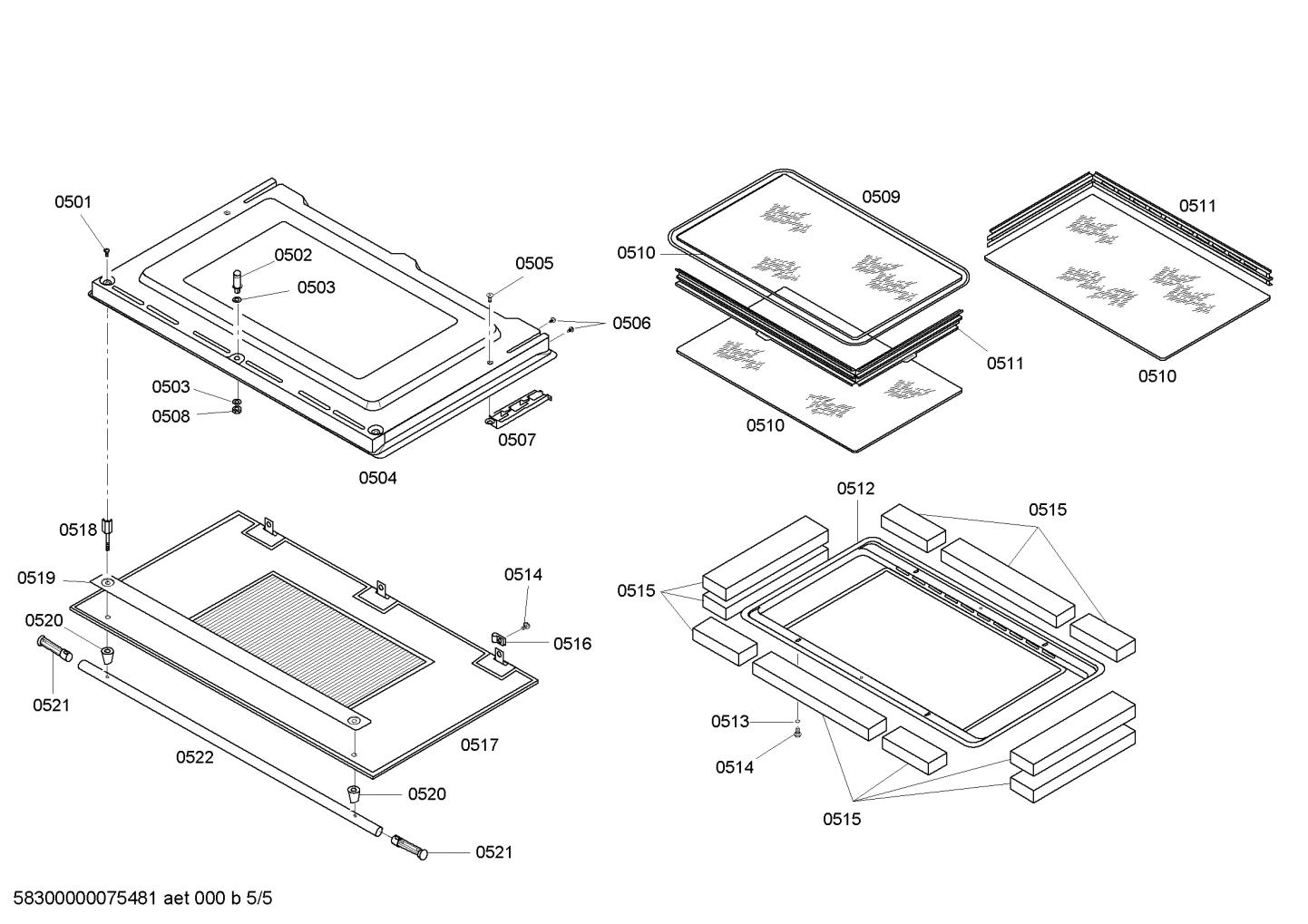

Diagram 5
Common parts from model Bosch HBL645AUC/01 Range Oven
0103
Time switch BOS 00491312 Contact Us For Availability
0104
Relay BOS 00489264 Contact Us For Availability
0107
Switch-selector BOS 00490962 Contact Us For Availability
0113
Time switch BOS 00489265 Contact Us For Availability
0122
Push button cap BOS 00421020 Contact Us For Availability
0202
Fan BOS 00219292 Contact Us For Availability
0209
Thermometer BOS 00421010 Contact Us For Availability
0211
Insert BOS 00438587 Contact Us For Availability
0213
Nut BOS 00420219 Contact Us For Availability
0214
Support BOS 00490357 Contact Us For Availability
0215
Dividing wall BOS 00470711 Contact Us For Availability
0216
Fan motor BOS 00490358 Contact Us For Availability
0217
Support BOS 00490361 Contact Us For Availability
0218
Screw BOS 00420220 Contact Us For Availability
0219
Fan BOS 00497261 Contact Us For Availability
0220
Terminal BOS 00491310 Contact Us For Availability
0221
Screw BOS 00420221 Contact Us For Availability
0222
Spacer BOS 00420213 Contact Us For Availability
0223
Resistor BOS 00490362 Contact Us For Availability
0225
Sleeve BOS 00421024 Contact Us For Availability
0226
Bracket BOS 00421023 Contact Us For Availability
0227
Reflector BOS 00434075 Contact Us For Availability
0228
Clip BOS 00420223 Contact Us For Availability
0229
Clamp BOS 00424151 Contact Us For Availability
0231
Sealing BOS 00420225 Contact Us For Availability
0232
Seal BOS 00420222 Contact Us For Availability
0233
Ventilation duct BOS 00490364 Contact Us For Availability
0234
Heating element BOS 00438527 Contact Us For Availability
0235
Cover BOS 00435184 Contact Us For Availability
0236
Spacer BOS 00424265 Contact Us For Availability
0237
Clamp BOS 00421467 Contact Us For Availability
0239
Seal BOS 00421025 Contact Us For Availability
0240
Lamp housing BOS 00420227 Contact Us For Availability
0241
Heater-bottom BOS 00435178 Contact Us For Availability
0243
Strip-decor BOS 00434077 Contact Us For Availability
0244
Bracket BOS 00420229 Contact Us For Availability
0245
Screw BOS 00420230 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0305
Retaining washer BOS 00420210 Contact Us For Availability
0306
Nut BOS 00420209 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Guide BOS 00490369 Contact Us For Availability
0314
Latch BOS 00490368 Contact Us For Availability
0315
Temperature sensor BOS 00420235 Contact Us For Availability
0317
Bracket BOS 00420236 Contact Us For Availability
0318
Support BOS 00420237 Contact Us For Availability
0319
Temperature sensor BOS 00418676 Contact Us For Availability
0320
Resistor BOS 00420238 Contact Us For Availability
0321
Support BOS 00490363 Contact Us For Availability
0322
Temperature sensor BOS 00490986 Contact Us For Availability
0401
Hose-vent BOS 00490346 Contact Us For Availability
0402
Sleeve BOS 00420182 Contact Us For Availability
0403
Connection piece BOS 00420183 Contact Us For Availability
0404
Case-upper part BOS 00240449 Contact Us For Availability
0406
Strip BOS 00434051 Contact Us For Availability
0407
Spacer BOS 00491422 Contact Us For Availability
0408
Nut BOS 00420247 Contact Us For Availability
0409
Retaining washer BOS 00420246 Contact Us For Availability
0410
Housing part BOS 00421627 Contact Us For Availability
0411
Switch-door BOS 00421154 Contact Us For Availability
0412
Insulating part BOS 00421630 Contact Us For Availability
0413
Support BOS 00435636 Contact Us For Availability
0415
Door hinge BOS 00421013 Contact Us For Availability
0417
Screw BOS 00420190 Contact Us For Availability
0418
Panel side BOS 00493011 Contact Us For Availability
0419
Insulating part BOS 00434056 Contact Us For Availability
0420
Insulating part BOS 00490347 Contact Us For Availability
0421
Cover BOS 00490348 Contact Us For Availability
0422
Catalyzer BOS 00493054 Contact Us For Availability
0423
Insulating part BOS 00490349 Contact Us For Availability
0424
Insulating part BOS 00434053 Contact Us For Availability
0425
Panel BOS 00434052 Contact Us For Availability
0426
Case-rear part BOS 00240455 Contact Us For Availability
0427
Screw BOS 00420192 Contact Us For Availability
0429
Handle BOS 00421499 Contact Us For Availability
0431
Nut BOS 00420195 Contact Us For Availability
0432
Seal-door BOS 00470692 Contact Us For Availability
0433
Strip-decor BOS 00143620 Contact Us For Availability
0434
Case-bottom BOS 00470708 Contact Us For Availability
0435
Door hinge BOS 00493360 Contact Us For Availability
0436
Support BOS 00435635 Contact Us For Availability
0437
Shelf BOS 00680592 Contact Us For Availability
0438
Pan lid BOS 00435183 Contact Us For Availability
0439
Pan BOS 00435182 Contact Us For Availability
0440
Grid BOS 00438526 Contact Us For Availability
0441
Cable harness BOS 00493808 Contact Us For Availability
0501
Screw BOS 00420231 Contact Us For Availability
0502
Pin BOS 00420250 Contact Us For Availability
0503
Washer BOS 00420251 Contact Us For Availability
0504
Door-inner BOS 00241560 Contact Us For Availability
0505
Screw BOS 00420253 Contact Us For Availability
0506
Screw BOS 00420254 Contact Us For Availability
0507
Door hinge BOS 00493358 Contact Us For Availability
0508
Nut BOS 00420252 Contact Us For Availability
0509
Seal BOS 00238950 Contact Us For Availability
0510
Glass panel BOS 00240458 Contact Us For Availability
0511
Spacer BOS 00470712 Contact Us For Availability
0512
Reflector BOS 00239405 Contact Us For Availability
0513
Retaining washer BOS 00420194 Contact Us For Availability
0514
Screw BOS 00420186 Contact Us For Availability
0515
Insulating part BOS 00434078 Contact Us For Availability
0516
Clip BOS 00420255 Contact Us For Availability
0517
Door-outer BOS 00470974 Contact Us For Availability
0518
Screw BOS 00424153 Contact Us For Availability
0519
Retaining plate BOS 00240459 Contact Us For Availability
0520
Spacer BOS 00421022 Contact Us For Availability
0521
Handle-cap shaped BOS 00421021 Contact Us For Availability
0522
Handle-door BOS 00435172 Contact Us For Availability
× ![]()
