Model Bosch HBL452AUC/01 Range Oven – Common Parts & Diagrams

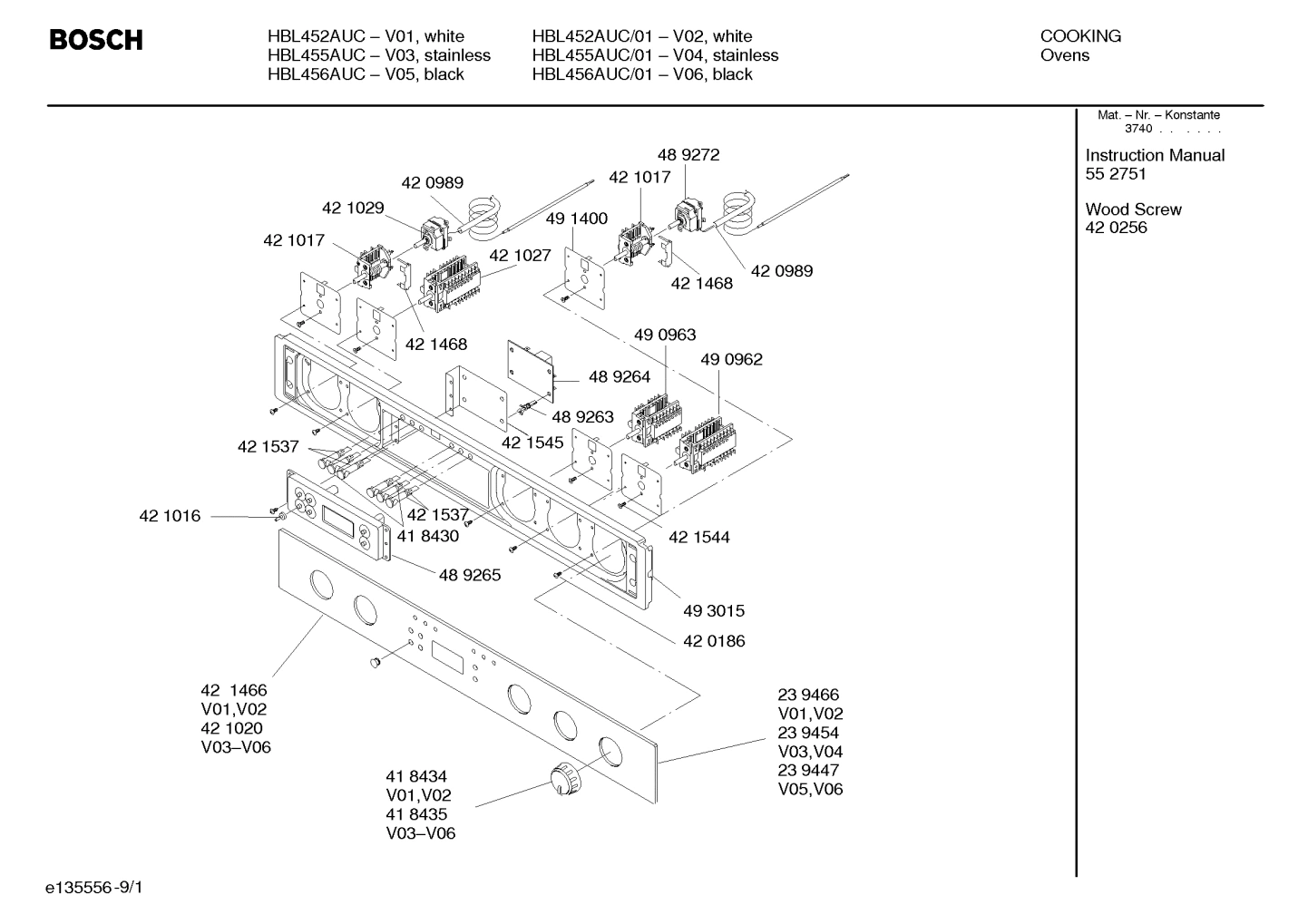

Diagram 1

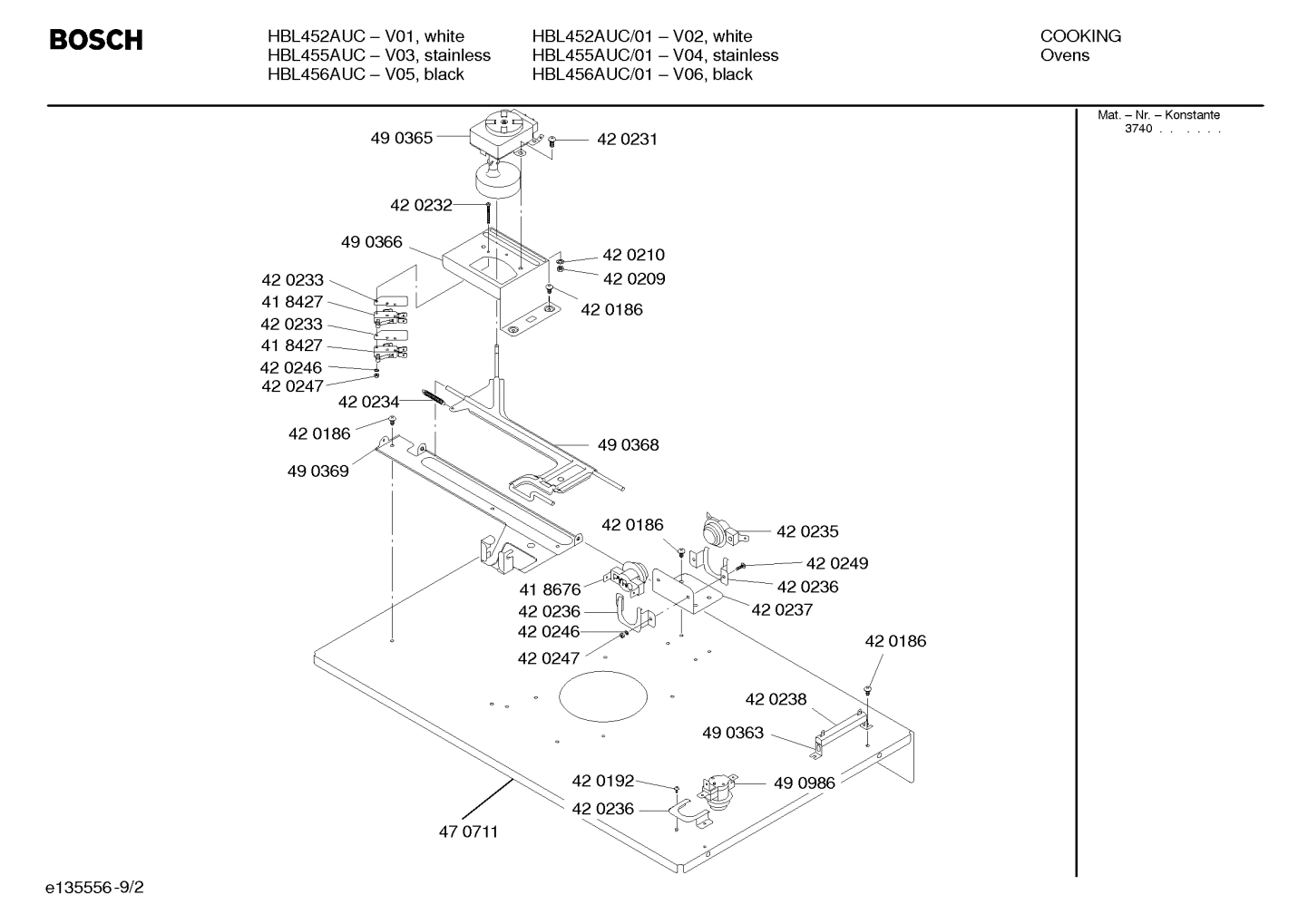

Diagram 2
Diagram 3

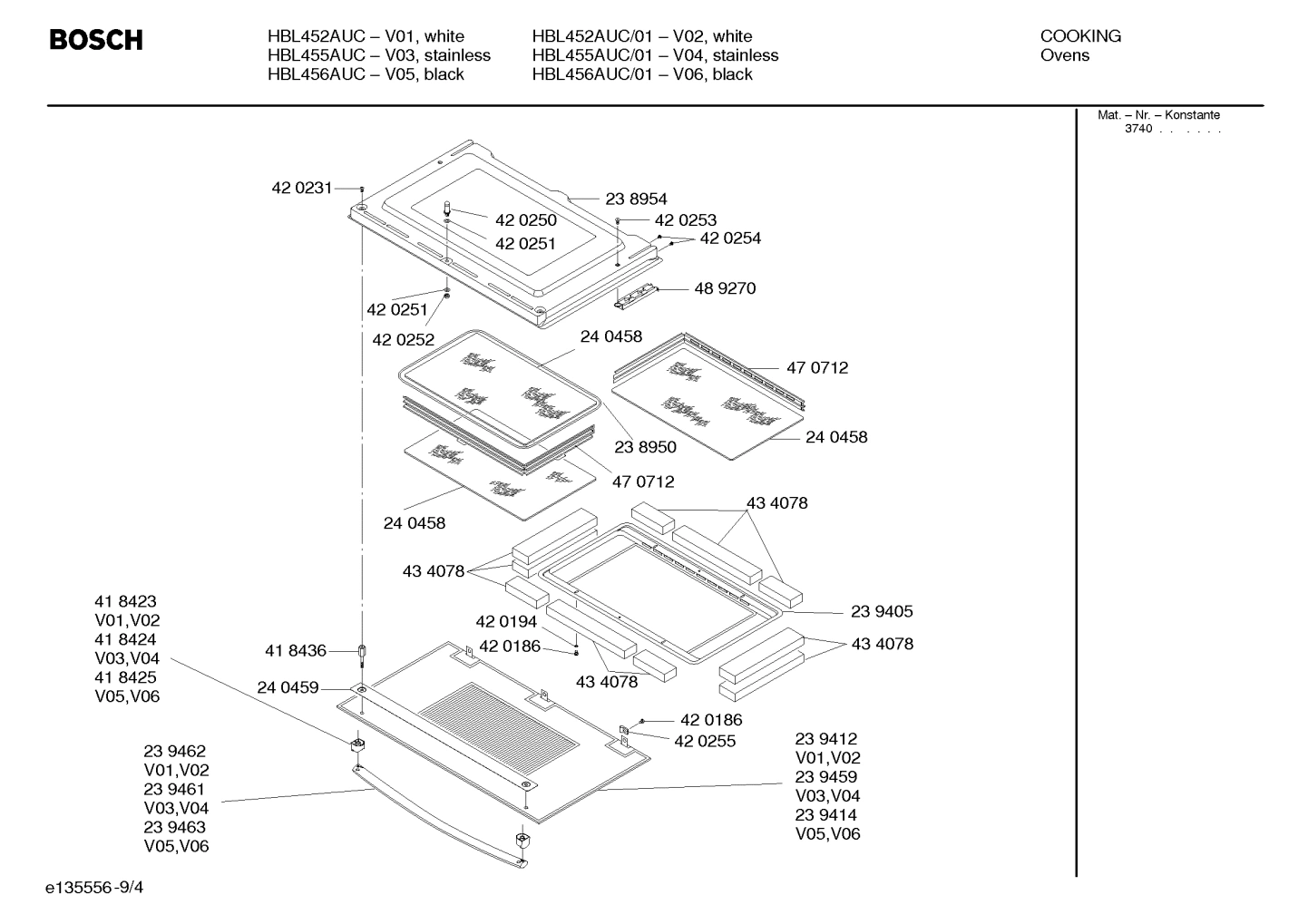

Diagram 4

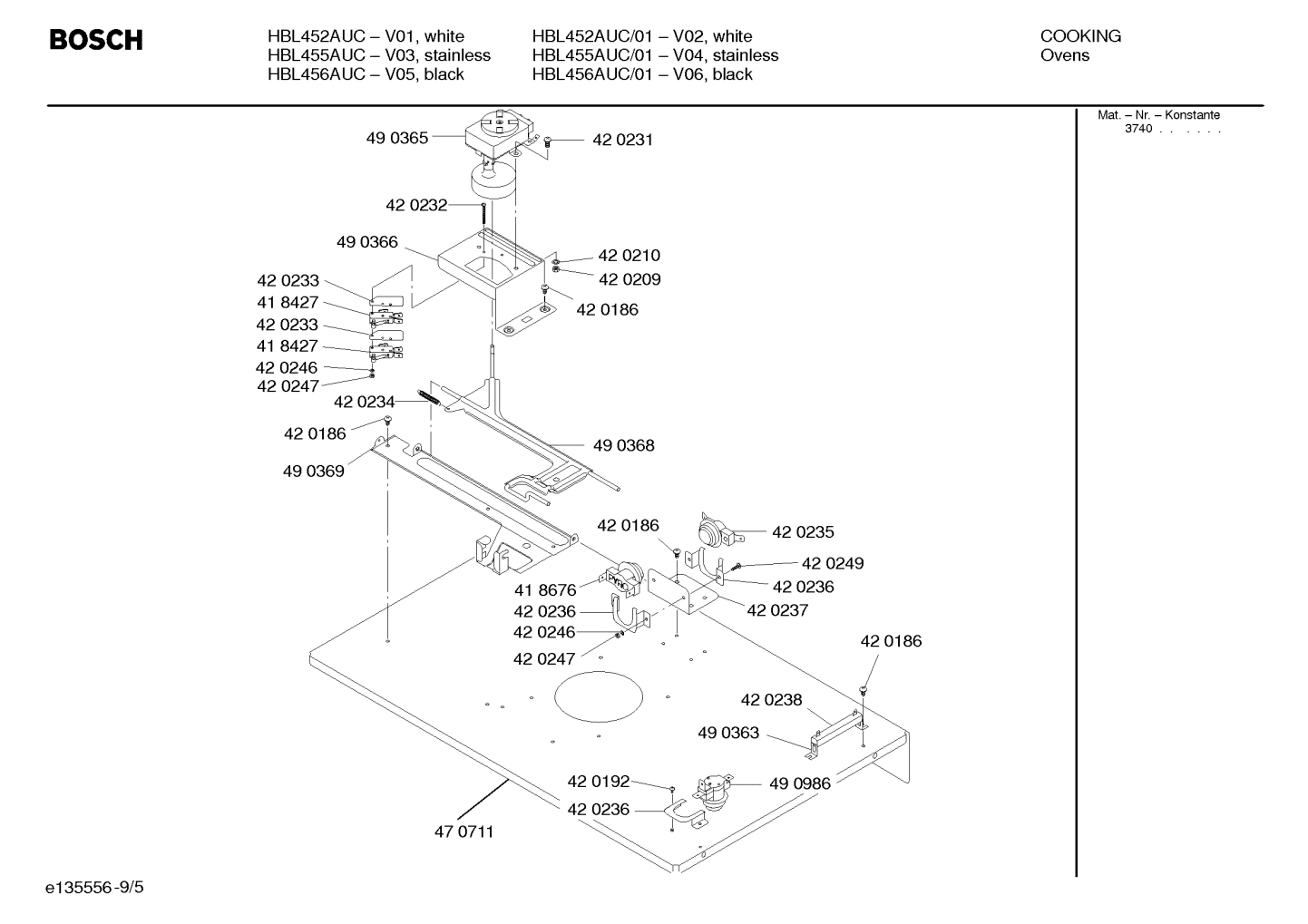

Diagram 5

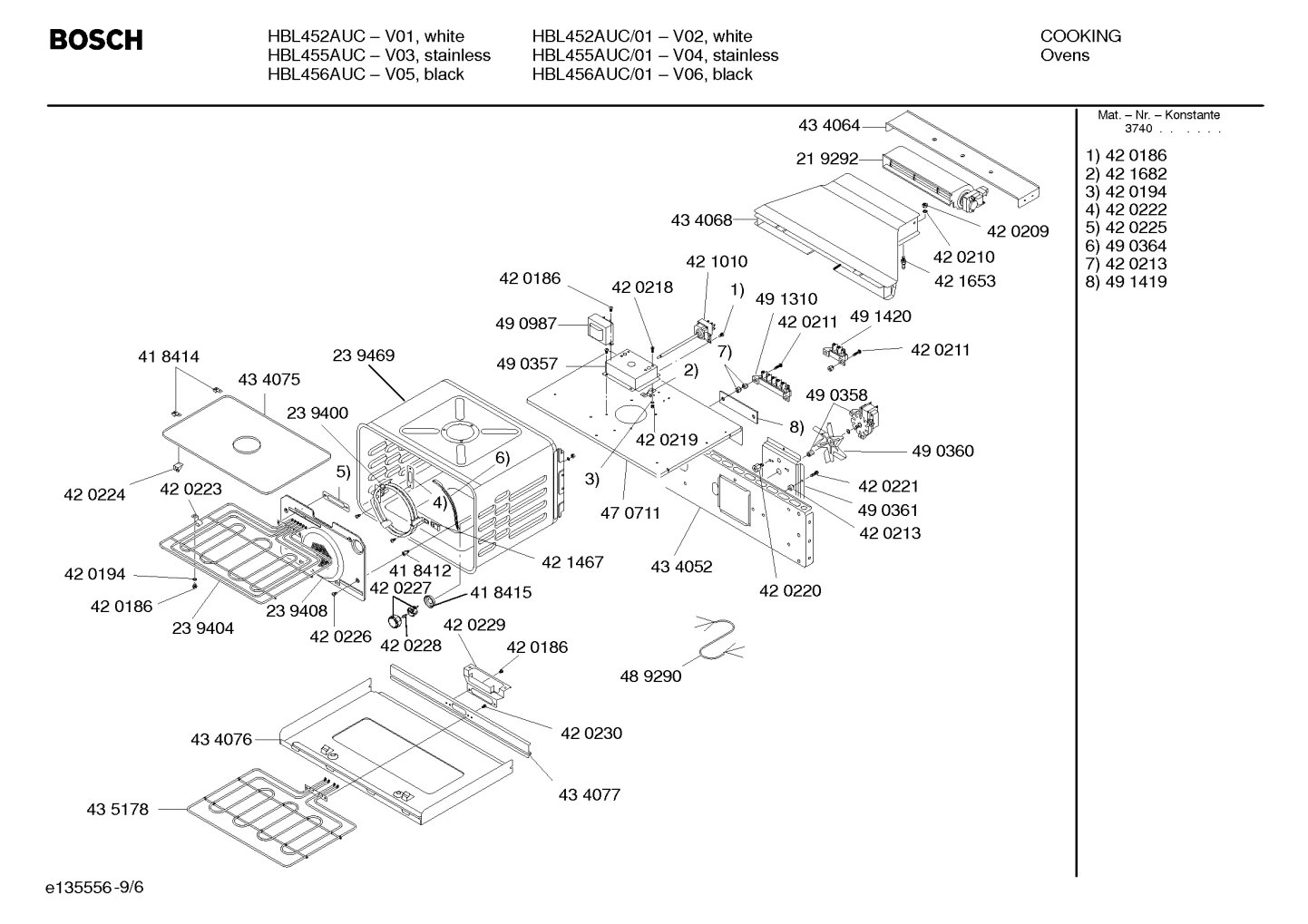

Diagram 6

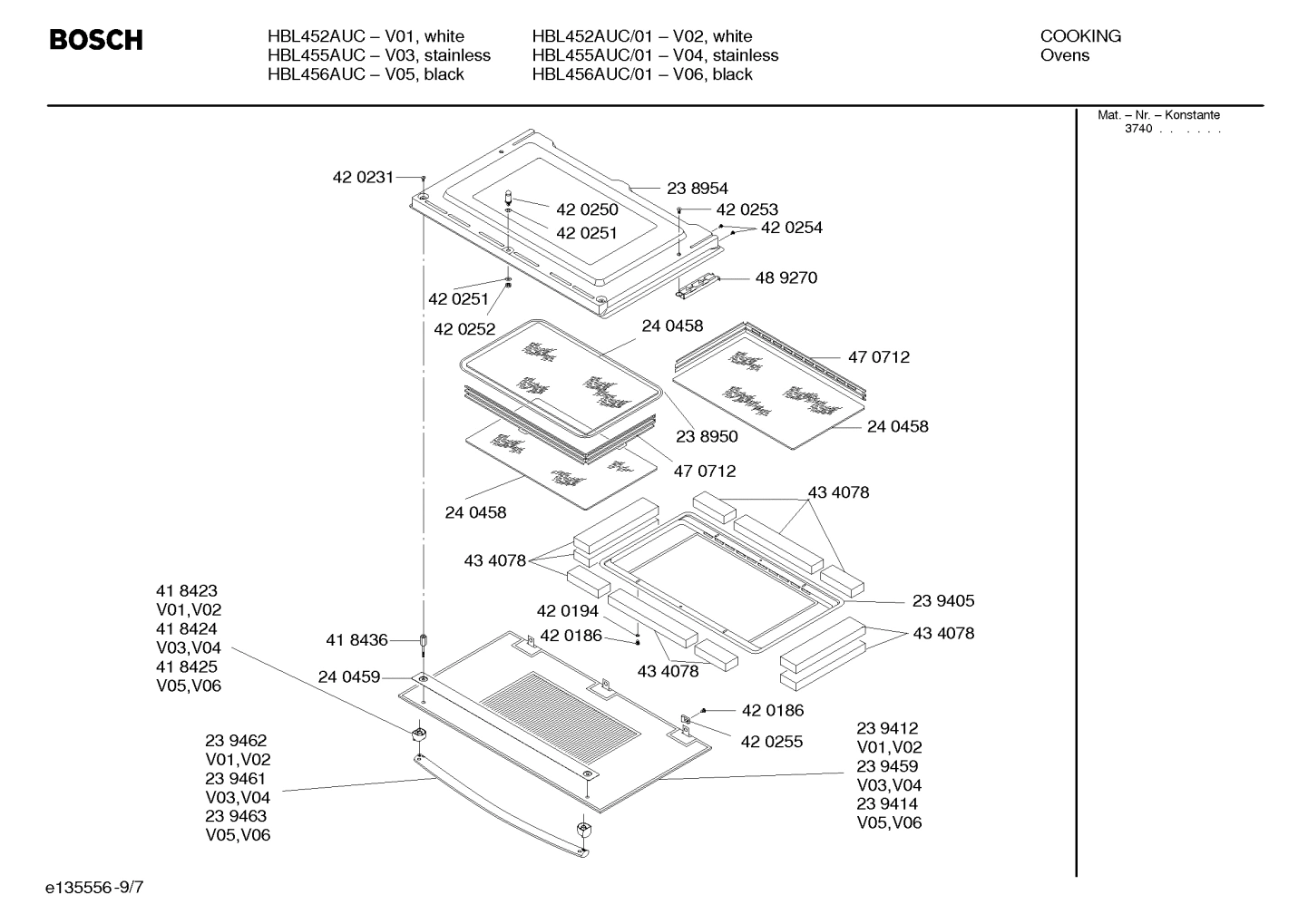

Diagram 7

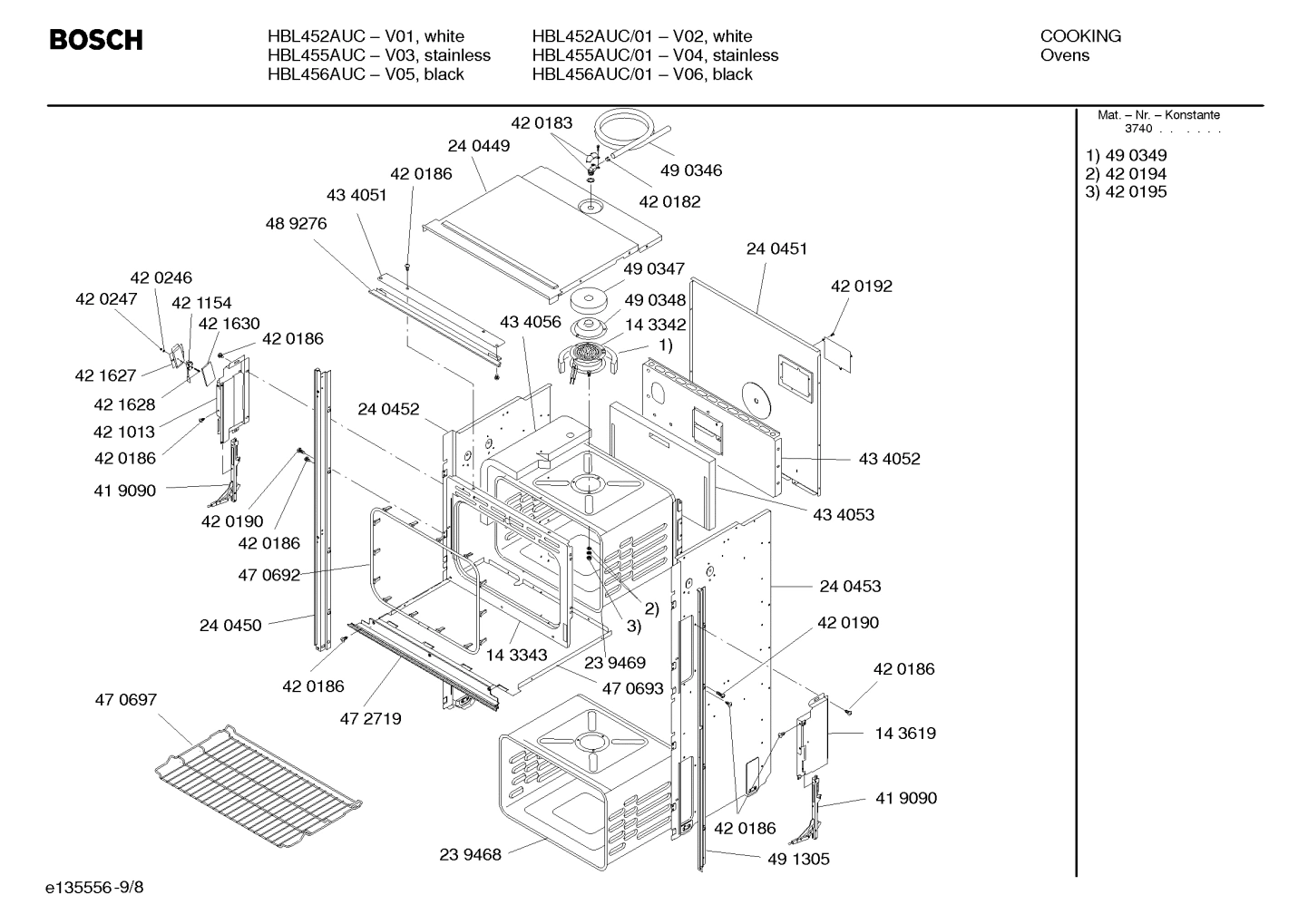

Diagram 8

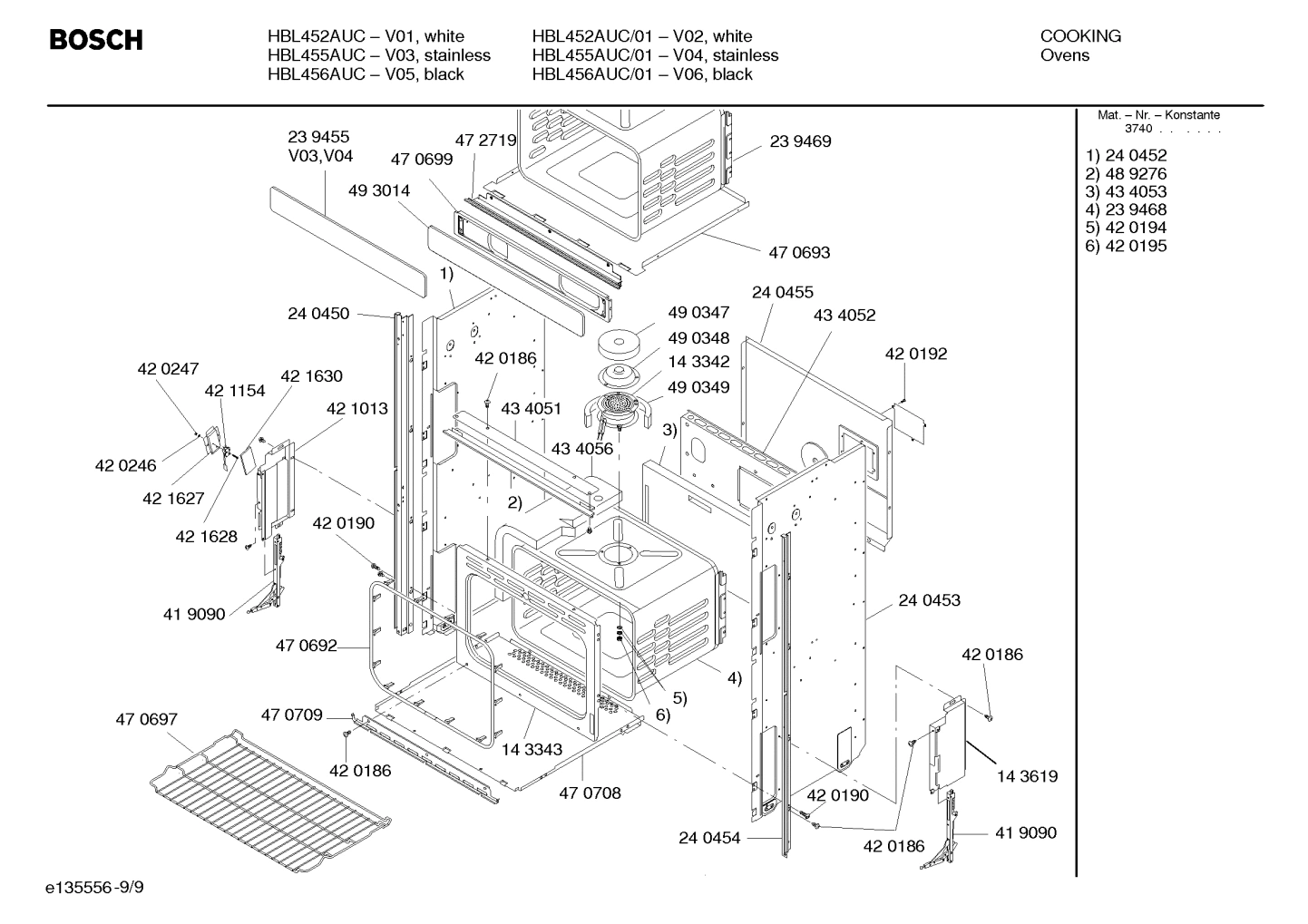

Diagram 9
Common parts from model Bosch HBL452AUC/01 Range Oven
0211
Switch-door BOS 00421154 Contact Us For Availability
0230
Spacer BOS 00489276 Contact Us For Availability
0235
Seal-door BOS 00470692 Contact Us For Availability
0241
Door hinge BOS 00493360 Contact Us For Availability
0308
Terminal BOS 00491310 Contact Us For Availability
0320
Fan motor BOS 00490358 Contact Us For Availability
0328
Ventilation duct BOS 00490364 Contact Us For Availability
0329
Seal BOS 00420222 Contact Us For Availability
0330
Clamp BOS 00421467 Contact Us For Availability
0401
Sheet BOS 00434064 Contact Us For Availability
0402
Fan BOS 00219292 Contact Us For Availability
0405
Pin BOS 00421653 Contact Us For Availability
0406
Ventilation duct BOS 00434068 Contact Us For Availability
0407
Screw BOS 00420211 Contact Us For Availability
0408
Terminal BOS 00491420 Contact Us For Availability
0409
Spacer BOS 00420213 Contact Us For Availability
0410
Thermometer BOS 00491311 Contact Us For Availability
0412
Screw BOS 00420218 Contact Us For Availability
0413
Clip BOS 00421682 Contact Us For Availability
0415
Nut BOS 00420219 Contact Us For Availability
0416
Transformer BOS 00418461 Contact Us For Availability
0417
Support BOS 00490357 Contact Us For Availability
0419
Panel BOS 00434052 Contact Us For Availability
0421
Oven cavity BOS 00239468 Contact Us For Availability
0422
Screw BOS 00418412 Contact Us For Availability
0423
Cover BOS 00418415 Contact Us For Availability
0424
Lamp housing BOS 00420227 Contact Us For Availability
0426
Reflector BOS 00434075 Contact Us For Availability
0427
Spring BOS 00418414 Contact Us For Availability
0428
Clip BOS 00420224 Contact Us For Availability
0429
Clip BOS 00420223 Contact Us For Availability
0430
Heating element BOS 00239404 Contact Us For Availability
0431
Sealing BOS 00420225 Contact Us For Availability
0432
Cover BOS 00239408 Contact Us For Availability
0433
Screw BOS 00420226 Contact Us For Availability
0434
Bracket BOS 00420229 Contact Us For Availability
0435
Strip-decor BOS 00434077 Contact Us For Availability
0436
Screw BOS 00420230 Contact Us For Availability
0437
Tray BOS 00434076 Contact Us For Availability
0438
Heater-bottom BOS 00435178 Contact Us For Availability
0439
Cable harness BOS 00489290 Contact Us For Availability
0501
Motor BOS 00490365 Contact Us For Availability
0503
Screw BOS 00420232 Contact Us For Availability
0504
Housing BOS 00490366 Contact Us For Availability
0505
Retaining washer BOS 00420210 Contact Us For Availability
0506
Nut BOS 00420209 Contact Us For Availability
0508
Plate BOS 00420233 Contact Us For Availability
0509
Switch BOS 00600145 Contact Us For Availability
0510
Retaining washer BOS 00420246 Contact Us For Availability
0511
Nut BOS 00420247 Contact Us For Availability
0512
Spring BOS 00420234 Contact Us For Availability
0513
Latch BOS 00490368 Contact Us For Availability
0514
Guide BOS 00490369 Contact Us For Availability
0515
Temperature sensor BOS 00420235 Contact Us For Availability
0516
Screw BOS 00420249 Contact Us For Availability
0517
Bracket BOS 00420236 Contact Us For Availability
0518
Support BOS 00420237 Contact Us For Availability
0519
Temperature sensor BOS 00418676 Contact Us For Availability
0520
Resistor BOS 00420238 Contact Us For Availability
0521
Support BOS 00490363 Contact Us For Availability
0522
Temperature sensor BOS 00490986 Contact Us For Availability
0523
Screw BOS 00420192 Contact Us For Availability
0524
Dividing wall BOS 00470711 Contact Us For Availability
0601
Hose BOS 00420989 Contact Us For Availability
0602
Thermometer BOS 00421029 Contact Us For Availability
0603
Switch BOS 00421017 Contact Us For Availability
0604
Clip BOS 00421468 Contact Us For Availability
0605
Bracket BOS 00491400 Contact Us For Availability
0606
Screw BOS 00421544 Contact Us For Availability
0608
Switch-selector BOS 00421027 Contact Us For Availability
0609
Temperature sensor BOS 00369731 Contact Us For Availability
0610
Relay BOS 00489264 Contact Us For Availability
0611
Spacer BOS 00489263 Contact Us For Availability
0612
Bracket BOS 00421545 Contact Us For Availability
0613
Switch-selector BOS 00490963 Contact Us For Availability
0614
Switch-selector BOS 00490962 Contact Us For Availability
0615
Frame BOS 00493015 Contact Us For Availability
0616
Pin BOS 00421016 Contact Us For Availability
0617
Time switch BOS 00489265 Contact Us For Availability
0618
Lamp BOS 00418430 Contact Us For Availability
0619
Lamp BOS 00421537 Contact Us For Availability
0620
Push button cap BOS 00421466 Contact Us For Availability
0621
Glass panel BOS 00239446 Contact Us For Availability
0622
Knob BOS 00418434 Contact Us For Availability
0701
Door-inner BOS 00238954 Contact Us For Availability
0702
Screw BOS 00420231 Contact Us For Availability
0703
Pin BOS 00420250 Contact Us For Availability
0704
Washer BOS 00420251 Contact Us For Availability
0705
Nut BOS 00420252 Contact Us For Availability
0706
Screw BOS 00420253 Contact Us For Availability
0707
Screw BOS 00420254 Contact Us For Availability
0708
Hinge BOS 00489270 Contact Us For Availability
0709
Seal BOS 00238950 Contact Us For Availability
0710
Glass panel BOS 00240458 Contact Us For Availability
0711
Spacer BOS 00470712 Contact Us For Availability
0712
Reflector BOS 00239405 Contact Us For Availability
0713
Insulating part BOS 00434078 Contact Us For Availability
0714
Retaining washer BOS 00420194 Contact Us For Availability
0715
Screw BOS 00420186 Contact Us For Availability
0716
Clip BOS 00420255 Contact Us For Availability
0717
Door BOS 00239412 Contact Us For Availability
0718
Screw BOS 00418436 Contact Us For Availability
0719
Retaining plate BOS 00240459 Contact Us For Availability
0720
Spacer BOS 00418423 Contact Us For Availability
0721
Handle-door BOS 00239462 Contact Us For Availability
0722
Installation instructions BOS 00552751 Contact Us For Availability
0723
Screw BOS 00420256 Contact Us For Availability
× ![]()
