Model Bosch HBL442AUC/01 Range Oven – Common Parts & Diagrams

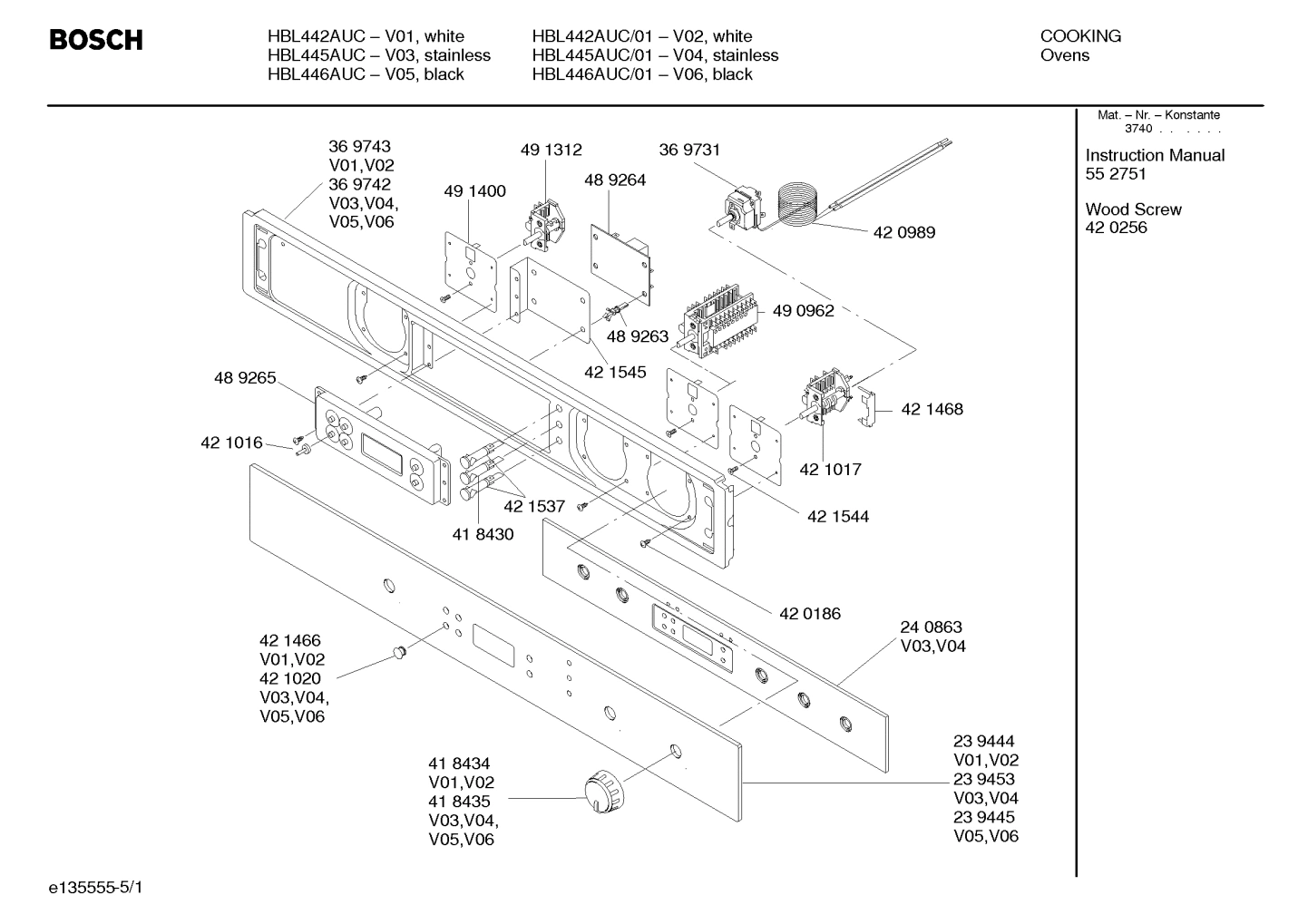

Diagram 1

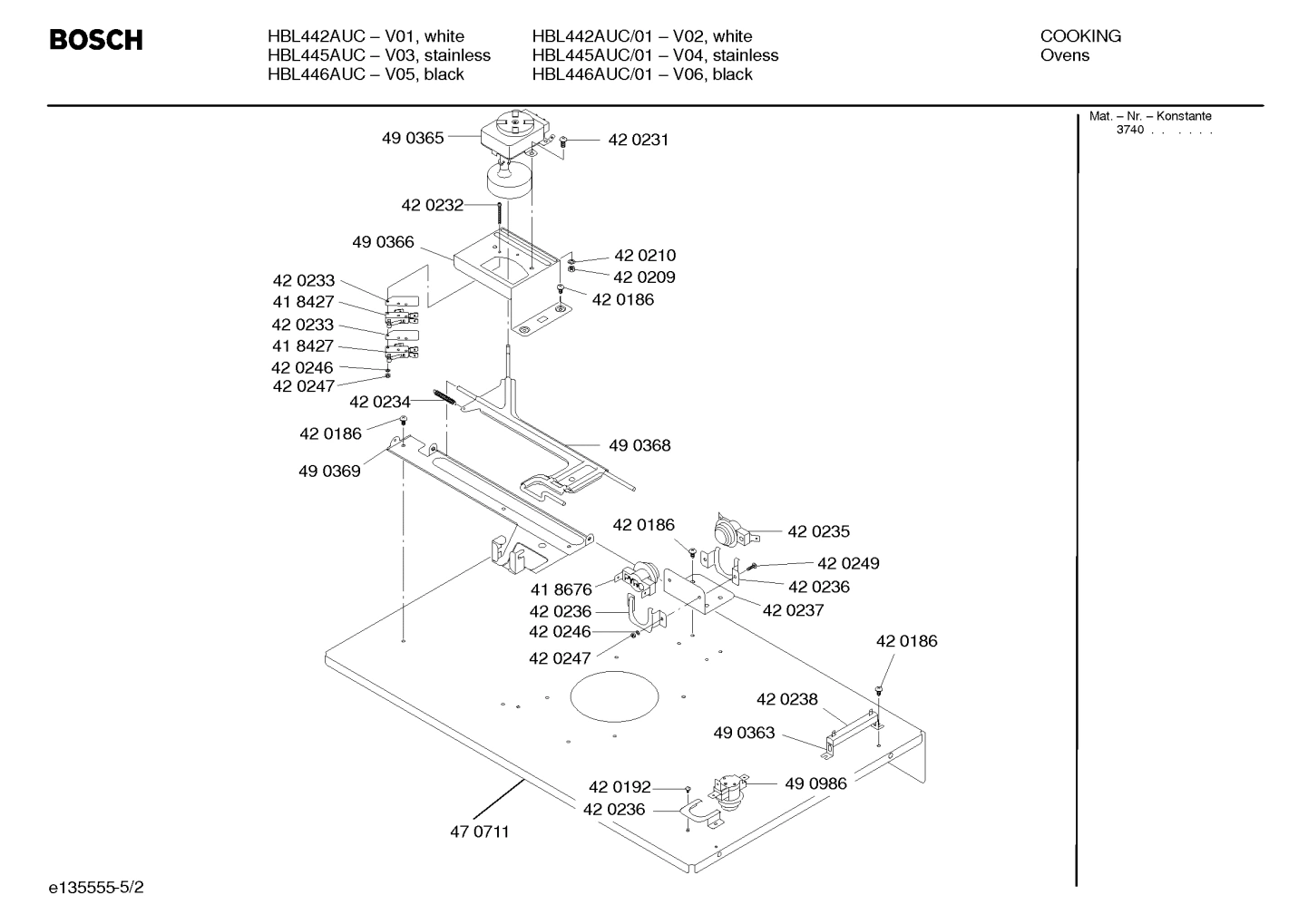

Diagram 2

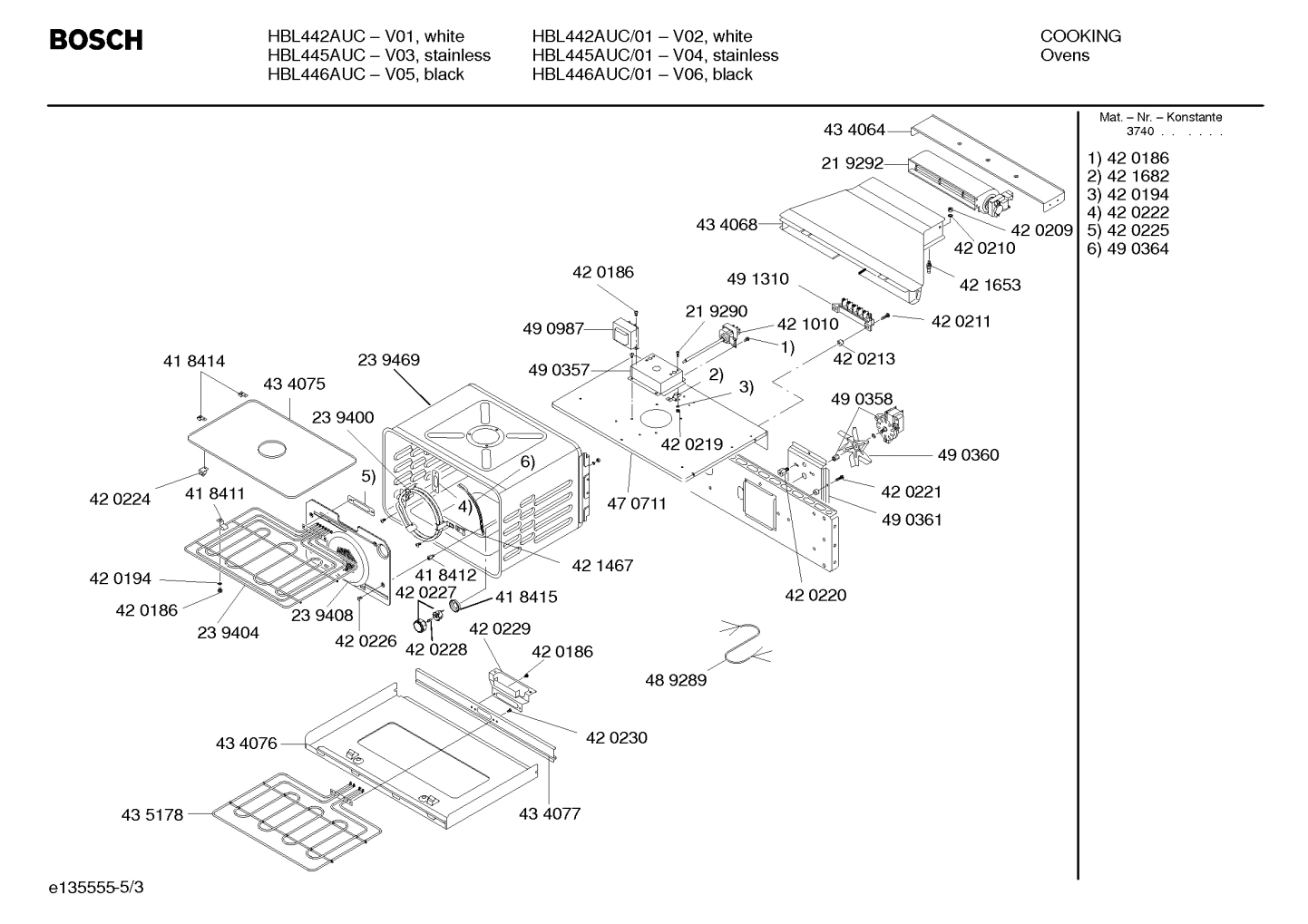

Diagram 3

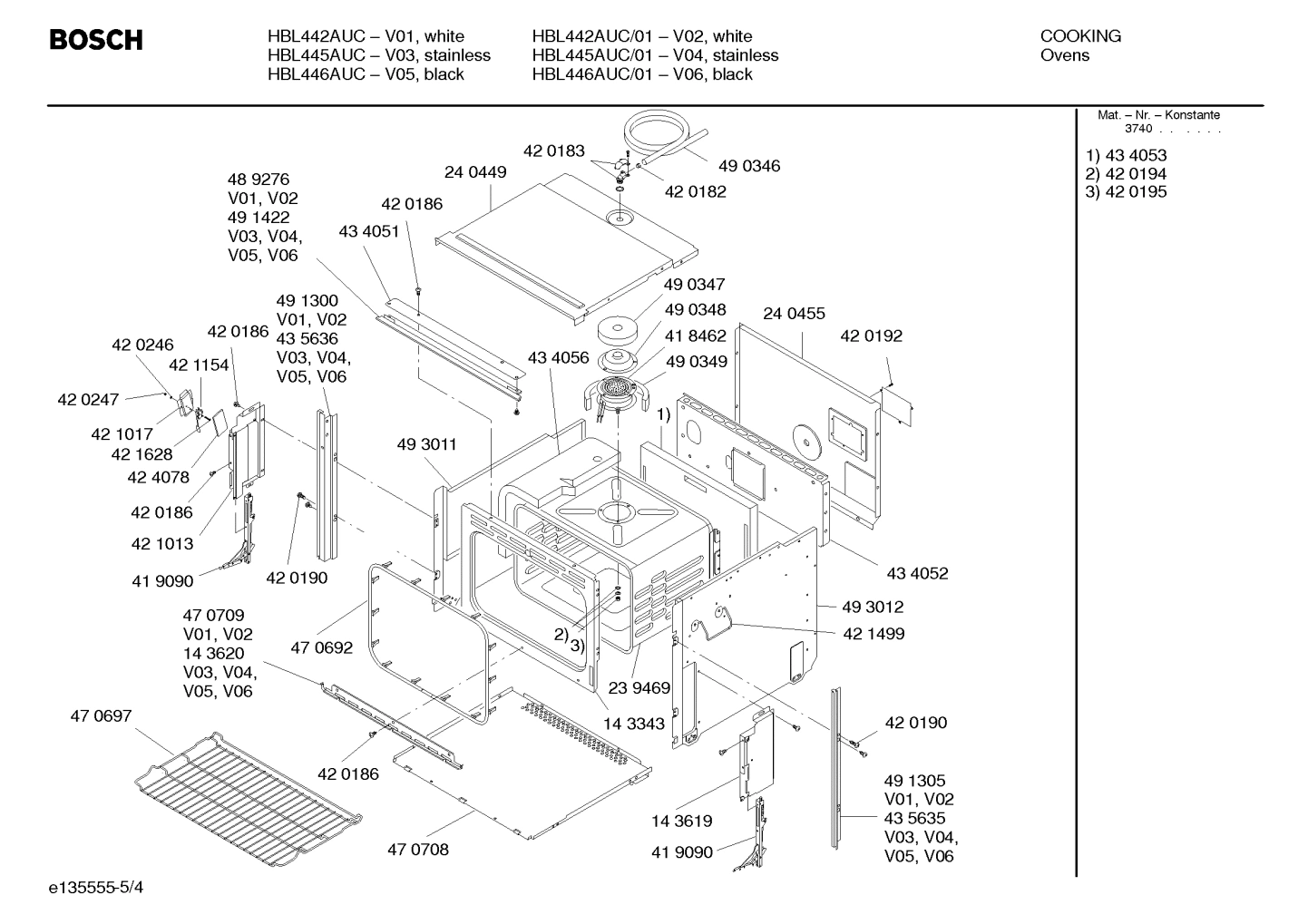

Diagram 4

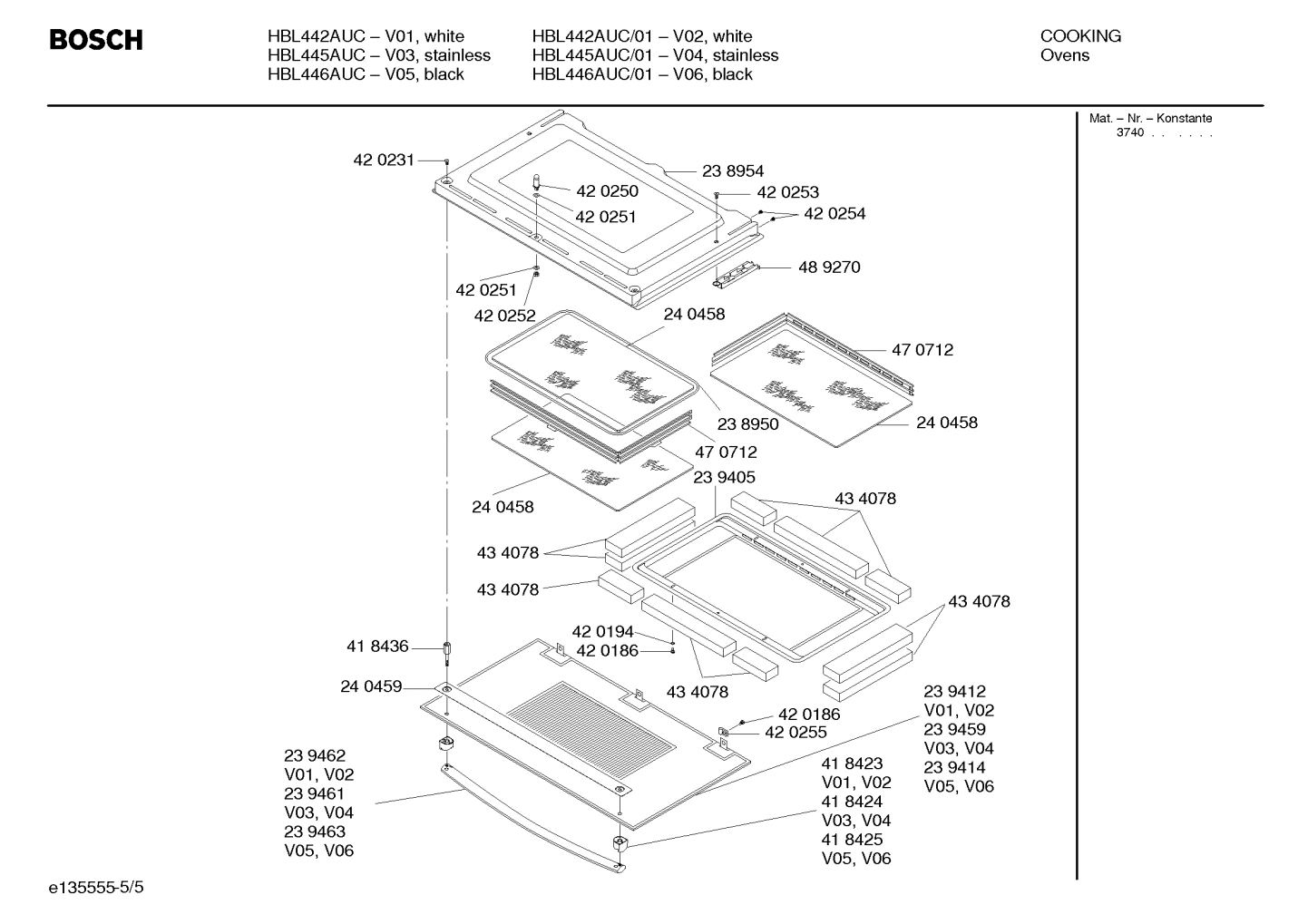

Diagram 5
Common parts from model Bosch HBL442AUC/01 Range Oven
0109
Spacer BOS 00489276 Contact Us For Availability
0113
Switch-door BOS 00421154 Contact Us For Availability
0136
Seal-door BOS 00470692 Contact Us For Availability
0142
Door hinge BOS 00493360 Contact Us For Availability
0202
Fan BOS 00219292 Contact Us For Availability
0208
Terminal BOS 00491310 Contact Us For Availability
0215
Nut BOS 00420219 Contact Us For Availability
0216
Transformer BOS 00418461 Contact Us For Availability
0217
Support BOS 00490357 Contact Us For Availability
0219
Fan motor BOS 00490358 Contact Us For Availability
0220
Fan BOS 00497261 Contact Us For Availability
0221
Screw BOS 00420221 Contact Us For Availability
0222
Support BOS 00490361 Contact Us For Availability
0223
Screw BOS 00420220 Contact Us For Availability
0224
Panel BOS 00434052 Contact Us For Availability
0226
Spare part BOS 00239469 Contact Us For Availability
0227
Ventilation duct BOS 00490364 Contact Us For Availability
0228
Seal BOS 00420222 Contact Us For Availability
0229
Clamp BOS 00421467 Contact Us For Availability
0230
Screw BOS 00418412 Contact Us For Availability
0232
Cover BOS 00418415 Contact Us For Availability
0233
Lamp housing BOS 00420227 Contact Us For Availability
0235
Reflector BOS 00434075 Contact Us For Availability
0236
Spring BOS 00418414 Contact Us For Availability
0237
Clip BOS 00420224 Contact Us For Availability
0238
Clamp BOS 00424151 Contact Us For Availability
0239
Heating element BOS 00239404 Contact Us For Availability
0240
Sealing BOS 00420225 Contact Us For Availability
0241
Cover BOS 00239408 Contact Us For Availability
0242
Screw BOS 00420226 Contact Us For Availability
0243
Bracket BOS 00420229 Contact Us For Availability
0244
Strip-decor BOS 00434077 Contact Us For Availability
0245
Screw BOS 00420230 Contact Us For Availability
0246
Tray BOS 00434076 Contact Us For Availability
0247
Heater-bottom BOS 00435178 Contact Us For Availability
0248
Cable harness BOS 00489289 Contact Us For Availability
0301
Motor BOS 00490365 Contact Us For Availability
0303
Screw BOS 00420232 Contact Us For Availability
0304
Housing BOS 00490366 Contact Us For Availability
0305
Retaining washer BOS 00420210 Contact Us For Availability
0306
Nut BOS 00420209 Contact Us For Availability
0308
Plate BOS 00420233 Contact Us For Availability
0309
Switch BOS 00600145 Contact Us For Availability
0310
Retaining washer BOS 00420246 Contact Us For Availability
0311
Nut BOS 00420247 Contact Us For Availability
0312
Spring BOS 00420234 Contact Us For Availability
0313
Latch BOS 00490368 Contact Us For Availability
0314
Guide BOS 00490369 Contact Us For Availability
0315
Temperature sensor BOS 00420235 Contact Us For Availability
0316
Screw BOS 00420249 Contact Us For Availability
0317
Bracket BOS 00420236 Contact Us For Availability
0318
Support BOS 00420237 Contact Us For Availability
0319
Temperature sensor BOS 00418676 Contact Us For Availability
0320
Resistor BOS 00420238 Contact Us For Availability
0321
Support BOS 00490363 Contact Us For Availability
0322
Temperature sensor BOS 00490986 Contact Us For Availability
0323
Screw BOS 00420192 Contact Us For Availability
0324
Dividing wall BOS 00470711 Contact Us For Availability
0401
Hose BOS 00420989 Contact Us For Availability
0402
Temperature sensor BOS 00369731 Contact Us For Availability
0403
Time switch BOS 00491312 Contact Us For Availability
0404
Bracket BOS 00491400 Contact Us For Availability
0405
Screw BOS 00421544 Contact Us For Availability
0406
Relay BOS 00489264 Contact Us For Availability
0407
Spacer BOS 00489263 Contact Us For Availability
0408
Bracket BOS 00421545 Contact Us For Availability
0409
Switch-selector BOS 00490962 Contact Us For Availability
0410
Clip BOS 00421468 Contact Us For Availability
0411
Switch BOS 00421017 Contact Us For Availability
0412
Frame BOS 00369743 Contact Us For Availability
0414
Time switch BOS 00489265 Contact Us For Availability
0415
Pin BOS 00421016 Contact Us For Availability
0416
Lamp BOS 00421537 Contact Us For Availability
0417
Lamp BOS 00418430 Contact Us For Availability
0418
Panel-facia BOS 00239444 Contact Us For Availability
0419
Knob BOS 00418434 Contact Us For Availability
0420
Push button cap BOS 00421466 Contact Us For Availability
0501
Door-inner BOS 00238954 Contact Us For Availability
0502
Screw BOS 00420231 Contact Us For Availability
0503
Pin BOS 00420250 Contact Us For Availability
0504
Washer BOS 00420251 Contact Us For Availability
0505
Nut BOS 00420252 Contact Us For Availability
0506
Screw BOS 00420253 Contact Us For Availability
0507
Screw BOS 00420254 Contact Us For Availability
0508
Hinge BOS 00489270 Contact Us For Availability
0509
Seal BOS 00238950 Contact Us For Availability
0510
Glass panel BOS 00240458 Contact Us For Availability
0511
Spacer BOS 00470712 Contact Us For Availability
0512
Reflector BOS 00239405 Contact Us For Availability
0513
Insulating part BOS 00434078 Contact Us For Availability
0514
Retaining washer BOS 00420194 Contact Us For Availability
0515
Screw BOS 00420186 Contact Us For Availability
0516
Clip BOS 00420255 Contact Us For Availability
0517
Door BOS 00239412 Contact Us For Availability
0518
Screw BOS 00418436 Contact Us For Availability
0519
Retaining plate BOS 00240459 Contact Us For Availability
0520
Spacer BOS 00418423 Contact Us For Availability
0521
Handle-door BOS 00239462 Contact Us For Availability
0522
Installation instructions BOS 00552751 Contact Us For Availability
0523
Screw BOS 00420256 Contact Us For Availability
× ![]()
