Model Bosch HBL435AUC/01 Range Oven – Common Parts & Diagrams
Diagram 1

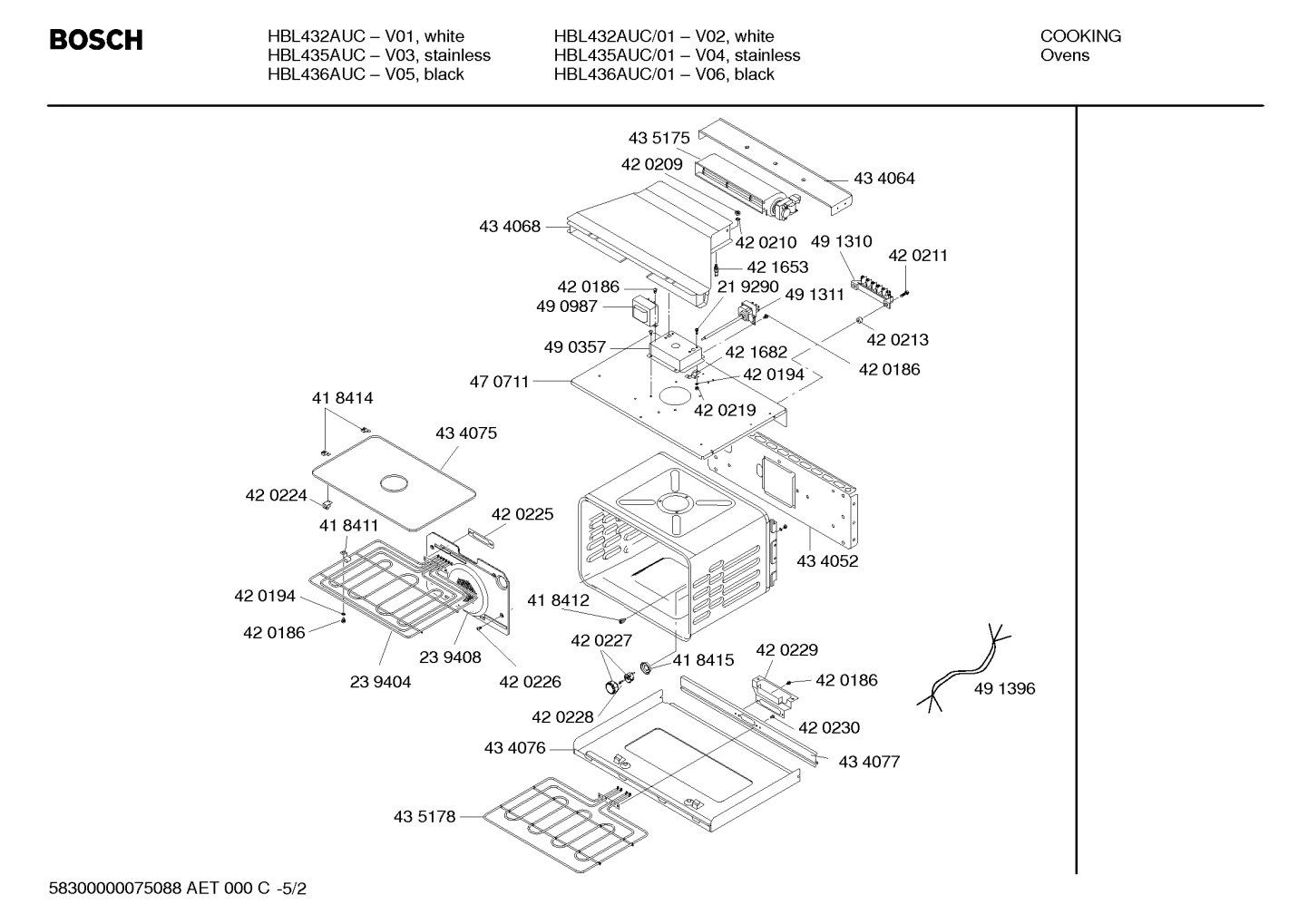

Diagram 2

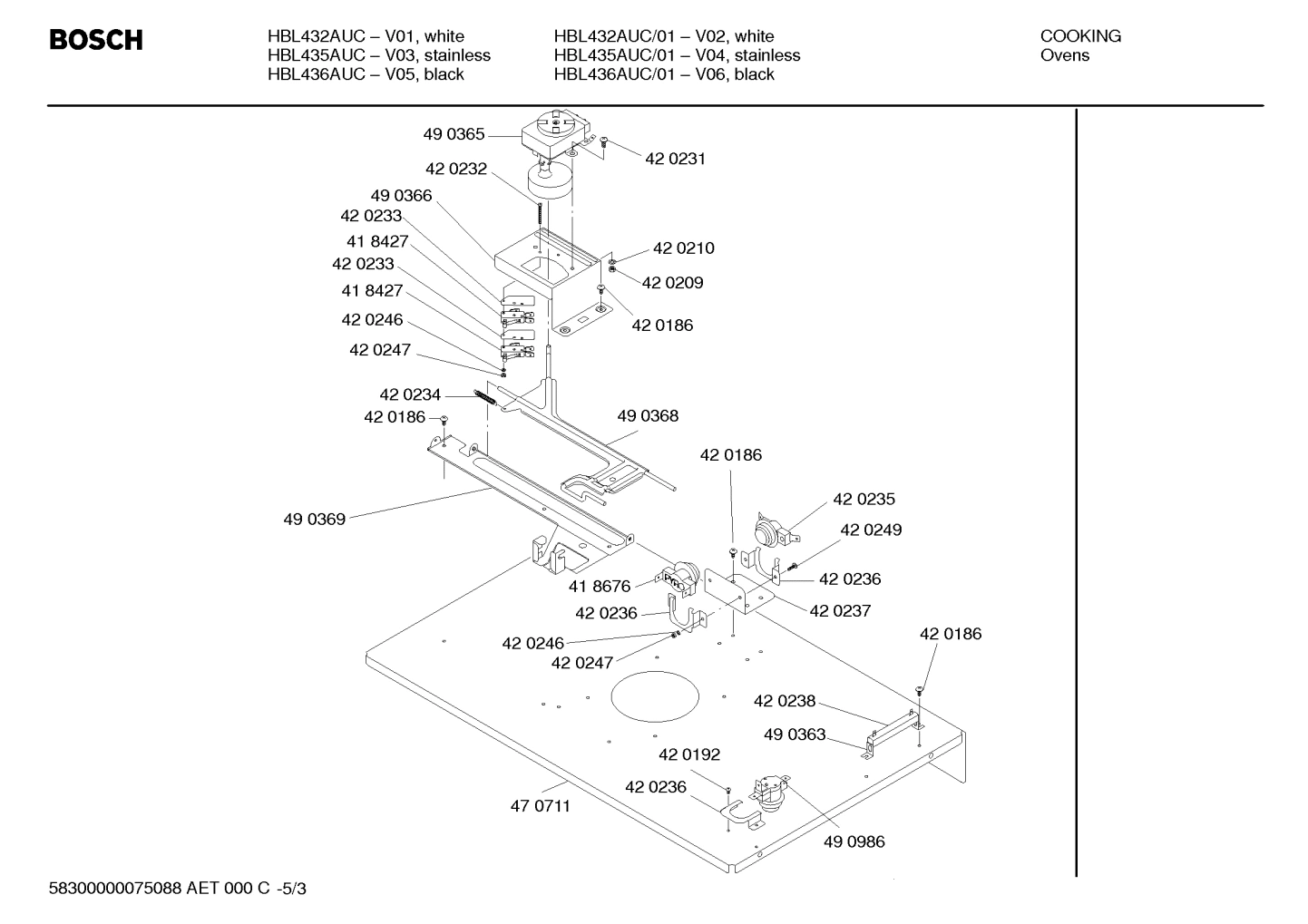

Diagram 3

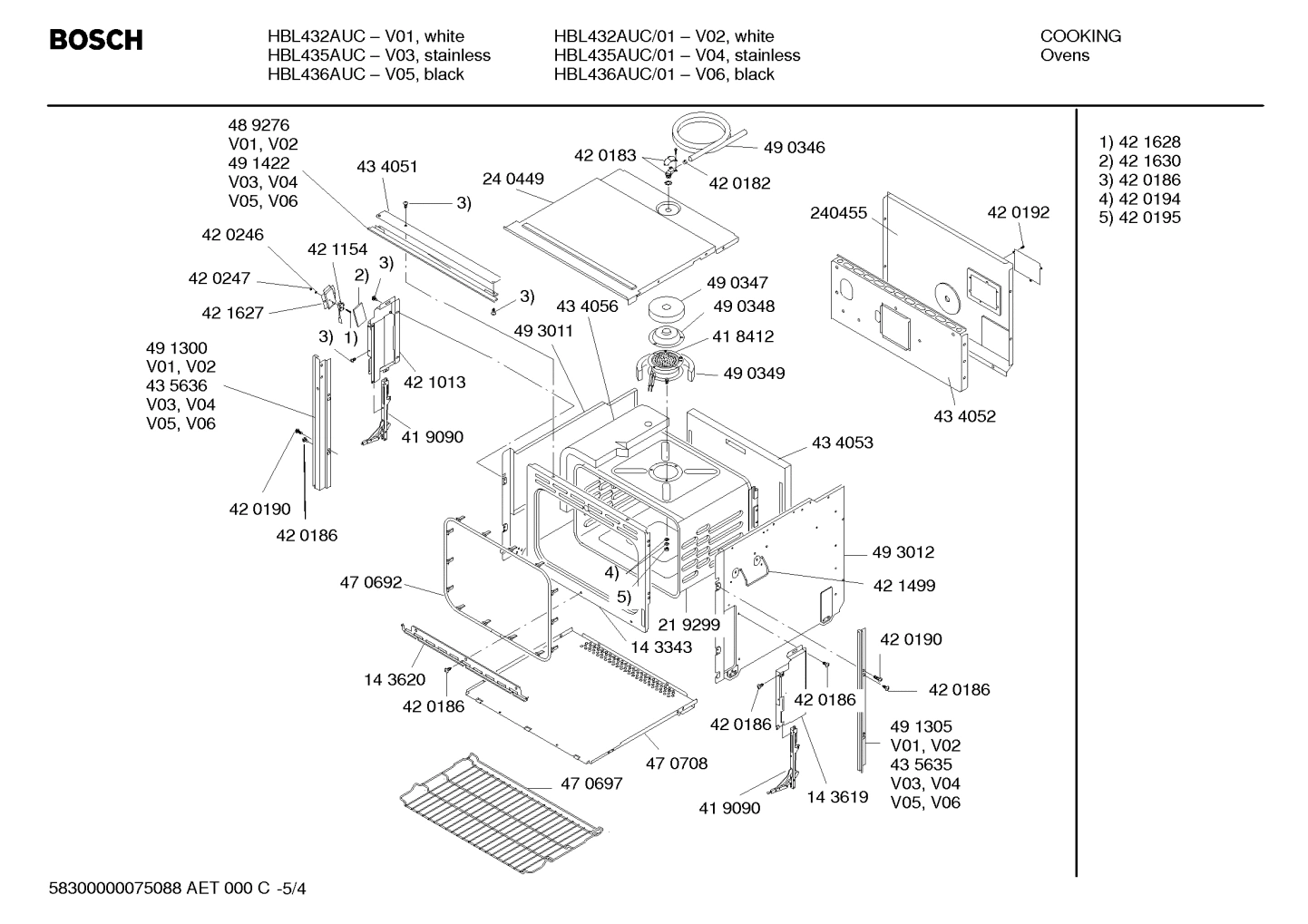

Diagram 4

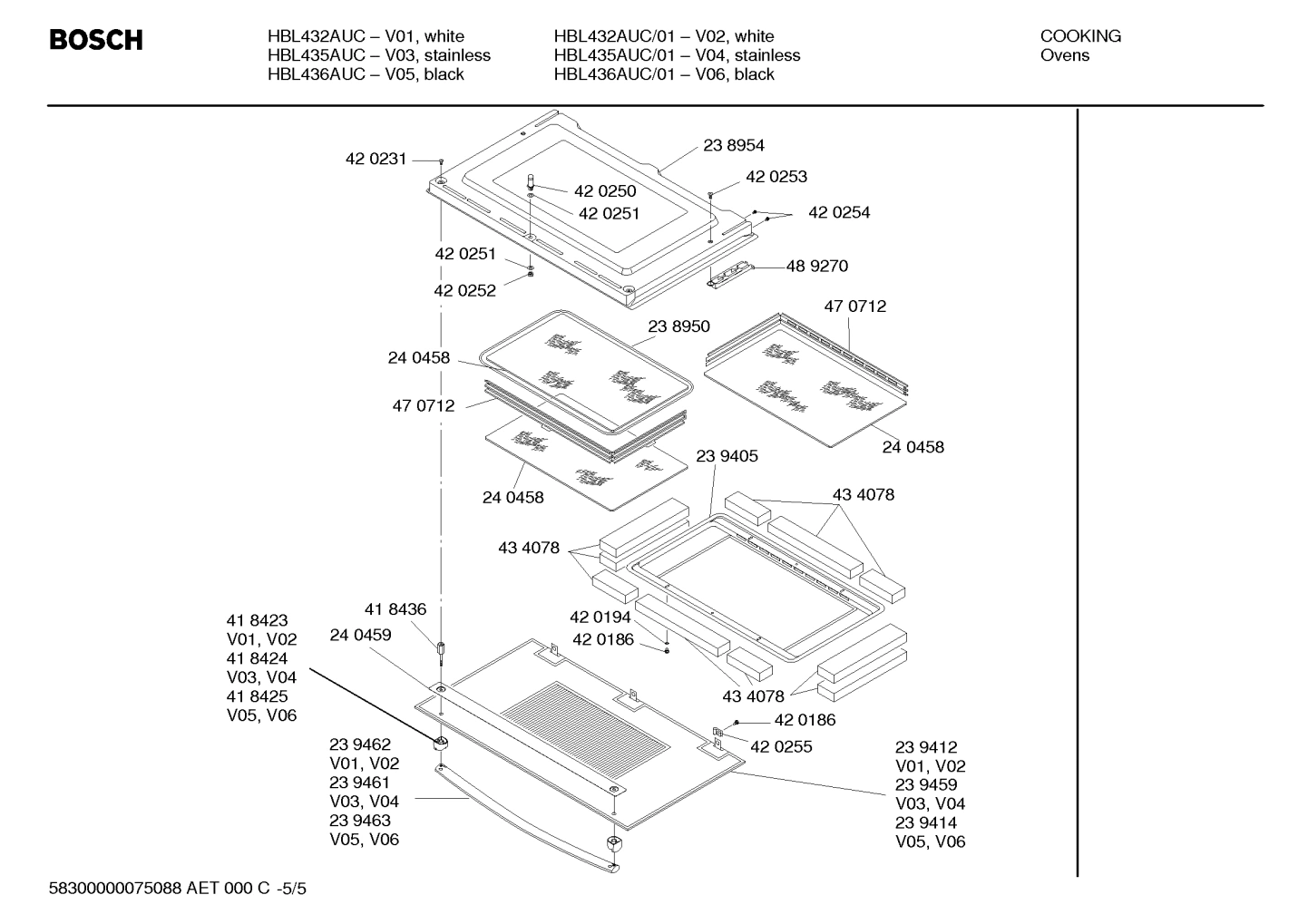

Diagram 5
Common parts from model Bosch HBL435AUC/01 Range Oven
0003
Time switch BOS 00491312 Contact Us For Availability
0006
Relay BOS 00489264 Contact Us For Availability
0014
Time switch BOS 00489265 Contact Us For Availability
0019
Knob BOS 00418435 Contact Us For Availability
0020
Push button cap BOS 00421020 Contact Us For Availability
0021
Motor BOS 00490365 Contact Us For Availability
0028
Switch BOS 00600145 Contact Us For Availability
0038
Temperature sensor BOS 00418676 Contact Us For Availability
0041
Temperature sensor BOS 00490986 Contact Us For Availability
0045
Fan BOS 00219292 Contact Us For Availability
0046
Nut BOS 00420209 Contact Us For Availability
0047
Retaining washer BOS 00420210 Contact Us For Availability
0048
Pin BOS 00421653 Contact Us For Availability
0049
Ventilation duct BOS 00434068 Contact Us For Availability
0050
Screw BOS 00420211 Contact Us For Availability
0051
Terminal BOS 00491310 Contact Us For Availability
0052
Spacer BOS 00420213 Contact Us For Availability
0053
Thermometer BOS 00491311 Contact Us For Availability
0055
Screw BOS 00219290 Contact Us For Availability
0056
Clip BOS 00421682 Contact Us For Availability
0058
Nut BOS 00420219 Contact Us For Availability
0059
Transformer BOS 00418461 Contact Us For Availability
0060
Support BOS 00490357 Contact Us For Availability
0061
Dividing wall BOS 00470711 Contact Us For Availability
0064
Screw BOS 00418412 Contact Us For Availability
0065
Cover BOS 00418415 Contact Us For Availability
0066
Lamp housing BOS 00420227 Contact Us For Availability
0068
Reflector BOS 00434075 Contact Us For Availability
0069
Spring BOS 00418414 Contact Us For Availability
0070
Clip BOS 00420224 Contact Us For Availability
0071
Clamp BOS 00424151 Contact Us For Availability
0072
Heating element BOS 00239404 Contact Us For Availability
0073
Sealing BOS 00420225 Contact Us For Availability
0074
Cover BOS 00239408 Contact Us For Availability
0075
Screw BOS 00420226 Contact Us For Availability
0076
Bracket BOS 00420229 Contact Us For Availability
0077
Strip-decor BOS 00434077 Contact Us For Availability
0078
Screw BOS 00420230 Contact Us For Availability
0079
Tray BOS 00434076 Contact Us For Availability
0080
Heater-bottom BOS 00435178 Contact Us For Availability
0081
Cable harness BOS 00491396 Contact Us For Availability
0082
Hose-vent BOS 00490346 Contact Us For Availability
0083
Sleeve BOS 00420182 Contact Us For Availability
0084
Connection piece BOS 00420183 Contact Us For Availability
0085
Case-upper part BOS 00240449 Contact Us For Availability
0087
Strip BOS 00434051 Contact Us For Availability
0089
Nut BOS 00420247 Contact Us For Availability
0090
Retaining washer BOS 00420246 Contact Us For Availability
0091
Housing part BOS 00421627 Contact Us For Availability
0092
Switch-door BOS 00421154 Contact Us For Availability
0093
Screw BOS 00421628 Contact Us For Availability
0094
Insulating part BOS 00421630 Contact Us For Availability
0095
Door hinge BOS 00421013 Contact Us For Availability
0096
Door hinge BOS 00419090 Contact Us For Availability
0097
Support BOS 00435636 Contact Us For Availability
0098
Screw BOS 00420190 Contact Us For Availability
0099
Screw BOS 00420192 Contact Us For Availability
0100
Case-rear part BOS 00240455 Contact Us For Availability
0101
Panel BOS 00434052 Contact Us For Availability
0102
Insulating part BOS 00434053 Contact Us For Availability
0103
Insulating part BOS 00490347 Contact Us For Availability
0104
Cover BOS 00490348 Contact Us For Availability
0105
Catalyzer BOS 00143342 Contact Us For Availability
0106
Insulating part BOS 00490349 Contact Us For Availability
0107
Insulating part BOS 00434056 Contact Us For Availability
0108
Spare part BOS 00240848 Contact Us For Availability
0110
Nut BOS 00420195 Contact Us For Availability
0111
Oven cavity BOS 00239468 Contact Us For Availability
0112
Frame BOS 00145540 Contact Us For Availability
0113
Seal-door BOS 00470692 Contact Us For Availability
0115
Grill grid BOS 00470697 Contact Us For Availability
0116
Case-bottom BOS 00470708 Contact Us For Availability
0118
Handle BOS 00421499 Contact Us For Availability
0119
Spare part BOS 00240849 Contact Us For Availability
0120
Door hinge BOS 00493360 Contact Us For Availability
0121
Support BOS 00435635 Contact Us For Availability
0122
Door-inner BOS 00238954 Contact Us For Availability
0123
Screw BOS 00420231 Contact Us For Availability
0124
Pin BOS 00420250 Contact Us For Availability
0125
Washer BOS 00420251 Contact Us For Availability
0126
Nut BOS 00420252 Contact Us For Availability
0127
Screw BOS 00420253 Contact Us For Availability
0128
Screw BOS 00420254 Contact Us For Availability
0129
Hinge BOS 00489270 Contact Us For Availability
0130
Seal BOS 00238950 Contact Us For Availability
0131
Glass panel BOS 00240458 Contact Us For Availability
0132
Spacer BOS 00470712 Contact Us For Availability
0133
Reflector BOS 00239405 Contact Us For Availability
0134
Insulating part BOS 00434078 Contact Us For Availability
0135
Retaining washer BOS 00420194 Contact Us For Availability
0136
Screw BOS 00420186 Contact Us For Availability
0137
Clip BOS 00420255 Contact Us For Availability
0138
Glass panel BOS 00239459 Contact Us For Availability
0139
Screw BOS 00418436 Contact Us For Availability
0140
Retaining plate BOS 00240459 Contact Us For Availability
0141
Spacer BOS 00418424 Contact Us For Availability
0142
Handle-door BOS 00239461 Contact Us For Availability
0143
Instruction manual BOS 00552752 Contact Us For Availability
0144
Installation instructions BOS 00552751 Contact Us For Availability
0145
Screw BOS 00420257 Contact Us For Availability
0147
Strip-decor BOS 00143620 Contact Us For Availability
× ![]()
