Bosch HBL3560UC/08 Range Oven Parts List

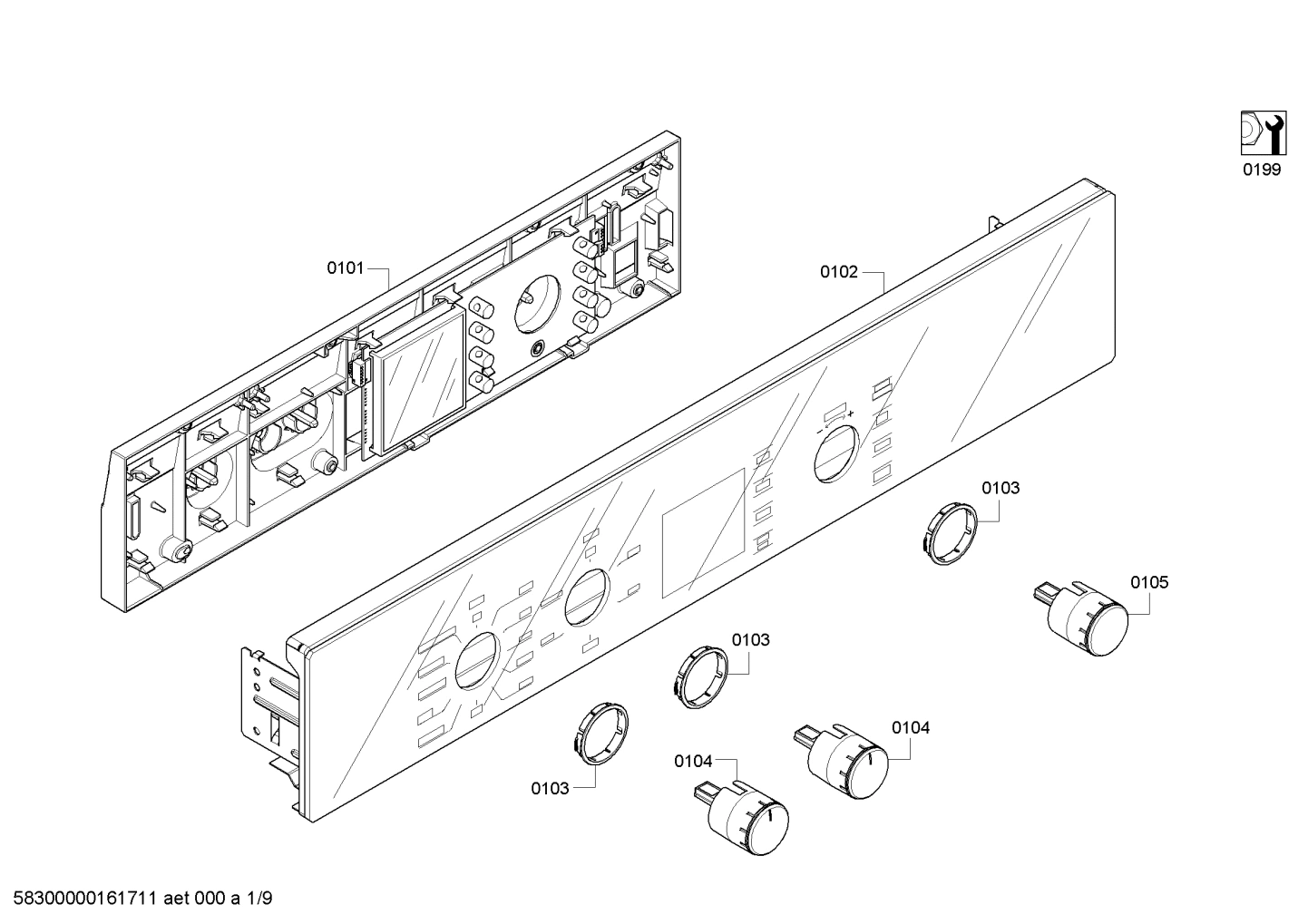

0101

00686559 Bosch Oven Interface Backorder BOS 00686559 $485.65

View on Model

0103

00421427 Bosch Oven Ring Backorder BOS 00421427 $5.14

View on Model

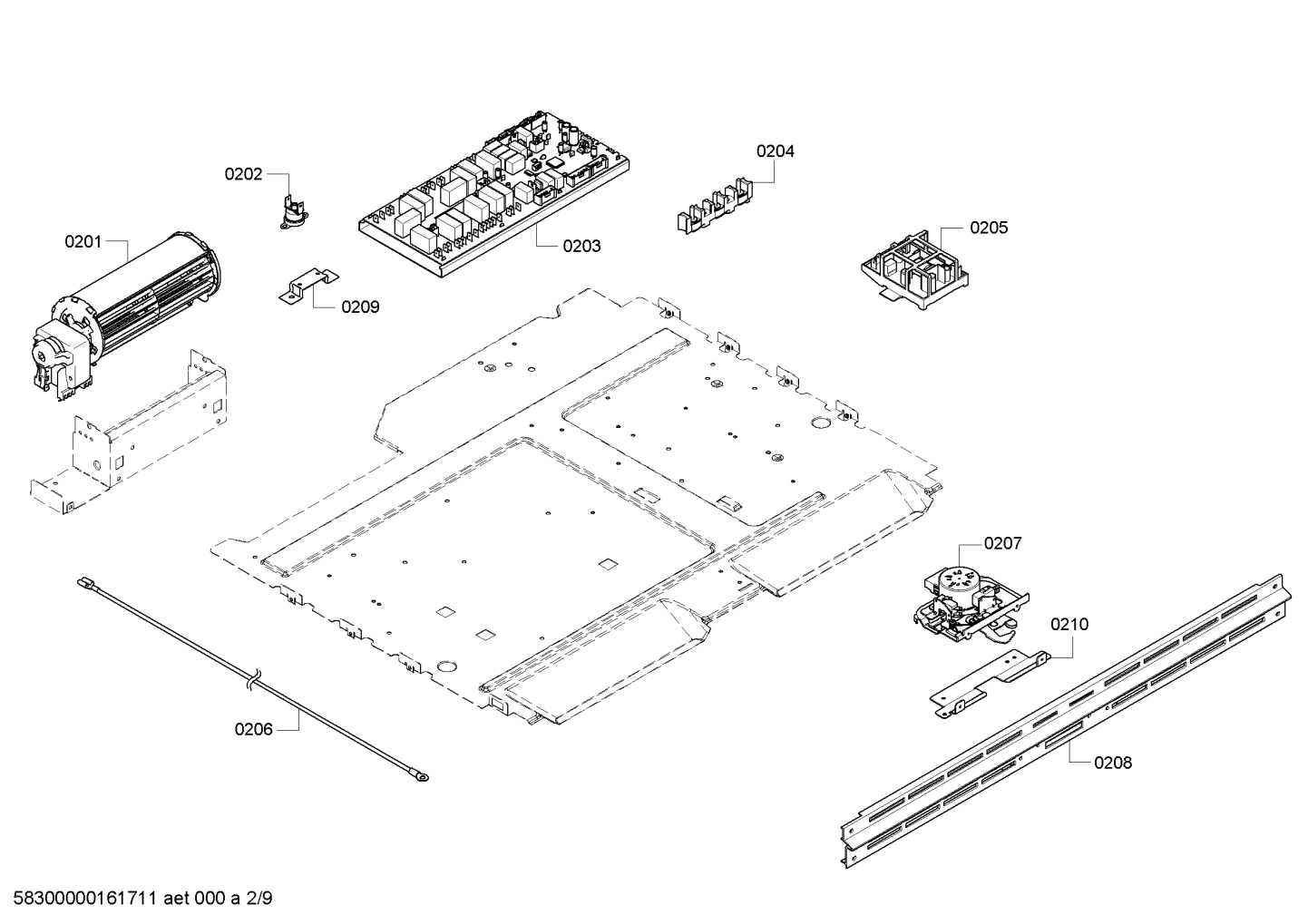

0203

12022213 Bosch Oven Control Module In Stock BOS 12022213 $556.19

View on Model

0204

00436364 Bosch Oven Terminal Box In Stock BOS 00436364 $31.42

View on Model

0205

Power supply unit BOS 00663802 Contact Us For Availability

View on Model

0250

Cable harness BOS 00646653 Contact Us For Availability

View on Model

0251

Cable harness BOS 00652261 Contact Us For Availability

View on Model

0252

00663791 Bosch Oven Cable Harness Backorder BOS 00663791 $30.89

View on Model

0253

Cable harness BOS 00663792 Contact Us For Availability

View on Model

0254

00663793 Bosch Oven Cable Harness Backorder BOS 00663793 $48.40

View on Model

0255

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $26.27

View on Model

0261

Cable harness BOS 00652260 Contact Us For Availability

View on Model

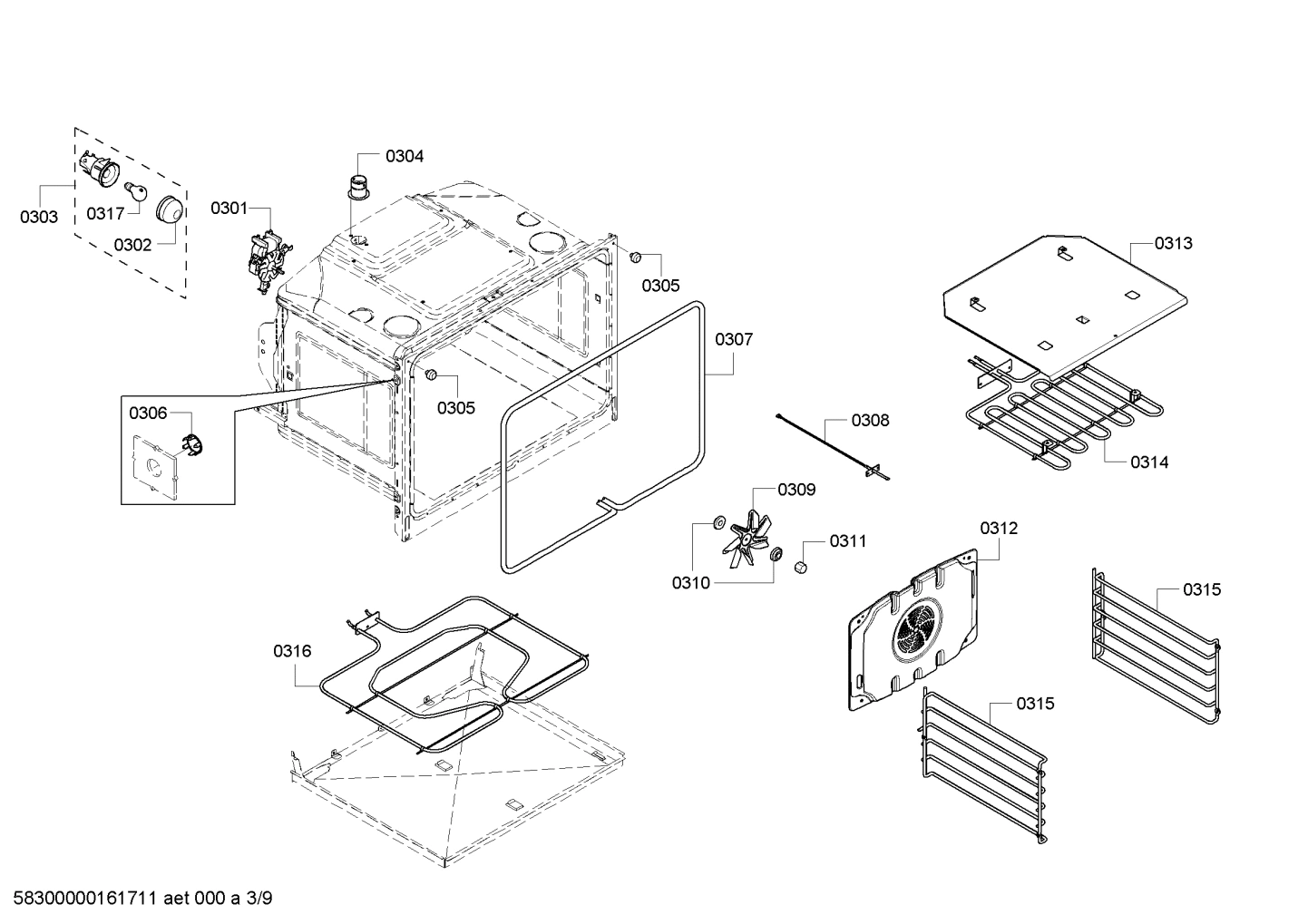

0301

00642845 Bosch Oven Motor In Stock BOS 00642845 $184.70

View on Model

0309

Fan blade BOS 00646291 Contact Us For Availability

View on Model

0311

00628609 Bosch Oven Fixing Kit Backorder BOS 00628609 $31.92

View on Model

0402

Door-inner BOS 00688561 Contact Us For Availability

View on Model

0407

Repair-set BOS 00650874 Contact Us For Availability

View on Model

0411

Washer BOS 00426300 Contact Us For Availability

View on Model

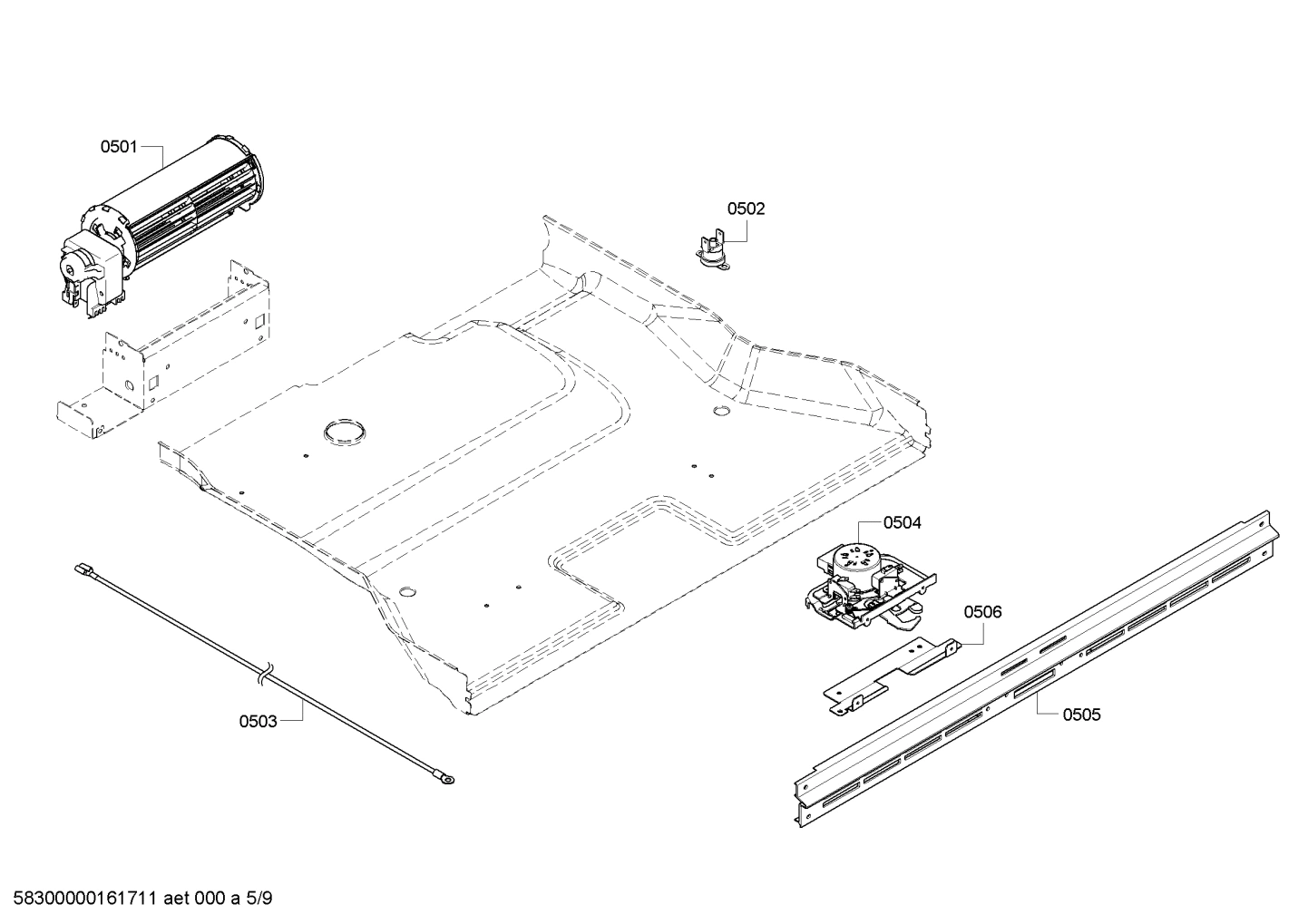

0501

00643600 Bosch Oven Fan In Stock BOS 00643600 $304.59

View on Model

0502

00617877 Bosch Oven Fixing Kit In Stock BOS 00617877 $45.32

View on Model

0503

Cable harness BOS 00663795 Contact Us For Availability

View on Model

0504

00751505 Bosch Oven Latch In Stock BOS 00751505 $156.03

View on Model

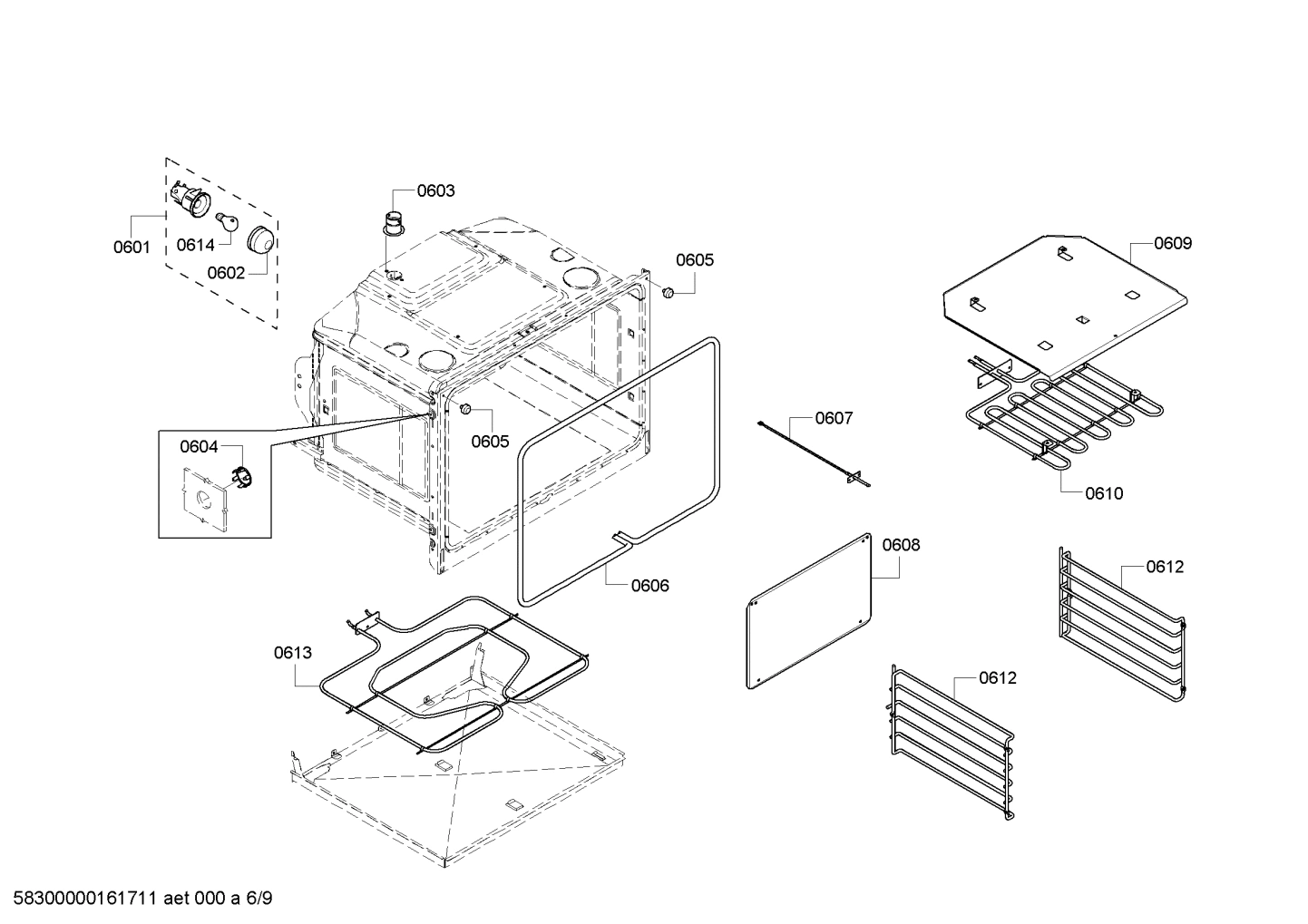

0601

Lamp BOS 00415045 No Longer Available

View on Model

0602

00414513 Bosch Oven Lens In Stock BOS 00414513 $21.62

View on Model

0603

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $56.14

View on Model

0604

00413573 Bosch Oven Plug Backorder BOS 00413573 $16.47

View on Model

0605

00427919 Bosch Oven Spacer Backorder BOS 00427919 $15.44

View on Model

0606

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $99.24

View on Model

0607

00642855 Bosch Oven Sensor In Stock BOS 00642855 $64.25

View on Model

0610

00144667 Bosch Oven Heating Element Backorder BOS 00144667 $129.64

View on Model

0612

Support BOS 00643000 Contact Us For Availability

View on Model

0613

00144648 Bosch Oven Heating Element Backorder BOS 00144648 $110.14

View on Model

0614

00623710 Bosch Oven Lamp In Stock BOS 00623710 $5.73

View on Model

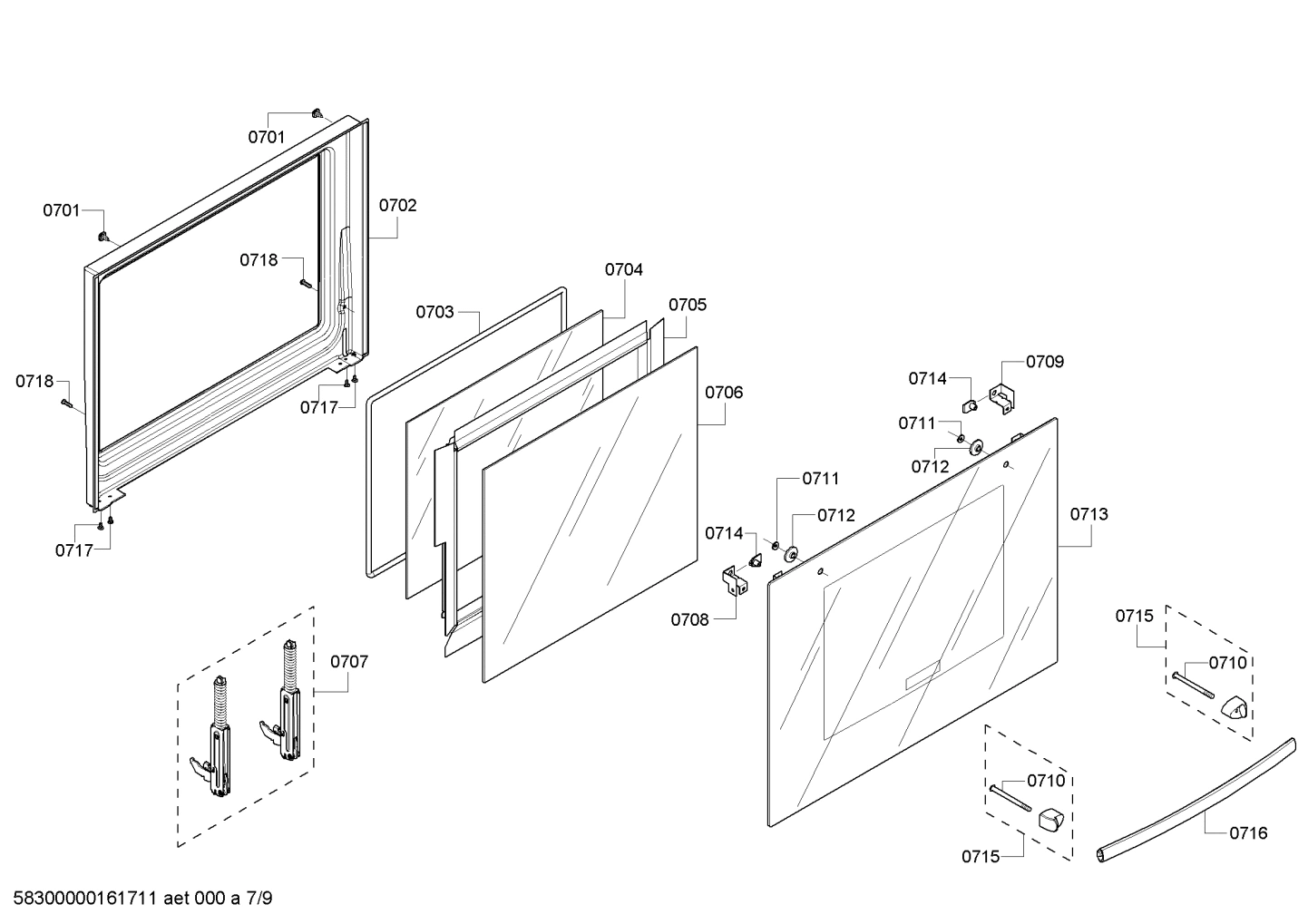

0701

00189345 Bosch Oven Screw In Stock BOS 00189345 $22.65

View on Model

0703

00144652 Bosch Oven Door Seal Backorder BOS 00144652 $35.01

View on Model

0704

00770023 Bosch Oven Glass Panel Backorder BOS 00770023 $211.67

View on Model

0705

00247173 Bosch Oven Trim Plate Backorder BOS 00247173 $193.63

View on Model

0706

00478310 Bosch Oven Glass Panel Backorder BOS 00478310 $163.26

View on Model

0708

00613178 Bosch Oven Bracket Backorder BOS 00613178 $22.65

View on Model

0709

00613179 Bosch Oven Bracket Backorder BOS 00613179 $22.65

View on Model

0710

00608361 Bosch Oven Screw Backorder BOS 00608361 $28.33

View on Model

0713

Door-outer BOS 00246543 Contact Us For Availability

View on Model

0714

00612252 Bosch Oven Clip Backorder BOS 00612252 $13.38

View on Model

0717

00620814 Bosch Oven Screw Backorder BOS 00620814 $25.74

View on Model

0717

00626588 Bosch Oven Screw Backorder BOS 00626588 $11.32

View on Model

0753

00423241 Bosch Oven Adhesive Tape Backorder BOS 00423241 $27.80

View on Model

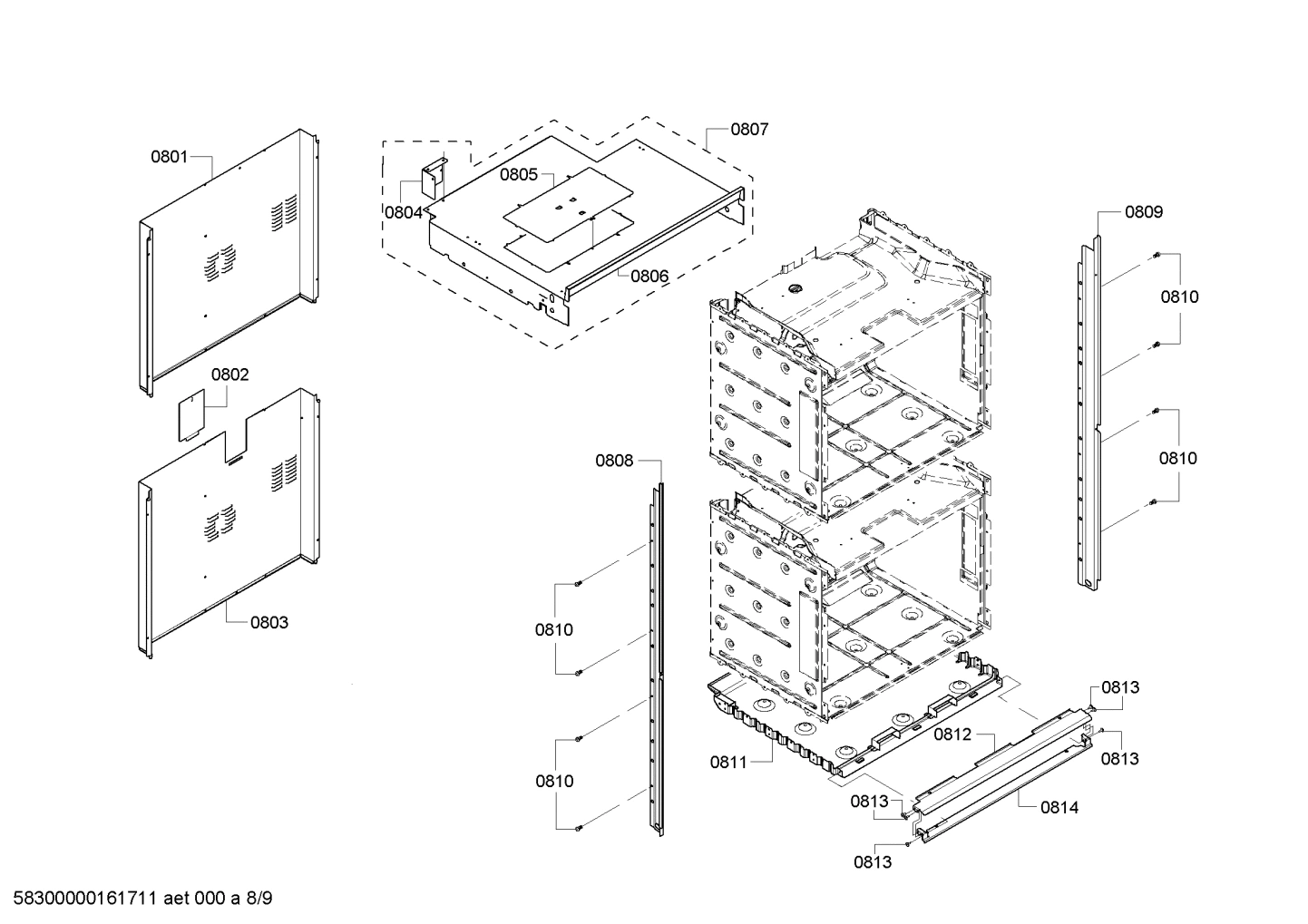

0805

00644616 Bosch Oven Flap Backorder BOS 00644616 $31.42

View on Model

0808

00687696 Bosch Oven Trim Plate Backorder BOS 00687696 $108.14

View on Model

0809

Trimplate BOS 00687697 Contact Us For Availability

View on Model

0810

00614573 Bosch Oven Screw Backorder BOS 00614573 $30.39

View on Model

0812

00708568 Bosch Oven Exhaust Baffle Backorder BOS 00708568 $80.86

View on Model

0813

00615096 Bosch Oven Screw Backorder BOS 00615096 $5.14

View on Model

0814

00708569 Bosch Oven Exhaust Baffle Backorder BOS 00708569 $73.65

View on Model

0850

00413453 Bosch Oven Screw Backorder BOS 00413453 $10.29

View on Model

0853

00414692 Bosch Oven Connection Backorder BOS 00414692 $47.37

View on Model

0854

00416289 Bosch Oven Insert Backorder BOS 00416289 $34.51

View on Model

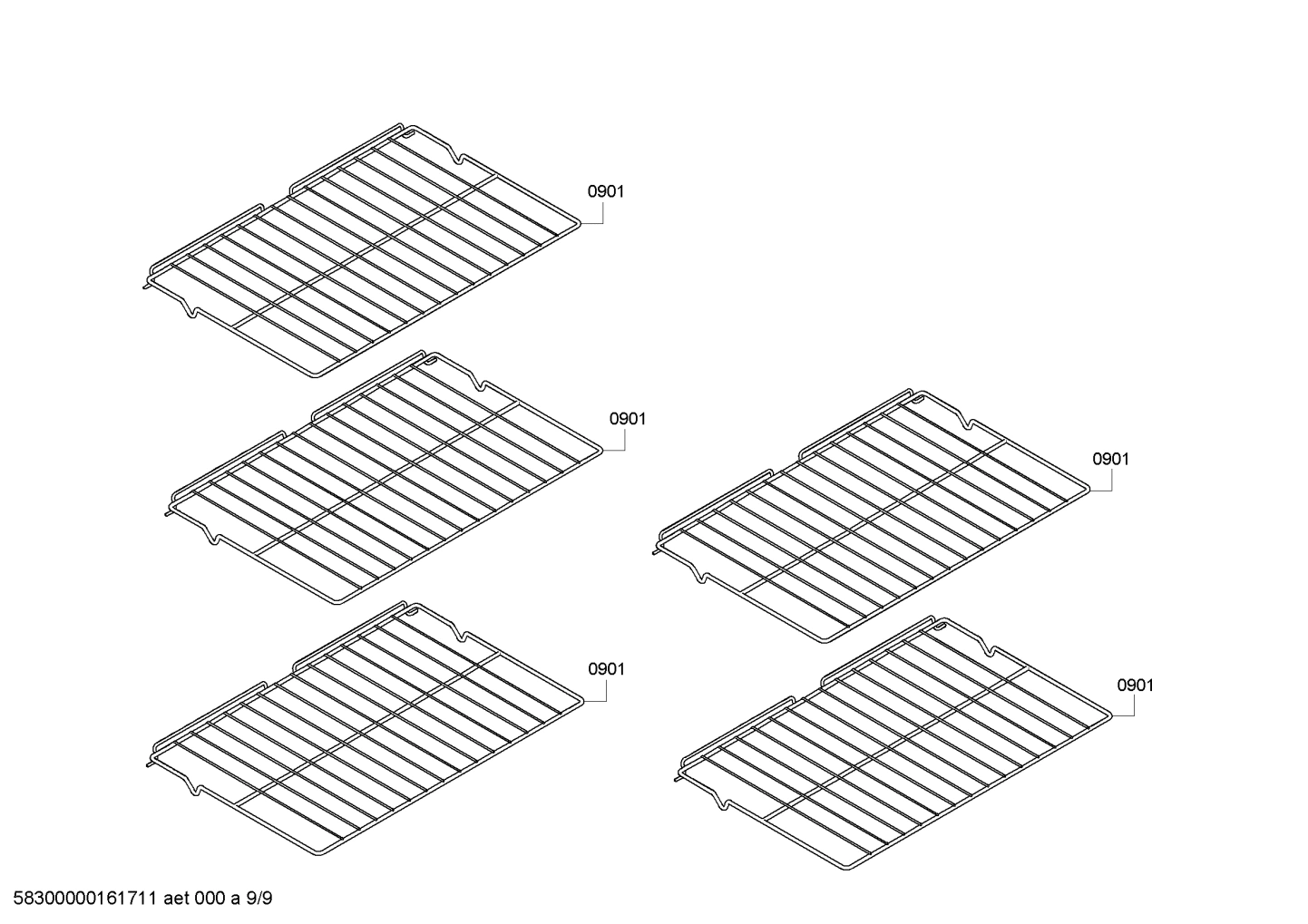

0901

Shelf BOS 00478315 Contact Us For Availability

View on Model
