Model Bosch HBL3550UC/01 Range Oven – Common Parts & Diagrams

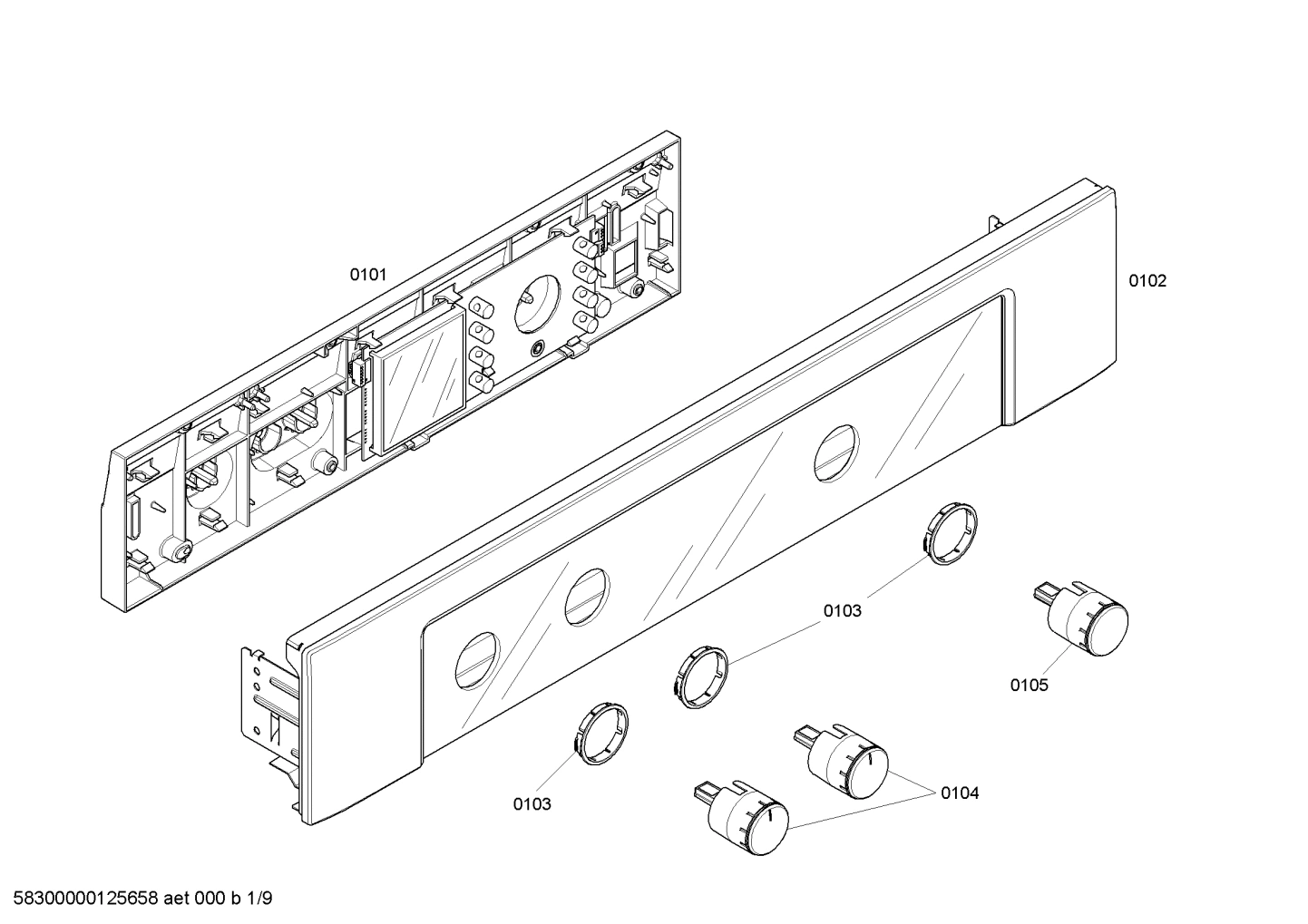

Diagram 1

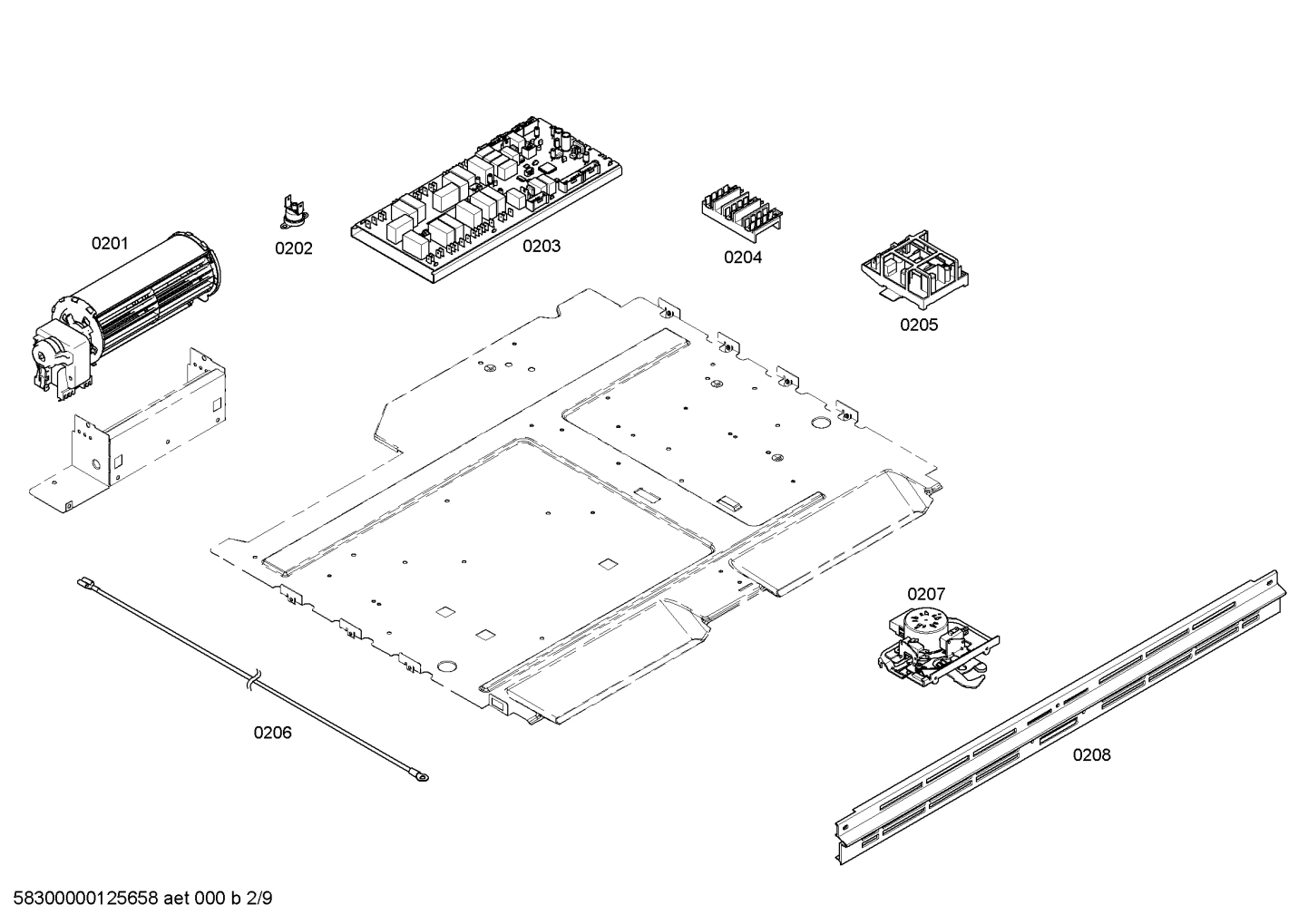

Diagram 2

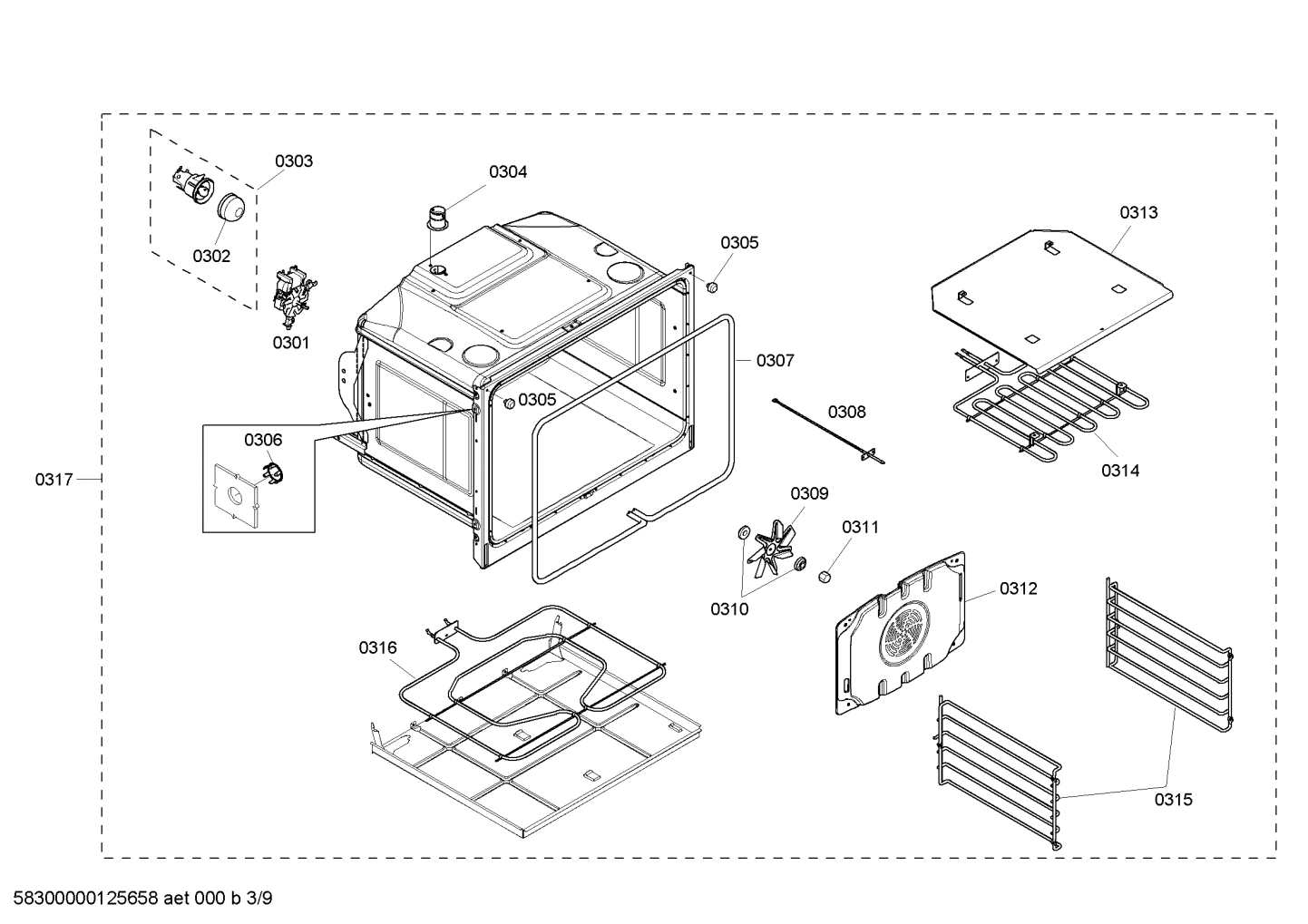

Diagram 3

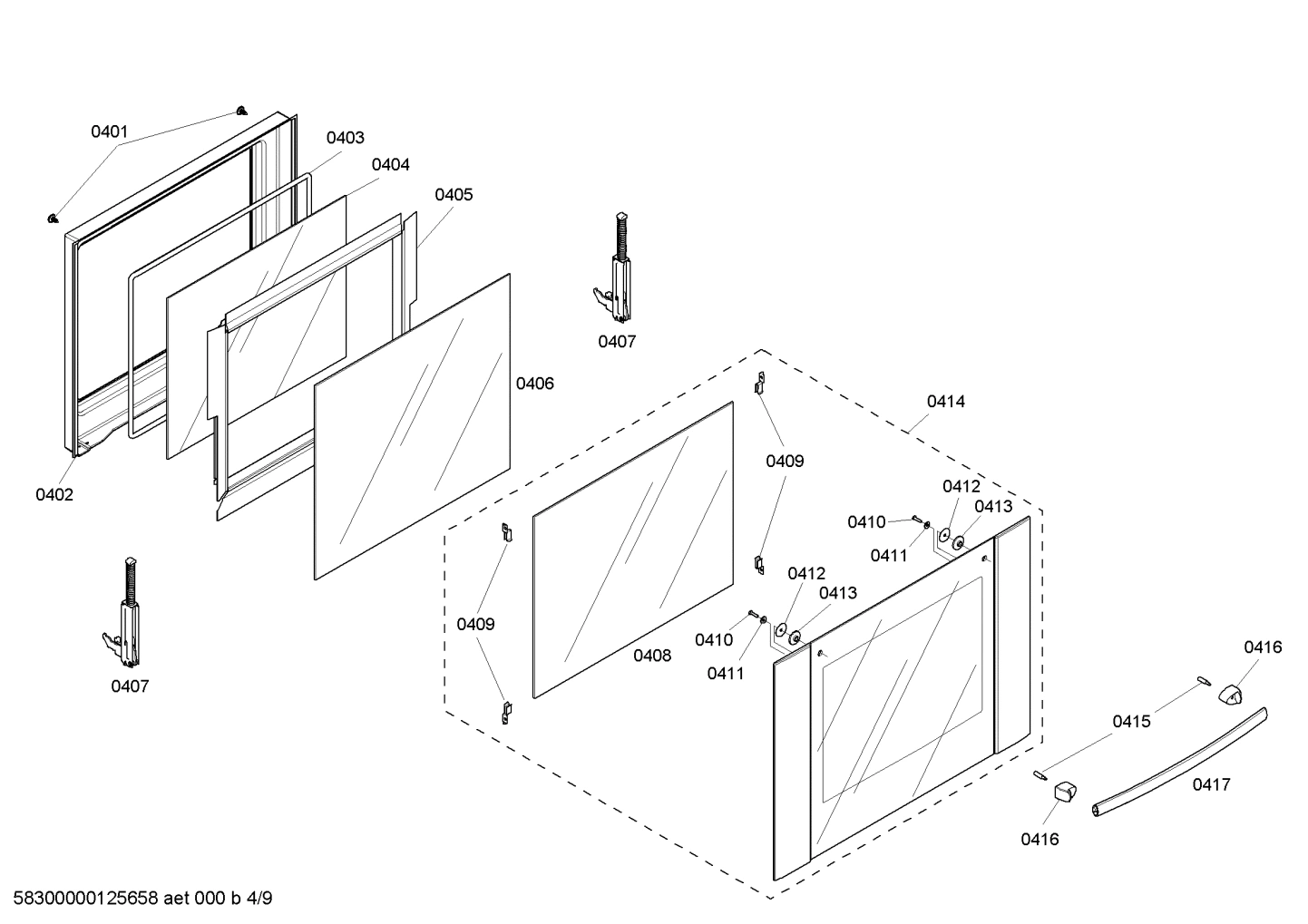

Diagram 4

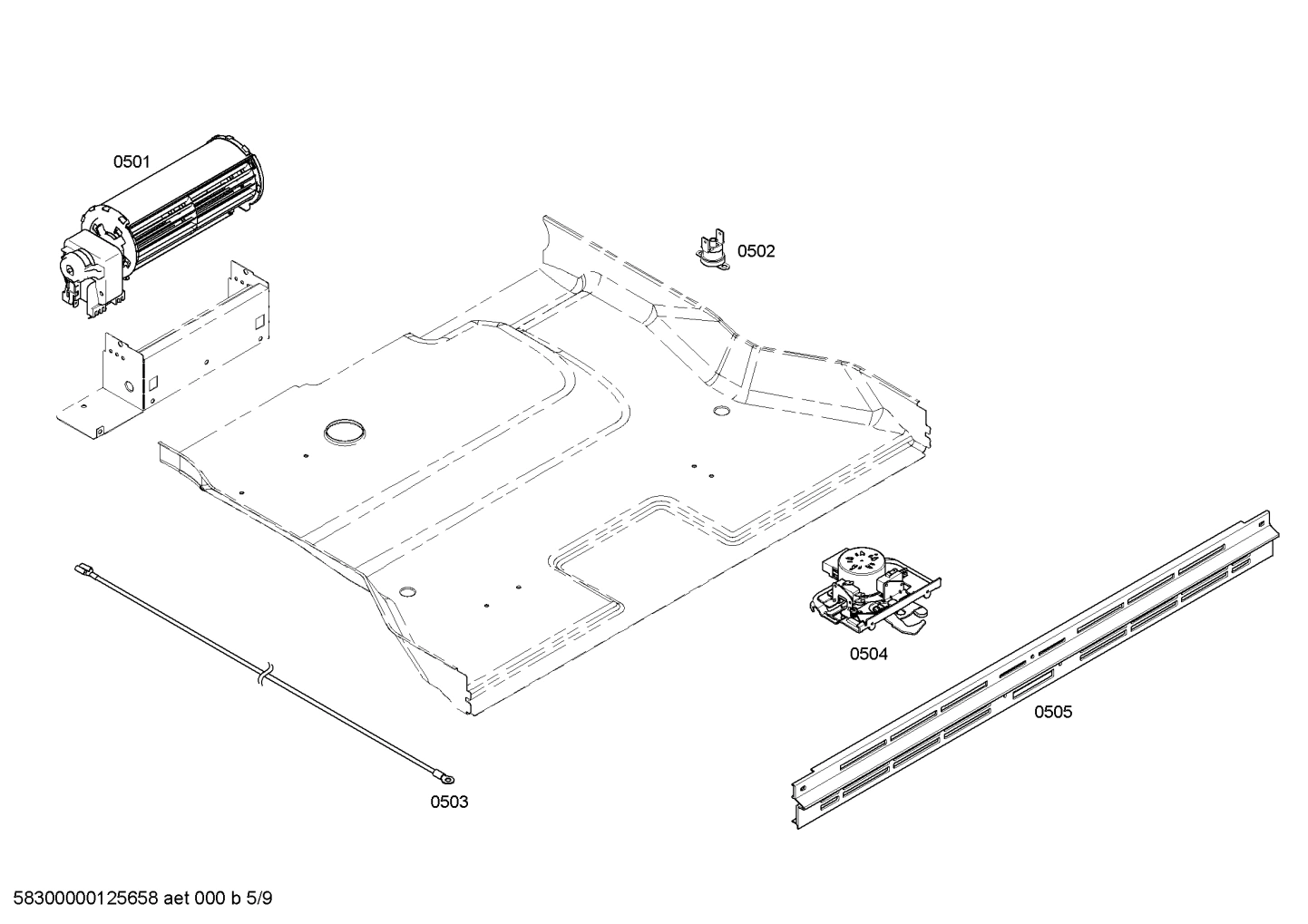

Diagram 5

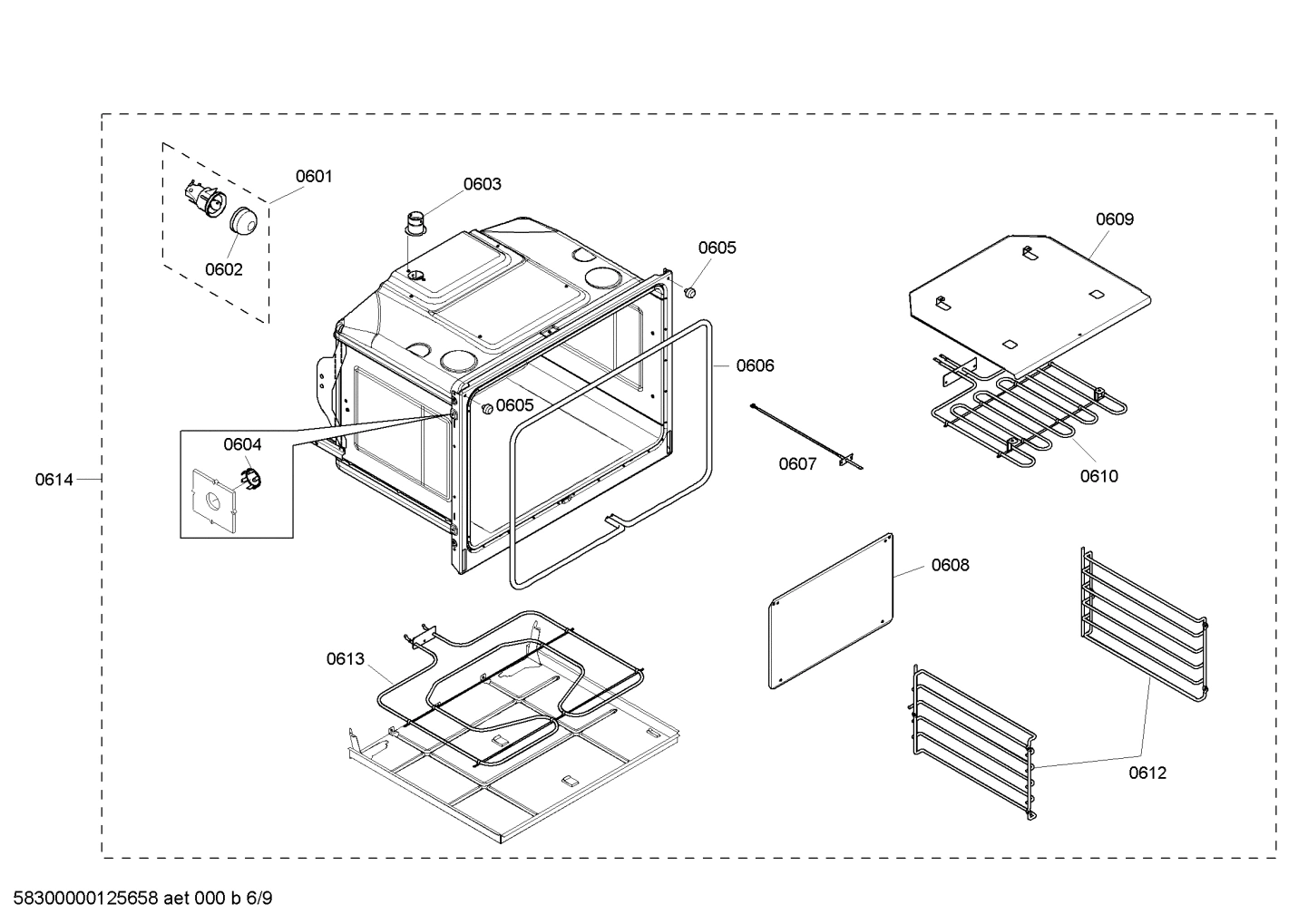

Diagram 6

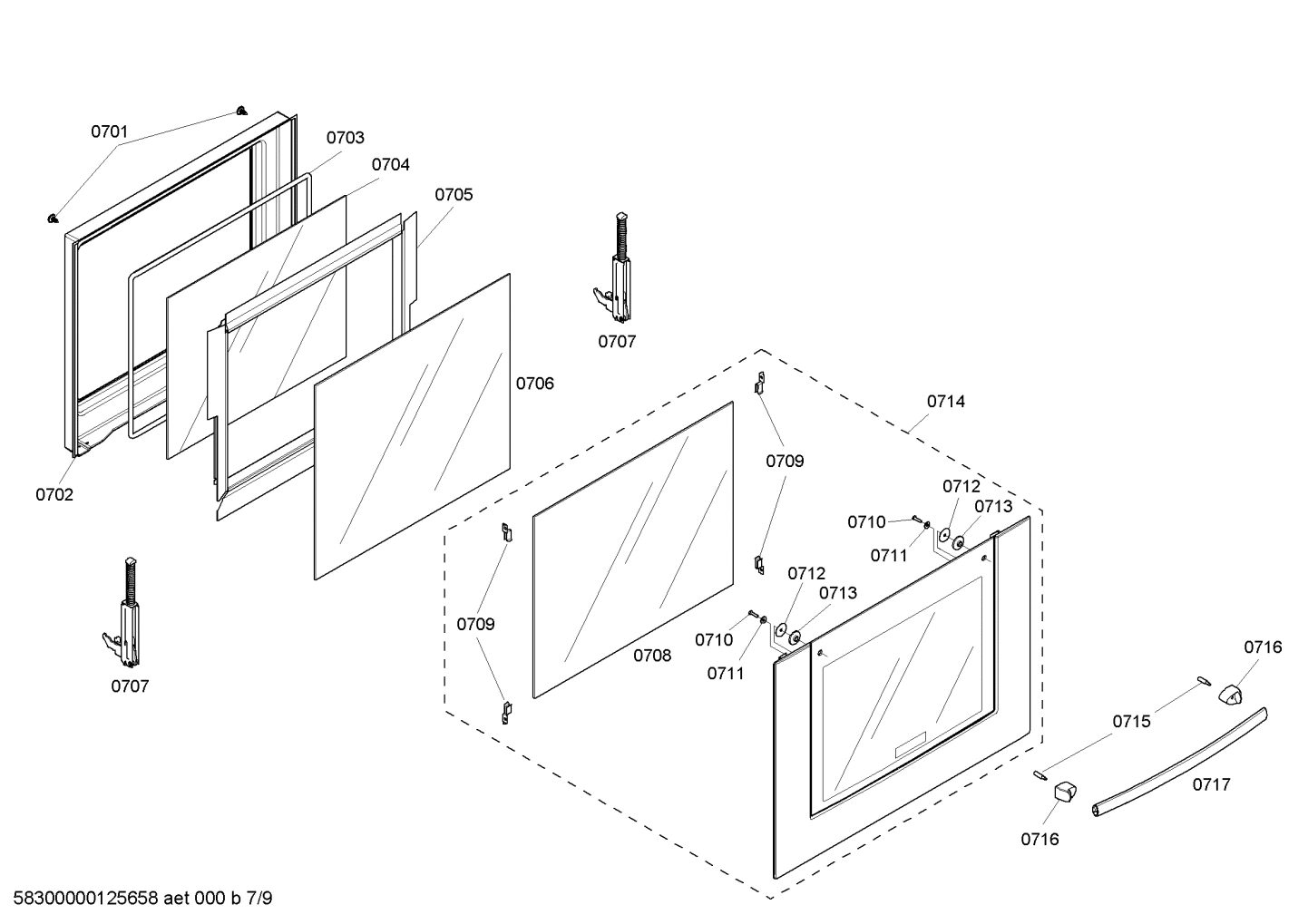

Diagram 7

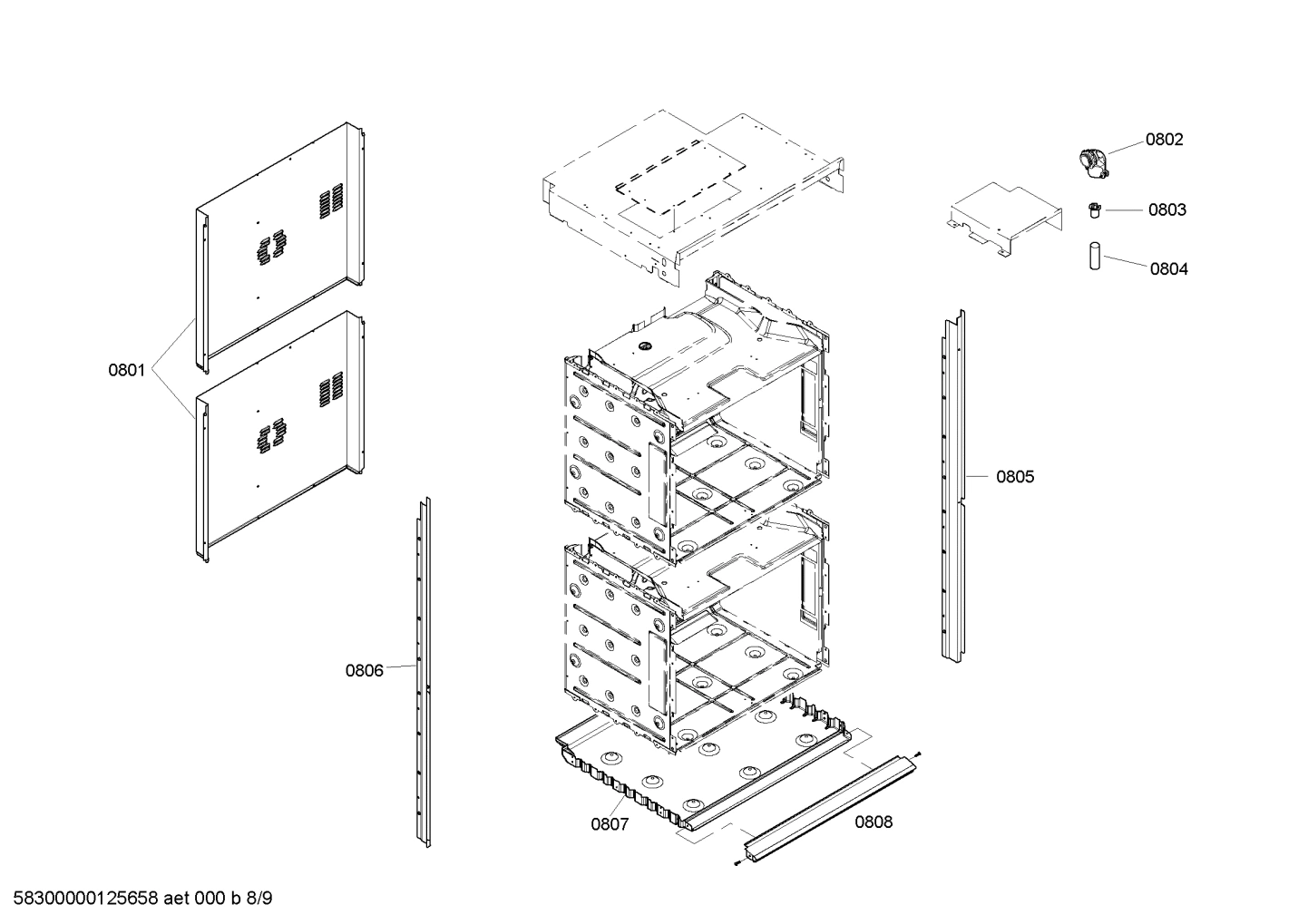

Diagram 8

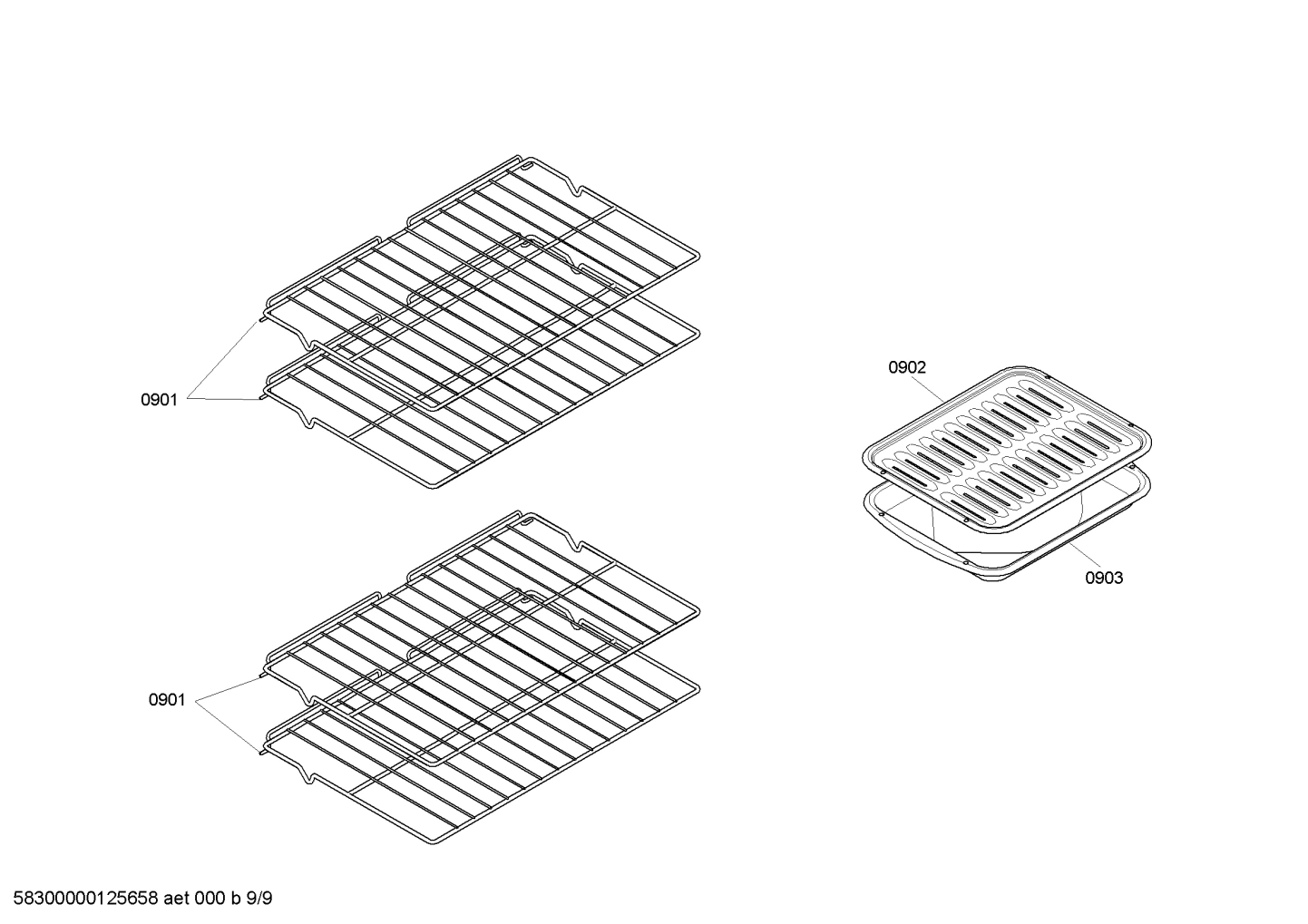

Diagram 9
Common parts from model Bosch HBL3550UC/01 Range Oven
0105
Knob BOS 00610073 Contact Us For Availability
0203
Control module BOS 00655356 Contact Us For Availability
0204
Terminal BOS 00642842 Contact Us For Availability
0205
Power supply unit BOS 00663802 Contact Us For Availability
0251
Cable harness BOS 00652261 Contact Us For Availability
0253
Cable harness BOS 00663792 Contact Us For Availability
0256
Cable harness BOS 00608281 Contact Us For Availability
0261
Cable harness BOS 00652260 Contact Us For Availability
0303
Lamp BOS 00415045 No Longer Available
0309
Fan blade BOS 00646291 Contact Us For Availability
0315
Support BOS 00643000 Contact Us For Availability
0414
Door BOS 00479022 Contact Us For Availability
0503
Cable harness BOS 00663795 Contact Us For Availability
0702
Door-inner BOS 00688561 Contact Us For Availability
0711
Washer BOS 00426300 Contact Us For Availability
0714
Door BOS 00479016 Contact Us For Availability
0807
Base BOS 00248923 Contact Us For Availability
0901
Shelf BOS 00478315 Contact Us For Availability
0902
Grill tray BOS 00449756 Contact Us For Availability
0903
Universal pan BOS 00449757 Contact Us For Availability
× ![]()
