Bosch HBL3450UC/03 Range Oven

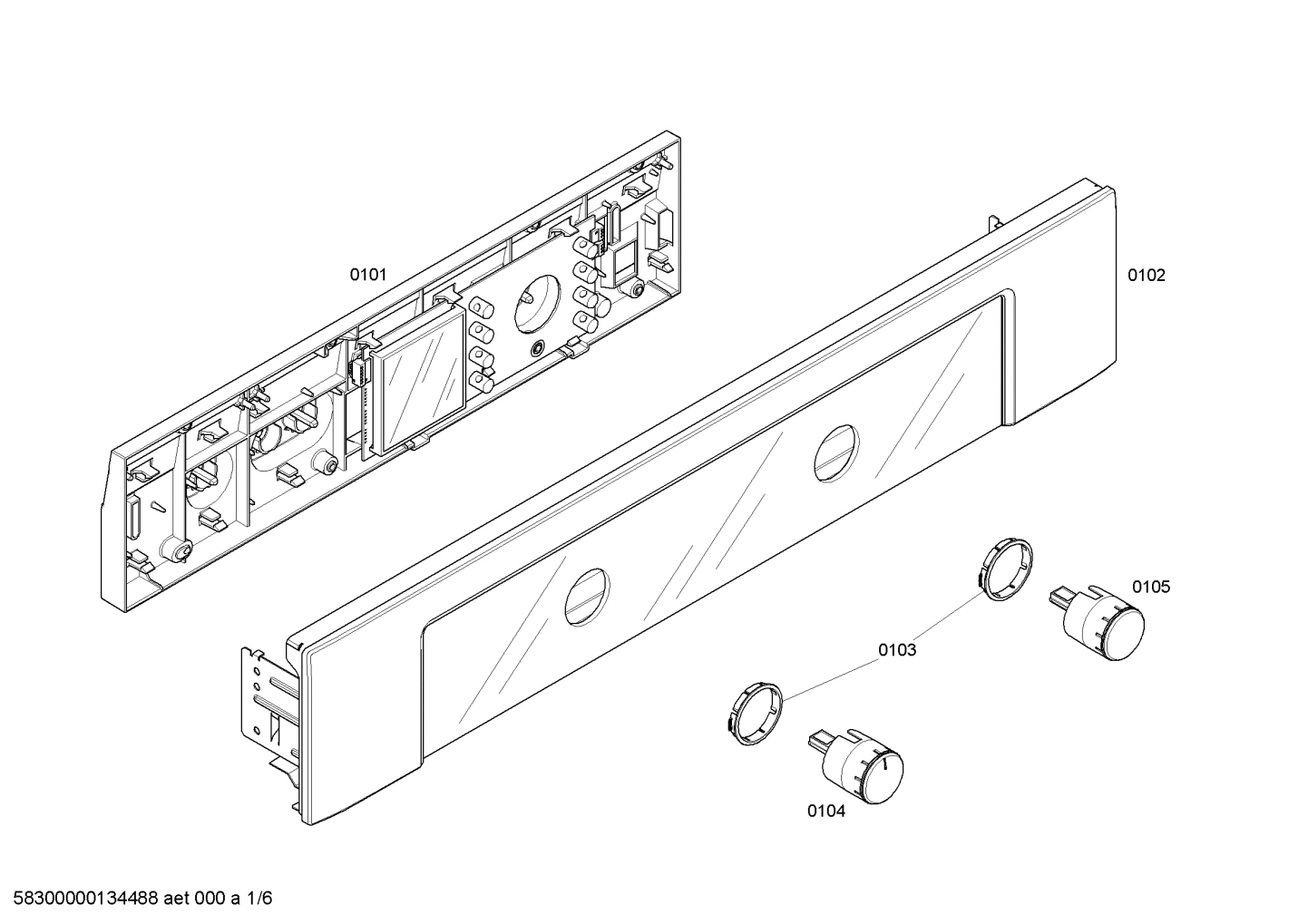

0103

00421427 Bosch Oven Ring Backorder BOS 00421427 $5.14

View on Model

0105

Knob BOS 00610073 Contact Us For Availability

View on Model

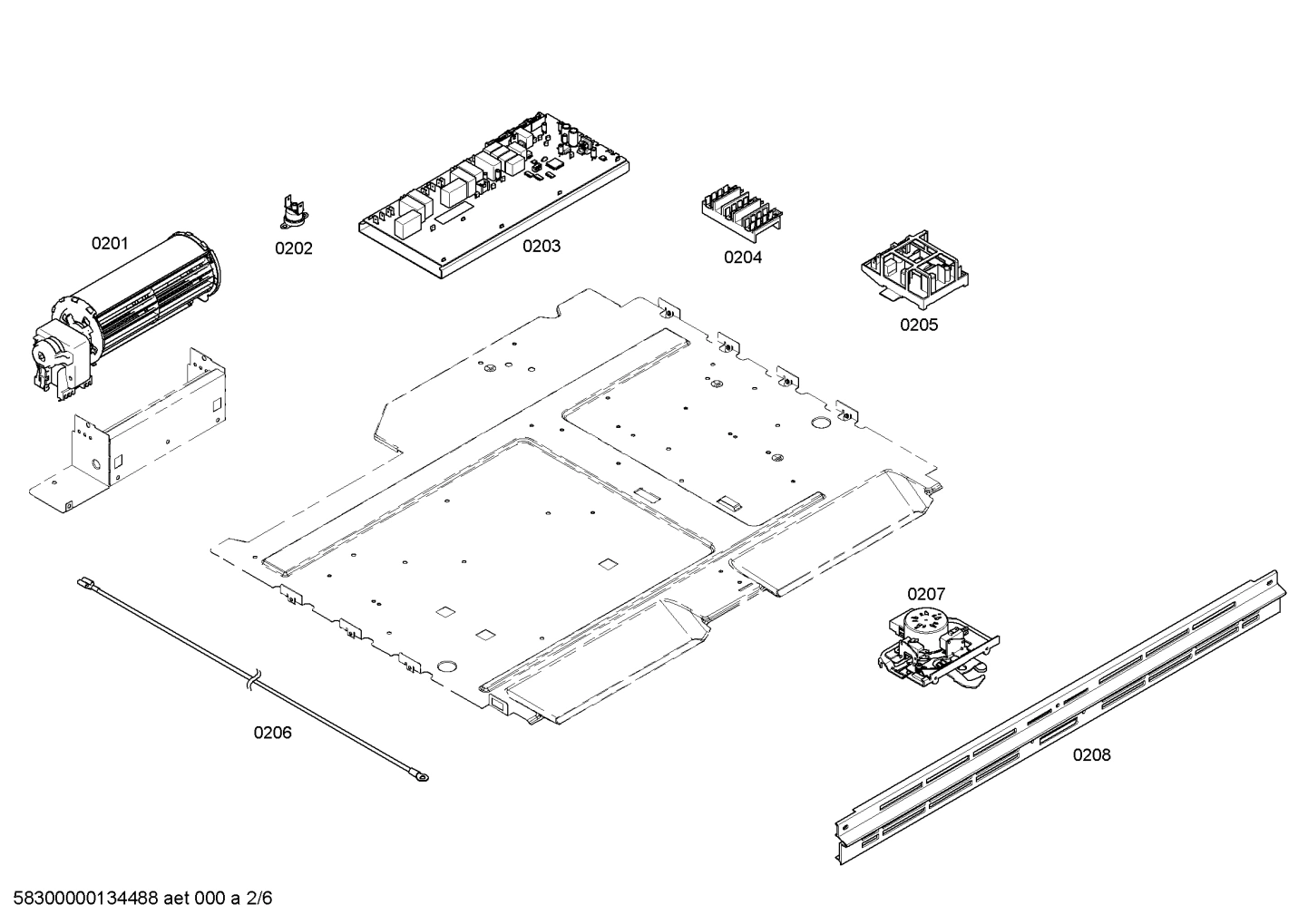

0201

00643600 Bosch Oven Fan In Stock BOS 00643600 $256.56

View on Model

0202

00617877 Bosch Oven Fixing Kit In Stock BOS 00617877 $37.95

View on Model

0203

00655359 Bosch Oven Control Module In Stock BOS 00655359 $724.08

View on Model

0205

Power supply unit BOS 00663802 Contact Us For Availability

View on Model

0206

Cable harness BOS 00663795 Contact Us For Availability

View on Model

0207

00751505 Bosch Oven Latch In Stock BOS 00751505 $131.27

View on Model

0251

Cable harness BOS 00652261 Contact Us For Availability

View on Model

0252

00663791 Bosch Oven Cable Harness Backorder BOS 00663791 $30.89

View on Model

0253

Cable harness BOS 00663792 Contact Us For Availability

View on Model

0254

00663793 Bosch Oven Cable Harness Backorder BOS 00663793 $47.37

View on Model

0255

11033493 Bosch Oven Cable Harness Backorder BOS 11033493 $25.74

View on Model

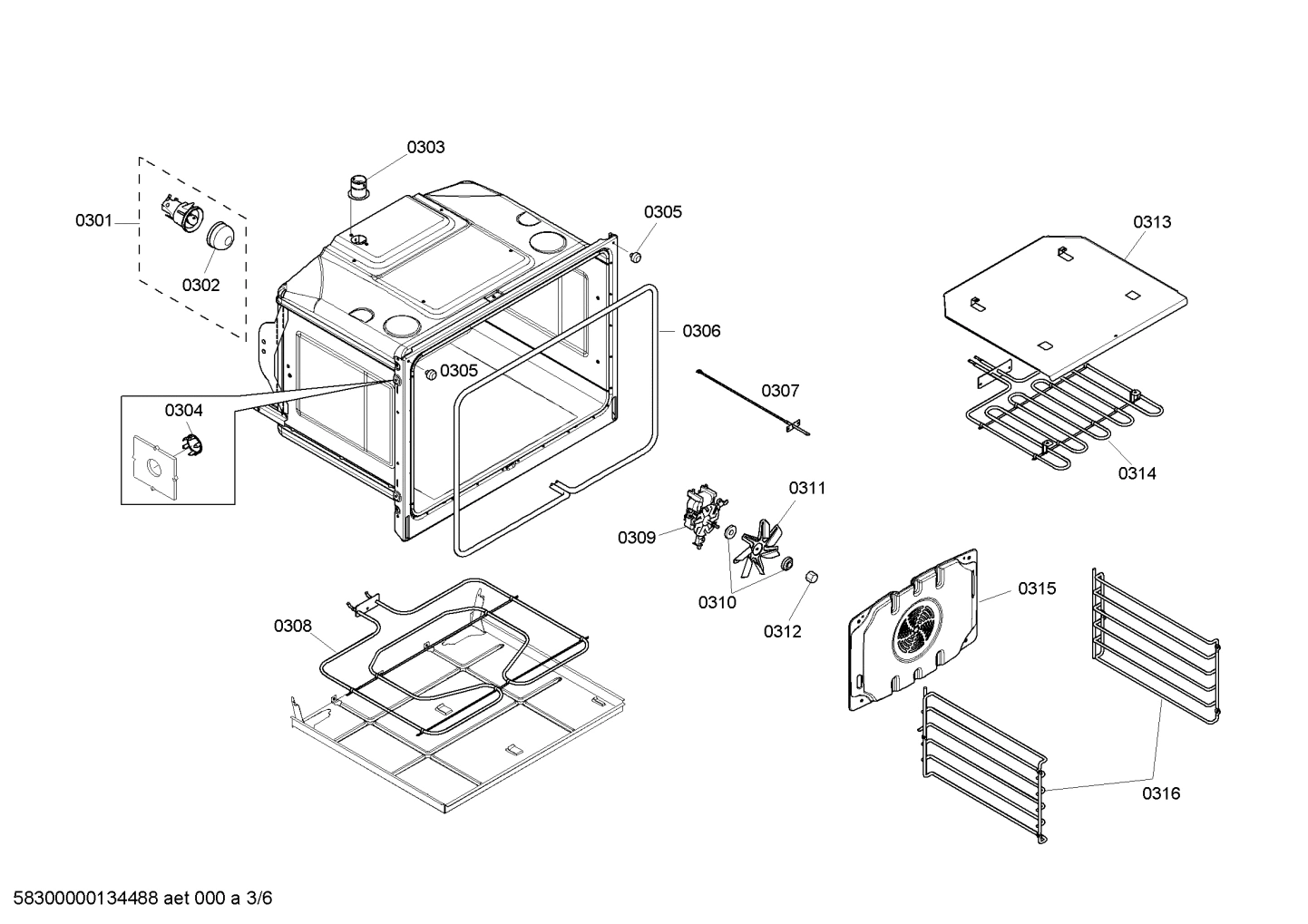

0301

00415045 Bosch Oven Lamp In Stock BOS 00415045 $79.53

View on Model

0302

00414513 Bosch Oven Lens In Stock BOS 00414513 $20.59

View on Model

0303

00491572 Bosch Oven Catalyzer In Stock BOS 00491572 $54.58

View on Model

0304

00413573 Bosch Oven Plug Backorder BOS 00413573 $16.47

View on Model

0305

00427919 Bosch Oven Spacer Backorder BOS 00427919 $15.44

View on Model

0306

00491569 Bosch Oven Door Seal In Stock BOS 00491569 $83.51

View on Model

0307

00642855 Bosch Oven Sensor In Stock BOS 00642855 $52.94

View on Model

0308

00144648 Bosch Oven Heating Element In Stock BOS 00144648 $89.94

View on Model

0309

00642845 Bosch Oven Motor In Stock BOS 00642845 $138.03

View on Model

0311

Fan blade BOS 00646291 Contact Us For Availability

View on Model

0312

00628609 Bosch Oven Fixing Kit In Stock BOS 00628609 $22.65

View on Model

0314

00144667 Bosch Oven Heating Element Backorder BOS 00144667 $109.37

View on Model

0316

Support BOS 00643000 Contact Us For Availability

View on Model

0351

00623710 Bosch Oven Lamp In Stock BOS 00623710 $6.86

View on Model

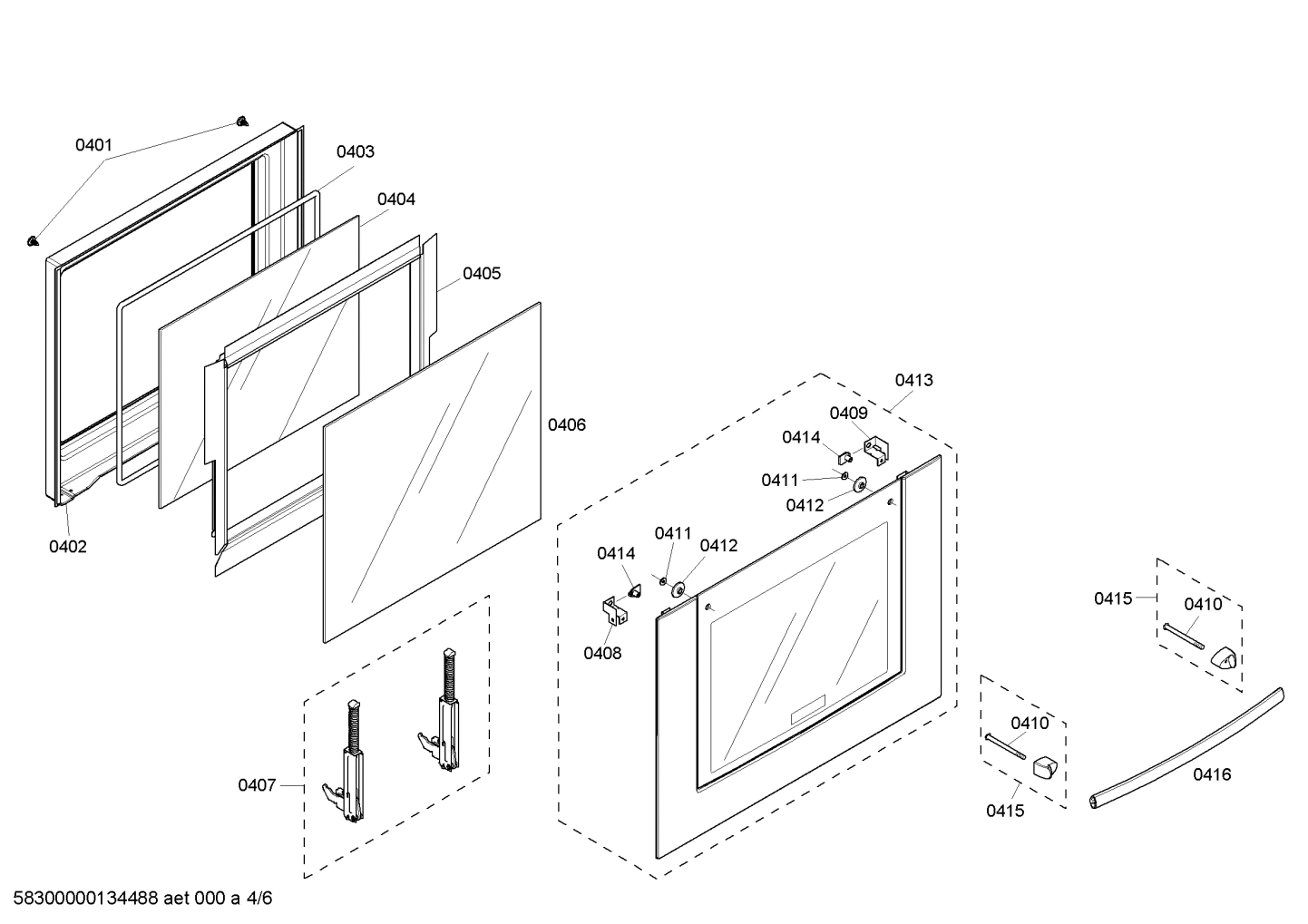

0401

00189345 Bosch Oven Screw In Stock BOS 00189345 $21.62

View on Model

0402

Door-inner BOS 00688561 Contact Us For Availability

View on Model

0403

00144652 Bosch Oven Door Seal Backorder BOS 00144652 $33.98

View on Model

0404

00770023 Bosch Oven Glass Panel In Stock BOS 00770023 $201.87

View on Model

0405

00247173 Bosch Oven Trim Plate Backorder BOS 00247173 $188.48

View on Model

0406

00478310 Bosch Oven Glass Panel Backorder BOS 00478310 $156.55

View on Model

0407

Door hinge BOS 00682904 Contact Us For Availability

View on Model

0408

00613178 Bosch Oven Bracket Backorder BOS 00613178 $22.65

View on Model

0409

00613179 Bosch Oven Bracket Backorder BOS 00613179 $22.65

View on Model

0410

00608361 Bosch Oven Screw Backorder BOS 00608361 $27.80

View on Model

0413

Door-outer BOS 00246549 Contact Us For Availability

View on Model

0414

00612252 Bosch Oven Clip Backorder BOS 00612252 $13.38

View on Model

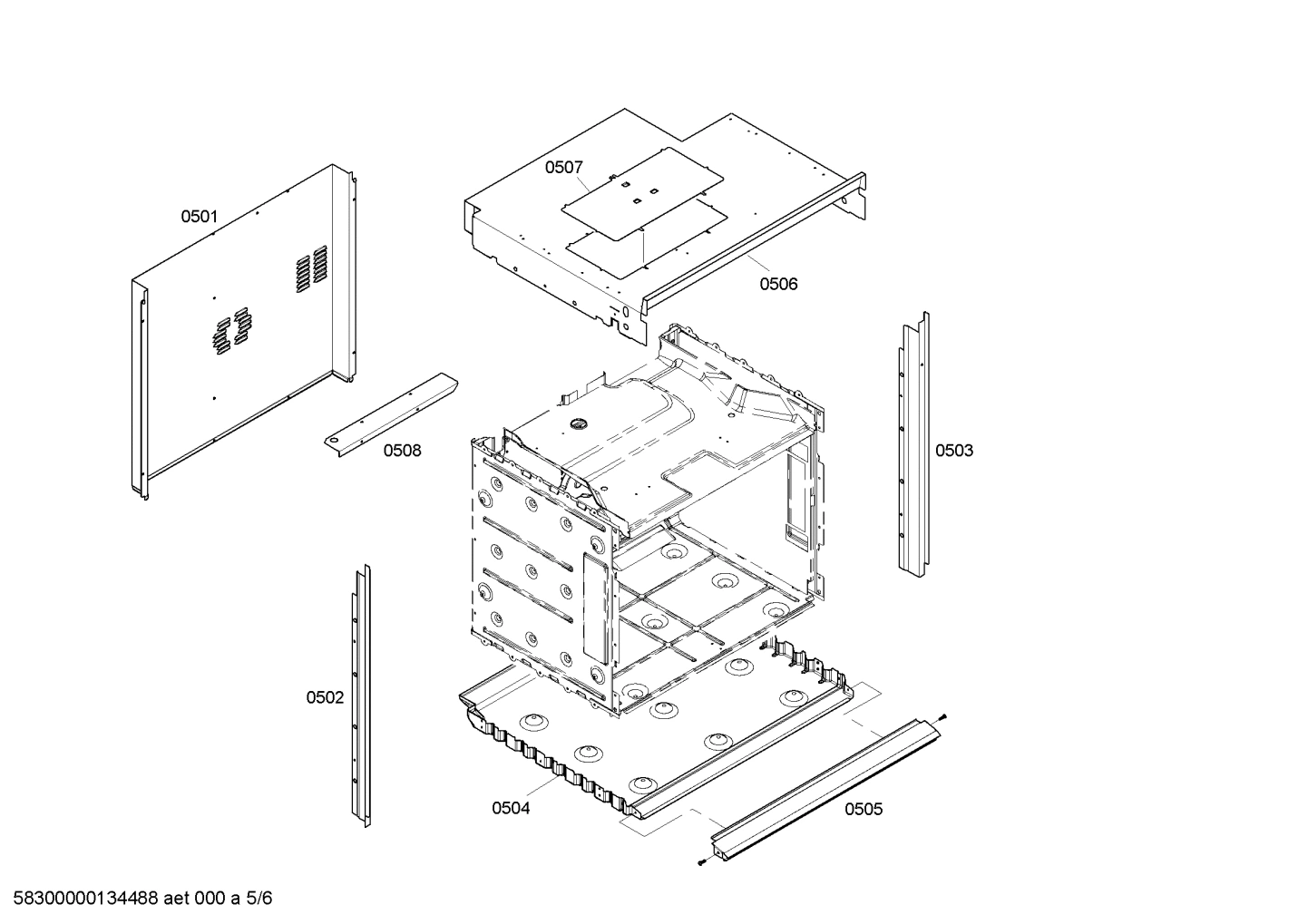

0504

00248923 Bosch Oven Base Backorder BOS 00248923 $112.26

View on Model

0505

00681422 Bosch Oven Exhaust Baffle Backorder BOS 00681422 $157.58

View on Model

0507

00644616 Bosch Oven Flap Backorder BOS 00644616 $30.89

View on Model

0550

00413453 Bosch Oven Screw Backorder BOS 00413453 $10.29

View on Model

0552

00414692 Bosch Oven Connection Backorder BOS 00414692 $46.34

View on Model

0553

00416289 Bosch Oven Insert Backorder BOS 00416289 $16.47

View on Model

0555

Screw BOS 00189425 Contact Us For Availability

View on Model

0556

00614573 Bosch Oven Screw Backorder BOS 00614573 $28.83

View on Model

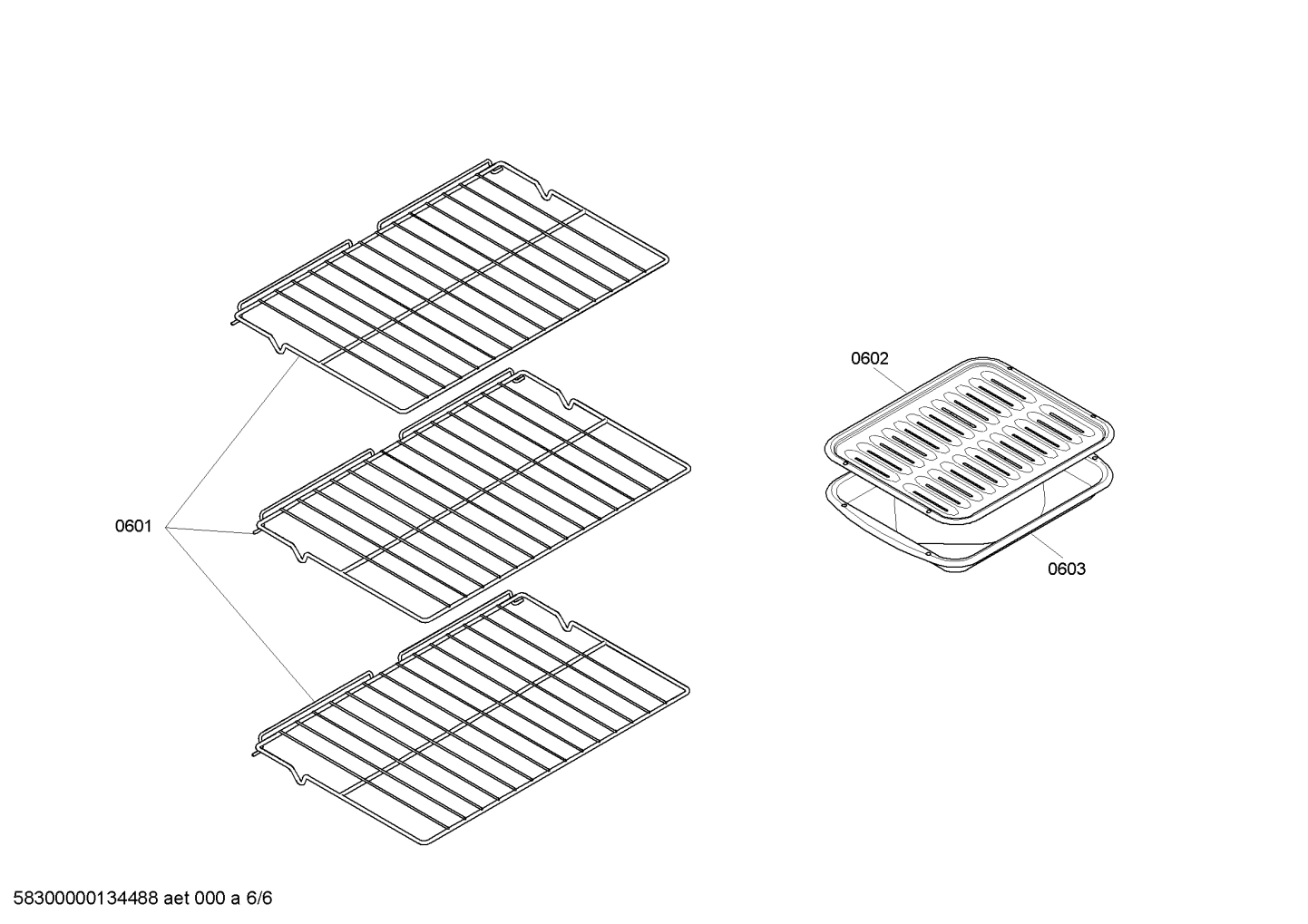

0602

Broiler Pan BOS 00449756 Contact Us For Availability

View on Model

Model Bosch HBL3450UC/03 Range Oven – Common Parts & Diagrams

Common parts from model Bosch HBL3450UC/03 Range Oven
