Model Samsung FER300SX/XAA-00 – Common Parts & Diagrams

Common parts from model Samsung FER300SX/XAA-00

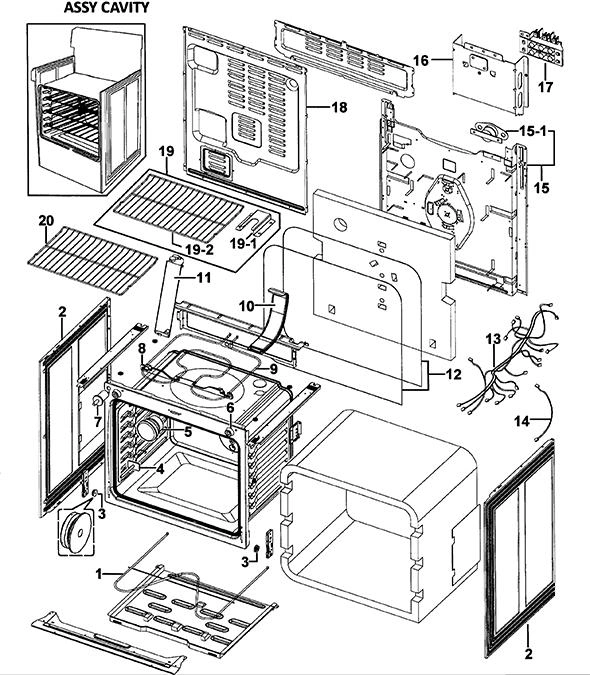

CAVITY ASSY

Print

• This Diagram
• All Diagrams

1

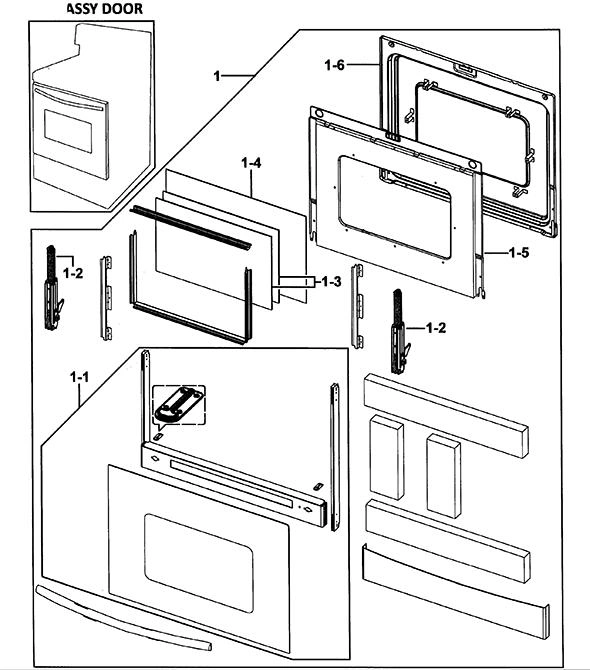

DG94-00215D Samsung Range Door Assembly Backorder SMG DG94-00215D View Details $422.58

View on Model

1

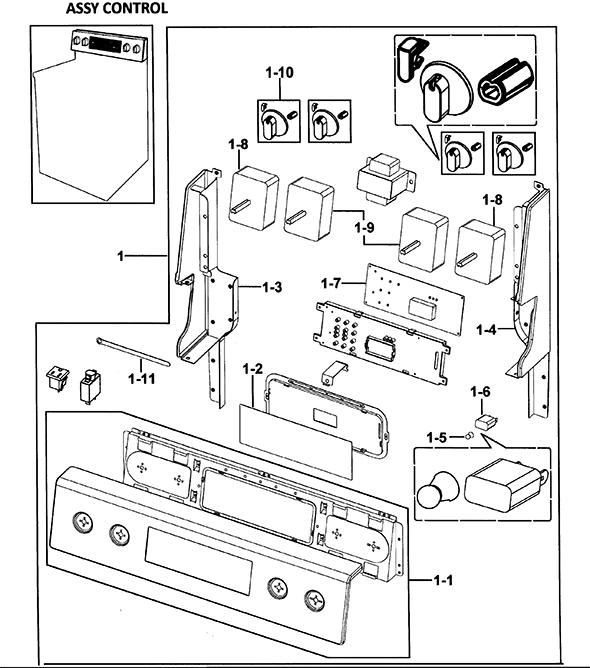

DG97-00112V Samsung Control Box Assembly Backorder SMG DG97-00112V View Details $331.35

View on Model

1

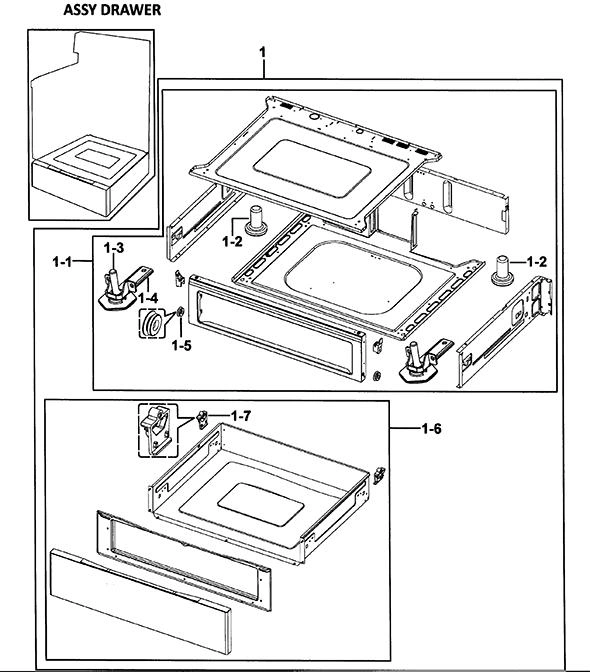

DG97-00117T Samsung Main Drawer Assembly FE-R Backorder SMG DG97-00117T View Details $331.35

View on Model

1-1

DG94-00216A Samsung Door Assembly Sub Backorder SMG DG94-00216A View Details $434.75

View on Model

1-1

Pedestal SMG DG97-00071F Contact Us For Availability

View on Model

1-2

DG61-00432A Samsung Range Oven Leveling Leg Backorder SMG DG61-00432A View Details $16.76

View on Model

1-2

DG94-00358A Samsung Range Oven Door Hinge Ass Backorder SMG DG94-00358A View Details $144.34

View on Model

1-2

Range Membrane Switch SMG DG34-00014A Contact Us For Availability

View on Model

1-3

DG61-00294B Samsung Range Leveling Leg In Stock SMG DG61-00294B View Details $16.21

View on Model

1-3

DG64-00092A Samsung Oven Inner Door Glass Ass Backorder SMG DG64-00092A View Details $181.27

View on Model

1-4

DG61-00430A Samsung Range Leveling Leg Bracke Backorder SMG DG61-00430A View Details $44.51

View on Model

1-4

DG64-00133A Samsung Range Oven Inner Middle D Backorder SMG DG64-00133A View Details $76.42

View on Model

1-5

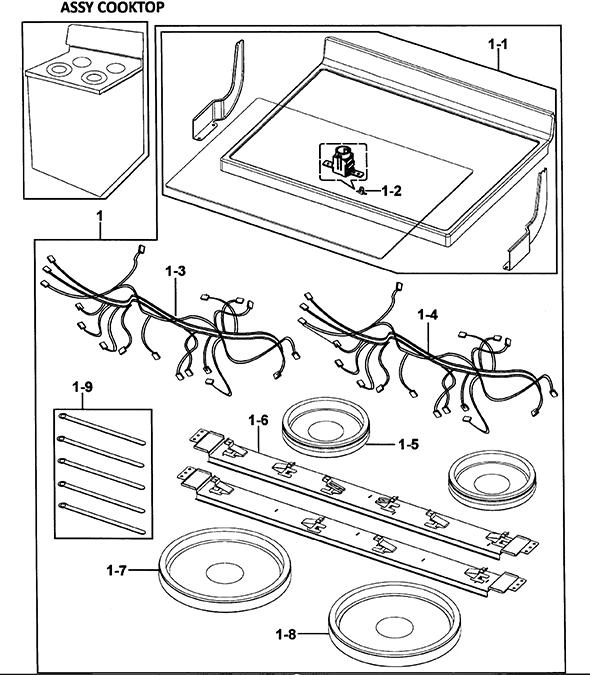

DG47-00023A Samsung Range Oven Radiant Surfac In Stock SMG DG47-00023A View Details $163.51

View on Model

1-5

DG60-00007B Samsung Range Side Panel Spacer Backorder SMG DG60-00007B View Details $2.79

View on Model

1-5

DG67-00022A Samsung Cooktop Indicator Light L In Stock SMG DG67-00022A View Details $4.24

View on Model

1-5

Baffle Assembly SMG DG97-00113C Contact Us For Availability

View on Model

1-6

DG64-00131A Samsung Indicator Light for Range Backorder SMG DG64-00131A View Details $31.86

View on Model

1-6

DG94-00063A Samsung Door Assembly E Backorder SMG DG94-00063A View Details $215.71

View on Model

1-6

DG97-00053T Samsung Drawer Assembly Backorder SMG DG97-00053T View Details $309.57

View on Model

1-7

DG47-00022A Samsung Radiant Heater Assembly f In Stock SMG DG47-00022A View Details $222.81

View on Model

1-7

DG61-00279A Samsung Range Inner Slider Assemb Backorder SMG DG61-00279A View Details $6.15

View on Model

1-8

DG44-01002A Samsung Range Oven Dual Infinite In Stock SMG DG44-01002A View Details $149.34

View on Model

1-9

Range Surface Element Control Switch SMG DG44-01001A No Longer Available

View on Model

1-10

DG94-00221A Samsung Range Oven Surface Elemen Backorder SMG DG94-00221A View Details $18.64

View on Model

1-11

6502-001117 Samsung Cable Clamp Backorder SMG 6502-001117 View Details $2.66

View on Model

4

DG32-00002B Samsung Stove Range Oven Sensor T In Stock SMG DG32-00002B View Details $88.56

View on Model

5

Range Oven Light Bulb SMG DG97-00083A No Longer Available

View on Model

6

DG73-00003A Samsung Range Oven Door Rubber Cu In Stock SMG DG73-00003A View Details $3.35

View on Model

7

DG34-00006A Samsung Range Oven Plunger Door S In Stock SMG DG34-00006A View Details $47.26

View on Model

9

DG47-00037A Samsung Range Broil Heater Backorder SMG DG47-00037A View Details $177.06

View on Model

15-1

DE47-20037A Samsung Range Oven High Limit The In Stock SMG DE47-20037A View Details $15.88

View on Model

16

DG61-00168B Samsung Access Cover Bracket FCQ3 Backorder SMG DG61-00168B View Details $22.35

View on Model

17

DG96-00173A Samsung Oven Terminal Block Assem In Stock SMG DG96-00173A View Details $61.51

View on Model

×
