Model Bosch EB294630/01 Range Oven – Common Parts & Diagrams

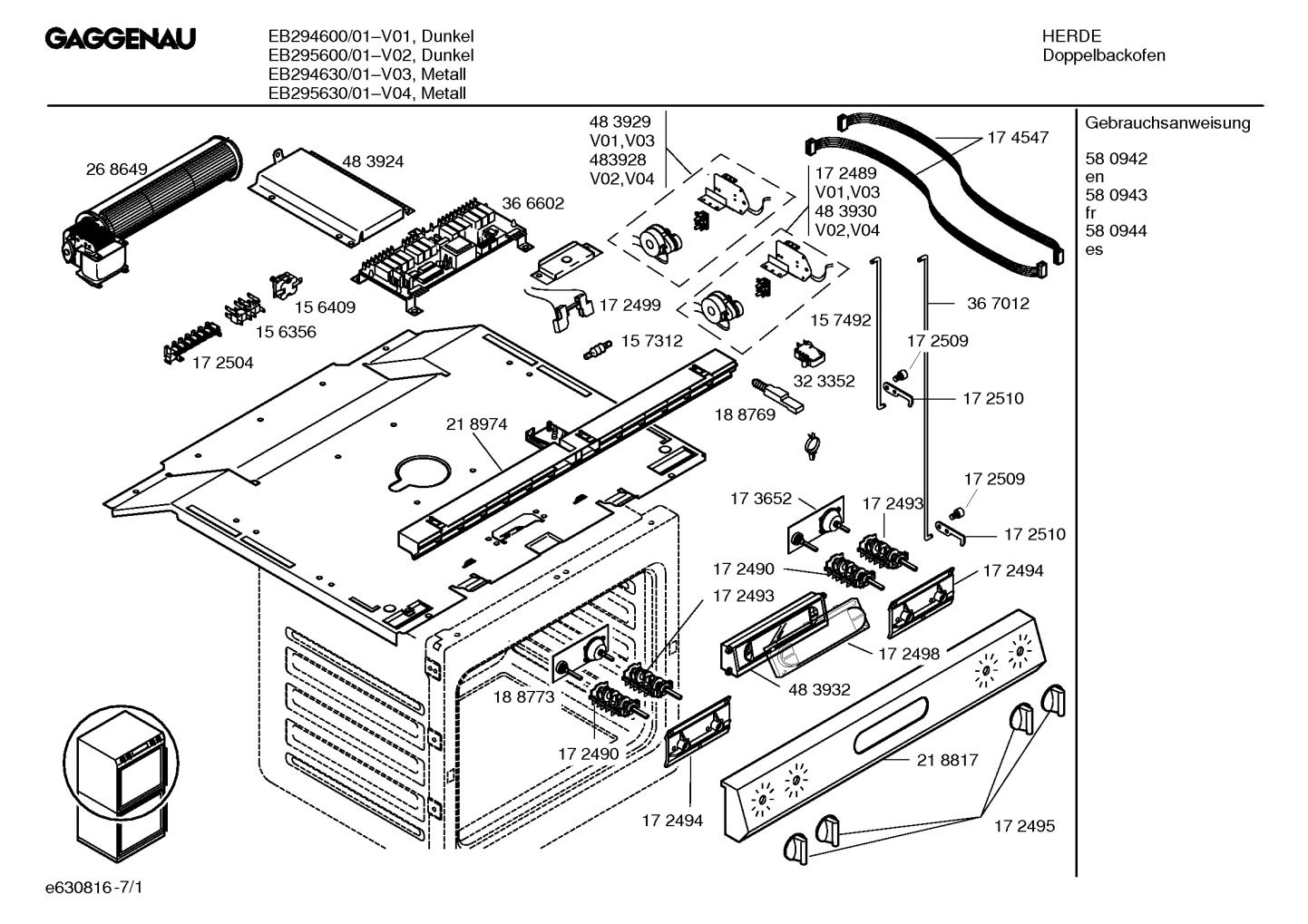

Diagram 1

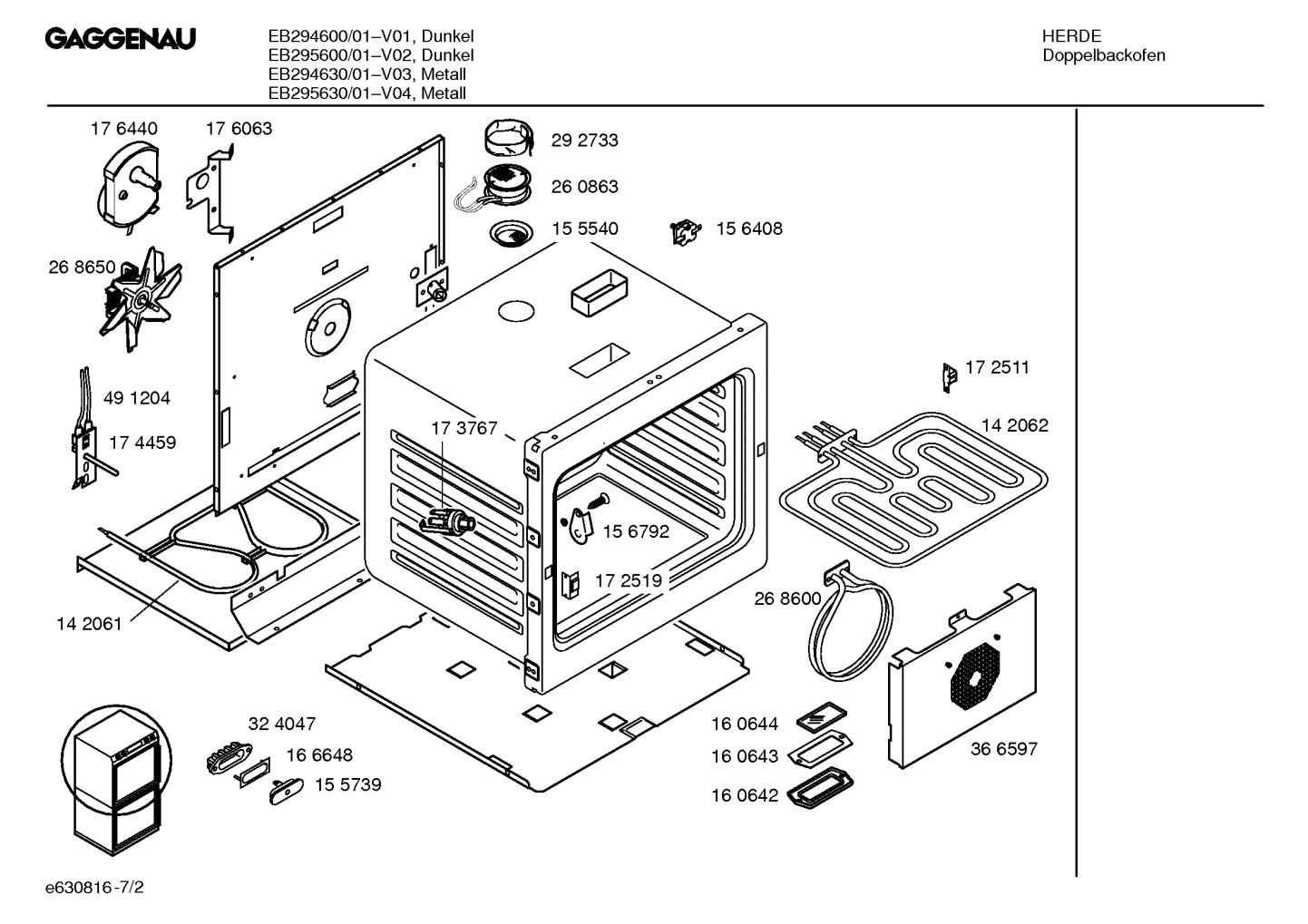

Diagram 2

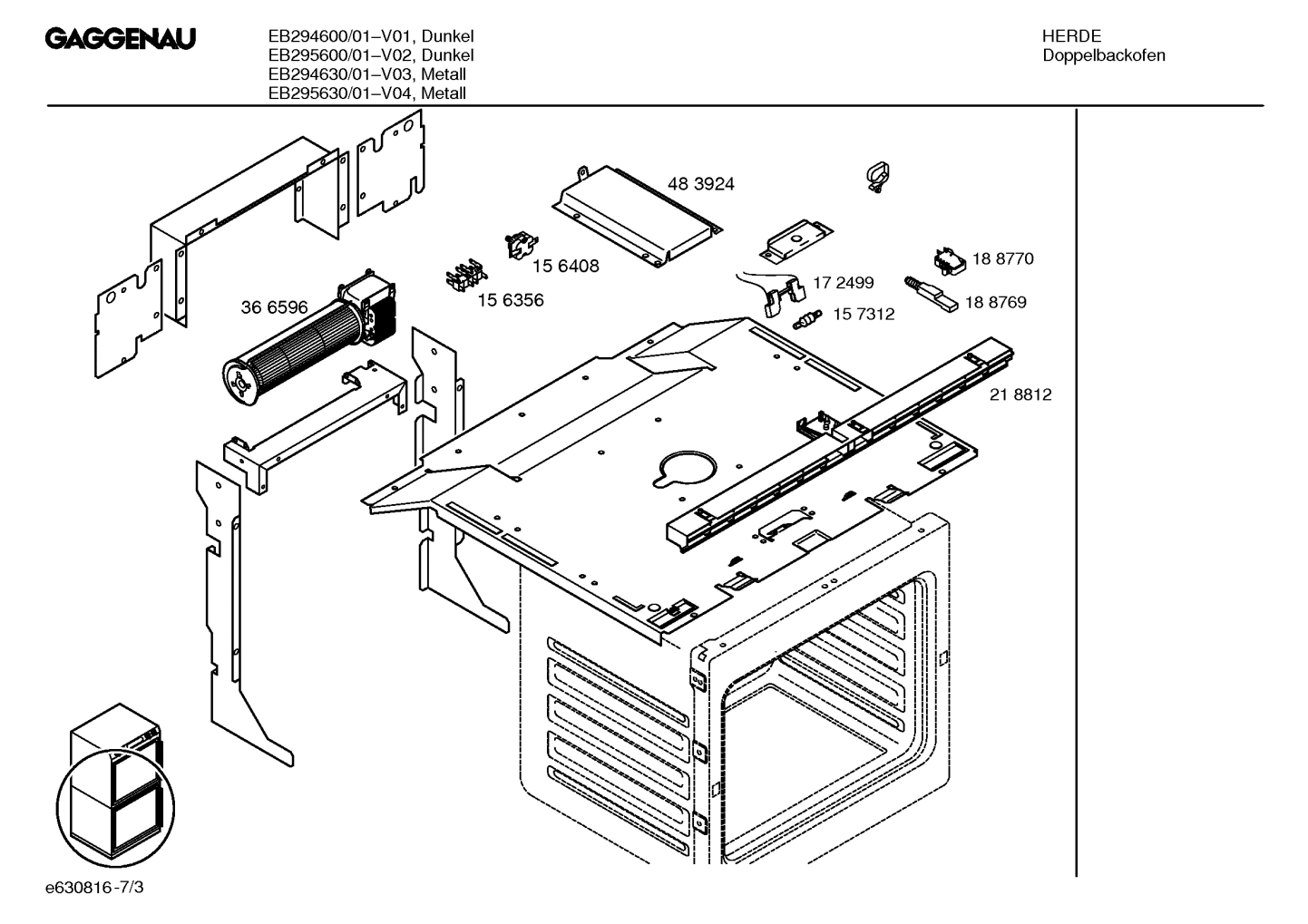

Diagram 3

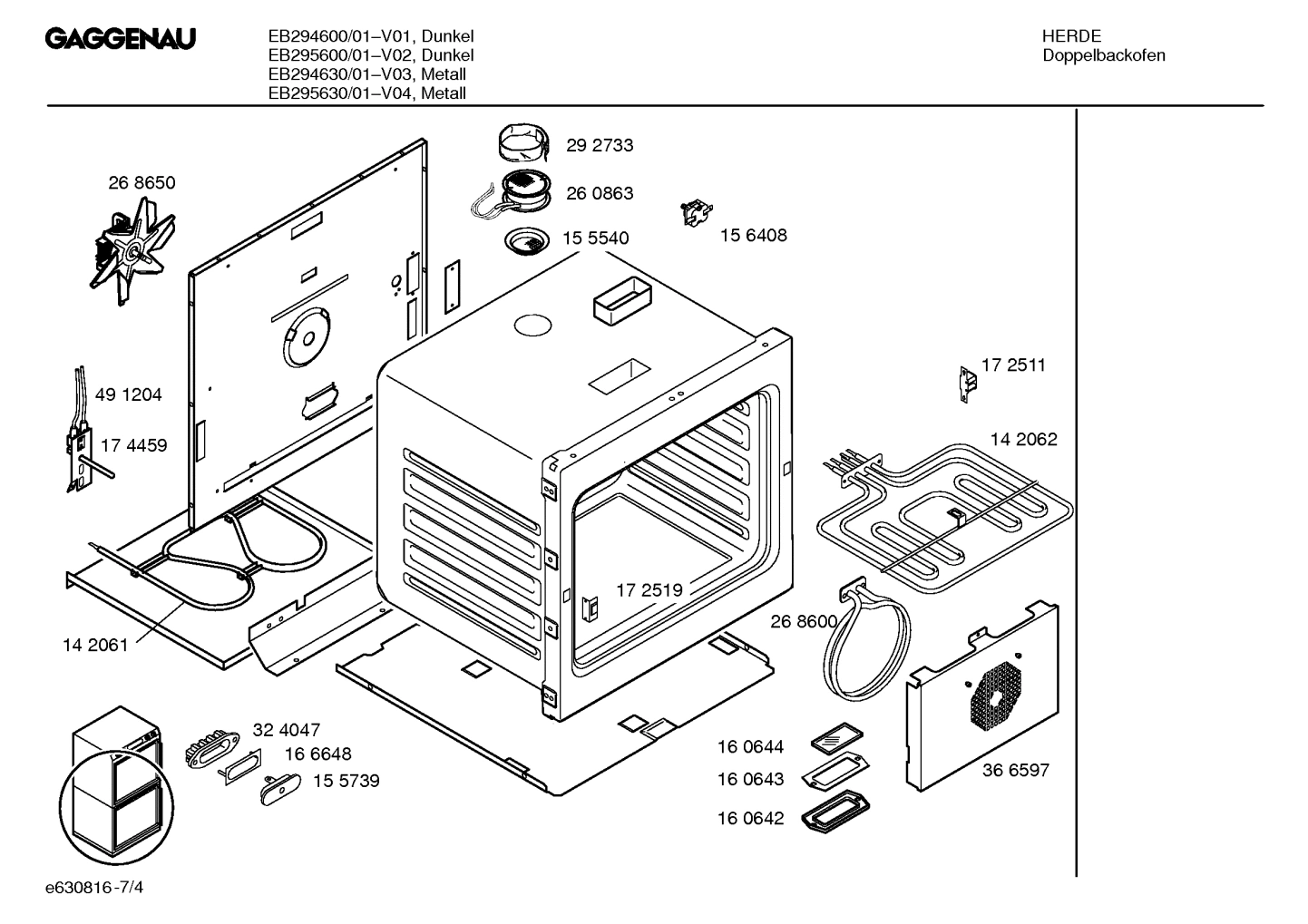

Diagram 4

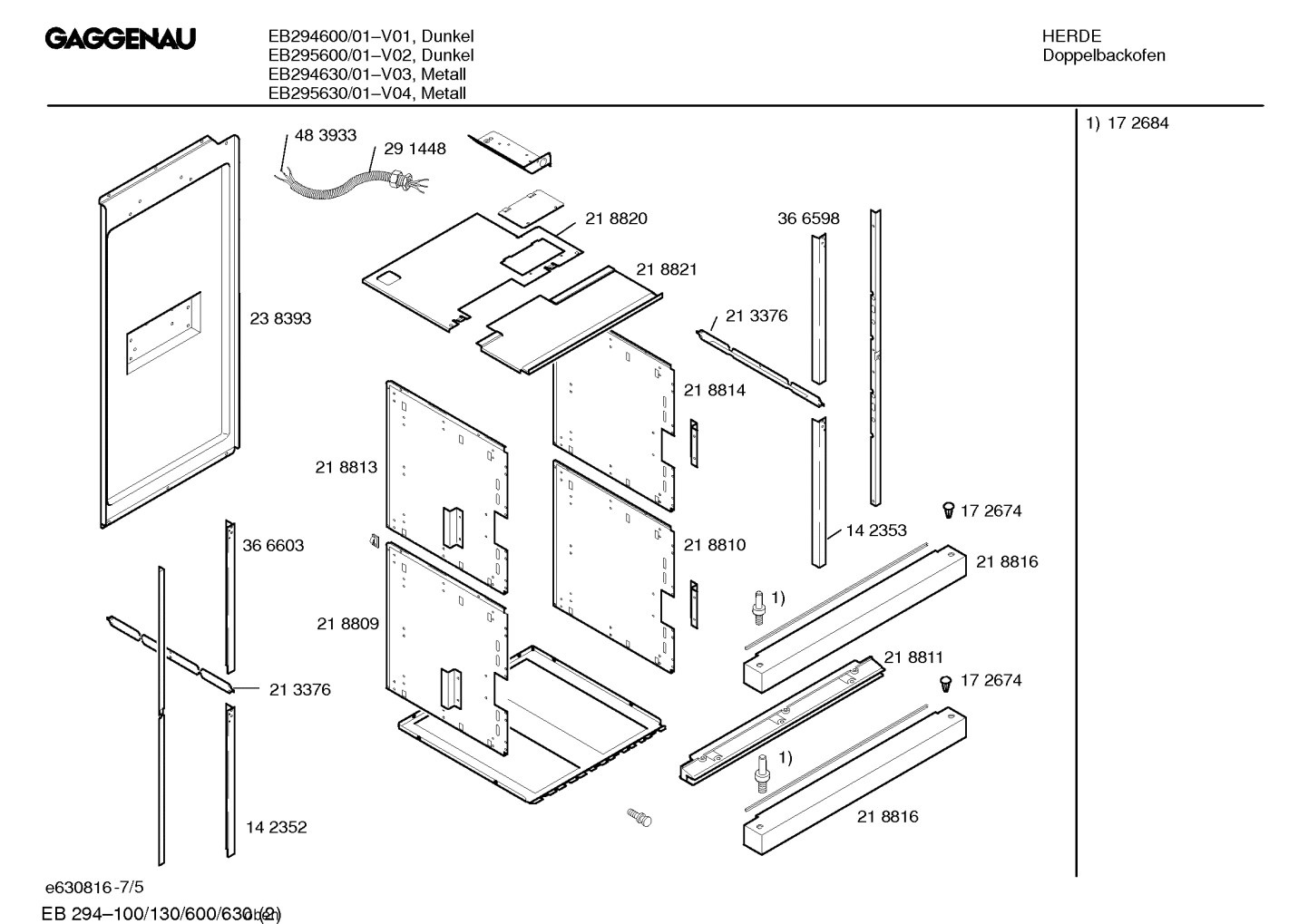

Diagram 5

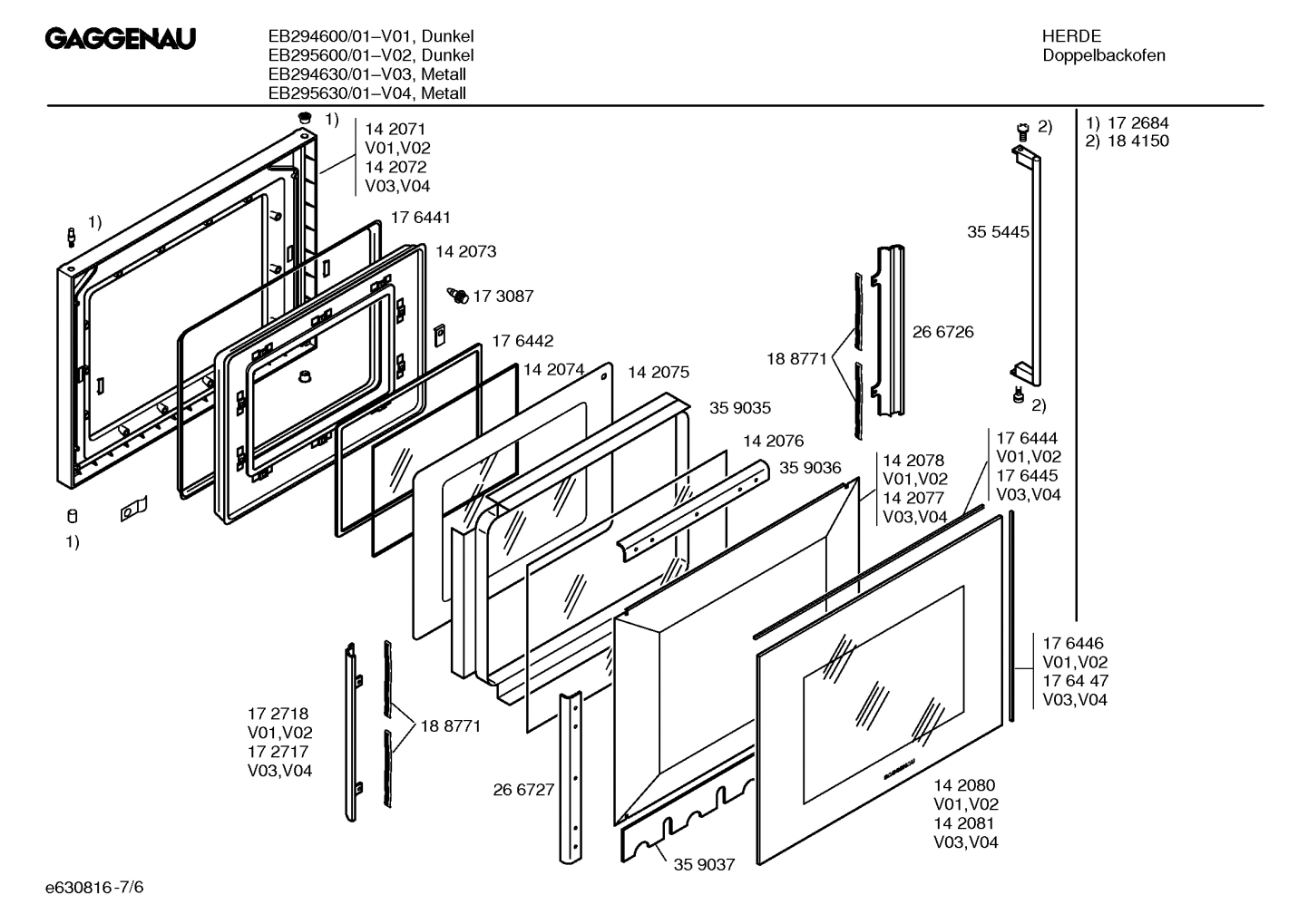

Diagram 6

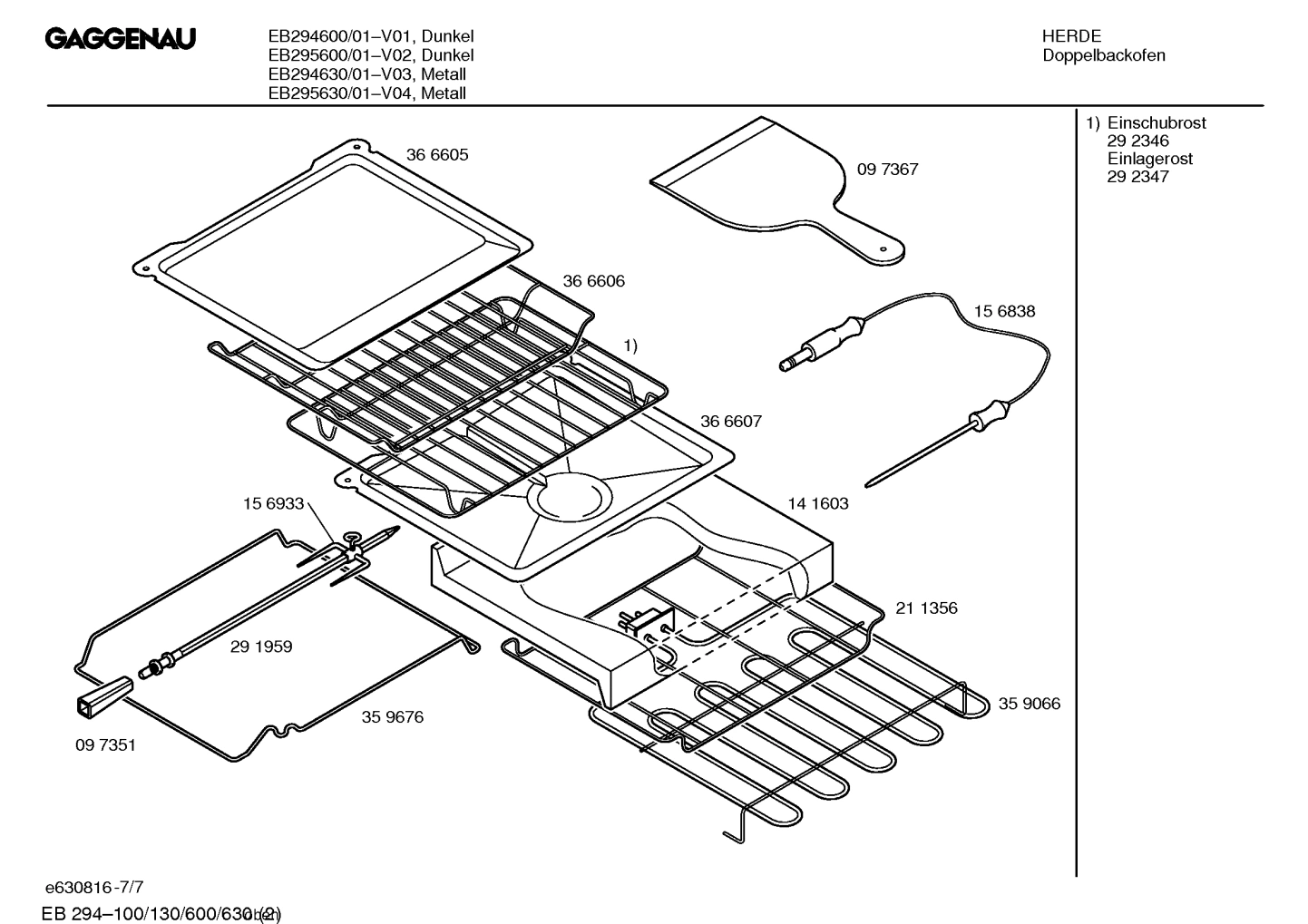

Diagram 7
Common parts from model Bosch EB294630/01 Range Oven
0107
Switch BOS 00172493 Contact Us For Availability
0113
Bolt BOS 00172509 Contact Us For Availability
0118
Operating module BOS 00188773 Contact Us For Availability
0119
Strip BOS 00470949 Contact Us For Availability
0120
Fan motor BOS 00268649 Contact Us For Availability
0122
Power module BOS 00366602 Contact Us For Availability
0128
Time switch BOS 00664683 Contact Us For Availability
0215
Motor BOS 00176440 Contact Us For Availability
0301
Terminal BOS 00156356 Contact Us For Availability
0306
Switch-door BOS 00188770 Contact Us For Availability
0307
Strip BOS 00218812 Contact Us For Availability
0308
Fan drum BOS 00366596 Contact Us For Availability
0402
Grill heating element BOS 00142062 Contact Us For Availability
0413
Heater-ring BOS 00268600 Contact Us For Availability
0414
Blower motor BOS 00263384 Contact Us For Availability
0418
Holder BOS 00156828 Contact Us For Availability
0420
Cable harness BOS 00491204 Contact Us For Availability
0515
Power cord BOS 00359612 Contact Us For Availability
0603
Glass panel BOS 00142074 Contact Us For Availability
0605
Glass panel BOS 00142076 Contact Us For Availability
0608
Installation set BOS 00172684 Contact Us For Availability
0610
Bolt BOS 00173087 Contact Us For Availability
0612
Sealing BOS 00176442 Contact Us For Availability
0701
Handle BOS 00097351 Contact Us For Availability
0708
Multi-use wire shelf BOS 00292346 Contact Us For Availability
0711
Baking tray enamel BOS 00366605 Contact Us For Availability
× ![]()
