Model Samsung DMR57LFS/XAA-00 – Common Parts &amp; Diagrams

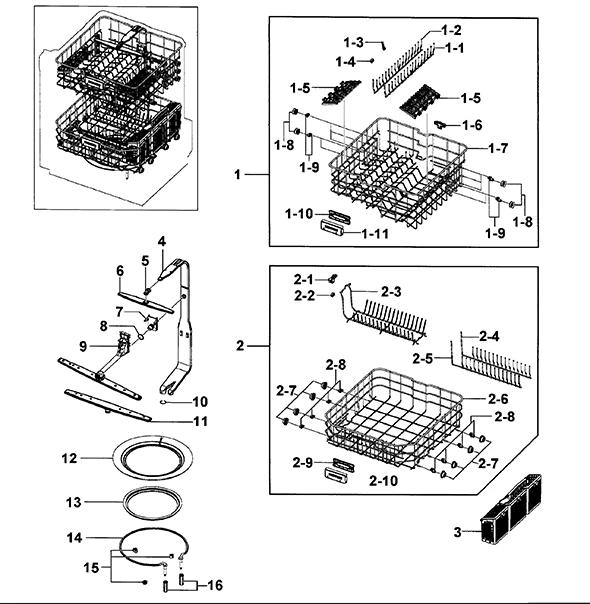

1

DD97-00132A Samsung Dishwasher Brake Case Ass In Stock SMG DD97-00132A $45.11

1-4

DD61-00217A Samsung Dishwasher Tine Holder Backorder SMG DD61-00217A $3.97

1-8

DD66-00022A Samsung Dishwasher Roller Basket In Stock SMG DD66-00022A $40.14

1-9

DD61-00222A Samsung Dishwasher Roller Holder In Stock SMG DD61-00222A $4.37

2

DD62-00043A Samsung Dishwasher Seal Gasket In Stock SMG DD62-00043A $86.55

2

DD63-00072A Samsung Dishwasher Brake Vent Sea In Stock SMG DD63-00072A $7.27

2-7

DD66-00023A Samsung Dishwasher Basket Rack Ro In Stock SMG DD66-00023A $9.49

3

DD63-00073A Samsung Dishwasher Break Cover Ca Backorder SMG DD63-00073A $8.82

3

DD97-00115A Samsung Assembly Support Link Backorder SMG DD97-00115A $110.95

3

DD97-00133A Samsung Filter Assembly Mesh Backorder SMG DD97-00133A $137.62

4

DD61-00241A Samsung Dishwasher Spray Arm Nozz In Stock SMG DD61-00241A $10.11

4

DD67-00046A Samsung Inlet Hose Flow Backorder SMG DD67-00046A $26.53

5

DD31-00006A Samsung Motor Ventilation Assembl Backorder SMG DD31-00006A $197.89

5

DD61-00178A Samsung Dishwasher Left Tub Edge Backorder SMG DD61-00178A $5.33

5

DD61-00228A Samsung Dishwasher Lower Wash Arm In Stock SMG DD61-00228A $3.08

5

DD62-00052A Samsung Dishwasher Mesh Filter Se Backorder SMG DD62-00052A $35.32

5

DD65-00001G Samsung Clamper Hose Backorder SMG DD65-00001G $11.70

6

DD61-00177A Samsung Dishwasher Right Edge Gui Backorder SMG DD61-00177A $5.33

6

DD61-00230A Samsung Drain Hose Holder Assembl Backorder SMG DD61-00230A $7.99

6

DD97-00127A Samsung Dishwasher Lower Wash Arm Backorder SMG DD97-00127A $129.52

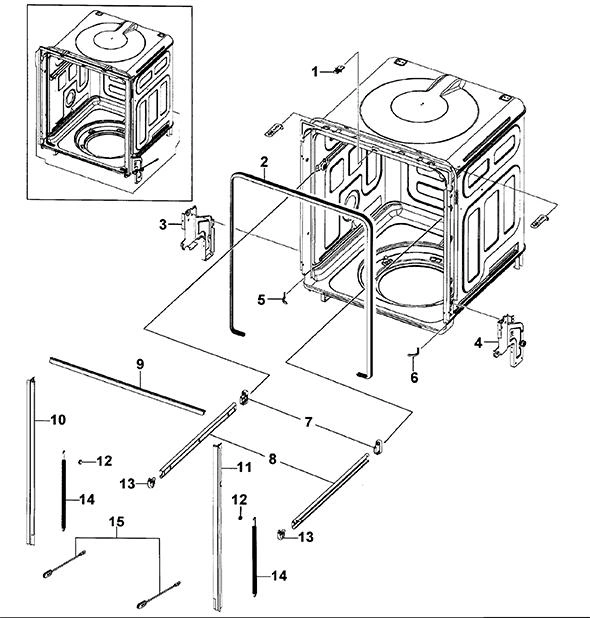

7

DD61-00183A Samsung Dishwasher Rail Stop Clip Backorder SMG DD61-00183A $16.50

7

DD81-01172A Samsung Dishwasher Impeller Motor Backorder SMG DD81-01172A $1.76

8

DD61-00174A Samsung Rail Basket Assembly Backorder SMG DD61-00174A $135.52

8

DD62-00044A Samsung Dishwasher Fan Seal Backorder SMG DD62-00044A $31.30

8

DD97-00137A Samsung Dishwasher Drain Hose Backorder SMG DD97-00137A $158.06

8

Dishwasher Water-Level Sensor SMG DD97-00131A Contact Us For Availability

9

3501-000260 Samsung Dishwasher Power Relay fo Backorder SMG 3501-000260 $75.67

9

DD59-01001A Samsung Dishwasher Rinse Aid Disp In Stock SMG DD59-01001A $130.51

9

DD62-00055A Samsung Rubber Seal Assembly for Backorder SMG DD62-00055A $31.79

9

DD97-00126A Samsung Dishwasher Middle Nozzle Backorder SMG DD97-00126A $85.19

10

DD62-00068A Samsung Dishwasher Nozzle Duct Se In Stock SMG DD62-00068A $9.26

11

DD61-00232A Samsung Dishwasher Levelling Leg Backorder SMG DD61-00232A $11.02

11

DD70-01001A Samsung Dishwasher Food Chopper B In Stock SMG DD70-01001A $6.17

11

Dishwasher Spray Arm SMG DD97-00128A Contact Us For Availability

12

DD62-00053A Samsung Dishwasher Motor Pump Oil In Stock SMG DD62-00053A $37.20

12

DD67-00040A Samsung Dishwasher Tub Screw Cove Backorder SMG DD67-00040A $1.76

DD61-00182A Samsung Dishwasher Dishrack Rail Backorder SMG DD61-00182A $15.44

DD62-00050A Samsung Dishwasher Sump Gasket Se In Stock SMG DD62-00050A $128.41

DD66-00019A Samsung Dishwasher Drain Check Va Backorder SMG DD66-00019A $17.58

DD97-00106A Samsung Dishwasher Front Tub Asse Backorder SMG DD97-00106A $297.36

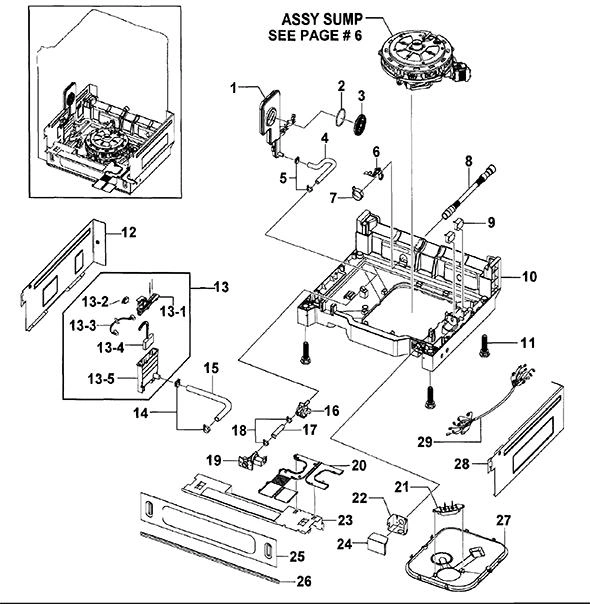

13-1

DD63-00083A Samsung Dishwasher Sensor Cover A Backorder SMG DD63-00083A $155.62

13-2

Dishwasher Float Switch SMG DD34-00003A Contact Us For Availability

13-3

DD96-00043A Samsung Dishwasher Wire Harness A Backorder SMG DD96-00043A $44.98

13-4

DD66-00034A Samsung DMR78 PP R PJT Float Leve Backorder SMG DD66-00034A $130.85

13-5

DD61-00236A Samsung Dishwasher Water Level Ca Backorder SMG DD61-00236A $22.83

DD31-00005A Samsung Dishwasher Drain Pump Ass Backorder SMG DD31-00005A $134.16

DD61-00245A Samsung Dishwasher Door Spring Backorder SMG DD61-00245A $78.89

DD64-00046A Samsung Dishwasher Door Link Righ In Stock SMG DD64-00046A $62.33

Dishwasher Heating Element SMG DD47-00003A Contact Us For Availability

15

DD61-00207A Samsung Dishwasher Door Link Guid Backorder SMG DD61-00207A $2.20

15

DD61-00212A Samsung Holder Sump Assembly Backorder SMG DD61-00212A $8.51

15

DD67-00039A Samsung Dishwasher Door Spring Hi In Stock SMG DD67-00039A $11.90

16

DD32-00003A Samsung Dishwasher Turbidity Sens Backorder SMG DD32-00003A $157.12

16

DD60-00001A Samsung Spacer Door Link Assembly Backorder SMG DD60-00001A $1.18

16

Dishwasher Flow Sensor SMG DD32-00004A Contact Us For Availability

17

DD32-00001A Samsung Thermistor Backorder SMG DD32-00001A $78.50

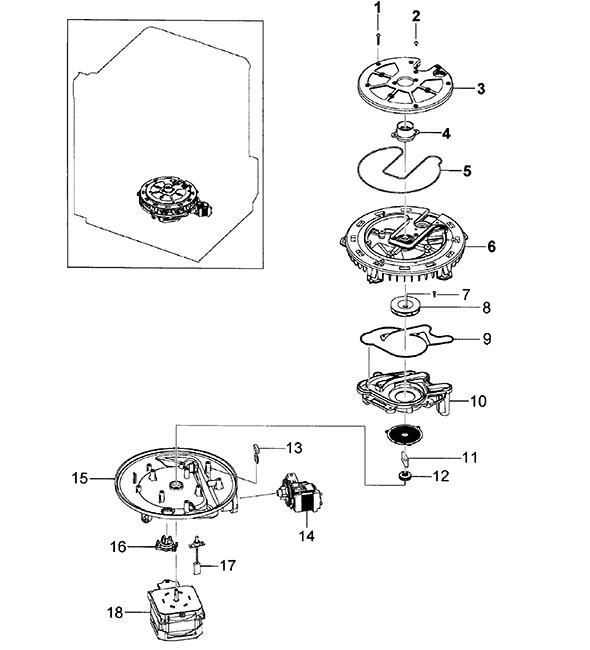

18

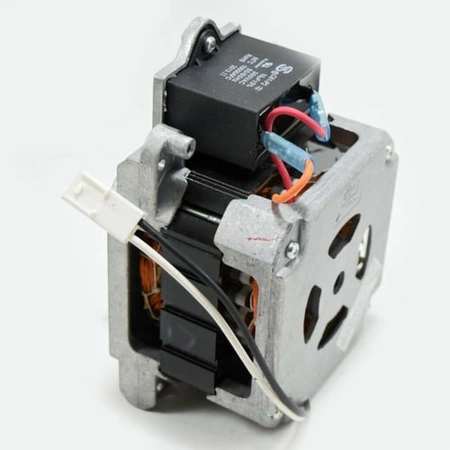

DD31-00004A Samsung Dishwasher Circulation Pu Backorder SMG DD31-00004A $365.99

19

DD62-00067A Samsung Water Valve for Dishwashe Backorder SMG DD62-00067A $86.76

20

DD64-00047A Samsung Door Link Assembly In Stock SMG DD64-00047A $127.18

21

Dishwasher Leak Detector Sensor SMG DD97-00130A Contact Us For Availability

24

DD63-00082A Samsung Dishwasher Power Cord Cov Backorder SMG DD63-00082A $7.49

25

DD63-00081A Samsung Front Lower Dishwasher Co Backorder SMG DD63-00081A $61.01

26

DD69-00017A Samsung Dishwasher Noise Packing Backorder SMG DD69-00017A $15.43

26

Dishwasher Electronic Control Board SMG DE92-02130B Contact Us For Availability

27

Dishwasher Door Switch SMG DD34-00002B Contact Us For Availability

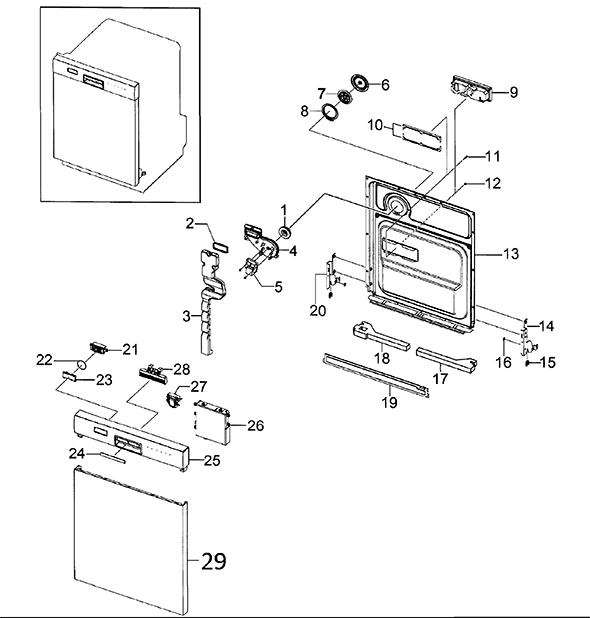

29

DD61-00202A Samsung Dishwasher Door Panel Ass Backorder SMG DD61-00202A $297.36
