Model Whirlpool DDW160/MN03 DISHWASHER – Common Parts & Diagrams

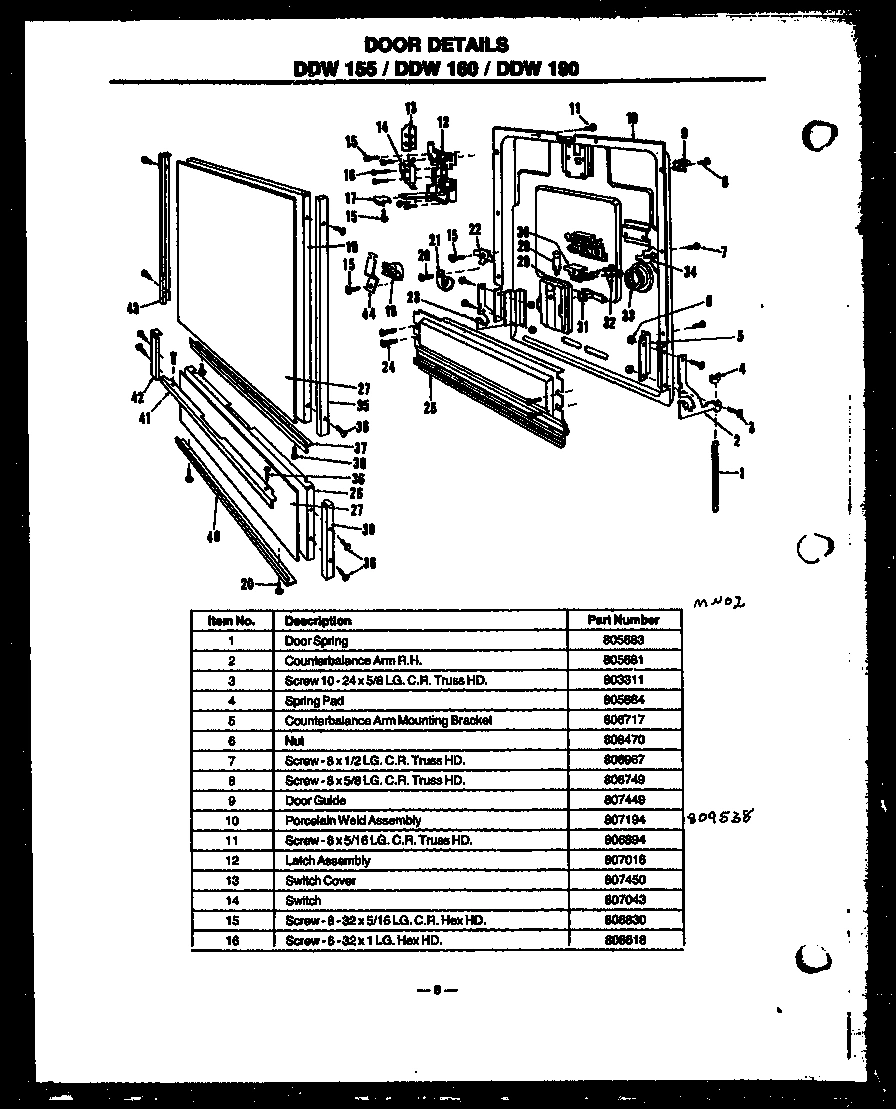

03 - DOOR DETAILS

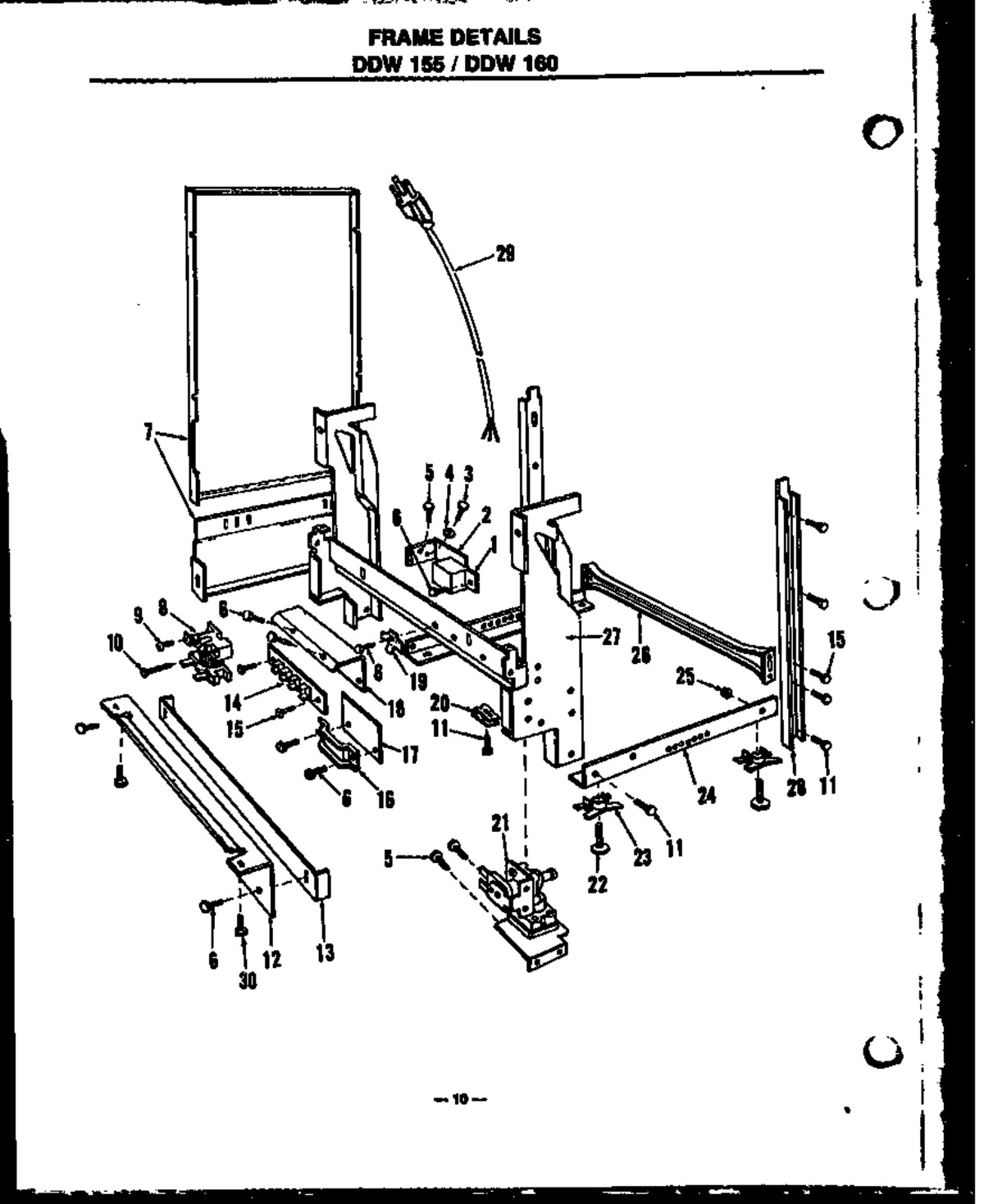

04 - FRAME DETAILS

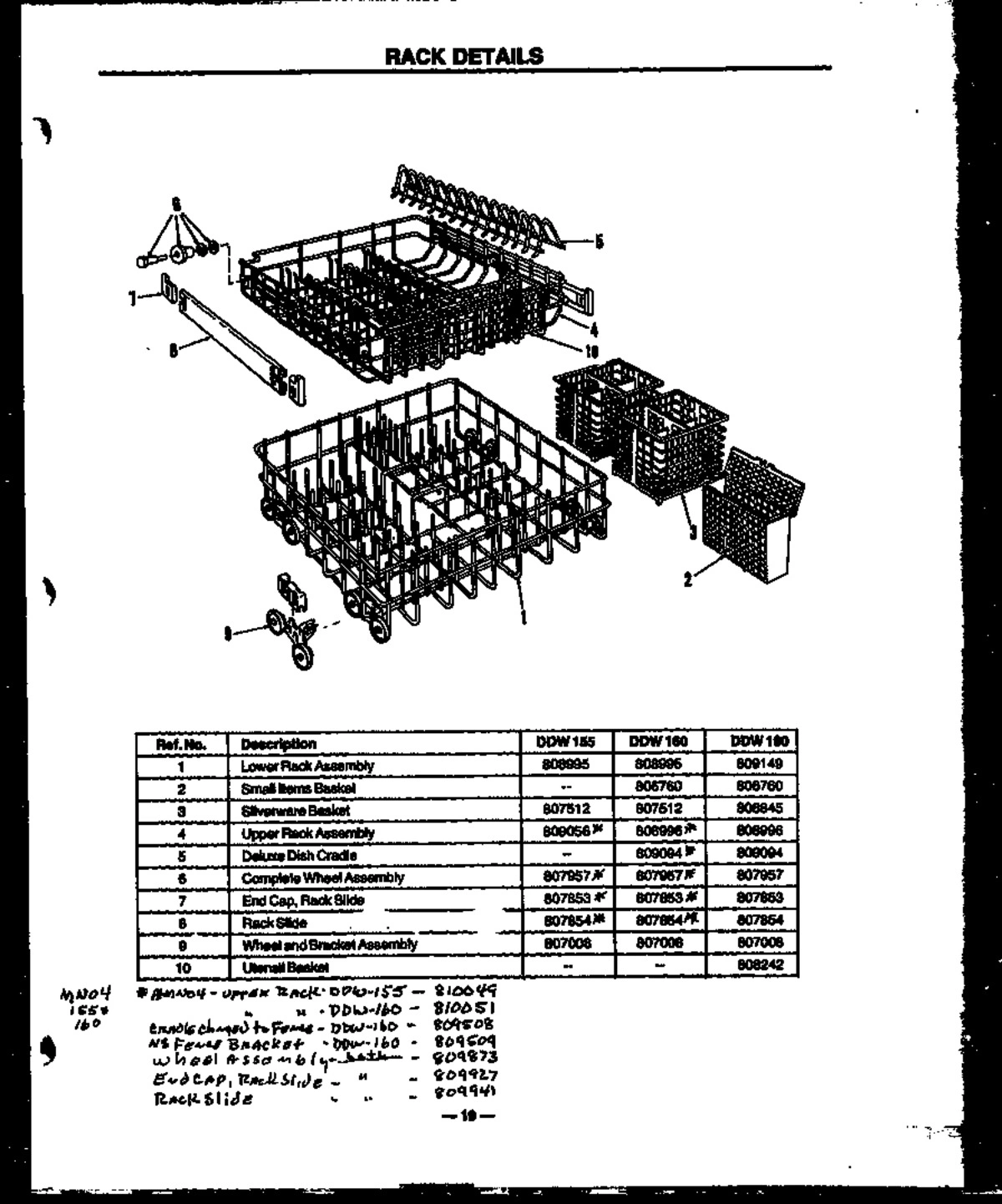

07 - RACK DETAILS

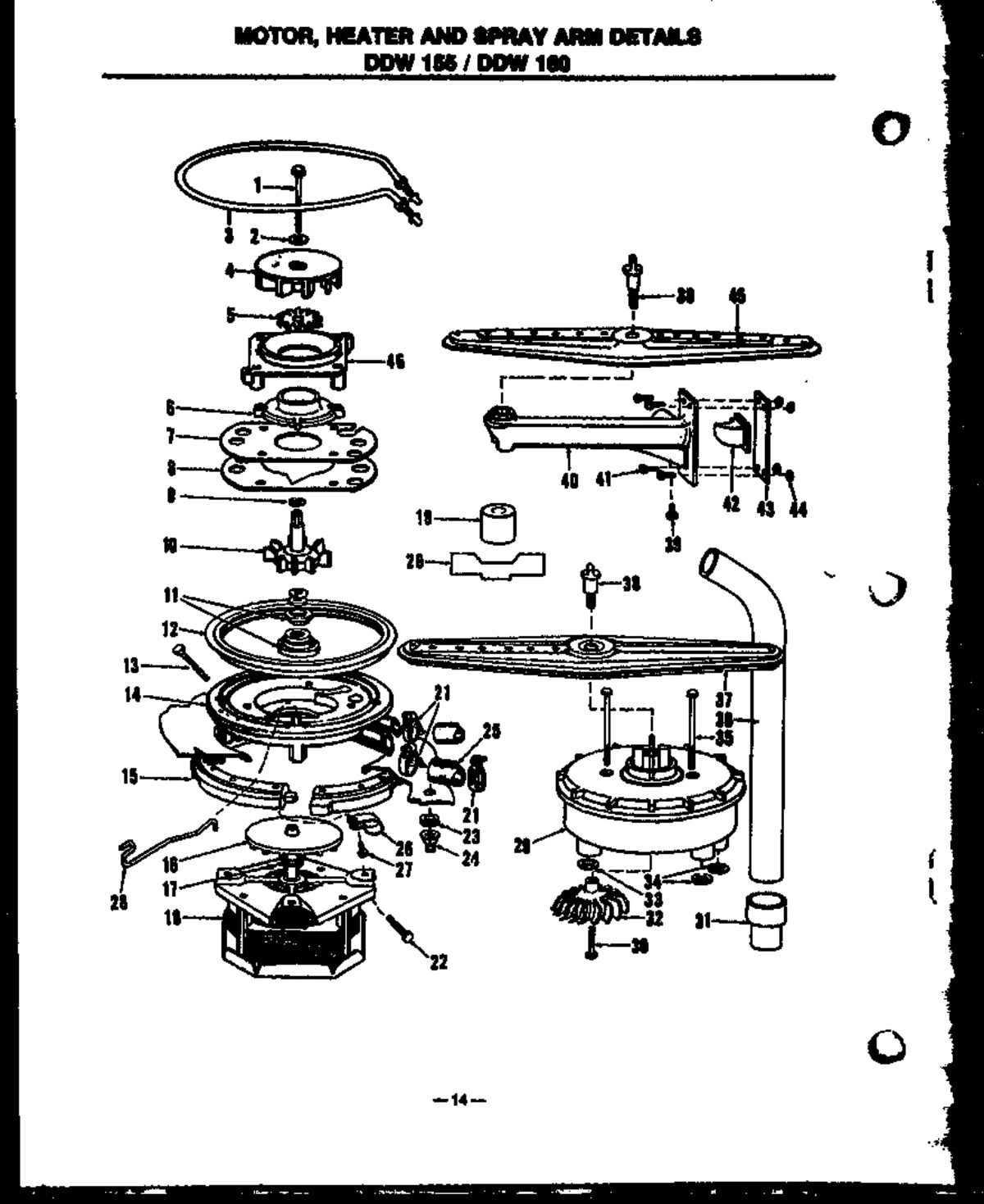

05 - MOTOR
06 - RACK DETAILS

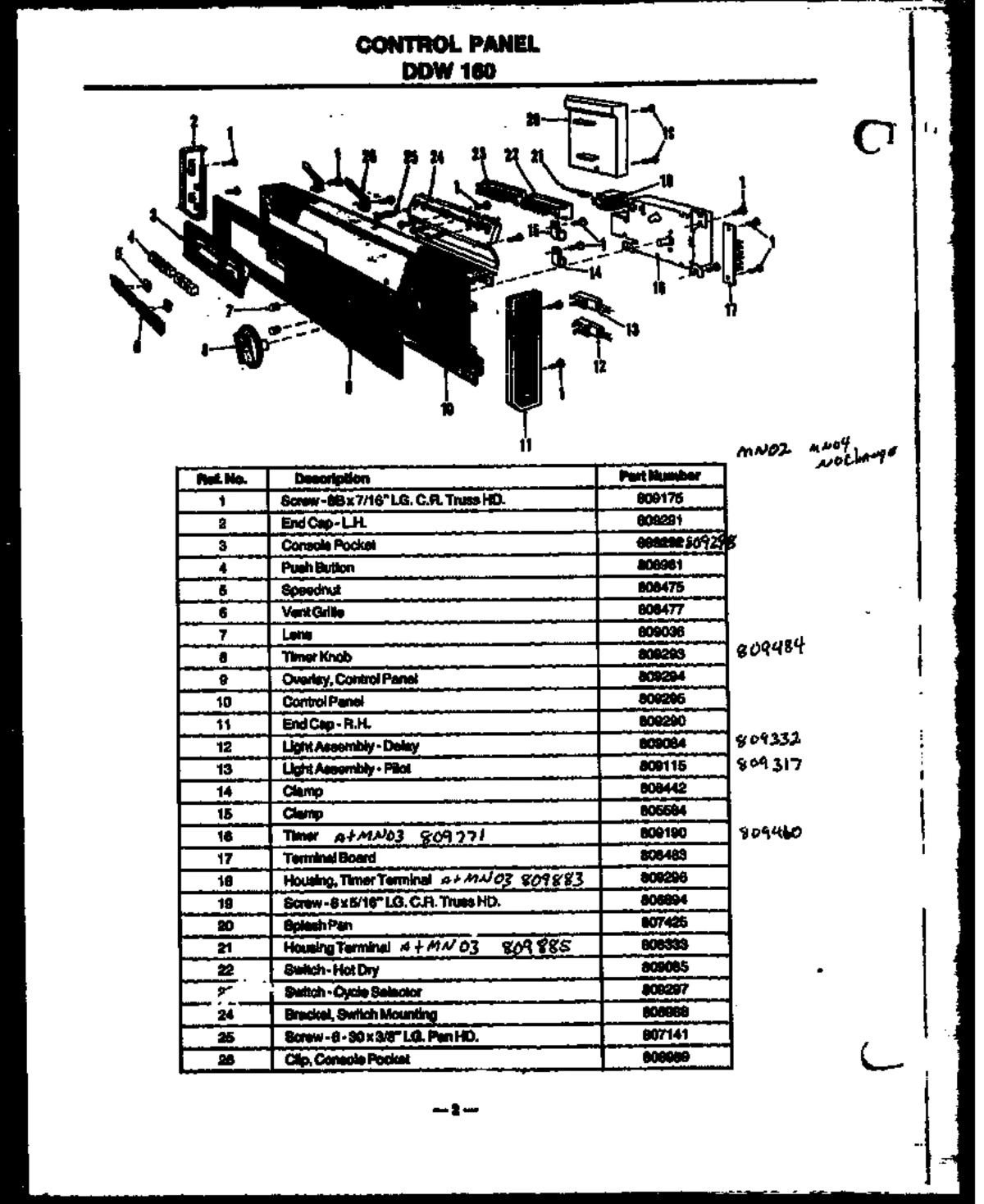

01 - CONTROL PANEL

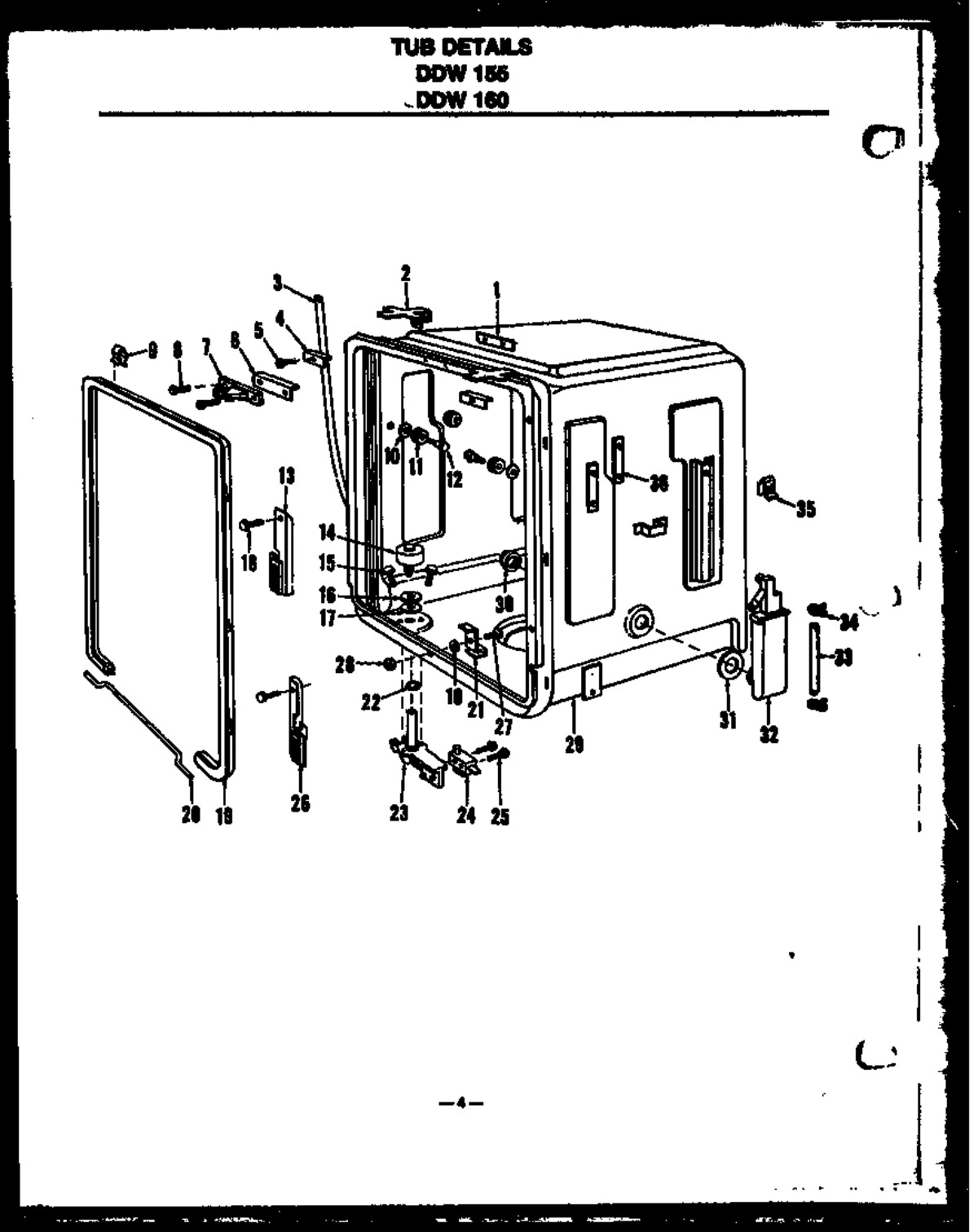

08 - TUB DETAILS

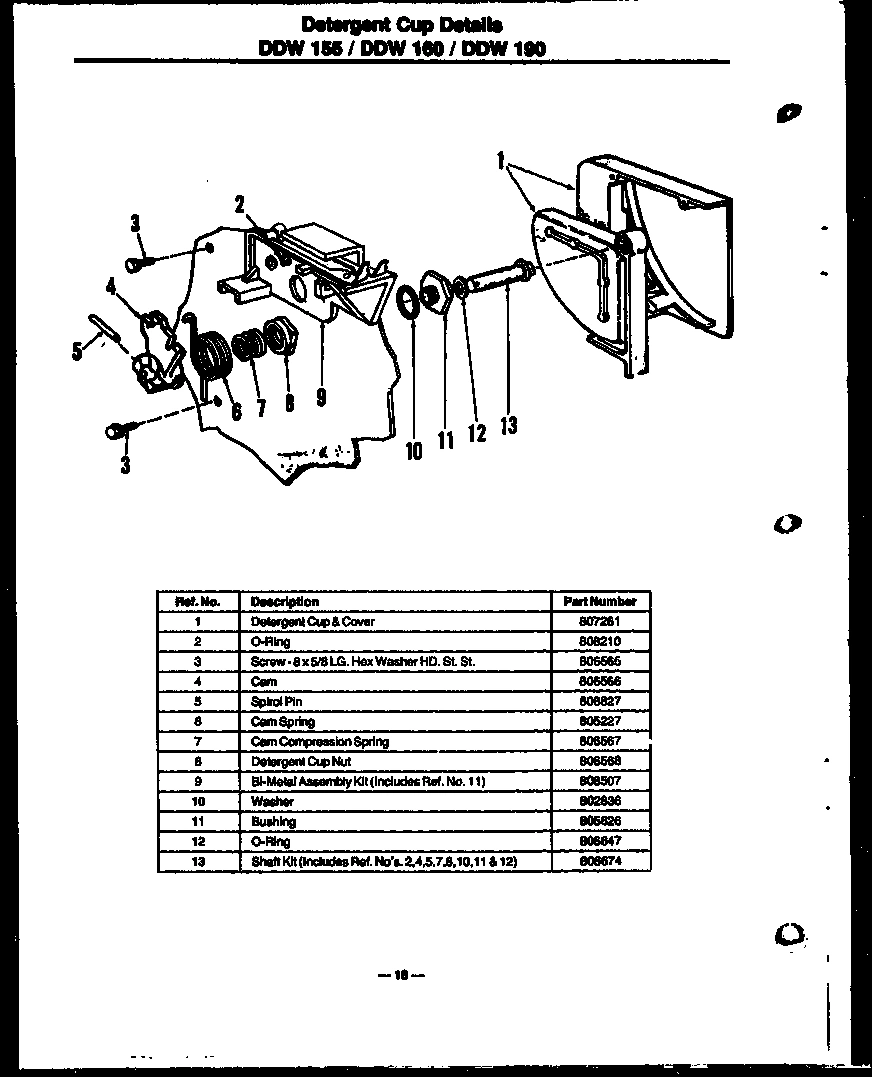

02 - DETERGENT CUP DETAILS
Common parts from model Whirlpool DDW160/MN03 DISHWASHER
1
SPRING, COUNTERBALANCE WPL Y0805683 Contact Us For Availability
1
JUNCTION BOX COVER WPL 0800222 Contact Us For Availability
1
SCREW No.10X1-1/4`` LG HEX WASHER WPL Y0806353 Contact Us For Availability
1
UPPER RACK ASM WPL Y0808995 Contact Us For Availability
1
SCREW WPL 0809175 Contact Us For Availability
1
LATCH TAPPING PLATE WPL 0808868 Contact Us For Availability
1
KIT, DETERGENT CUP WPL 0807261 Contact Us For Availability
2
ARM ASSY COUNTERBALANCE R H WPL Y0805681 Contact Us For Availability
2
COVER BRACKET WPL 0807019 Contact Us For Availability
2
No.8 TYPE A SET SST WASHER WPL 0803367 Contact Us For Availability
2
``O`` RING WPL Y0808210 Contact Us For Availability
2
SML ITEM BASKET WPL 806760 Contact Us For Availability
2
END CAP, L.H. WPL 0809291 Contact Us For Availability
2
CLIP WPL 0809677 Contact Us For Availability
3
SCREW WPL 0803311 Contact Us For Availability
3
SCREW WPL 0807951 Contact Us For Availability
3
HEATER WPL 0809004 Contact Us For Availability
3
SILVERWARE BASKET WPL Y0807512 Contact Us For Availability
3
DRAIN HOSE WPL Y0809112 Contact Us For Availability
3
SCREW WPL 0806565 Contact Us For Availability
4
SPRING PAD WPL 0805884 Contact Us For Availability
4
WASHER WPL 0807373 Contact Us For Availability
4
UPPER IMPELLER WPL Y0809005 Contact Us For Availability
4
UPPER RACK ASSY. WPL 0808996 Contact Us For Availability
4
PUSH BUTTON WPL 0808981 Contact Us For Availability
4
SHIM WPL Y0808366 Contact Us For Availability
4
CAM WPL Y0806566 Contact Us For Availability
5
ARM BRACKET WPL Y0806717 Contact Us For Availability
5
SCREW WPL Y0807950 Contact Us For Availability
5
BLADE, MACERATOR WPL 0808075 Contact Us For Availability
5
DELUXE DISH CRADLE WPL 0809094 Contact Us For Availability
5
SPEED NUT WPL Y0808475 Contact Us For Availability
5
SCREW WPL 0806976 Contact Us For Availability
5
SPIROL PIN WPL Y0808827 Contact Us For Availability
6
SHROUD IMPELLER WPL Y0806267 Contact Us For Availability
6
ROLLER WPL Y0807957 Contact Us For Availability
6
VENT GRILLE WPL Y0808477 Contact Us For Availability
6
SHIM STRIKE WPL 0807073 Contact Us For Availability
6
SPRING WPL Y0805227 Contact Us For Availability
7
SCREW WPL 0806967 Contact Us For Availability
7
SIDE PANEL KIT, WHITE WPL 0808880 Contact Us For Availability
7
SIDE PANEL KIT, ALMOND WPL 0808884 Contact Us For Availability
7
SIDE PANEL KIT WPL 808881 Contact Us For Availability
7
SIDE PANEL KIT WPL 808882 Contact Us For Availability
7
SIDE PANEL KIT WPL 808883 Contact Us For Availability
7
PUMP PLATE WPL 0809006 Contact Us For Availability
7
END CAP, RACK SLIDE WPL Y0807853 Contact Us For Availability
7
LENS WPL 0809036 Contact Us For Availability
7
STRIKE WPL Y0807015 Contact Us For Availability
7
SPRING, CAM COMPRESSION WPL 0806567 Contact Us For Availability
8
SCREW WPL Y0808749 Contact Us For Availability
8
RELAY WPL 0805255 Contact Us For Availability
8
SLIDE CAP WPL 0809721 Contact Us For Availability
8
PUMP GASKET WPL Y0809007 Contact Us For Availability
8
RACK SLIDE WPL 0807854 Contact Us For Availability
8
KNOB, TIMER WPL Y0809293 Contact Us For Availability
8
NUT WPL Y0806568 Contact Us For Availability
9
DOOR GUIDE WPL 0807449 Contact Us For Availability
9
``O`` RING WPL Y0806521 Contact Us For Availability
9
WHEEL ASSY WPL Y0807008 Contact Us For Availability
9
OVERLAY, CONTROL PANEL WPL 0809294 Contact Us For Availability
9
FASTENER GASKET WPL Y0805763 Contact Us For Availability
9
TRIGGER ASSY WPL Y0808507 Contact Us For Availability
10
INNER DR. ASSY. WPL 0807194 Contact Us For Availability
10
SCREW WPL 0804672 Contact Us For Availability
10
PUMP SEAL KIT WPL Y0809110 Contact Us For Availability
10
CONTROL PANEL WPL 0809295 Contact Us For Availability
10
WASHER, SEALING WPL 0809044 Contact Us For Availability
10
WASHER WPL 0802836 Contact Us For Availability
11
SCREW WPL 0807001 Contact Us For Availability
11
WATER SEAL WPL Y0803903 Contact Us For Availability
11
END CAP, R.H. WPL 0809290 Contact Us For Availability
11
ROLLER WPL 0807180 Contact Us For Availability
11
BUSHING WPL 0805626 Contact Us For Availability
12
LATCH ASSEMBLY WPL Y0807016 Contact Us For Availability
12
TOE PLATE WPL 0809765 Contact Us For Availability
12
GASKET WPL Y0809008 Contact Us For Availability
12
LIGHT ASSY. - DELAY WPL 0809084 Contact Us For Availability
12
KIT, SCREW & WASHER WPL 0808564 Contact Us For Availability
12
``O`` RING WPL Y0806647 Contact Us For Availability
13
SWITCH COVER WPL 0807450 Contact Us For Availability
13
TOE PLATE, ADJUSTABLE WPL 0809303 Contact Us For Availability
13
LIGHT ASSY. - PILOT WPL 0809115 Contact Us For Availability
13
GUIDE, COUNTERBALANCE, L.H. WPL Y0807470 Contact Us For Availability
13
KIT, SHAFT SEAL WPL Y0806674 Contact Us For Availability
14
SWITCH, DOOR LATCH WPL Y0807043 Contact Us For Availability
14
CLAMP WPL Y0808442 Contact Us For Availability
14
TERMINAL BLOCK WPL 0807486 Contact Us For Availability
14
PUMP HOUSING, LOWER WPL Y0809009 Contact Us For Availability
15
SCREW WPL 0806830 Contact Us For Availability
15
SUB 807268, SCREW HEX HD. WPL Y0809697 Contact Us For Availability
15
CLAMP RING WPL Y0807712 Contact Us For Availability
16
SCREW WPL 0808618 Contact Us For Availability
16
WIRING CLAMP WPL 0806723 Contact Us For Availability
16
SLINGER, PLASTIC WPL 0808899 Contact Us For Availability
16
TIMER, DDW155-CO WPL Y0809771 Contact Us For Availability
16
RING WPL Y0808064 Contact Us For Availability
17
KNOB, LATCH WPL 0808698 Contact Us For Availability
17
WIRE SHIELD WPL 0809144 Contact Us For Availability
17
TOLERANCE RING WPL 0808898 Contact Us For Availability
17
TERMINAL BOARD ASSY. WPL Y0808483 Contact Us For Availability
17
GASKET WPL Y0808063 Contact Us For Availability
18
THERMOSTAT WPL Y0808956 Contact Us For Availability
18
BRACKET, TERMINAL BOARD WPL 0807849 Contact Us For Availability
18
MOTOR ASSY WPL Y0809100 Contact Us For Availability
18
HOUSING, TIMER TERMINAL WPL Y0809883 Contact Us For Availability
18
SCREW, No.10-24 X 5/8 WPL 0806539 Contact Us For Availability
19
SCREW WPL 0806894 Contact Us For Availability
19
DOOR PANEL, WHITE WPL 0807262 Contact Us For Availability
19
TERMINAL, GROUNDING WPL 0807213 Contact Us For Availability
19
SEAL INSTALLATION TOOL WPL Y0803923 Contact Us For Availability
19
GASKET & WIRE ASSY WPL Y0808959 Contact Us For Availability
20
SPEED NUT WPL 0808170 Contact Us For Availability
20
SHIM GAUGE WPL 0807077 Contact Us For Availability
20
SPLASH PAN WPL 0807425 Contact Us For Availability
20
JUNCTION, WIRE GASKET WPL 0808344 Contact Us For Availability
21
VALVE ASSY WPL Y0809240 Contact Us For Availability
21
HOUSING, TIMER TERMINAL WPL 0809885 Contact Us For Availability
21
CLIP, GASKET WPL 0808115 Contact Us For Availability
22
LEVELING LEGS WPL 0807672 Contact Us For Availability
22
SCREW WPL Y0809022 Contact Us For Availability
22
SWITCH WPL Y0809085 Contact Us For Availability
22
``0`` RING WPL Y0807759 Contact Us For Availability
23
ARM ASSY LH COUNTERBALANCE WPL 0805682 Contact Us For Availability
23
TEE NUT - SNAP IN WPL 0807671 Contact Us For Availability
23
GROMMET WPL Y0806833 Contact Us For Availability
23
SWITCH WPL Y0809297 Contact Us For Availability
23
FLOAT ASSY WPL Y0809859 Contact Us For Availability
24
USE 0806976 WPL 0806810 Contact Us For Availability
24
``U`` FRAME ASSEMBLY WPL Y0807851 Contact Us For Availability
24
NUT WPL 0806834 Contact Us For Availability
24
BRACKET, SWITCH WPL 0808988 Contact Us For Availability
24
FLOAT SWITCH WPL Y0809863 Contact Us For Availability
25
HOSE SPRAY TUBE WPL 0805674 Contact Us For Availability
25
SCREW WPL 0807141 Contact Us For Availability
25
SCREW WPL 0809864 Contact Us For Availability
26
ACCESS PANEL, WHITE WPL 0809108 Contact Us For Availability
26
BRACE, REAR WPL Y0807852 Contact Us For Availability
26
CLIP, CONSOLE POCKET WPL 0808989 Contact Us For Availability
26
GUIDE, COUNTERBALANCE, R.H. WPL Y0807471 Contact Us For Availability
27
DOOR & ACCESS PANEL INSERT,ALM WPL 0808908 Contact Us For Availability
27
DOOR & ACCESS PNL INSERTS AVOC WPL 0808909 Contact Us For Availability
27
DOOR & ACCESS PNL INSERTS HARV WPL 0808912 Contact Us For Availability
27
SUB 808804, DOOR&ACC. PANEL IN WPL 0808913 Contact Us For Availability
27
DOOR AND ACCESS PANEL INSERTS WPL 0808914 Contact Us For Availability
27
DOOR TRIM WPL 808910 Contact Us For Availability
27
DOOR TRIM WPL 808911 Contact Us For Availability
27
DOOR TRIM WPL 808916 Contact Us For Availability
27
WELD ASSEMBLY, HINGE WPL 0807848 Contact Us For Availability
27
SCREW WPL 0807270 Contact Us For Availability
28
BODY DISPENSER, WETTING AGENT WPL Y0806753 Contact Us For Availability
28
SUPPORT CHANNEL WPL 0808670 Contact Us For Availability
28
WIRE RETAINER WPL 0809010 Contact Us For Availability
28
USE M0281003 WPL 0803346 Contact Us For Availability
29
PLUNGER WPL Y0809898 Contact Us For Availability
29
POWER CORD WPL Y0808395 Contact Us For Availability
29
FILTER BODY ASSY. WPL Y0809011 Contact Us For Availability
29
TUB AND GASKET ASSEMBLY WPL 809262 Contact Us For Availability
30
USE M0217224 WPL Y0803416 Contact Us For Availability
30
BI-METAL ASSY WPL Y0809109 Contact Us For Availability
30
SCREW WPL 0809073 Contact Us For Availability
30
NUT PLASTIC WPL 0805669 Contact Us For Availability
31
SUB 807673, FILL PLUG WPL Y0806755 Contact Us For Availability
31
ADAPTOR WPL Y0806989 Contact Us For Availability
31
WASHER WPL Y0803573 Contact Us For Availability
32
DIFFUSER WPL Y0809014 Contact Us For Availability
32
WATER INLET ASSY WPL Y0806470 Contact Us For Availability
33
GROMMET, MOUNTING WPL 0805631 Contact Us For Availability
33
O RING WPL Y0809016 Contact Us For Availability
33
TUBE, INLET WPL 0807891 Contact Us For Availability
34
SCREW WPL 0806863 Contact Us For Availability
34
O RING WPL 0809015 Contact Us For Availability
34
CLAMP WPL Y0807813 Contact Us For Availability
35
TRIM, DOOR PANEL, R.H. WPL 0809305 Contact Us For Availability
35
SCREW WPL 0809012 Contact Us For Availability
35
NUT, CAGE WPL 0806291 Contact Us For Availability
36
SUB 807487 SUPPLY TUBE WPL 0807151 Contact Us For Availability
36
TWIN NUT ASSEM. WPL 0807038 Contact Us For Availability
37
TRIM, DOOR PANEL, BOTTOM WPL 0809309 Contact Us For Availability
37
LOWER SPRAY ARM ASSEMBLY WPL 809017 Contact Us For Availability
38
SPRAY ARM BOLT WPL Y0809018 Contact Us For Availability
39
TRIM, ACCESS PANEL, R.H. WPL 0809307 Contact Us For Availability
40
ACCESS TRIM, BOTTOM WPL 0809680 Contact Us For Availability
40
DELIVERY ARM WPL 0809019 Contact Us For Availability
41
TRIM, DOOR PANEL, TOP WPL 0809310 Contact Us For Availability
42
TRIM, ACCESS PANEL, L.H. WPL 0809308 Contact Us For Availability
42
PLUG DELIVERY ARM WPL 0805781 Contact Us For Availability
43
TRIM, DOOR PANEL, L.H. WPL 0809306 Contact Us For Availability
43
GASKET DELIVERY ARM WPL 0805782 Contact Us For Availability
44
THERMOSTAT RETAINER WPL 0809097 Contact Us For Availability
45
SPRAY ARM WPL Y0809021 Contact Us For Availability
46
SPACER PLATE WPL Y0809020 Contact Us For Availability
NI
DOOR KIT, BLACK ACRYLIC WPL 0808926 Contact Us For Availability
NI
TRIM, DOOR KIT, WOOD WPL 0808936 Contact Us For Availability
NI
SCREW, PUMP HOUSING WPL 0807359 Contact Us For Availability
NI
TUB INSULATION WPL 0809113 Contact Us For Availability
× ![]()
Login and Registration Form
