Model Bosch C272BS/01 Range Oven – Common Parts & Diagrams

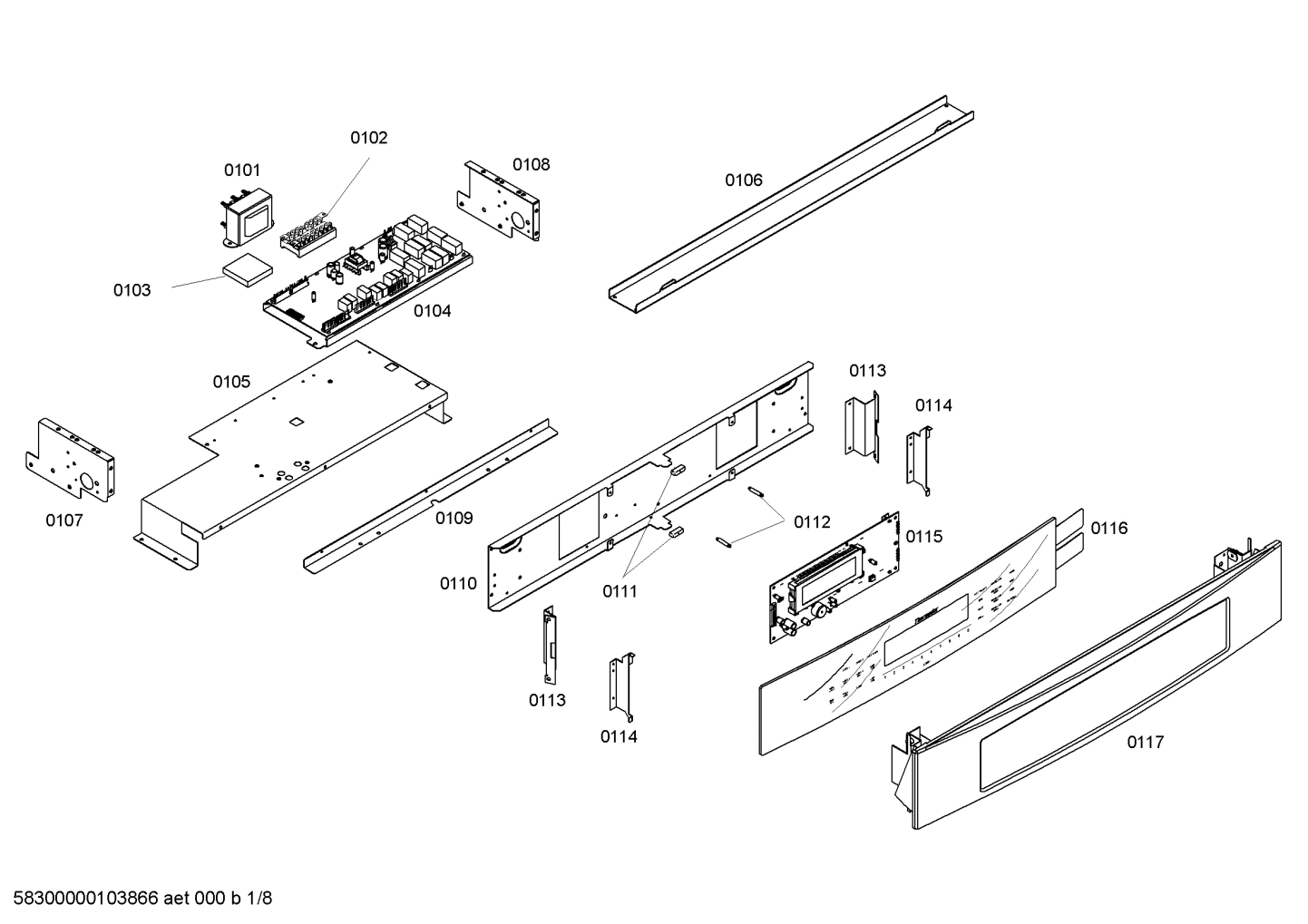

Diagram 1

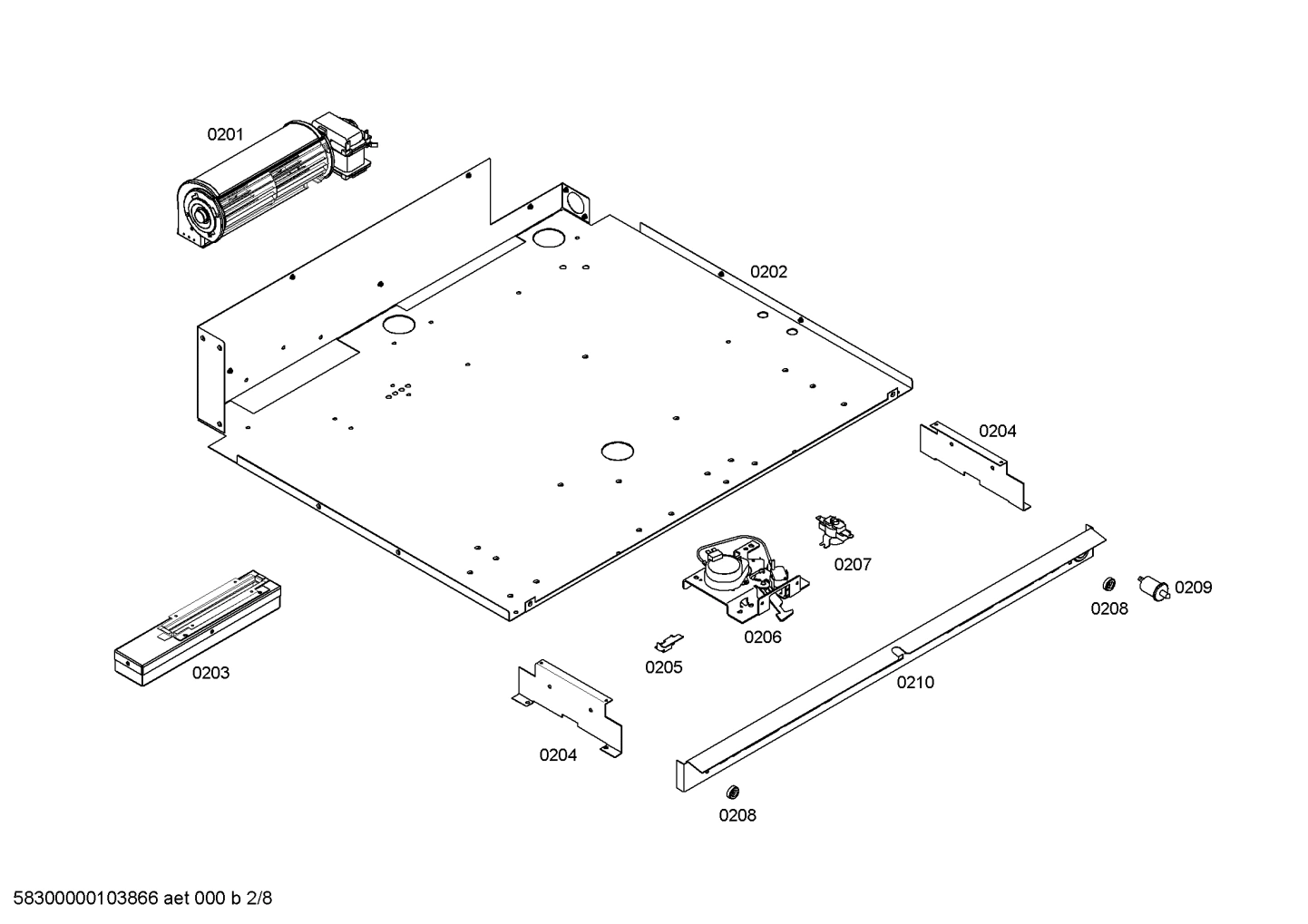

Diagram 2

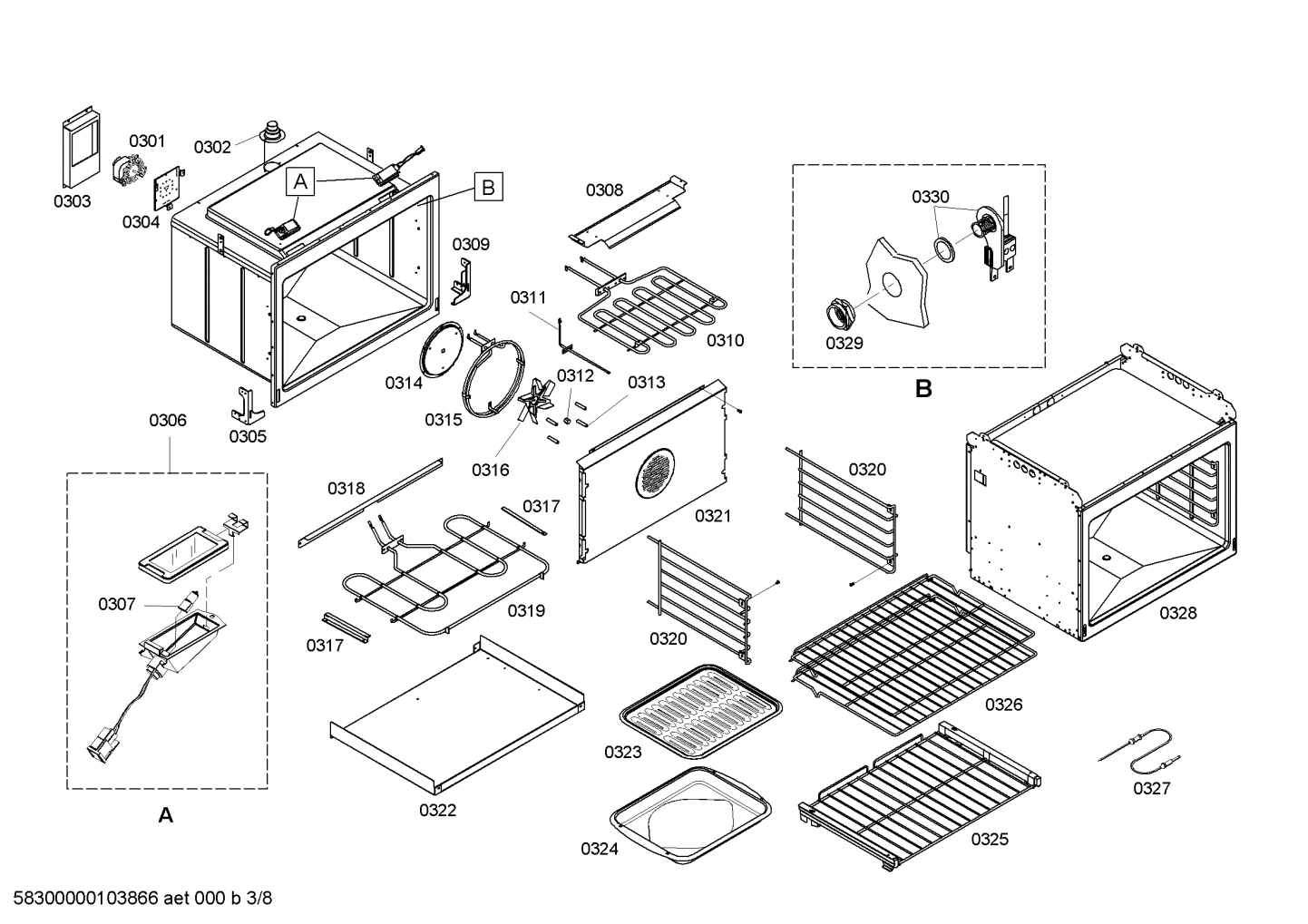

Diagram 3

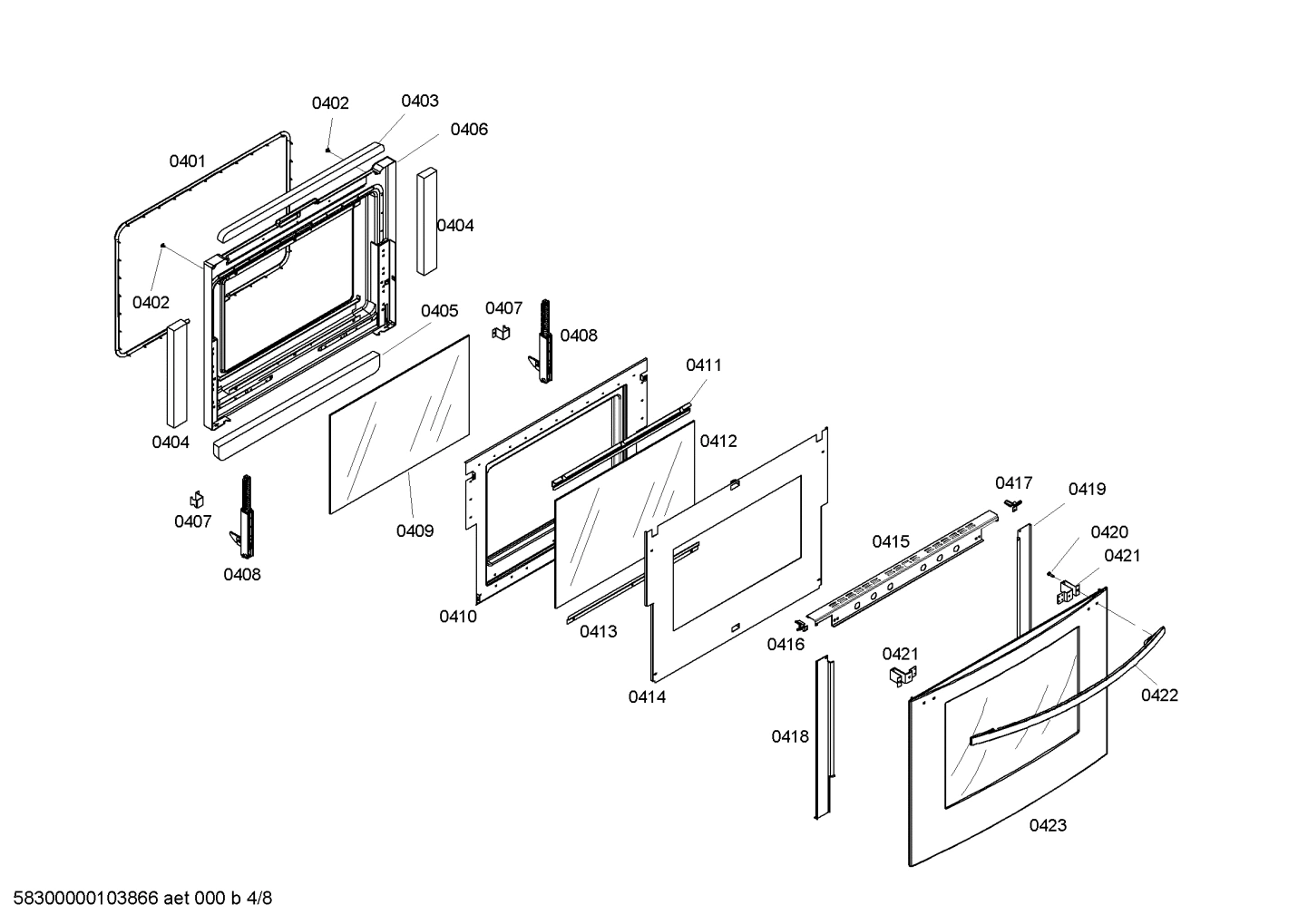

Diagram 4

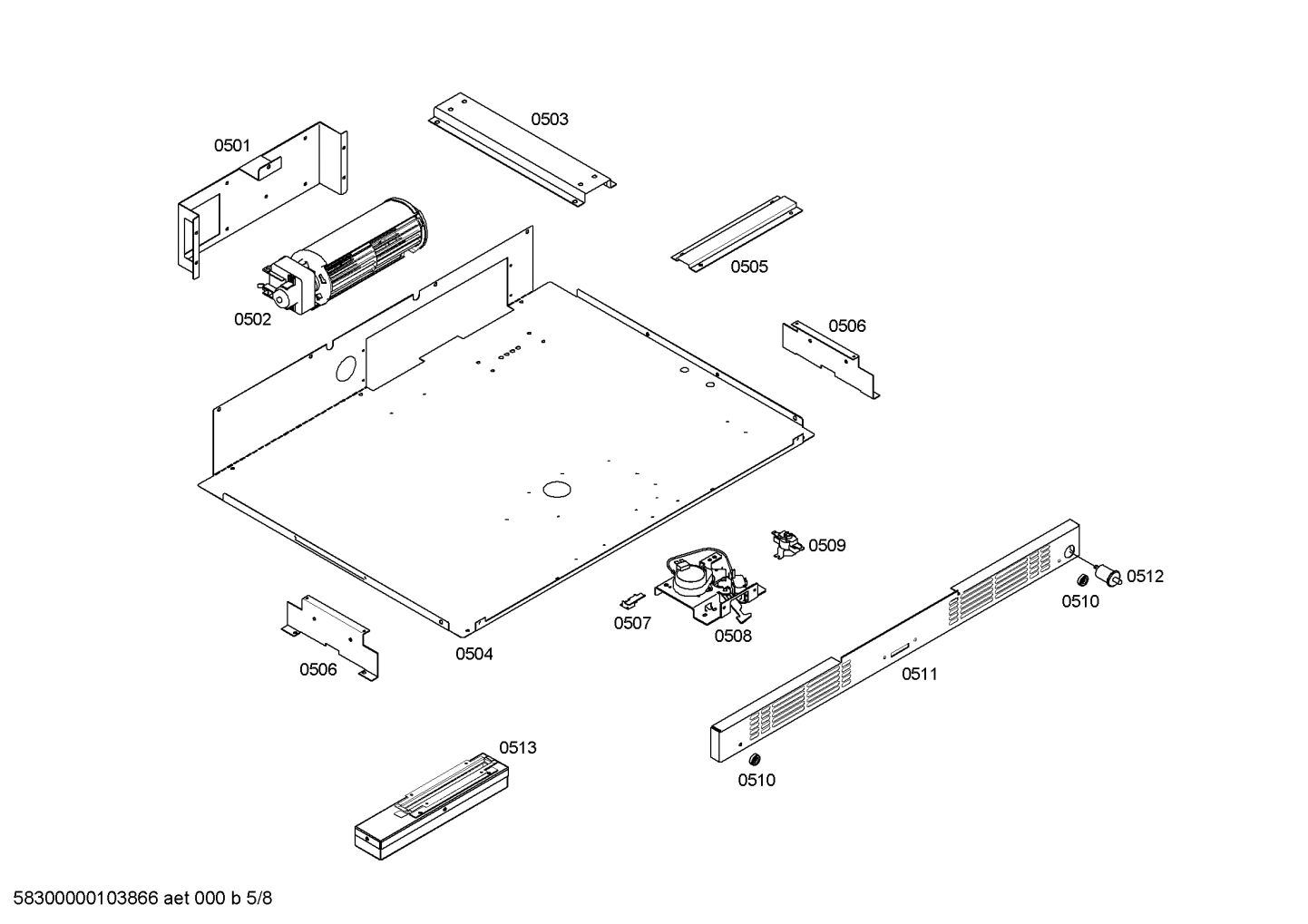

Diagram 5

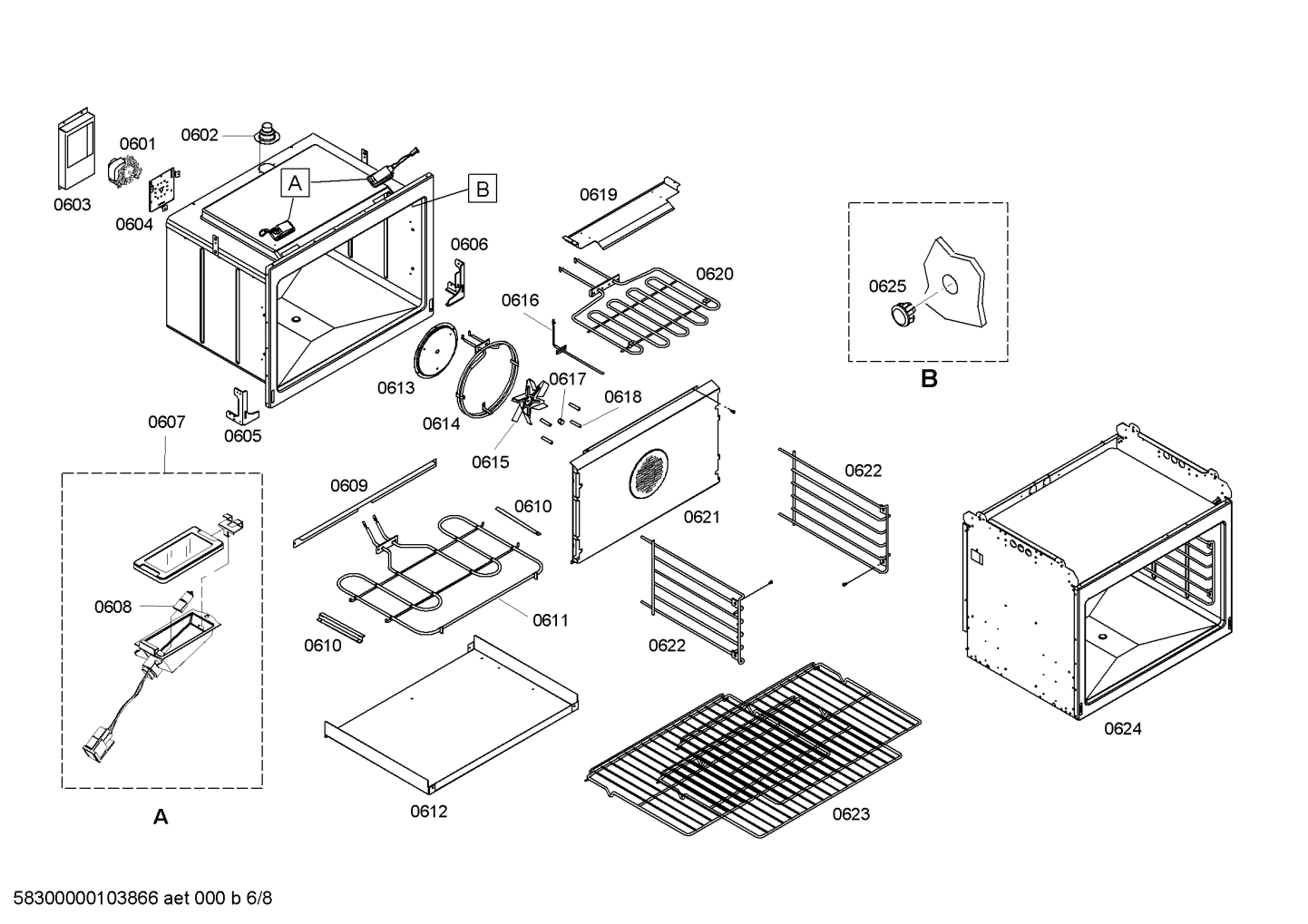

Diagram 6

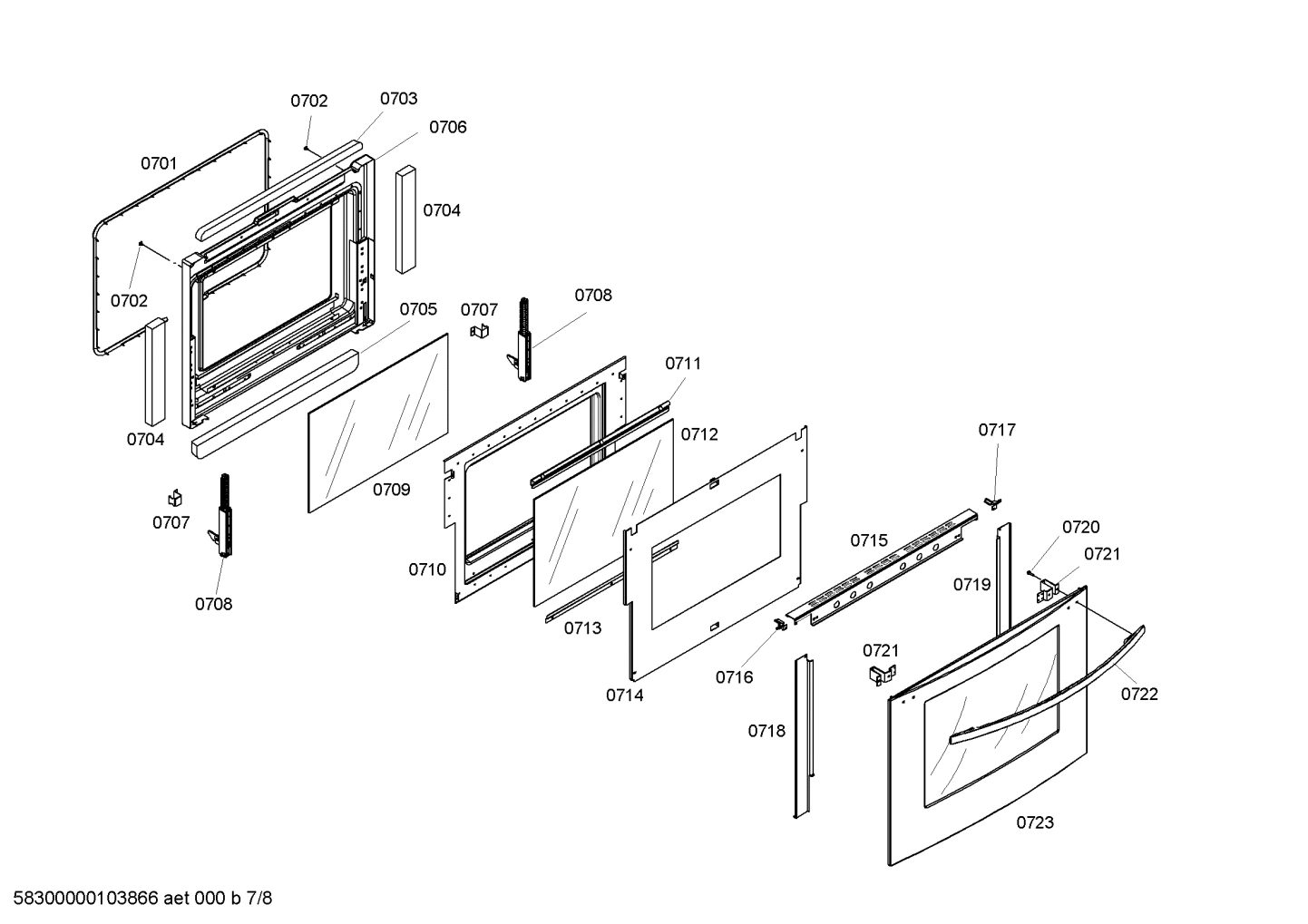

Diagram 7
Diagram 8
Common parts from model Bosch C272BS/01 Range Oven
0102
Terminal BOS 00484615 Contact Us For Availability
0104
Relay BOS 00427199 Contact Us For Availability
0105
Panel BOS 00473697 Contact Us For Availability
0116
Glass panel BOS 00473764 Contact Us For Availability
0301
Motor BOS 00494266 Contact Us For Availability
0302
Catalyzer BOS 00411220 Contact Us For Availability
0310
Heating element BOS 00143982 Contact Us For Availability
0319
Heating element BOS 00440324 Contact Us For Availability
0323
Grill tray BOS 00449756 Contact Us For Availability
0324
Universal pan BOS 00449757 Contact Us For Availability
0350
Cable harness BOS 00499092 Contact Us For Availability
0352
Cable harness BOS 00640589 Contact Us For Availability
0355
Cable harness BOS 00662765 Contact Us For Availability
0357
Cable harness BOS 00640590 Contact Us For Availability
0402
Screw BOS 00413477 Contact Us For Availability
0408
Door hinge BOS 00494529 Contact Us For Availability
0412
Glass panel BOS 00241934 Contact Us For Availability
0450
Seal-door BOS 00144078 Contact Us For Availability
0508
Electric lock BOS 00489102 Contact Us For Availability
0603
Cover BOS 00485982 Contact Us For Availability
0609
Cover BOS 00143987 Contact Us For Availability
0610
Bracket BOS 00425280 Contact Us For Availability
0612
Housing BOS 00242028 Contact Us For Availability
0613
Plate BOS 00412840 Contact Us For Availability
0618
Spacer BOS 00413128 Contact Us For Availability
0619
Bracket BOS 00440255 Contact Us For Availability
0621
Ventilation duct BOS 00368283 Contact Us For Availability
0624
Oven cavity BOS 00144092 Contact Us For Availability
0703
Insulating part BOS 00242047 Contact Us For Availability
0704
Insulating part BOS 00242048 Contact Us For Availability
0705
Insulating part BOS 00242049 Contact Us For Availability
0706
Door BOS 00242046 Contact Us For Availability
0707
Clip BOS 00425272 Contact Us For Availability
0710
Frame-window BOS 00242044 Contact Us For Availability
0711
Clip BOS 00425275 Contact Us For Availability
0714
Heat shield BOS 00242043 Contact Us For Availability
0715
Frame-decor BOS 00440630 Contact Us For Availability
0717
Cover BOS 00413566 Contact Us For Availability
0718
Bracket BOS 00440631 Contact Us For Availability
0719
Bracket BOS 00440632 Contact Us For Availability
0721
Bracket BOS 00425589 Contact Us For Availability
0722
Handle-door BOS 00473763 Contact Us For Availability
0723
Glass panel BOS 00242302 Contact Us For Availability

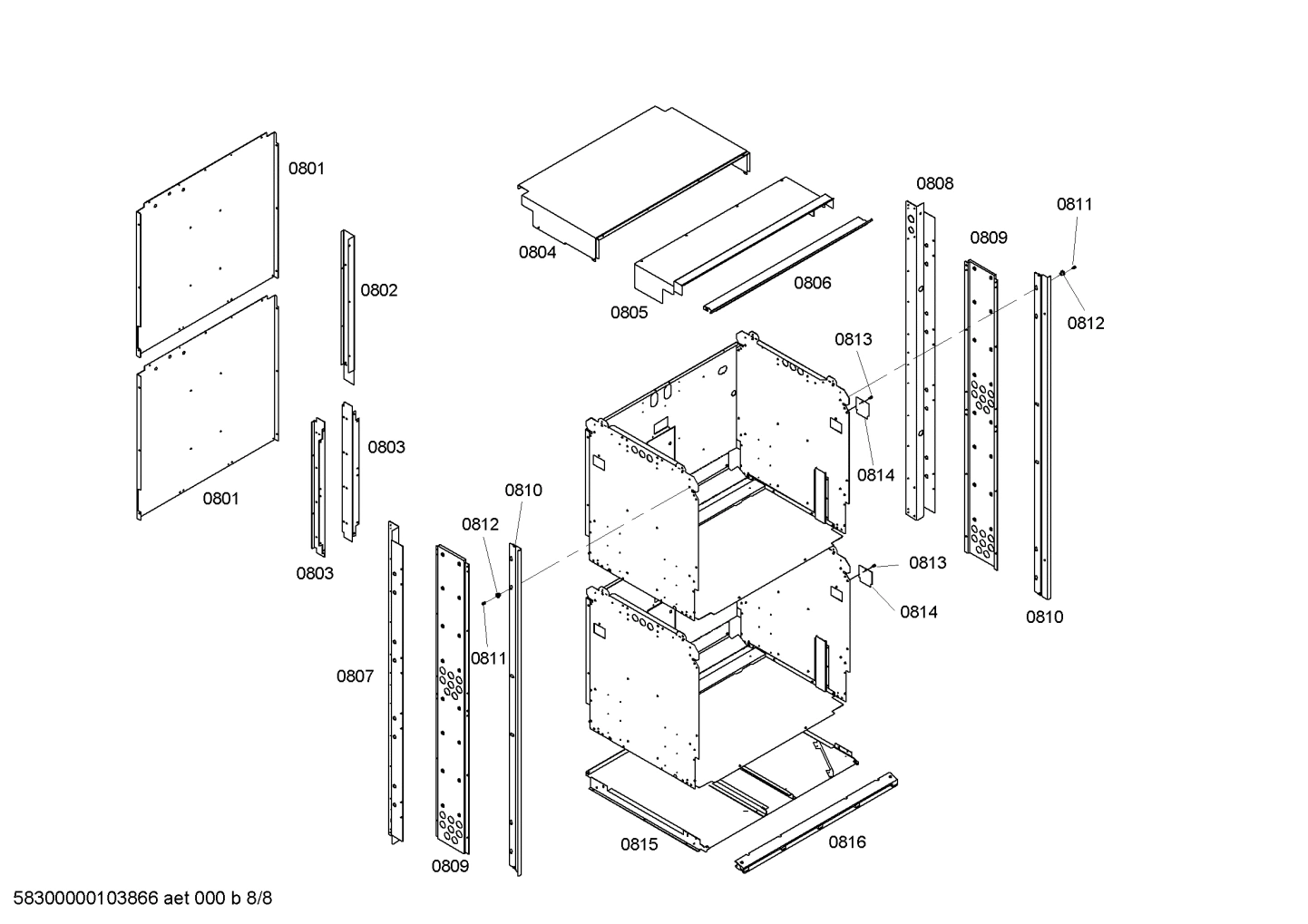

0801
Cover BOS 00242033 Contact Us For Availability
0802
Duct BOS 00440608 Contact Us For Availability
0803
Duct BOS 00473441 Contact Us For Availability
0804
Cover BOS 00242198 Contact Us For Availability
0805
Cover BOS 00473744 Contact Us For Availability
0806
Frame-decor BOS 00473745 Contact Us For Availability
0807
Support BOS 00474117 Contact Us For Availability
0808
Support BOS 00474118 Contact Us For Availability
0809
Duct BOS 00473541 Contact Us For Availability
0810
Frame-decor BOS 00473768 Contact Us For Availability
0811
Screw BOS 00189249 Contact Us For Availability
0814
Plate BOS 00425302 Contact Us For Availability
0815
Base BOS 00242034 Contact Us For Availability
0816
Frame-decor BOS 00440333 Contact Us For Availability
× ![]()
