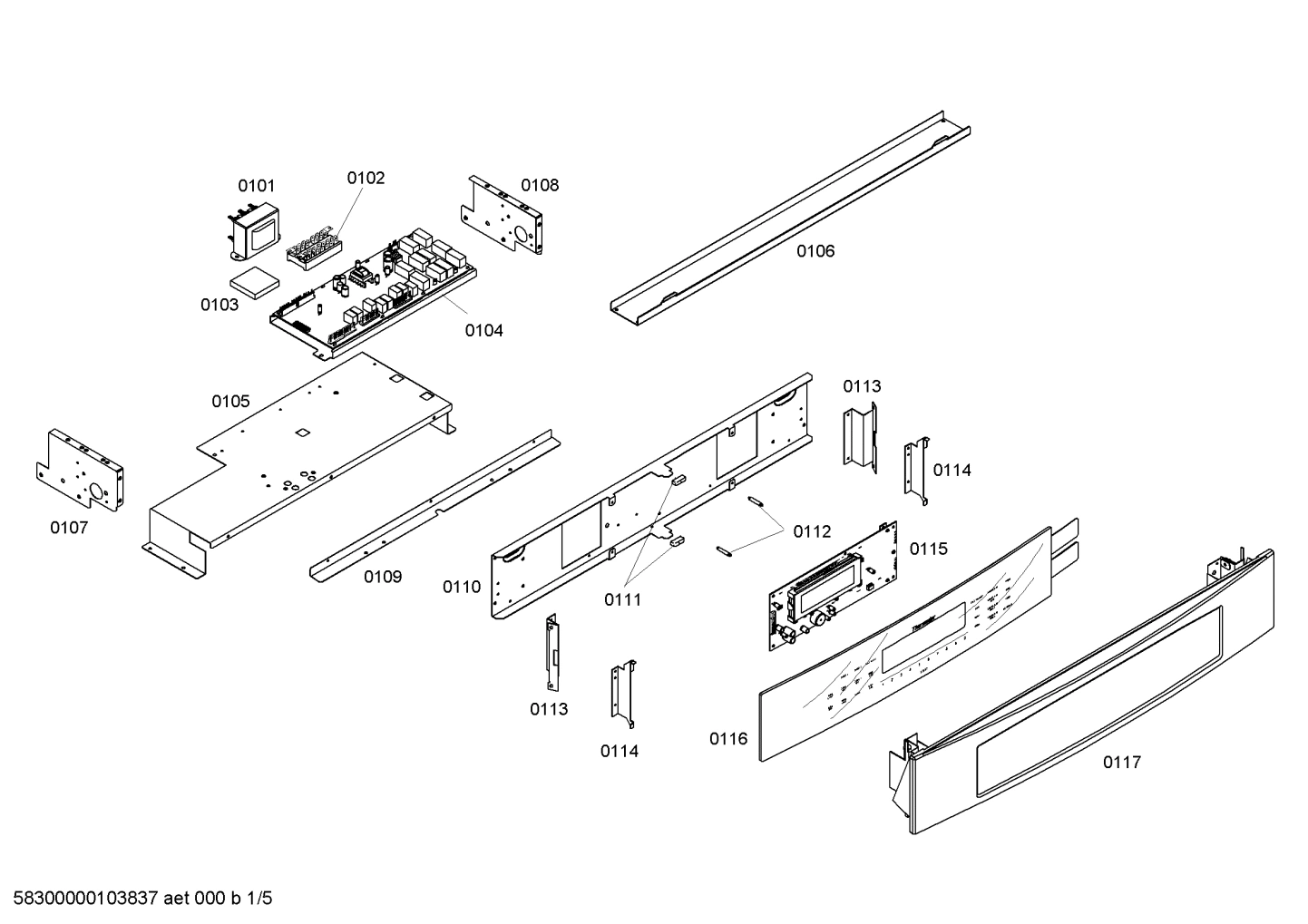

Bosch C271BW/01 Range Oven Parts List

0101

00440252 Bosch Oven Transformer Backorder BOS 00440252 $166.35

View on Model

0102

Terminal BOS 00484615 Contact Us For Availability

View on Model

0104

Relay BOS 00427198 Contact Us For Availability

View on Model

0105

Panel BOS 00473697 Contact Us For Availability

View on Model

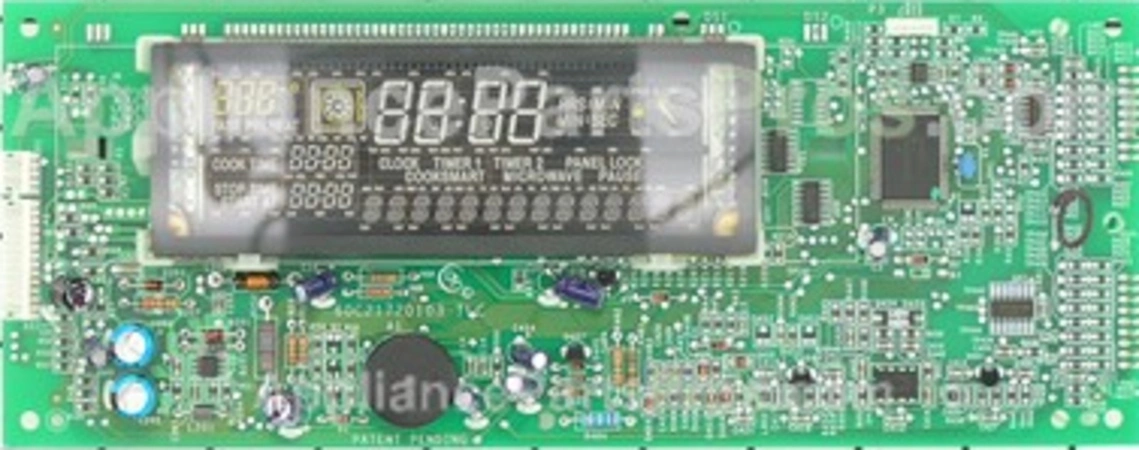

0115

00671726 Bosch Oven Display Module Backorder BOS 00671726 $523.15

View on Model

0116

Glass panel BOS 00473700 Contact Us For Availability

View on Model

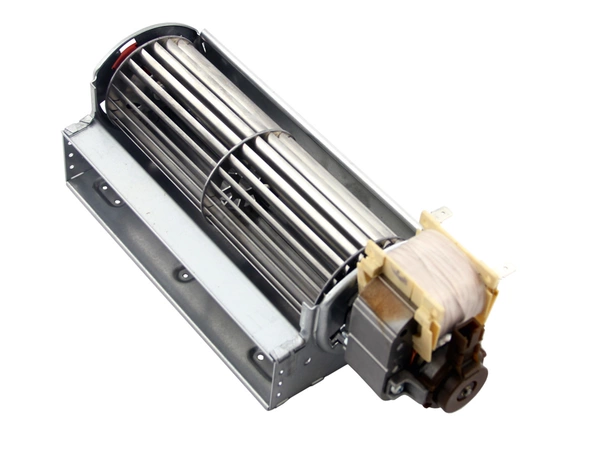

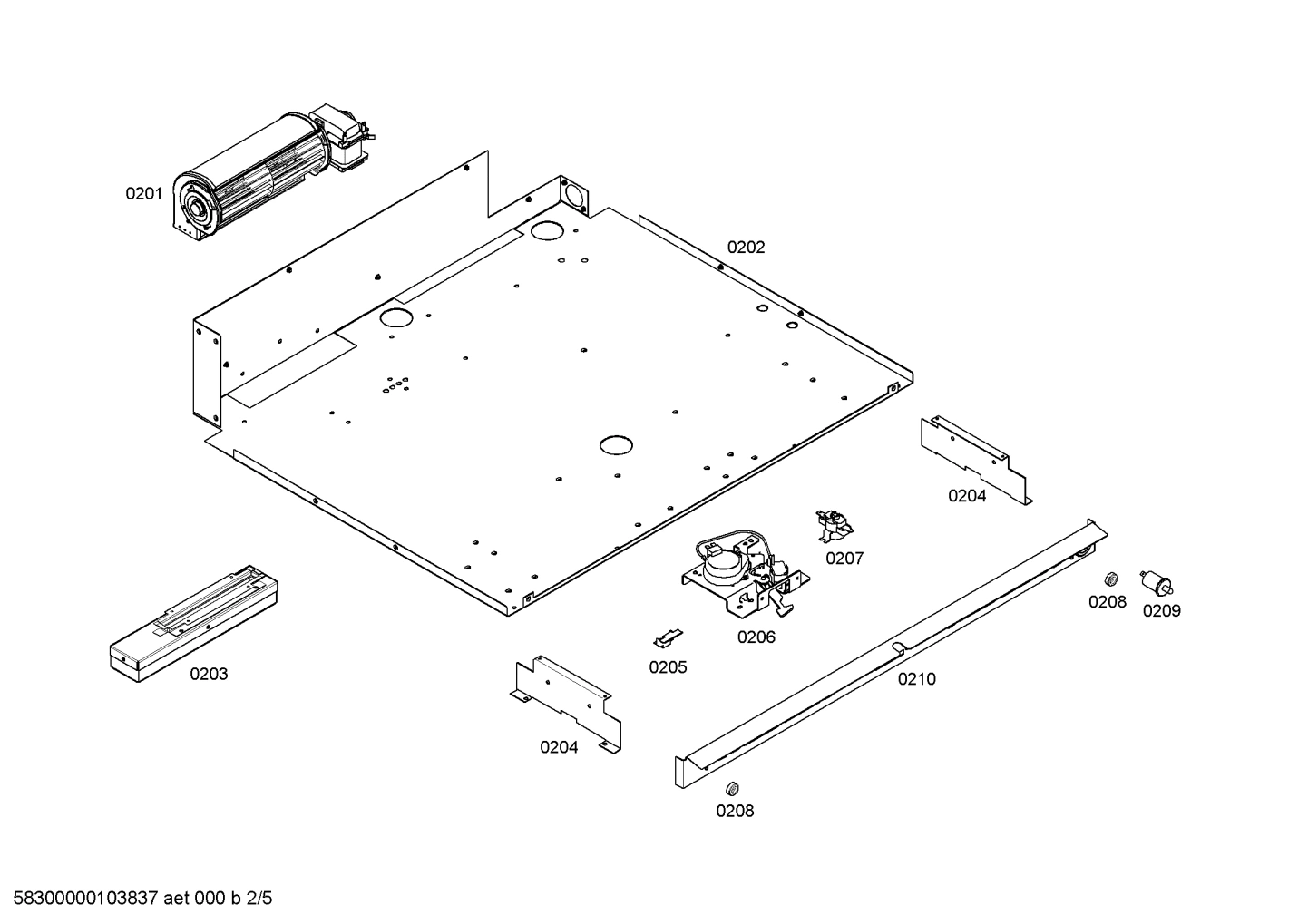

0201

00440604 Bosch Range Fan In Stock BOS 00440604 $178.37

View on Model

0206

Electric lock BOS 00489102 Contact Us For Availability

View on Model

0207

00414633 Bosch Thermal Fuse Backorder BOS 00414633 $47.03

View on Model

0209

00622858 Bosch Microwave Oven Door Switch In Stock BOS 00622858 $28.33

View on Model

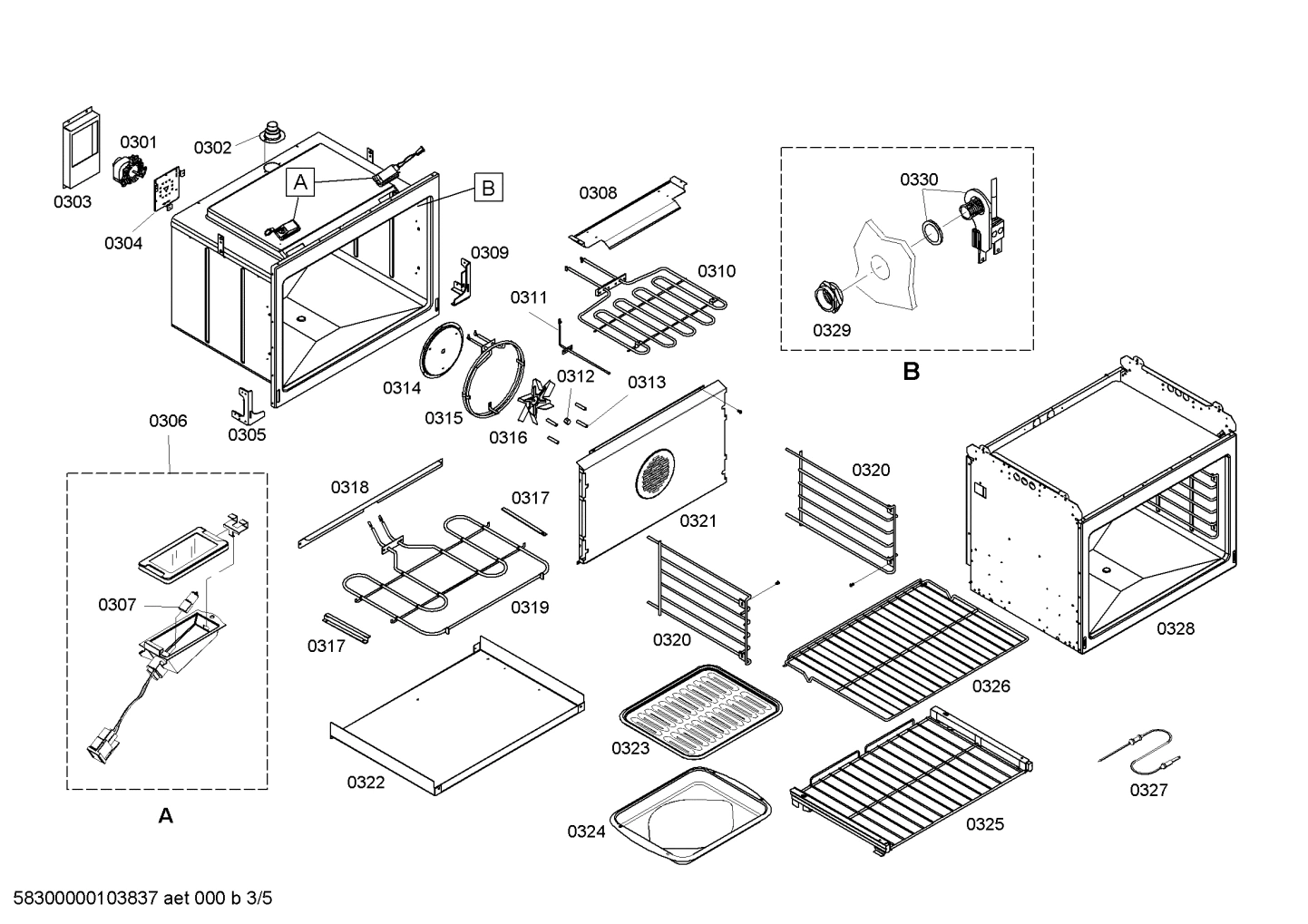

0301

Motor BOS 00494266 Contact Us For Availability

View on Model

0302

Catalyzer BOS 00411220 Contact Us For Availability

View on Model

0305

00495446 Bosch Oven Support Backorder BOS 00495446 $314.93

View on Model

0306

10007424 Bosch Oven Lamp In Stock BOS 10007424 $160.62

View on Model

0307

00157311 Bosch Halogen Lamp In Stock BOS 00157311 $38.40

View on Model

0309

00495447 Bosch Oven Support Backorder BOS 00495447 $297.71

View on Model

0310

Heating element BOS 00143982 Contact Us For Availability

View on Model

0311

00425301 Bosch Oven Temperature Sensor In Stock BOS 00425301 $99.24

View on Model

0312

00471532 Bosch Oven Nut Backorder BOS 00471532 $10.29

View on Model

0315

00484787 Bosch Oven Heating Element Backorder BOS 00484787 $139.39

View on Model

0316

00491577 Bosch Oven Fan Blade Backorder BOS 00491577 $31.92

View on Model

0319

Heating element BOS 00440324 Contact Us For Availability

View on Model

0323

Grill tray BOS 00449756 Contact Us For Availability

View on Model

0324

Universal pan BOS 00449757 Contact Us For Availability

View on Model

0326

00664675 Bosch Oven Shelf Backorder BOS 00664675 $76.74

View on Model

0327

00755060 Bosch Oven Sensor In Stock BOS 00755060 $111.28

View on Model

0330

10007567 Bosch Oven Socket Backorder BOS 10007567 $406.71

View on Model

0350

Cable harness BOS 00499092 Contact Us For Availability

View on Model

0352

Cable harness BOS 00640589 Contact Us For Availability

View on Model

0355

Cable harness BOS 00662765 Contact Us For Availability

View on Model

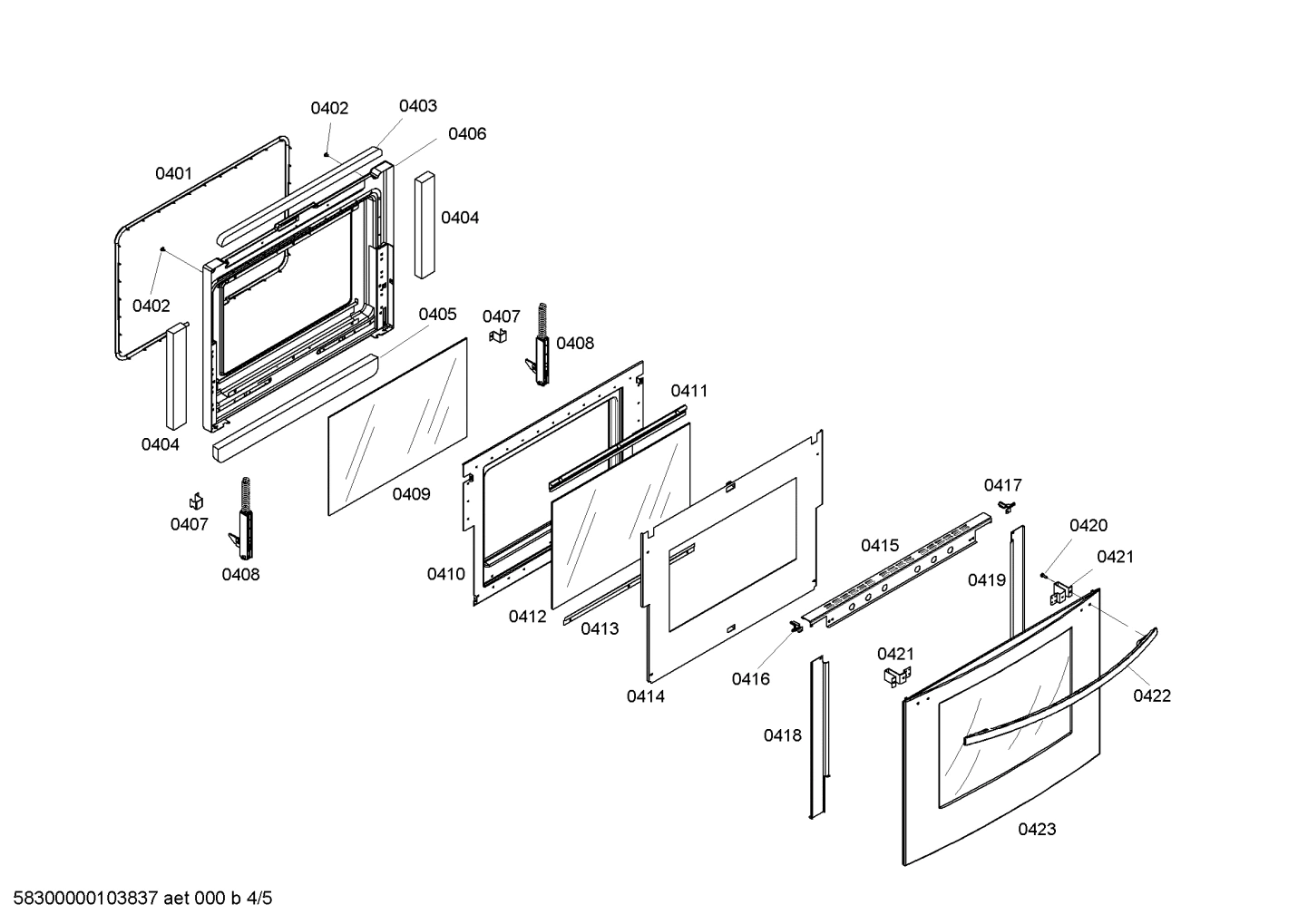

0401

00486768 Bosch Oven Door Seal In Stock BOS 00486768 $73.50

View on Model

0402

Screw BOS 00413477 Contact Us For Availability

View on Model

0407

Clip BOS 00425272 Contact Us For Availability

View on Model

0408

Door hinge BOS 00494529 Contact Us For Availability

View on Model

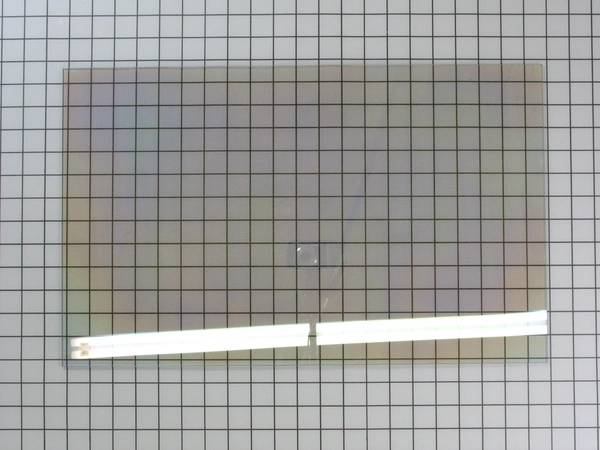

0409

00219357 Bosch Oven Glass Panel Backorder BOS 00219357 $93.22

View on Model

0410

Frame-window BOS 00242044 Contact Us For Availability

View on Model

0411

Clip BOS 00425275 Contact Us For Availability

View on Model

0412

Glass panel BOS 00241934 Contact Us For Availability

View on Model

0413

00425271 Bosch Oven Clip Backorder BOS 00425271 $27.80

View on Model

0414

Heat shield BOS 00242043 Contact Us For Availability

View on Model

0415

Frame-decor BOS 00440630 Contact Us For Availability

View on Model

0416

Cover BOS 00413565 Contact Us For Availability

View on Model

0417

Cover BOS 00413566 Contact Us For Availability

View on Model

0418

Bracket BOS 00440631 Contact Us For Availability

View on Model

0419

Bracket BOS 00440632 Contact Us For Availability

View on Model

0420

00422099 Bosch Oven Screw Backorder BOS 00422099 $11.32

View on Model

0421

Bracket BOS 00425589 Contact Us For Availability

View on Model

0422

Handle-door BOS 00473761 Contact Us For Availability

View on Model

0423

Glass panel BOS 00242300 Contact Us For Availability

View on Model

0450

Seal-door BOS 00144078 Contact Us For Availability

View on Model

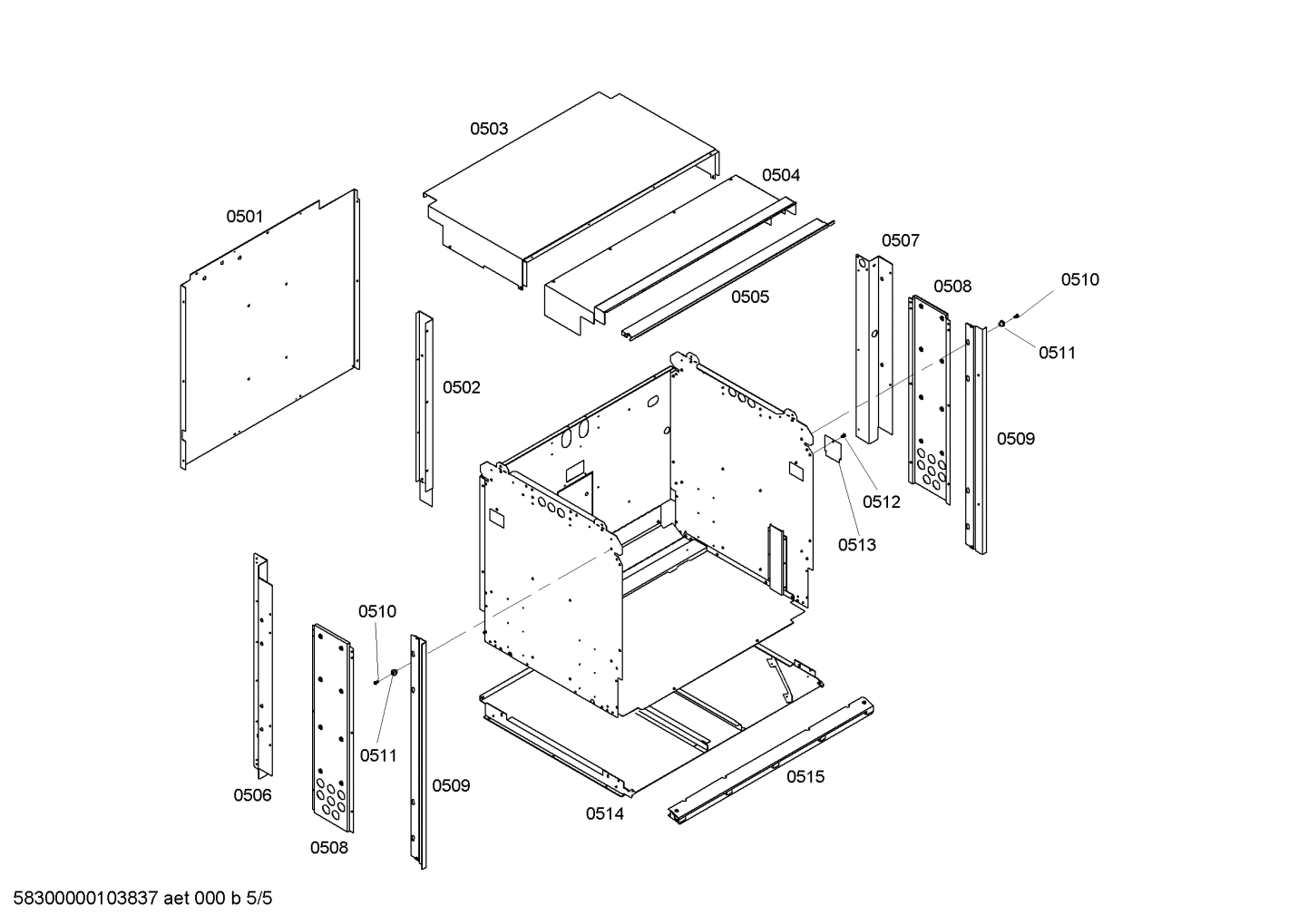

0501

Cover BOS 00242033 Contact Us For Availability

View on Model

0502

Duct BOS 00440608 Contact Us For Availability

View on Model

0503

Cover BOS 00242198 Contact Us For Availability

View on Model

0504

Cover BOS 00473744 Contact Us For Availability

View on Model

0505

Frame-decor BOS 00473745 Contact Us For Availability

View on Model

0506

Support BOS 00440609 Contact Us For Availability

View on Model

0507

Support BOS 00474257 Contact Us For Availability

View on Model

0508

Duct BOS 00440611 Contact Us For Availability

View on Model

0509

Frame-decor BOS 00440612 Contact Us For Availability

View on Model

0510

Screw BOS 00189249 Contact Us For Availability

View on Model

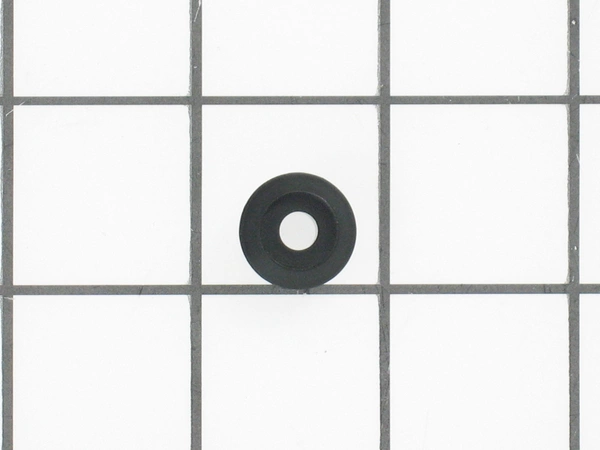

0511

00425276 Bosch Oven Spacer Backorder BOS 00425276 $28.83

View on Model

0512

00422102 Bosch Oven Screw In Stock BOS 00422102 $22.65

View on Model

0513

Plate BOS 00425302 Contact Us For Availability

View on Model

0514

Base BOS 00242034 Contact Us For Availability

View on Model

0515

Frame-decor BOS 00440333 Contact Us For Availability

View on Model

0550

Insulating part BOS 00665810 Contact Us For Availability

View on Model

0551

00665811 Bosch Oven Insulating Part Backorder BOS 00665811 $37.07

View on Model
