  • Bosch BUH11700UC/01 Parts List

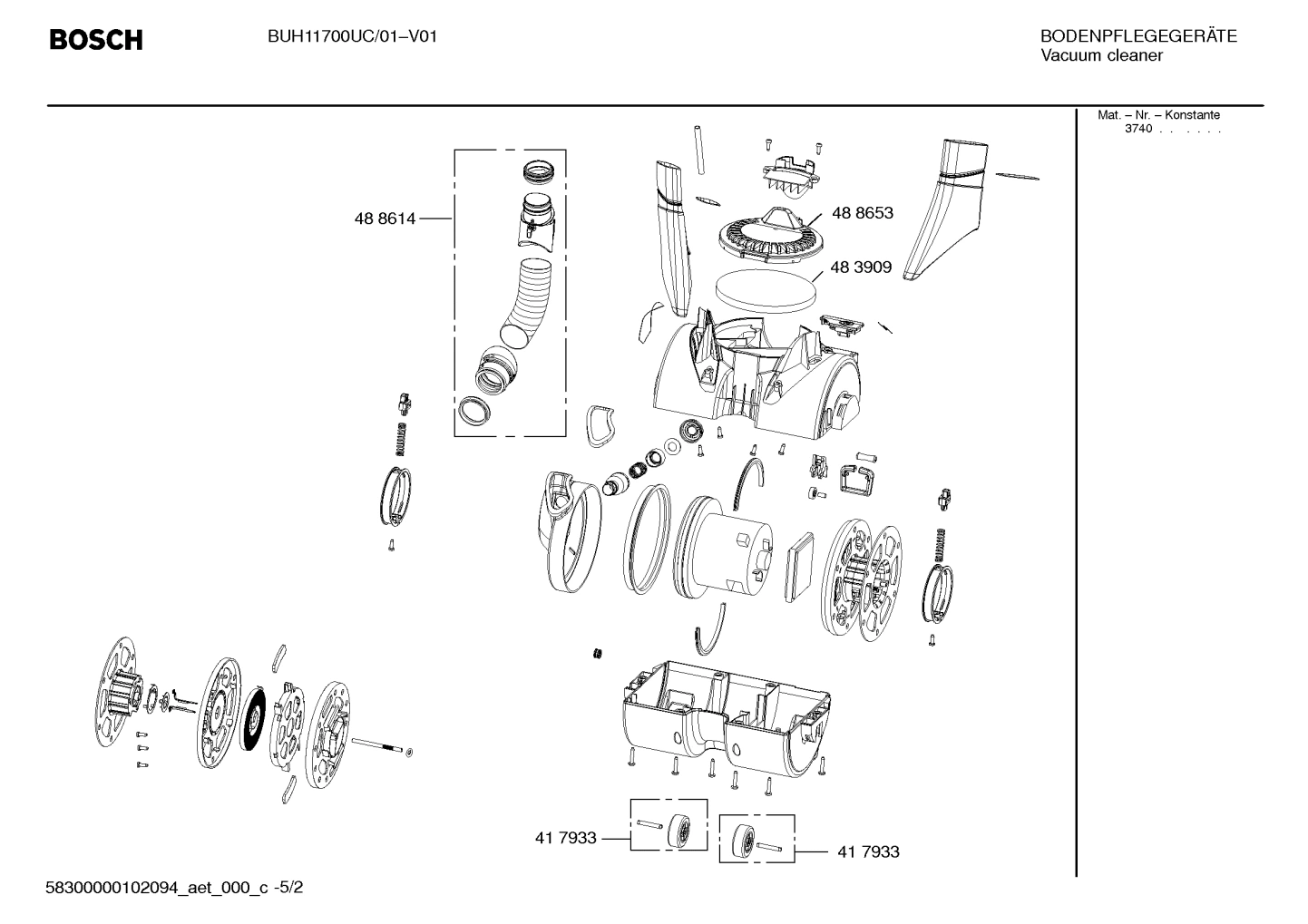

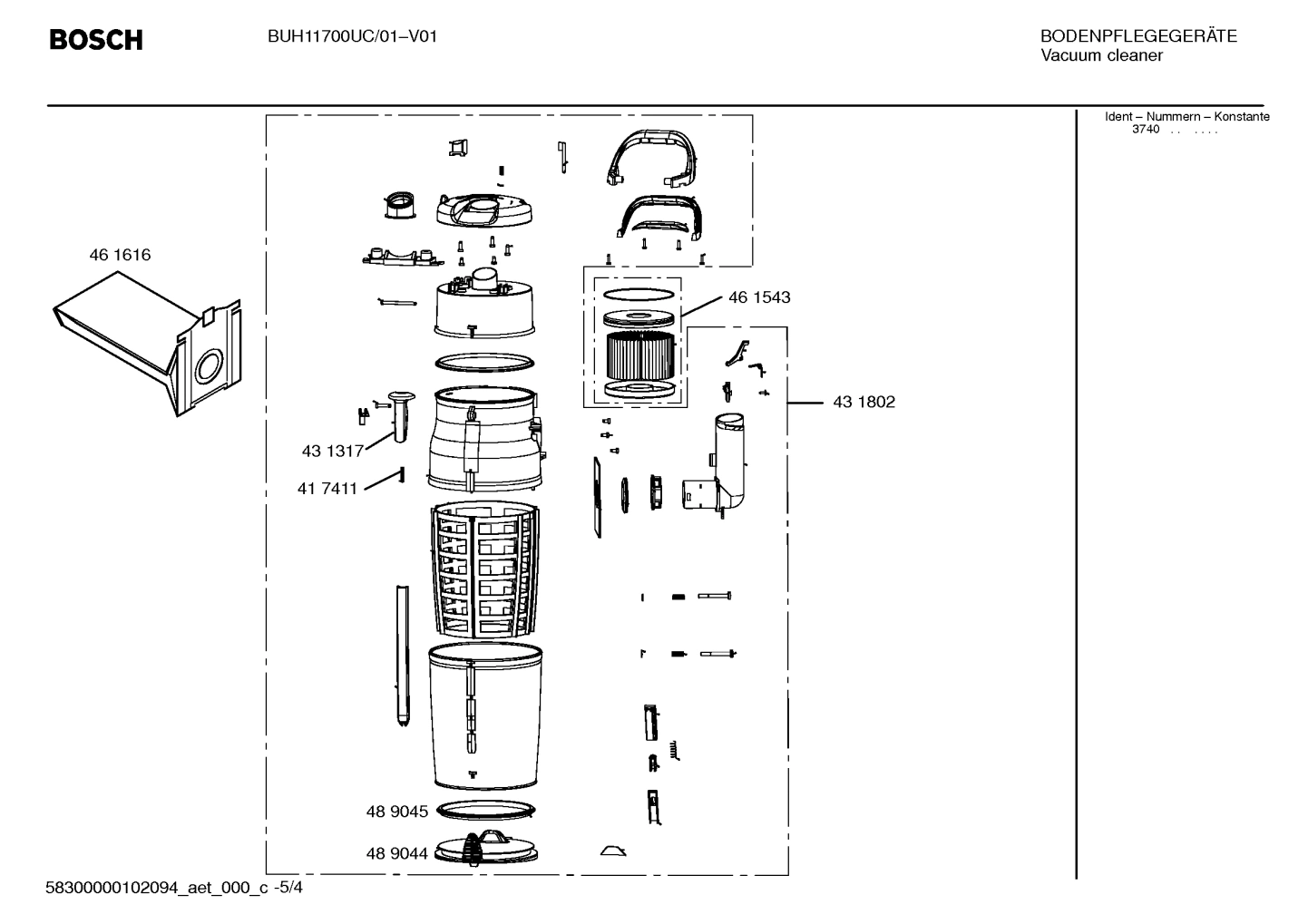

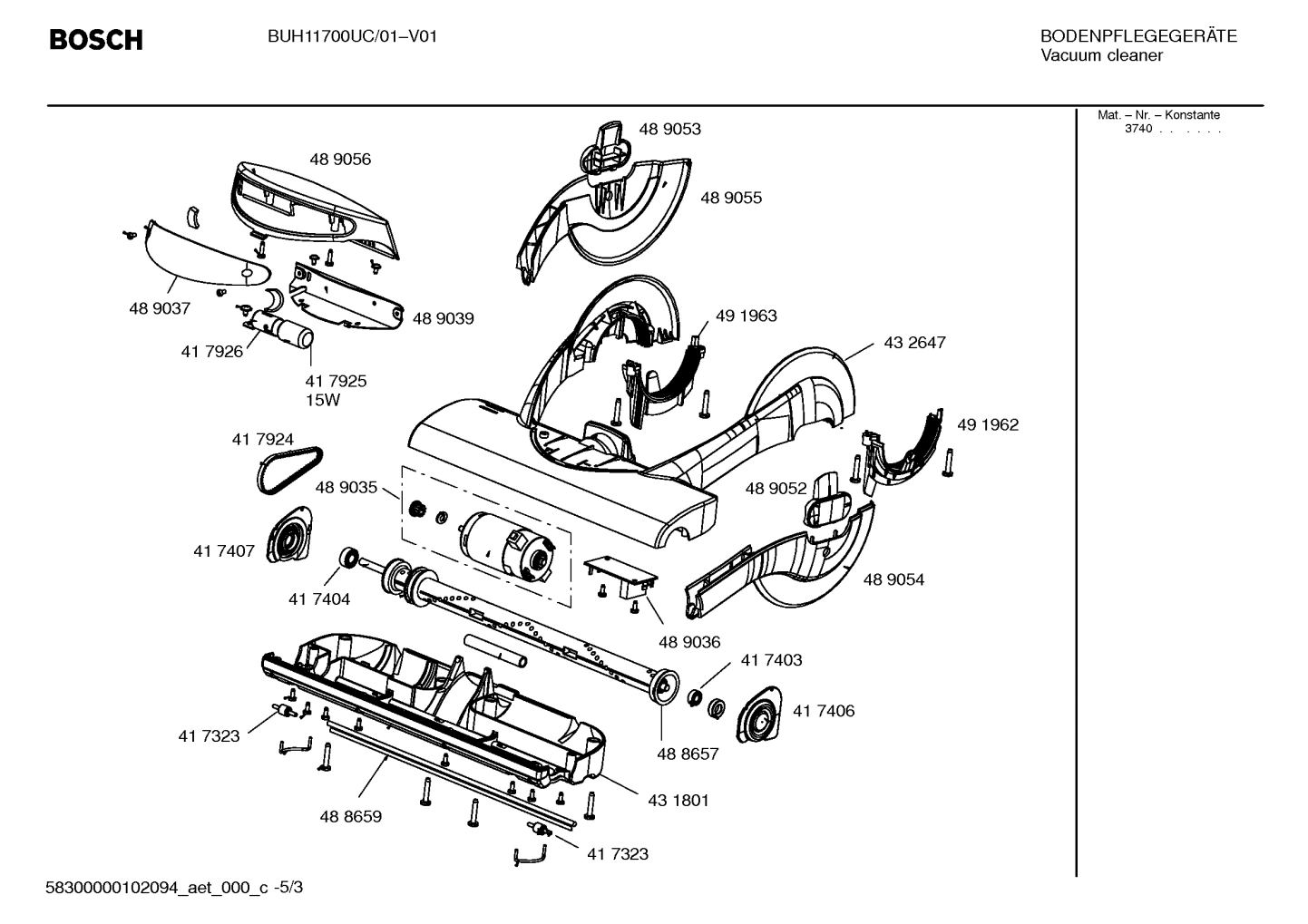

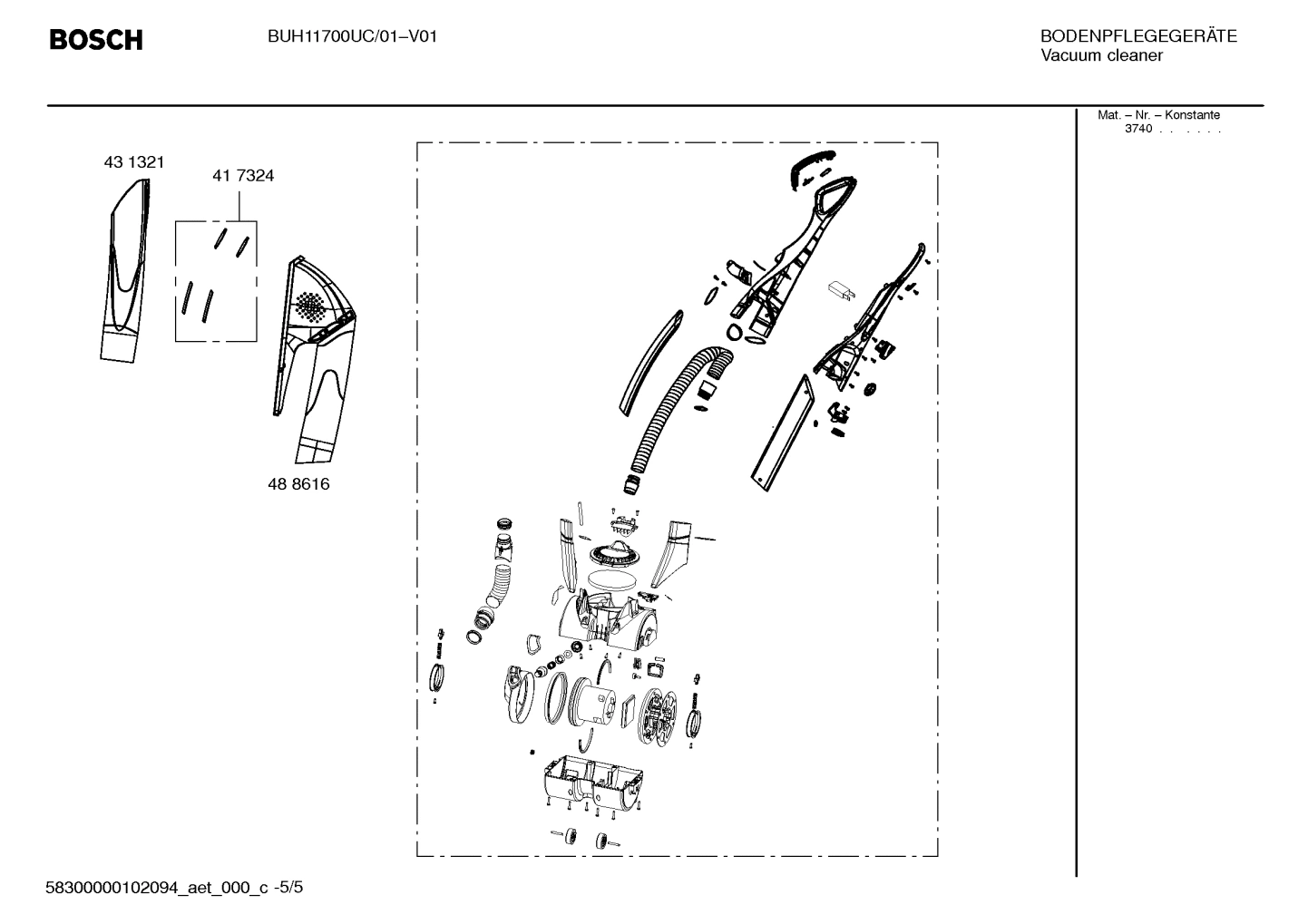

Model Bosch BUH11700UC/01 Vacuum – Common Parts & Diagrams

0001
Lining
Lining BOS 00489046 Contact Us For Availability
View on Model
0002
Switch
Switch BOS 00418092 Contact Us For Availability
View on Model
0003
Switch
Switch BOS 00418095 Contact Us For Availability
View on Model
0004
Handle
Handle BOS 00431796 Contact Us For Availability
View on Model
0005
Holder
Holder BOS 00417399 Contact Us For Availability
View on Model
0006
Connection piece
Connection piece BOS 00417397 Contact Us For Availability
View on Model
0007
Hose
Hose BOS 00431246 Contact Us For Availability
View on Model
0008
Hose
Hose BOS 00488614 Contact Us For Availability
View on Model
0009
Cover
Cover BOS 00488653 Contact Us For Availability
View on Model
0010
Motor protective filter
Motor protective filter BOS 00483909 Contact Us For Availability
View on Model
0011
Wheel
Wheel BOS 00417933 Contact Us For Availability
View on Model
0012
Latch
Latch BOS 00489053 Contact Us For Availability
View on Model
0013
Panel
Panel BOS 00489055 Contact Us For Availability
View on Model
0014
Clip
Clip BOS 00491963 Contact Us For Availability
View on Model
0016
Clip
Clip BOS 00491962 Contact Us For Availability
View on Model
0017
Latch
Latch BOS 00489052 Contact Us For Availability
View on Model
0018
Panel
Panel BOS 00489054 Contact Us For Availability
View on Model
0019
Motor module
Motor module BOS 00489036 Contact Us For Availability
View on Model
0021
Holder
Holder BOS 00417406 Contact Us For Availability
View on Model
0023
Case-bottom
Case-bottom BOS 00431801 Contact Us For Availability
View on Model
0024
Wheel
Wheel BOS 00417323 Contact Us For Availability
View on Model
0025
Rail
Rail BOS 00488659 Contact Us For Availability
View on Model
0028
Belt-drive
Belt-drive BOS 00417924 Contact Us For Availability
View on Model
0029
Motor
Motor BOS 00489035 Contact Us For Availability
View on Model
0030
Lamp
Lamp BOS 00417925 Contact Us For Availability
View on Model
0031
Holder
Holder BOS 00417926 Contact Us For Availability
View on Model
0032
Glass panel
Glass panel BOS 00489037 Contact Us For Availability
View on Model
0033
Cover
Cover BOS 00489056 Contact Us For Availability
View on Model
0034
Reflector
Reflector BOS 00489039 Contact Us For Availability
View on Model
0035
HEPA hygienic filter
HEPA hygienic filter BOS 00461543 Contact Us For Availability
View on Model
0036
Container
Container BOS 00431802 Contact Us For Availability
View on Model
0037
Flap
Flap BOS 00489044 Contact Us For Availability
View on Model
0038
Seal-lid
Seal-lid BOS 00489045 Contact Us For Availability
View on Model
0039
Spring
Spring BOS 00417411 Contact Us For Availability
View on Model
0040
Slide
Slide BOS 00431317 Contact Us For Availability
View on Model
0041
Corner nozzle
Corner nozzle BOS 00431321 Contact Us For Availability
View on Model
0042
Thread lifter
Thread lifter BOS 00417324 Contact Us For Availability
View on Model
0043
Furniture brush
Furniture brush BOS 00488616 Contact Us For Availability
View on Model
0045
Vacuum cleaner bag
Vacuum cleaner bag BOS 00461616 Contact Us For Availability
View on Model
0046
Instruction manual
Instruction manual BOS 00583808 Contact Us For Availability
View on Model
