Model Maytag AW1801B/XAA ROOM AIR CONDITIONER – Common Parts & Diagrams

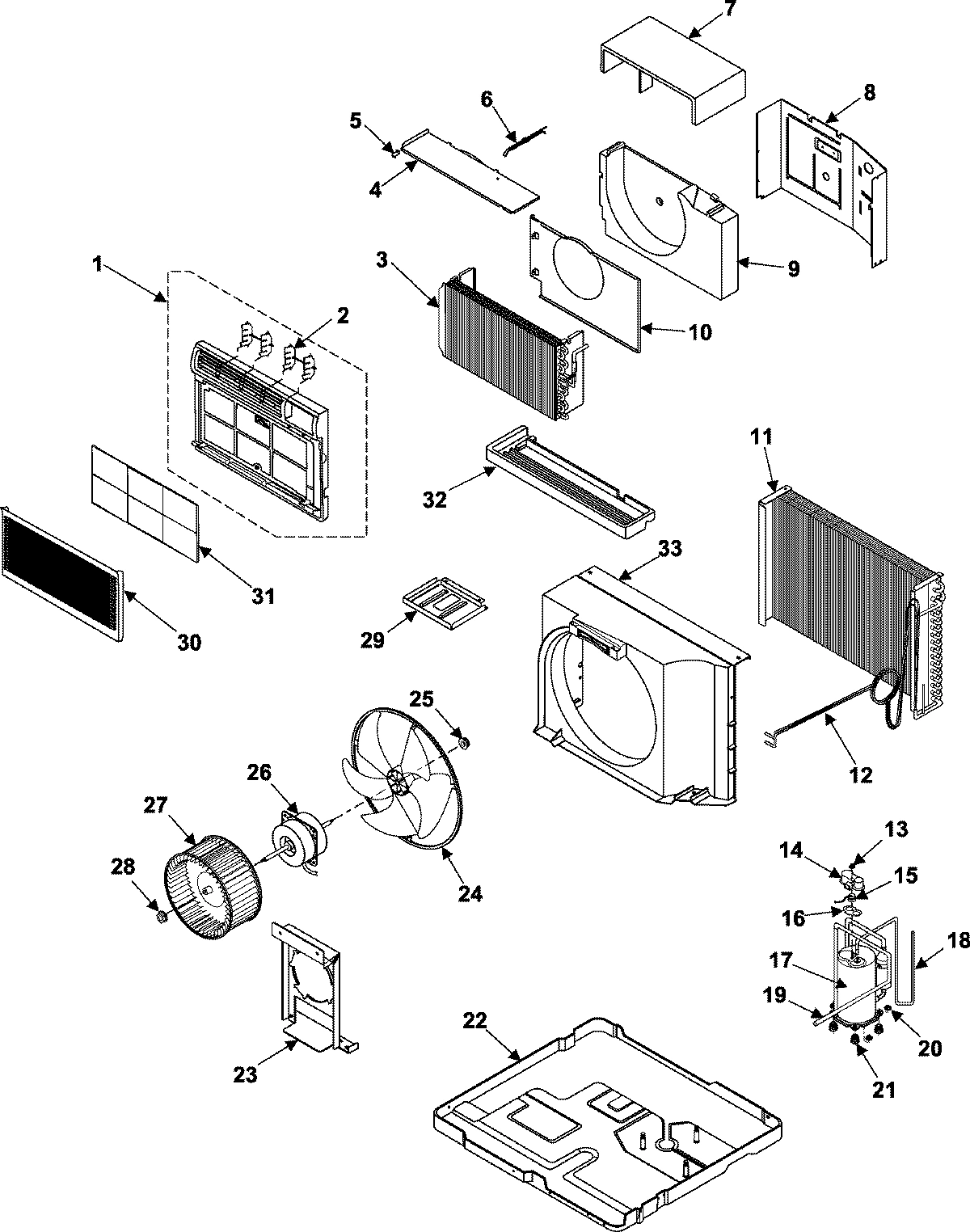

01 - CHASSIS ASSEMBLY

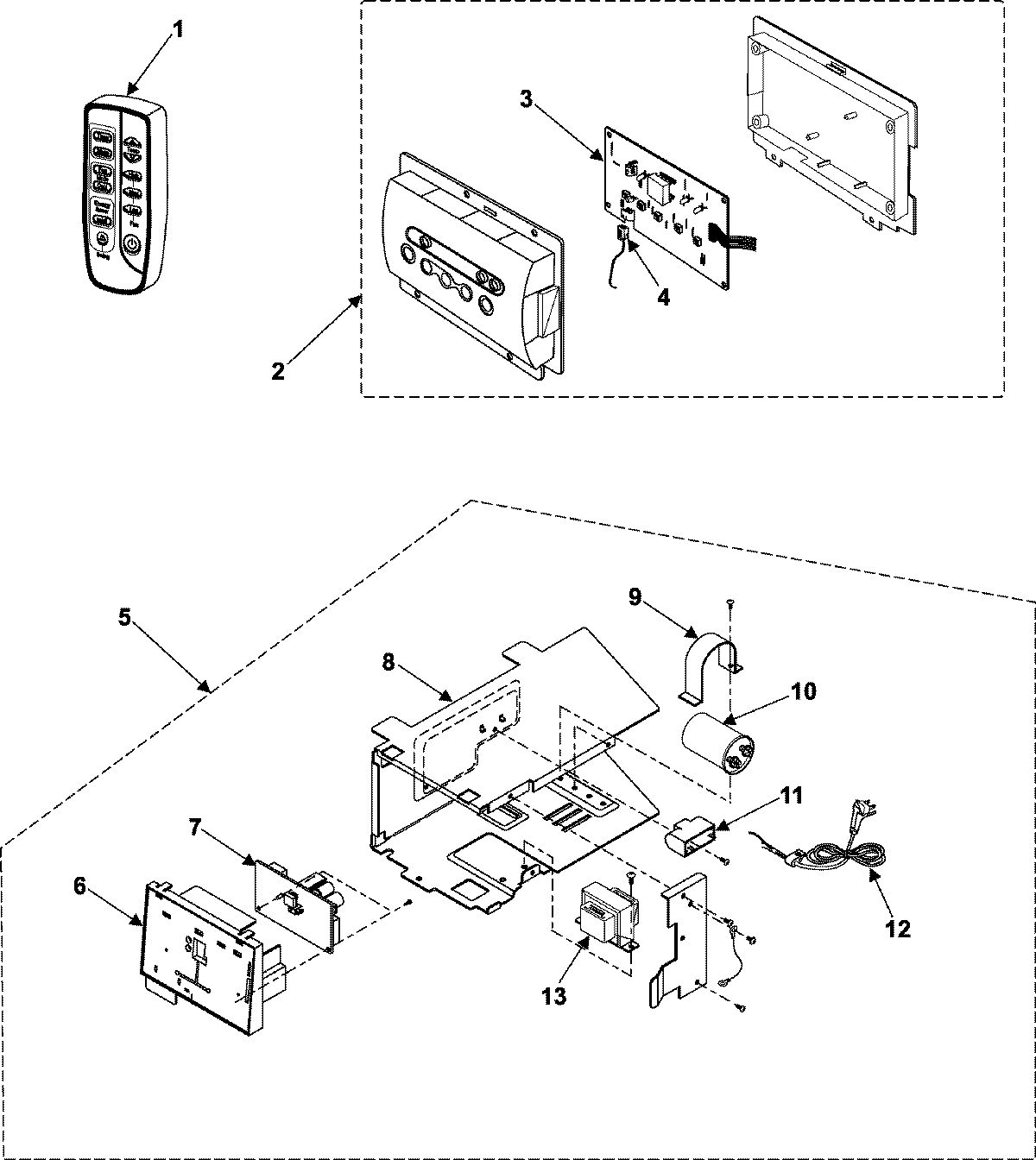

02 - CONTROL ASSEMBLY

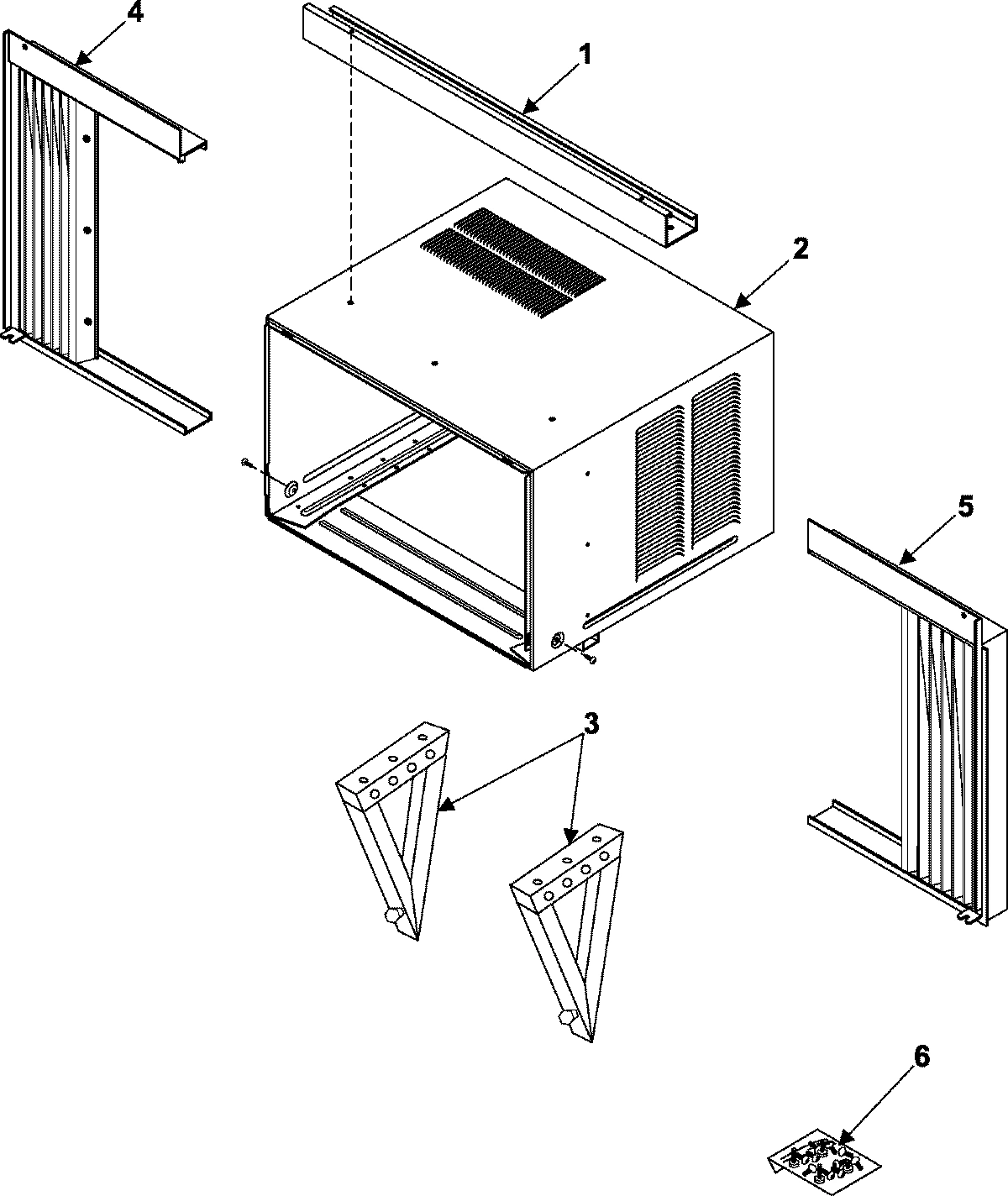

03 - OUTER CASE ASSEMBLY
04 - SUPPLEMENTAL INFORMATION

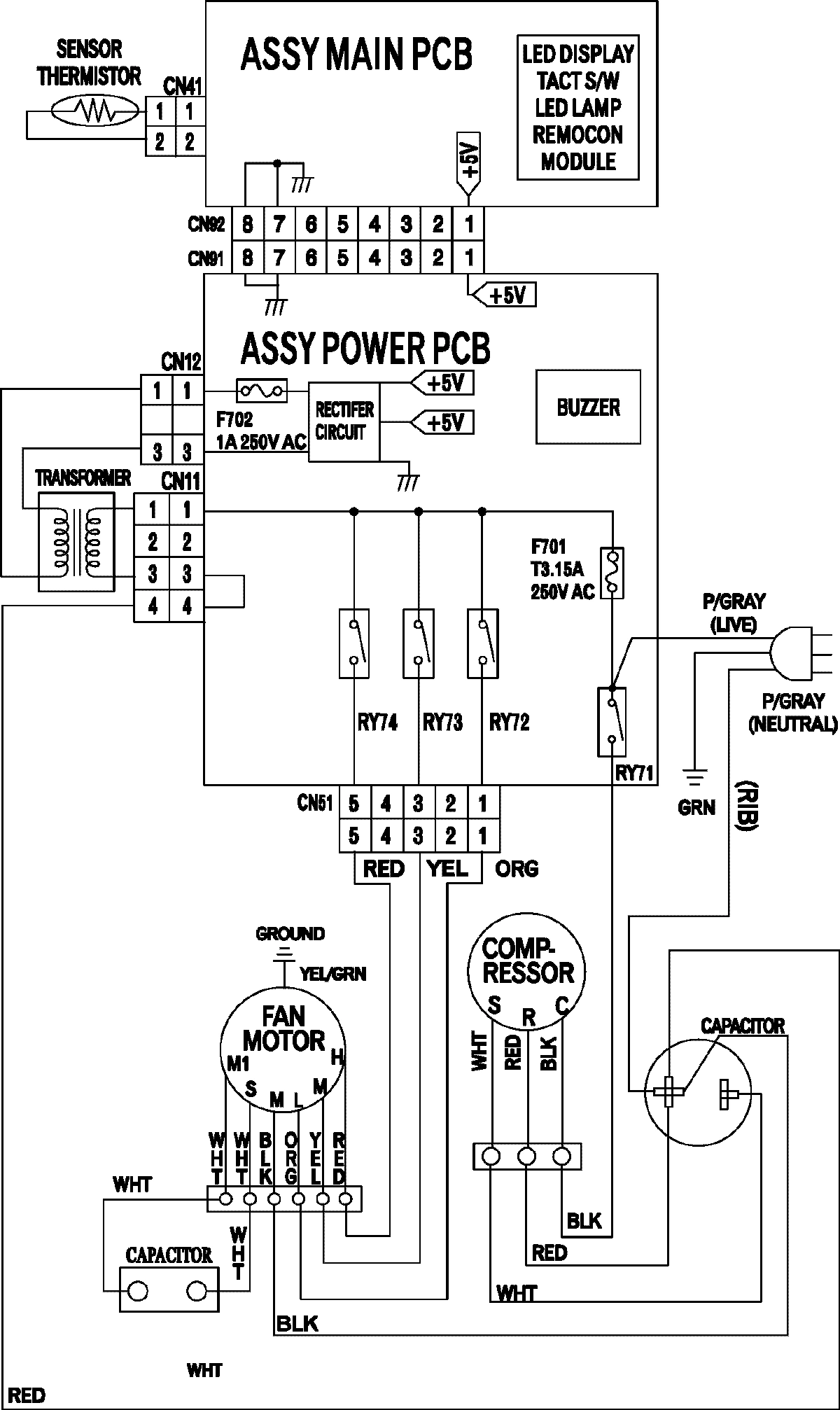

05 - WIRING INFORMATION
Common parts from model Maytag AW1801B/XAA ROOM AIR CONDITIONER
1
MAY DB92-00396A MAY DB92-00396A Contact Us For Availability
1
MAY DB93-01433F MAY DB93-01433F Contact Us For Availability
1
MAY DB64-00048D MAY DB64-00048D Contact Us For Availability
2
MAY DB66-00398A MAY DB66-00398A Contact Us For Availability
2
MAY DB92-00395A MAY DB92-00395A Contact Us For Availability
2
MAY DB90-00311A MAY DB90-00311A Contact Us For Availability
3
MAY DB96-01046A MAY DB96-01046A Contact Us For Availability
3
MAY DB61-30133B MAY DB61-30133B Contact Us For Availability
4
MAY DB32-10031A MAY DB32-10031A Contact Us For Availability
4
MAY DB64-00285A MAY DB64-00285A Contact Us For Availability
4
MAY DB92-00109A MAY DB92-00109A Contact Us For Availability
5
MAY DB61-00443A MAY DB61-00443A Contact Us For Availability
5
MAY DB93-01670A MAY DB93-01670A Contact Us For Availability
5
MAY DB64-00284A MAY DB64-00284A Contact Us For Availability
5
MAY DB92-00108A MAY DB92-00108A Contact Us For Availability
6
MAY DB66-00400A MAY DB66-00400A Contact Us For Availability
6
MAY DB63-00657A MAY DB63-00657A Contact Us For Availability
6
MAY DB97-90014U MAY DB97-90014U Contact Us For Availability
7
MAY DB61-00439A MAY DB61-00439A Contact Us For Availability
7
MAY DB94-00097A MAY DB94-00097A Contact Us For Availability
8
MAY DB71-00027A MAY DB71-00027A Contact Us For Availability
8
MAY DB61-00715A MAY DB61-00715A Contact Us For Availability
9
MAY DB61-00445A MAY DB61-00445A Contact Us For Availability
9
MAY DB65-10008B MAY DB65-10008B Contact Us For Availability
10
MAY DB61-00438A MAY DB61-00438A Contact Us For Availability
10
MAY 2501-001237 MAY 2501-001237 Contact Us For Availability
11
MAY DB96-01037C MAY DB96-01037C Contact Us For Availability
11
MAY 2301-001449 MAY 2301-001449 Contact Us For Availability
12
MAY DB96-01970A MAY DB96-01970A Contact Us For Availability
12
MAY DB39-00344B MAY DB39-00344B Contact Us For Availability
13
MAY DB60-30001A MAY DB60-30001A Contact Us For Availability
13
MAY DB26-00006H MAY DB26-00006H Contact Us For Availability
14
MAY DB63-10026A MAY DB63-10026A Contact Us For Availability
15
MAY DB35-00011C MAY DB35-00011C Contact Us For Availability
16
MAY DB63-20003A MAY DB63-20003A Contact Us For Availability
17
MAY 48D180IU1EQ MAY 48D180IU1EQ Contact Us For Availability
18
MAY DB62-00457B MAY DB62-00457B Contact Us For Availability
19
MAY DB62-00456C MAY DB62-00456C Contact Us For Availability
20
MAY DB60-30028A MAY DB60-30028A Contact Us For Availability
21
MAY DB73-10001A MAY DB73-10001A Contact Us For Availability
22
MAY DB90-00304B MAY DB90-00304B Contact Us For Availability
23
MAY DB61-00440A MAY DB61-00440A Contact Us For Availability
24
MAY DB67-00047B MAY DB67-00047B Contact Us For Availability
26
MAY DB31-00106A MAY DB31-00106A Contact Us For Availability
27
MAY DB67-00096A MAY DB67-00096A Contact Us For Availability
29
MAY DB71-00028A MAY DB71-00028A Contact Us For Availability
30
SEE NOTE GRILLE AIR INLET CURRENTLY UNA MAY Y00000000 Contact Us For Availability
31
MAY DB63-00627A MAY DB63-00627A Contact Us For Availability
32
MAY DB63-00185A MAY DB63-00185A Contact Us For Availability
33
MAY DB61-00448A MAY DB61-00448A Contact Us For Availability
NI
MAY SAM0133 MAY SAM0133 Contact Us For Availability
NI
MAY 15003950 MAY 15003950 Contact Us For Availability
× ![]()
