Model Maytag AW089CB/XAA ROOM AIR CONDITIONER – Common Parts & Diagrams

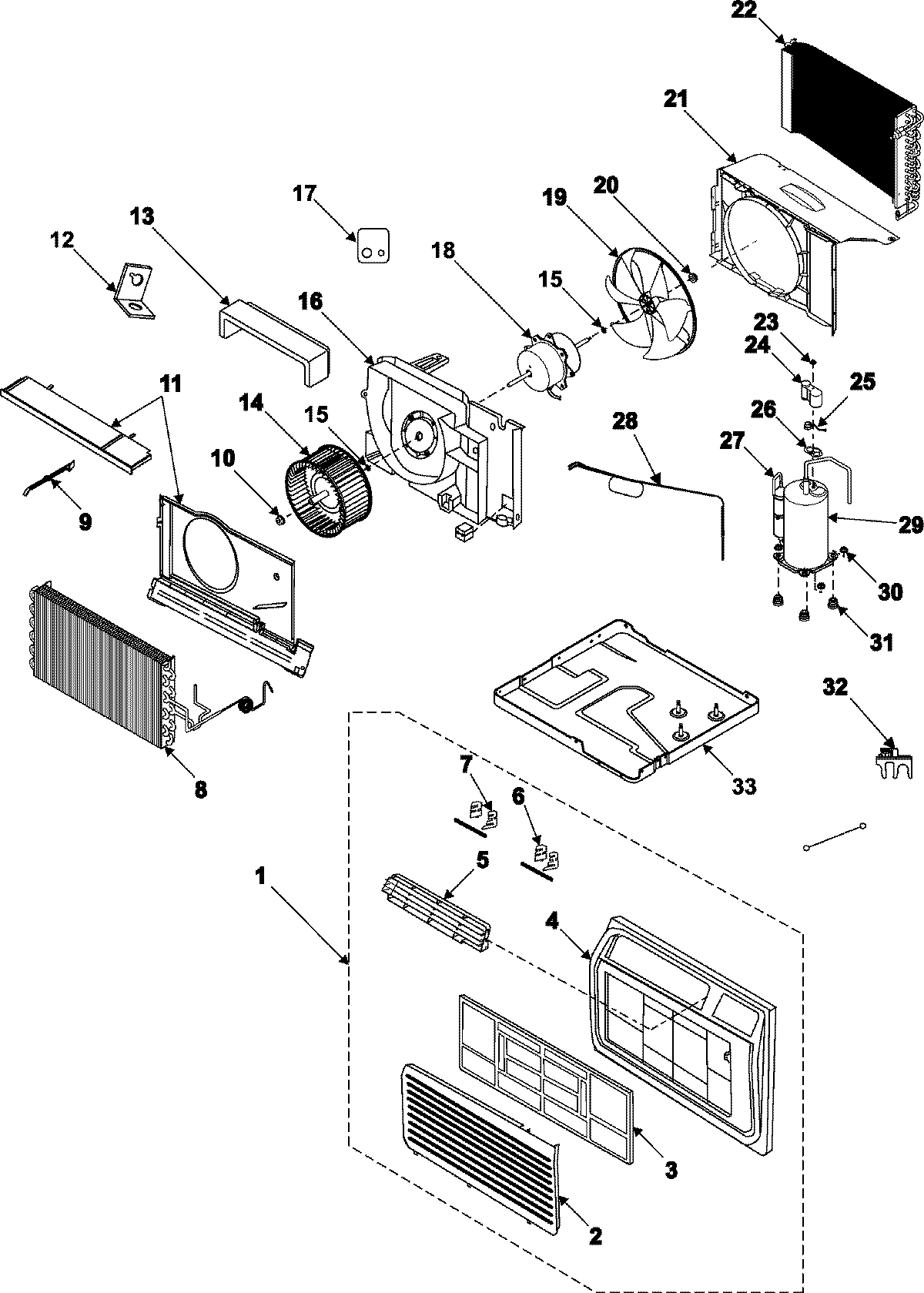

01 - CHASSIS ASSEMBLY

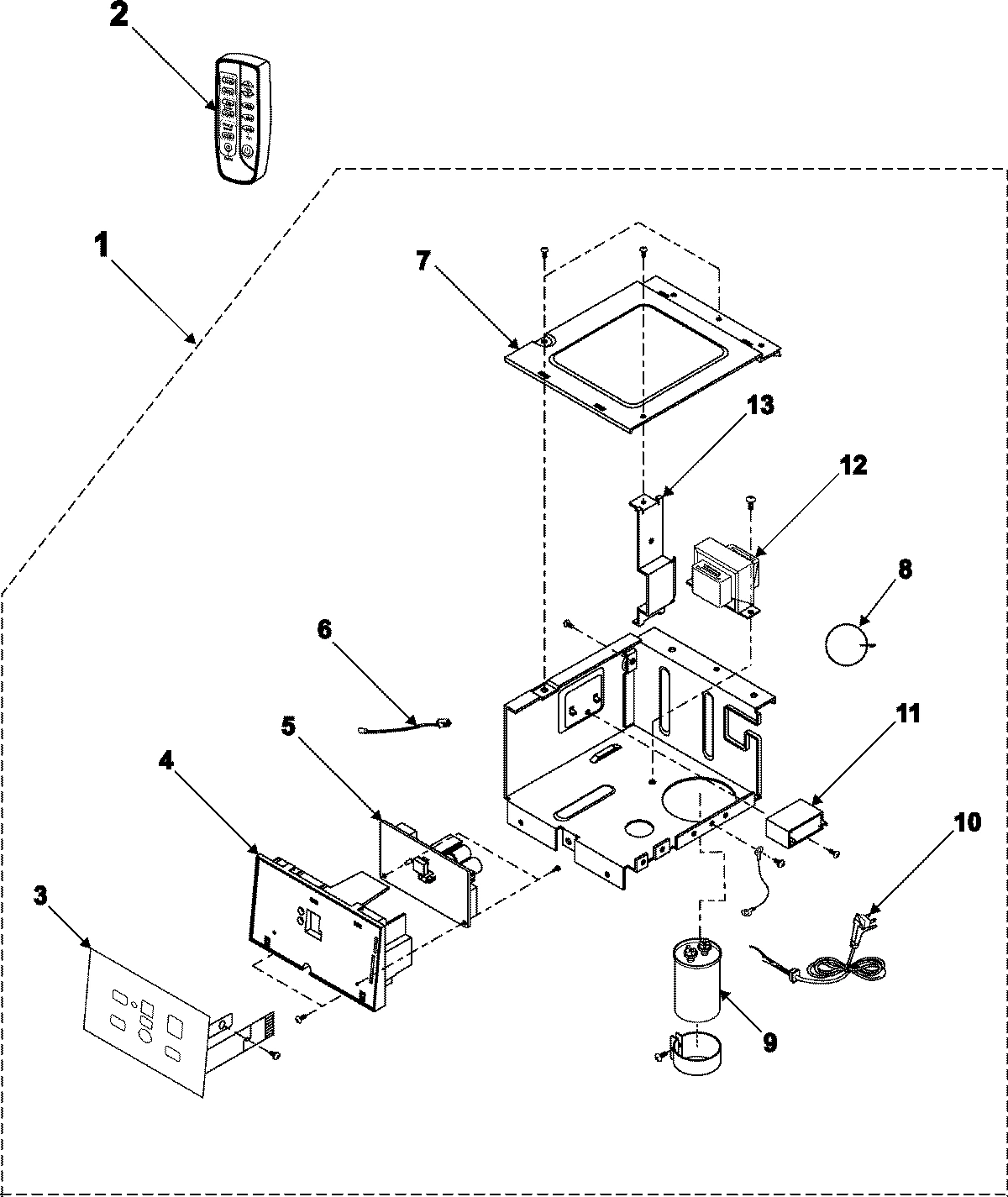

02 - CONTROL ASSEMBLY

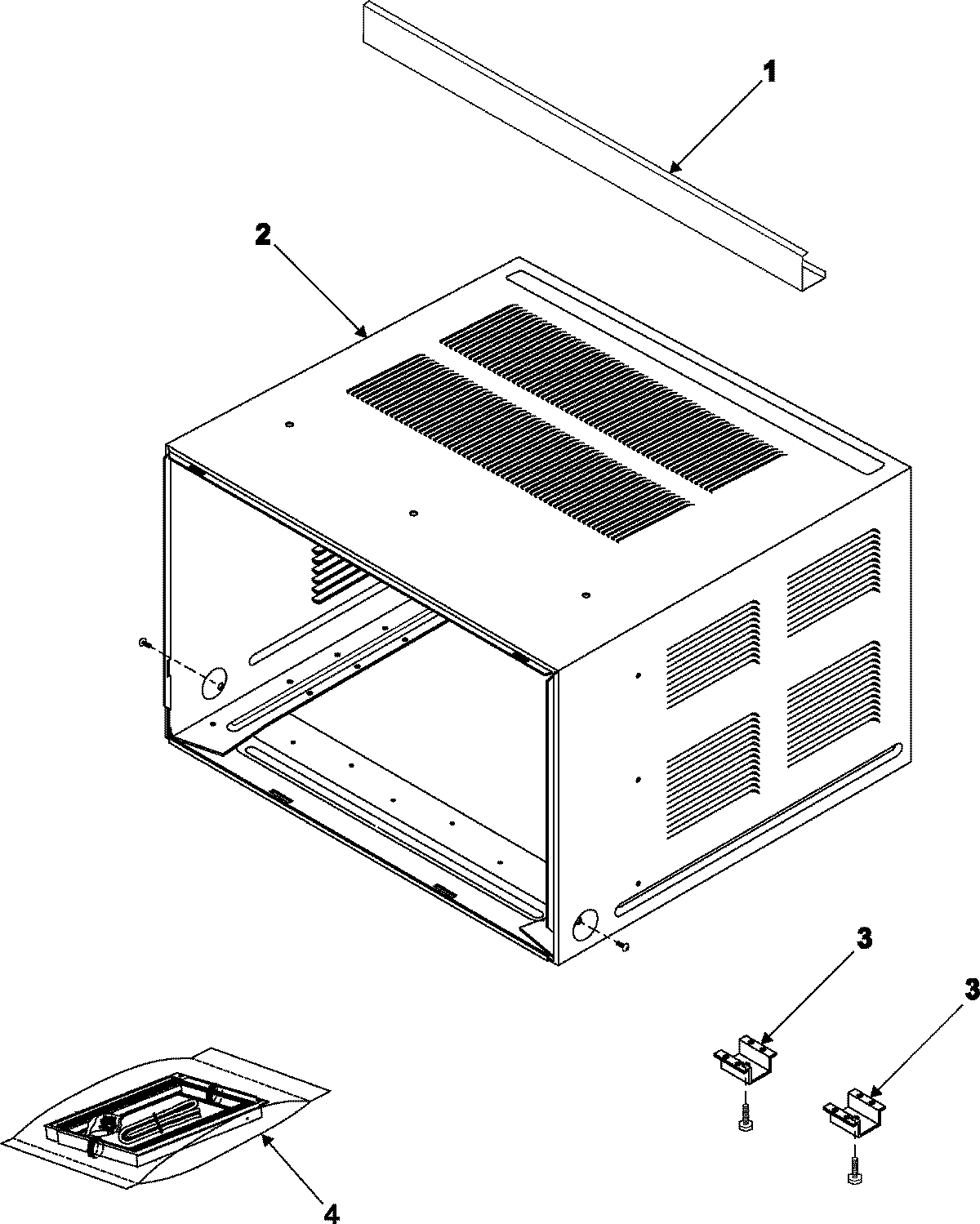

03 - OUTER CASE ASSEMBLY
04 - SUPPLEMENTAL INFORMATION

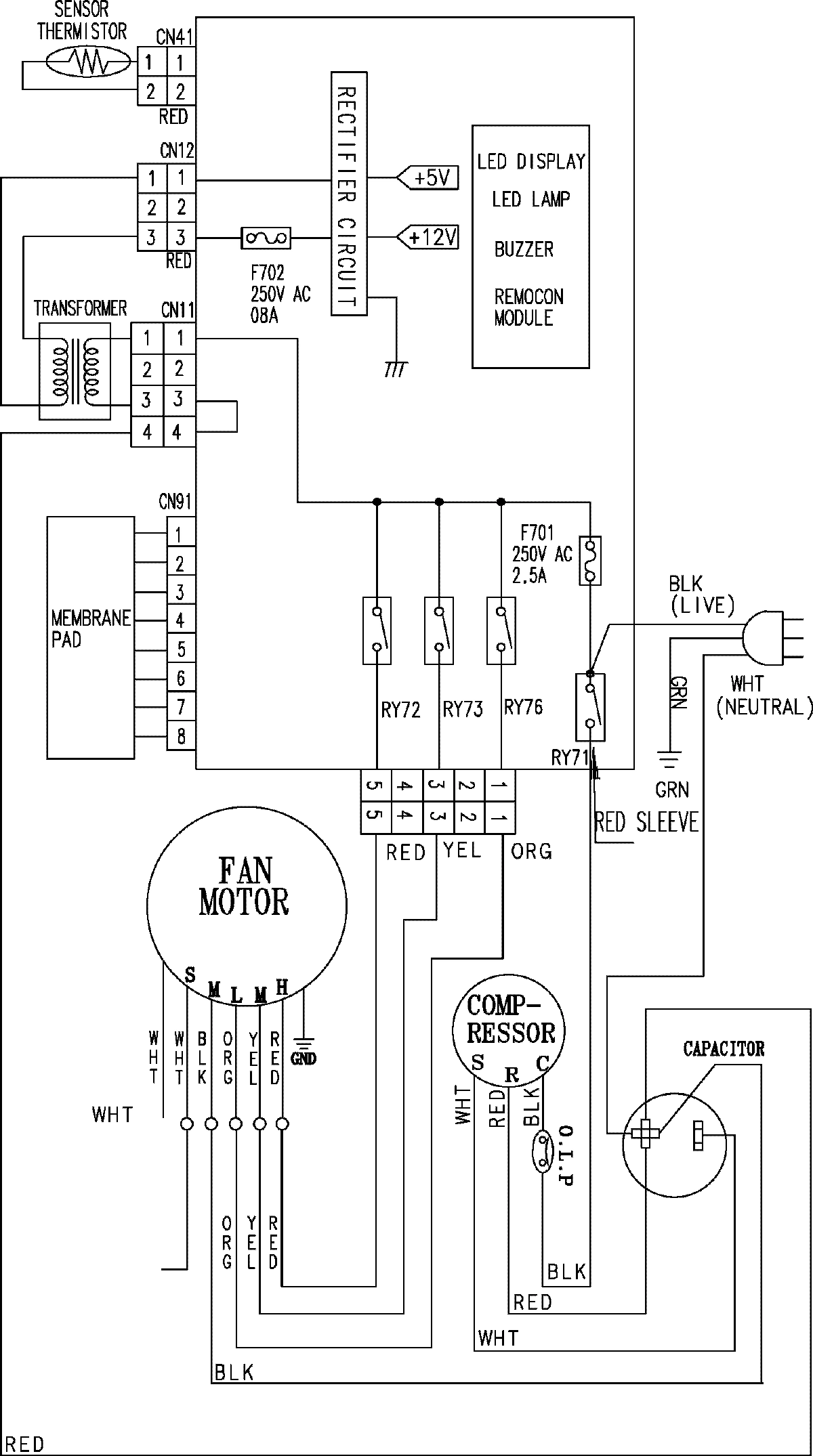

05 - WIRING INFORMATION
Common parts from model Maytag AW089CB/XAA ROOM AIR CONDITIONER
1
MAY DB92-00515B MAY DB92-00515B Contact Us For Availability
1
MAY DB93-02971A MAY DB93-02971A Contact Us For Availability
1
MAY DB64-00048H MAY DB64-00048H Contact Us For Availability
2
MAY DB64-00917A MAY DB64-00917A Contact Us For Availability
2
MAY DB93-03018V MAY DB93-03018V Contact Us For Availability
2
MAY DB90-02472A MAY DB90-02472A Contact Us For Availability
3
MAY DB61-00191A MAY DB61-00191A Contact Us For Availability
3
MAY DB63-00810A MAY DB63-00810A Contact Us For Availability
3
MAY DB34-00031A MAY DB34-00031A Contact Us For Availability
3
MAY DB61-30219F MAY DB61-30219F Contact Us For Availability
4
MAY DB64-00916A MAY DB64-00916A Contact Us For Availability
4
MAY DB64-00918A MAY DB64-00918A Contact Us For Availability
4
MAY DB97-02854A MAY DB97-02854A Contact Us For Availability
4
MAY DB97-30156C MAY DB97-30156C Contact Us For Availability
5
MAY DB61-01530A MAY DB61-01530A Contact Us For Availability
5
MAY DB93-03564A MAY DB93-03564A Contact Us For Availability
6
MAY DB66-00555A MAY DB66-00555A Contact Us For Availability
7
MAY DB66-00556A MAY DB66-00556A Contact Us For Availability
7
MAY DB61-01535B MAY DB61-01535B Contact Us For Availability
8
MAY DB96-02987C MAY DB96-02987C Contact Us For Availability
8
MAY DB65-00031B MAY DB65-00031B Contact Us For Availability
9
MAY DB66-00557B MAY DB66-00557B Contact Us For Availability
9
MAY 2501-001230 MAY 2501-001230 Contact Us For Availability
10
MAY DB60-30004A MAY DB60-30004A Contact Us For Availability
10
MAY DB93-02938C MAY DB93-02938C Contact Us For Availability
11
MAY DB90-01257C MAY DB90-01257C Contact Us For Availability
11
MAY 2301-001448 MAY 2301-001448 Contact Us For Availability
12
MAY DB61-30133E MAY DB61-30133E Contact Us For Availability
13
MAY DB61-02469A MAY DB61-02469A Contact Us For Availability
13
MAY DB61-01533A MAY DB61-01533A Contact Us For Availability
14
MAY DB67-50078E MAY DB67-50078E Contact Us For Availability
15
MAY DB60-00154B MAY DB60-00154B Contact Us For Availability
16
MAY DB70-00357A MAY DB70-00357A Contact Us For Availability
18
MAY DB31-00215A MAY DB31-00215A Contact Us For Availability
19
MAY DB67-50077A MAY DB67-50077A Contact Us For Availability
20
MAY DB60-30020A MAY DB60-30020A Contact Us For Availability
21
MAY DB61-01532A MAY DB61-01532A Contact Us For Availability
22
MAY DB96-02986F MAY DB96-02986F Contact Us For Availability
23
MAY 6021-001142 MAY 6021-001142 Contact Us For Availability
25
MAY DB35-00024A MAY DB35-00024A Contact Us For Availability
26
MAY DB63-00765A MAY DB63-00765A Contact Us For Availability
29
MAY 44A076HUAEB MAY 44A076HUAEB Contact Us For Availability
30
SEE NOTE NUT-WASHER CURRENTLY UNAVAI MAY Y00000000 Contact Us For Availability
31
MAY DB63-00763A MAY DB63-00763A Contact Us For Availability
32
MAY DB61-40251A MAY DB61-40251A Contact Us For Availability
33
MAY DB90-02471A MAY DB90-02471A Contact Us For Availability
NI
MAY DB61-01536B MAY DB61-01536B Contact Us For Availability
NI
MAY SAM0135 MAY SAM0135 Contact Us For Availability
NI
MAY 15003951 MAY 15003951 Contact Us For Availability
× ![]()
