Model Samsung AW0803B/XAA Room Air Conditioner – Common Parts & Diagrams
CONTROL ASSEMBLY
CHASSIS ASSEMBLY
OUTER CASE ASSEMBLY
Common parts from model Samsung AW0803B/XAA Room Air Conditioner
1
Panel Assembly SMG DB92-00515B Contact Us For Availability
1
Room Air Conditioner Accordion Rail, Upper SMG DB64-00048H Contact Us For Availability
1A

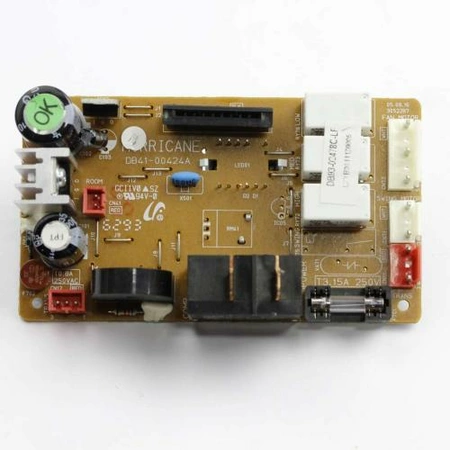

Control SMG DB93-02487C Contact Us For Availability
1A
Panel Assembly SMG DB92-00515C Contact Us For Availability
2
Remote Control SMG DB93-01433S Contact Us For Availability
2
Link Blade SMG DB66-00558A Contact Us For Availability
2
Cabinet SMG DB90-01256A Contact Us For Availability
3
Switch SMG DB34-00031A Contact Us For Availability
3
SEE NOTE (Non-Illus) SMG 00000000 Contact Us For Availability
3
Bracket SMG DB61-30219F Contact Us For Availability
3A
Switch SMG DB34-00031D Contact Us For Availability
4
Control Panel SMG DB64-00918A Contact Us For Availability
4
Assy Shutt SMG DB92-00113C Contact Us For Availability
5
Frame Blade SMG DB61-01530A Contact Us For Availability
5
Shutter SMG DB92-00112C Contact Us For Availability
6
Panel SMG DB64-00916A Contact Us For Availability
6
Air Conditioner Level Screw SMG DB97-30156C Contact Us For Availability
7
Case Control SMG DB61-01535A Contact Us For Availability
7
Air Guard SMG DB63-00810A Contact Us For Availability
8
Clip Capacitor SMG DB65-00031A Contact Us For Availability
8
Air Grille SMG DB64-00917A Contact Us For Availability
8A
Air Grille SMG DB64-01089A Contact Us For Availability
9
Capacitor SMG 2501-001230 Contact Us For Availability
9
Base Assembly SMG DB90-01255A Contact Us For Availability
10
Power Crd Ac SMG DB39-00343D Contact Us For Availability
11
C-film,mpe SMG 2301-001448 Contact Us For Availability
11
Nut Washer SMG DB60-30028A Contact Us For Availability
12
Compressor SMG 44A080HUAEB Contact Us For Availability
13
Cover Bracket SMG DB61-01533A Contact Us For Availability
14
Case Control SMG DB61-01536A Contact Us For Availability
15
Gasket SMG DB63-00765A Contact Us For Availability
16
r/c SMG DB35-00022A Contact Us For Availability
17
Relay Protector SMG DB63-00762A Contact Us For Availability
18
Terminal Cover SMG DB60-30001A Contact Us For Availability
19
Terminal Nut SMG DB96-03161B Contact Us For Availability
20
Condenser SMG DB61-01532A Contact Us For Availability
21
Case Condenser SMG DB60-30020A Contact Us For Availability
22
Flange Nut SMG DB67-50077A Contact Us For Availability
23
Room Air Conditioner Outdoor Fan Blade SMG DB31-00215A Contact Us For Availability
24
Fan Motor SMG DB94-00416A Contact Us For Availability
25
Assy Parti SMG DB73-00177A Contact Us For Availability
26
Cover SMG DB67-50078A Contact Us For Availability
27
Air Conditioner Blower Fan SMG DB60-30004A Contact Us For Availability
28
Flange Nut SMG DB90-01257A Contact Us For Availability
29
Plate Assembly SMG DB66-00557A Contact Us For Availability
30
Lever Damper SMG DB62-02298A Contact Us For Availability
31
Capillary Tube SMG DB96-02987A Contact Us For Availability
32
ASSY EVAP SMG DB90-01266A Contact Us For Availability
× ![]()
