Model LG ZSC2000FBB Lightwave Built-in – Common Parts & Diagrams

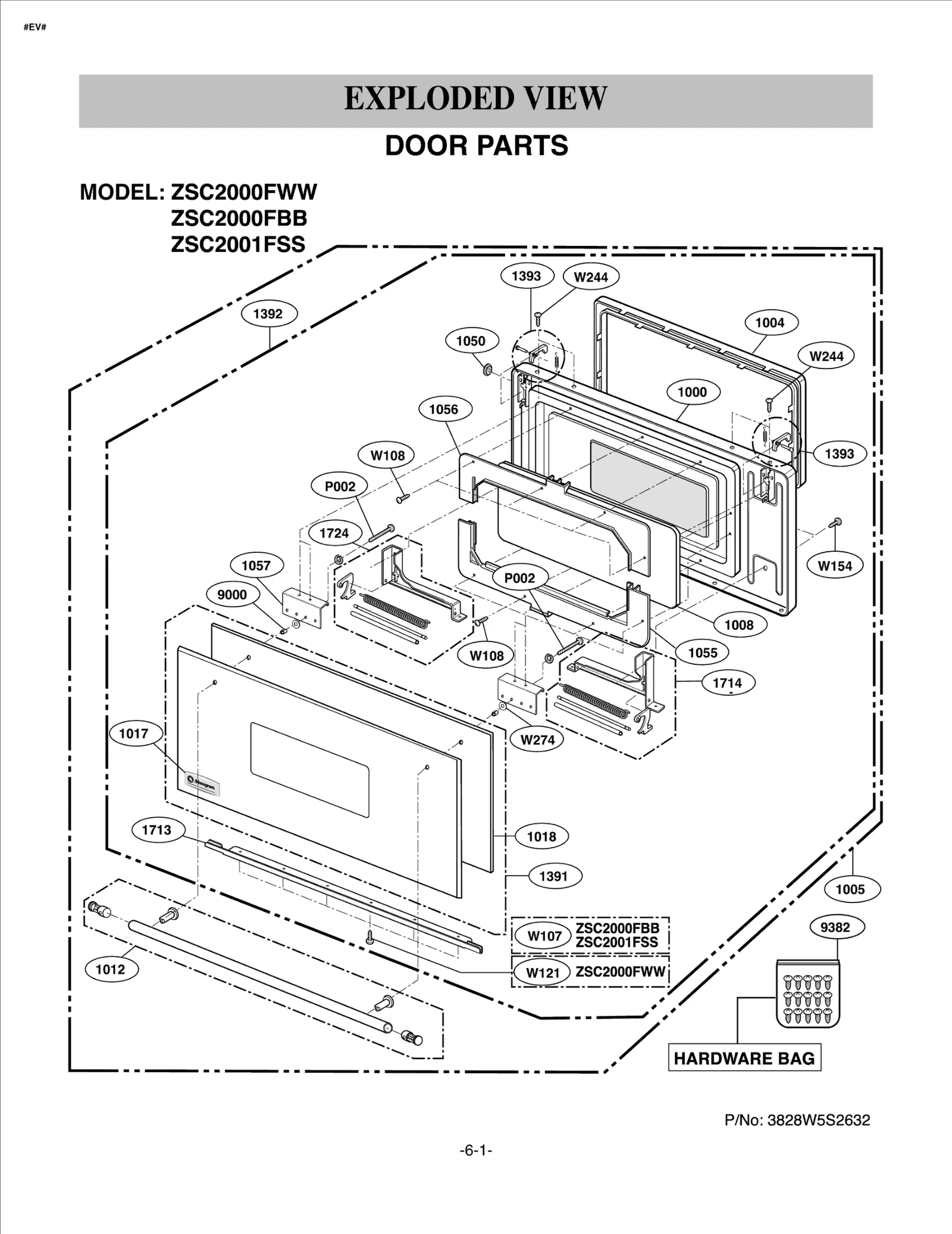

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Common parts from model LG ZSC2000FBB Lightwave Built-in
2000
Membrane LGE 6638W1A013H Contact Us For Availability
2002
Panel,Control LGE 3572W0A195D Contact Us For Availability
2006
PCB Assembly,Sub LGE 6871W2S190A Contact Us For Availability
2008
Bracket,Control Panel LGE 4810W3P001A Contact Us For Availability
2009
PCB Assembly,Sub LGE 6871W2S188A Contact Us For Availability
2024
Grille,Vent LGE 3530W1A012B Contact Us For Availability
2055
VFD LGE 6302W5A011B Contact Us For Availability
2056
Indicator LGE 3520W3A002A Contact Us For Availability
2381
Parts Assembly LGE 383EW1A013P Contact Us For Availability
2400
Knob LGE 4940W3A013B Contact Us For Availability
2402
Holder,Display LGE 4930W1A005A Contact Us For Availability
2403
Holder,Display LGE 4930W3A021A Contact Us For Availability
3000
Cover,Insulator LGE 3052W3M020A Contact Us For Availability
3007
Insulator LGE 5012W1A001A Contact Us For Availability
3010
LGE 4960W3A003A LGE 4960W3A003A Contact Us For Availability
3011
Window,Glass LGE 4890W3A009A Contact Us For Availability
3012
SHAFT,TURN TABLE LGE 4370W3T011A Contact Us For Availability
3013
Cover Assembly,Rear LGE 3809W0A001A Contact Us For Availability
3024
Grille,Vent LGE 3530W1A011B Contact Us For Availability
3027
Motor, AC Ventilation LGE 4681W1A002B Contact Us For Availability
3044
Tray,Metal LGE 3390W2M005D Contact Us For Availability
3070
Filter,Ceramic LGE 6220W3A001A Contact Us For Availability
3137
TRAY,[CERAMIC] LGE 3390W1C001A Contact Us For Availability
3205
Bracket,Idle LGE 4810W3G141B Contact Us For Availability
3206
Bracket,Idle LGE 4810W3G141A Contact Us For Availability
3221
Bracket,Idle LGE 4810W1G068A Contact Us For Availability
3311
Grille LGE 4918W1A008D Contact Us For Availability
3312
Grille LGE 4918W1A007D Contact Us For Availability
3391
Holder,Parts Assembly,SVC LGE 383EW3A005A Contact Us For Availability
3392
Parts Assembly,SVC LGE 383EW3A006A Contact Us For Availability
3393
SERVICE PARTS LGE 383EW3A004A Contact Us For Availability
3701
Case LGE 3180W0A001B Contact Us For Availability
3702
Case LGE 3180W1A001B Contact Us For Availability
3703
Case LGE 3180W1A003A Contact Us For Availability
3704
Case LGE 3180W0A002A Contact Us For Availability
3901
Gasket LGE 4350W4A007M Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4004
Lever LGE 4510W3A014A Contact Us For Availability
4006
Holder Assembly,Locker LGE 3501W1A022A Contact Us For Availability
4007
Holder Assembly,Locker LGE 3501W1A021A Contact Us For Availability
4008
Lever LGE 4510W3A015A Contact Us For Availability
4009
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4011
Holder,Locker LGE 3500W1A015A Contact Us For Availability
4012
Holder,Locker LGE 3500W1A014A Contact Us For Availability
4013
Spring LGE 4970W3A029A Contact Us For Availability
4016
Lever LGE 4510W3A016A Contact Us For Availability
5000
Capacitor,High Voltage LGE 6120WRH001G Contact Us For Availability
5002
BRACKET,[CAPACITOR] LGE 4810W3C007A Contact Us For Availability
5003
Guide,Suction LGE 4974W1S058A Contact Us For Availability
5007
PROPELLER MA-1172M MS-155AM LGE 2B72125B Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D002J Contact Us For Availability
5010
Power Cord Assembly LGE 6411W1A016B Contact Us For Availability
5011
SENSOR ASSY LGE 6501W1A004B Contact Us For Availability
5012
MOTOR FAN 120V/60HZ LGE 2B73670B Contact Us For Availability
5018
DIODE ASSY,DIODE+CABLE LGE 6021W3B001L Contact Us For Availability
5021
Thermistor,NTC LGE 2B72827K Contact Us For Availability
5022
Fuse Assembly LGE 6901W3A003A Contact Us For Availability
5038
SOCKET(CIRC),LAMP LGE 6804W2A001B Contact Us For Availability
5041
Filter,AC Line LGE 6201W2A018D Contact Us For Availability
5045
Cover,Lamp LGE 3550W2L002A Contact Us For Availability
5047
PCB SUPPORT DASS-9N MV-1120M W LGE 4B73792B Contact Us For Availability
5049
Guide,Air LGE 4974W2C001A Contact Us For Availability
5070
PCB Assembly,Sub LGE 6871W1S004A Contact Us For Availability
5071
PCB Assembly,Sub LGE 6871W2S187A Contact Us For Availability
5118
THERMOSTAT 160 V PW MA-1554M LGE 6930WRT003A Contact Us For Availability
5121
Guide,Air LGE 5264W0A009A Contact Us For Availability
5122
Guide,Air LGE 5264W0A010A Contact Us For Availability
5302
Fan Assembly LGE 4681W2A002B Contact Us For Availability
5303
Motor Assembly,AC,Blower LGE 4681W1A003A Contact Us For Availability
5391
SERVICE PARTS LGE 383EW1A007A Contact Us For Availability
5392
Parts Assembly,SVC LGE 383EW1A001B Contact Us For Availability
5393
Parts Assembly LGE 383EW1A011B Contact Us For Availability
5394
SERVICE PARTS LGE 383EW1A006B Contact Us For Availability
5395
Parts Assembly,SVC LGE 383EW1A002B Contact Us For Availability
5409
Insulator LGE 5012W1A002A Contact Us For Availability
5410
Insulator LGE 5012W0A001A Contact Us For Availability
5412
Capacitor,Film,Box LGE 3B72440A Contact Us For Availability
5420
Holder Assembly LGE 4931W2A001A Contact Us For Availability
5507
Bracket Assembly LGE 4811W2A018A Contact Us For Availability
5524
Holder,Display LGE 4930W1A007A Contact Us For Availability
5529
Holder,Sensor LGE 4930W1A004A Contact Us For Availability
5557
Bracket,Idle LGE 4810W3G140A Contact Us For Availability
5603
Parts Assembly LGE AGM36527601 Contact Us For Availability
5700
Barrier LGE 4790W2A003A Contact Us For Availability
5701
Barrier LGE 4790W2A004A Contact Us For Availability
5702
Barrier LGE 4790W3A002A Contact Us For Availability
5703
Barrier LGE 4790W0A001A Contact Us For Availability
5707
TRANSFORMER,POWER LGE 6170W2G008A Contact Us For Availability
5713
Barrier LGE 4790W2A002A Contact Us For Availability
5801
Plate LGE 4960W1A005A Contact Us For Availability
6001
Plate Assembly,Base LGE 3303W0A012A Contact Us For Availability
MAX1
Book,Cook LGE 3878W5A0023 Contact Us For Availability
MAY1
Box LGE 3890W3Y089A Contact Us For Availability
MBM2
Card,Technical LGE 3840W1T0033 Contact Us For Availability
MEZ1
Label,Cooking Guide LGE 3850W5D001B Contact Us For Availability
MEZ2
Label,Cooking Guide LGE 3850W5D001A Contact Us For Availability
MFL1
Manual,Owners LGE 3828W5A4685 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0227 Contact Us For Availability
W267
Screw,Customzied LGE 1SZZW2A004D Contact Us For Availability
W267
Screw,Customized LGE 1SZZW2A004B Contact Us For Availability
W273
Screw,Customized LGE 1SZZW3Z001B Contact Us For Availability
W274
Washer,Customized LGE 1WZZW3Z008A Contact Us For Availability
× ![]()
