Model Whirlpool ZRTSC8650WW ELECTRIC RANGE – Common Parts & Diagrams
01 - CABINET

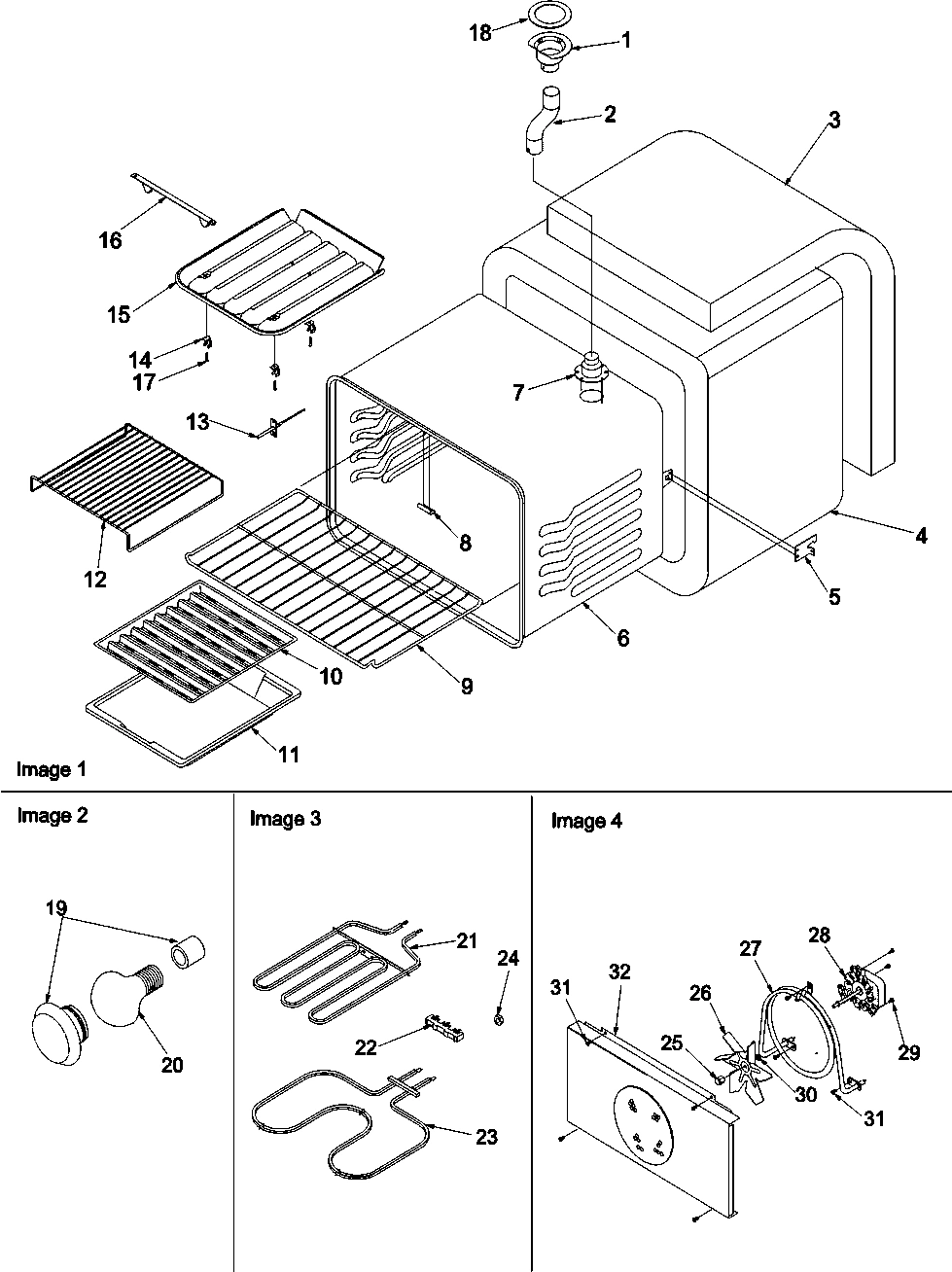

02 - CAVITY
04 - MISCELLAEOUS INFORMATION

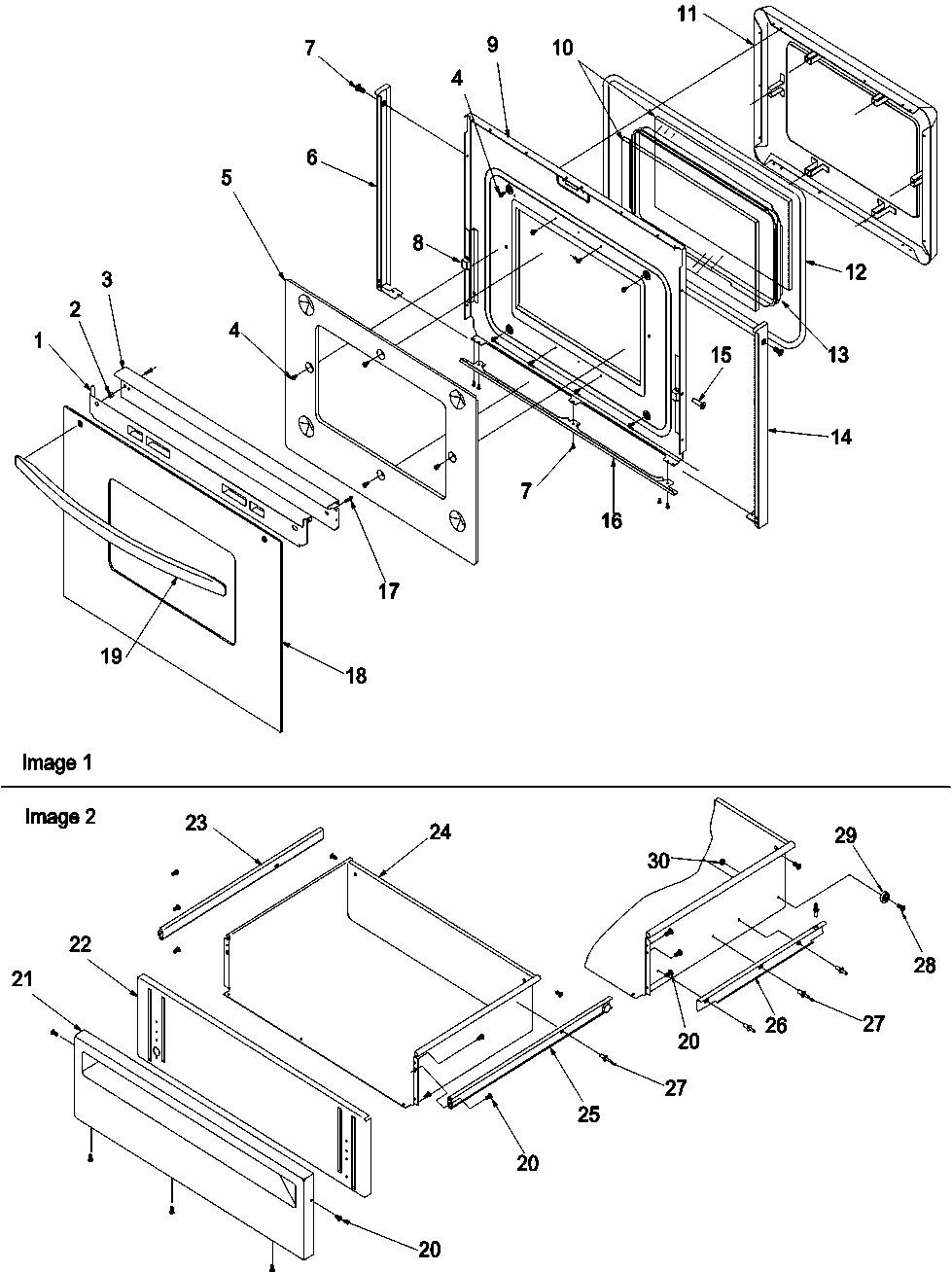

05 - OVEN DOOR & STORAGE DRAWER

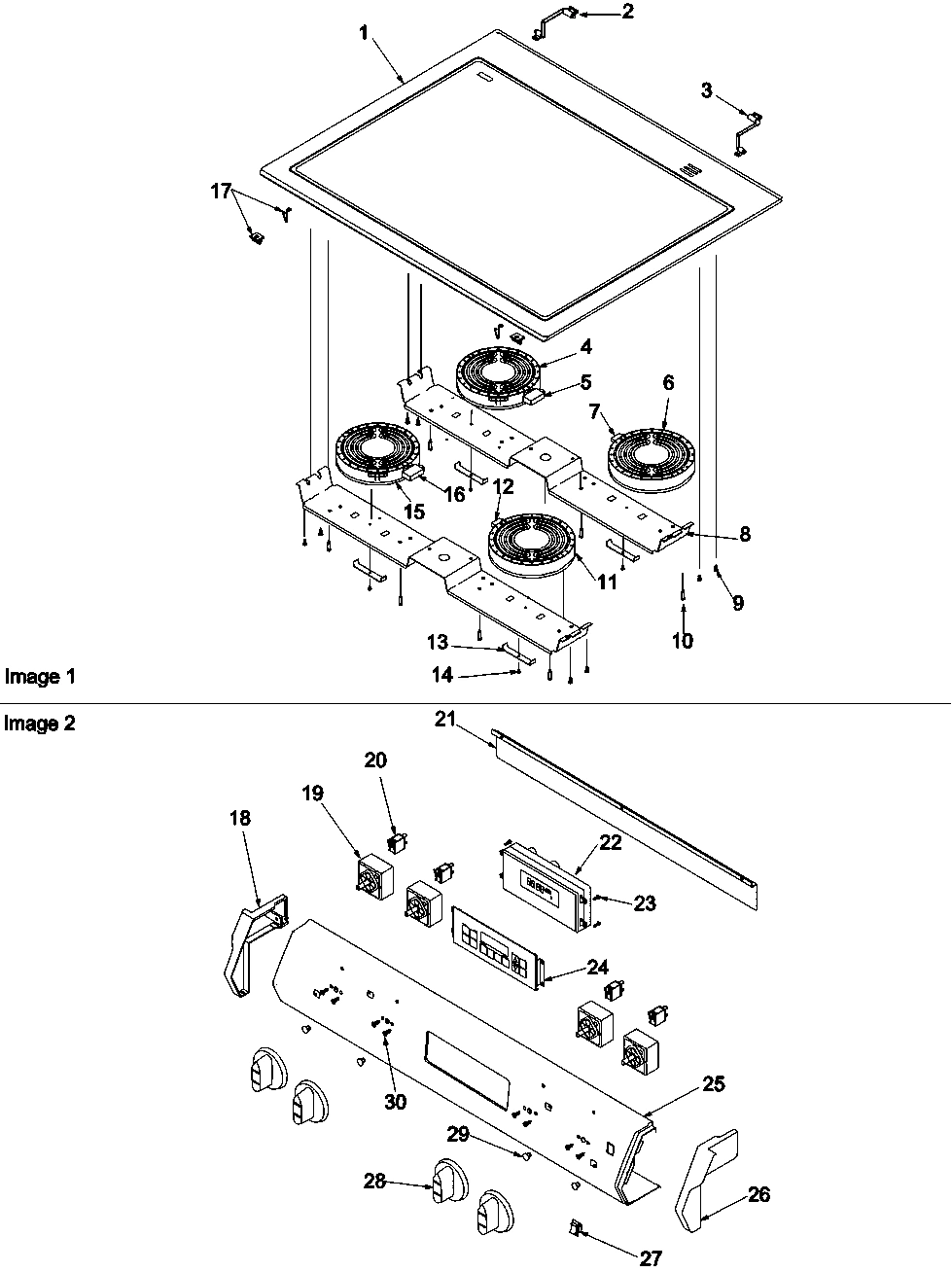

03 - MAIN TOP & CONTROL PANEL
Common parts from model Whirlpool ZRTSC8650WW ELECTRIC RANGE
0
CLEANER, COOKTOP(SMOOTH)ELCO 1 WPL Y0314274 Contact Us For Availability
1
ADAPTER, VENT TUBE WPL Y0316762 Contact Us For Availability
1
ASSY, GLASS HEAT SHIELD WPL 31833201 Contact Us For Availability
1
ASSY,MAINTOP/GLASS(WHITE/WHITE WPL 316166W Contact Us For Availability
2
TUBE, VENT WPL Y0316169 Contact Us For Availability
2
BUSHING, HANDLE (NAL) WPL Y0309461 Contact Us For Availability
2
HINGE, MAIN TOP (LT) WPL 31769702 Contact Us For Availability
3
INSULATION, REAR WPL Y0300974 Contact Us For Availability
3
TRIM, DOOR TOP WPL 31782104W Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 31769701 Contact Us For Availability
4
INSULATION, WRAPPER WPL 0300973 Contact Us For Availability
5
SCREW, No.8-18X5/8 P RD HD (BLK) WPL 31750412 Contact Us For Availability
5
BRACKET, OVEN CAVITY WPL Y0058852 Contact Us For Availability
5
SHIELD, HEAT WPL Y0309068 Contact Us For Availability
6
BRKT, RANGE ANTI-TIP WPL Y0315560 Contact Us For Availability
6
OVEN, CAVITY (ENAMELLED) WPL 31822101CG Contact Us For Availability
6
END CAP, DOOR (LT-WHT) WPL 309523W Contact Us For Availability
7
ANCHOR, PLASTIC WPL Y0301555 Contact Us For Availability
7
SMOKE ELIMINATOR WPL Y0058526 Contact Us For Availability
8
RETAINER, TOP INSULATION WPL 31723601 Contact Us For Availability
8
COVER, CHIP WPL Y0315022 Contact Us For Availability
8
BUMPER, RUBBER WPL Y0309627 Contact Us For Availability
8
BRACKET, ELEMENT WPL Y0316165 Contact Us For Availability
9
LIMIT CONTROL-UPPER OVEN-200 WPL Y0042045 Contact Us For Availability
9
RACK, OVEN WPL 309988J Contact Us For Availability
9
BACKER, OVEN DOOR WPL 317023CG Contact Us For Availability
10
THERMOSTAT, HIGH LIMIT WPL Y0316699 Contact Us For Availability
10
GLASS, DOOR WPL Y0317019 Contact Us For Availability
10
SCREW, SHOULDER AB 6-20 X .825 WPL 31750715 Contact Us For Availability
11
BRACKET, FAN MTG WPL Y0308923 Contact Us For Availability
11
PAD, OVEN DOOR WPL 317021CG Contact Us For Availability
12
BLOWER, ERC CLG WPL Y0308607 Contact Us For Availability
12
RACK, BROILER WPL Y0306531 Contact Us For Availability
12
GASKET, OVEN DOOR (67``) WPL 31715902 Contact Us For Availability
12
LIMITER-DUAL WPL 0316689 Contact Us For Availability
13
SUPPORT-CIRCUIT BOARD WPL Y0306900 Contact Us For Availability
13
FRAME, WINDOW PACK WPL Y0317020 Contact Us For Availability
13
SPRING, ELEMENT WPL Y0306683 Contact Us For Availability
14
BOARD, RELAY ERC WPL Y0315615 Contact Us For Availability
14
BRACKET, MOUNTING WPL 0315402 Contact Us For Availability
14
END CAP, DOOR (RT-WHT) WPL 309522W Contact Us For Availability
15
REFLECTOR, BROIL ELEMENT WPL Y0315403 Contact Us For Availability
15
RIVET, POP WPL Y0302648 Contact Us For Availability
15
ELEMENT, RIBBON (1200W) WPL 31794701 Contact Us For Availability
16
RETAINER, REAR WPL 31791201 Contact Us For Availability
16
BRACKET, REFLECTOR MOUNTING WPL Y0061557 Contact Us For Availability
16
SUPPORT, GLASS (WHT) WPL 309460W Contact Us For Availability
16
LIMITER WPL 31846201 Contact Us For Availability
17
BRKT, VENT TUBE WPL 0316382 Contact Us For Availability
17
RIVET, POP WPL Y0097822 Contact Us For Availability
17
SCREW, No.10-32 X 1.250`` PAN HD WPL 31750518 Contact Us For Availability
17
CLIP, SPRING WPL Y0316394 Contact Us For Availability
18
COVER, REAR WPL 31757101 Contact Us For Availability
18
GASKET, VENT WPL 31865901 Contact Us For Availability
18
GLASS, OVEN DOOR (WHT) WPL 316238W Contact Us For Availability
18
END CAP, CONT PNL (LT-WHT) WPL 31742702W Contact Us For Availability
19
PLATE, ACCESS WPL 31757201 Contact Us For Availability
19
OVEN LIGHT ASSY WPL 31823701 Contact Us For Availability
19
HANDLE, OVEN DOOR (WHT) WPL 31689503W Contact Us For Availability
20
CORD, POWER WPL Y0308896 Contact Us For Availability
20
BULB, LIGHT WPL Y0042175 Contact Us For Availability
21
CONNECTOR, CONDUIT WPL Y0309078 Contact Us For Availability
21
PANEL, DRAWER (WHT) WPL 309176W Contact Us For Availability
21
HEAT SHIELD, CONTROL PANEL WPL 0316650 Contact Us For Availability
22
PLATE, MAIN INLET WIRE WPL 0058311 Contact Us For Availability
22
LINER, DRAWER PANEL (BLK) WPL 309178B Contact Us For Availability
22
CONTROL, ELECTRONIC RANGE WPL Y0315614 Contact Us For Availability
23
CABLE, CLIP ESM WPL Y0091587 Contact Us For Availability
24
PANEL, SIDE (WHT) WPL 31825104W Contact Us For Availability
24
HEX NUT (NKL) WPL 31750124 Contact Us For Availability
24
DRAWER, STORAGE (WHT) WPL 31733502W Contact Us For Availability
24
MEMBRANE, SWITCH PANEL (WHT) WPL 316189W Contact Us For Availability
25
FILLER STRIP (WHT) WPL 316325W Contact Us For Availability
25
NUT, LT HAND THREAD WPL 0307037 Contact Us For Availability
25
PNL, CONTROL-SCREENED (WHITE) WPL 316359W Contact Us For Availability
26
RETAINER, INSULATION (SIDE) WPL 0304282 Contact Us For Availability
26
BLADE, FAN WPL Y0307036 Contact Us For Availability
26
TRACK, STORAGE DRAWER WPL 31733301 Contact Us For Availability
26
END CAP, CONT PNL (RT-WHT) WPL 31742705W Contact Us For Availability
27
SEE NOTE SEE NOTE FRONT FRAME-ENAME WPL Y00000000 Contact Us For Availability
27
ELEMENT, CONV OVEN(240V-2200W) WPL Y0305245 Contact Us For Availability
28
LEVELING LEG\BOTTOM BRACE RT WPL Y0314883 Contact Us For Availability
28
BOLT, SHOULDER 10-32 WPL 31750717 Contact Us For Availability
28
ASSY, CONV. FAN & BLADE WPL Y0305246 Contact Us For Availability
28
KNOB, INFINITE SW (WHT) WPL 31760405W Contact Us For Availability
29
LEG,LEVELING xxx WPL 314187B Contact Us For Availability
29
LENS, INDICATOR WPL Y0316265 Contact Us For Availability
30
HINGE, OVEN DOOR (RT) WPL 31715202 Contact Us For Availability
30
WASHER (ZN) WPL 0307038 Contact Us For Availability
30
SCREW, No.8-32 X 1/4 WPL 31750714 Contact Us For Availability
31
TRACK, MOUNTING WPL 31733201 Contact Us For Availability
32
RETAINER, INSULATION (BOTTOM) WPL Y0309061 Contact Us For Availability
32
COVER, FAN (CG) WPL 31843201CG Contact Us For Availability
33
SHIELD, HEAT WPL Y0315146 Contact Us For Availability
35
HINGE, OVEN DOOR (LT) WPL 31715201 Contact Us For Availability
36
SCREW, No.8-18 X .500 AB (BLK) WPL 31750719 Contact Us For Availability
38
LEVELING LEG\BOTTOM BRACE LT WPL Y0314882 Contact Us For Availability
39
SCREW, No.8-18 X 1/2 WASHER HD WPL 31750707 Contact Us For Availability
40
SWITCH- OVEN DOOR WPL Y0316882 Contact Us For Availability
42
ROLLER, DRAWER WPL 31733401 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PH TAPTITE) WPL 31750511 Contact Us For Availability
NI
SCREW, No.10-32X1/2 (PAN PH HD) WPL 31750517 Contact Us For Availability
NI
MNL, OWNERS (ZRRSC/ZRTSC/ZRHS WPL 31731301 Contact Us For Availability
NI
MNL, PTS RANGE WPL RP2320036 Contact Us For Availability
NI
MANUAL, SERVICE WPL RS2320004 Contact Us For Availability
NI
MNL, TECH SEE NOTE WPL RT2320009 Contact Us For Availability
NI
ASSY, ANTI-TIP PACK WPL Y0316652 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL, CLEANING CAUTION FR/ENG WPL Y0309434 Contact Us For Availability
NI
INSULATION,OVEN DOOR WPL Y0309772 Contact Us For Availability
NI
HARNESS, INPUT (CONNECTOR) WPL 0316347 Contact Us For Availability
NI
SCREW, No.6-32 X .312 PAN HD PH WPL 31750317 Contact Us For Availability
× ![]()
