Model LG ZRNU363B8AA Multi V_I/D_Duct – Common Parts & Diagrams

Common parts from model LG ZRNU363B8AA Multi V_I/D_Duct

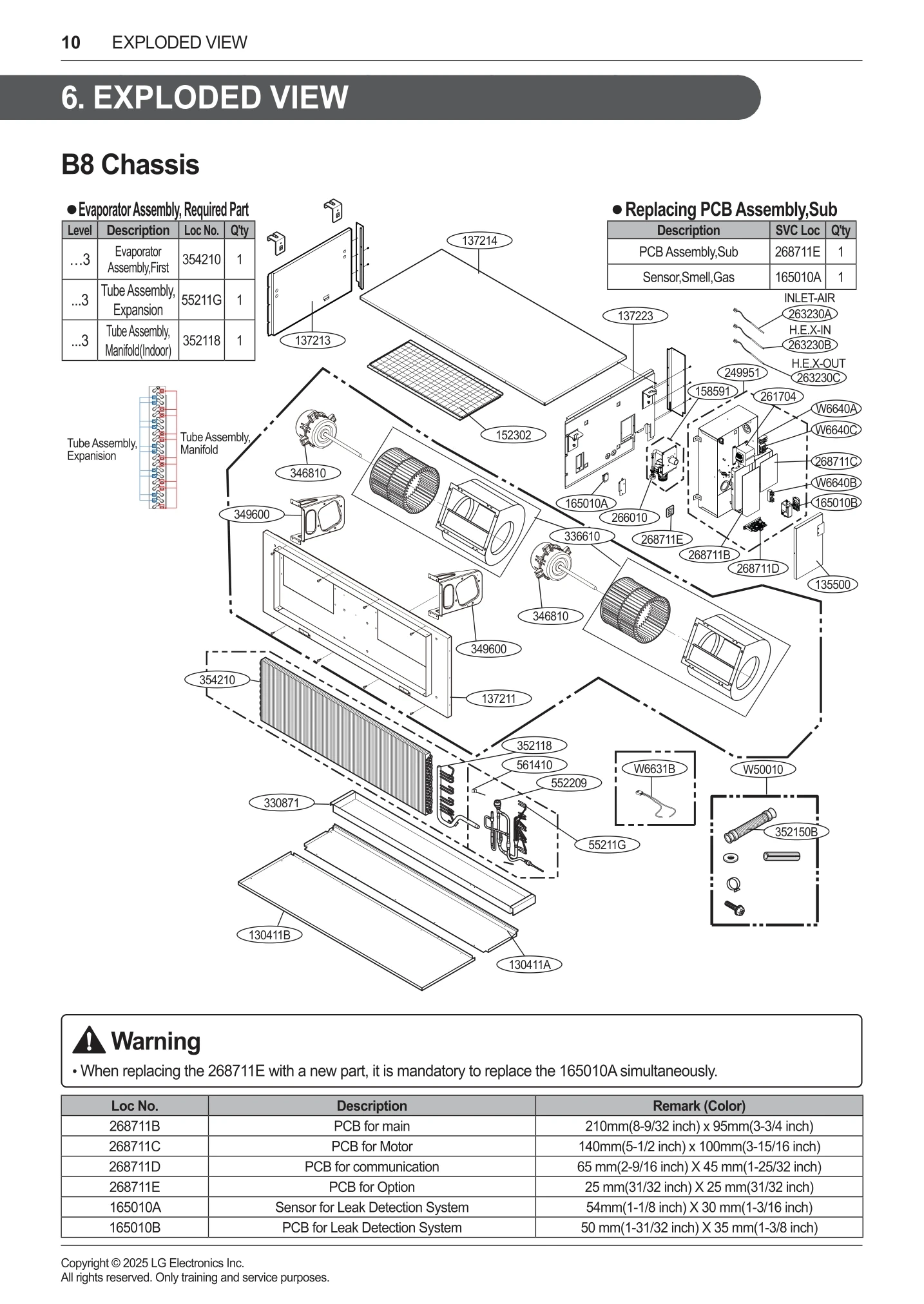

Diagram 0

Print

• This Diagram
• All Diagrams

130411A

Base Assembly,Indoor LGE AAN75848708 Contact Us For Availability

View on Model

130411B

Base Assembly,Indoor LGE AAN75848707 Contact Us For Availability

View on Model

135500

Cover Backorder LGE MCK39875411 View Details $134.29

View on Model

137211

Panel Assembly,Front(Indoor) LGE AGL35764833 Contact Us For Availability

View on Model

137213

Panel Assembly,Side LGE AGL35764714 Contact Us For Availability

View on Model

137214

Panel Assembly,Upper LGE AGL75653505 Contact Us For Availability

View on Model

137223

Panel Assembly,Side LGE AGL35764421 Contact Us For Availability

View on Model

152302

5230A30017D LG Air Filter Backorder LGE 5230A30017D View Details $134.29

View on Model

158591

Pump Assembly,Water LGE 5859A20002Q Contact Us For Availability

View on Model

165010A

SENSOR,SMELL,GAS Backorder LGE EBD64415301 View Details $257.14

View on Model

165010B

PCB Assembly,Sub(H/W) Backorder LGE EBR35472201 View Details $102.70

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30350303 Contact Us For Availability

View on Model

261704

Linear Trans LGE 5874A90003H Contact Us For Availability

View on Model

263230A

EBG61106822 LG Temperature Sensor Thermistor Backorder LGE EBG61106822 View Details $19.86

View on Model

263230B

EBG61287706 LG Temperature Sensor Thermistor Backorder LGE EBG61287706 View Details $25.61

View on Model

263230C

EBG61325803 LG Temperature Sensor Thermistor Backorder LGE EBG61325803 View Details $25.61

View on Model

266010

6601A20013P LG Switch Assembly Backorder LGE 6601A20013P View Details $63.09

View on Model

268711B

PCB Assembly,Main LGE EBR41968907 Contact Us For Availability

View on Model

268711C

PCB Assembly,Sub LGE 6871A20912Z Contact Us For Availability

View on Model

268711D

PCB Assembly,Sub Backorder LGE EBR83841811 View Details $102.70

View on Model

268711E

PCB Assembly,Sub LGE EBR82165542 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain Backorder LGE AGK34943708 View Details $334.23

View on Model

336610

Housing Assembly Backorder LGE 3661A20025N View Details $547.01

View on Model

346810

Motor Assembly,DC,Indoor Backorder LGE EAU37067118 View Details $723.66

View on Model

349600

Bracket,Motor LGE MAZ65244001 Contact Us For Availability

View on Model

352118

Tube Assembly,Manifold(Indoor) Backorder LGE AJR33316210 View Details $201.38

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $20.74

View on Model

354210

Evaporator Assembly,First Backorder LGE 5421A20217L View Details $781.34

View on Model

354210

Evaporator Assembly,First LGE 5421A20217M Contact Us For Availability

View on Model

552209

Valve Assembly LGE AJU36719728 Contact Us For Availability

View on Model

561410

Solenoid LGE EBE60661413 Contact Us For Availability

View on Model

W6631B

Harness,Single Backorder LGE EAD63468111 View Details $9.60

View on Model

W6640A

Connector,Terminal Block LGE EAG63452303 Contact Us For Availability

View on Model

W6640B

3H00390A LG Terminal Block Connector Backorder LGE 3H00390A View Details $5.63

View on Model

W6640C

Connector,Terminal Block LGE EAG38884445 Contact Us For Availability

View on Model

W50010

ACCESSORY ASSEMBLY Backorder LGE AAA73031575 View Details $63.09

View on Model

×
