Model LG ZRNU303SRAA Multi V_I/D_Wall Mounted – Common Parts & Diagrams

Common parts from model LG ZRNU303SRAA Multi V_I/D_Wall Mounted

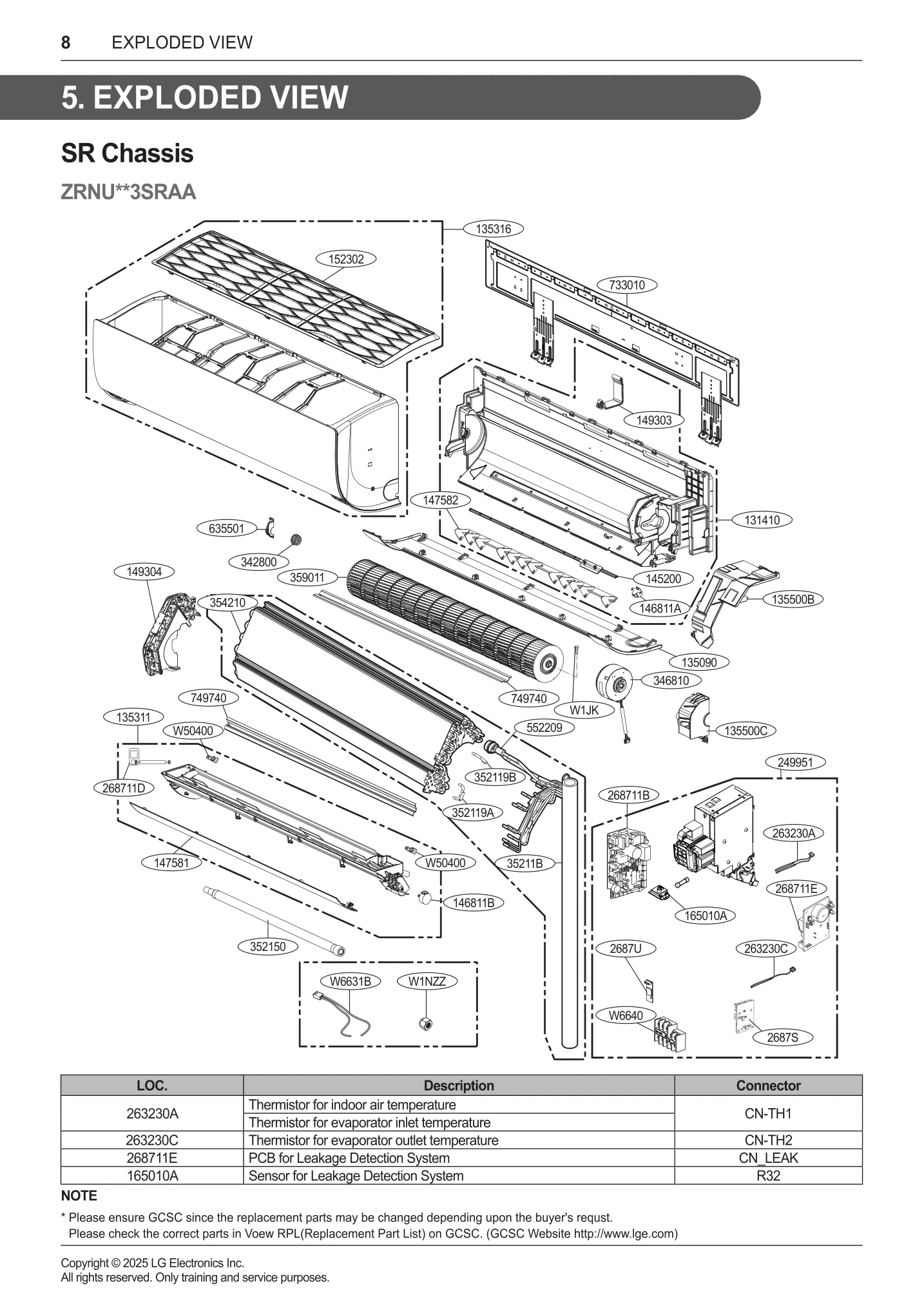

Diagram 0

Print

• This Diagram
• All Diagrams

35211B

Tube Assembly,Tubing Backorder LGE AJR30076902 View Details $638.09

View on Model

131410

ABW74372401 LG Assembly Chassis Backorder LGE ABW74372401 View Details $155.17

View on Model

135090

DECOR ASSEMBLY Backorder LGE ACW76017007 View Details $123.24

View on Model

135311

Grille Assembly,Discharge(Indoor) LGE AEB75664510 Contact Us For Availability

View on Model

135316

GRILLE ASSEMBLY,FRONT(INDOOR) Backorder LGE AEB75664709 View Details $285.12

View on Model

135500B

MCK70344401 LG Cover Backorder LGE MCK70344401 View Details $19.35

View on Model

135500C

MCK70229801 LG Cover Backorder LGE MCK70229801 View Details $11.65

View on Model

145200

MFF63663201 LG Link Backorder LGE MFF63663201 View Details $5.63

View on Model

146811A

Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability

View on Model

146811B

EAU60683708 LG DC Motor Stepping Assembly Backorder LGE EAU60683708 View Details $42.17

View on Model

147581

MFH63643601 LG Horizontal Louver Backorder LGE MFH63643601 View Details $15.11

View on Model

147582

MFH63643901 LG Vertical Louver Backorder LGE MFH63643901 View Details $91.18

View on Model

149303

Holder,Tubing Backorder LGE MEG56994619 View Details $3.64

View on Model

149304

MEG65679302 LG Evaporator Holder Backorder LGE MEG65679302 View Details $28.39

View on Model

152302

MDJ65624601 LG Air Filter Backorder LGE MDJ65624601 View Details $60.27

View on Model

165010A

SENSOR,SMELL,GAS Backorder LGE EBD64415301 View Details $257.14

View on Model

249951

Case Assembly,Control(Indoor) Backorder LGE ABQ30295902 View Details $723.66

View on Model

263230A

Thermistor Assembly,NTC LGE EBG61108928 Contact Us For Availability

View on Model

263230C

EBG61325804 LG Temperature Sensor Thermistor Backorder LGE EBG61325804 View Details $25.61

View on Model

268711B

PCB Assembly,Main Backorder LGE EBR39396911 View Details $313.86

View on Model

268711D

PCB Assembly,Complex Backorder LGE EBR84618401 View Details $14.45

View on Model

268711E

PCB Assembly,Sub(H/W) Backorder LGE EBR35472201 View Details $102.70

View on Model

342800

MAP64313501 LG Air Conditioner Bearing Backorder LGE MAP64313501 View Details $8.52

View on Model

346810

EAU62023302 LG Indoor DC Motor In Stock LGE EAU62023302 View Details $224.86

View on Model

352119A

TUBE ASSEMBLY,RETURN BENDING Backorder LGE AJR76102304 View Details $14.45

View on Model

352119B

AJR76102305 LG Refrigerator Return Bending Tu Backorder LGE AJR76102305 View Details $8.52

View on Model

352150

AEM73493417 LG Assembly Drain Hose Backorder LGE AEM73493417 View Details $11.65

View on Model

354210

ADL76081101 LG Evaporator Assembly Backorder LGE ADL76081101 View Details $390.98

View on Model

359011

ADP73673402 LG Cross Flow Fan Assembly In Stock LGE ADP73673402 View Details $113.31

View on Model

552209

Valve Assembly LGE AJU74292501 Contact Us For Availability

View on Model

635501

MCK67886605 LG Bearing Cover Backorder LGE MCK67886605 View Details $3.64

View on Model

733010

AGU76827901 LG Installation Plate Assembly Backorder LGE AGU76827901 View Details $23.81

View on Model

749740

MEA64890306 LG Guide Backorder LGE MEA64890306 View Details $11.65

View on Model

W1JK

Screw,Set Backorder LGE 3H00535C View Details $3.21

View on Model

W1NZZ

Nut,Customized Backorder LGE 4A00742A View Details $5.63

View on Model

W6631B

Harness,Single Backorder LGE EAD63468102 View Details $40.49

View on Model

W6640

Connector,Terminal Block Backorder LGE EAG38884403 View Details $13.12

View on Model

W50400

MCQ67209301 LG Damper Backorder LGE MCQ67209301 View Details $3.64

View on Model

×
