Model GE ZISB36DRB – Common Parts & Diagrams

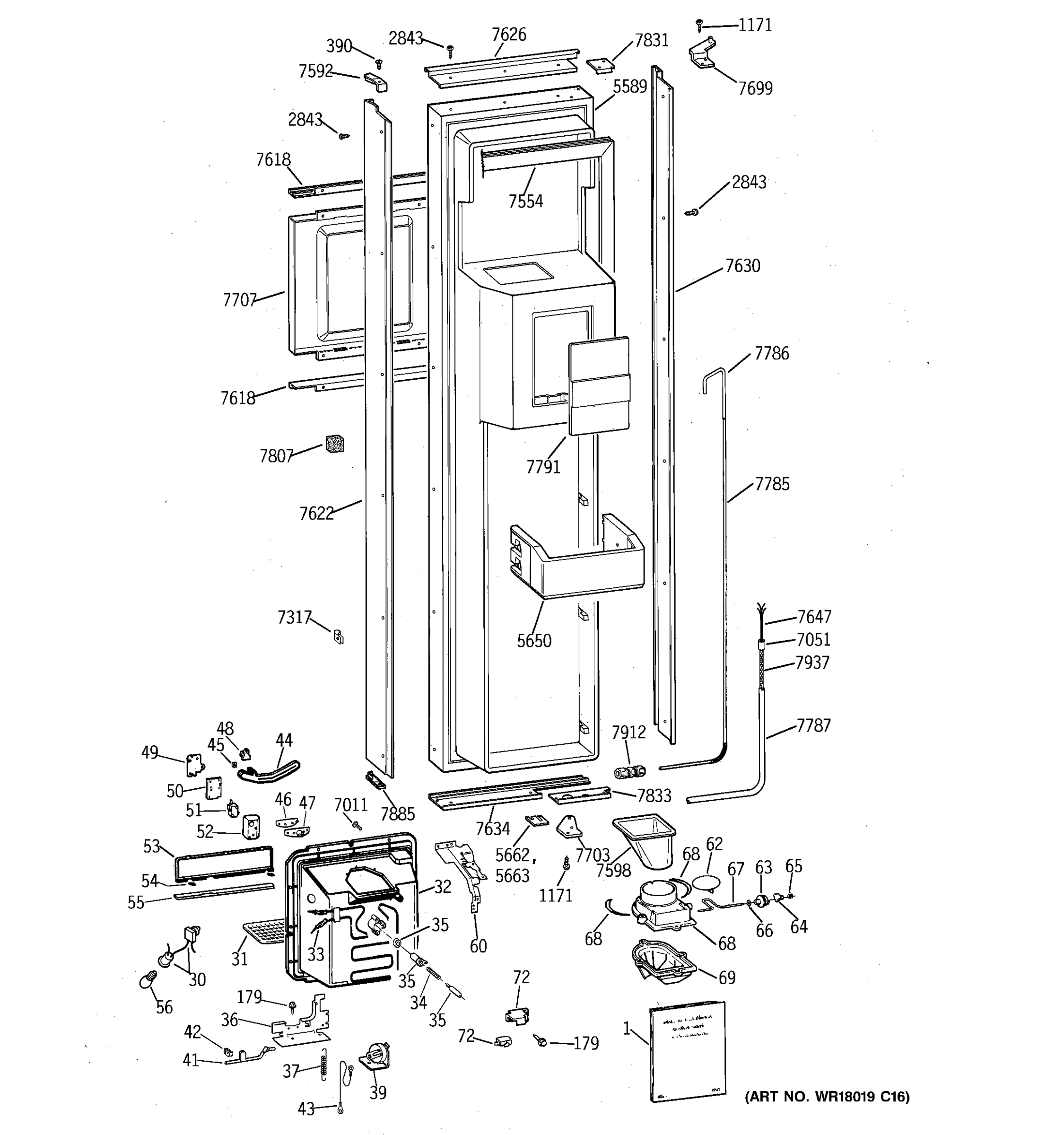

FREEZER DOOR
FREEZER SECTION
FRESH FOOD DOOR
FRESH FOOD SECTION
ICE MAKER & DISPENSER
UNIT PARTS
Common parts from model GE ZISB36DRB
1
GEN 31-5238 GEN 31-5238 Contact Us For Availability
1
GEN 31-5788 GEN 31-5788 Contact Us For Availability
1
GEN 49-6746 GEN 49-6746 Contact Us For Availability
4
GEN WR50X0108 GEN WR50X0108 Contact Us For Availability
5
TRIM GEN WR38X1823 Contact Us For Availability
12
GEN WR50X0109 GEN WR50X0109 Contact Us For Availability
13
GEN WR85X0223 GEN WR85X0223 Contact Us For Availability
41
GEN WR17X2820 GEN WR17X2820 Contact Us For Availability
46
PAD CRADLE BLACK GEN WR02X8471 Contact Us For Availability
47
GEN WR02X3948 GEN WR02X3948 Contact Us For Availability
48
KNOB SELECTOR DISP BK GEN WR02X7951 Contact Us For Availability
49
GEN WR02X4592 GEN WR02X4592 Contact Us For Availability
50
GEN WR02X4591 GEN WR02X4591 Contact Us For Availability
51
GEN WR23X0190 GEN WR23X0190 Contact Us For Availability
52
GEN WR02X4832 GEN WR02X4832 Contact Us For Availability
53
GEN WR02X8814 GEN WR02X8814 Contact Us For Availability
54
GEN WR02X4231 GEN WR02X4231 Contact Us For Availability
55
GEN WR38X0851 GEN WR38X0851 Contact Us For Availability
56
LAMP 7C7 GEN STD372071 Contact Us For Availability
57
GEN WR23X0192 GEN WR23X0192 Contact Us For Availability
60
GEN WR17X1269 GEN WR17X1269 Contact Us For Availability
62
DOOR RECESS DUCT ASM GEN WR17X1586 Contact Us For Availability
63
GEN WR17X1457 GEN WR17X1457 Contact Us For Availability
64
ARM TIME DELAY DISP GEN WR17X1045 Contact Us For Availability
65
GEN WR02X4595 GEN WR02X4595 Contact Us For Availability
66
GEN WR01X1385 GEN WR01X1385 Contact Us For Availability
67
GEN WR02X4814 GEN WR02X4814 Contact Us For Availability
68
GEN WR14X0246 GEN WR14X0246 Contact Us For Availability
68
GEN WR14X0247 GEN WR14X0247 Contact Us For Availability
68
GEN WR17X2133 GEN WR17X2133 Contact Us For Availability
69
SHIELD & FUNNEL ASM GEN WR17X5881 Contact Us For Availability
72
GEN WR02X7942 GEN WR02X7942 Contact Us For Availability
72
SELECT SWITCH-CUBES/DISP GEN WR23X0144 Contact Us For Availability
179
GEN WZ04X0364 GEN WZ04X0364 Contact Us For Availability
326
GEN WR01X1585 GEN WR01X1585 Contact Us For Availability
329
WIRE ACTUATOR DISP GEN WR17X2060 Contact Us For Availability
330
GEN WR02X4145 GEN WR02X4145 Contact Us For Availability
331
GEN WR02X4251 GEN WR02X4251 Contact Us For Availability
335
SPACER GEN WR02X4139 Contact Us For Availability
336
GEN WR17X1009 GEN WR17X1009 Contact Us For Availability
339
GEN WR02X4141 GEN WR02X4141 Contact Us For Availability
345
PLATE FRONT DISP GEN WR17X2062 Contact Us For Availability
346
HELIX REAR-DISP GEN WR17X2056 Contact Us For Availability
346
HELIX FRONT-DISP GEN WR17X2057 Contact Us For Availability
348
GEN WR02X7351 GEN WR02X7351 Contact Us For Availability
350
GEN WR17X2740 GEN WR17X2740 Contact Us For Availability
360
GEN WR71X2205 GEN WR71X2205 Contact Us For Availability
361
GEN WR71X2353 GEN WR71X2353 Contact Us For Availability
363
SHELF SUPPORT GEN WR02X4465 Contact Us For Availability
364
GEN WR02X7310 GEN WR02X7310 Contact Us For Availability
365
GEN WR02X4854 GEN WR02X4854 Contact Us For Availability
366
GEN WR01X1547 GEN WR01X1547 Contact Us For Availability
367
GEN WR17X3300 GEN WR17X3300 Contact Us For Availability
369
GEN WR17X6325 GEN WR17X6325 Contact Us For Availability
372
GEN WR01X1905 GEN WR01X1905 Contact Us For Availability
376
GEN WR23X0189 GEN WR23X0189 Contact Us For Availability
387
GEN WR17X2964 GEN WR17X2964 Contact Us For Availability
388
GEN WR17X2874 GEN WR17X2874 Contact Us For Availability
398
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
FAN BLADE GEN WR60X0167 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
1063
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
1076
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
1093
GEN WR02X8801 GEN WR02X8801 Contact Us For Availability
1327
BRACKET FAN REAR GEN WR02X8806 Contact Us For Availability
1328
BRACKET FAN FRONT GEN WR02X8805 Contact Us For Availability
1331
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
1552
SCREW GEN WR29X5175 Contact Us For Availability
1556
WASHER COMP GEN WR01X1898 Contact Us For Availability
1566
GEN WR01X5649 GEN WR01X5649 Contact Us For Availability
2363
GEN WR01X1737 GEN WR01X1737 Contact Us For Availability
2969
BOLT GEN WR01X1899 Contact Us For Availability
5532
GEN WR17X3036 GEN WR17X3036 Contact Us For Availability
5548
GEN WR17X3496 GEN WR17X3496 Contact Us For Availability
5550
GEN WR17X3041 GEN WR17X3041 Contact Us For Availability
5555
GEN WR17X3043 GEN WR17X3043 Contact Us For Availability
5557
GEN WR17X3044 GEN WR17X3044 Contact Us For Availability
5559
GEN WR17X3045 GEN WR17X3045 Contact Us For Availability
5586
GEN WR13X0670 GEN WR13X0670 Contact Us For Availability
5586
GEN WR13X0671 GEN WR13X0671 Contact Us For Availability
5589
GEN WR78X8465 GEN WR78X8465 Contact Us For Availability
5598
GEN WR78X8464 GEN WR78X8464 Contact Us For Availability
5603
GEN WR17X3030 GEN WR17X3030 Contact Us For Availability
5626
GEN WR02X8605 GEN WR02X8605 Contact Us For Availability
5627
GEN WR02X8604 GEN WR02X8604 Contact Us For Availability
5628
GEN WR17X3027 GEN WR17X3027 Contact Us For Availability
5633
COPPER TUBE GEN WR02X8959 Contact Us For Availability
5648
GEN WR32X1279 GEN WR32X1279 Contact Us For Availability
5650
GEN WR71X2276 GEN WR71X2276 Contact Us For Availability
5652
GEN WR21X0186 GEN WR21X0186 Contact Us For Availability
5652
GEN WR21X0187 GEN WR21X0187 Contact Us For Availability
5654
GEN WR32X1280 GEN WR32X1280 Contact Us For Availability
5660
GEN WR02X8600 GEN WR02X8600 Contact Us For Availability
5661
GEN WR02X8601 GEN WR02X8601 Contact Us For Availability
5662
GEN WR02X8589 GEN WR02X8589 Contact Us For Availability
5663
GEN WR02X8590 GEN WR02X8590 Contact Us For Availability
5690
GEN WR17X3026 GEN WR17X3026 Contact Us For Availability
5691
GEN WR02X8597 GEN WR02X8597 Contact Us For Availability
5693
GEN WR17X3617 GEN WR17X3617 Contact Us For Availability
5766
GEN WR02X8607 GEN WR02X8607 Contact Us For Availability
5767
GEN WR02X8606 GEN WR02X8606 Contact Us For Availability
5788
GEN WR02X8608 GEN WR02X8608 Contact Us For Availability
5789
GEN WR02X8609 GEN WR02X8609 Contact Us For Availability
5805
GEN WR32X1282 GEN WR32X1282 Contact Us For Availability
5808
GEN WR17X3298 GEN WR17X3298 Contact Us For Availability
5811
GEN WR14X0417 GEN WR14X0417 Contact Us For Availability
5813
GEN WR32X10388 GEN WR32X10388 Contact Us For Availability
6273
GEN WR01X1843 GEN WR01X1843 Contact Us For Availability
6374
GEN WR38X1824 GEN WR38X1824 Contact Us For Availability
7011
GEN WR01X1827 GEN WR01X1827 Contact Us For Availability
7051
GEN WR02X8810 GEN WR02X8810 Contact Us For Availability
7080
GEN WR01X1933 GEN WR01X1933 Contact Us For Availability
7110
GEN WR02X8975 GEN WR02X8975 Contact Us For Availability
7261
GEN WR86X0089 GEN WR86X0089 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW GEN WR01X1831 Contact Us For Availability
7312
GEN WR02X8962 GEN WR02X8962 Contact Us For Availability
7344
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
7439
GEN WR17X2161 GEN WR17X2161 Contact Us For Availability
7456
GEN WR60X0182 GEN WR60X0182 Contact Us For Availability
7547
GEN WR17X3037 GEN WR17X3037 Contact Us For Availability
7557
GEN WR02X8602 GEN WR02X8602 Contact Us For Availability
7558
GEN WR02X8603 GEN WR02X8603 Contact Us For Availability
7560
GEN WR17X3039 GEN WR17X3039 Contact Us For Availability
7563
GEN WR02X8611 GEN WR02X8611 Contact Us For Availability
7569
GEN WR02X8587 GEN WR02X8587 Contact Us For Availability
7572
ACTUATOR ARM FF GEN WR02X8925 Contact Us For Availability
7573
GEN WR13X0640 GEN WR13X0640 Contact Us For Availability
7578
GEN WR13X0643 GEN WR13X0643 Contact Us For Availability
7579
GEN WR13X0642 GEN WR13X0642 Contact Us For Availability
7592
GEN WR12X0866 GEN WR12X0866 Contact Us For Availability
7593
GEN WR12X0864 GEN WR12X0864 Contact Us For Availability
7598
GEN WR02X8591 GEN WR02X8591 Contact Us For Availability
7609
GEN WR02X8598 GEN WR02X8598 Contact Us For Availability
7618
GEN WR17X3018 GEN WR17X3018 Contact Us For Availability
7619
GEN WR17X3028 GEN WR17X3028 Contact Us For Availability
7620
GEN WR17X3029 GEN WR17X3029 Contact Us For Availability
7621
GEN WR12X0862 GEN WR12X0862 Contact Us For Availability
7622
GEN WR12X0861 GEN WR12X0861 Contact Us For Availability
7626
TRIM FZ DOOR GEN WR17X3019 Contact Us For Availability
7629
GEN WR17X3016 GEN WR17X3016 Contact Us For Availability
7630
GEN WR17X3020 GEN WR17X3020 Contact Us For Availability
7634
GEN WR17X3021 GEN WR17X3021 Contact Us For Availability
7636
GEN WR32X1281 GEN WR32X1281 Contact Us For Availability
7647
GEN WR23X0383 GEN WR23X0383 Contact Us For Availability
7648
GEN WR02X8964 GEN WR02X8964 Contact Us For Availability
7667
GEN WR02X8970 GEN WR02X8970 Contact Us For Availability
7668
GEN WR14X0416 GEN WR14X0416 Contact Us For Availability
7670
GEN WR02X8595 GEN WR02X8595 Contact Us For Availability
7671
GEN WR02X8596 GEN WR02X8596 Contact Us For Availability
7672
GEN WR72X0226 GEN WR72X0226 Contact Us For Availability
7682
GEN WR17X3032 GEN WR17X3032 Contact Us For Availability
7683
GEN WR72X0227 GEN WR72X0227 Contact Us For Availability
7684
GEN WR72X0228 GEN WR72X0228 Contact Us For Availability
7685
GEN WR72X0229 GEN WR72X0229 Contact Us For Availability
7686
GEN WR02X8926 GEN WR02X8926 Contact Us For Availability
7687
GEN WR74X0212 GEN WR74X0212 Contact Us For Availability
7689
BAFFLE FF GEN WR17X3040 Contact Us For Availability
7691
GLASS PAN COVER GEN WR32X1284 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7696
BUSHING ACTUATOR ARM GEN WR01X1836 Contact Us For Availability
7699
GEN WR13X0635 GEN WR13X0635 Contact Us For Availability
7700
GEN WR13X0634 GEN WR13X0634 Contact Us For Availability
7701
GEN WR13X0633 GEN WR13X0633 Contact Us For Availability
7702
GEN WR71X2278 GEN WR71X2278 Contact Us For Availability
7703
GEN WR13X0636 GEN WR13X0636 Contact Us For Availability
7704
GEN WR02X8615 GEN WR02X8615 Contact Us For Availability
7705
GEN WR02X8616 GEN WR02X8616 Contact Us For Availability
7707
TRIM RECESS DISP BLACK GEN WR38X1822 Contact Us For Availability
7720
GEN WR17X3226 GEN WR17X3226 Contact Us For Availability
7724
GEN WR17X3033 GEN WR17X3033 Contact Us For Availability
7732
GRILLE 36" GEN WR74X0213 Contact Us For Availability
7733
GEN WR13X0641 GEN WR13X0641 Contact Us For Availability
7744
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
7749
GEN WR01X1838 GEN WR01X1838 Contact Us For Availability
7756
GEN WR01X1830 GEN WR01X1830 Contact Us For Availability
7758
SCREW GEN WR01X1840 Contact Us For Availability
7761
GEN WR01X1829 GEN WR01X1829 Contact Us For Availability
7762
GEN WR01X1828 GEN WR01X1828 Contact Us For Availability
7764
SPRING WHEEL GEN WR02X8799 Contact Us For Availability
7765
GEN WR02X8804 GEN WR02X8804 Contact Us For Availability
7768
GEN WR02X7560 GEN WR02X7560 Contact Us For Availability
7769
GEN WR02X8800 GEN WR02X8800 Contact Us For Availability
7771
GEN WR01X1839 GEN WR01X1839 Contact Us For Availability
7777
GEN WR17X3034 GEN WR17X3034 Contact Us For Availability
7779
GEN WR17X3022 GEN WR17X3022 Contact Us For Availability
7780
GEN WR02X8599 GEN WR02X8599 Contact Us For Availability
7785
GEN WR02X8811 GEN WR02X8811 Contact Us For Availability
7786
GEN WR02X8812 GEN WR02X8812 Contact Us For Availability
7787
GEN WR02X8808 GEN WR02X8808 Contact Us For Availability
7791
GEN WR17X3299 GEN WR17X3299 Contact Us For Availability
7792
GEN WR62X0064 GEN WR62X0064 Contact Us For Availability
7793
GEN WR08X0118 GEN WR08X0118 Contact Us For Availability
7795
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
7796
SCREW GEN WR01X5648 Contact Us For Availability
7806
GEN WR02X8928 GEN WR02X8928 Contact Us For Availability
7807
GEN WR02X8798 GEN WR02X8798 Contact Us For Availability
7828
COVER RELAY GEN WR02X7834 Contact Us For Availability
7830
GEN WR02X8585 GEN WR02X8585 Contact Us For Availability
7831
GEN WR02X8592 GEN WR02X8592 Contact Us For Availability
7832
GEN WR02X8586 GEN WR02X8586 Contact Us For Availability
7833
GEN WR02X8593 GEN WR02X8593 Contact Us For Availability
7834
GEN WR17X3023 GEN WR17X3023 Contact Us For Availability
7836
GEN WR13X0639 GEN WR13X0639 Contact Us For Availability
7845
GEN WR02X8965 GEN WR02X8965 Contact Us For Availability
7859
GEN WR01X1834 GEN WR01X1834 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7866
GEN WR17X2979 GEN WR17X2979 Contact Us For Availability
7867
GEN WR02X8022 GEN WR02X8022 Contact Us For Availability
7871
NUT & FERRUL GEN WR57X0097 Contact Us For Availability
7884
GEN WR12X0865 GEN WR12X0865 Contact Us For Availability
7885
GEN WR12X0867 GEN WR12X0867 Contact Us For Availability
7893
GEN WR02X8617 GEN WR02X8617 Contact Us For Availability
7902
GEN WR17X3024 GEN WR17X3024 Contact Us For Availability
7903
GEN WR17X3025 GEN WR17X3025 Contact Us For Availability
7921
GEN WR17X3015 GEN WR17X3015 Contact Us For Availability
7922
GEN WR17X3017 GEN WR17X3017 Contact Us For Availability
7928
GEN WR17X3618 GEN WR17X3618 Contact Us For Availability
7937
GEN WR02X8809 GEN WR02X8809 Contact Us For Availability
7957
GEN WR51X0216 GEN WR51X0216 Contact Us For Availability
7968
GEN WR02X8969 GEN WR02X8969 Contact Us For Availability
7978
GEN WR02X9566 GEN WR02X9566 Contact Us For Availability
7998
TEMP CONTROL FZ GEN WR09X0509 Contact Us For Availability
8012
GEN WR49X0360 GEN WR49X0360 Contact Us For Availability
8013
GEN WR49X8013 GEN WR49X8013 Contact Us For Availability
8063
GEN WR71X2275 GEN WR71X2275 Contact Us For Availability
8077
GEN WR71X2277 GEN WR71X2277 Contact Us For Availability
8092
GEN WR01X1938 GEN WR01X1938 Contact Us For Availability
× ![]()
