Model GE ZIS48NCA Refrigerator – Common Parts & Diagrams
FREEZER DOOR

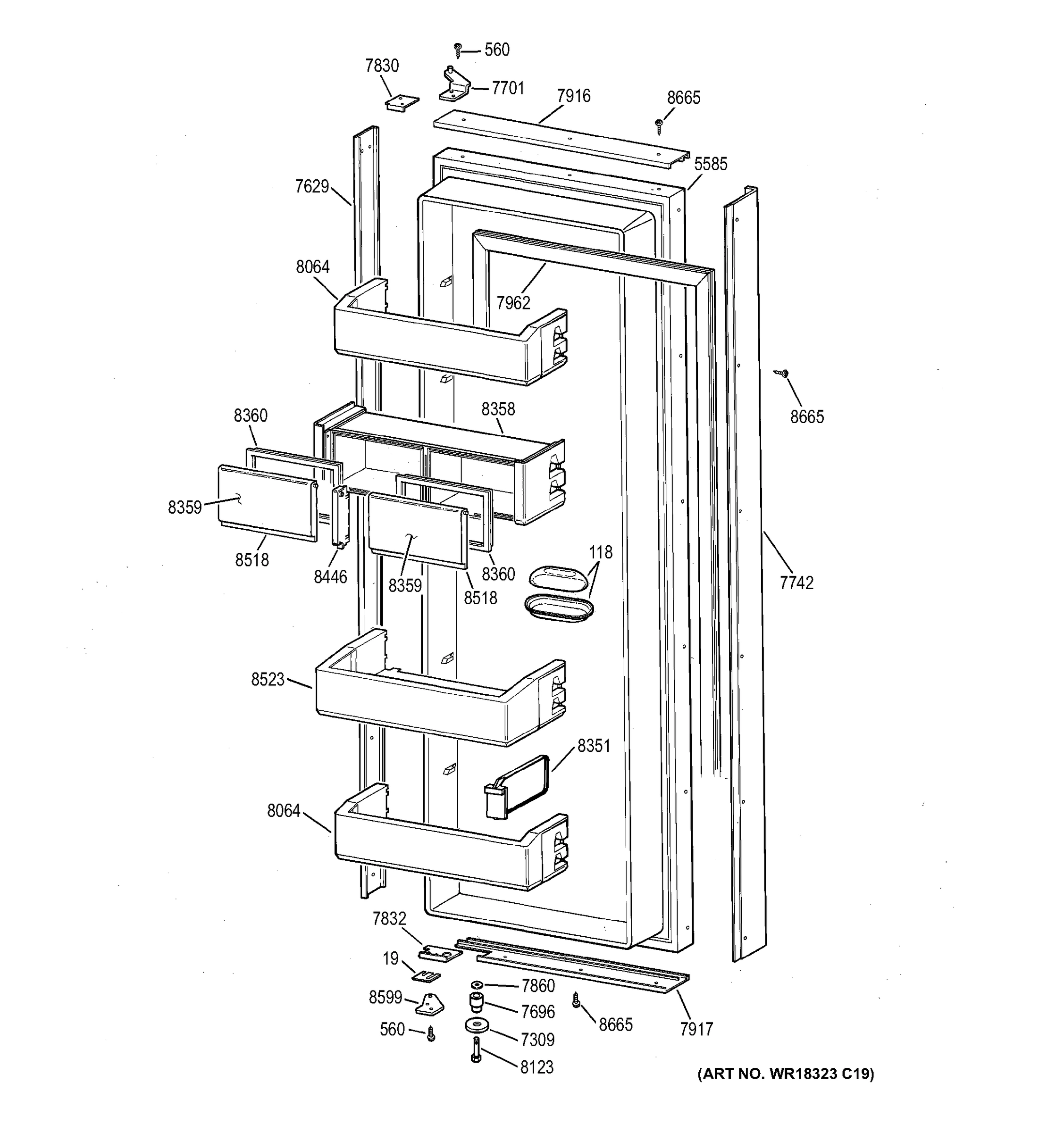

FRESH FOOD DOOR

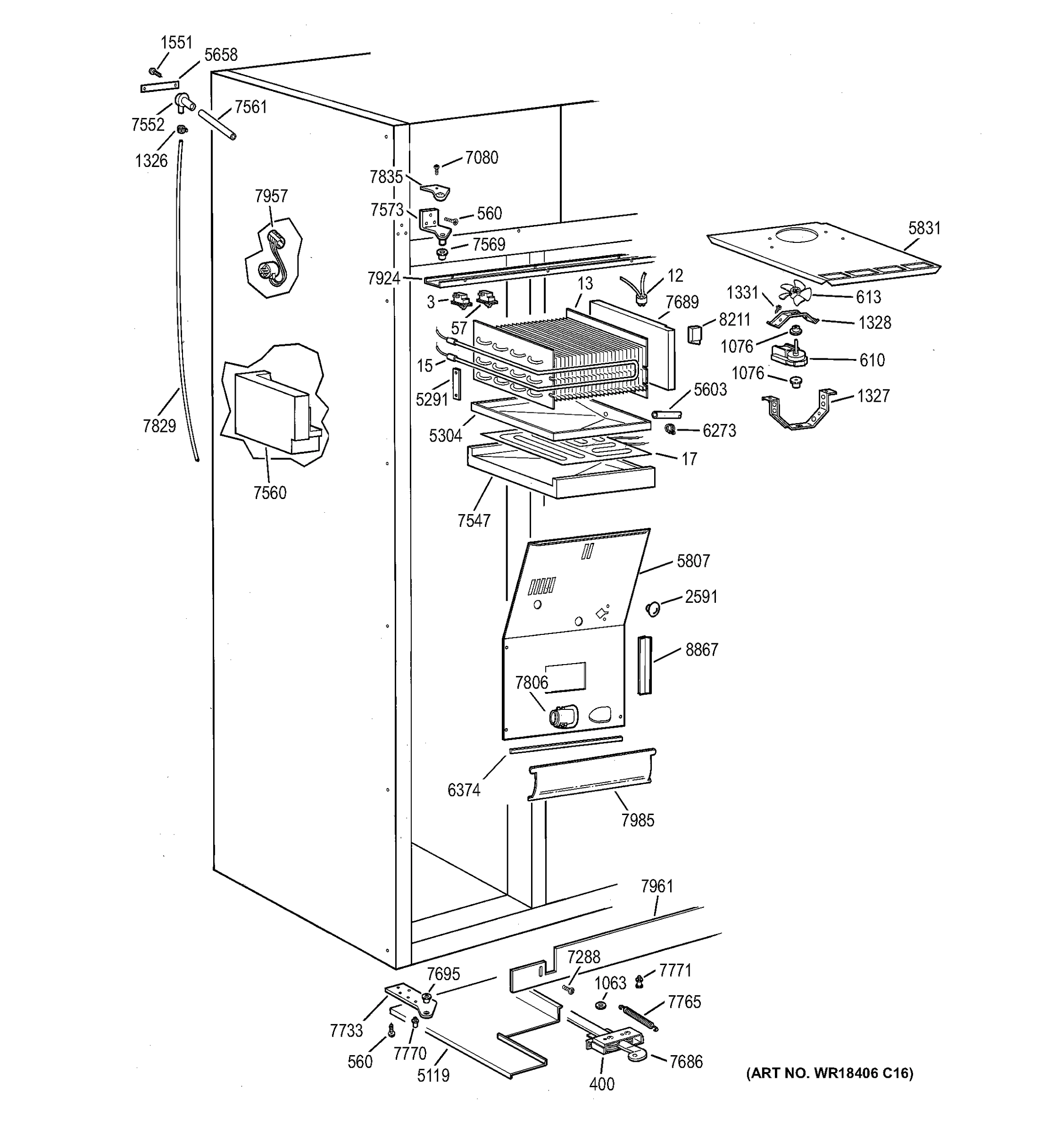

FREEZER SECTION (1)

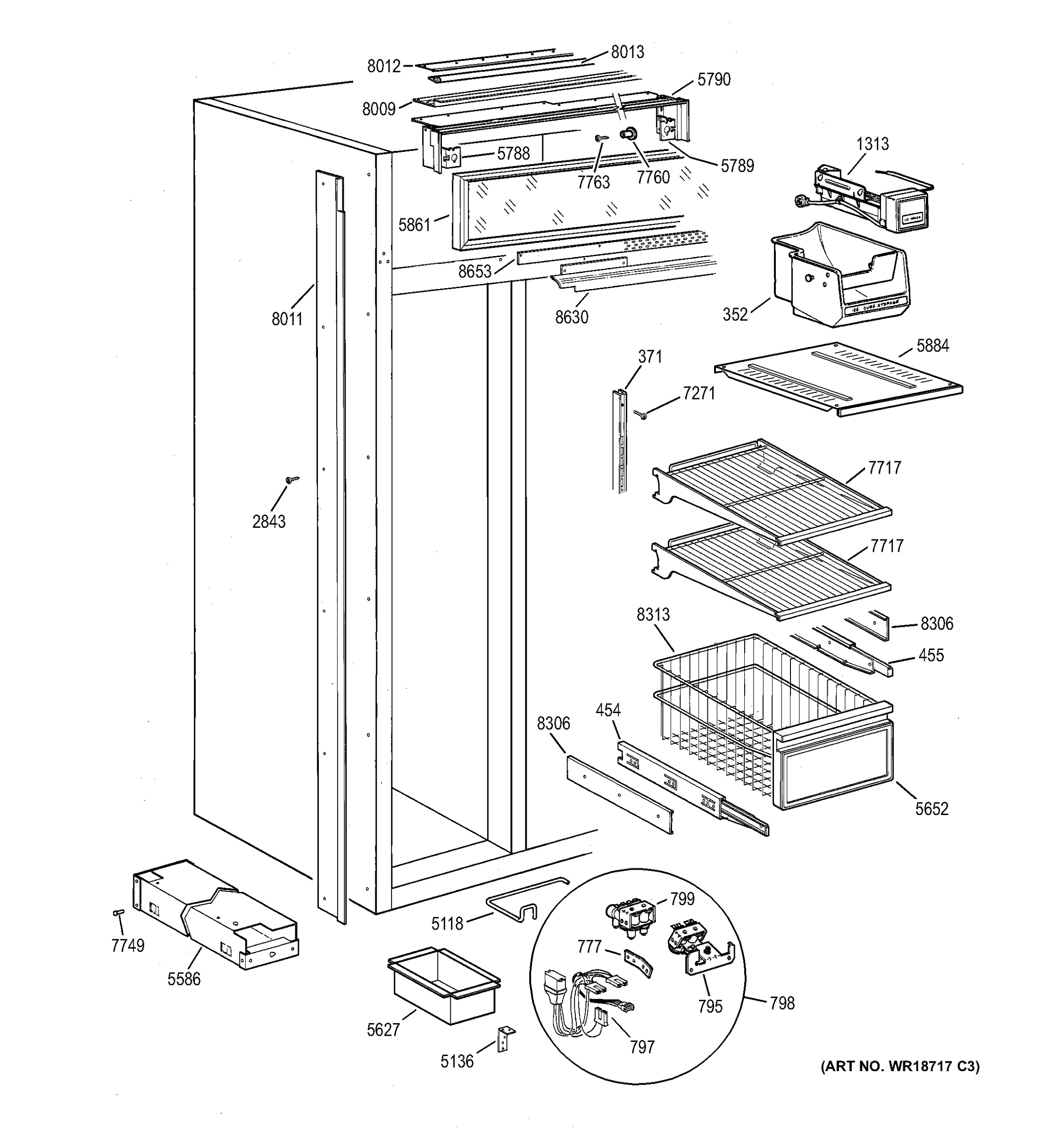

FREEZER SECTION (2)

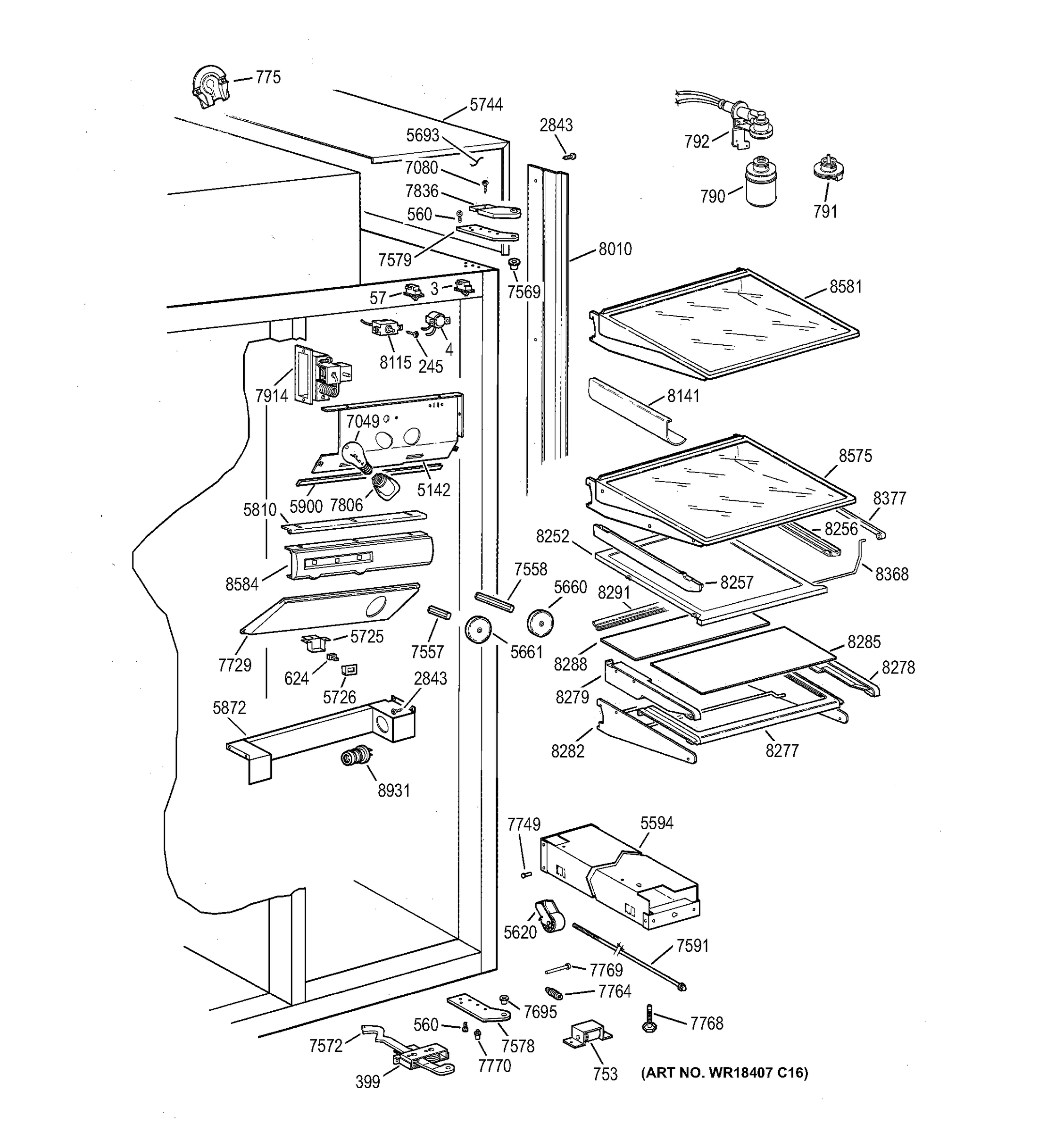

FRESH FOOD SECTION (1)

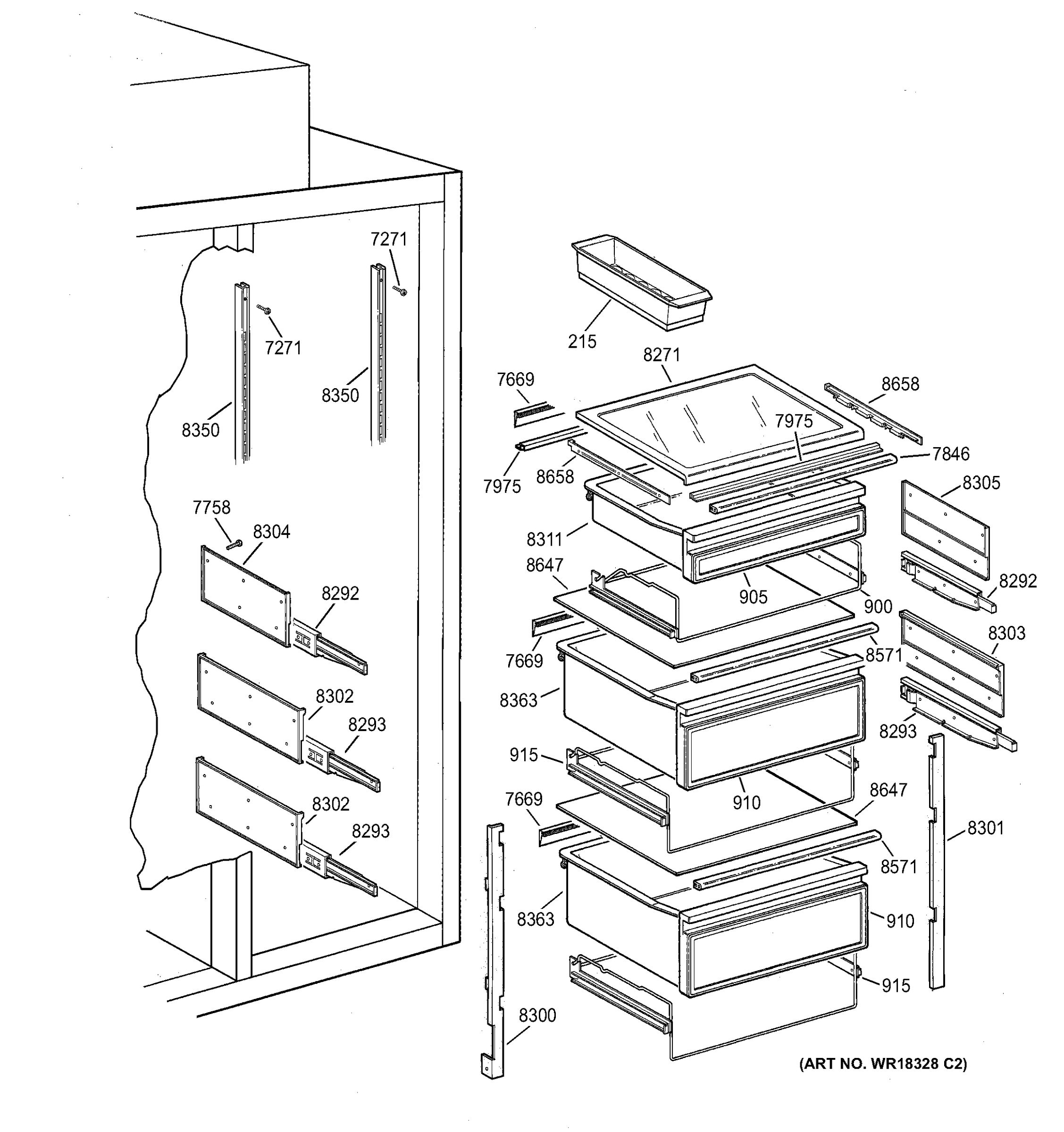

FRESH FOOD SECTION (2)

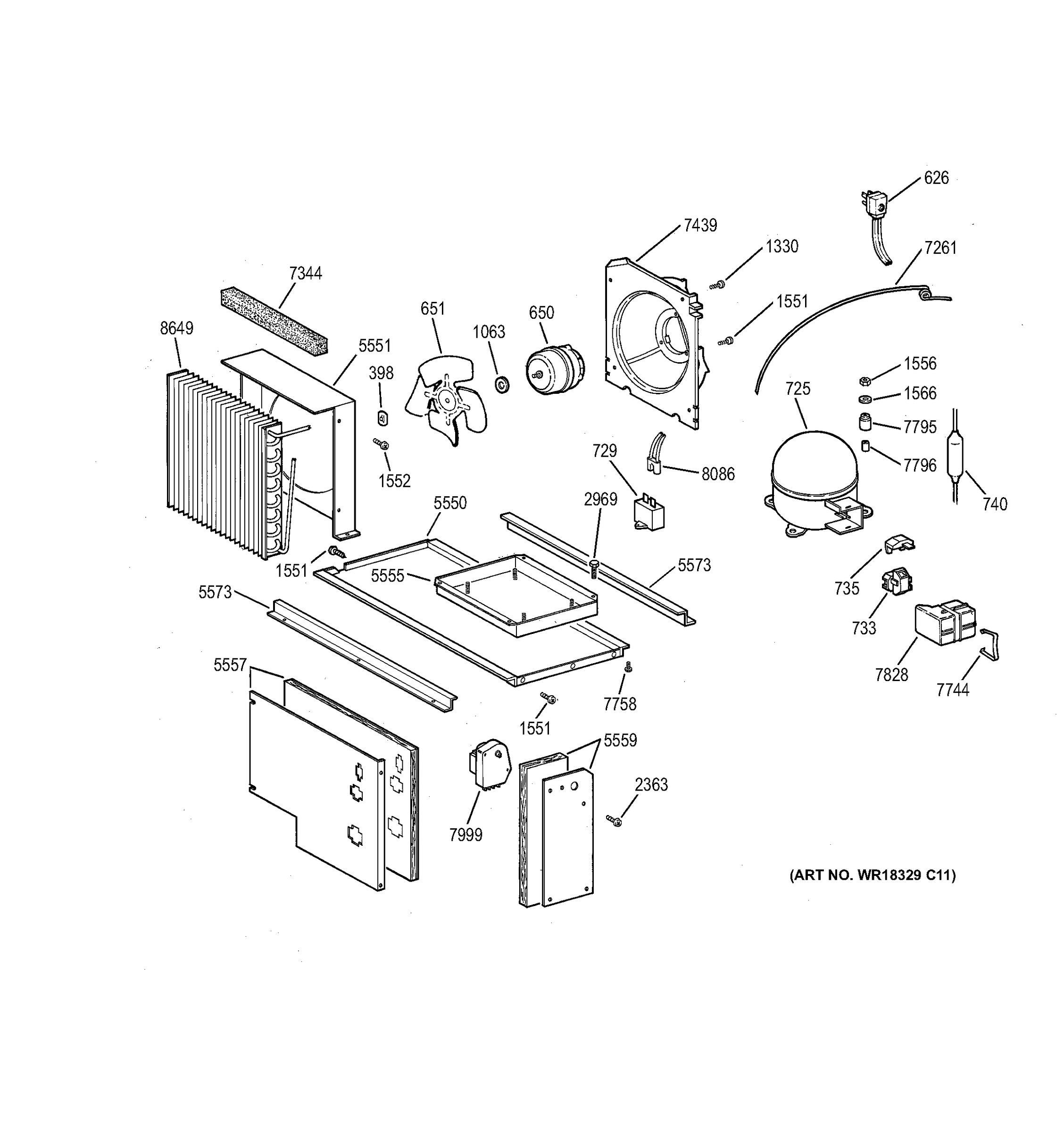

MACHINE COMPARTMENT

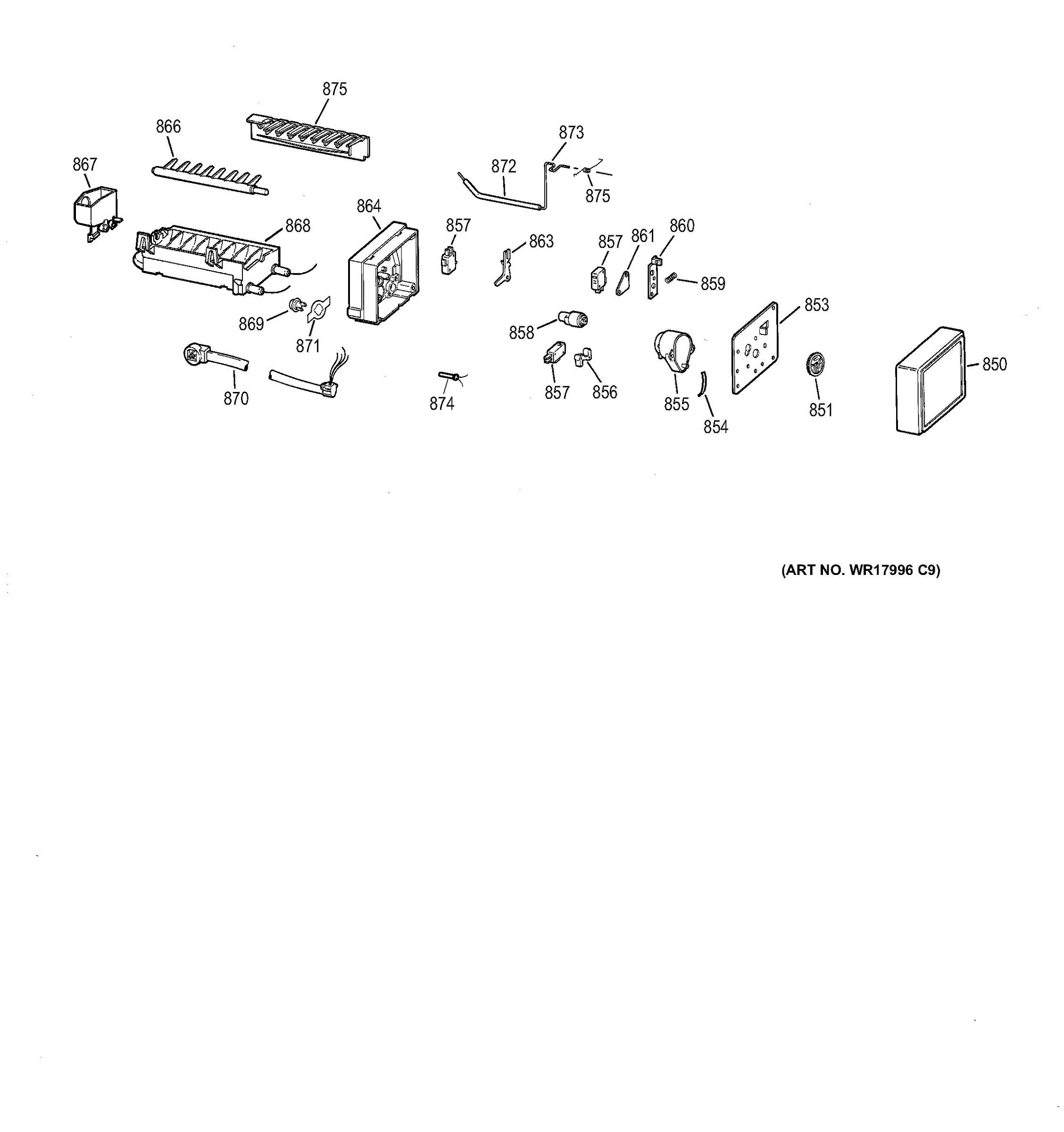

ICE MAKER
Common parts from model GE ZIS48NCA Refrigerator
4
THEMODISC GEN WR50X0108 Contact Us For Availability
12
DEFROST THERMOSTAT GEN WR50X0109 Contact Us For Availability
13
EVAPORATOR GEN WR85X0223 Contact Us For Availability
19
SHIM GEN WR02X8589 Contact Us For Availability
19
SHIM GEN WR02X8590 Contact Us For Availability
19
SCREW GEN WR29X5122 Contact Us For Availability
57
SWITCH-CRADLE-WATER SIDE GEN WR23X0192 Contact Us For Availability
215
BUCKET EGG ASSY GEN WR32X1435 Contact Us For Availability
371
SHELF TRACK FZ GEN WR17X3300 Contact Us For Availability
398
NUT GEN WR01X1715 Contact Us For Availability
399
CLOSURE FF DOOR RH GEN WR02X9467 Contact Us For Availability
400
CLOSURE FZ DOOR ASM LH GEN WR02X9468 Contact Us For Availability
454
SLIDE FRZ ASM RH GEN WR72X0284 Contact Us For Availability
455
SLIDE FRZ ASM LH GEN WR72X0285 Contact Us For Availability
610
MOTOR EVAP FAN GEN WR60X0182 Contact Us For Availability
624
SWITCH POWERSAVER GEN WR23X0396 Contact Us For Availability
651
BLADE COND FAN GEN WR60X0167 Contact Us For Availability
733
RELAY (PTCR) GEN WR07X0253 Contact Us For Availability
735
OVERLOAD GEN WR08X0157 Contact Us For Availability
790
CANISTER WATER FILTER GEN GXRC Contact Us For Availability
791
FILTER PLUG ASSY GEN WR02X10173 Contact Us For Availability
792
FILTER HEAD & BRKT ASSY GEN WR17X10521 Contact Us For Availability
850
COVER WH GEN WR29X0182 Contact Us For Availability
853
MOUNTING PLATE GEN WR29X10005 Contact Us For Availability
856
SPACER HOLDING SWITCH GEN WR29X5118 Contact Us For Availability
857
SWITCH IM GEN WR29X5171 Contact Us For Availability
858
CAM GEN WR29X5167 Contact Us For Availability
861
INSULATOR GEN WR29X5188 Contact Us For Availability
863
ARM LEVER GEN WR29X5183 Contact Us For Availability
866
EJECTOR GEN WR29X5174 Contact Us For Availability
867
FILL CUP GEN WR29X0153 Contact Us For Availability
868
MOLD/HEATER ASM GEN WR29X0204 Contact Us For Availability
870
WIRE HARNESS GEN WR29X0186 Contact Us For Availability
900
SNACK PAN SUPPORT ASM GEN WR72X0264 Contact Us For Availability
905
SNACK PAN FRONT ASSY GEN WR71X2664 Contact Us For Availability
910
VEG PAN FRONT ASSY GEN WR71X2667 Contact Us For Availability
915
VEG PAN SUPPORT ASM GEN WR72X0267 Contact Us For Availability
1063
WASHER RUBBER GEN WR01X1833 Contact Us For Availability
1076
GROMMET EVAP FAN GEN WR02X7391 Contact Us For Availability
1327
BRACKET EVAP. FAN LARGE GEN WR02X8806 Contact Us For Availability
1328
BRACKET EVAP. FAN SMALL GEN WR02X8805 Contact Us For Availability
1330
SCREW COND HSG GEN WR01X1825 Contact Us For Availability
1331
SCREW BRKT. EVAP. FAN GEN WZ06X0133 Contact Us For Availability
1552
SCREW SHROUD COND GEN WR29X5175 Contact Us For Availability
1556
WASHER COMP GEN WR01X1898 Contact Us For Availability
1566
WASHER GEN WR01X5649 Contact Us For Availability
2591
PLUG BUTTON GEN WR01X1932 Contact Us For Availability
2969
BOLT COMP PAN GEN WR01X1899 Contact Us For Availability
5119
PAN UMBILICAL LARGE GEN WR17X10526 Contact Us For Availability
5136
BRACKET WATER VALVE GEN WR02X10425 Contact Us For Availability
5142
FF REAR DUCT ASSY 48 GEN WR17X10532 Contact Us For Availability
5550
PAN REFRIGERATOR GEN WR17X3041 Contact Us For Availability
5555
PAN EVAPORATION GEN WR17X3043 Contact Us For Availability
5557
BAFFLE LH W/FG GEN WR17X3044 Contact Us For Availability
5559
BAFFLE FRONT W/FG GEN WR17X3045 Contact Us For Availability
5585
FF O DOOR 48" GEN WR78X8838 Contact Us For Availability
5586
BASE ASM (LH) GEN WR13X0670 Contact Us For Availability
5594
BASE ASM (RH) GEN WR13X0671 Contact Us For Availability
5603
TUBE DRAIN GEN WR17X3030 Contact Us For Availability
5627
COVER WATER VALVE GEN WR02X8604 Contact Us For Availability
5652
FZ BASKET FRONT ASM GEN WR71X2669 Contact Us For Availability
5660
KNOB CONTROL FZ GEN WR02X8600 Contact Us For Availability
5661
KNOB CONTROL FF GEN WR02X8601 Contact Us For Availability
5693
R-HAND BAFFLE W/FG GEN WR17X3617 Contact Us For Availability
5725
HOUSING PSS GEN WR02X8918 Contact Us For Availability
5726
HOUSING FRONT PSS GEN WR02X8919 Contact Us For Availability
5744
HOOD ASM GEN WR17X3428 Contact Us For Availability
5788
GRILLE BRKT FZ LH GEN WR01X1975 Contact Us For Availability
5789
GRILLE BRKT FF RH GEN WR01X1976 Contact Us For Availability
5790
VENT TOP GRILLE ASM GEN WR74X0246 Contact Us For Availability
5807
REAR DUCT FZ N 48 GEN WR17X10015 Contact Us For Availability
5810
FF CONTROL PANEL GASKET GEN WR14X0486 Contact Us For Availability
5831
EVAP HOUSING BTM GEN WR17X4272 Contact Us For Availability
5861
GRILLE PANEL ASSY 48 GEN WR74X10004 Contact Us For Availability
5872
FF LOWER LIGHT HSG 48 GEN WR17X10013 Contact Us For Availability
5884
FZ SHELF ASM N 48 GEN WR71X10002 Contact Us For Availability
5900
EDGE TRIM FF REAR DUCT GEN WR38X2094 Contact Us For Availability
6273
CLAMP GEN WR01X1843 Contact Us For Availability
6374
TRIM FRZ REAR DUCT BTM GEN WR38X2022 Contact Us For Availability
7080
SCREW HINGE COVER GEN WR01X1933 Contact Us For Availability
7271
SCREW GEN WR01X5635 Contact Us For Availability
7288
SCREW GRILLE MTG. GEN WR01X1831 Contact Us For Availability
7547
BAFFLE EVAP FOAM GEN WR17X3037 Contact Us For Availability
7557
SHAFT CONT KNOB FF GEN WR02X8602 Contact Us For Availability
7558
SHAFT CONT KNOB FZ GEN WR02X8603 Contact Us For Availability
7560
BAFFLE EVAP GEN WR17X3039 Contact Us For Availability
7569
BUSHING HINGE GEN WR02X8587 Contact Us For Availability
7572
ARM ACTUATOR GEN WR02X8925 Contact Us For Availability
7573
HINGE FZ TOP GEN WR13X0640 Contact Us For Availability
7578
HINGE FF BTM GEN WR13X0643 Contact Us For Availability
7579
HINGE FF TOP GEN WR13X0642 Contact Us For Availability
7629
TRIM DOOR FF SIDE GEN WR17X3016 Contact Us For Availability
7669
SEAL SNACK PAN REAR GEN WR14X0446 Contact Us For Availability
7686
ARM ACTUATOR GEN WR02X8926 Contact Us For Availability
7689
BAFFLE FZ GEN WR17X3040 Contact Us For Availability
7695
BUSHING BTM HINGE GEN WR02X8588 Contact Us For Availability
7696
BUSHING ACTUATOR ARM GEN WR01X1836 Contact Us For Availability
7701
HINGE TOP FF GEN WR13X0633 Contact Us For Availability
7717
SHELF FZ CANT 48" GEN WR71X2428 Contact Us For Availability
7729
LIGHT SHIELD FF 48 GEN WR17X10533 Contact Us For Availability
7733
HINGE FZ BTM GEN WR13X0641 Contact Us For Availability
7742
HANDLE FF DOOR GEN WR12X10329 Contact Us For Availability
7744
CLAMP COVER GEN WR02X7226 Contact Us For Availability
7749
BOLT ADJ HINGE GEN WR01X1838 Contact Us For Availability
7758
SCREW GEN WR01X1840 Contact Us For Availability
7760
8-32*5/16 BARREL NUT GEN WR01X1900 Contact Us For Availability
7764
SPRING CLOSURE FF GEN WR02X8916 Contact Us For Availability
7765
SPRING CLOSURE FZ GEN WR02X8804 Contact Us For Availability
7768
LEVELING LEG GEN WR02X7560 Contact Us For Availability
7769
KEY PIVOT GEN WR02X8800 Contact Us For Availability
7771
BUSHING HINGE SPRING ASM GEN WR01X1839 Contact Us For Availability
7795
GROMMET COMP MTG GEN WR02X7238 Contact Us For Availability
7796
STEEL COLLAR GEN WR01X5648 Contact Us For Availability
7806
LIGHT SOCKET #3407B GEN WR02X8928 Contact Us For Availability
7828
COVER GEN WR02X7834 Contact Us For Availability
7830
SHIM HINGE TOP FF GEN WR02X8585 Contact Us For Availability
7832
SHIM HINGE BTM FF GEN WR02X8586 Contact Us For Availability
7836
HINGE COVER RH GEN WR13X0639 Contact Us For Availability
7846
SEAL VEG. PAN FRONT GEN WR14X0448 Contact Us For Availability
7860
WASHER GEN WR01X1835 Contact Us For Availability
7916
WR17X3446 GEN WR17X4155 Contact Us For Availability
7917
WR17X3447 GEN WR17X4156 Contact Us For Availability
7924
DISPLAY GRILL BASE GEN WR17X3898 Contact Us For Availability
7957
FILL TUBE HEATER GEN WR51X0369 Contact Us For Availability
7961
KICK PLATE NON DISP GEN WR74X0238 Contact Us For Availability
7975
BAR SUPPORT GEN WR17X3440 Contact Us For Availability
7985
FZ LIGHT SHIELD GEN WR17X3441 Contact Us For Availability
8009
VENT TOP TRIM GEN WR17X3655 Contact Us For Availability
8010
TRIM CASE FF SIDE GEN WR17X3442 Contact Us For Availability
8011
TRIM CASE FZ SIDE GEN WR17X3443 Contact Us For Availability
8012
GASKET VENT KIT GEN WR49X0360 Contact Us For Availability
8013
SOFFIT GASKET FRNT EXTR. GEN WR02X8972 Contact Us For Availability
8064
BIN FF DOOR ASSY GEN WR71X2427 Contact Us For Availability
8086
CAPACITOR HARNESS GEN WR23X0474 Contact Us For Availability
8115
CONTROL FREEZER GEN WR09X0588 Contact Us For Availability
8123
SHOULDER BOLT, DOOR GEN WR01X2164 Contact Us For Availability
8141
WR17X3364 GEN WR17X3023 Contact Us For Availability
8211
ELUT EXTENSION GEN WR02X9301 Contact Us For Availability
8252
QUICK SHELF GEN WR32X1548 Contact Us For Availability
8256
QUICK SHELF SLIDE (RT) GEN WR72X0259 Contact Us For Availability
8257
QUICK SHELF SLIDE (LT) GEN WR72X0258 Contact Us For Availability
8271
SNACK PAN COVER GEN WR32X1551 Contact Us For Availability
8277
QUICK SPACE FRAME GEN WR71X2659 Contact Us For Availability
8278
QUICK SPACE SLIDE (RH) GEN WR72X0260 Contact Us For Availability
8279
QUICK SPACE SLIDE (LH) GEN WR72X0261 Contact Us For Availability
8282
QUICK SPACE SHELF CANT GEN WR71X2658 Contact Us For Availability
8285
QUICK SPACE GLASS FRAME GEN WR32X1550 Contact Us For Availability
8288
QUICK SPACE GLASS SLIDE GEN WR32X1549 Contact Us For Availability
8291
QUICK SPACE REFLECTOR GEN WR02X9415 Contact Us For Availability
8300
PICT WINDOW LT GEN WR17X4142 Contact Us For Availability
8301
PICT WINDOW RT GEN WR17X4143 Contact Us For Availability
8302
VEG PAN COVER SPPT LT GEN WR02X9408 Contact Us For Availability
8303
VEG PAN COVER SPPT RT GEN WR02X9407 Contact Us For Availability
8304
SNACK PAN COVER SPPT LT GEN WR02X9406 Contact Us For Availability
8305
SNACK PAN COVER SPPT RT GEN WR02X9405 Contact Us For Availability
8311
SNACK PAN REAR 48" GEN WR32X1566 Contact Us For Availability
8313
FZ BASKET REAR 48" GEN WR21X0206 Contact Us For Availability
8351
DIVIDER MODULE GEN WR02X9400 Contact Us For Availability
8358
DAIRY MODULE GEN WR71X2682 Contact Us For Availability
8359
DOOR DAIRY GEN WR22X0516 Contact Us For Availability
8360
FRAME DAIRY DOOR GEN WR22X0517 Contact Us For Availability
8363
VEG PAN REAR 48 INCH GEN WR32X1567 Contact Us For Availability
8368
QUICK SHELF WIRE FRAME GEN WR02X9428 Contact Us For Availability
8377
QUICK SHELF LINK GEN WR02X9413 Contact Us For Availability
8446
DIVIDER DAIRY/UTIL.42/48 GEN WR02X9401 Contact Us For Availability
8518
TRIM DAIRY DOOR GEN WR38X2244 Contact Us For Availability
8523
BIN DEEP FF GEN WR71X2680 Contact Us For Availability
8571
SEAL VEG PAN FRONT GEN WR14X0485 Contact Us For Availability
8575
QUIC GEN WR32X1546 Contact Us For Availability
8581
GEN WR32X1547 GEN WR32X1547 Contact Us For Availability
8584
GEN WR17X4274 GEN WR17X4274 Contact Us For Availability
8599
HINGE DOOR BTM. F.F. GEN WR13X0766 Contact Us For Availability
8630
GUARD WIRE GEN WR02X9449 Contact Us For Availability
8647
VEG PAN GLASS 48" GEN WR32X1552 Contact Us For Availability
8653
VENT GUARD 48" GEN WR02X9427 Contact Us For Availability
8658
PAN COVER RETAINER GEN WR02X9404 Contact Us For Availability
8867
GASKET REAR DUCT GEN WR14X10001 Contact Us For Availability
× ![]()
