Model LG ZDA-311 – Common Parts & Diagrams
Diagram 0

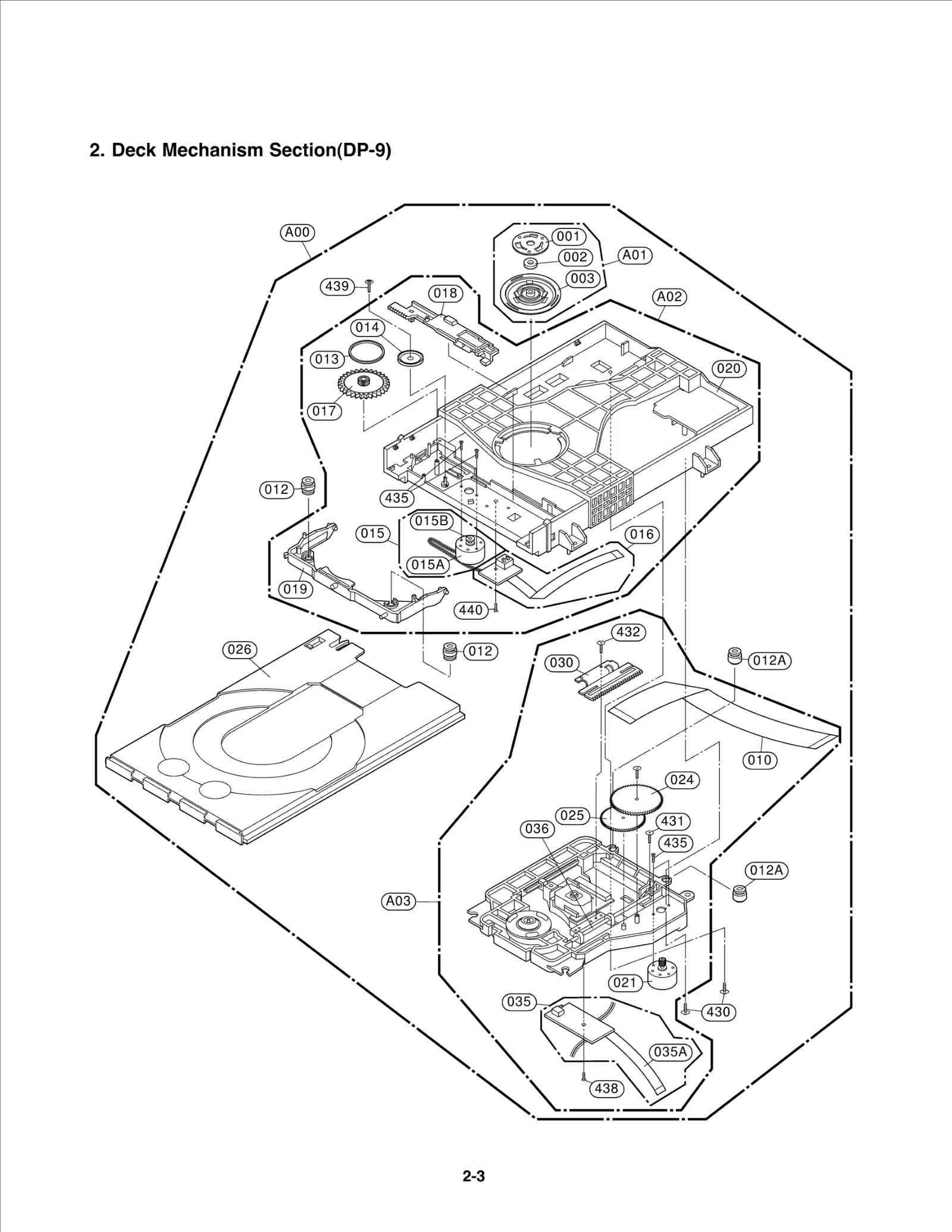

Diagram 1

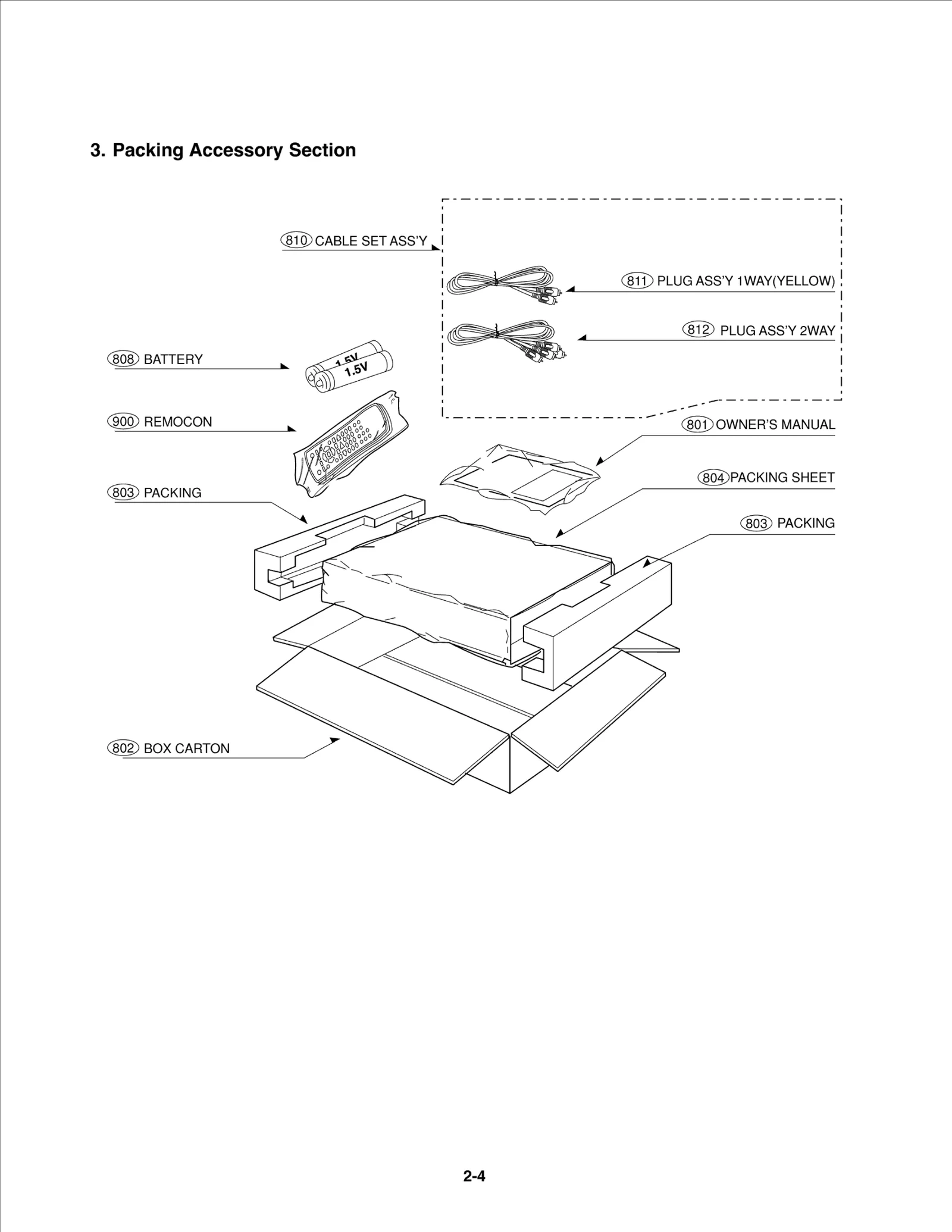

Diagram 2
Diagram 3
Common parts from model LG ZDA-311
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
Cable,FFC LGE EAD34861301 Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0010A Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
Motor Assembly,DC LGE 4681R-A015C Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015A
Motor,DC LGE EAU43506801 Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-9290A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0066A Contact Us For Availability
019
FRAME LGE 3210R-M007A Contact Us For Availability
020
BASE LGE 3040R-M062A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009A Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0029A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
035
PWB(PCB) ASSEMBLY,TO LGE 6871R-9291A Contact Us For Availability
035A
CABLE,FLAT LGE 6850R-GF10Z Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
250
CASE LGE 3110R-D023A Contact Us For Availability
250
Case LGE 3110R-D023F Contact Us For Availability
260
CHASSIS LGE 3140R-D020A Contact Us For Availability
261
RUBBER LGE 5040R-0069Q Contact Us For Availability
280
Panel Assembly,Front LGE 3721R-F933W Contact Us For Availability
283
DOOR ASSEMBLY LGE 3581R-T130A Contact Us For Availability
300
POWER CORD LGE 6410RAHX03A Contact Us For Availability
320
PANEL,VIDEO LGE 3720R-D130N Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
452
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
467
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RD0045Q Contact Us For Availability
802
BOX LGE 3890R-C309Z Contact Us For Availability
803
PACKING LGE 3920R-E141A Contact Us For Availability
808
BATTERY,MN LGE 841-0021 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0074D Contact Us For Availability
811
CABLE,COAXIAL LGE 6850R-PAA2F Contact Us For Availability
812
CABLE,COAXIAL LGE 6850R-PBA2H Contact Us For Availability
900
REMOTE CONTROLLER AS LGE 6711R1P089D Contact Us For Availability
A00
DECK ASSEMBLY,AUDIO LGE 6721RHD040A Contact Us For Availability
A00
Deck Assembly,DVD LGE 6721RHD043A Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-D023A Contact Us For Availability
A03
Base Assembly LGE 3041R-M066C Contact Us For Availability
A42
PWB(PCB) ASSEMBLY,TO LGE 6871R-9871C Contact Us For Availability
A43
Board Assembly LGE 3501RF0527Z Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141R-D060N Contact Us For Availability
A46
SUB PWB(PCB) ASSEMBL LGE 6885R-1042W Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-2322D Contact Us For Availability
A49
PWB(PCB) ASSEMBLY,TO LGE 6871R-9870A Contact Us For Availability
C6W0
Capacitor,Ceramic,Chip LGE 0CH1331K412 Contact Us For Availability
C6W0
Capacitor,Ceramic,Chip LGE 0CH4331K412 Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088J Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
C104
CAPACITOR,DRAWING LGE 0CZZR00011D Contact Us For Availability
C105
Capacitor,Ceramic,Radial,Disc LGE 624-087J Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C113
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C121
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C121
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C122
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C126
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C128
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C154
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C155
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C156
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C233
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C241
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C501
Capacitor,Ceramic,Chip LGE 0CH4391K412 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE 0CH4200K412 Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C515
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C517
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C520
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C522
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C526
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C530
CAPACITOR,FIXED CERA LGE 0CH4361K412 Contact Us For Availability
C531
Capacitor,Ceramic,Chip LGE 0CH4181K412 Contact Us For Availability
C533
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C537
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C591
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C593
Capacitor,AL,Radial LGE 0CE108CC638 Contact Us For Availability
C597
Capacitor,AL,Radial LGE 0CE1074C638 Contact Us For Availability
C601
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C620
Capacitor,AL,Radial LGE 0CE4775C618 Contact Us For Availability
C620
LGE 0CE477CC618 LGE 0CE477CC618 Contact Us For Availability
C620
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C633
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C906
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C907
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
CABLE90
CABLE,FLAT LGE 6850R-GL12F Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN203
CONNECTOR (CIRC),FFC LGE 6630R-FB10E Contact Us For Availability
CN501
CONNECTOR (CIRC),FFC LGE 6630R-FB10L Contact Us For Availability
CN502
Connector,Wafer LGE 561-711J Contact Us For Availability
CN901
CONNECTOR (CIRC),FFC LGE 6630R-FB05L Contact Us For Availability
CN902
CONNECTOR LGE 561-711E Contact Us For Availability
CN903
CONNECTOR ASSEMBLY LGE 6631R-E104E Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D101
Diode,Rectifier LGE 0DR400709AA Contact Us For Availability
D101
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D108
DIODE,RECTIFIERS LGE 0DRRE00203A Contact Us For Availability
D108
DIODE,RECTIFIERS LGE 0DRGF00309A Contact Us For Availability
D121
DIODE,RECTIFIER LGE 0DR810040BA Contact Us For Availability
D121
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D121
Diode,Rectifier LGE 0DRGF00210A Contact Us For Availability
D123
Diode,Schottky LGE 0DSGF00030A Contact Us For Availability
D123
DIODE,SWITCHING LGE 0DSDI00090A Contact Us For Availability
D125
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D125
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D125
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D601
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
DIG901
LED ASSEMBLY LGE 6301R2U014A Contact Us For Availability
FR101
RESISTOR,VARIABLE[CA LGE 0RF0221K634 Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGON024A Contact Us For Availability
IC102
SENSOR,PHOTO LGE 6500RDB010A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
LGE 0IPMGUK001A LGE 0IPMGUK001A Contact Us For Availability
IC103
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC103
IC,POWER MANAGEMENT LGE 0IPMGA0012A Contact Us For Availability
IC201
IC,LINEAR LGE 0ILNRIJ002A Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRNF010A Contact Us For Availability
IC502A
PROGRAM LGE 6957R-020CD Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB006C Contact Us For Availability
IC504
LGE 0IMMRII007A LGE 0IMMRII007A Contact Us For Availability
IC505
IC,POWER MANAGEMENT LGE 0IPMGAU007A Contact Us For Availability
IC505
IC,Voltage Detector LGE 0IKE702900D Contact Us For Availability
IC505
IC,POWER MANAGEMENT LGE 0IPMGA0014A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRUC001A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRA0001A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRAU017A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPPY007A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPPY005A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00044E Contact Us For Availability
JK601
Jack,RCA LGE 6612J00044K Contact Us For Availability
L102
COIL,RF LGE 6140RCC003J Contact Us For Availability
L122
COIL,RF LGE 6140R-C011A Contact Us For Availability
L122
COIL,CHOKE LGE 633-088G Contact Us For Availability
L122
Inductor,Wire Wound, LGE 6200J000147 Contact Us For Availability
L201
LGE 0LR0102J0N5 LGE 0LR0102J0N5 Contact Us For Availability
L201
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L205
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L208
INDUCTOR,CHIP LGE 0LCCE00004E Contact Us For Availability
P101
CONNECTOR ASSEMBLY LGE 6631R-E078H Contact Us For Availability
PW101
CONNECTOR (CIRC),WAF LGE 6630V90108A Contact Us For Availability
Q121
TRANSISTOR,BIPOLARS LGE 0TR127709AB Contact Us For Availability
Q121
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q121
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q122
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q122
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q122
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q123
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
Q123
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q124
TRANSISTOR LGE 0TR220309AF Contact Us For Availability
Q124
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
Q126
TRANSISTOR,BIPOLARS LGE 0TR186209AB Contact Us For Availability
Q126
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q126
TRANSISTOR LGE 0TR232809AB Contact Us For Availability
Q202
TR,Bipolar LGE 0TRAU80008A Contact Us For Availability
Q202
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q202
TR,Bipolar LGE 0TRON80008A Contact Us For Availability
Q202
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q205
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q205
TR,Bipolar LGE 0TRAU80017A Contact Us For Availability
Q205
TR,Bipolar LGE 0TRON80009A Contact Us For Availability
Q206
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q603
TR,Bipolar LGE 0TRAU80012A Contact Us For Availability
Q603
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q603
LGE 0TRON80007A LGE 0TRON80007A Contact Us For Availability
R6W1
RESISTOR,CHIP LGE 0RH1200C622 Contact Us For Availability
R103
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R122
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R123
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R124
RESISTOR FIXED CARBON FILM 39 LGE 0RD3900F608 Contact Us For Availability
R125
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R127
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R128
Resistor,Metal Film LGE 0RN3001F408 Contact Us For Availability
R130
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R140
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R202
Resistor,Chip LGE 0RH0471C622 Contact Us For Availability
R223
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R225
Resistor,Chip LGE 0RH1502C422 Contact Us For Availability
R226
Resistor,Chip LGE 0RH2702C422 Contact Us For Availability
R236
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R243
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ7503C677 Contact Us For Availability
R503
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R504
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R512
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R519
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R528
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R530
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R537
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R538
RESISTOR,CHIP LGE 0RH0682C622 Contact Us For Availability
R544
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R603
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R606
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R608
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R609
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R618
Resistor,Chip LGE 0RH0752C422 Contact Us For Availability
R630
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R651
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R652
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R660
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R661
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R901
Resistor,Chip LGE 0RH5102C622 Contact Us For Availability
SW904
SWITCH,TACT LGE 6600R000028 Contact Us For Availability
SW904
SWITCH,TACT LGE 6600R000039 Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW05N Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270F Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270G Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
ZD101
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD151
Diode,Zener LGE 0DZ132609AB Contact Us For Availability
ZD152
DIODE,ZENER LGE 0DZ562609AA Contact Us For Availability
ZD606
Diode,Zener LGE 0DZPH00118A Contact Us For Availability
ZD606
LGE 0DZAU00038A LGE 0DZAU00038A Contact Us For Availability
× ![]()
Login and Registration Form
