  • LG ZD309Y9 Parts List

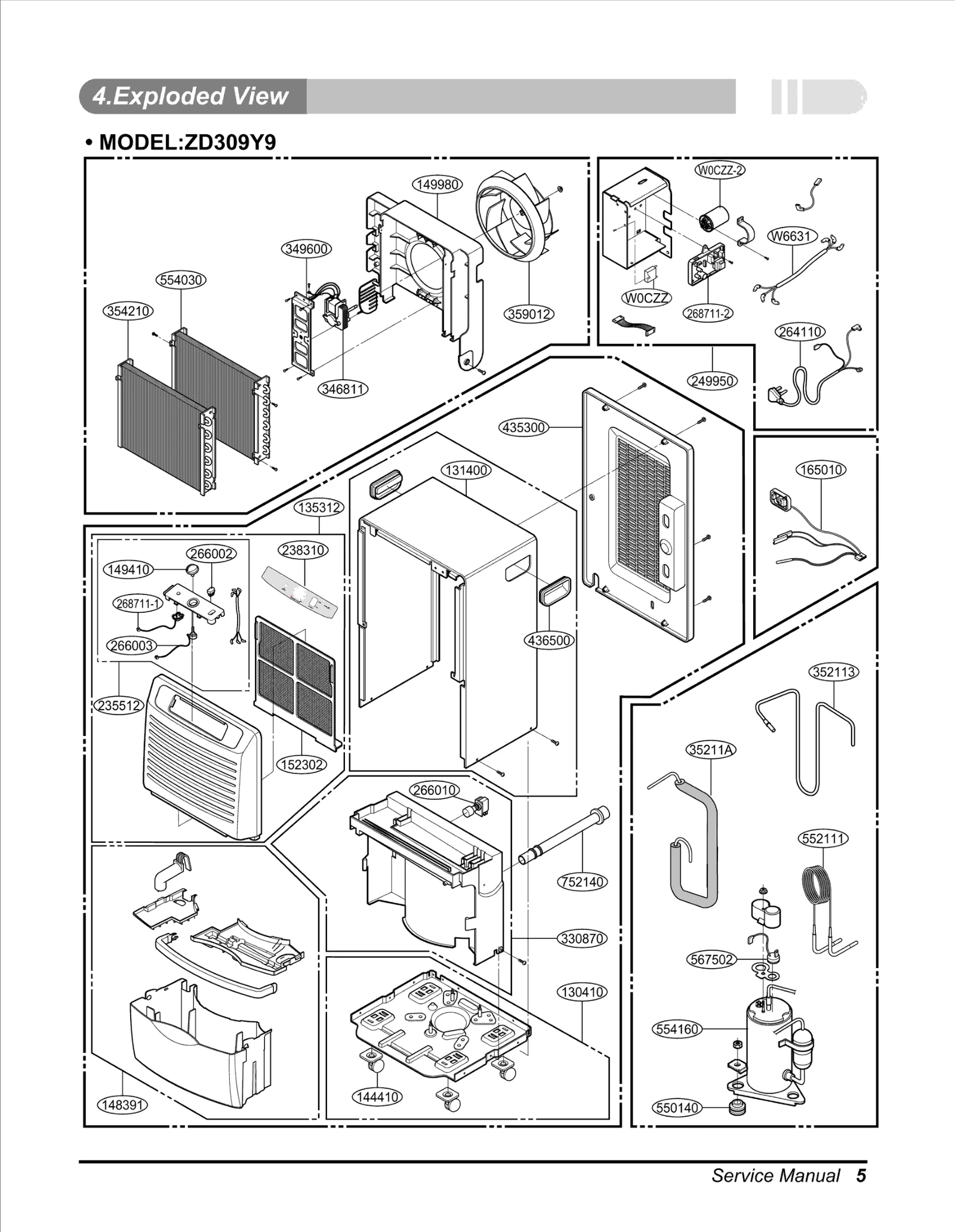

Model LG ZD309Y9 – Common Parts & Diagrams

131400
CABINET
CABINET LGE 3090A10042A Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE AEB36976504 Contact Us For Availability
View on Model
148391
Tank Assembly,Bucket
Tank Assembly,Bucket LGE 4839A10004J Contact Us For Availability
View on Model
149410
KNOB ASSEMBLY
KNOB ASSEMBLY LGE 4941A30019B Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10034B Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
View on Model
165010
Sensor Assembly
Sensor Assembly LGE 6877A30013R Contact Us For Availability
View on Model
235512
COVER ASSEMBLY,DISPLAY
COVER ASSEMBLY,DISPLAY LGE 3551A20122A Contact Us For Availability
View on Model
238310
Escutcheon
Escutcheon LGE MDD30271509 Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE ABQ36532611 Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
View on Model
266002
SWITCH,ROCKER
SWITCH,ROCKER LGE 6600FX5001G Contact Us For Availability
View on Model
266003
SWITCH ASSEMBLY,ROTARY
SWITCH ASSEMBLY,ROTARY LGE 6601A30006A Contact Us For Availability
View on Model
266010
SWITCH ASSY,MICRO
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
View on Model
268711-1
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20289B Contact Us For Availability
View on Model
268711-2
PCB Assembly,Main
PCB Assembly,Main LGE EBR39204301 Contact Us For Availability
View on Model
330870
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A10019C Contact Us For Availability
View on Model
346811
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE EAU32357505 Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE 4960A20009D Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE AJR71449801 Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10009X Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 3530A10193B Contact Us For Availability
View on Model
550140
Washer, Customized
Washer, Customized LGE 1WZZA31003A Contact Us For Availability
View on Model
552111
Tube Assembly,Capillary
Tube Assembly,Capillary LGE AJR71449901 Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE 5403A10008W Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ31986001 Contact Us For Availability
View on Model
567502
Overload Protect
Overload Protect LGE EAF35787201 Contact Us For Availability
View on Model
752140
HOSE,CONNECTOR
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 3H00660V Contact Us For Availability
View on Model
W0CZZ-2
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
View on Model
