Model LG Z50PJ240 – Common Parts & Diagrams

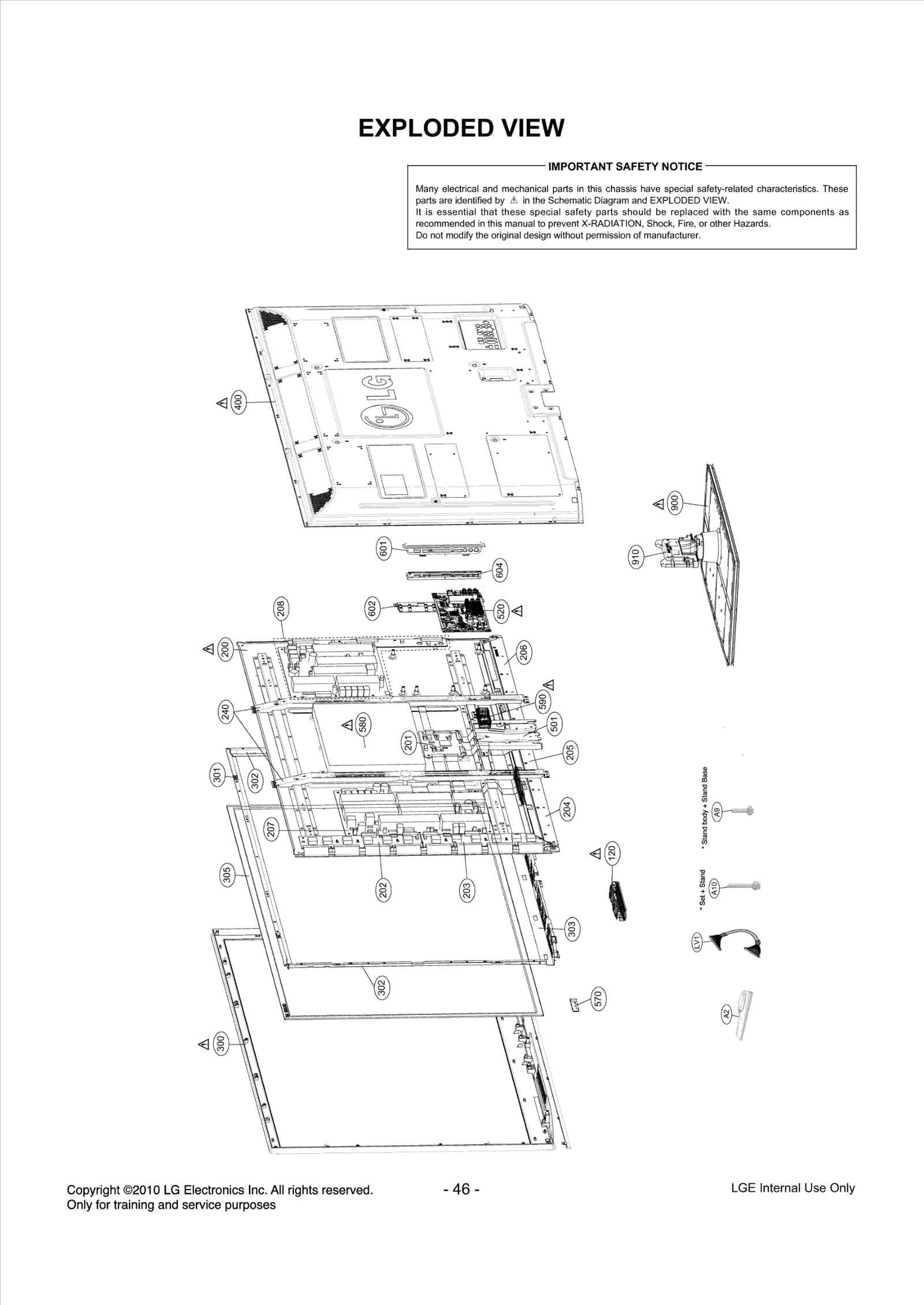

Diagram 0
Diagram 1
Common parts from model LG Z50PJ240
120
Speaker,Full Range LGE EAB60962801 Contact Us For Availability
200
PDP,Module-XGA LGE EAJ60716336 Contact Us For Availability
201
Hand Insert PCB Assembly LGE EBR63549501 Contact Us For Availability
202
Hand Insert PCB Assembly LGE EBR63551601 Contact Us For Availability
203
Hand Insert PCB Assembly LGE EBR63551701 Contact Us For Availability
204
Hand Insert PCB Assembly LGE EBR64062301 Contact Us For Availability
205
Hand Insert PCB Assembly LGE EBR64062201 Contact Us For Availability
206
Hand Insert PCB Assembly LGE EBR64062001 Contact Us For Availability
207
Hand Insert PCB Assembly LGE EBR63039801 Contact Us For Availability
208
Hand Insert PCB Assembly LGE EBR63040301 Contact Us For Availability
240
Supporter LGE MJH61956401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ72922824 Contact Us For Availability
301
Supporter Assembly LGE AJJ72916405 Contact Us For Availability
302
Supporter Assembly LGE AJJ72916605 Contact Us For Availability
303
Supporter Assembly LGE AJJ72916508 Contact Us For Availability
305
Filter LGE MDJ62065602 Contact Us For Availability
305
Filter LGE MDJ62186105 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ74807462 Contact Us For Availability
501
Supporter LGE MJH61871202 Contact Us For Availability
520
PCB Assembly LGE EBR68351401 Contact Us For Availability
570
PCB Assembly,Sub LGE EBR65007701 Contact Us For Availability
570
BPR Total Assembly LGE EBU60698132 Contact Us For Availability
580
SMPS,AC/DC LGE EAY60968701 Contact Us For Availability
590
Filter,AC Line LGE EAM60352509 Contact Us For Availability
601
Bracket Assembly LGE ABA72940730 Contact Us For Availability
602
Plate,Shield LGE MGJ61965303 Contact Us For Availability
604
Plate LGE MGJ61965208 Contact Us For Availability
900
Base Assembly LGE AAN72942716 Contact Us For Availability
910
Supporter LGE MJH61877104 Contact Us For Availability
A5
Bag,Vinyl LGE MAF60779001 Contact Us For Availability
A9
Screw Assembly LGE FAB30016602 Contact Us For Availability
AR401
Resistor,Array LGE 0RR0472T621 Contact Us For Availability
C56
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C355
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C402
Capacitor,Ceramic,Chip LGE 0CC560BK41A Contact Us For Availability
C405
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C409
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C442
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C450
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C621
Capacitor,Ceramic,Chip LGE 0CC821CK41A Contact Us For Availability
C721
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C726
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C729
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C808
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C836
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
CA3
Harness,Single LGE EAD60958501 Contact Us For Availability
CA3
Harness,Single LGE EAD37438303 Contact Us For Availability
D401
Diode,TVS LGE EAH36618701 Contact Us For Availability
D402
Diode,Switching LGE EAH60666101 Contact Us For Availability
D624
Diode,TVS LGE EAH39491701 Contact Us For Availability
IC1
Display SOC,Digital TV LGE EAN60351402 Contact Us For Availability
IC201
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC202
IC,EEPROM LGE EAN43349002 Contact Us For Availability
IC203
IC,Serial Flash Memory LGE EAN60245201 Contact Us For Availability
IC301
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC303
IC,LDO Voltage Regulator LGE EAN60906401 Contact Us For Availability
IC304
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC306
IC,Voltage Regulator LGE EAN60918501 Contact Us For Availability
IC307
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC308
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC401
IC,Tuner LGE EAN59284501 Contact Us For Availability
IC402
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC501
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC801
IC,Audio Amplifier LGE EAN60354701 Contact Us For Availability
JK401
Connector,RF LGE EAG60685102 Contact Us For Availability
JK502
Jack,DIN LGE EAG59023303 Contact Us For Availability
JK601
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
JK603
Jack,RCA LGE EAG61007601 Contact Us For Availability
JK604
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK609
Jack,RCA LGE EAG61007801 Contact Us For Availability
JK701
Connector,DSUB LGE 6630G00001E Contact Us For Availability
L313
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L315
Inductor,Multilayer,Chip LGE EAP43580902 Contact Us For Availability
L401
Inductor,Multilayer,Chip LGE EAP59064201 Contact Us For Availability
L405
Inductor,Wire Wound,Chip LGE EAP59177601 Contact Us For Availability
L409
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Harness,Single LGE EAD60974001 Contact Us For Availability
P301
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P703
Connector,Wafer LGE EAG61091701 Contact Us For Availability
P704
Connector,Wafer LGE EAG58732902 Contact Us For Availability
P801
Connector,Wafer LGE EAG61091601 Contact Us For Availability
Q502
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R14
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R16
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R27
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R48
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R203
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R223
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R409
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R414
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R429
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R516
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R522
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R635
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R637
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R641
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R642
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R652
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R662
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R723
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R725
Resistor,Chip LGE 0RH1800D422 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R745
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R804
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
SWM
Switch,Membrane LGE EBF60735402 Contact Us For Availability
VR503
VARISTOR LGE 6102W5V016A Contact Us For Availability
× ![]()
