Model LG Z42P3 – Common Parts & Diagrams

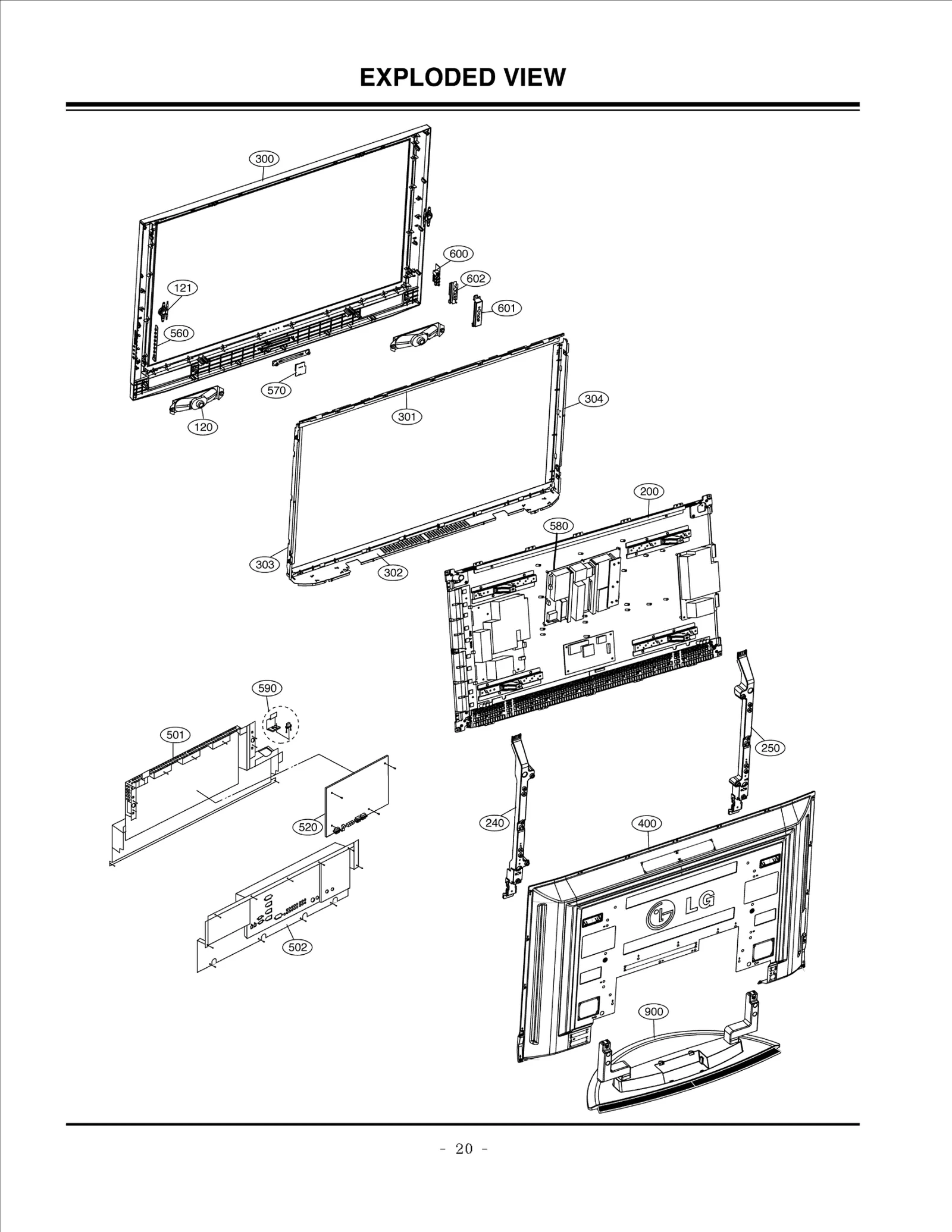

Diagram 0
Diagram 1
Common parts from model LG Z42P3
000
Heat Sink Assembly LGE AEF32339501 Contact Us For Availability
000
Heat Sink Assembly LGE AEF32343301 Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1041C Contact Us For Availability
000
Heat Sink Assembly LGE 4921QP1043C Contact Us For Availability
121
Speaker,Tweeter LGE EAB30826001 Contact Us For Availability
200
PDP,Module-XGA FILTER INCLUDED LGE EAJ38199301 Contact Us For Availability
240
SUPPORTER LGE 4980900109C Contact Us For Availability
250
SUPPORTER LGE 4980900109D Contact Us For Availability
300
Cover Assembly LGE ACQ31685112 Contact Us For Availability
301
SUPPORTER LGE 4980900113B Contact Us For Availability
302
SUPPORTER LGE 4980900114B Contact Us For Availability
303
SUPPORTER LGE 4980900115B Contact Us For Availability
304
SUPPORTER LGE 4980900116B Contact Us For Availability
400
Cover Assembly LGE ACQ32522006 Contact Us For Availability
501
Plate Assembly LGE 3301900095X Contact Us For Availability
502
Plate Assembly LGE 3301900094V Contact Us For Availability
560
Chassis Assembly LGE EBT33011301 Contact Us For Availability
570
Chassis Assembly LGE EBT33011201 Contact Us For Availability
590
Filter,AC Line LGE EAM33984402 Contact Us For Availability
600
PWB(PCB) ASSEMBLY,SU LGE 68719SM156A Contact Us For Availability
601
BRACKET ASSEMBLY LGE 4811900021E Contact Us For Availability
602
SHIELD LGE 48149V0003A Contact Us For Availability
900
Base Assembly LGE 3501900014N Contact Us For Availability
A
Chassis Assembly LGE EBT41862501 Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631900097B Contact Us For Availability
A
Harness,Single LGE EAD35682502 Contact Us For Availability
A
Harness,Single LGE 6631900050D Contact Us For Availability
A
Cable,Assembly LGE 68509A0004E Contact Us For Availability
A
PCB Assembly LGE EBR32714002 Contact Us For Availability
A
Harness,Single LGE 6631900048D Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631900098C Contact Us For Availability
A
PCB Assembly LGE EBR32715402 Contact Us For Availability
A
Cover LGE 3550V00590A Contact Us For Availability
A
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631T39004D Contact Us For Availability
A
Cover Assembly LGE ACQ30249905 Contact Us For Availability
A
PCB Assembly,Main LGE EBR41862701 Contact Us For Availability
A
FIXER LGE 4972V00178B Contact Us For Availability
A
CONNECTOR ASSEMBLY LGE 6631900012E Contact Us For Availability
A
Harness,Single LGE 6631900010K Contact Us For Availability
AR2017
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
AR2210
Resistor,Array LGE EBC32260405 Contact Us For Availability
AR3021
Resistor,Array LGE 0RJ1001C687 Contact Us For Availability
C105
Capacitor,AL,Radial LGE 0CE4763F618 Contact Us For Availability
C1061
Capacitor,Ceramic,Chip LGE 0CH2122K516 Contact Us For Availability
C2004
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C3027
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C3066
Capacitor,Ceramic,Ch LGE 0CK106DC67A Contact Us For Availability
C4005
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C4008
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C4012
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C4015
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C4034
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C4063
Capacitor,AL,Chip LGE EAE30840401 Contact Us For Availability
C4080
Capacitor,AL,Chip LGE EAE30840201 Contact Us For Availability
C4083
Capacitor,AL,Chip LGE EAE30840301 Contact Us For Availability
C4100
Capacitor,Ceramic,Chip LGE 0CK153CK51A Contact Us For Availability
C4101
Capacitor,Ceramic,Chip LGE 0CC561CK41A Contact Us For Availability
C4102
CAPACITOR,FIXED CERA LGE 0CK476FD67A Contact Us For Availability
C4143
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C5031
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C5033
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C5059
CAPACITOR,FIXED CERA LGE 0CK222CK56A Contact Us For Availability
C5071
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C5109
Capacitor,Ceramic,Chip LGE 0CH2474F566 Contact Us For Availability
C7003
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C7021
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C7024
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C7026
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C7038
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C7042
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C7044
Capacitor,AL,Chip LGE 0CE106WH6DC Contact Us For Availability
C7045
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C7048
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C7060
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C7099
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C7144
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C7150
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C7159
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
D4006
LED LGE 0DL233309AC Contact Us For Availability
IC1001
IC,Data Controller LGE 0IPRP00702A Contact Us For Availability
IC2003
IC,SDRAM LGE 0IMMRIH038B Contact Us For Availability
IC3001
IC,Analog Switch LGE EAN30267601 Contact Us For Availability
IC4001
IC,PERIPHERALS LGE 0IPRP00009A Contact Us For Availability
IC4006
IC,PERIPHERALS LGE 0IPRPFA015B Contact Us For Availability
IC4007
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC4008
IC,LDO Voltage Regul LGE 0IPMGS1006B Contact Us For Availability
IC4010
IC,KEC LGE 0IKE702900G Contact Us For Availability
IC4011
IC,MICRO CONTROLLER LGE 0IMCRRH001A Contact Us For Availability
IC4012
IC,MICRO CONTROLLER LGE 0IMCRAL021A Contact Us For Availability
IC4014
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC4016
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC4017
IC,DC,DC Converter LGE EAN31513601 Contact Us For Availability
IC4018
IC,POWER MANAGEMENT LGE 0IPMG78391A Contact Us For Availability
IC5001
IC,Analog Switch LGE EAN30744301 Contact Us For Availability
IC5002
IC,Analog Switch LGE EAN30744401 Contact Us For Availability
IC5003
IC,SONY LGE 0ISO206900A Contact Us For Availability
IC5004
IC,PERIPHERALS LGE 0IPRPCI016A Contact Us For Availability
IC6004
IC,MICRO CONTROLLER LGE 0IMCRTH002A Contact Us For Availability
IC7001
IC,CRYSTAL SEMICONDUCTOR LGE 0ICB533100A Contact Us For Availability
IC7005
IC,MEMORIES LGE 0IMMRCS012B Contact Us For Availability
IC7012
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC7015
IC,Receiver LGE 0IPRP00623A Contact Us For Availability
IC7017
IC,Audio Amplifier LGE 0IPRP00700A Contact Us For Availability
J4001
Jack,Complex LGE 6612J10024A Contact Us For Availability
J4003
JACK,PHONE LGE 6612F00099A Contact Us For Availability
J5007
Jack,RCA LGE 6612J10006K Contact Us For Availability
JK101
JACK,RCA LGE 6612J10033A Contact Us For Availability
L4003
Filter,Bead LGE 6210TCE001E Contact Us For Availability
L4007
FILTER(CIRC),EMC LGE 6200J000123 Contact Us For Availability
L4019
INDUCTOR,CHIP LGE 0LC2000005K Contact Us For Availability
L4022
COIL,CHOKE LGE 6140TBZ047B Contact Us For Availability
L4024
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L7029
COIL,ENERGY RECOVERY LGE 6140VR0008A Contact Us For Availability
L7041
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LD101
LED LGE 0DL200000CA Contact Us For Availability
P100
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P4003
WAFER LGE 6602T25008J Contact Us For Availability
P4004
WAFER LGE 6602T25008M Contact Us For Availability
P4005
CONNECTOR (CIRC),WAF LGE 6602T25008L Contact Us For Availability
P4007
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P6001
Connector,Wafer LGE 6630V90116A Contact Us For Availability
P7002
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P7003
PCB Assembly,Sub LGE 68719ST035E Contact Us For Availability
P7004
CONNECTOR (CIRC),D-S LGE 6630G70016A Contact Us For Availability
P7010
Connector,Wafer LGE 6602T25008B Contact Us For Availability
PA101
REMOTE CONTROLLER RE LGE 6712000011B Contact Us For Availability
Q5015
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
R1008
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1016
Resistor,Chip LGE 0RJ0182D677 Contact Us For Availability
R1021
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R1047
Resistor,Chip LGE 0RH1504D622 Contact Us For Availability
R1160
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R2609
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R2611
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R3015
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R3016
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R3035
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R4015
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R4016
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R4029
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R4048
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R4060
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R4082
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R4128
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4141
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R4186
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R4193
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R5034
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R5042
Resistor,Chip LGE 0RJ7500D677 Contact Us For Availability
R5053
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R5068
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R5095
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R5100
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R5120
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R7057
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R7061
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R7080
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R7090
Resistor,Chip LGE 0RJ6801D677 Contact Us For Availability
R7199
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R7221
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R7245
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R7271
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
SW106
SWITCH TACT LGE 140-313B Contact Us For Availability
TU4001
Tuner,Analog/Digital LGE EBL32758001 Contact Us For Availability
X7001
CRYSTAL LGE 6202TST001A Contact Us For Availability
× ![]()
Login and Registration Form
