Model LG Z37LZ5D-PK RECEIVER DVD – Common Parts & Diagrams
Diagram 0

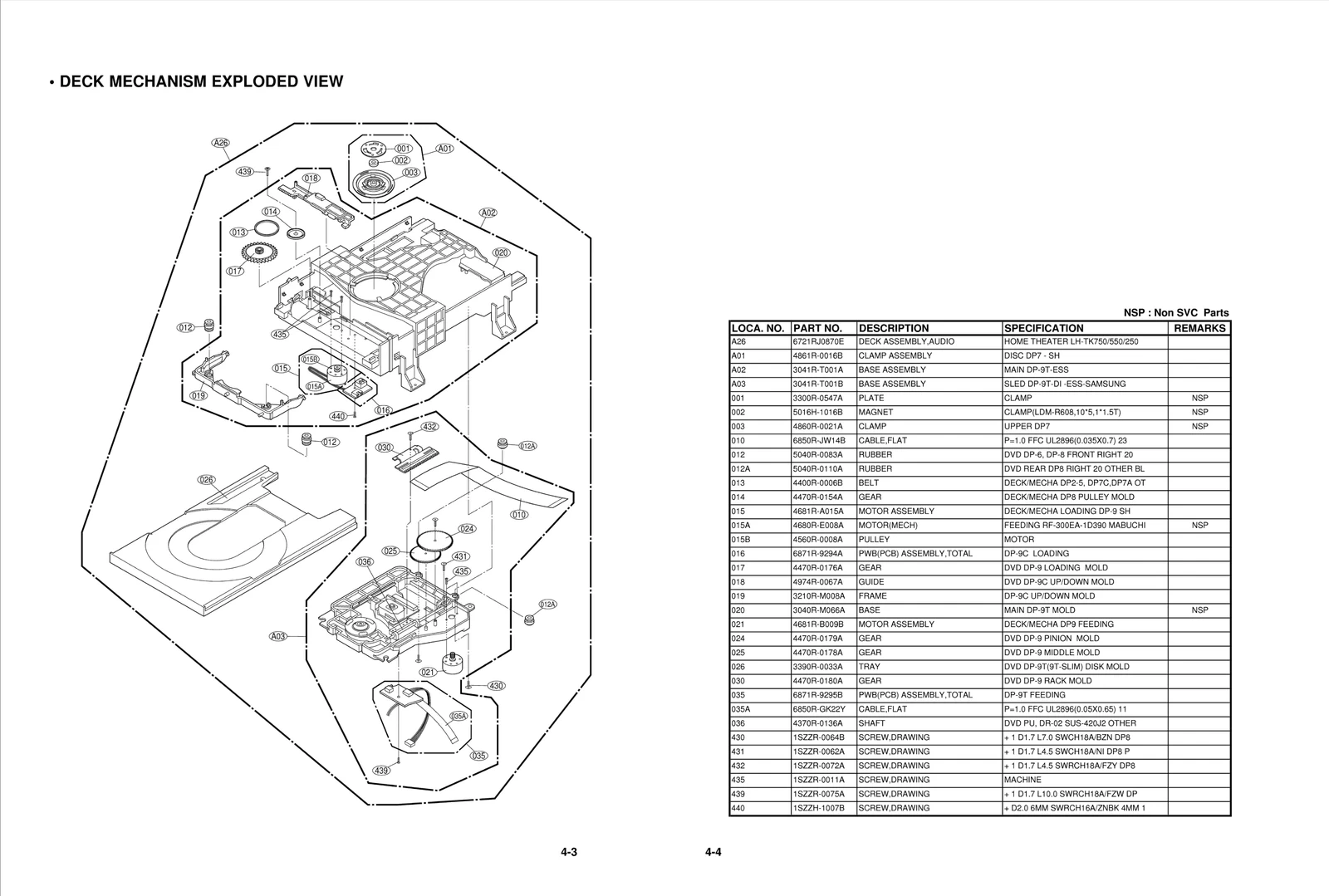

Diagram 1

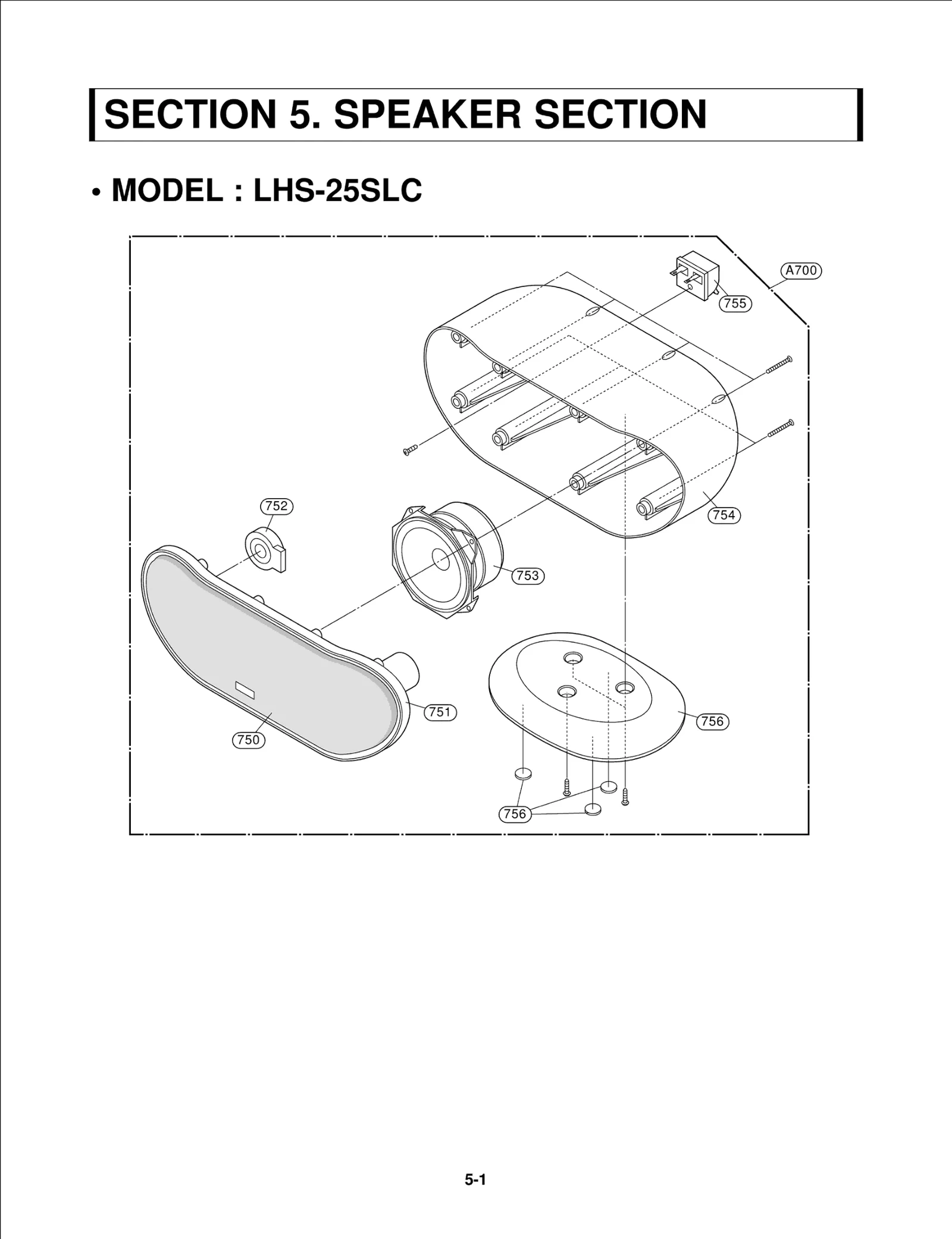

Diagram 2

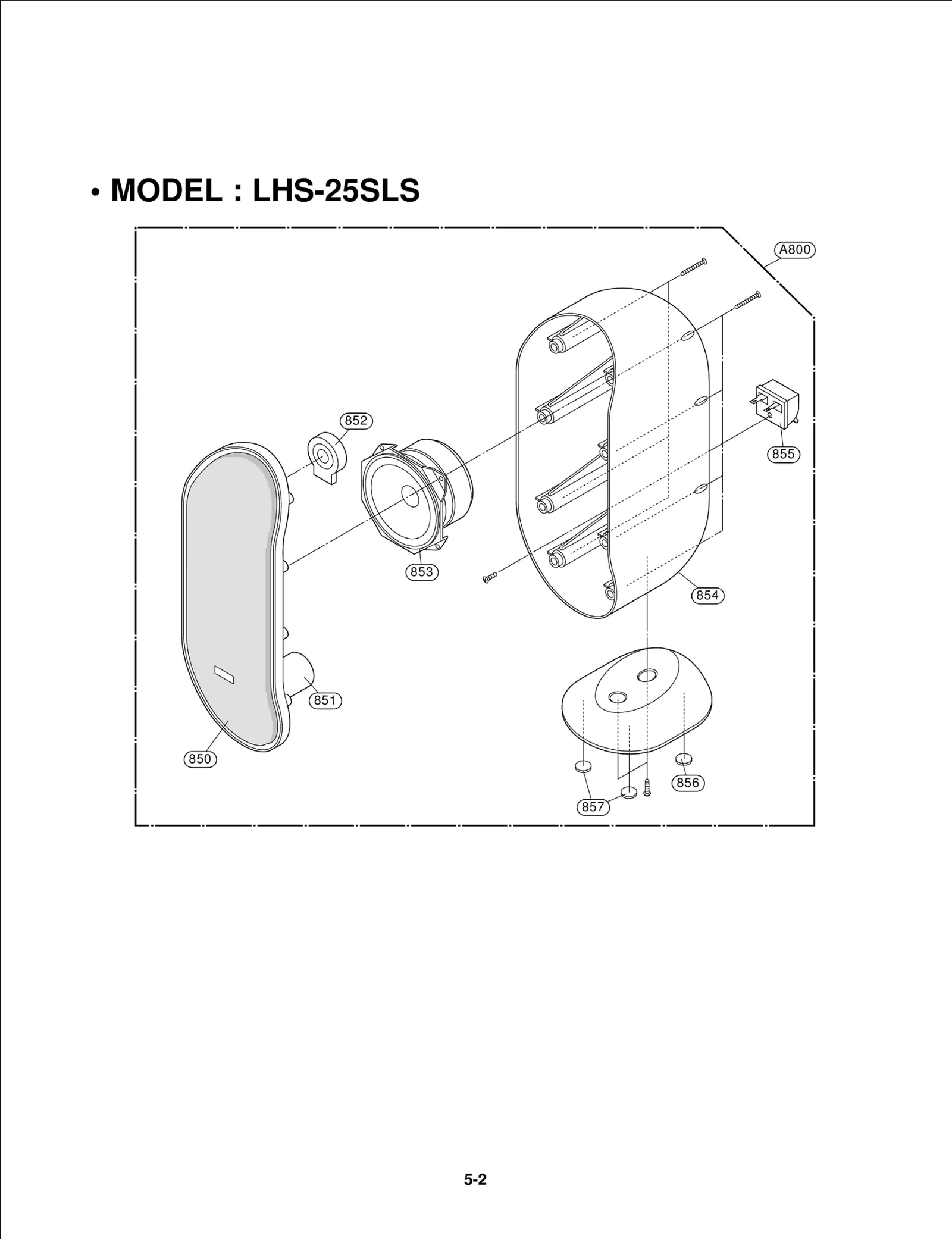

Diagram 3

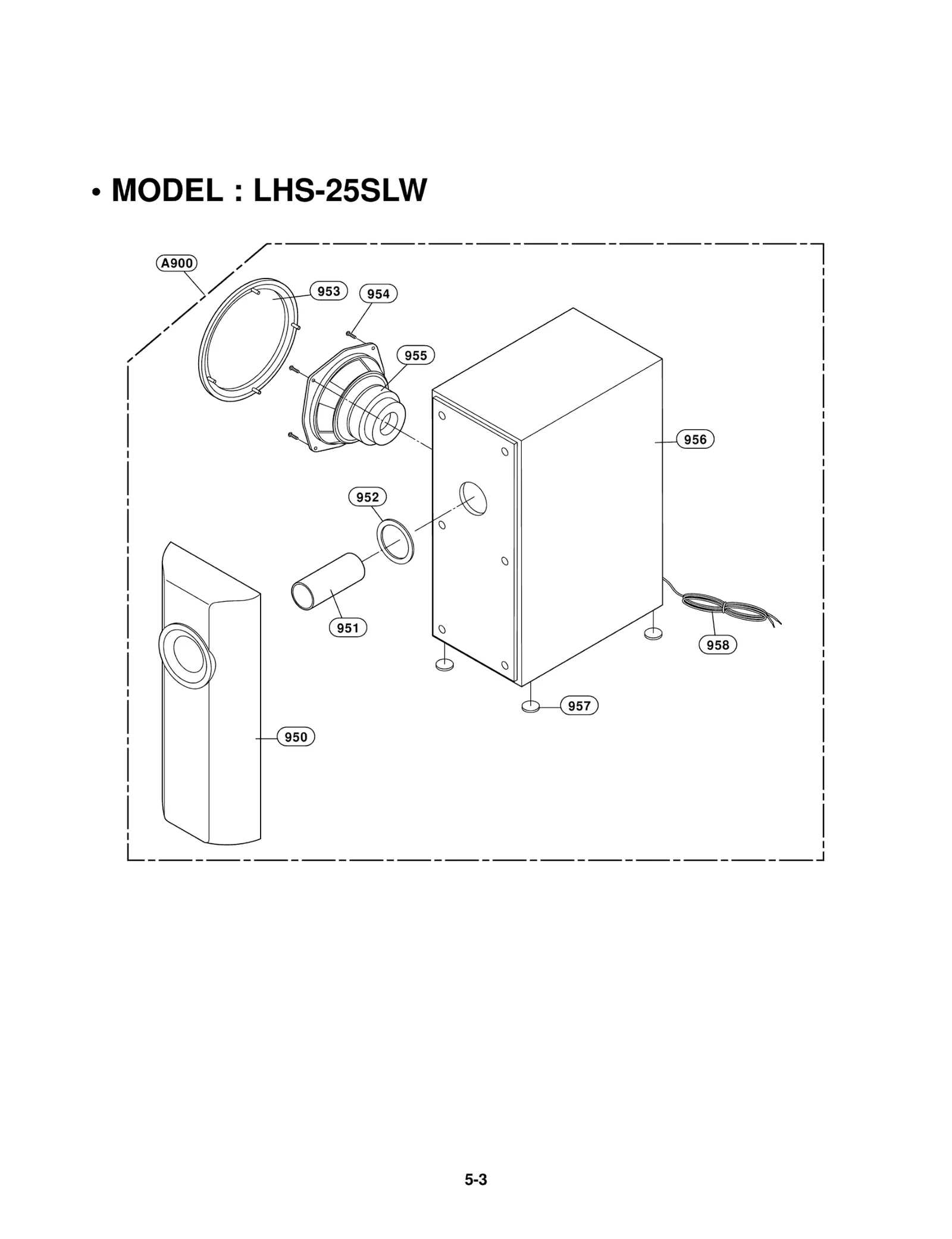

Diagram 4
Diagram 5
Common parts from model LG Z37LZ5D-PK RECEIVER DVD
#PN603
CABLE,FLAT LGE 6850R-GT29Z Contact Us For Availability
#PN604
CABLE,FLAT LGE 6850R-GV38Z Contact Us For Availability
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
CLAMP LGE 4860R-0021A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-JW14B Contact Us For Availability
012
RUBBER LGE 5040R-0083A Contact Us For Availability
012A
RUBBER LGE 5040R-0110A Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
014
GEAR LGE 4470R-0154A Contact Us For Availability
015
MOTOR ASSEMBLY LGE 4681R-A015A Contact Us For Availability
015A
MOTOR(MECH) LGE 4680R-E008A Contact Us For Availability
015B
Pulley LGE 4560R-0008A Contact Us For Availability
016
PWB(PCB) ASSEMBLY,TO LGE 6871R-9294A Contact Us For Availability
017
GEAR LGE 4470R-0176A Contact Us For Availability
018
GUIDE LGE 4974R-0067A Contact Us For Availability
019
FRAME LGE 3210R-M008A Contact Us For Availability
020
BASE LGE 3040R-M066A Contact Us For Availability
021
MOTOR ASSEMBLY LGE 4681R-B009B Contact Us For Availability
024
GEAR LGE 4470R-0179A Contact Us For Availability
025
GEAR LGE 4470R-0178A Contact Us For Availability
026
TRAY LGE 3390R-0033A Contact Us For Availability
030
GEAR LGE 4470R-0180A Contact Us For Availability
035
PWB(PCB) ASSEMBLY,TO LGE 6871R-9295B Contact Us For Availability
035A
CABLE,FLAT LGE 6850R-GK22Y Contact Us For Availability
036
SHAFT LGE 4370R-0136A Contact Us For Availability
261
RUBBER LGE 5040R-5040D Contact Us For Availability
279
KNOB LGE 4940RLV651A Contact Us For Availability
283
DOOR LGE 3580RLC651A Contact Us For Availability
305
POWER CORD LGE 6410RAHK06A Contact Us For Availability
320
CHASSIS LGE 3140RLT727A Contact Us For Availability
351
CABINET LGE 3090RLT727A Contact Us For Availability
430
SCREW,DRAWING LGE 1SZZR-0064B Contact Us For Availability
431
SCREW,DRAWING LGE 1SZZR-0062A Contact Us For Availability
432
SCREW,DRAWING LGE 1SZZR-0072A Contact Us For Availability
435
SCREW, LGE 1SZZR-0011A Contact Us For Availability
439
SCREW,DRAWING LGE 1SZZR-0075A Contact Us For Availability
440
SCREW, LGE 1SZZH-1007B Contact Us For Availability
452
Screw,Customized LGE 353-025C Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
750
LGE 3530RMP049B LGE 3530RMP049B Contact Us For Availability
754
LGE 3110RMP072A LGE 3110RMP072A Contact Us For Availability
756
LGE 3040RMP036A LGE 3040RMP036A Contact Us For Availability
757
FOOT LGE 3610RM0044A Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RH0113C Contact Us For Availability
802
BOX,MASTER LGE 3890RCC510P Contact Us For Availability
803
PACKING LGE 3920R-E162A Contact Us For Availability
804
BAG LGE 3880SCS001G Contact Us For Availability
808
BATTERY,MN LGE 841N0015 Contact Us For Availability
811
PLUG ASSY PHONO CORD 1WAY (YL) LGE 564-017B Contact Us For Availability
813
ANTENNA,T LGE 5010R-T001E Contact Us For Availability
814
ANTENNA,LOOP LGE 5010R-L002B Contact Us For Availability
850
LGE 3530RMP049A LGE 3530RMP049A Contact Us For Availability
851
PANEL,AUDIO LGE 3720RMM015A Contact Us For Availability
852
SPEAKER,TWEETER LGE 6400DSMX02A Contact Us For Availability
853
SPEAKER,WOOFER LGE 6400WSMC05A Contact Us For Availability
854
CASE LGE 3110RMP073A Contact Us For Availability
855
PWB(PCB) ASSEMBLY,SU LGE 6871RU0038A Contact Us For Availability
856
BASE LGE 3040RMP037A Contact Us For Availability
900
REMOTE CONTROLLER LGE 6710CDAT05S Contact Us For Availability
950
PANEL,FRONT LGE 3720RMF085E Contact Us For Availability
951
DUCT LGE 5208RM0056B Contact Us For Availability
952
FELT LGE 4766RM0097A Contact Us For Availability
953
NET ASSEMBLY LGE 3701RM0060A Contact Us For Availability
954
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
955
SPEAKER,WOOFER LGE 6400WSMH01A Contact Us For Availability
956
CABINET ASSEMBLY LGE 3091RMW164A Contact Us For Availability
957
Foot LGE 3610RM0009A Contact Us For Availability
958
PWB(PCB) ASSEMBLY,SU LGE 6871RU9306F Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0016B Contact Us For Availability
A02
BASE ASSEMBLY LGE 3041R-T001A Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-T001B Contact Us For Availability
A26
DECK ASSEMBLY,AUDIO LGE 6721RJ0870E Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721RLF103L Contact Us For Availability
A44
CHASSIS ASSEMBLY LGE 3141RLT005M Contact Us For Availability
A46
SUB PWB(PCB) ASSEMBL LGE 6885R-2540F Contact Us For Availability
A47
PWB(PCB) ASSEMBLY,TO LGE 6871R-9271D Contact Us For Availability
A50
PWB(PCB) ASSEMBLY,TO LGE 6871R-2548A Contact Us For Availability
A700
SPEAKER ASSEMBLY LGE 6401RM0287A Contact Us For Availability
A800
SPEAKER ASSEMBLY LGE 6401RM0286A Contact Us For Availability
A900
SPEAKER ASSEMBLY LGE 6401RM0288A Contact Us For Availability
BD902
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C5A1
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C108
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C113
Capacitor,AL,Radial LGE 0CE3356K618 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C120
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1076F618 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE1066F618 Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CH4121K412 Contact Us For Availability
C234
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
C236
Capacitor,Ceramic,Chip LGE 0CH1272K562 Contact Us For Availability
C238
Capacitor,AL,Radial LGE 0CE4776D618 Contact Us For Availability
C240
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C265
CAPACITOR ELECTROLYTIC SCMT270 LGE 0CE2266F618 Contact Us For Availability
C303
LGE 0CE337EK638 LGE 0CE337EK638 Contact Us For Availability
C305
LGE 0CE3376H618 LGE 0CE3376H618 Contact Us For Availability
C308
Capacitor,AL,Radial LGE 0CE1076D618 Contact Us For Availability
C313
Capacitor,AL,Radial LGE 0CE108CC618 Contact Us For Availability
C321
Capacitor,Ceramic,Chip LGE 0CH1473K562 Contact Us For Availability
C333
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C360
LGE 0CH1103K946 LGE 0CH1103K946 Contact Us For Availability
C367
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CH1104K566 Contact Us For Availability
C371
Capacitor,Ceramic,Chip LGE 0CH4331K416 Contact Us For Availability
C375
LGE 0CH1473K946 LGE 0CH1473K946 Contact Us For Availability
C390
CAPACITOR,FIXED CERA LGE 0CK105EK94A Contact Us For Availability
C394
CAPACITOR,FIXED CERA LGE 0CH1105K946 Contact Us For Availability
C396
Capacitor,Ceramic,Chip LGE 0CH1224K946 Contact Us For Availability
C418
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C419
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C425
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C437
Capacitor,Ceramic,Chip LGE 0CH1472K562 Contact Us For Availability
C460
Capacitor,Ceramic,Chip LGE 0CH1821K562 Contact Us For Availability
C463
Capacitor,Ceramic,Chip LGE 0CH1471K562 Contact Us For Availability
C466
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C468
Capacitor,Ceramic,Chip LGE 0CH1473K942 Contact Us For Availability
C471
Capacitor,Ceramic,Chip LGE 0CH4151K412 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C474
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C481
CAPACITOR,FIXED CERA LGE 0CH1681K512 Contact Us For Availability
C482
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C503
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C509
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE 0CH1105F942 Contact Us For Availability
C512
CAPACITOR,FIXED CERA LGE 0CH4070K412 Contact Us For Availability
C516
Capacitor,Ceramic,Chip LGE 0CH1682K512 Contact Us For Availability
C532
Capacitor,Ceramic,Chip LGE 0CH4180K412 Contact Us For Availability
C535
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C538
LGE 0CH4561K512 LGE 0CH4561K512 Contact Us For Availability
C542
Capacitor,Ceramic,Chip LGE 0CH4330K412 Contact Us For Availability
C546
LGE 0CH4470K442 LGE 0CH4470K442 Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE 0CH4680K412 Contact Us For Availability
C555
Capacitor,AL,Radial LGE 0CE2276F618 Contact Us For Availability
C561
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C578
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C590
LGE 0CH1225H944 LGE 0CH1225H944 Contact Us For Availability
C600
Capacitor,AL,Radial LGE 0CE2273D638 Contact Us For Availability
C601
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C611
Capacitor,Ceramic,Axial LGE 0CN1030K519 Contact Us For Availability
C900
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C906
Capacitor,Film,DIP,DC LGE 0CQ1031N409 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ4721N409 Contact Us For Availability
C912
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C914
Capacitor,AL,Radial LGE 0CE2276D618 Contact Us For Availability
C915
CAPACITOR POLYESTER(MYLAR)0.22 LGE 0CQ2244N419 Contact Us For Availability
C918
CAPACITOR,FIXED FILM LGE 0CQ3611N449 Contact Us For Availability
C924
Capacitor,AL,Radial LGE 0CE108EH610 Contact Us For Availability
C925
Capacitor,AL,Radial LGE 0CE108BD630 Contact Us For Availability
C926
Capacitor,AL,Radial LGE 0CE1076H618 Contact Us For Availability
C927
Capacitor,AL,Radial LGE 0CE1076K618 Contact Us For Availability
C929
Capacitor,AL,Radial LGE 0CE337EH638 Contact Us For Availability
C930
Capacitor,AL,Radial LGE 0CE108CD638 Contact Us For Availability
C932
Capacitor,AL,Radial LGE 0CE1076F638 Contact Us For Availability
C941
CAPACITOR ELECTROLYTIC KCN20A8 LGE 0CE3376F618 Contact Us For Availability
C942
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE2256K618 Contact Us For Availability
C952
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C973
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4766K618 Contact Us For Availability
C974
Capacitor,AL,Radial LGE 0CE107CK638 Contact Us For Availability
C975
Capacitor,AL,Radial LGE 0CE4766D618 Contact Us For Availability
C997
CAPACITOR,FIXED ELEC LGE 0CE107CQ610 Contact Us For Availability
C998
CAPACITOR,FIXED ELEC LGE 0CE476CQ610 Contact Us For Availability
CABL05
CONNECTOR ASSEMBLY LGE 563-602T Contact Us For Availability
CM902
CAPACITOR PCX2 275V 0.1UF M (P LGE 624-088F Contact Us For Availability
CN901
Connector,BtoB LGE 6630R-BF03J Contact Us For Availability
CN901
CONNECTOR (CIRC),BOA LGE 6630R-BF072 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF073 Contact Us For Availability
CN902
CONNECTOR (CIRC),BOA LGE 6630R-BF03N Contact Us For Availability
D005
Diode,Switching LGE 0DS202009CA Contact Us For Availability
D102
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D301
Diode,Rectifier LGE 0DR102109AA Contact Us For Availability
D901
DIODE LGE 0DD010009CA Contact Us For Availability
D924
DIODE,RECTIFIERS LGE 0DRVH00030A Contact Us For Availability
D927
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D927
DIODE,SWITCHING LGE 0DSTW00099A Contact Us For Availability
D929
DIODE,SWITCHING LGE 0DS141489AB Contact Us For Availability
D931
DIODE 1N5402,RECT,SILTER,FORM LGE 0DD540200CA Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00060A Contact Us For Availability
D951
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D981
DIODE,SWITCHING LGE 0DD133009AB Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS3151B51D Contact Us For Availability
FB901
Filter,Bead LGE 636-004C Contact Us For Availability
FIP650
DIGITRON LGE 6302R-V240A Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCR02077B Contact Us For Availability
IC103
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLFA033B Contact Us For Availability
IC202
IC,ROHM LGE 0IRH405200C Contact Us For Availability
IC203
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC204
IC,PERIPHERALS LGE 0IPRPCI013A Contact Us For Availability
IC300
IC,POWER MANAGEMENT LGE 0IPMG00022A Contact Us For Availability
IC300
IC,POWER MANAGEMENT LGE 0IPMGPV002A Contact Us For Availability
IC300
IC,POWER MANAGEMENT LGE 0IPMG00022B Contact Us For Availability
IC301
IC,PERIPHERALS LGE 0IPRPSG035A Contact Us For Availability
IC401
IC,LINEAR LGE 0ILNRES007A Contact Us For Availability
IC402
LGE 0ILNRFA023A LGE 0ILNRFA023A Contact Us For Availability
IC404
IC,LINEAR LGE 0ILNRRH030A Contact Us For Availability
IC405
LGE 0IJR341400C LGE 0IJR341400C Contact Us For Availability
IC500A
PROGRAM LGE 6957R-520AC Contact Us For Availability
IC501
IC,LINEAR LGE 0ILNRES005C Contact Us For Availability
IC503
IC,MEMORIES LGE 0IMMREB008A Contact Us For Availability
IC504
IC,POWER MANAGEMENT LGE 0IPMGON014A Contact Us For Availability
IC509
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMG00041A Contact Us For Availability
IC902
IC,POWER MANAGEMENT LGE 0IPMG00067A Contact Us For Availability
IC921
IC,POWER MANAGEMENT LGE 0IPMGKE018A Contact Us For Availability
IC922
LGE 0IPMGKE021B LGE 0IPMGKE021B Contact Us For Availability
IC923
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC942
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC942
IC,POWER MANAGEMENT LGE 0IPMGUC004B Contact Us For Availability
IC942
IC KEC, KIA431, GVR-C435/R-E4 LGE 0IKE431000A Contact Us For Availability
JK200
JACK,RCA LGE 6612J00009C Contact Us For Availability
JK201
JACK,RCA LGE 576-005R Contact Us For Availability
JK202
JACK,RCA LGE 6612J00018B Contact Us For Availability
JK300
TERMINAL BLOCK LGE 664000009AA Contact Us For Availability
L5F5
Filter,LCR LGE 6200JB8010V Contact Us For Availability
L300
LGE 6140RCC007A LGE 6140RCC007A Contact Us For Availability
L313
LGE 6140RCC006F LGE 6140RCC006F Contact Us For Availability
L404
INDUCTOR RADIAL LEAD *R-V422M LGE 0LR0102J025 Contact Us For Availability
L501
Inductor,Wire Wound,Radial LGE 0LR0221K035 Contact Us For Availability
L506
LGE 0LR0331K035 LGE 0LR0331K035 Contact Us For Availability
L517
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L555
Filter,Bead LGE 0LC0200001B Contact Us For Availability
L921
COIL,CHOKE LGE 633-088G Contact Us For Availability
L951
COIL,RF LGE 6140RCC003H Contact Us For Availability
LED650
LED LGE 0DLRH0049AA Contact Us For Availability
LF901
FILTER(CIRC),EMC LGE 6200JB8011L Contact Us For Availability
PC910
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
PDM01
CONNECTOR (CIRC),FFC LGE 6630XE00123 Contact Us For Availability
PDM03
Connector,FFC/FPC/PIC LGE 6630XE00111 Contact Us For Availability
PN103
Connector,FFC/FPC/PIC LGE 6630XE00120 Contact Us For Availability
PN104
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00122 Contact Us For Availability
PN603
CONNECTOR (CIRC),FFC LGE 6630R-FB05T Contact Us For Availability
PN604
CONNECTOR (CIRC),FFC LGE 6630R-FB05V Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q101
KRC103M-TP(KRC1203) KEC*NSP LGE 0TR103009AE Contact Us For Availability
Q402
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q404
TR,Bipolar LGE 0TR103709BB Contact Us For Availability
Q409
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q501
TRANSISTOR LGE 0TR129809BB Contact Us For Availability
Q503
TR,Bipolar LGE 0TR130409BA Contact Us For Availability
Q910
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q921
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q922
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q971
TRANSISTOR LGE 0TR128109AA Contact Us For Availability
Q973
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q982
TR,Bipolar LGE 0TR103009AF Contact Us For Availability
R5A7
Resistor,Chip LGE 0RH3302C622 Contact Us For Availability
R5C9
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
R114
Resistor,Chip LGE 0RH1302C622 Contact Us For Availability
R124
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R134
Resistor,Chip LGE 0RH1802C622 Contact Us For Availability
R176
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R206
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R233
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R236
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R239
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R241
RESISTOR,CHIP LGE 0RH0472C622 Contact Us For Availability
R248
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R343
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R348
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R355
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R367
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R411
Resistor,Chip LGE 0RH0221C622 Contact Us For Availability
R451
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R452
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R454
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R457
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R460
Resistor,Chip LGE 0RH1202C422 Contact Us For Availability
R473
Resistor,Chip LGE 0RH8200C622 Contact Us For Availability
R503
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R505
Resistor,Chip LGE 0RH6802C622 Contact Us For Availability
R513
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R515
Resistor,Chip LGE 0RH3900C622 Contact Us For Availability
R517
Resistor,Array LGE 0RRZVTA001F Contact Us For Availability
R525
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R541
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R551
RESISTOR,DRAWING LGE 0RRZVTA0011 Contact Us For Availability
R558
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R574
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
R587
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R589
Resistor,Chip LGE 0RH5101C622 Contact Us For Availability
R592
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R629
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R639
Resistor,Carbon Film LGE 0RD1201F609 Contact Us For Availability
R640
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R641
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R666
RESISTOR FIXED CARBON FILM AXJ LGE 0RD1003F609 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R903
Resistor,Carbon Film LGE 0RD0822F609 Contact Us For Availability
R905
RESISTOR FIXED CARBON FILM KCN LGE 0RD4702F609 Contact Us For Availability
R909
RESISTOR,FIXED METAL LGE 0RS0680K618 Contact Us For Availability
R912
RESISTOR,FIXED METAL LGE 0RS0330K618 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R932
LGE 0RD2703F609 LGE 0RD2703F609 Contact Us For Availability
R933
Resistor,Carbon Film LGE 0RD5600F609 Contact Us For Availability
R934
Resistor,Carbon Film LGE 0RD3902F609 Contact Us For Availability
R941
Resistor,Carbon Film LGE 0RD0562F609 Contact Us For Availability
R943
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R944
RESISTOR FIXED CARBON FILM SKN LGE 0RD2001F609 Contact Us For Availability
R946
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R947
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R948
Resistor,Carbon Film LGE 0RD1500F609 Contact Us For Availability
R949
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R951
LGE 0RM4700S610 LGE 0RM4700S610 Contact Us For Availability
R972
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R973
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R976
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
R979
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R980
Resistor,Chip LGE 0RH3903D622 Contact Us For Availability
RM650
REMOTE CONTROLLER RECEIVER LGE 6712R2038GF Contact Us For Availability
SW606
SWITCH,TACT LGE 556-219B Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170RNGW18Q Contact Us For Availability
T902
TRANSFORMER,SMPS[COI LGE 6170RNGW18Y Contact Us For Availability
TH901
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
TU101
TUNER LGE 6700FM0131A Contact Us For Availability
VOL001
VOLUME,ENCODER LGE 6110E00018A Contact Us For Availability
VR901
VARISTOR LGE 6102R2A002A Contact Us For Availability
WIRE71
PWB(PCB) ASSEMBLY,SU LGE 6871RU9308C Contact Us For Availability
WIRE81
PWB(PCB) ASSEMBLY,SU LGE 6871RU9308A Contact Us For Availability
WIRE82
PWB(PCB) ASSEMBLY,SU LGE 6871RU9308B Contact Us For Availability
WIRE83
PWB(PCB) ASSEMBLY,SU LGE 6871RU9308D Contact Us For Availability
WIRE84
PWB(PCB) ASSEMBLY,SU LGE 6871RU9308E Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6212AA2125K Contact Us For Availability
X201
OSCILLATOR,STD LGE 6204R-HK01C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2270H Contact Us For Availability
ZD03
Diode,Switching LGE 0DD204009AA Contact Us For Availability
ZD05
DIODE,ZENERS LGE 0DZRM00338A Contact Us For Availability
ZD11
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD914
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD921
DIODE,ZENERS LGE 0DZ910009AG Contact Us For Availability
ZD971
Diode,Zener LGE 0DZ330009AR Contact Us For Availability
ZD973
Diode,Zener LGE 0DZ270009BC Contact Us For Availability
× ![]()
Login and Registration Form
