Model LG Z20LA7R – Common Parts & Diagrams

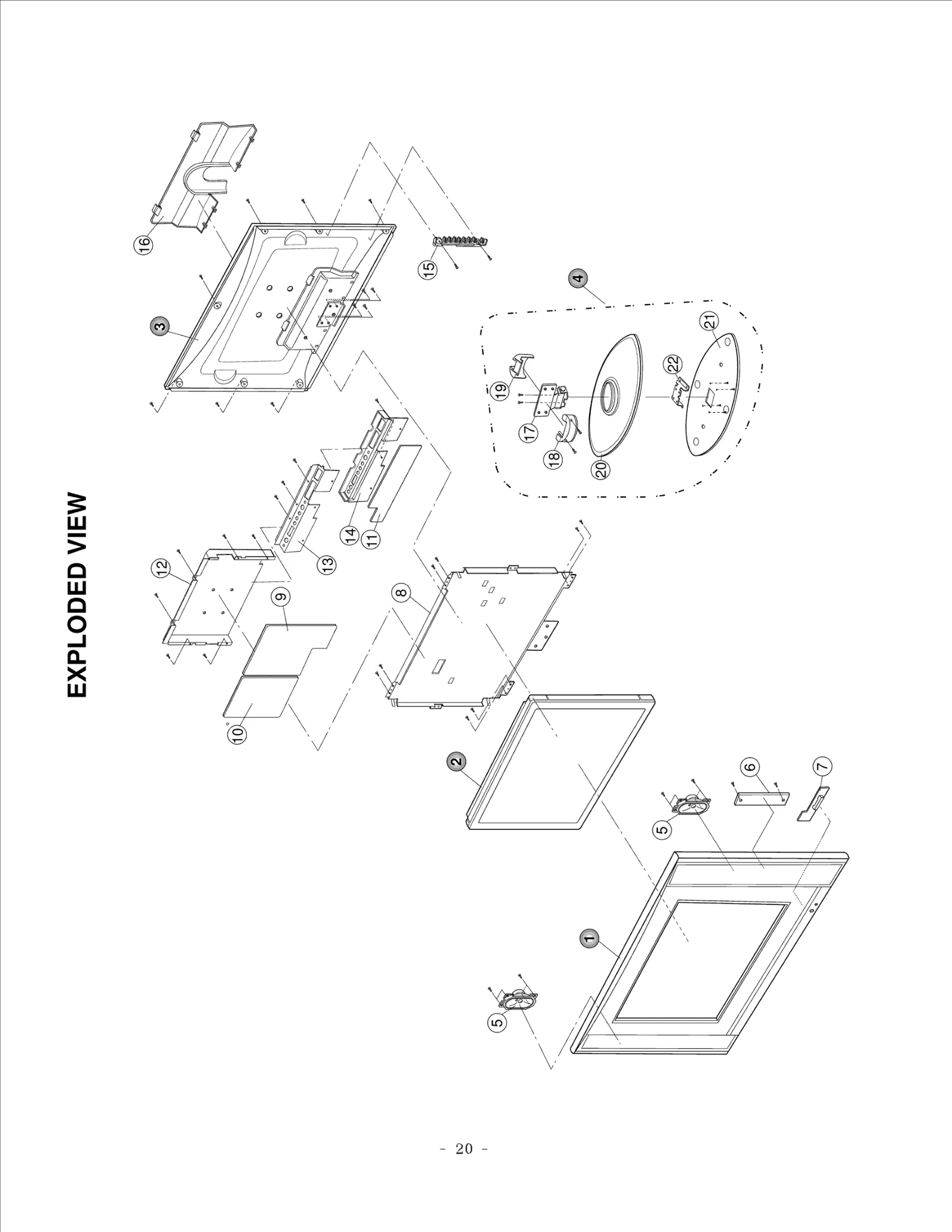

Diagram 0
Diagram 1
Common parts from model LG Z20LA7R
1
CABINET ASSEMBLY LGE 3091TKD005S Contact Us For Availability
2
LCD(LIQUID CRYSTAL D LGE 6304FLP188A Contact Us For Availability
2
LCD,Module-TFT LGE 6304FLP139A Contact Us For Availability
3
BACK COVER ASSEMBLY LGE 3809TKD002Q Contact Us For Availability
4
BRACKET ASSEMBLY LGE 4811V00073C Contact Us For Availability
5
Speaker,Fullrange LGE EAB30825701 Contact Us For Availability
6
PWB(PCB) ASSEMBLY,SU LGE 6871TST976A Contact Us For Availability
7
PWB(PCB) ASSEMBLY,SU LGE 6871TST972A Contact Us For Availability
8
METAL ASSEMBLY LGE 4951TKS175F Contact Us For Availability
9
MAIN TOTAL ASSEMBLY LGE 3313TN2030A Contact Us For Availability
10
PCB Assembly,Power LGE 6871TPT280D Contact Us For Availability
10
PWB(PCB) ASSEMBLY,PO LGE 6871TPT280K Contact Us For Availability
11
PWB(PCB) ASSEMBLY,SU LGE 6871TST964A Contact Us For Availability
12
METAL ASSEMBLY LGE 4951TKK186L Contact Us For Availability
13
Plate LGE 4950TKK916A Contact Us For Availability
14
Bracket LGE 4810V00925B Contact Us For Availability
15
Button LGE 5020V00871A Contact Us For Availability
16
COVER LGE 3550V00383A Contact Us For Availability
17
METAL LGE 4950V00157E Contact Us For Availability
18
BRACKET LGE 4810V00767A Contact Us For Availability
19
BRACKET LGE 4810V00768A Contact Us For Availability
20
Bracket LGE 4810V00924A Contact Us For Availability
21
Plate LGE 4950V00194A Contact Us For Availability
22
Plate LGE 4950V00193A Contact Us For Availability
A1
PRINTING PART ASSEMB LGE 3871TZL318D Contact Us For Availability
A2
REMOTE CONTROLLER LGE 6710V00091H Contact Us For Availability
A3
POWER CORD LGE 6410VUH007A Contact Us For Availability
C1
Harness,Single LGE 6631T25019J Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T11017R Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631T25019Y Contact Us For Availability
C4
Harness,Single LGE 6631T20029X Contact Us For Availability
C5
CONNECTOR ASSEMBLY LGE 6631T11021B Contact Us For Availability
C9
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C17
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C24
CAPACITOR,FIXED CERA LGE 0CK822CK56A Contact Us For Availability
C28
CAPACITOR,FIXED CERA LGE 0CK334CF94A Contact Us For Availability
C46
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C46
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C57
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C82
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C89
CAPACITOR,FIXED CERA LGE 0CC390CK41A Contact Us For Availability
C108
CAPACITOR,FIXED ELEC LGE 0CE476VH6DC Contact Us For Availability
C109
Capacitor,Ceramic,Chip LGE 0CH2103K516 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C117
CAPACITOR,FIXED CERA LGE 0CK562CK51A Contact Us For Availability
C119
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C126
CAPACITOR,FIXED CERA LGE 0CK105EK56A Contact Us For Availability
C130
C,MPE LGE 181-007F Contact Us For Availability
C133
CAPACITOR,ELECTROLYTIC LGE 0CE477BH618 Contact Us For Availability
C801
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C812
CAPACITOR,FIXED CERA LGE 0CK105DF64A Contact Us For Availability
C859
CAPACITOR,CHIP[AL. E LGE 0CH8476F691 Contact Us For Availability
C914
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C924
Capacitor,Ceramic,Chip LGE 0CH5080K116 Contact Us For Availability
C964
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3104K946 Contact Us For Availability
C1005
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C1008
Capacitor,AL,Radial LGE 0CE227CF638 Contact Us For Availability
C1010
CAPACITOR,FIXED CERA LGE 0CK273DK51A Contact Us For Availability
C1010
Capacitor,Ceramic,Ch LGE 0CH2273K516 Contact Us For Availability
C1015
CAPACITOR,CHIP[CERAMIC M/L TC LGE 0CH5390K416 Contact Us For Availability
C1106
CAPACITOR,FIXED ELEC LGE 0CE477BD618 Contact Us For Availability
C1108
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C1134
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C1135
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1140
CAPACITOR ELECTROLYT 220U KME LGE 0CE227BH638 Contact Us For Availability
C1152
CAPACITOR,ELECTROLYT LGE 0CE107BK638 Contact Us For Availability
C1224
CAPACITOR,CHIP LGE 0CH5471K416 Contact Us For Availability
D100
DIODE,RECTIFIERS LGE 0DRFC00288A Contact Us For Availability
D103
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D107
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D1151
DIODE,ZENER LGE 0DZ330009DF Contact Us For Availability
FI1
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
IC1
IC,PERIPHERALS LGE 0IPRPMN003G Contact Us For Availability
IC4
IC,MICRO CONTROLLER LGE 0IMCRAL006A Contact Us For Availability
IC4
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC101
IC,Audio Amplifier LGE 0IMCRMZ002B Contact Us For Availability
IC101
IC,MICRO CONTROLLER LGE 0IMCRMZ002A Contact Us For Availability
IC202
IC,STANDARD LOGIC LGE 0ISTL00026A Contact Us For Availability
IC800
IC,PERIPHERALS LGE 0IPRPNP001A Contact Us For Availability
IC901
IC,PERIPHERALS LGE 0IPRPGN015C Contact Us For Availability
IC905
IC,DRAWING LGE 0IZZTSA047A Contact Us For Availability
IC905
SOCKET(CIRC),IC LGE 6620F00017A Contact Us For Availability
IC1103
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
IC1106
IC,LDO Voltage Regulator LGE 0IPMGSG020A Contact Us For Availability
IC1111
IC,POWER MANAGEMENT LGE 0IPMG00004A Contact Us For Availability
IC1111
IC,POWER MANAGEMENT LGE 0IMCRFA015A Contact Us For Availability
IC1113
IC,SAMSUNG ELECTRONICS LGE 0ISS780800J Contact Us For Availability
IC1115
IC,POWER MANAGEMENT LGE 0IPMGFA061A Contact Us For Availability
JA200
CONNECTOR (CIRC),D-S LGE 6630G15E215 Contact Us For Availability
L15
INDUCTOR,CHIP LGE 0LC1032101A Contact Us For Availability
L15
Inductor,Multilayer,Chip LGE EAP40283004 Contact Us For Availability
L104
COIL,CHOKE LGE 6140TBZ045A Contact Us For Availability
L905
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
L1001
Inductor,Multilayer,Chip LGE EAP39314710 Contact Us For Availability
L1001
INDUCTOR,CHIP LGE 0LC1020101A Contact Us For Availability
L1104
RESISTOR CHIP 22K 1/10W 5 D.R LGE 0RH2202D622 Contact Us For Availability
L1105
Filter,Bead LGE EAM30764101 Contact Us For Availability
L1150
COIL CHOKE 2.4MH CS-580 LGE 150-985B Contact Us For Availability
L1206
Filter,Bead LGE EAM38769501 Contact Us For Availability
L1209
INDUCTOR,CHIP LGE 0LC0233002A Contact Us For Availability
LED2100
LED LGE 0DL200000CA Contact Us For Availability
P210
Connector,Wafer LGE 6602T20008E Contact Us For Availability
P1100
CONNECTOR ASSEMBLY LGE 6631T20028G Contact Us For Availability
P2101
Harness,Single LGE 6631T25021A Contact Us For Availability
P2200
Connector,Wafer LGE 6602T25009B Contact Us For Availability
Q101
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q1000
TRANSISTOR LGE 0TR388109AA Contact Us For Availability
R6
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R17
RESISTOR,METAL GLAZE LGE 0RJ0822D677 Contact Us For Availability
R18
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R21
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R23
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R37
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R43
RESISTOR CHIP 18K 1/10W 5 D.R LGE 0RH1802D622 Contact Us For Availability
R46
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R59
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R80
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R106
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R126
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R131
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R137
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R147
RESISTOR CHIP 39 1/10W 5 D.R/T LGE 0RH0392D622 Contact Us For Availability
R219
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R901
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R911
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R915
RESISTOR CHIP LGE 0RH3600D622 Contact Us For Availability
R920
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R989
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R1001
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R1004
RESISTOR CHIP LGE 0RH3000D622 Contact Us For Availability
R1005
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R1012
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R1108
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R1150
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R1151
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R1226
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R1232
RESISTOR CHIP 5.1K 1/10W 5 D. LGE 0RH5101D622 Contact Us For Availability
R1235
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R2111
RESISTOR CHIP 4.3K 1/10W 5 LGE 0RH4301D622 Contact Us For Availability
R2200
Resistor,Metal Film LGE 0RN1101F409 Contact Us For Availability
R2201
Resistor,Metal Film LGE 0RN8200F409 Contact Us For Availability
R2205
Resistor,Metal Film LGE 0RN3300F409 Contact Us For Availability
R2206
Resistor,Metal Film LGE 0RN2700F409 Contact Us For Availability
R2207
RESISTOR FIX METAL FILM 3.30K LGE 0RN3301F409 Contact Us For Availability
R2208
Resistor,Metal Film LGE 0RN2000F409 Contact Us For Availability
SW2204
SWITCH TACT LGE 140-313B Contact Us For Availability
TU1000
TUNER LGE 6700NFNS11J Contact Us For Availability
X900
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
Z1000
FILTER(CIRC),SAW LGE 6200QL3002Q Contact Us For Availability
ZD201
DIODE,ZENER LGE 0DZ510009EE Contact Us For Availability
ZD201
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
ZD209
DIODE,ZENER LGE 0DZ620009HB Contact Us For Availability
× ![]()
