Model LG Z19LCD3 LCD MONITOR – Common Parts & Diagrams
Diagram 0

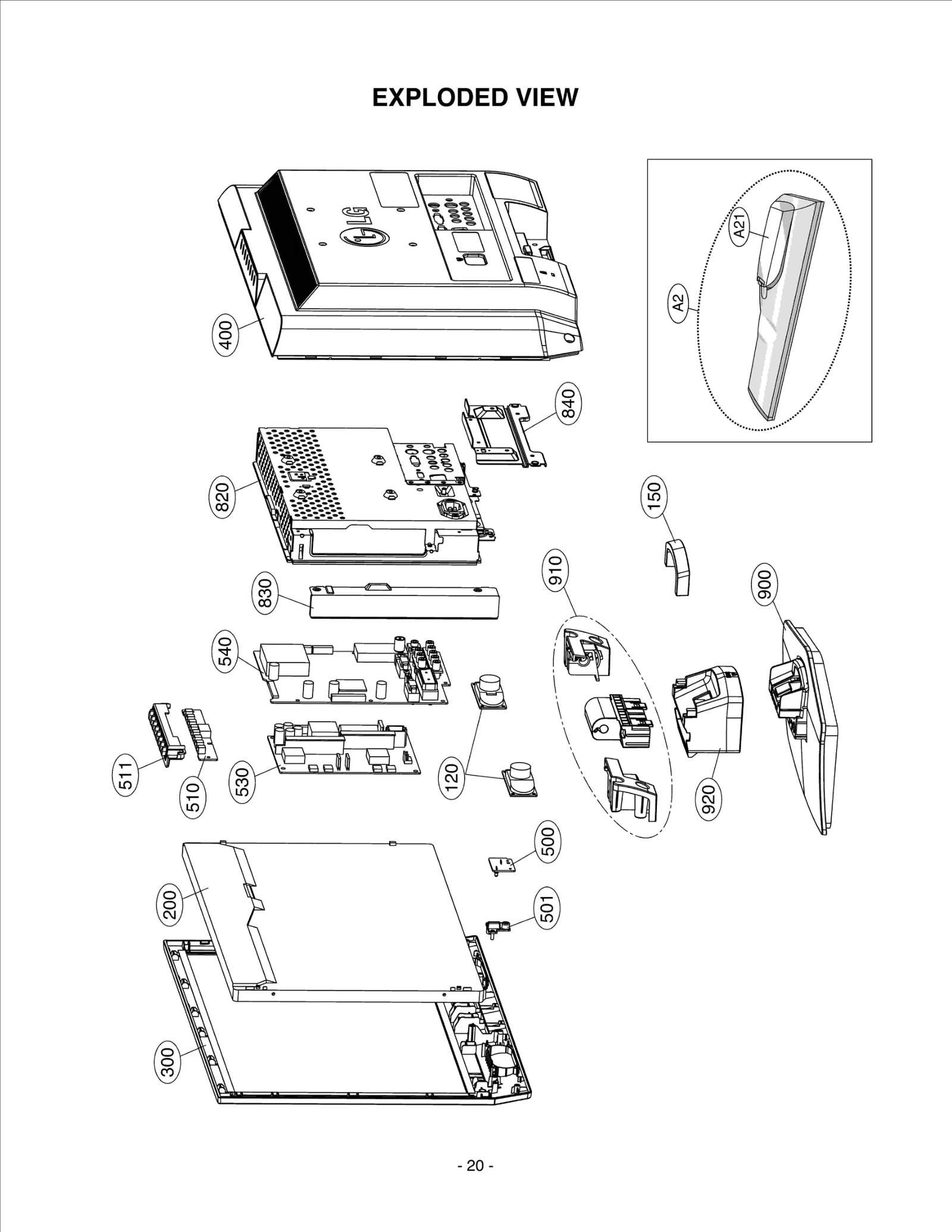

Diagram 1
Common parts from model LG Z19LCD3 LCD MONITOR
150
Cover LGE MCK42697501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ42097501 Contact Us For Availability
300
Cabinet Assembly LGE ABJ36945604 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ36946402 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR38983401 Contact Us For Availability
501
Indicator LGE MES42702201 Contact Us For Availability
510
PCB Assembly LGE EBR36361901 Contact Us For Availability
511
Knob LGE MEY42697101 Contact Us For Availability
530
Power Supply Assembl LGE EAY37155801 Contact Us For Availability
540
Main Total Assembly LGE EBU39055706 Contact Us For Availability
820
Frame Assembly LGE ADV36946802 Contact Us For Availability
830
Plate,Shield LGE MGJ42698401 Contact Us For Availability
840
Plate,Metal LGE MGJ42702002 Contact Us For Availability
900
Base Assembly LGE AAN36946102 Contact Us For Availability
910
Base Assembly LGE AAN36946501 Contact Us For Availability
920
Cover LGE MCK42697701 Contact Us For Availability
A1
Manual,Owners LGE MFL34797061 Contact Us For Availability
A2
Remote Controller LGE MKJ36998104 Contact Us For Availability
A4
Title LGE SAC30708027 Contact Us For Availability
A5
CORD,A/V LGE 6852TAZ010F Contact Us For Availability
A21
Cover LGE MCK36759201 Contact Us For Availability
AR100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C143
CAPACITOR,DRAWING LGE 0CZZTCT006D Contact Us For Availability
C150
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C423
CAPACITOR,FIXED CERA LGE 0CK225DFK4A Contact Us For Availability
C431
Capacitor,Ceramic,Ch LGE EAE32755801 Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C438
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C439
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C500
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C516
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C623
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C709
CAPACITOR,FIXED CERA LGE 0CK822CK56A Contact Us For Availability
C713
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C714
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C715
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C719
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C720
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C732
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C739
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C757
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C804
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C4001
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C5000
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C5002
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
D401
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D618
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC100
IC,Video Processors LGE EAN37156401 Contact Us For Availability
IC104
IC,STANDARD LOGIC LGE 0ISTLPH026A Contact Us For Availability
IC105
S/W,Firmware LGE SAA31730908 Contact Us For Availability
IC201
IC,DDR SDRAM LGE EAN32205201 Contact Us For Availability
IC400
IC,Data Controller LGE 0ICTMLG019C Contact Us For Availability
IC500
IC,Audio Amplifier LGE EAN33643401 Contact Us For Availability
IC600
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC702
IC,DC,DC Converter LGE EAN33143501 Contact Us For Availability
IC708
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC710
IC,LDO Voltage Regul LGE 0IPMG78346A Contact Us For Availability
J800
Jack,DIN LGE 6612B00015C Contact Us For Availability
JK600
Jack,RCA LGE 6612J10003K Contact Us For Availability
JK604
JACK,PHONE LGE 6612F00099A Contact Us For Availability
JK605
Connector,DSUB LGE 6630TGA004K Contact Us For Availability
L303
Filter,Bead LGE EAM38769501 Contact Us For Availability
L402
INDUCTOR,CHIP LGE 0LCML00020B Contact Us For Availability
L407
Inductor,Multilayer, LGE EAP39314701 Contact Us For Availability
L501
Inductor,Wire Wound, LGE EAP32842806 Contact Us For Availability
L712
Filter,Bead LGE EAM30764101 Contact Us For Availability
LED5000
LED,DIP LGE EAV37115601 Contact Us For Availability
P302
Conector,Wafer LGE 6630V90219A Contact Us For Availability
P304
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P500
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P4000
Conector,Wafer LGE 6602T20009B Contact Us For Availability
PA5000
REMOTE CONTROLLER RE LGE 6712SCA232A Contact Us For Availability
Q304
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q400
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R175
Resistor,Chip LGE EBC32306001 Contact Us For Availability
R176
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R217
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R301
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R423
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R426
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R437
Resistor,Array LGE EBC32260601 Contact Us For Availability
R600
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R605
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R635
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R639
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R707
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ8252D477 Contact Us For Availability
R715
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R728
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R729
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R732
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R734
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ4320D477 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R825
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R4000
Resistor,Metal Film LGE 0RN6801F409 Contact Us For Availability
R4001
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R4002
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R5001
Resistor,Chip LGE 0RH3001D622 Contact Us For Availability
S1
CONNECTOR ASSEMBLY LGE 6631T20033X Contact Us For Availability
S2
Harness,Single LGE 6631900022P Contact Us For Availability
S3
Harness,Single LGE 6631900109B Contact Us For Availability
S5
Socket,Power LGE 6620K00017C Contact Us For Availability
SW4001
Switch,Tact LGE 140-058B Contact Us For Availability
SW4001
Switch,Tact LGE 6600R00001B Contact Us For Availability
TU400
Tuner,Analog/Digital LGE EBL37676801 Contact Us For Availability
X400
RESONATOR,CRYSTAL LGE 6212AB2872A Contact Us For Availability
ZD4000
DIODE,ZENER LGE 0DZ560009CF Contact Us For Availability
ZD5000
DIODE,ZENERS LGE 0DZRM00178A Contact Us For Availability
× ![]()
