Model Whirlpool YPL1110ADH GAS RANGE – Common Parts & Diagrams

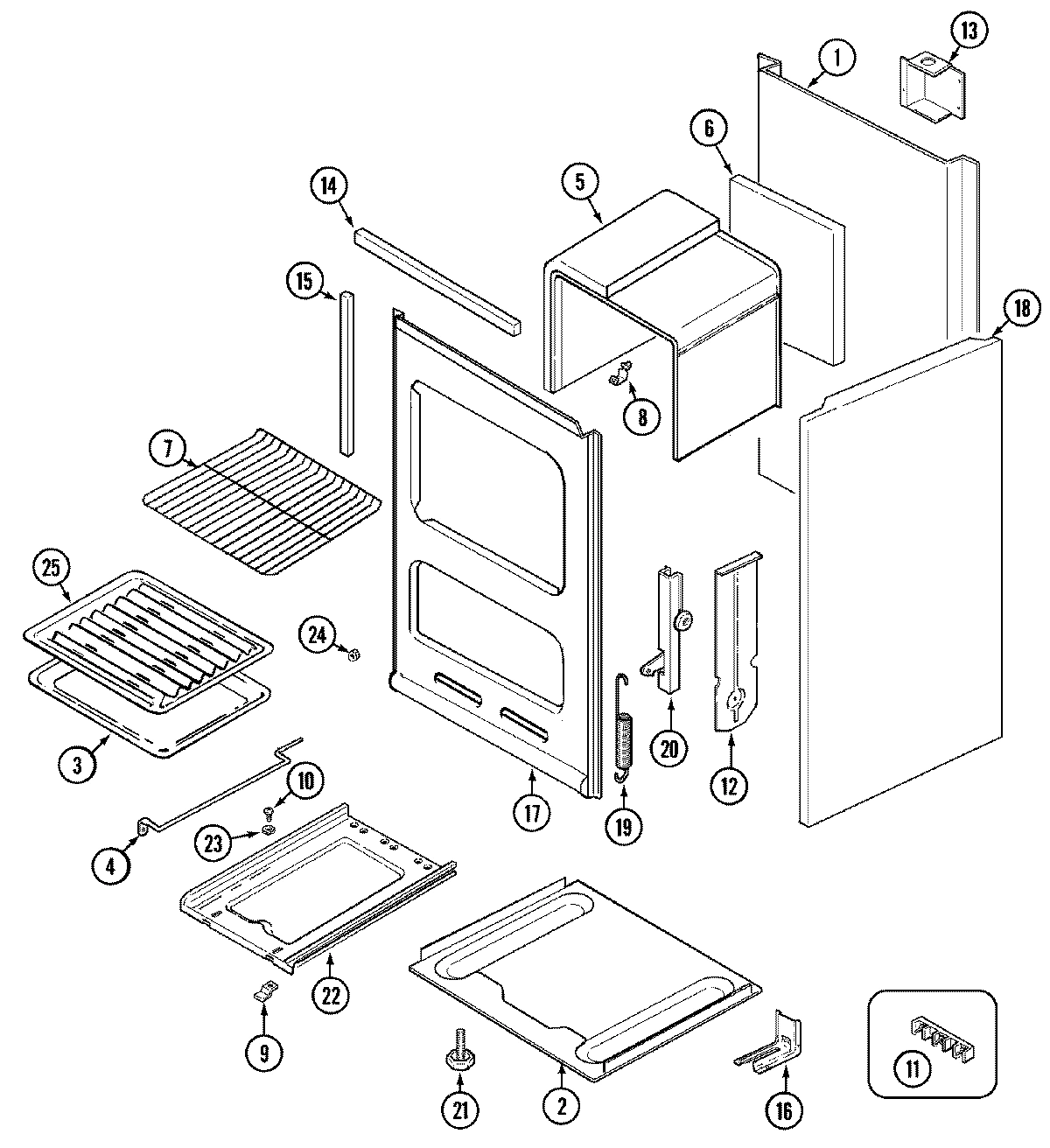

03 - OVEN/BODY

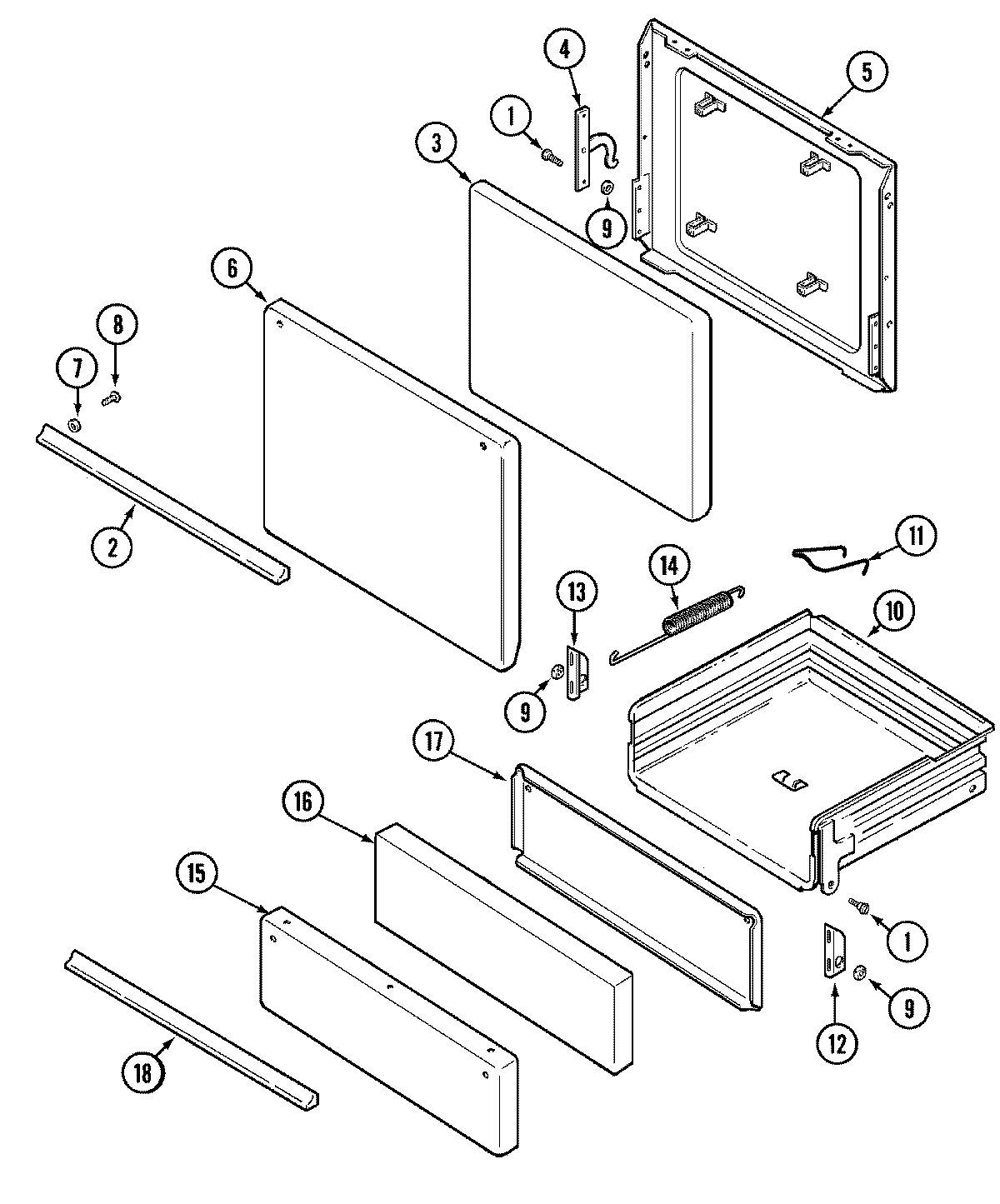

01 - DOOR/DRAWER

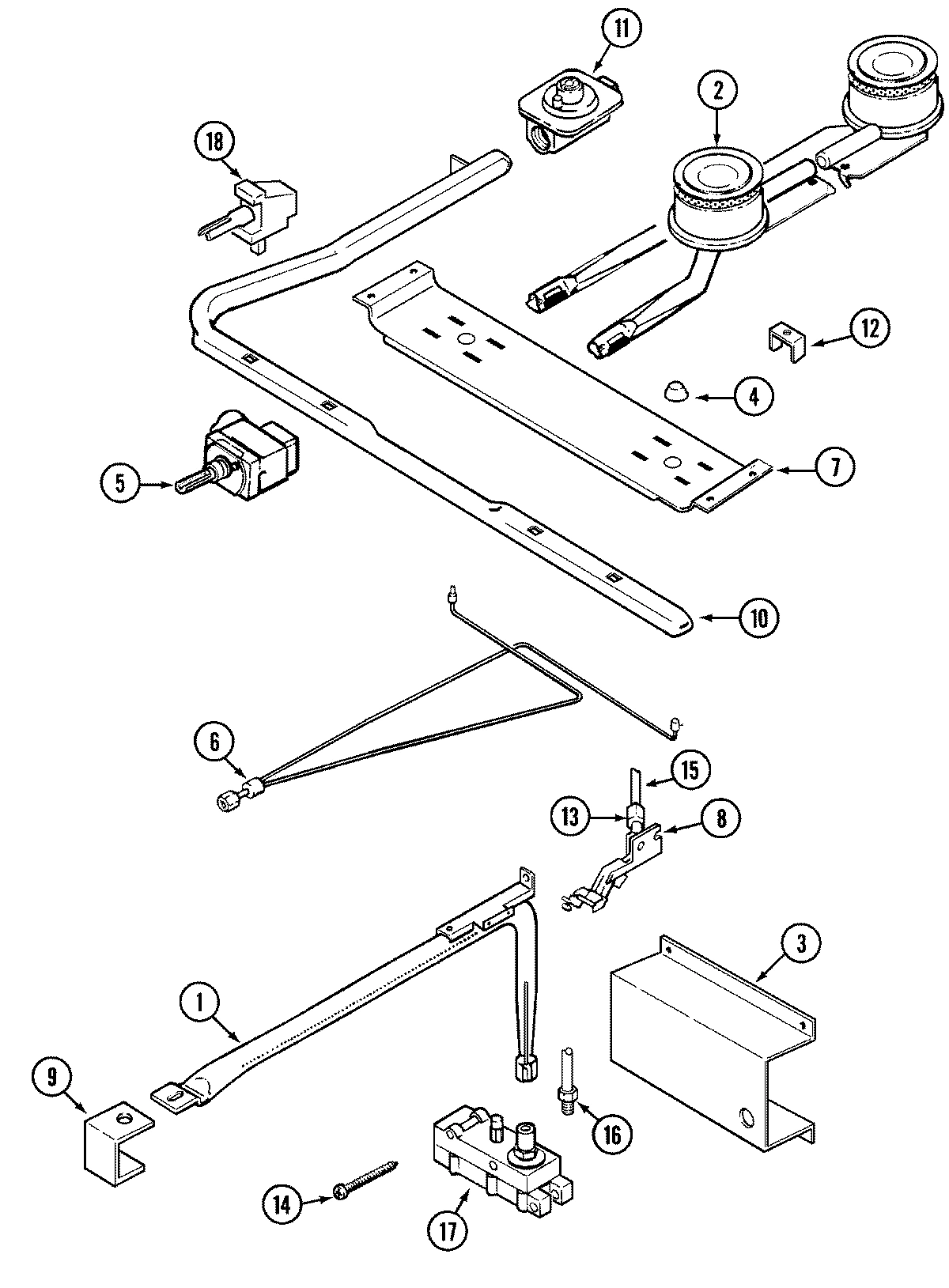

02 - GAS CONTROLS

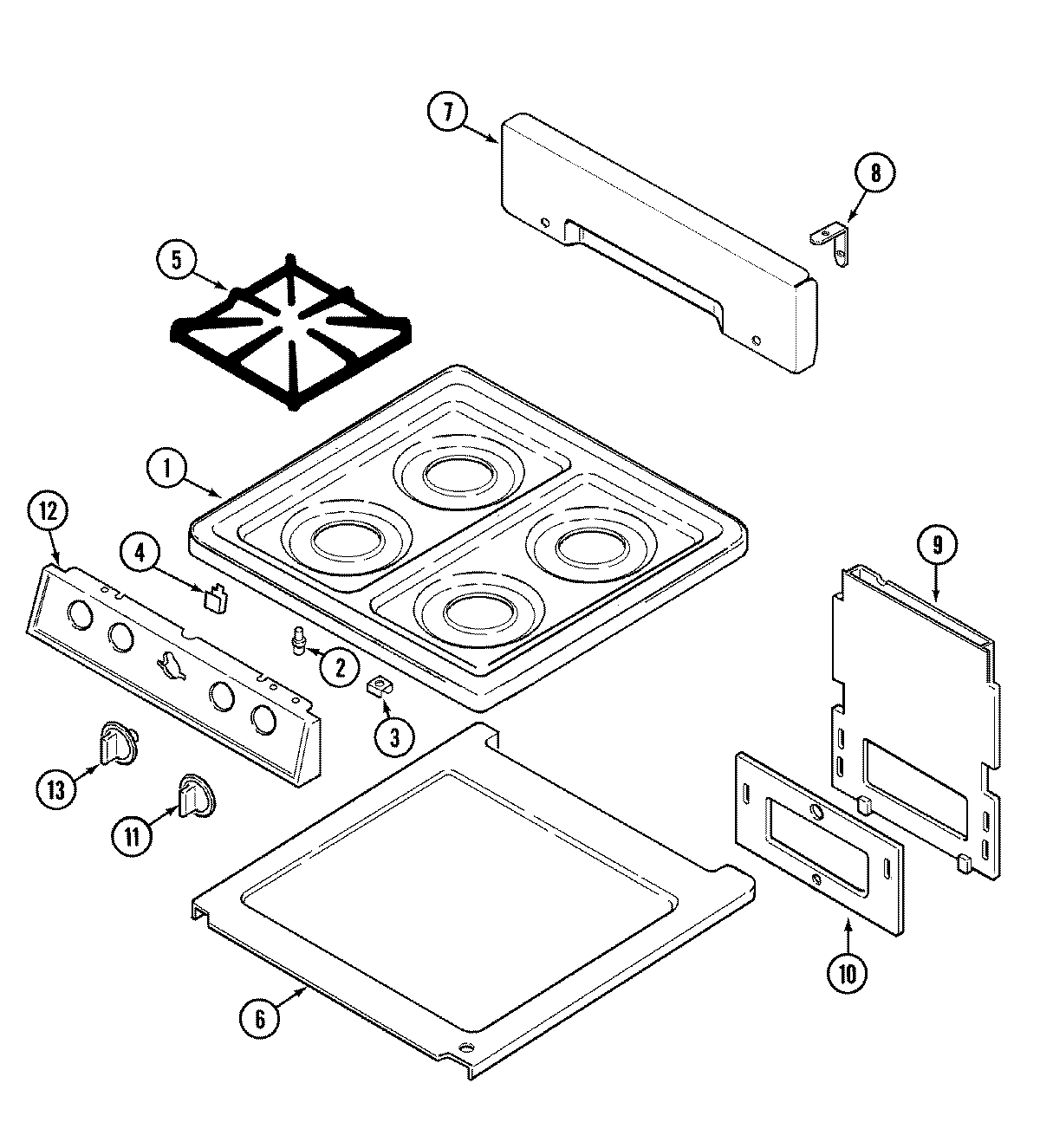

04 - TOP ASSEMBLY
Common parts from model Whirlpool YPL1110ADH GAS RANGE
1
SCREW WPL 7101P07260 Contact Us For Availability
1
BOLT, SHOULDER WPL 7118P00960 Contact Us For Availability
1
BURNER, OVEN WPL 3403D04045 Contact Us For Availability
1
TOP, MAIN (WHT) WPL 2001F05081 Contact Us For Availability
1
NUT, PROJECTION WELD WPL 7103P08960 Contact Us For Availability
2
BASE, MAIN WPL 4003A01480 Contact Us For Availability
2
HANDLE, DOOR (CHR)----NA WPL 74001871 Contact Us For Availability
2
BURNER, TOP (FRT) WPL 74003299 Contact Us For Availability
2
BURNER, TOP (REAR) WPL 74003300 Contact Us For Availability
2
STRIKE, MAIN TOP WPL 8024P00360 Contact Us For Availability
3
PAN, BROILER WPL 3401F01619 Contact Us For Availability
3
INSULATION, OVEN DOOR WPL 7002P10260 Contact Us For Availability
3
SUPPORT, OVEN VALVE WPL 3807F36945 Contact Us For Availability
3
NUT, STRIKE WPL 7103P10560 Contact Us For Availability
4
ROD, BROILER RUNNER (LT) WPL 3808F00761 Contact Us For Availability
4
ROD, BROILER RUNNER (RT) WPL 3808F00861 Contact Us For Availability
4
SCREW WPL 7101P06860 Contact Us For Availability
4
HINGE, OVEN DOOR WPL 3418F05334 Contact Us For Availability
4
CONE, TOP LIGHTER----NA WPL 8030P00160 Contact Us For Availability
4
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
5
INSULATION, OVEN WRAP WPL 7002P08360 Contact Us For Availability
5
LINING, DOOR WPL 2402W10219 Contact Us For Availability
5
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
5
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
5
SCREW, CONTROL WPL 7101P01060 Contact Us For Availability
5
THERMOSTAT WPL 74002425 Contact Us For Availability
6
INSULATION, OVEN BACK WPL 7002P09160 Contact Us For Availability
6
PANEL, OVEN DOOR (WHT) WPL 2401W05971 Contact Us For Availability
6
SCREW WPL 7101P05960 Contact Us For Availability
6
PILOT, BURNER (TOP) WPL 7505P07360 Contact Us For Availability
6
BOX, BURNER WPL 74003292 Contact Us For Availability
7
RACK, OVEN WPL 7801P01960 Contact Us For Availability
7
NUT WPL 7103P03460 Contact Us For Availability
7
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
7
SUPPORT, TOP BURNER WPL 74003301 Contact Us For Availability
7
SUPPORT, TOP BURNER WPL 74010144 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 74003293 Contact Us For Availability
8
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
8
LIGHTER PILOT WPL 7432P06960 Contact Us For Availability
8
BRACKET, SUPPORT WPL 74003271 Contact Us For Availability
9
CLIP, OVEN BOTTOM PL WPL 3819F01161 Contact Us For Availability
9
NUT LOCK WPL 7103P07260 Contact Us For Availability
9
SUPPORT, BURNER WPL 3807F33651 Contact Us For Availability
9
DEFLECTOR, VENT BOX WPL 74003294 Contact Us For Availability
10
SCREW WPL 7118P00460 Contact Us For Availability
10
DRAWER, BROILER WPL 3407W00519 Contact Us For Availability
10
MANIFOLD, PIPE WPL 74003302 Contact Us For Availability
10
GASKET, VENT DEFLECT WPL 7201P03860 Contact Us For Availability
11
INSERT PAN WPL 3413F00719 Contact Us For Availability
11
STOP, BROILER DRAWER WPL 7809P00460 Contact Us For Availability
11
REGULATOR, PRESSURE WPL 7510P04960 Contact Us For Availability
11
KNOB, VALVE (BLK) WPL 74003297 Contact Us For Availability
12
CHANNEL AIR SIDE WPL 3818F03451 Contact Us For Availability
12
HINGE, BROILER DRAWER (RT) WPL 3418F03580 Contact Us For Availability
12
SHIELD TOP LIGHTER WPL 3604F12251 Contact Us For Availability
12
SCREW WPL 7101P06160 Contact Us For Availability
12
NUT, TINNERMAN WPL 7103P10060 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 74003305 Contact Us For Availability
12
PANEL, MANIFOLD (BLK) WPL 74005448 Contact Us For Availability
13
COVER WIRE ASSY WPL 4005F32645 Contact Us For Availability
13
HINGE, BROILER DRAWER (LT) WPL 3418F03480 Contact Us For Availability
13
NUT & FERRULE (3/16``) WPL 1555261K Contact Us For Availability
13
KNOB, THERMOSTAT (BLK) WPL 74003296 Contact Us For Availability
14
SEAL, DOOR (TOP) WPL 7212P01460 Contact Us For Availability
14
SPRING, BROILER DRAWER WPL 7803P06860 Contact Us For Availability
14
SCREW No.10 X 2 WPL 7101P06260 Contact Us For Availability
15
SEAL, DOOR (SIDE) WPL 7212P01560 Contact Us For Availability
15
PANEL, DRAWER (WHT) WPL 2403W01971 Contact Us For Availability
15
TUBING, CNTRL/PILO (3/16``) WPL 3414F01344 Contact Us For Availability
15
MANUAL, USE & CARE WPL 74003054 Contact Us For Availability
16
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
16
INSULATION, BROILER DOOR WPL 7002P06760 Contact Us For Availability
16
TUBING, 3/8 WPL 3414F04444 Contact Us For Availability
16
GUIDE, QUICK REF - CROSLEY WPL 16002080 Contact Us For Availability
17
VALVE, SAFETY (20``) WPL 74010590 Contact Us For Availability
17
FRONT, MAIN WPL 2201W08919 Contact Us For Availability
17
NUT 10-24 WPL 7103P07160 Contact Us For Availability
17
LINING DOOR BROILER WPL 2404F02219 Contact Us For Availability
17
VALVE, OVEN WPL 7501P06860 Contact Us For Availability
18
PANEL, SIDE (WHT) WPL 74003185 Contact Us For Availability
18
SCREW, HANDLE WPL 7101P28360 Contact Us For Availability
18
HANDLE (SHORT-CHR) WPL 74001820 Contact Us For Availability
18
KIT, VALVE & SCREW (MUELLER) WPL 12002244 Contact Us For Availability
18
VALVE, TOP BURNER WPL 74003303 Contact Us For Availability
19
CONVERSION KIT (LP) WPL 12002560 Contact Us For Availability
19
SPRING, OVEN DOOR WPL 7803P03260 Contact Us For Availability
20
SUPPORT, HINGE (LT) WPL 3807F29034 Contact Us For Availability
20
SUPPORT, HINGE (RT) WPL 3807F29134 Contact Us For Availability
20
NUT WPL 7103P06460 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
22
PLATE, OVEN BOTTOM WPL 5720A00323 Contact Us For Availability
23
WASHER WPL 7109P01560 Contact Us For Availability
24
NUT, EXPANSION WPL 7103P08060 Contact Us For Availability
× ![]()
