Model Maytag YNED7300WW2 ELECTRIC DRYER – Common Parts & Diagrams

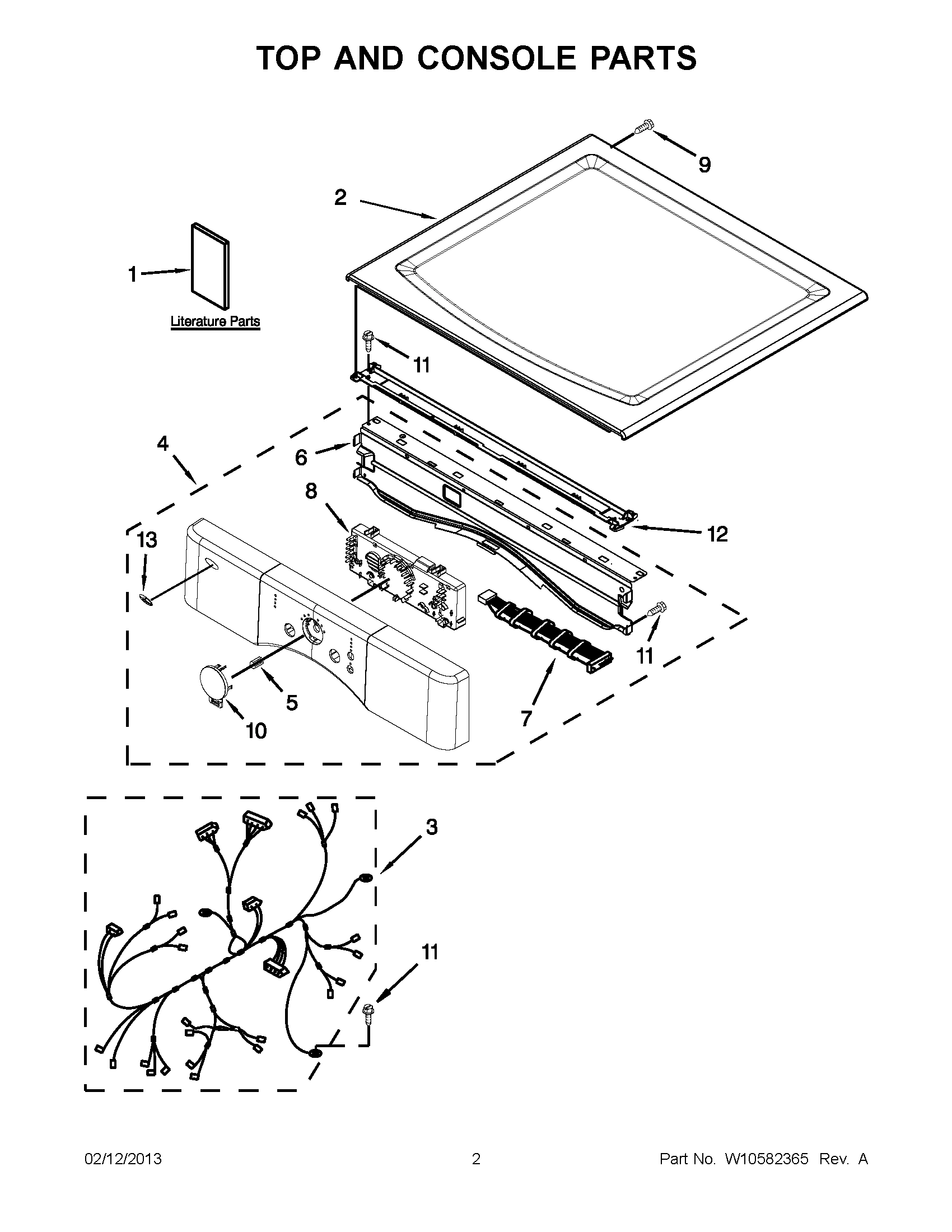

01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YNED7300WW2 ELECTRIC DRYER
1
MAY W10240875 MAY W10240875 Contact Us For Availability
1
MAY W10443045 MAY W10443045 Contact Us For Availability
1
MAY W10443109 MAY W10443109 Contact Us For Availability
1
MAY W10286180 MAY W10286180 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
LABEL, HINGE HOLE COVER (WHITE) MAY W10256915 Contact Us For Availability
2
TOP (WHITE) MAY W10336080 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
SCREW MAY 3390814 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY W10304672 Contact Us For Availability
3
MAY W10555108 MAY W10555108 Contact Us For Availability
3
MAY 8519459 MAY 8519459 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
SCREEN, DOOR (NOT SERVICEABLE SPERATELY, ORDE MAY W10215741 Contact Us For Availability
4
PANEL, CONSOLE ASSEMBLY MAY W10215746 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 8066099 MAY 8066099 Contact Us For Availability
4
SCREW MAY 8534044 Contact Us For Availability
5
SPRING, BUTTON MAY W10215807 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY W10283424 MAY W10283424 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
MAY 694415 MAY 694415 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
MAY W10215742 MAY W10215742 Contact Us For Availability
7
MAY W10259049 MAY W10259049 Contact Us For Availability
7
MAY W10542714 MAY W10542714 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
SEAL, DOOR MAY W10163915 Contact Us For Availability
8
ASSEMBLY, USER INTERFACE MAY W10215814 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
SCREW MAY W10006580 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
9
Screw MAY 9742177 Contact Us For Availability
10
MAY W10311352 MAY W10311352 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
INNER DOOR ASSEMBLY MAY W10198441 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
CHANNEL, WATER DRYER MAY W10266747 Contact Us For Availability
12
MAY W10404617 MAY W10404617 Contact Us For Availability
12
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
12
Screw MAY 3393258 Contact Us For Availability
13
BADGE MAY W10216285 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
Screw MAY 8533971 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
STRIKE, DOOR MAY 8565122 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY 8579663 MAY 8579663 Contact Us For Availability
16
Bracket, Control MAY 8563727 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
RETAINER, LOWER WINDOW MAY 8519354 Contact Us For Availability
17
SCREW MAY 3357011 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8534022 MAY 8534022 Contact Us For Availability
18
MAY W10121334 MAY W10121334 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
19
DOOR SWITCH ASSEMBLY MAY W10350910 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY W10215754 MAY W10215754 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
20
INNER DOOR ASSEMBLY MAY W10564641 Contact Us For Availability
21
MAY W10354249 MAY W10354249 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
TRIM RING, OUTER DOOR (WHITE) MAY W10215753 Contact Us For Availability
22
MAY 8565083 MAY 8565083 Contact Us For Availability
22
PIPE, EXHAUST MAY 8563728 Contact Us For Availability
23
LABEL, HINGE HOLE COVER (WHITE) MAY W10085210 Contact Us For Availability
23
Housing, Outlet MAY W10153423 Contact Us For Availability
24
MAY W10153412 MAY W10153412 Contact Us For Availability
25
MAY 8565059 MAY 8565059 Contact Us For Availability
25
DRUM ASSEMBLY, COMPLETE MAY W10549246 Contact Us For Availability
26
SCREW MAY 343641 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10317045 MAY W10317045 Contact Us For Availability
27
SEAL, DRUM (FRONT) MAY W10521118 Contact Us For Availability
28
MAY 3393008 MAY 3393008 Contact Us For Availability
28
SCREW MAY 695240 Contact Us For Availability
29
MAY W10402907 MAY W10402907 Contact Us For Availability
29
MAY 8544769 MAY 8544769 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
MAY 8565061 MAY 8565061 Contact Us For Availability
31
STACK KIT MAY 8572546 Contact Us For Availability
31
SCREW MAY 3387230 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
Screw MAY 489463 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
4`` - 90° ELBOW MAY W10416072 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY 8533974 MAY 8533974 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY W10214261 MAY W10214261 Contact Us For Availability
37
PIPE, EXHAUST MAY 8563750 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
39
MAY 3388674 MAY 3388674 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
PANEL, TOE (WHITE) MAY 8540621 Contact Us For Availability
40
CLIP-SPRING MAY 8066208 Contact Us For Availability
41
MAY W10450081 MAY W10450081 Contact Us For Availability
41
Screen, Lint MAY W10049370 Contact Us For Availability
42
PANEL, FRONT (WHITE) MAY W10551277 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
SCREW MAY 487909 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 8565046 MAY 8565046 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
Cord, Power MAY 8579325 Contact Us For Availability
46
MAY 8544770 MAY 8544770 Contact Us For Availability
47
MAY 279818 MAY 279818 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
49
MAY W10153409 MAY W10153409 Contact Us For Availability
50
MAY 8544776 MAY 8544776 Contact Us For Availability
51
MAY 3406653 MAY 3406653 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, DRY RACK MAY 8563738 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
