Model Maytag YNED5800DW2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

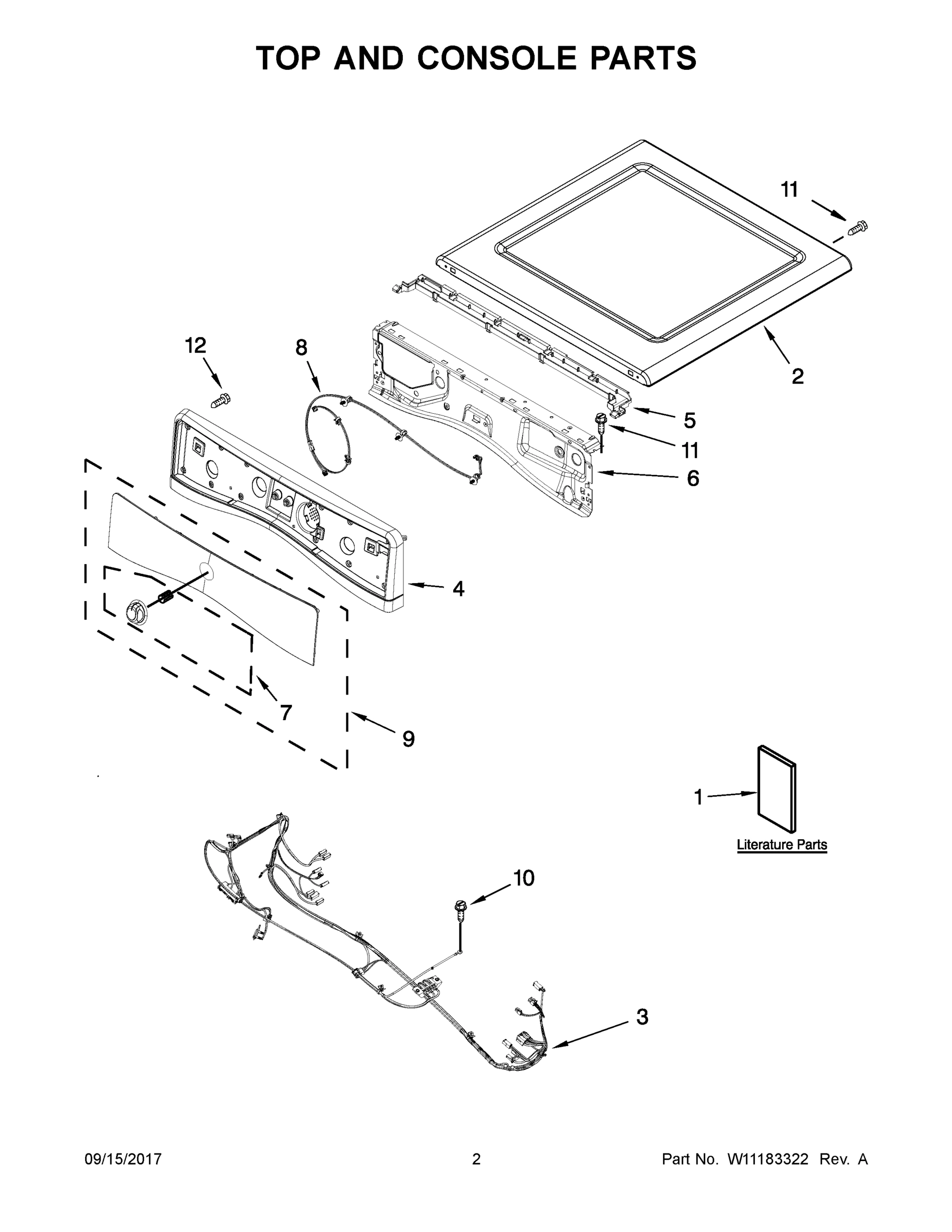

02 - TOP AND CONSOLE PARTS

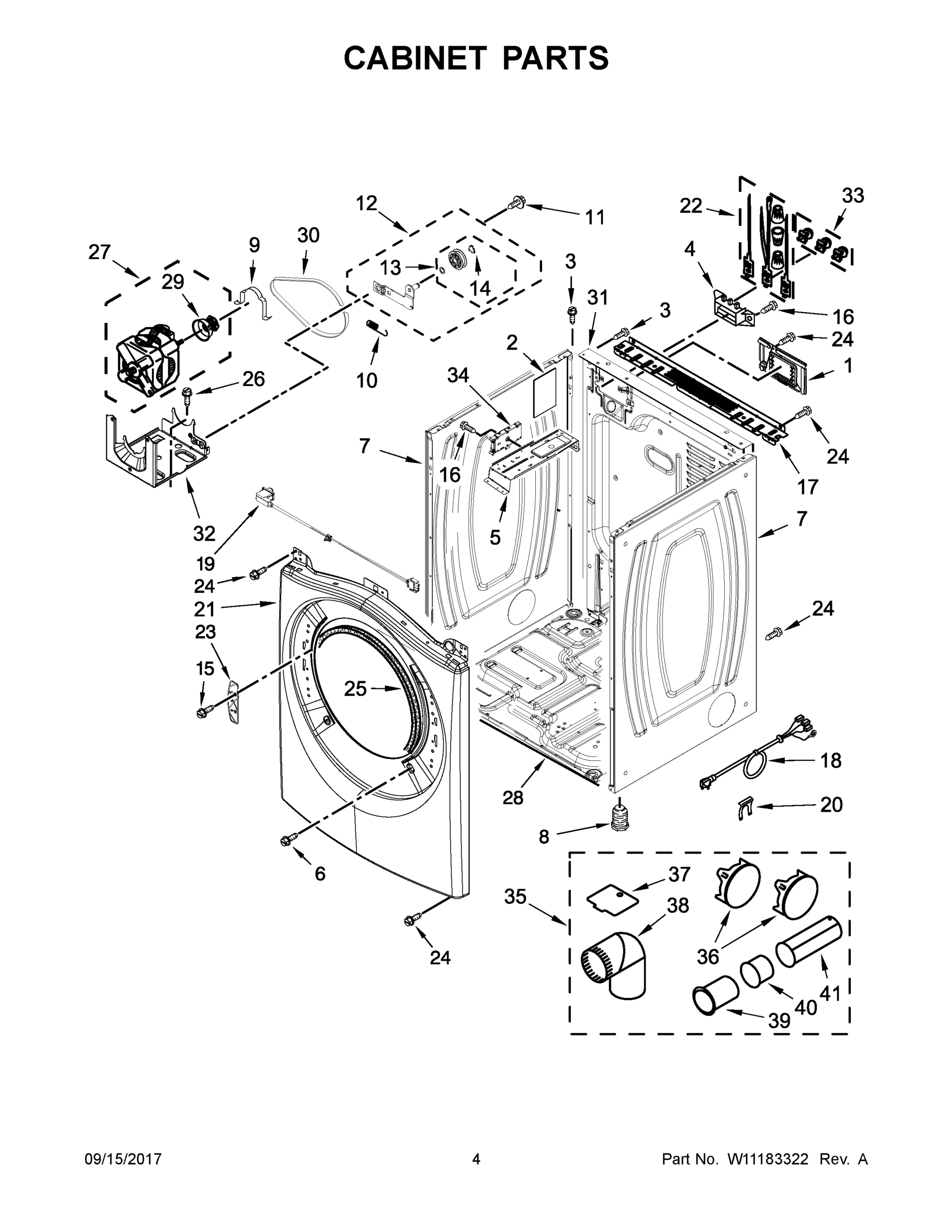

03 - CABINET PARTS

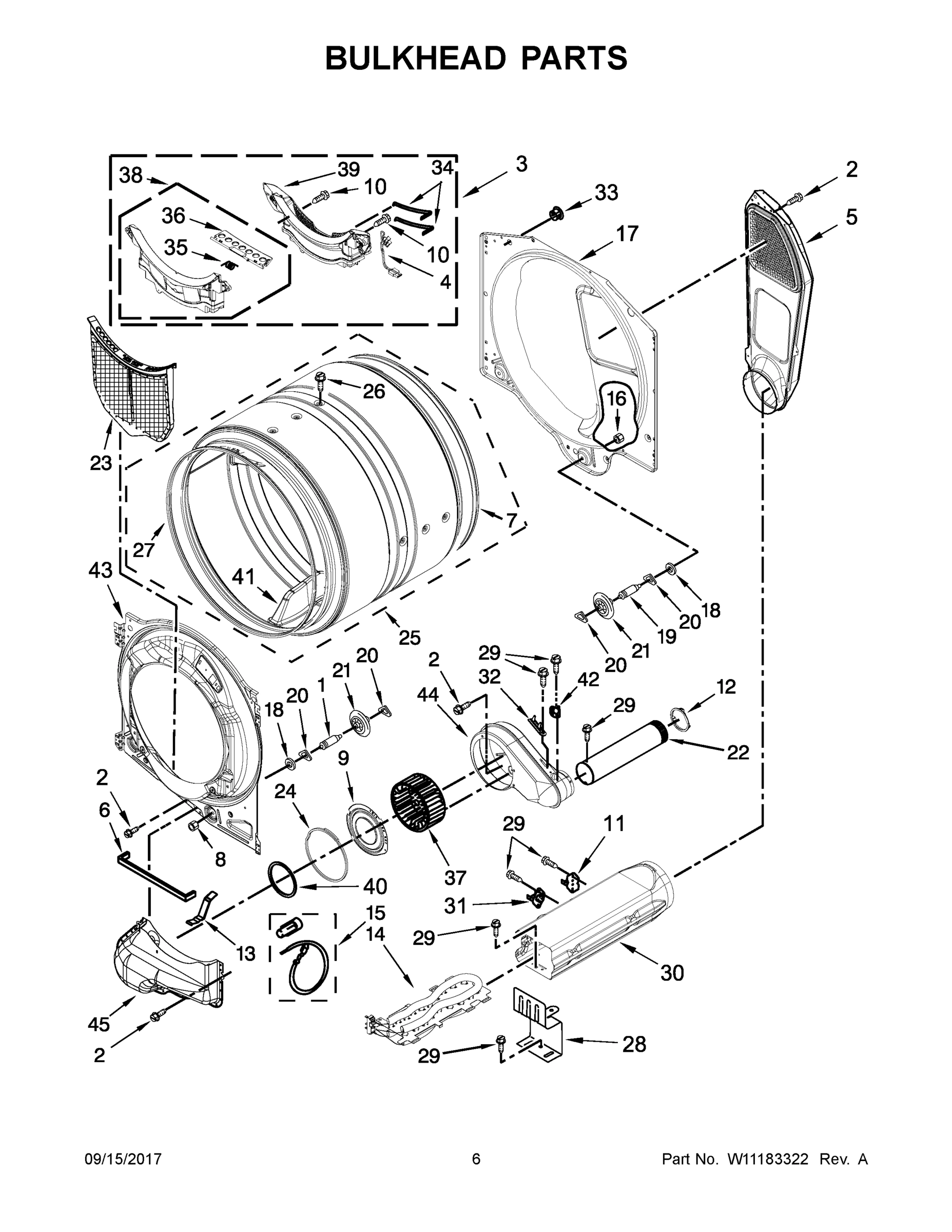

04 - BULKHEAD PARTS

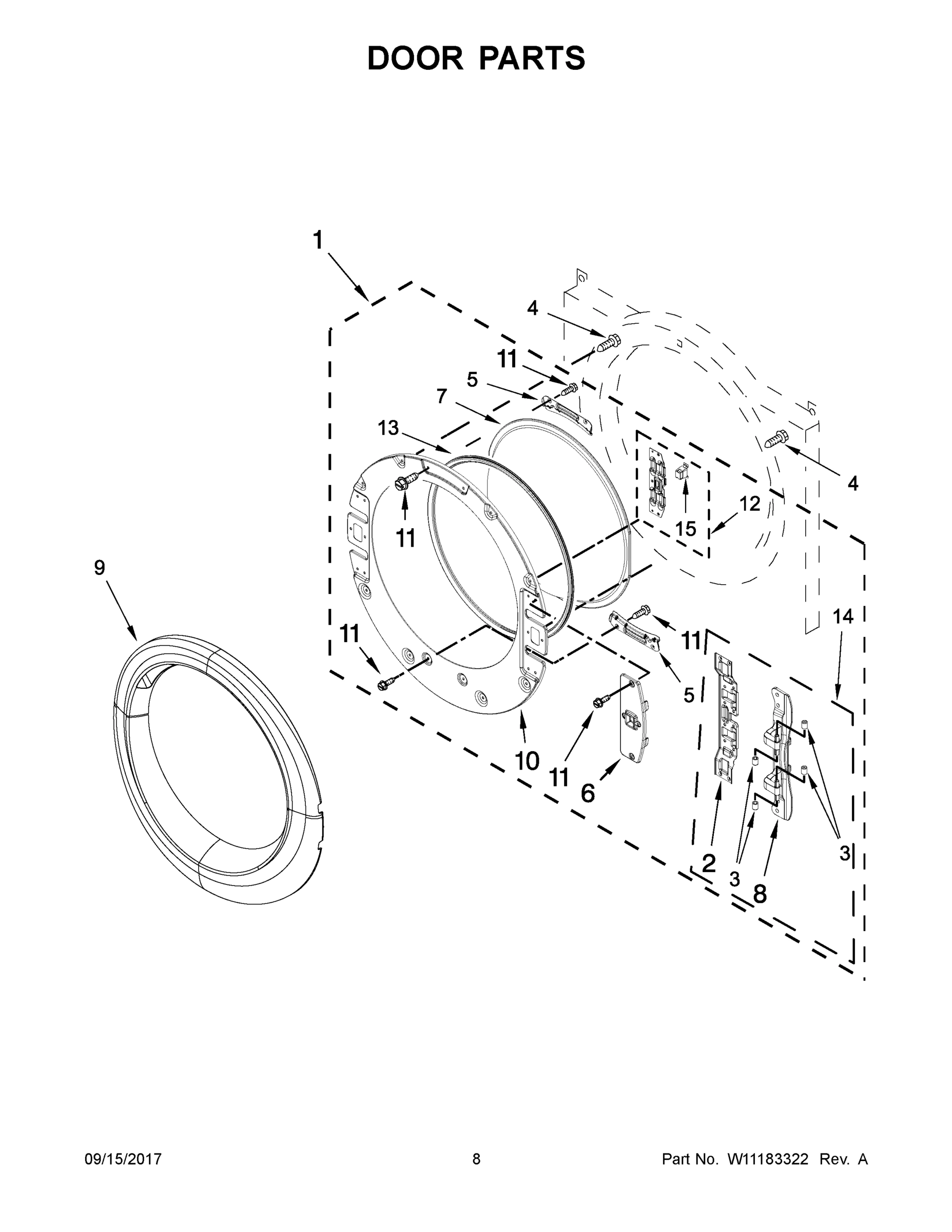

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YNED5800DW2 LAUNDRY, RESIDENTIAL, ELECTRIC DRYER
1
USE AND CARE GUIDE MAY W10573715 Contact Us For Availability
1
COVER, TERMINAL BLOCK MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, INNER DOOR (CHROME SHADOW) MAY W10811034 Contact Us For Availability
1A
TECH SHEET MAY W10806847 Contact Us For Availability
1B
INSTALLATION INSTRUCTIONS MAY W11101368 Contact Us For Availability
1C
WIRING DIAGRAM MAY W10804381 Contact Us For Availability
2
TOP (WHITE) MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
PAD, FOAM MAY W10504381 Contact Us For Availability
2
HINGE, BASE MAY W10208415 Contact Us For Availability
3
HARNESS, WIRING (MAIN) MAY W10637539 Contact Us For Availability
3
ASSEMBLY, OUTLET GRILL AND HOUSING MAY W10672683 Contact Us For Availability
3
CAP, HINGE MAY W10208398 Contact Us For Availability
4
PANEL, CONSOLE (WHITE) MAY W10391519 Contact Us For Availability
4
BLOCK, TERMINAL MAY 3397659 Contact Us For Availability
4
HARNESS, SENSOR MAY W10298258 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
5
WATER CHANNEL MAY W10636058 Contact Us For Availability
5
BRACKET, CONTROL MAY W10259611 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY W11104018 Contact Us For Availability
5
BRACKET, GLASS MAY W10208252 Contact Us For Availability
6
BRACKET, CONSOLE MAY W10208198 Contact Us For Availability
6
SCREW MAY 3357011 Contact Us For Availability
6
SEAL, HOUSING OUTLET MAY W10211950 Contact Us For Availability
6
COVER, DOOR CATCH MAY W10772469 Contact Us For Availability
7
ASSEMBLY, CONTROL KNOB (BLACK) MAY W10652617 Contact Us For Availability
7
PANEL, SIDE (WHITE) MAY W10468495 Contact Us For Availability
7
SEAL, DRUM MAY W10521118 Contact Us For Availability
7
GLASS, DOOR MAY W10823368 Contact Us For Availability
8
CABLE, USER INTERFACE MAY W10540654 Contact Us For Availability
8
FOOT, DRYER MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
PLATE, HINGE RETAINER MAY W10208419 Contact Us For Availability
9
MAY W10869766 MAY W10869766 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
ASSEMBLY, COLLAR MAY W10211901 Contact Us For Availability
9
DOOR, OUTER MAY W10772482 Contact Us For Availability
10
SPRING, IDLER MAY W10446781 Contact Us For Availability
10
SCREW MAY W10794806 Contact Us For Availability
10
DOOR, INNER (CHROME SHADOW) MAY W10267837 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY W10288126 Contact Us For Availability
11
KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) MAY 280148 Contact Us For Availability
12
SCREW MAY W10489172 Contact Us For Availability
12
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
12
COLLAR, DUCT MAY W10344699 Contact Us For Availability
12
ASSEMBLY, DOOR CATCH MAY W10208254 Contact Us For Availability
13
ASSEMBLY, PULLEY MAY W10468057 Contact Us For Availability
13
CLIP, LINT DUCT MAY W10414388 Contact Us For Availability
13
SEAL, GLASS MAY W10329710 Contact Us For Availability
14
ELEMENT, HEATER MAY 3387747 Contact Us For Availability
14
ASSEMBLY, DOOR HINGE MAY W10208414 Contact Us For Availability
15
TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING MAY 279457 Contact Us For Availability
15
ASSEMBLY, SPRING CATCH MAY W10208401 Contact Us For Availability
16
SCREW MAY W10773242 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
BRACKET, REAR MAY W10208382 Contact Us For Availability
17
BULKHEAD, REAR MAY 3387809 Contact Us For Availability
18
CORD, POWER MAY W10712173 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
ASSEMBLY, DOOR SWITCH MAY W10350906 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
WASHER, TRI RING MAY W10512946 Contact Us For Availability
20
CLIP, STRAIN RELIEF MAY 694415 Contact Us For Availability
21
FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WH MAY W10363953 Contact Us For Availability
21
ROLLER, SUPPORT MAY W10314171 Contact Us For Availability
22
TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL MAY 279318 Contact Us For Availability
22
EXHAUST PIPE MAY W10342188 Contact Us For Availability
23
STRIKE, DOOR MAY W10208250 Contact Us For Availability
23
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
24
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
25
SEAL, FRONT PANEL MAY 3387242 Contact Us For Availability
25
ASSEMBLY, DRUM (COMPLETE) MAY W10508188 Contact Us For Availability
26
SCREW MAY 343641 Contact Us For Availability
26
SCREW MAY W10219342 Contact Us For Availability
27
ASSEMBLY, MOTOR MAY W10806758 Contact Us For Availability
27
SEAL, DRUM FRONT MAY W10521122 Contact Us For Availability
28
BASE, CABINET MAY 8565046 Contact Us For Availability
28
BRACKET, HEATER BOX MAY 8066099 Contact Us For Availability
29
SCREW MAY 693995 Contact Us For Availability
29
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
BELT, DRIVE MAY 3387610 Contact Us For Availability
30
ASSEMBLY, WELD HEATER BOX MAY W10891205 Contact Us For Availability
31
PANEL, REAR MAY W10487431 Contact Us For Availability
31
THERMISTOR MAY 8577274 Contact Us For Availability
32
BRACKET, MOTOR MOUNTING MAY W10242878 Contact Us For Availability
32
FUSE, THERMAL (91C) MAY W10693363 Contact Us For Availability
33
SCREW KIT, TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
PLUG, REAR BULKHEAD MAY 8529007 Contact Us For Availability
34
BOARD, CONTROL MAY W10654006 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
SPRING, LINT SCREEN DOOR MAY W10726027 Contact Us For Availability
36
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
36
DOOR, LINT SCREEN MAY W10672680 Contact Us For Availability
37
PLATE, COVER MAY W10354249 Contact Us For Availability
37
WHEEL, BLOWER MAY W10211915 Contact Us For Availability
38
ELBOW MAY W10416072 Contact Us For Availability
38
ASSEMBLY, HOUSING AND DOOR MAY W10672681 Contact Us For Availability
39
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
39
GRILL, OUTLET MAY W10672682 Contact Us For Availability
40
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
40
SEAL, BLOWER COVER MAY W10211899 Contact Us For Availability
41
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
41
BAFFFLE, DRUM MAY W10416098 Contact Us For Availability
42
THERMOSTAT, HIGH LIMIT MAY 8557403 Contact Us For Availability
43
BULKHEAD, FRONT MAY W10673493 Contact Us For Availability
44
HOUSING, BLOWER MAY W10211911 Contact Us For Availability
45
ASSEMBLY, LINT DUCT MAY W10211896 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 3 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4', 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6', 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
NI
ACCESSORY PARTS, KIT, STACK MAY W10298318 Contact Us For Availability
NI
ACCESSORY PARTS, DRY RACK MAY W10322470A Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW) MAY W10446202 Contact Us For Availability
× ![]()
