Model LG YMT4140SKQ – Common Parts & Diagrams
Diagram 0

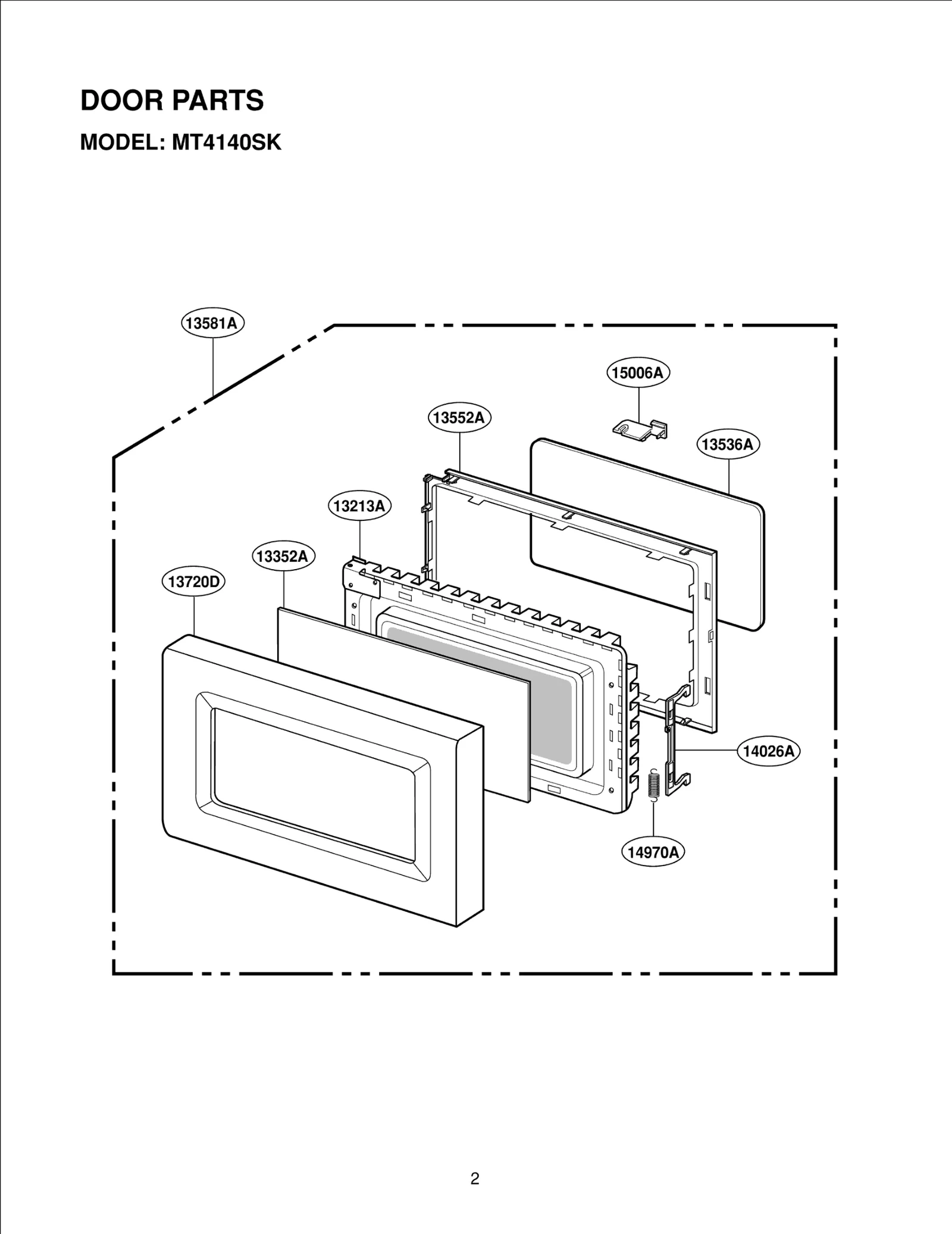

Diagram 1

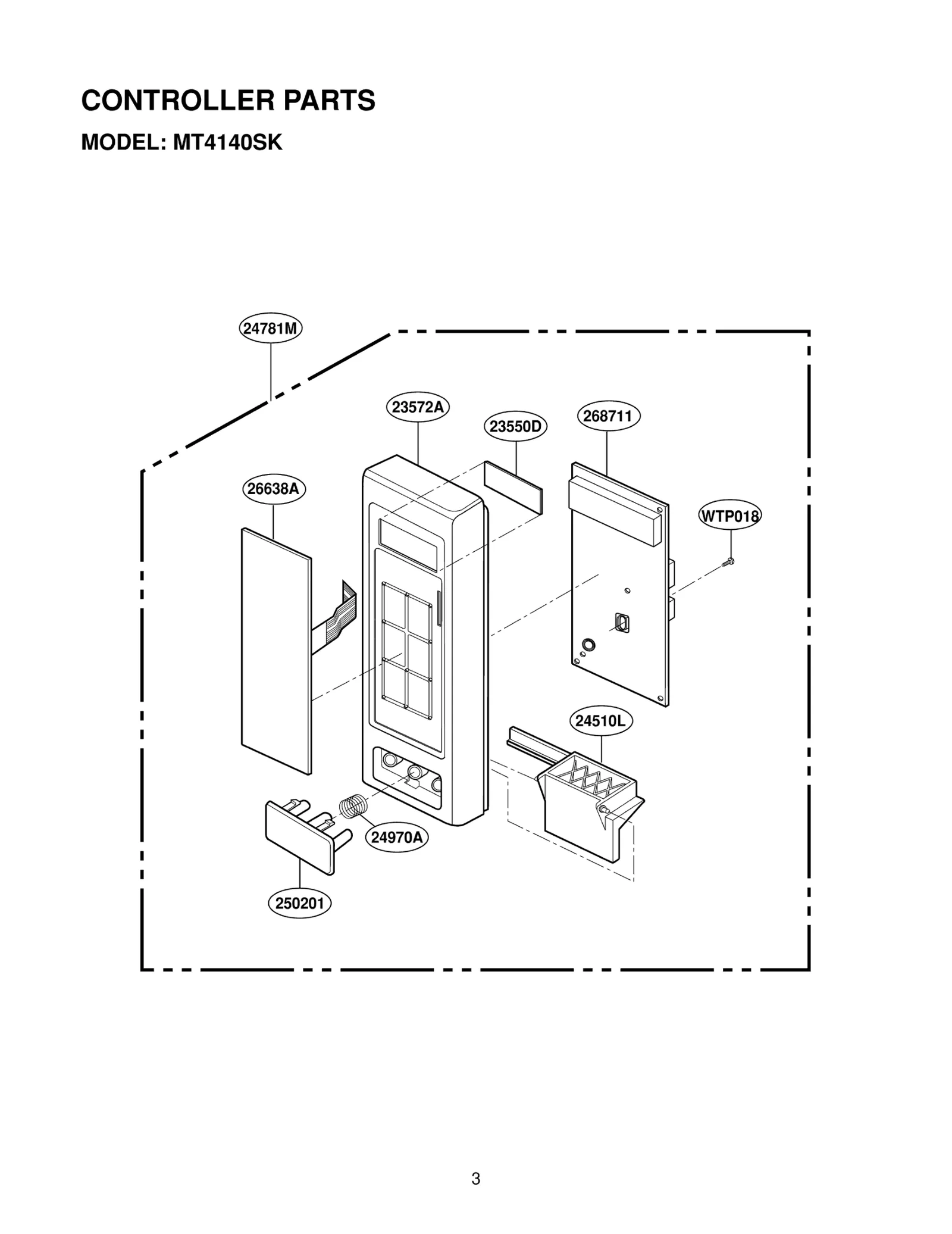

Diagram 2

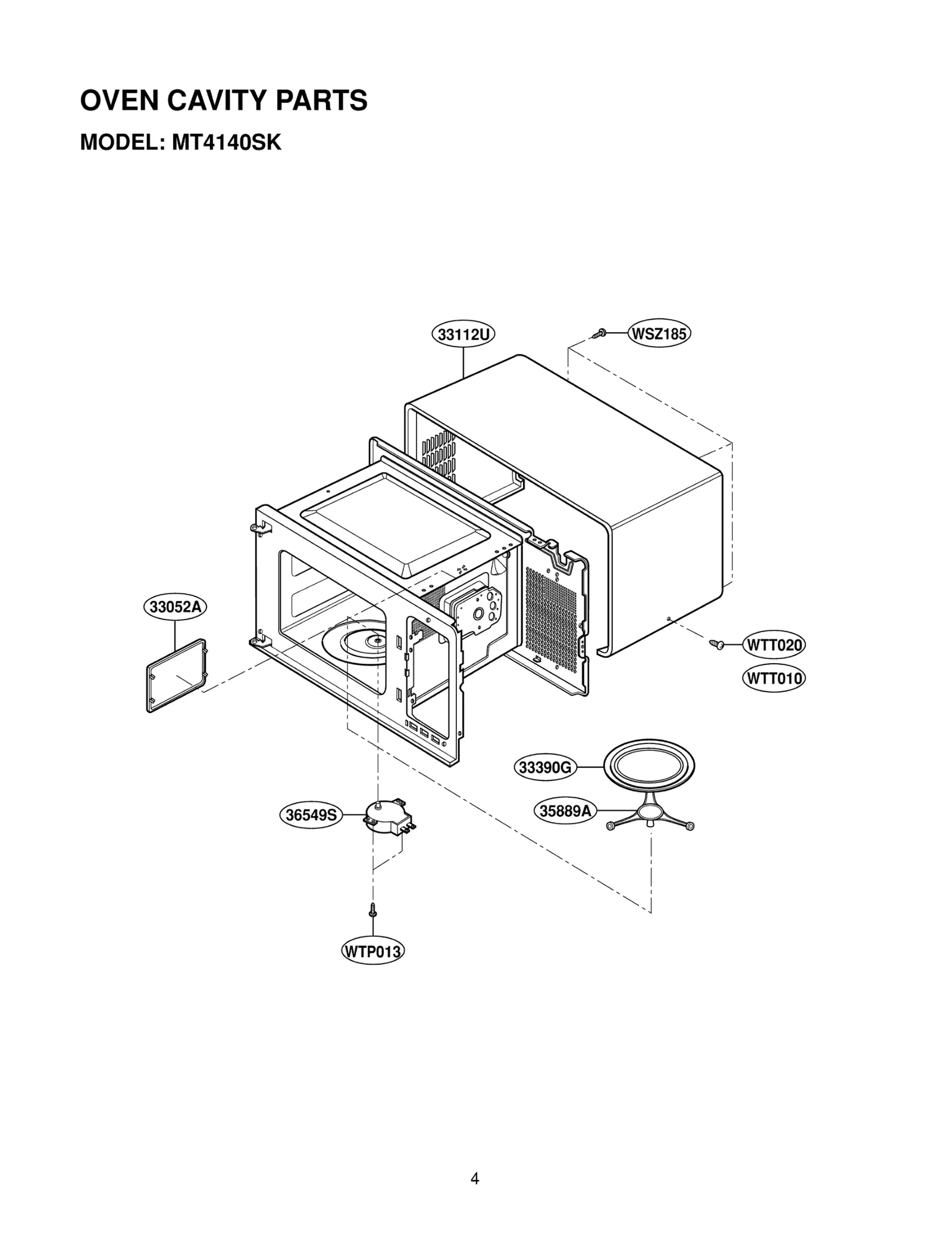

Diagram 3

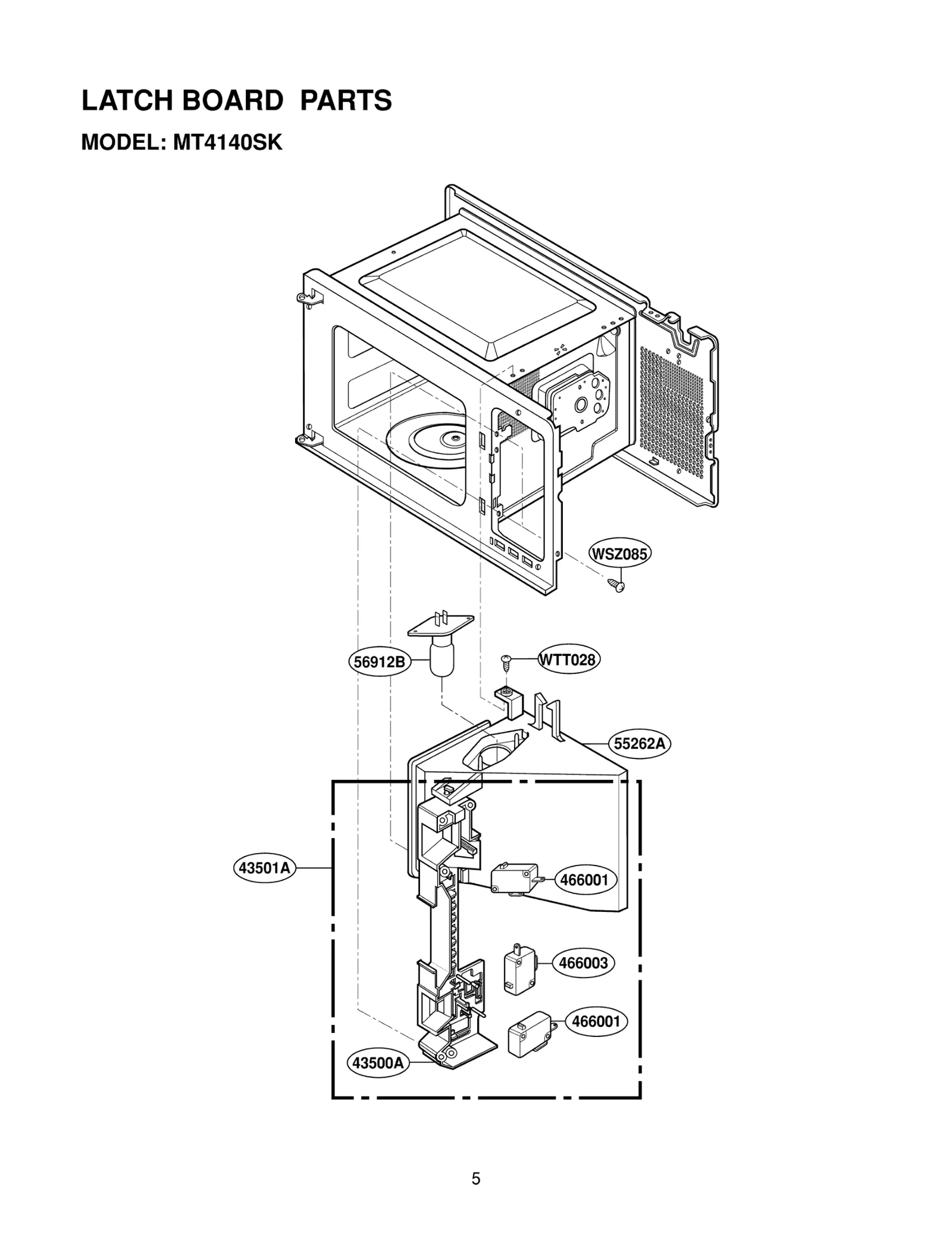

Diagram 4

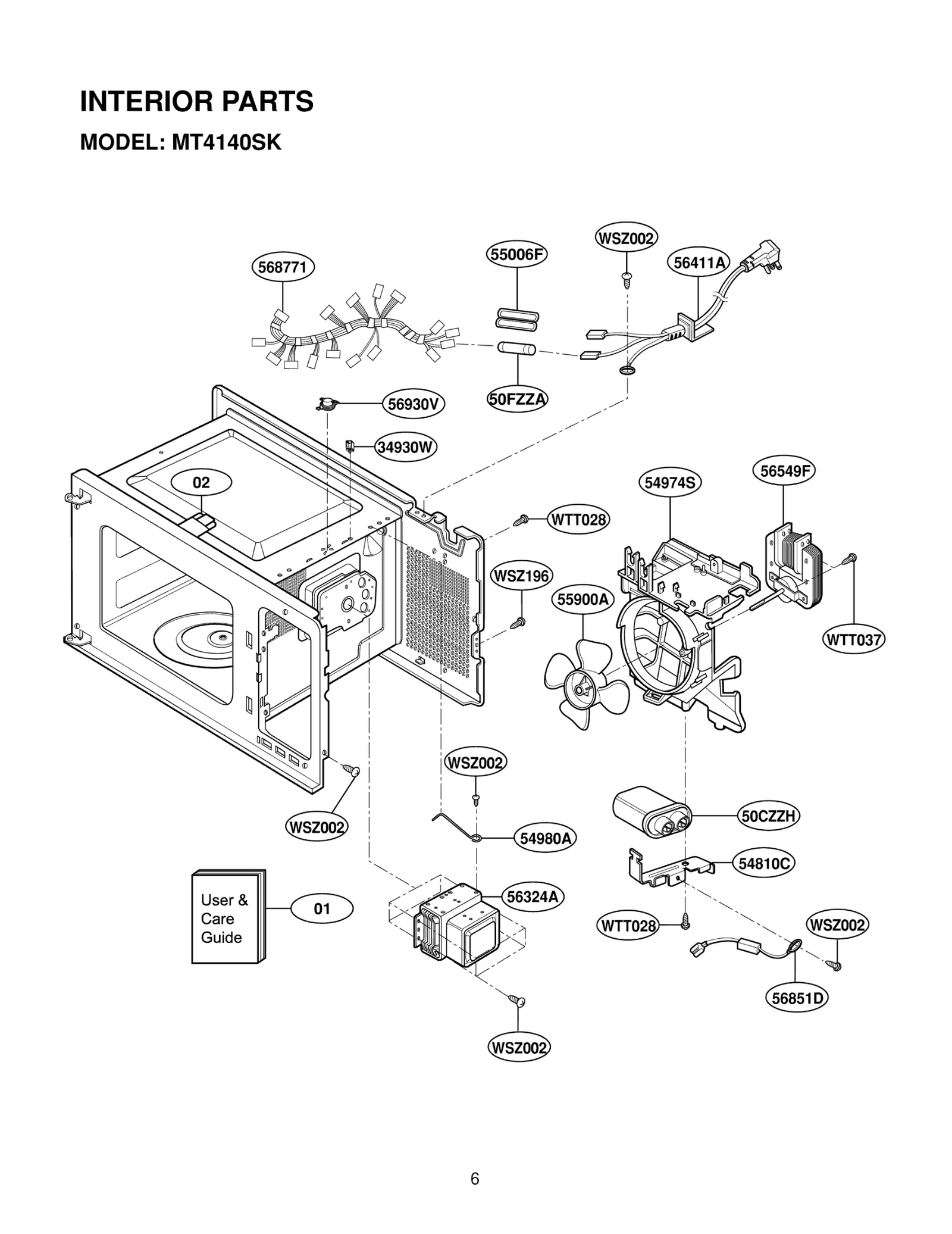

Diagram 5

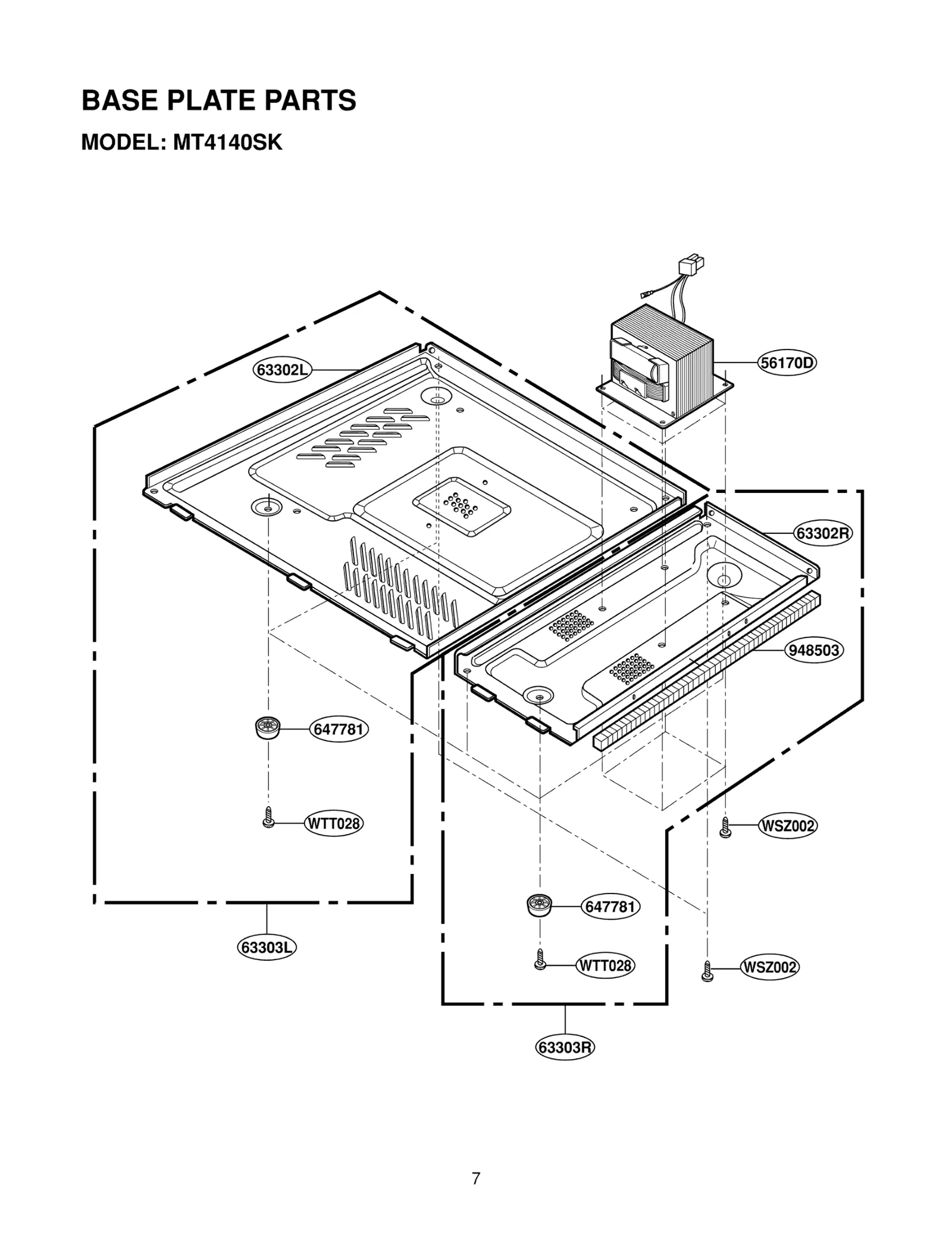

Diagram 6
Common parts from model LG YMT4140SKQ
*01
MANUAL,OWNERS LGE 3828W5A2248 Contact Us For Availability
*05
LGE 3850W1D049A LGE 3850W1D049A Contact Us For Availability
*05
LGE 3850W1D049B LGE 3850W1D049B Contact Us For Availability
*07
LGE 3840W5T109A LGE 3840W5T109A Contact Us For Availability
*10
BOX,WHITE LGE 3890W3W262A Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
CONTROLLER ASSY,[MICOM] LGE 4781W0M001F Contact Us For Availability
26638A
KEY MEMBRANE LGE 6638W1A085A Contact Us For Availability
33112U
OUT CASE,[U-BENDING] LGE 3112W0U039A Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35889A
ROTATING RING ASSY,M LGE 5889W2A011B Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MA-690M,1190M,685M LGE 4810W4C003A Contact Us For Availability
54974S
GUIDE SUCTION LGE 4974W1S010A Contact Us For Availability
54980A
LGE 4980W3A039A LGE 4980W3A039A Contact Us For Availability
55262A
AIR DUCT LGE 5262W2A043B Contact Us For Availability
56201A
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56324A
MAGNETRON LGE 6324W1A001A Contact Us For Availability
56411A
POWER CORD ASSY LGE 6411W1A019G Contact Us For Availability
56549F
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
56930V
THERMOSTAT HORIZONTAL 90/75,PA LGE 6930WRT001C Contact Us For Availability
63302L
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63302R
LGE 3302W1A033F LGE 3302W1A033F Contact Us For Availability
63303L
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
63303R
BASE PLATE ASSY,MWO LGE 3303W2A003G Contact Us For Availability
268711
PWB(PCB) ASSEMBLY,[MAIN] LGE 6871W1S047B Contact Us For Availability
568771
CONNECTOR ASSEMBLY LGE 6877W1A186F Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
C11
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
C12
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C13
CAPACITOR ELECTROLYTIC LGE 0CE1076D638 Contact Us For Availability
C15
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C16
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C20
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
C81
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1020K518 Contact Us For Availability
CN1
CONNECTOR (CIRC),WAFER LGE 6630W5YA12D Contact Us For Availability
CN3
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D12
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
D85
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
POWER TRANS 120/60 UL,18V/9 SE LGE 6010W2P037A Contact Us For Availability
Q30
TRANSISTOR,BIPOLARS LGE 0TRFC80002A Contact Us For Availability
Q31
TRANSISTOR,BIPOLARS LGE 0TRFC90002A Contact Us For Availability
Q81
TRANSISTOR,BIPOLARS LGE 0TRFC90012A Contact Us For Availability
Q90
TRANSISTOR,BIPOLARS LGE 0TRFC90021A Contact Us For Availability
R11
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R12
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R15
LGE 0RD0471G608 LGE 0RD0471G608 Contact Us For Availability
R16
LGE 0RD1003G608 LGE 0RD1003G608 Contact Us For Availability
R21
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
R23
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R25
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R26
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R31
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R32
LGE 0RD2001G608 LGE 0RD2001G608 Contact Us For Availability
R50
Resistor,Carbon Film LGE 0RD4701G608 Contact Us For Availability
R55
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R71
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R80
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R81
Resistor,Carbon Film LGE 0RD1202F608 Contact Us For Availability
R82
Resistor,Carbon Film LGE 0RD2002F608 Contact Us For Availability
R83
Resistor,Carbon Film LGE 0RD8202F608 Contact Us For Availability
RY1
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
U01
IC,DRAWING LGE 0IZZW5A129B Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE,ZENERS LGE 0DZ750009QA Contact Us For Availability
× ![]()
