Model LG YMT4070SKB – Common Parts & Diagrams

*01
MANUAL,OWNERS
MANUAL,OWNERS LGE 3828W5A2245 Contact Us For Availability
View on Model
*05
LABEL,COOKING GUIDE
LABEL,COOKING GUIDE LGE 3850W1D047A Contact Us For Availability
View on Model
*05
LABEL,COOKING GUIDE
LABEL,COOKING GUIDE LGE 3850W1D047B Contact Us For Availability
View on Model
*07
CARD,TECHNICAL
CARD,TECHNICAL LGE 3840W1T001E Contact Us For Availability
View on Model
*10
BOX,WHITE
BOX,WHITE LGE 3890W3W261A Contact Us For Availability
View on Model
50CZZH
CAPACITOR,[HIGH VOLT
CAPACITOR,[HIGH VOLT LGE 0CZZW1H001L Contact Us For Availability
View on Model

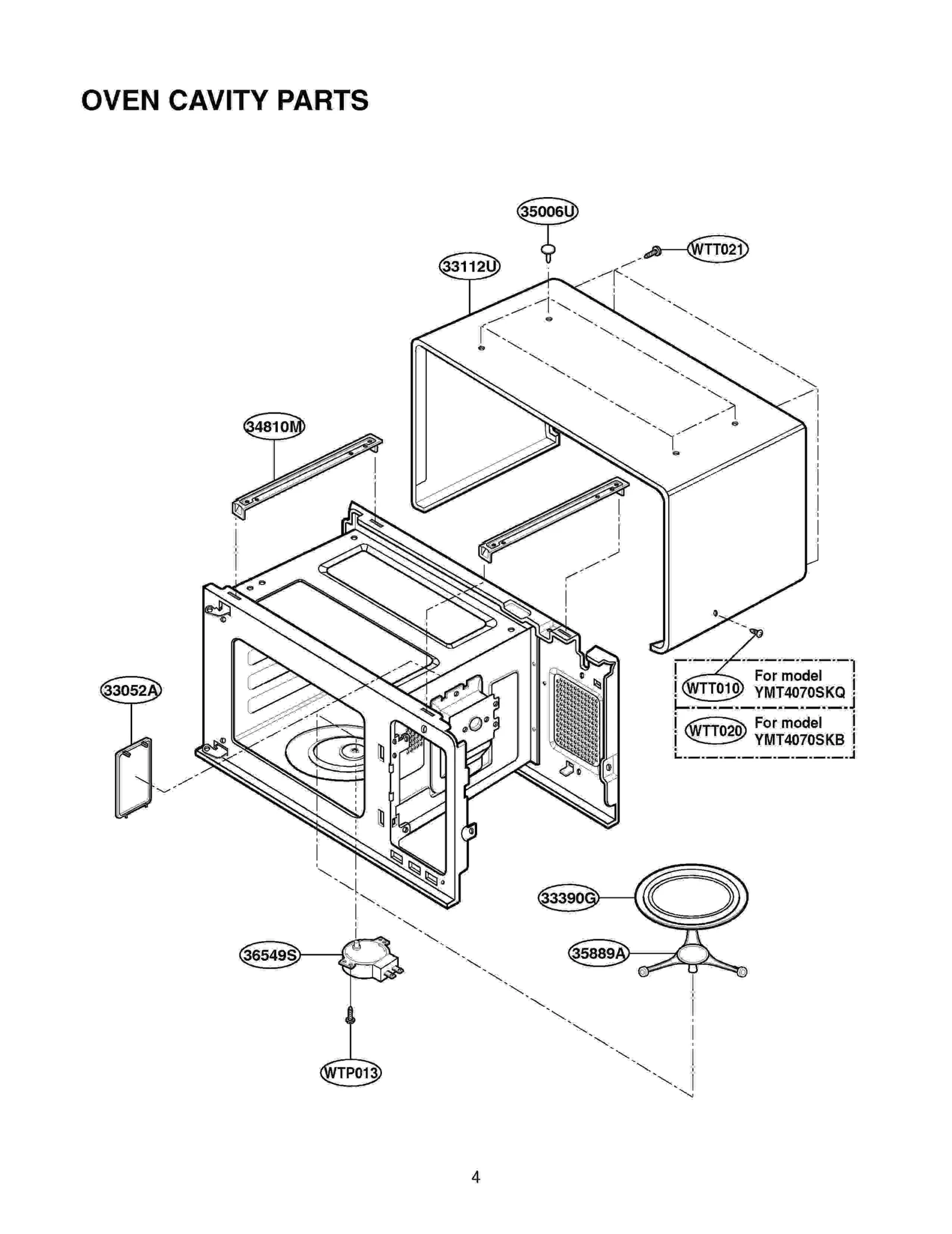

33112U
OUT CASE,[U-BENDING]
OUT CASE,[U-BENDING] LGE 3112W2U005K Contact Us For Availability
View on Model
54974S
GUIDE,[SUCTION]
GUIDE,[SUCTION] LGE 4974W1S056A Contact Us For Availability
View on Model

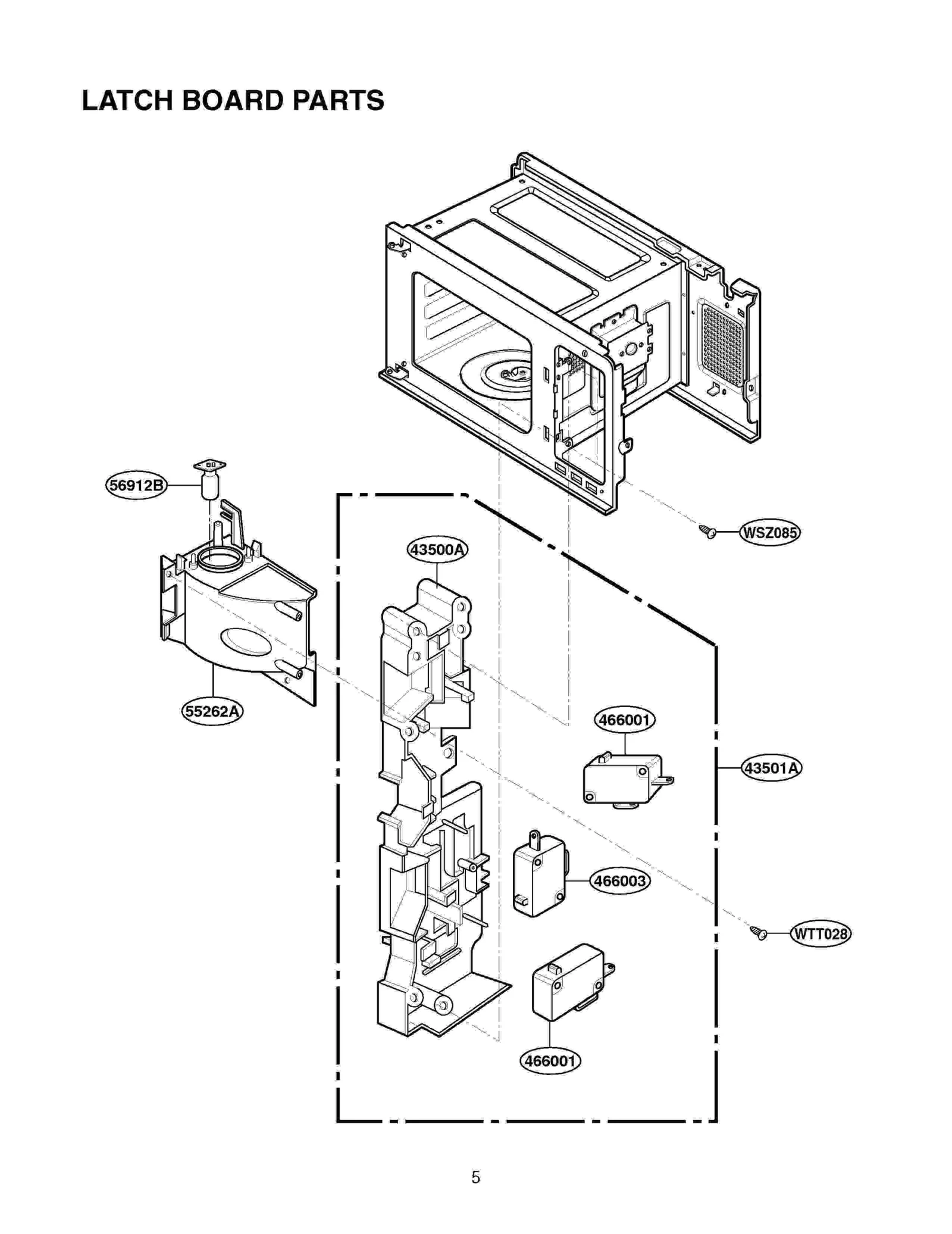

55262A
AIR DUCT
AIR DUCT LGE 5262W2A044A Contact Us For Availability
View on Model

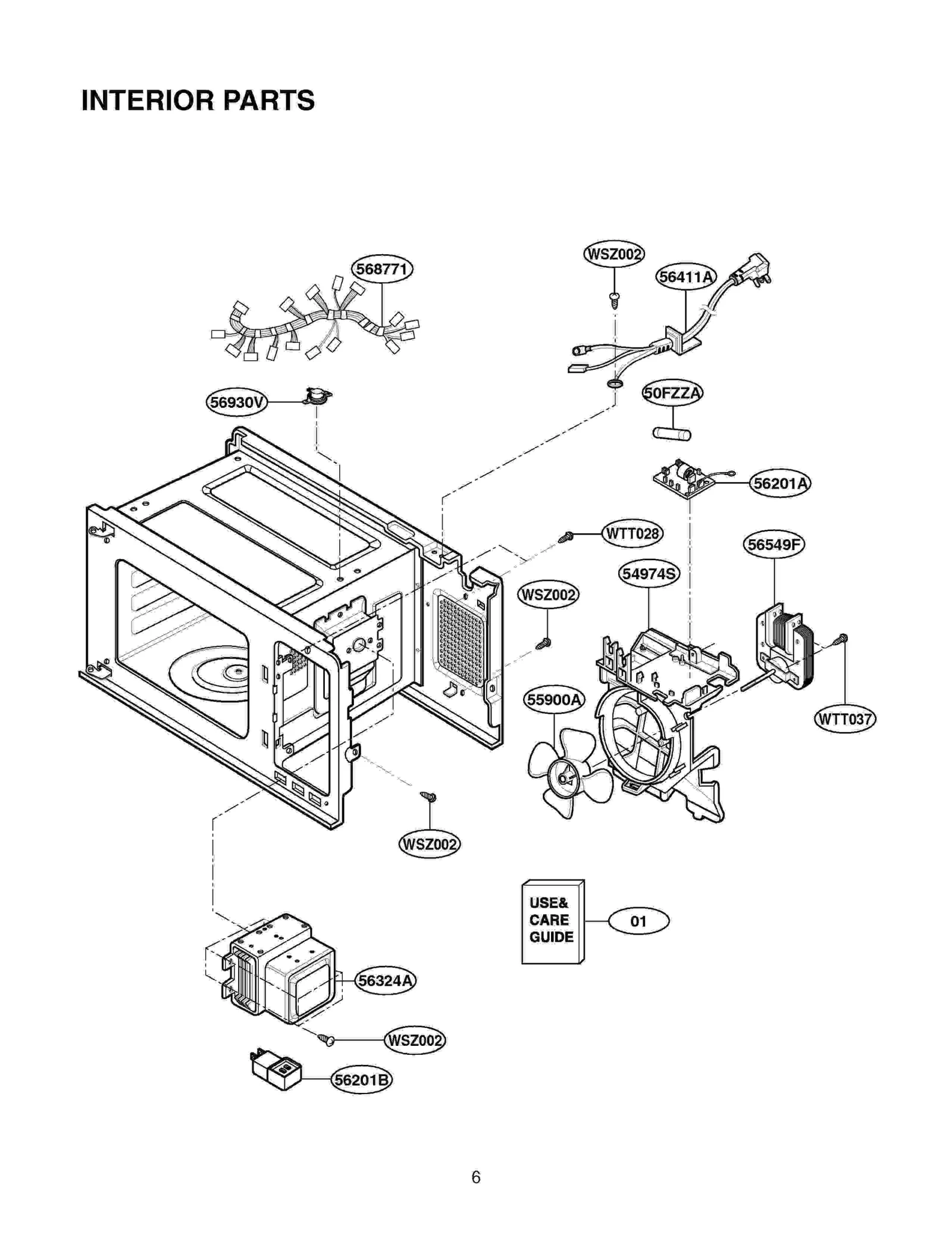

56201A
NOISE FILTER ASSY 100V 50/60HZ
NOISE FILTER ASSY 100V 50/60HZ LGE 2B72130F Contact Us For Availability
View on Model
56201B
FILTER ASSY,CHOKE
FILTER ASSY,CHOKE LGE 6201W2A019B Contact Us For Availability
View on Model
56324A
MAGNETRON
MAGNETRON LGE 3B71077E Contact Us For Availability
View on Model
56411A
POWER CORD ASSY
POWER CORD ASSY LGE 6411W2A002A Contact Us For Availability
View on Model
56549F
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005B Contact Us For Availability
View on Model

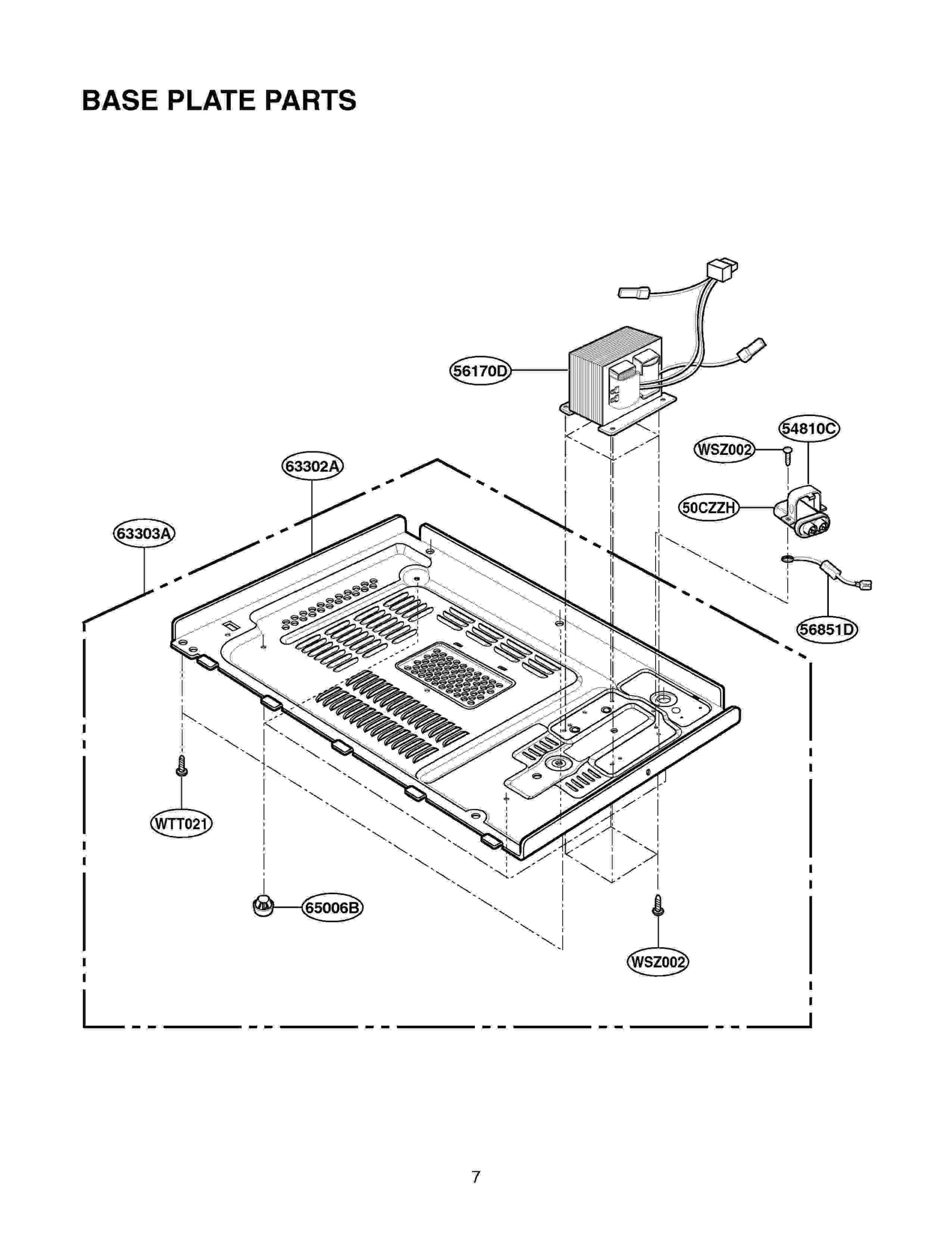

63302A
BASE PLATE
BASE PLATE LGE 3302W0A019B Contact Us For Availability
View on Model
63303A
BASE PLATE ASSY
BASE PLATE ASSY LGE 3303W1A044B Contact Us For Availability
View on Model
568771
LGE 6877W1A207A
LGE 6877W1A207A LGE 6877W1A207A Contact Us For Availability
View on Model
BZ1
BUZZER,PIEZO CERAMIC
BUZZER,PIEZO CERAMIC LGE 6908W3YA01B Contact Us For Availability
View on Model
CU1
CUSHION
CUSHION LGE 4850W4C001G Contact Us For Availability
View on Model
