Model Maytag YMMV1174DS0 MICROWAVE HOOD, 1.7 CUBIC FOOT – Common Parts & Diagrams

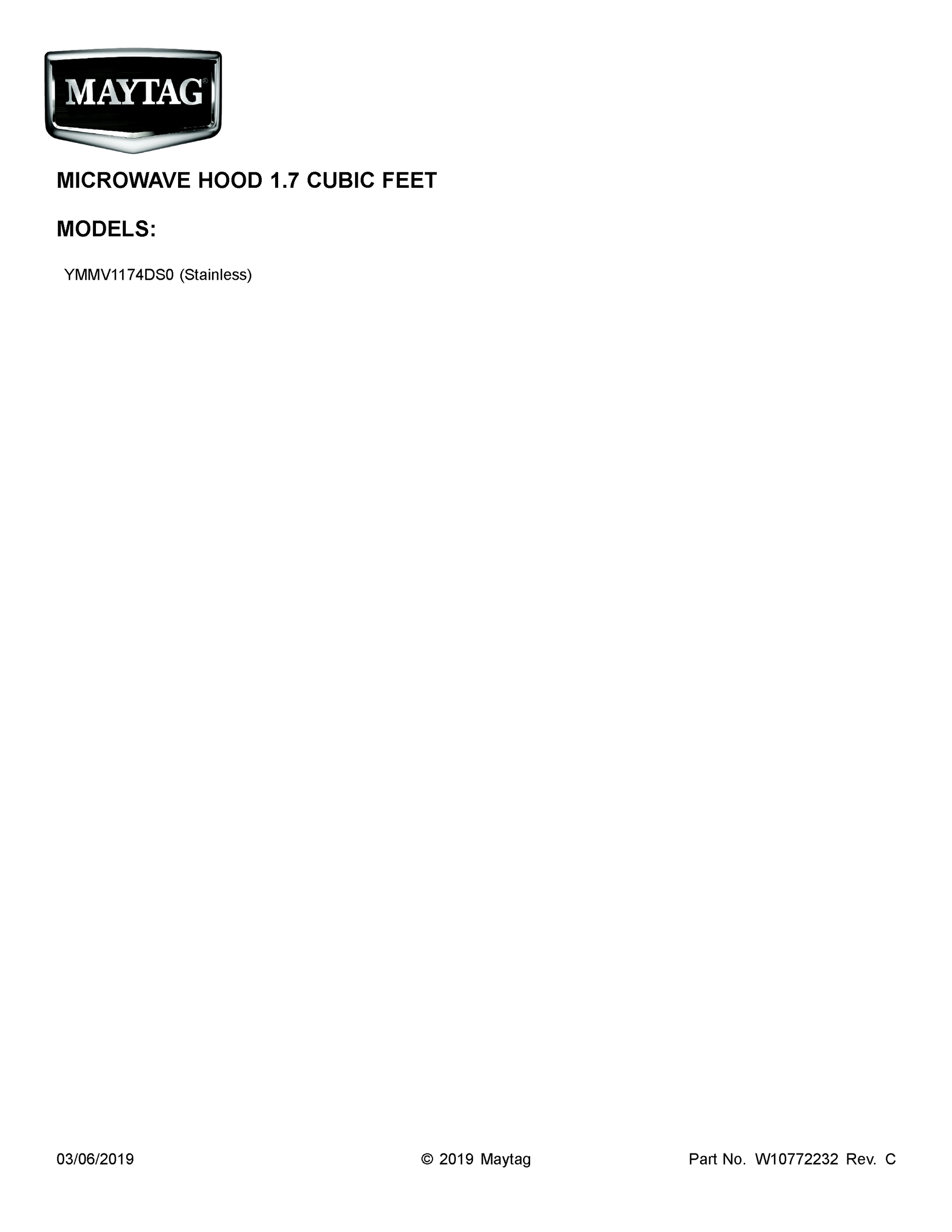

01 - COVER SHEET

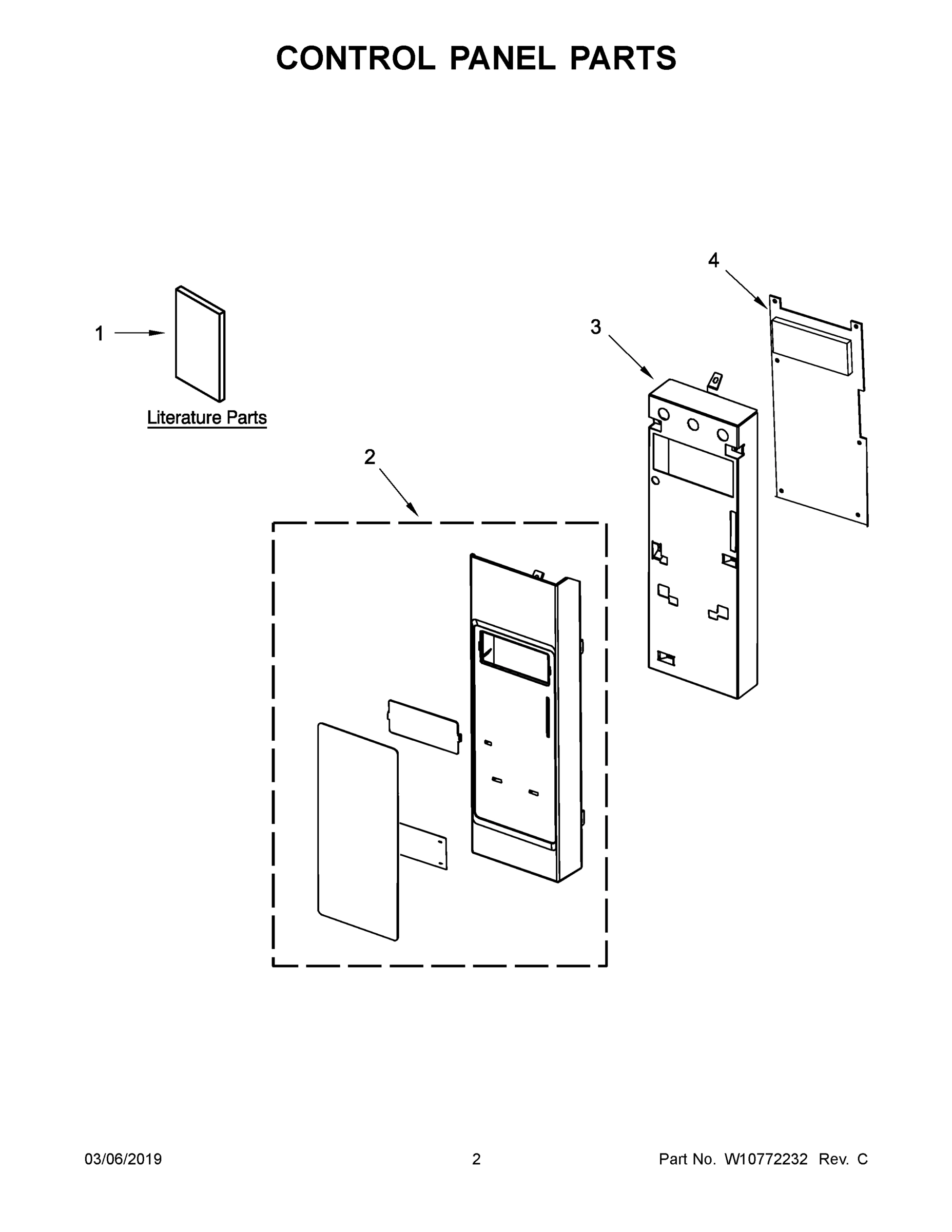

02 - CONTROL PANEL PARTS

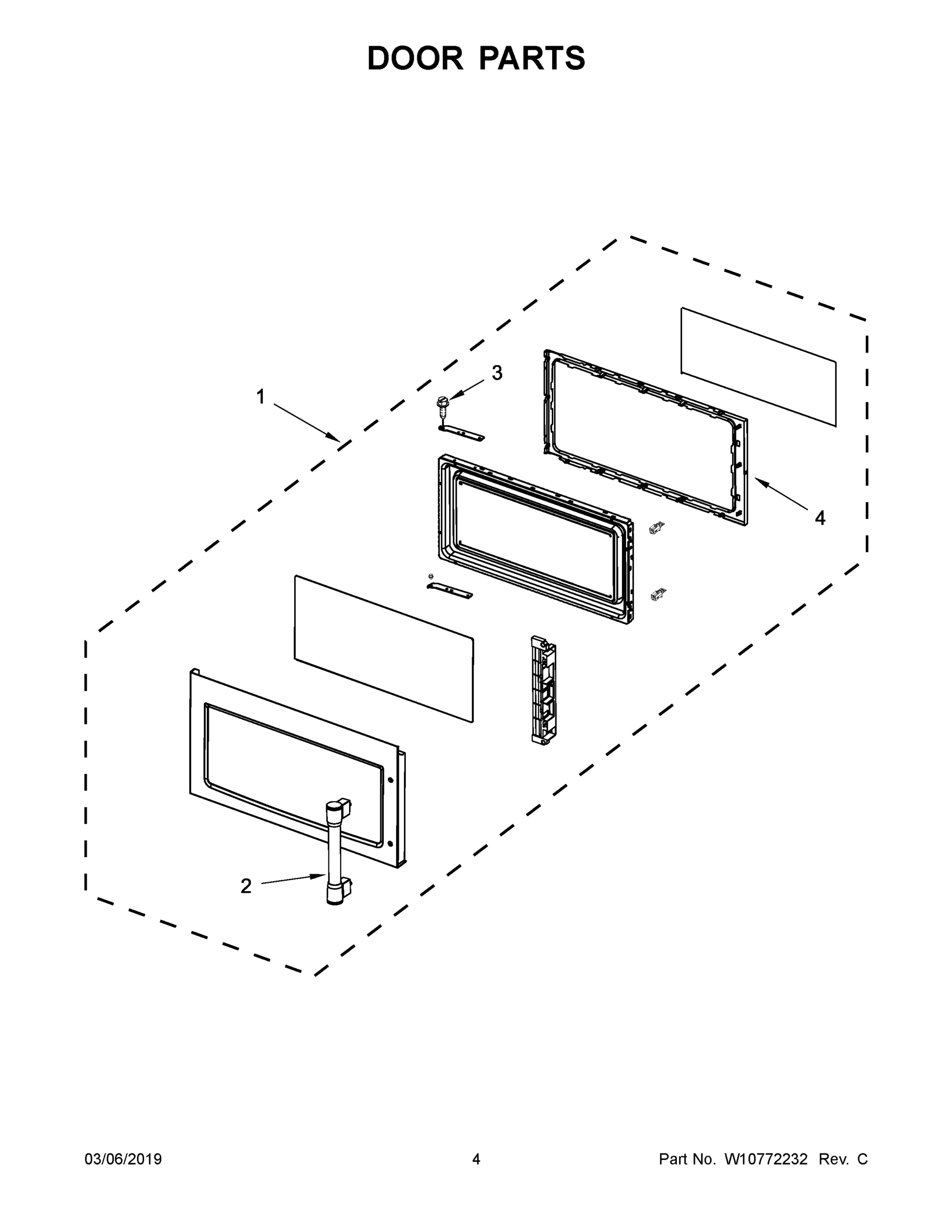

03 - DOOR PARTS

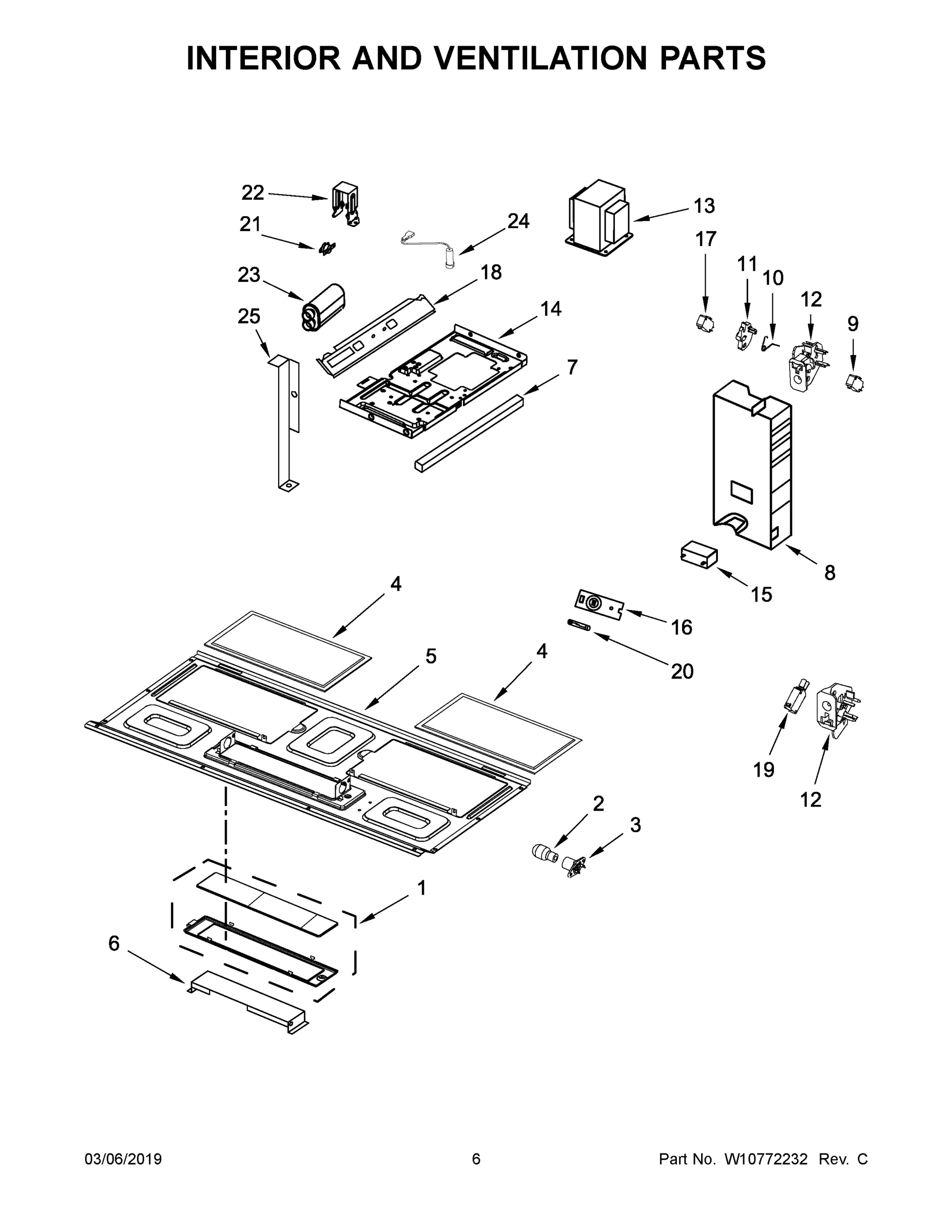

04 - INTERIOR AND VENTILATION PARTS

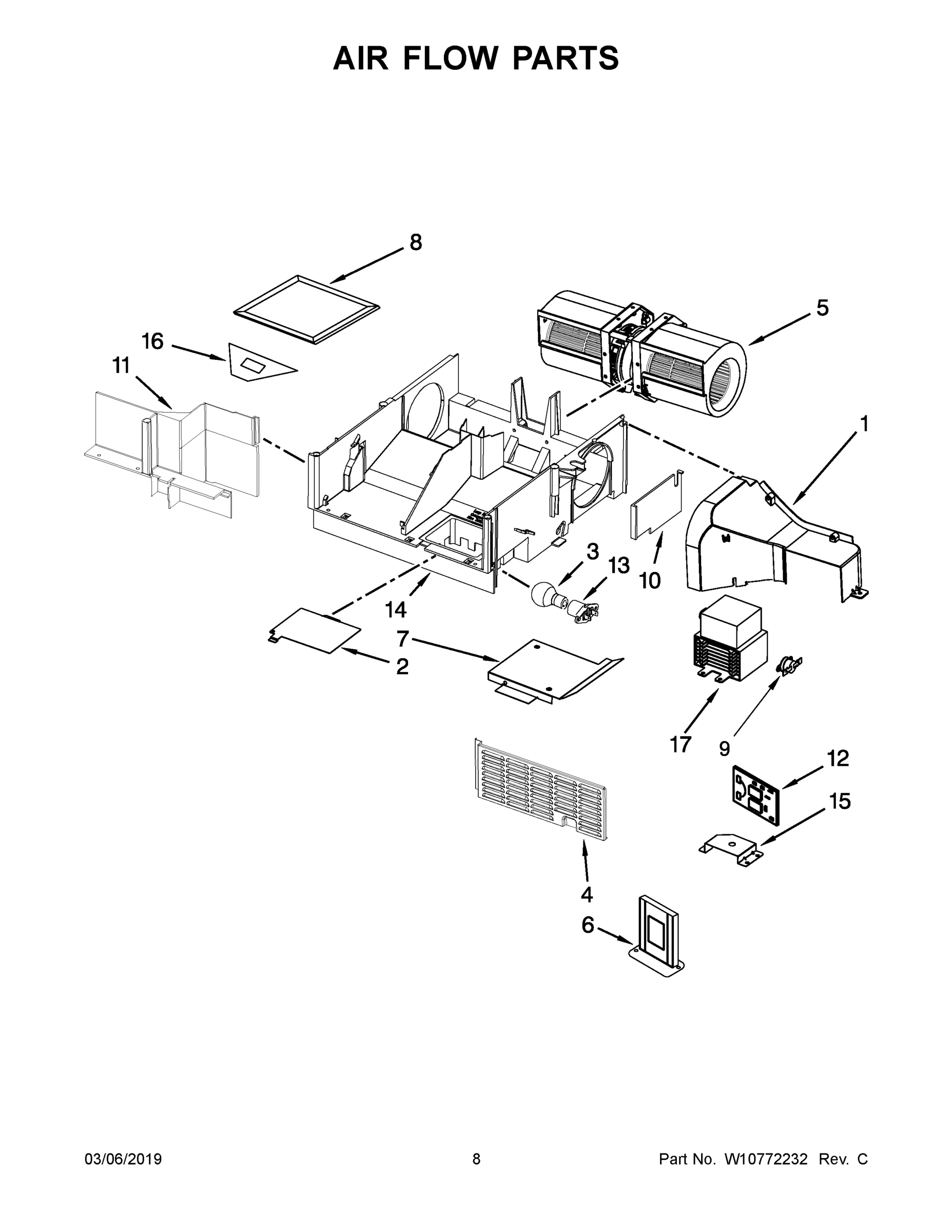

05 - AIR FLOW PARTS

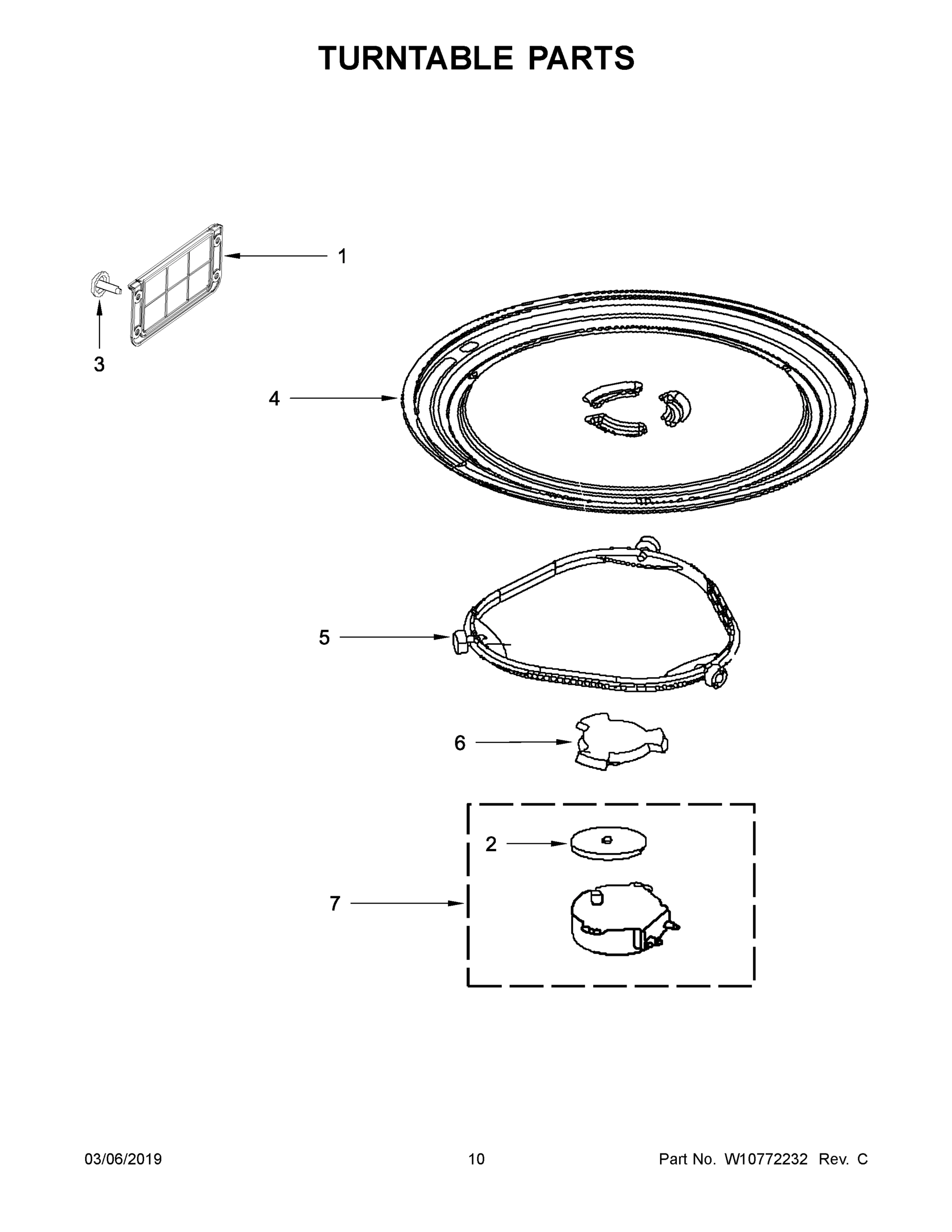

06 - TURNTABLE PARTS

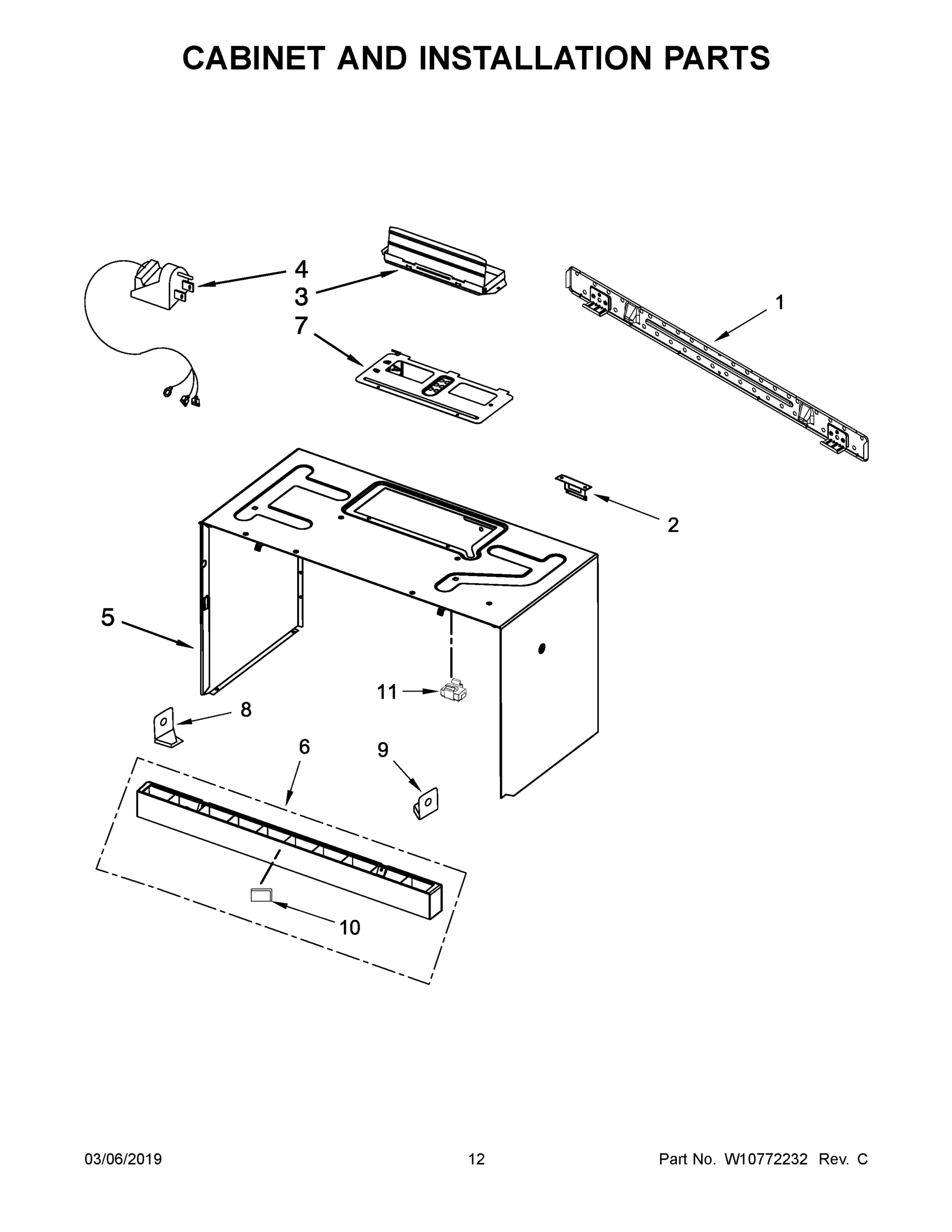

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag YMMV1174DS0 MICROWAVE HOOD, 1.7 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10724867 Contact Us For Availability
1
DOOR, COMPLETE (STAINLESS) MAY W10673098 Contact Us For Availability
1
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10471570 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10761097 Contact Us For Availability
1B
LABEL, COOKING GUIDE MAY W10761099 Contact Us For Availability
1C
TECH SHEET MAY W10761098 Contact Us For Availability
2
ASSEMBLY, CONTROL BOX (STAINLESS) MAY W10615652 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10679297 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
2
SUPPORT, WIRE CLIP MAY 8206385 Contact Us For Availability
3
BACKER, CONTROL MAY W10723871 Contact Us For Availability
3
SCREW MAY W10138802 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
RIVETS MAY W10138801 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MICROCOMPUTER MAY W10760822 Contact Us For Availability
4
COVER, CHOKE MAY W10640812 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
TURNTABLE MAY W10337247 Contact Us For Availability
4
CORD, POWER MAY W10708076 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
MOTOR, HOOD FAN BLOWER MAY W10755866 Contact Us For Availability
5
RING, TURNTABLE (WITH ROLLERS) MAY W10654906 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W10462001 Contact Us For Availability
6
REFLECTOR, LAMP MAY W10250586 Contact Us For Availability
6
SEAL, WATERPROOF MAY W10269467 Contact Us For Availability
6
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
6
GRILLE, VENT (STAINLESS) MAY W10718218 Contact Us For Availability
7
CUSHION, NTC MAY W10313276 Contact Us For Availability
7
GUIDE, AIR MAY W10138797 Contact Us For Availability
7
MOTOR, TURNTABLE MAY W10466420 Contact Us For Availability
7
COVER, HOOD FAN MOTOR MAY W10210832 Contact Us For Availability
8
AIR GUIDE, LOWER MAY W10448770 Contact Us For Availability
8
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
8
HOLDER, VENT LEFT SIDE (STAINLESS) MAY W10703284 Contact Us For Availability
9
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
9
THERMOSTAT, MAGNETRON MAY W10491433 Contact Us For Availability
9
HOLDER, VENT RIGHT SIDE (STAINLESS) MAY W10703282 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
COVER, RIGHT DUCT MAY W10700156 Contact Us For Availability
10
BADGE MAY W10685340 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
11
PLATE, AIR GUIDE SEALING MAY W10448769 Contact Us For Availability
11
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
FILTER, NOISE MAY W10605455 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
TRANSFORMER, HIGH VOLTAGE MAY W10681123 Contact Us For Availability
13
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
14
CHASSIS MAY W10269456 Contact Us For Availability
14
BASE PLATE, AIR GUIDE MAY W10448773 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10210855 Contact Us For Availability
15
BRACKET, MOUNTING FILTER BOARD MAY W10313270 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
SOCKET, MOTOR WIRE MAY W10139750 Contact Us For Availability
17
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
17
MAGNETRON MAY W10693025 Contact Us For Availability
18
SUPPORT, NTC MAY W10476124 Contact Us For Availability
19
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
20
FUSE MAY W10138793 Contact Us For Availability
21
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
22
BRACKET, CAPACITOR MAY W10532063 Contact Us For Availability
23
CAPACITOR, HIGH VOLTAGE MAY 8206562 Contact Us For Availability
24
DIODE, HIGH VOLTAGE MAY W10492278 Contact Us For Availability
25
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W10498567 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, LAMP AND TURNTA MAY W10543253 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10728970 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10769928 Contact Us For Availability
× ![]()
