Model Maytag YMEDE251YL1 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET

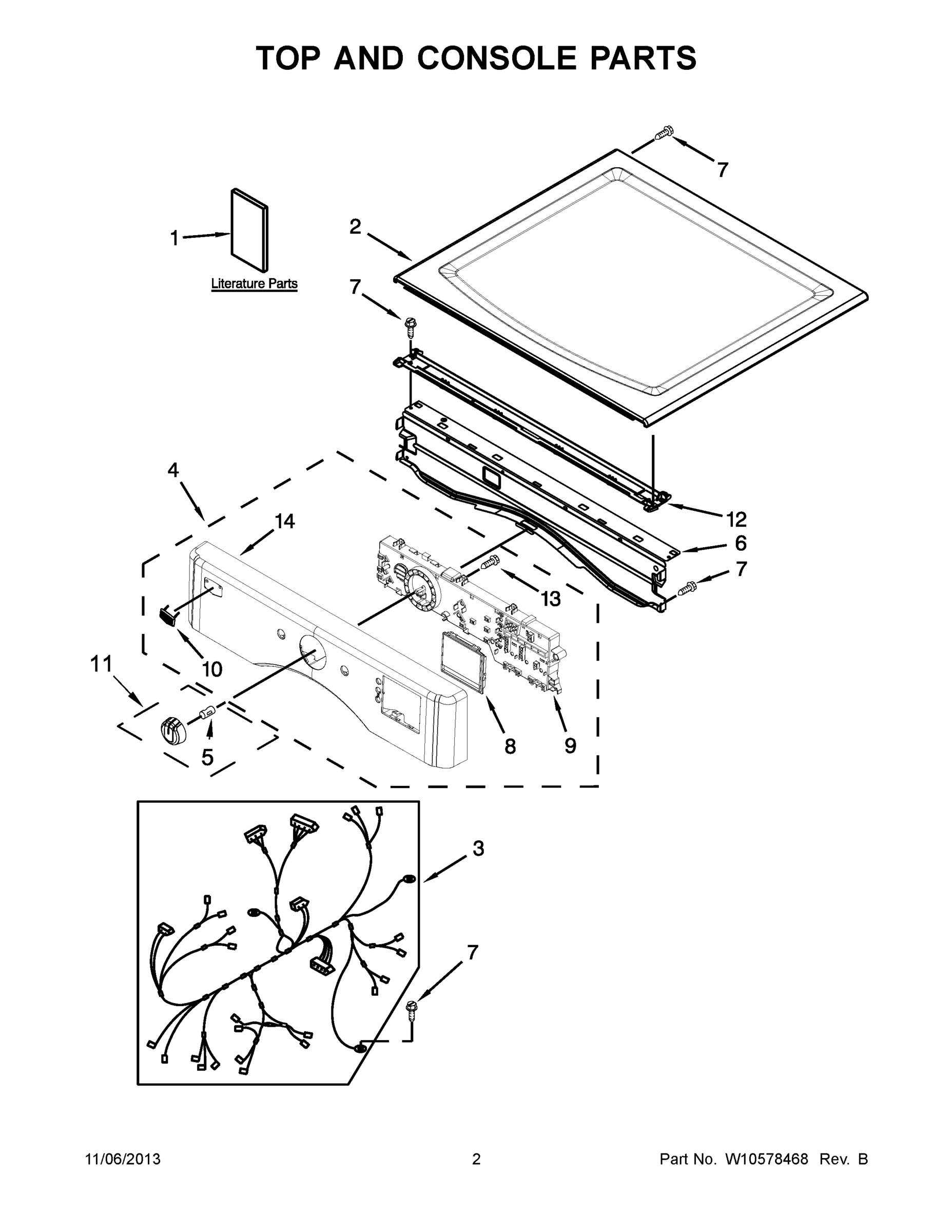

02 - TOP AND CONSOLE PARTS

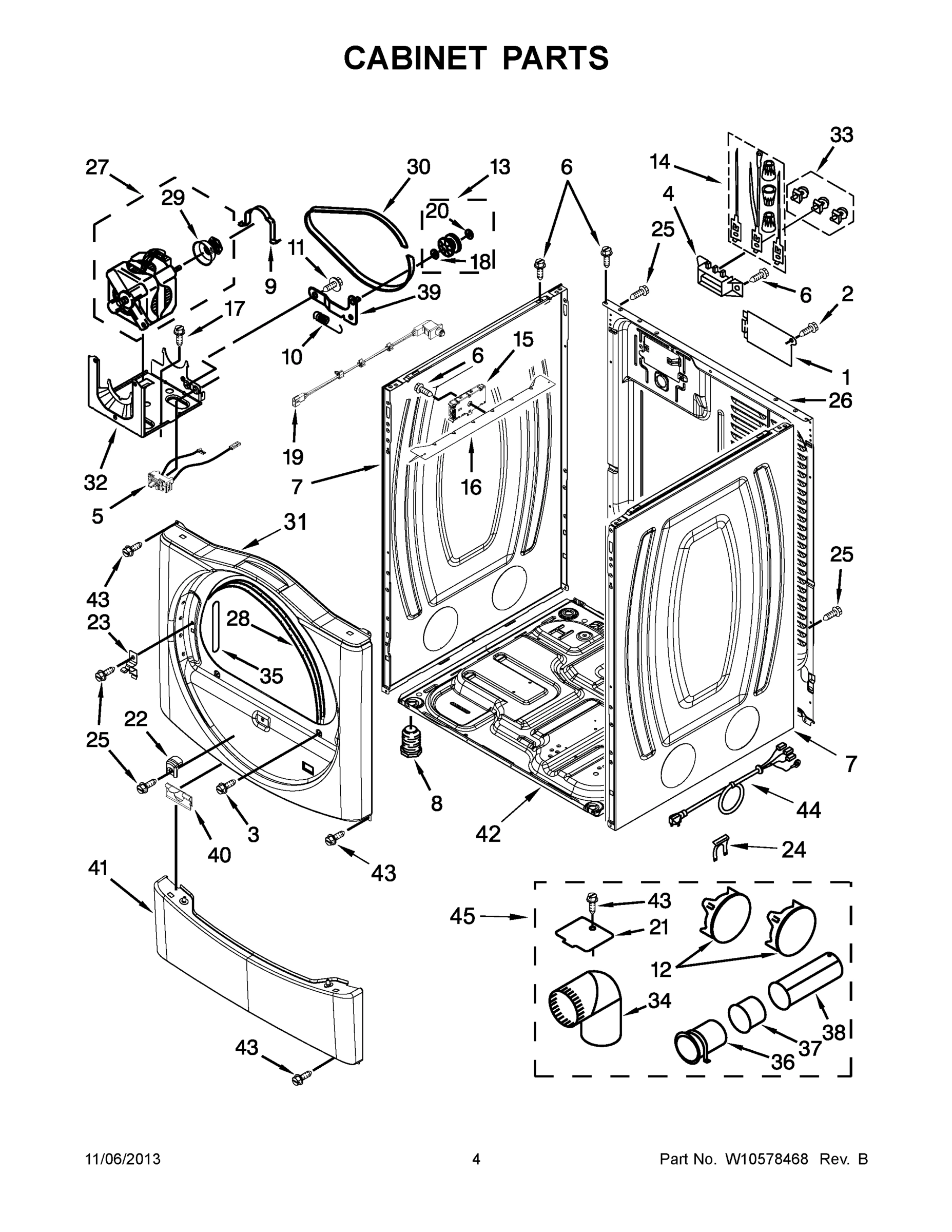

03 - CABINET PARTS

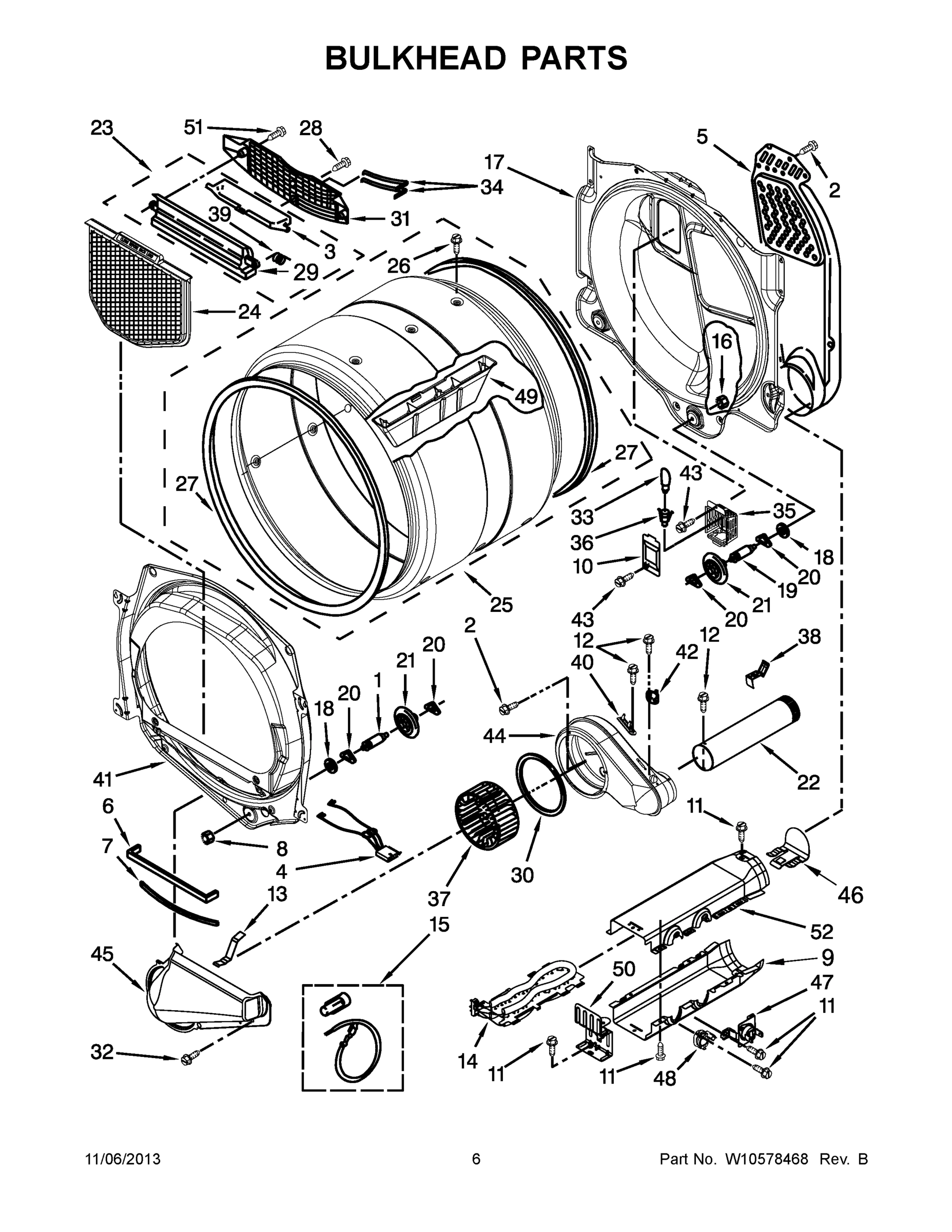

04 - BULKHEAD PARTS

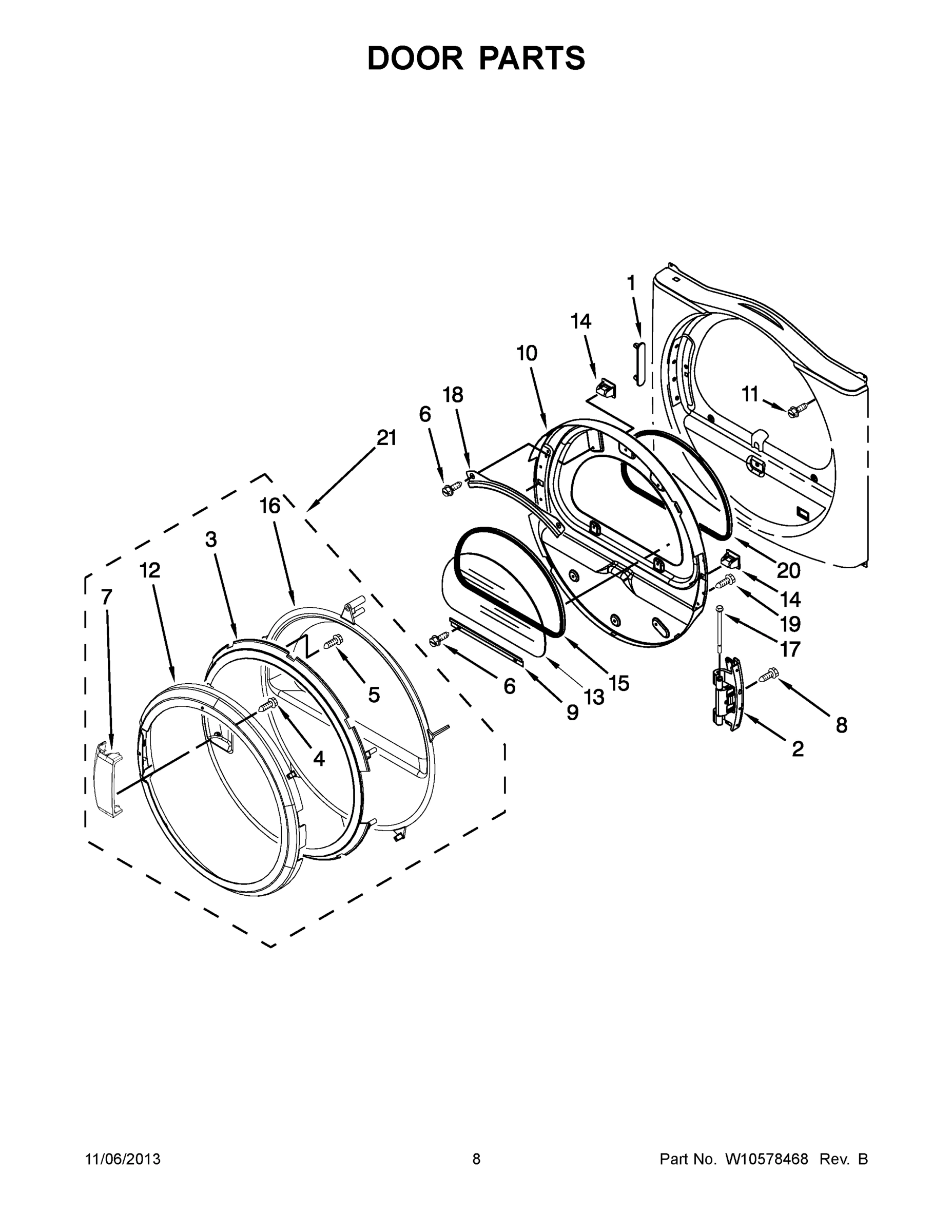

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDE251YL1 ELECTRIC DRYER
1
USE AND CARE GUIDE MAY W10385090 Contact Us For Availability
1
ENERGY GUIDE MAY W10392462 Contact Us For Availability
1
MAY W10443045 MAY W10443045 Contact Us For Availability
1
MAY W10443109 MAY W10443109 Contact Us For Availability
1
MAY W10286180 MAY W10286180 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
PLUG, HINGE HOLE (WHITE) MAY W10256915 Contact Us For Availability
2
MAY W10336091 MAY W10336091 Contact Us For Availability
2
MAY 8533974 MAY 8533974 Contact Us For Availability
2
ASSEMBLY, DOOR HINGE MAY 8578887 Contact Us For Availability
3
MAY W10555108 MAY W10555108 Contact Us For Availability
3
SCREW MAY 3357011 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
DOOR SCREEN & FRAME ASSEMBLY (NOT SERVICEABLE MAY N/P Contact Us For Availability
4
CONSOLE ASSEMBLY (SILVER) MAY W10384999 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
Screw MAY 9742177 Contact Us For Availability
5
CLIP, SPRING MAY 8536939 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
SCREW MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
SCREW MAY 3390814 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Screw MAY 3393258 Contact Us For Availability
7
MAY W10542715 MAY W10542715 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
HANDLE, DOOR (CHROME) MAY 8576578 Contact Us For Availability
8
MAY W10215794 MAY W10215794 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
MAY W10387236 MAY W10387236 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY 8544770 MAY 8544770 Contact Us For Availability
9
RETAINER, WINDOW MAY 8519354 Contact Us For Availability
10
BADGE (CHROME) MAY W10316087 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10363674 MAY W10363674 Contact Us For Availability
11
ASSEMBLY, CONTROL KNOB (CHROME) MAY W10251384 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
Screw MAY 693995 Contact Us For Availability
11
SCREW MAY 355515 Contact Us For Availability
12
CHANNEL, WATER DRYER MAY W10266747 Contact Us For Availability
12
PLUG, MULTIVENT MIDNIGHT GREY MAY W10331132 Contact Us For Availability
12
Screw MAY 8533971 Contact Us For Availability
12
DOOR, OUTER RING (CHROME) MAY 8576577 Contact Us For Availability
13
SCREW MAY W10006580 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
MAY W10345456 MAY W10345456 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
MAY W10384988 MAY W10384988 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY 8544771 MAY 8544771 Contact Us For Availability
14
ASSEMBLY, DOOR CATCH MAY 690081 Contact Us For Availability
15
BOARD, CONTROL CCU MAY W10450081 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY 8579663 MAY 8579663 Contact Us For Availability
16
Bracket, Control MAY 8563727 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
16
DOOR, INTERMEDIATE (STATIONARY) MAY 8580059 Contact Us For Availability
17
SCREW MAY 343641 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
MAY 8565087 MAY 8565087 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
Retainer-Window Upper MAY 8519356 Contact Us For Availability
19
MAY W10350910 MAY W10350910 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
SCREW MAY 8534044 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
SEAL, DOOR MAY W10163915 Contact Us For Availability
21
PLATE, COVER MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
DOOR, OUTER ASSEMBLY (CHROME) MAY W10371564 Contact Us For Availability
22
MAY 8580015 MAY 8580015 Contact Us For Availability
22
PIPE, EXHAUST MAY 8563728 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10153423 Contact Us For Availability
24
MAY 694415 MAY 694415 Contact Us For Availability
24
MAY W10596627 MAY W10596627 Contact Us For Availability
25
MAY 3393008 MAY 3393008 Contact Us For Availability
25
MAY W10549246 MAY W10549246 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
ASSEMBLY, MOTOR 60 HZ. MAY W10317045 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY 3387242 MAY 3387242 Contact Us For Availability
28
SCREW MAY 695240 Contact Us For Availability
29
MAY W10402907 MAY W10402907 Contact Us For Availability
29
MAY W10153414 MAY W10153414 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
31
MAY W10551279 MAY W10551279 Contact Us For Availability
31
MAY W10153412 MAY W10153412 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
Screw MAY 489463 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
ELBOW MAY 49026 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
SILVER MAY W10085230 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY W10214261 MAY W10214261 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY 8563750 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
39
ASSEMBLY, IDLER (INCLUDES ITEM 13) MAY W10547287 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY 8519459 MAY 8519459 Contact Us For Availability
40
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
41
MAY W10251210 MAY W10251210 Contact Us For Availability
41
MAY 8565061 MAY 8565061 Contact Us For Availability
42
MAY 8565046 MAY 8565046 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
44
Cord, Power MAY 8579325 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
DRYER EXHAUST KIT (FOR SIDE & BOTTOM VENTING) MAY W10186596 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
MAY 8544776 MAY 8544776 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
49
MAY W10153409 MAY W10153409 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 3387230 Contact Us For Availability
52
MAY 8544769 MAY 8544769 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
ACCESSORY PARTS, STACK KIT MAY 8572546 Contact Us For Availability
× ![]()
