Model Maytag YMEDB750YW2 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

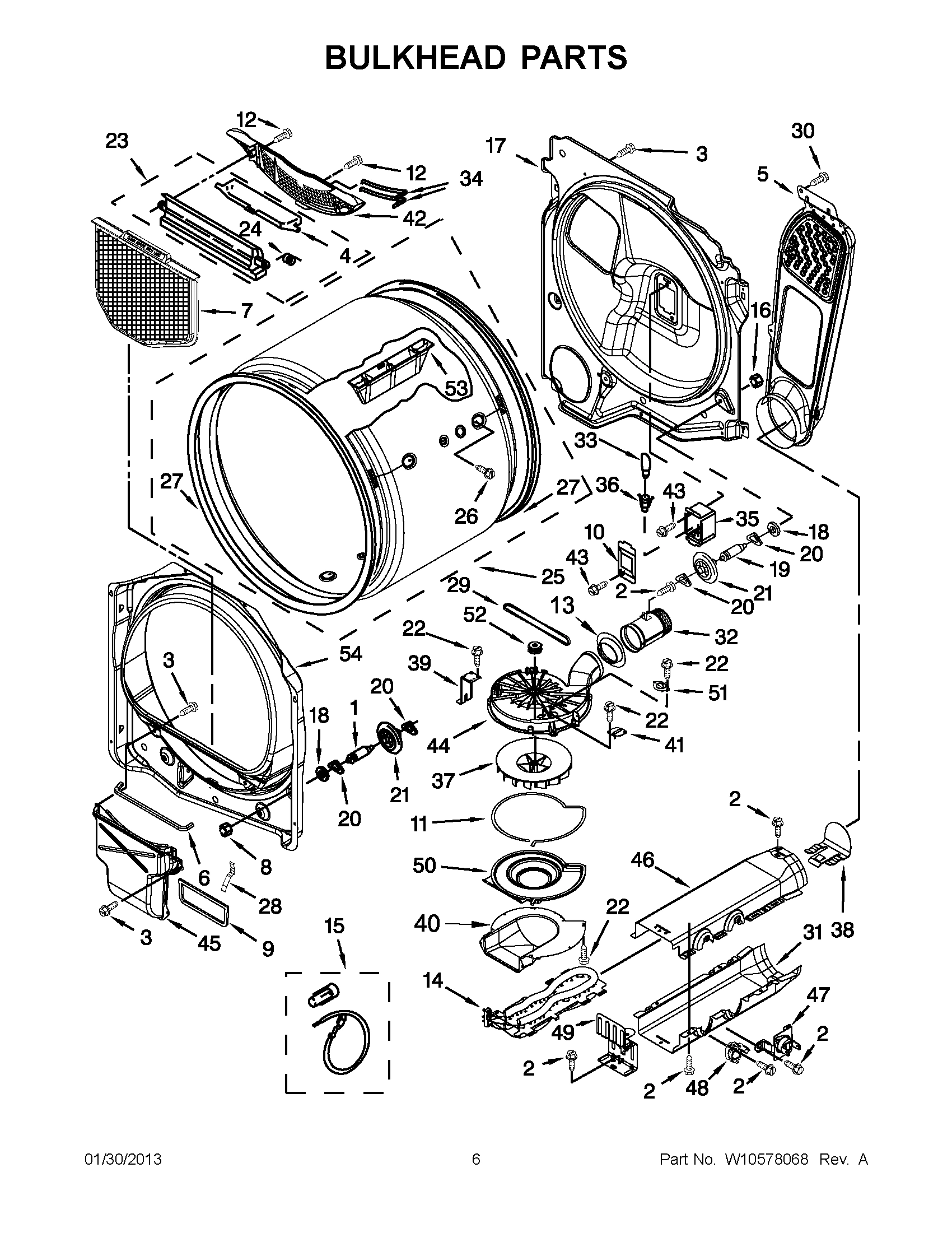

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDB750YW2 ELECTRIC DRYER
1
MAY W10388780 MAY W10388780 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10392126 Contact Us For Availability
1
MAY W10392460 MAY W10392460 Contact Us For Availability
1
MAY W10393006 MAY W10393006 Contact Us For Availability
1
Clip, Ground MAY 98234 Contact Us For Availability
1
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
2
MAY W10338343 MAY W10338343 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
MAY W10388672 MAY W10388672 Contact Us For Availability
3
SCREW MAY 3390631 Contact Us For Availability
4
MAY W10051124 MAY W10051124 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3394984 MAY 3394984 Contact Us For Availability
5
KNOB, CONTROL MAY W10338554 Contact Us For Availability
5
MAY W10411937 MAY W10411937 Contact Us For Availability
5
MAY 8544730 MAY 8544730 Contact Us For Availability
6
MAY W10432257 MAY W10432257 Contact Us For Availability
6
MAY 3405248 MAY 3405248 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY 8572039 MAY 8572039 Contact Us For Availability
7
CABINET (INCLUDES ITEM 23) (WHITE) MAY W10183827 Contact Us For Availability
7
Screen, Lint MAY W10049370 Contact Us For Availability
8
FOAM, TOP (RIGHT HAND) MAY W10219694 Contact Us For Availability
8
FOAM, TOP (LEFT HAND) MAY W10219695 Contact Us For Availability
8
MAY W10363894 MAY W10363894 Contact Us For Availability
8
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
9
MAY 8563853 MAY 8563853 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8544721 MAY 8544721 Contact Us For Availability
10
MAY W10003770 MAY W10003770 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
11
MAY W10112673 MAY W10112673 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY 8573068 MAY 8573068 Contact Us For Availability
12
TOP (INCLUDES ITEM 8) (WHITE) MAY W10223157 Contact Us For Availability
12
MAY 694415 MAY 694415 Contact Us For Availability
12
SCREW MAY 3387230 Contact Us For Availability
13
Screw MAY W10131402 Contact Us For Availability
13
IDLER ASSEMBLY MAY W10547292 Contact Us For Availability
13
MAY W10475158 MAY W10475158 Contact Us For Availability
14
Screw MAY 337686 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
MAY W10044440 MAY W10044440 Contact Us For Availability
15
MAY 8558863 MAY 8558863 Contact Us For Availability
15
RISER, FULL MAY W10363887 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY W10319799 MAY W10319799 Contact Us For Availability
16
MAY 8529008 MAY 8529008 Contact Us For Availability
16
NUT, HEX MAY 3934666 Contact Us For Availability
17
MAY W10492808 MAY W10492808 Contact Us For Availability
17
MAY 8557234 MAY 8557234 Contact Us For Availability
18
MAY W10111867 MAY W10111867 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY 3394083 MAY 3394083 Contact Us For Availability
19
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
20
MAY 8533974 MAY 8533974 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
21
HINGE ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10111888 MAY W10111888 Contact Us For Availability
22
MAY 3350424 MAY 3350424 Contact Us For Availability
23
MAY W10316529 MAY W10316529 Contact Us For Availability
23
MAY 3394985 MAY 3394985 Contact Us For Availability
24
ASSEMBLY, DOOR CATCH MAY W10111905 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
MAY W10221653 MAY W10221653 Contact Us For Availability
25
DRUM ASSEMBLY MAY W10549614 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10460374 MAY W10460374 Contact Us For Availability
27
MAY W10521119 MAY W10521119 Contact Us For Availability
28
MAY 8558830 MAY 8558830 Contact Us For Availability
28
MAY 8573070 MAY 8573070 Contact Us For Availability
29
MAY W10139247 MAY W10139247 Contact Us For Availability
29
MAY 8544742 MAY 8544742 Contact Us For Availability
30
Screw MAY 693995 Contact Us For Availability
30
MAY W10136934 MAY W10136934 Contact Us For Availability
31
PULLEY, MOTOR MAY W10136930 Contact Us For Availability
31
MAY 8544770 MAY 8544770 Contact Us For Availability
32
MAY 8547158 MAY 8547158 Contact Us For Availability
32
MAY W10533417 MAY W10533417 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 3400805 MAY 3400805 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
LOCATOR, SNAP-DOWN MAY 8568303 Contact Us For Availability
35
MAY 3977373 MAY 3977373 Contact Us For Availability
36
MAY 3393008 MAY 3393008 Contact Us For Availability
36
MAY W10214261 MAY W10214261 Contact Us For Availability
37
Strike & Plate Assembly MAY W10111906 Contact Us For Availability
37
MAY 8544737 MAY 8544737 Contact Us For Availability
38
MAY W10144494 MAY W10144494 Contact Us For Availability
38
MAY 8544776 MAY 8544776 Contact Us For Availability
39
FRONT PANEL (WHITE) MAY W10463261 Contact Us For Availability
39
BRACKET, BLOWER HOUSING MAY 8544741 Contact Us For Availability
40
MAY 342055 MAY 342055 Contact Us For Availability
40
MAY 8544718 MAY 8544718 Contact Us For Availability
41
MAY W10350909 MAY W10350909 Contact Us For Availability
41
THERMAL FUSE (91C) MAY 3390719 Contact Us For Availability
42
MAY W10111876 MAY W10111876 Contact Us For Availability
42
Grill, Outlet MAY 8544723 Contact Us For Availability
43
MAY 8576625 MAY 8576625 Contact Us For Availability
43
SCREW MAY 3390647 Contact Us For Availability
44
MAY W10044490 MAY W10044490 Contact Us For Availability
44
MAY W10256512 MAY W10256512 Contact Us For Availability
45
Cover, Terminal Block MAY W10110241 Contact Us For Availability
45
MAY 8544786 MAY 8544786 Contact Us For Availability
46
HINGE, TOP MAY 238088 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY W10111879 MAY W10111879 Contact Us For Availability
47
KIT, THERMAL CUT-OFF (INCLUDES HIGH LIMIT THE MAY 280148 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY 8544729 MAY 8544729 Contact Us For Availability
50
COVER, BLOWER MAY 8544719 Contact Us For Availability
51
THERMISTOR MAY 8577274 Contact Us For Availability
52
MAY 8544739 MAY 8544739 Contact Us For Availability
53
MAY 8563860 MAY 8563860 Contact Us For Availability
54
MAY 8557244 MAY 8557244 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
× ![]()
