Model LG YKCMS135GWH – Common Parts & Diagrams
Diagram 0

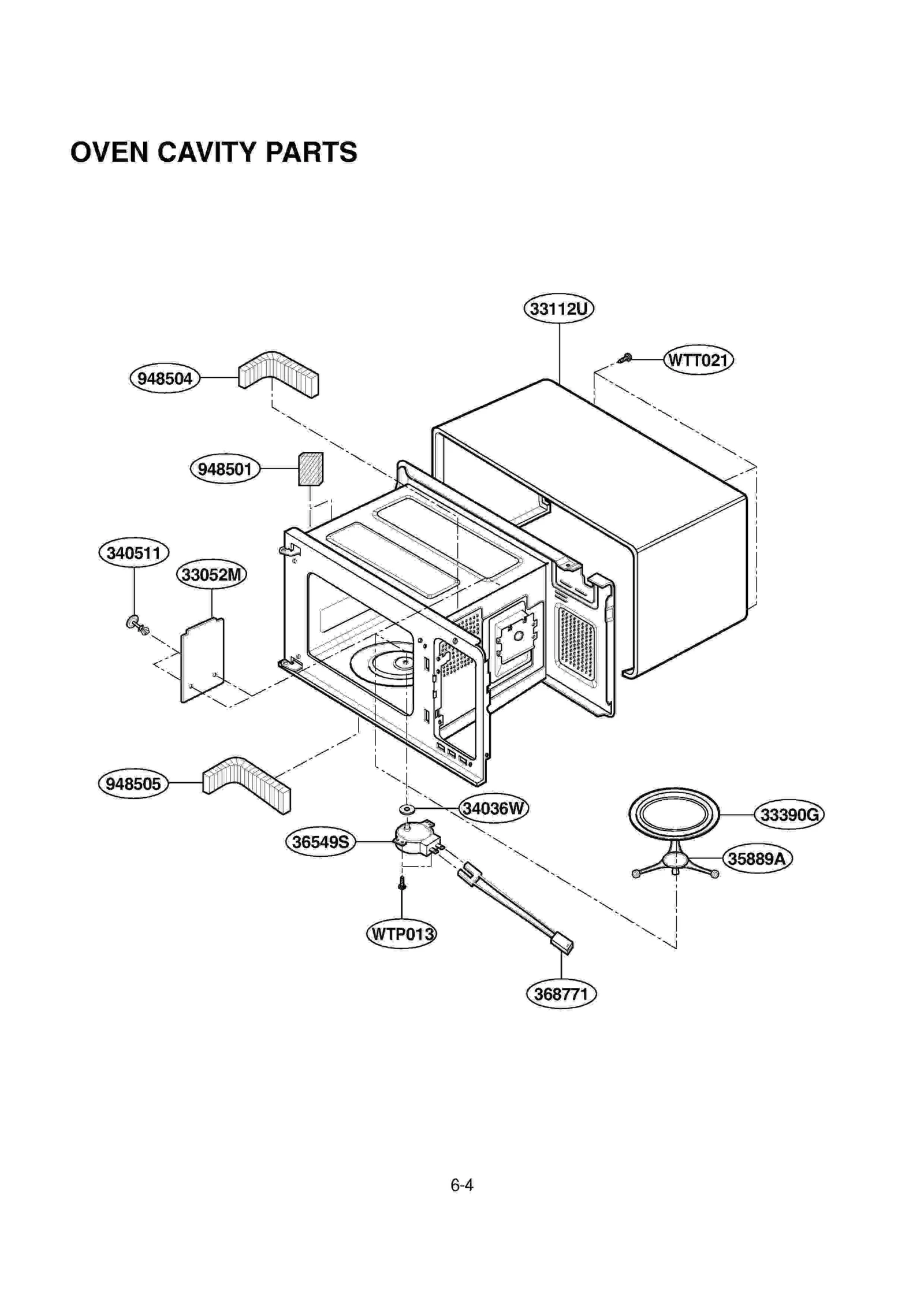

Diagram 1

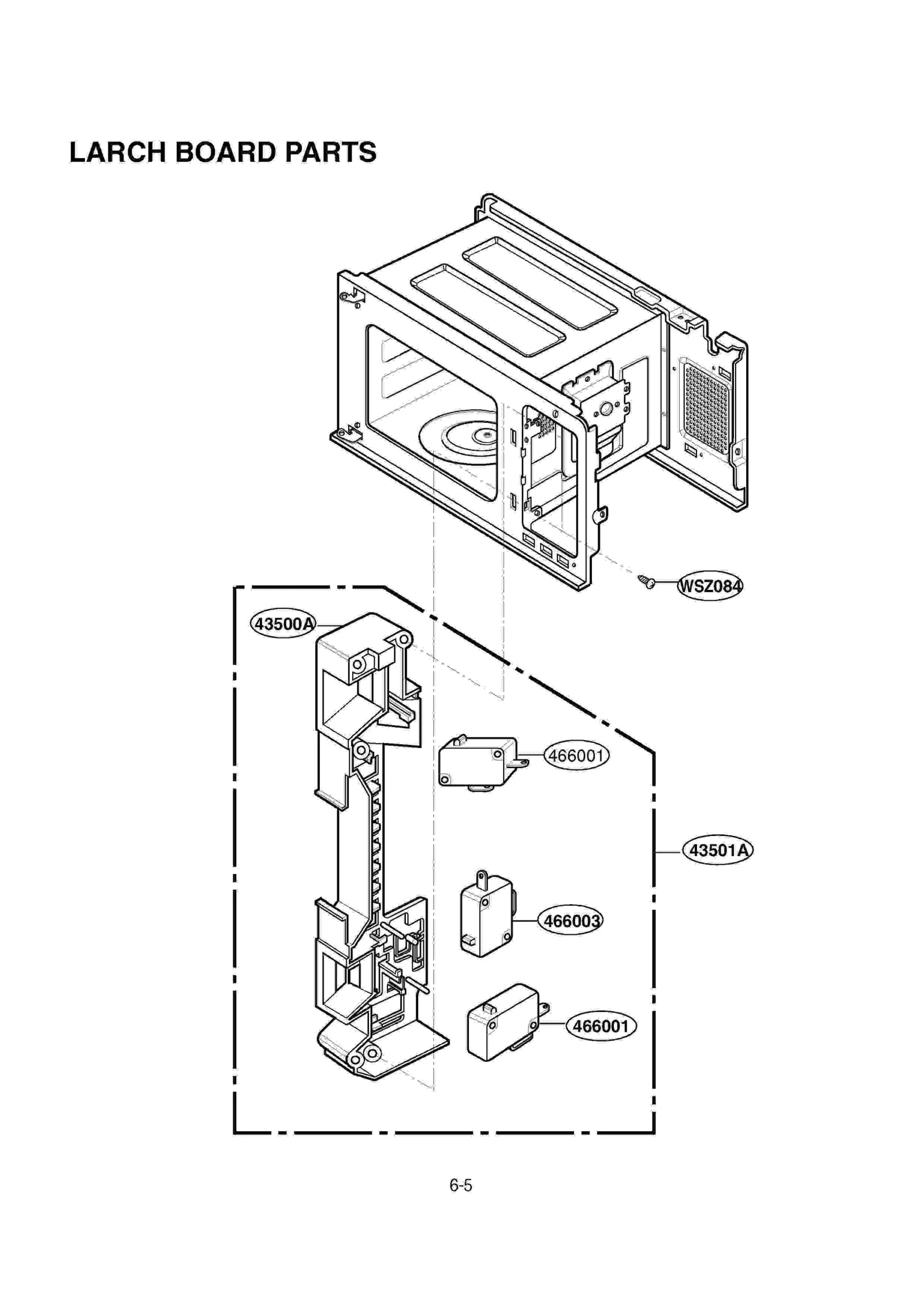

Diagram 2

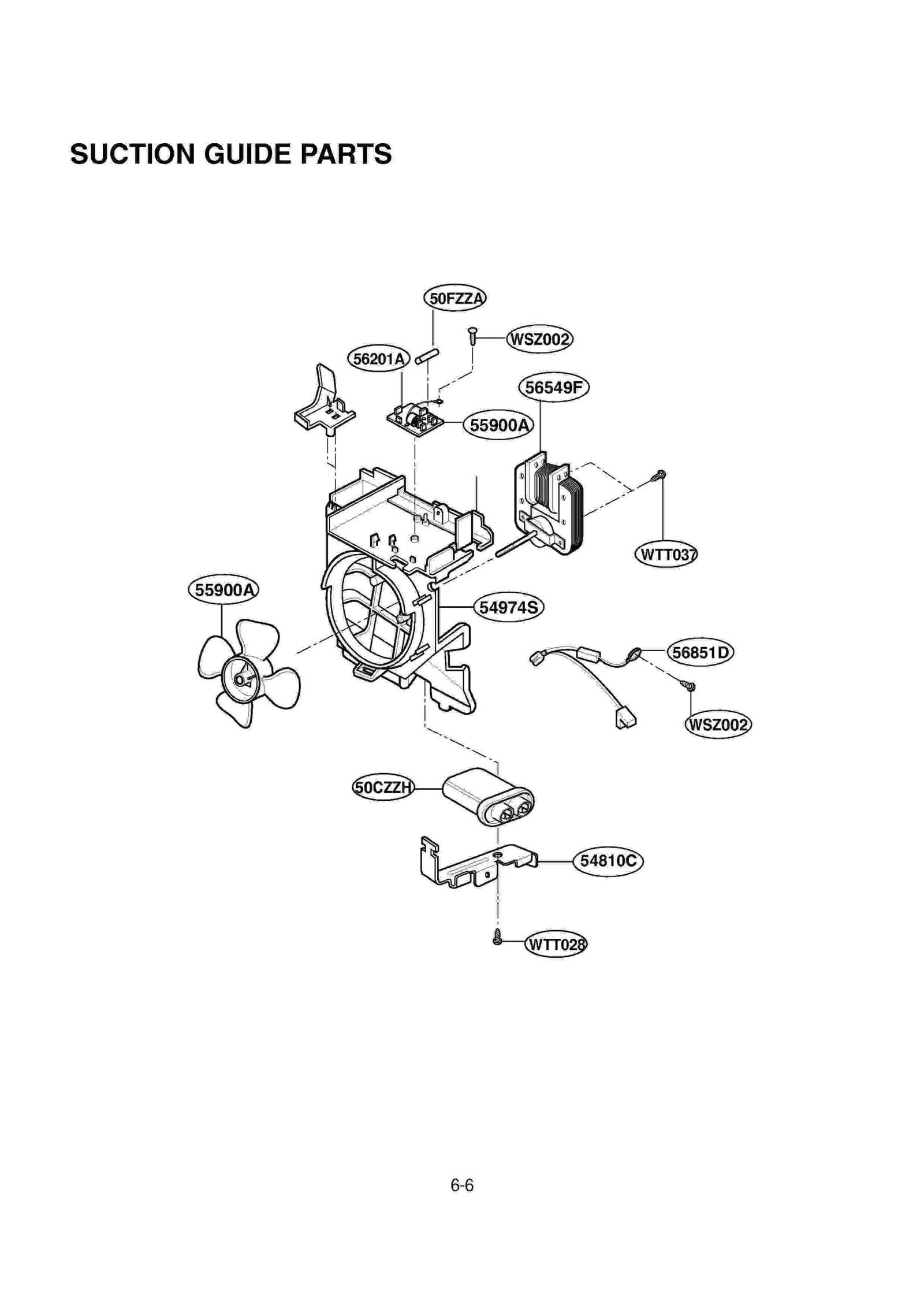

Diagram 3

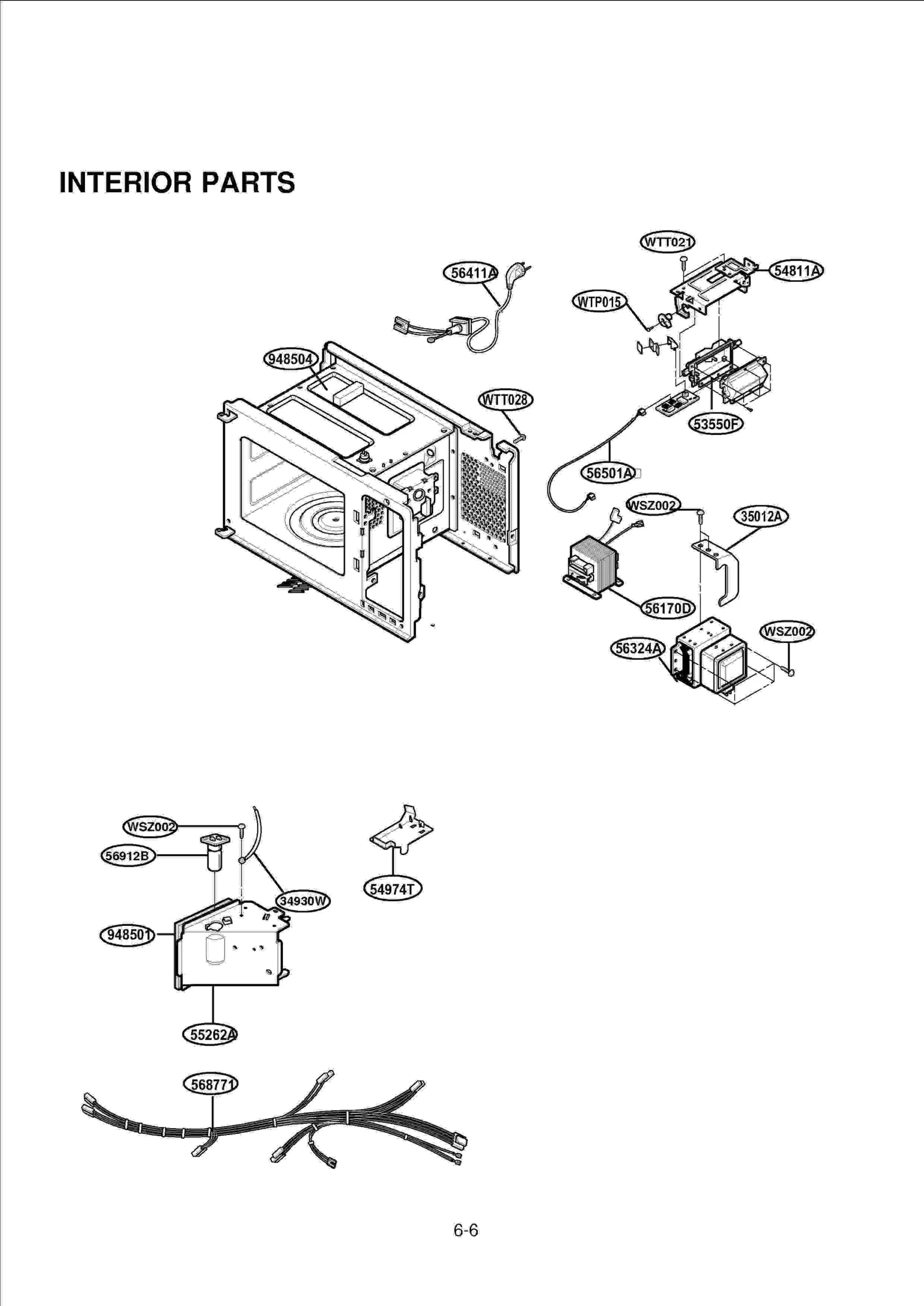

Diagram 4

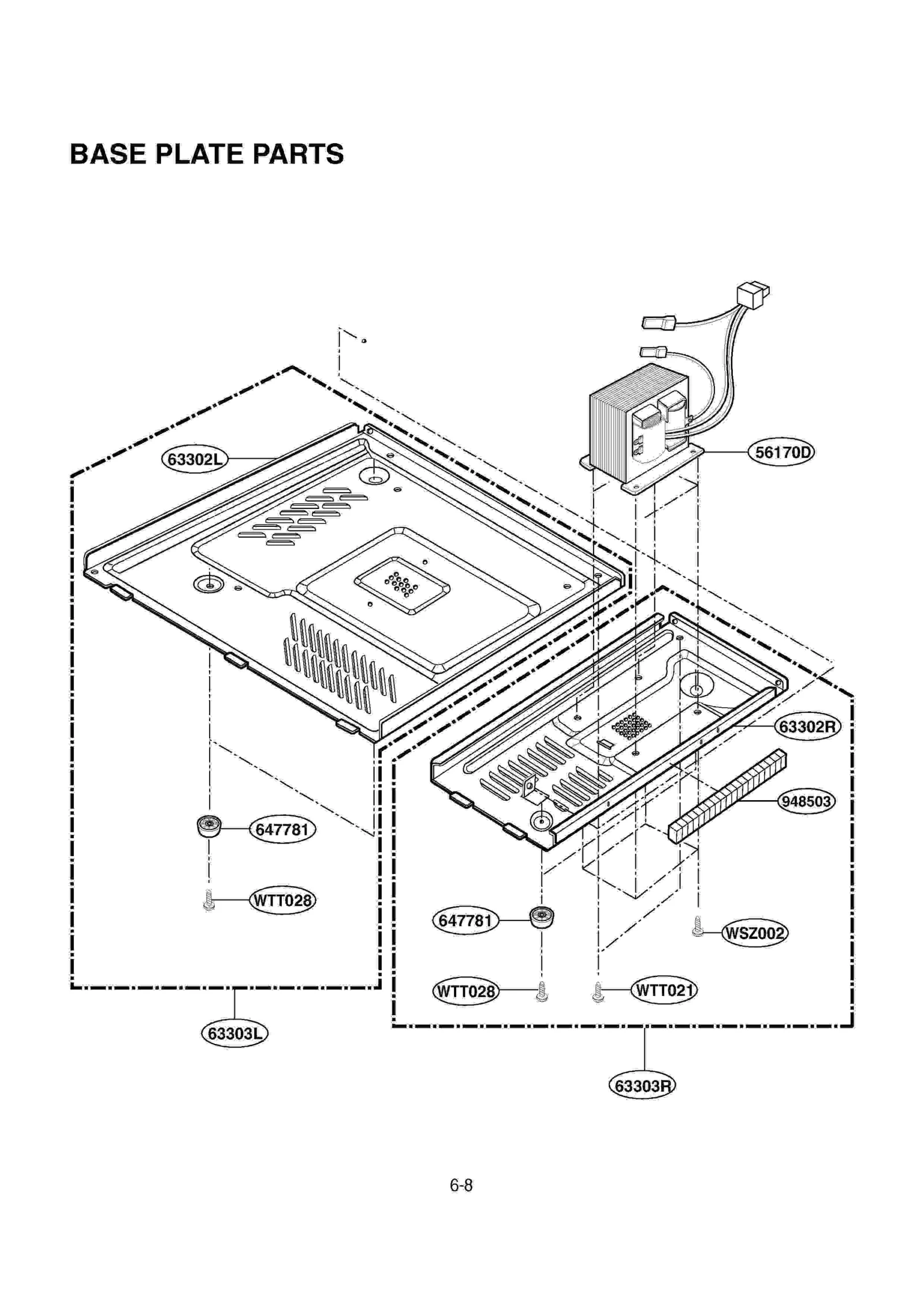

Diagram 5
Diagram 6
Common parts from model LG YKCMS135GWH
*01
LGE 3828W5A0715 LGE 3828W5A0715 Contact Us For Availability
*07
CARD,[TECHNICAL] LGE 3858W3T017D Contact Us For Availability
*10
BOX,[YELLOW] LGE 3890W2Y159A Contact Us For Availability
13213A
DOOR FRAME ASSY LGE 3213W1A031J Contact Us For Availability
13352A
FRONT SCREEN ALL LGE 3352W2A047A Contact Us For Availability
13552A
CHOKE COVER ALL LGE 3552W1A028A Contact Us For Availability
13581A
DOOR ASSY GROSS LGE 3581W1A159A Contact Us For Availability
13720D
PANEL DOOR LGE 3720W0D105A Contact Us For Availability
14026A
LATCH (ALL) - SEARS LGE 4026W2A012A Contact Us For Availability
23550D
DIGITRON COVER MS-101 S 121 S LGE 3550W4A029B Contact Us For Availability
23572A
CONTROL PANEL ALL LGE 3572W1A142A Contact Us For Availability
24510L
LEVER RELEASE MS-72CM MC-122MC LGE 4510W3L002A Contact Us For Availability
24781M
LGE 4781W1M151A LGE 4781W1M151A Contact Us For Availability
26638A
KEY MEMBRANE LGE 6638W2A170A Contact Us For Availability
33052M
CANOPY MICA LGE 3052W3M008B Contact Us For Availability
33112U
OUT CASE U-BENDING LGE 3112W0U006U Contact Us For Availability
33390G
TRAY GLASS LGE 3390W1G004A Contact Us For Availability
35889A
ROTATING RING ASSY A 0.9.1.0.1 LGE 5889W2A011A Contact Us For Availability
36549S
MOTOR SYNCHRONOUS HYUP JIN 120 LGE 6549WRS001N Contact Us For Availability
43500A
BOARD LATCH MS-101 S 121 S 151 LGE 3500W1A004A Contact Us For Availability
54810C
BRACKET HVC MS-72CM,HORIZON LGE 4810W3C001A Contact Us For Availability
54974S
LGE 4974W0S010A LGE 4974W0S010A Contact Us For Availability
56201B
CHOKE FILTER ASSY MS-100/120/1 LGE 6201W2A019A Contact Us For Availability
56411A
LGE 6411W2A002M LGE 6411W2A002M Contact Us For Availability
56501A
SENSOR ASSY ALL HUMIDITY SENSO LGE 6501W2A017A Contact Us For Availability
56549F
MOTOR(CIRC) FAN 120V/60HZ,10.5 LGE 6549W2F017B Contact Us For Availability
56930V
THERMOSTAT,BIMETAL LGE 6930W1A001J Contact Us For Availability
63302L
LGE 3302W1A033C LGE 3302W1A033C Contact Us For Availability
63302R
BASE PLATE ALL LEFT,1.2CU.FT J LGE 3302W1A034A Contact Us For Availability
63303L
LGE 3303W2A003C LGE 3303W2A003C Contact Us For Availability
63303R
BASE PLATE ASSY,ALL LGE 3303W1A026A Contact Us For Availability
568771
LEAD WIRE ASSY TT MS-71CM(T/T LGE 6877WRT007D Contact Us For Availability
568772
LGE 6877W1T263A LGE 6877W1T263A Contact Us For Availability
647781
LEG LGE 4B73900A Contact Us For Availability
948504
HINGE PLATE-U SCP 2.5T MV-1006 LGE 3B72244A Contact Us For Availability
AR4
RESISTOR ARRAY LGE 0RZ1503G610 Contact Us For Availability
BZ1
LGE 6908W3YA01A LGE 6908W3YA01A Contact Us For Availability
C01
LGE 0CK2230K935 LGE 0CK2230K935 Contact Us For Availability
C02
CAPACITOR ELECTROLYTIC LGE 0CE1076K638 Contact Us For Availability
C03
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C07
CAPACITOR ELECTROLYTIC 4.7M SM LGE 0CE4756K638 Contact Us For Availability
C40
CAPACITOR,FIXED CERAMIC(High d LGE 0CK1040K948 Contact Us For Availability
C42
CAPACITOR ELECTROLYTIC CE,47MF LGE 0CE4766K638 Contact Us For Availability
C43
CAPACITOR ELECTROLYTIC 10M SM LGE 0CE1066K638 Contact Us For Availability
C54
CAPACITOR,FIXED CERAMIC(High d LGE 0CK2230K948 Contact Us For Availability
CN1
CONNECTOR (CIRC) WAF LGE 6630W5V021A Contact Us For Availability
CN2
CONNECTOR (CIRC) LGE 6630W5V013A Contact Us For Availability
CN4
KEY CONNECTOR FCZ254-12D MH-13 LGE 6630W5YA19D Contact Us For Availability
D24
DIODE 1N4148M (ROHM KOREA) MA- LGE 0DD414809AB Contact Us For Availability
D41
DIODE IN4002,MA-1354P,1554M *N LGE 0DD400209AA Contact Us For Availability
DP1
DIGITRON, ALL LGE 6302W5A002A Contact Us For Availability
PT1
TRANSFORMER POWER 120V/60HZ,14 LGE 6010W2P043A Contact Us For Availability
Q01
TRANSISTOR KTA1266-TP-Y(KTA101 LGE 0TR126609AA Contact Us For Availability
Q20
TRANSISTOR LGE 0TR319809AA Contact Us For Availability
R01
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R05
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R20
Resistor,Carbon Film LGE 0RD5601F608 Contact Us For Availability
R22
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R30
LGE 0RN2003F408 LGE 0RN2003F408 Contact Us For Availability
R31
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R33
LGE 0RN1002F408 LGE 0RN1002F408 Contact Us For Availability
R34
RESISTOR,FIXED CARBON FILM LGE 0RD6600H602 Contact Us For Availability
R37
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R40
Resistor,Carbon Film LGE 0RD1000F608 Contact Us For Availability
R41
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R43
RESISTOR FIXED CARBON FILM 10 LGE 0RD0102F608 Contact Us For Availability
R51
Resistor,Carbon Film LGE 0RD2701F608 Contact Us For Availability
R52
RESISTOR FIXED CARBON FILM 47K LGE 0RD4702F608 Contact Us For Availability
R55
Resistor,Carbon Film LGE 0RD1503F608 Contact Us For Availability
R56
RESISTOR FIXED CARBO LGE 0RD2004F608 Contact Us For Availability
R58
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R59
LGE 0RD2703F608 LGE 0RD2703F608 Contact Us For Availability
R73
Resistor,Carbon Film LGE 0RD2202F608 Contact Us For Availability
RY1
RELAY LGE 6920W2D010B Contact Us For Availability
RY2
Relay,Contact LGE 6920W2D014A Contact Us For Availability
U01
LGE 0IHI404339X LGE 0IHI404339X Contact Us For Availability
U04
IC KIA4558P(8DIP LIN OP-AMP/BI LGE 0IKE455800A Contact Us For Availability
U05
IC,SAMSUNG ELECTRONICS LGE 0ISS791500A Contact Us For Availability
ZD1
DIODE ZENER UZ5.1BS TP26 SM 0 LGE 0DZ510009AE Contact Us For Availability
ZD2
DIODE ZENER LGE 0DZ750009AC Contact Us For Availability
× ![]()
