Model Maytag YAER6603SFS2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

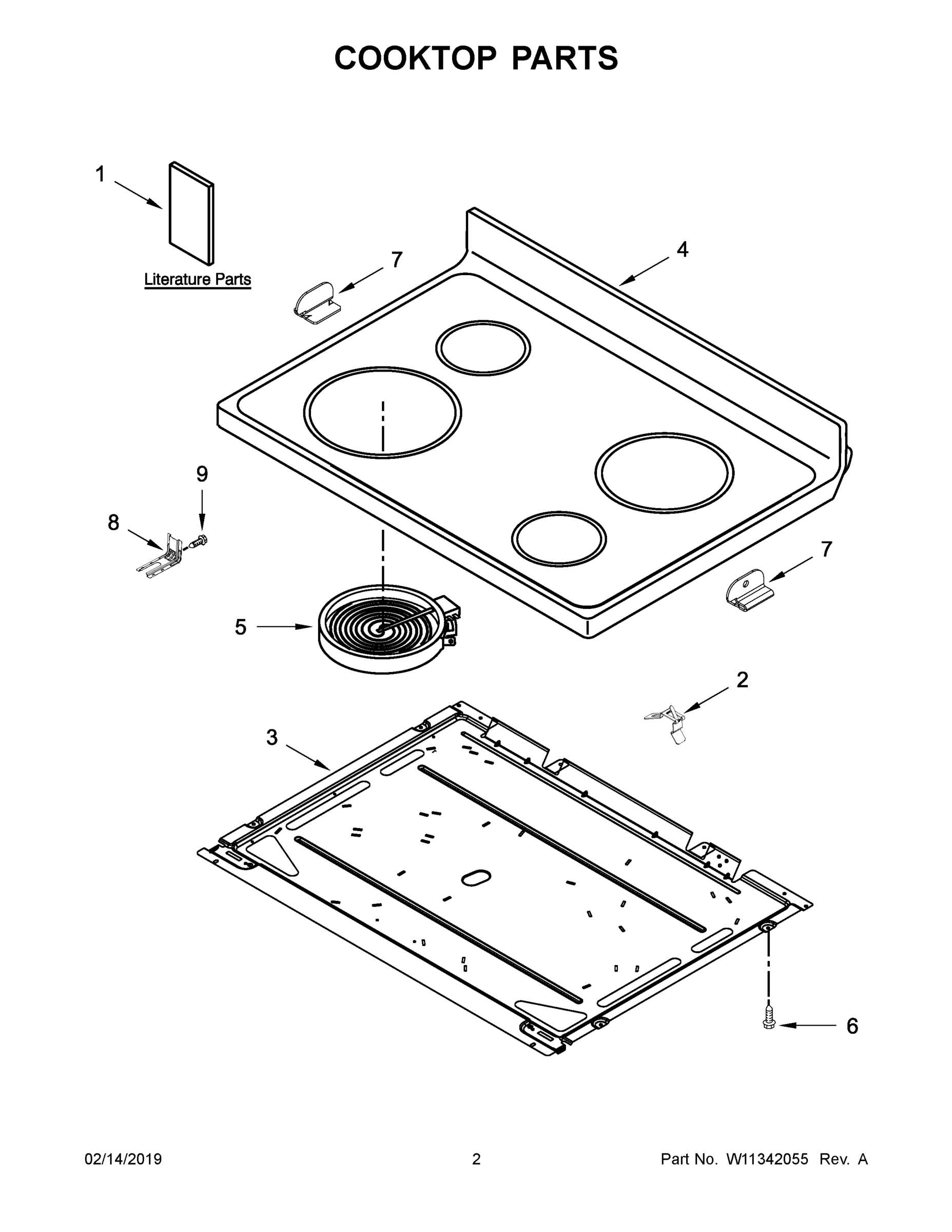

02 - COOKTOP PARTS

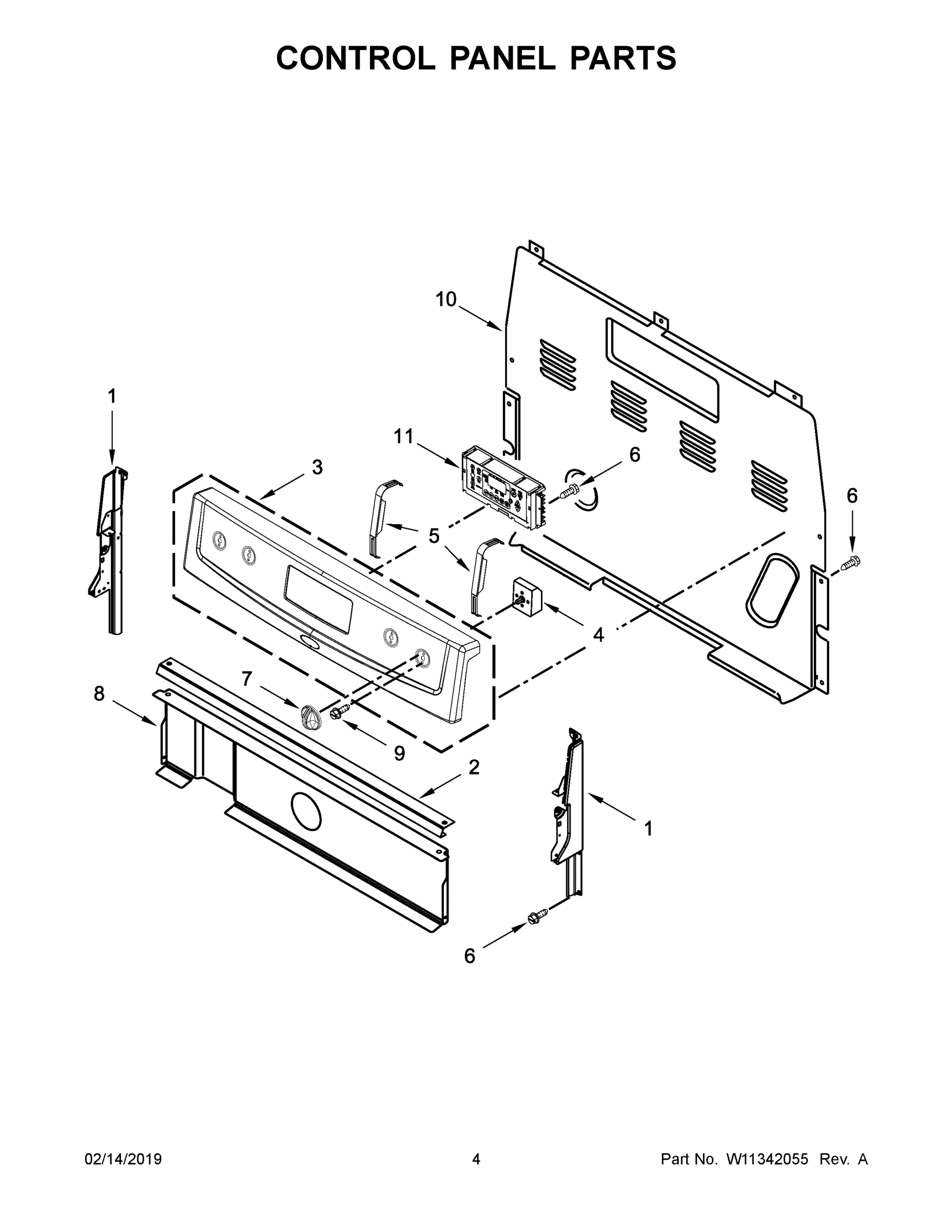

03 - CONTROL PANEL PARTS

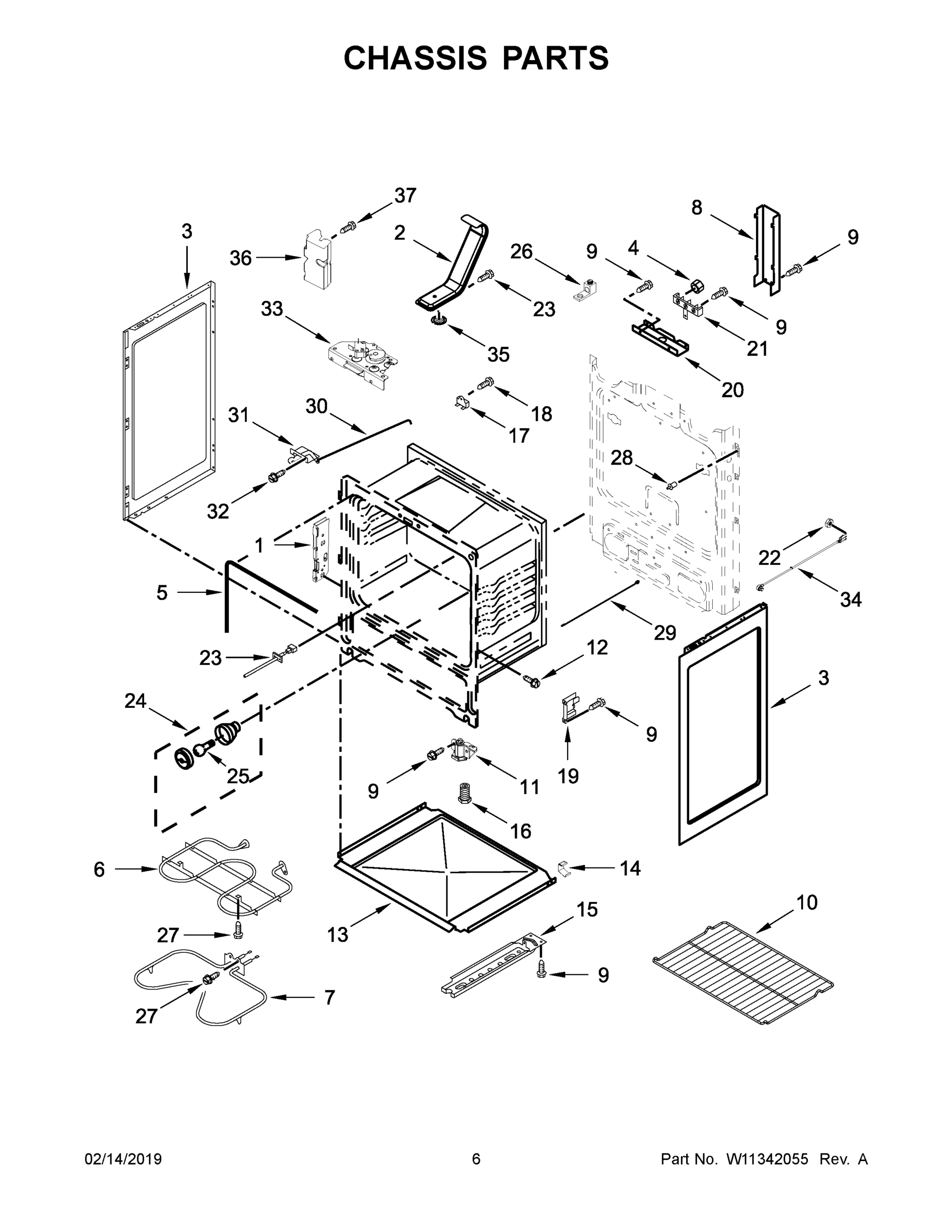

04 - CHASSIS PARTS

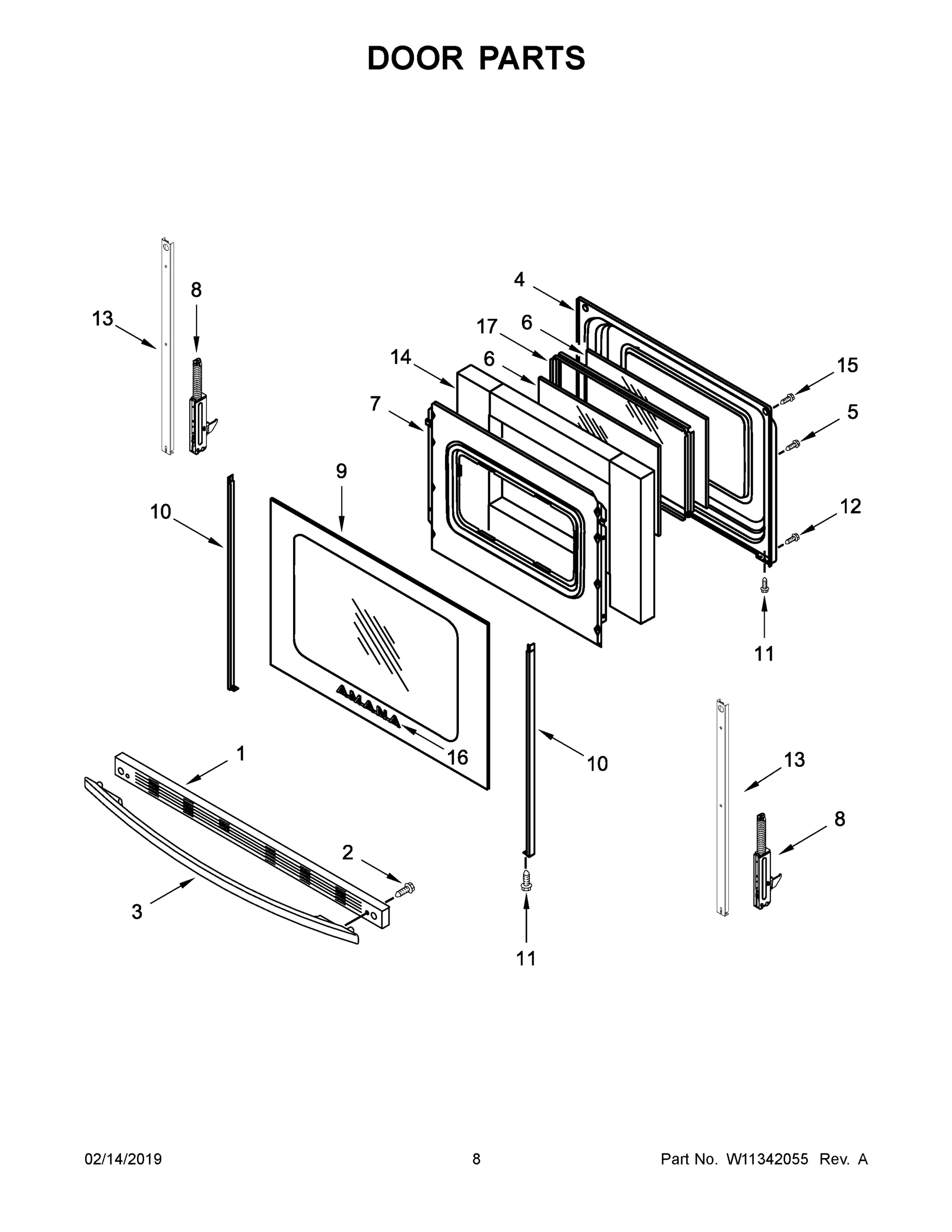

05 - DOOR PARTS

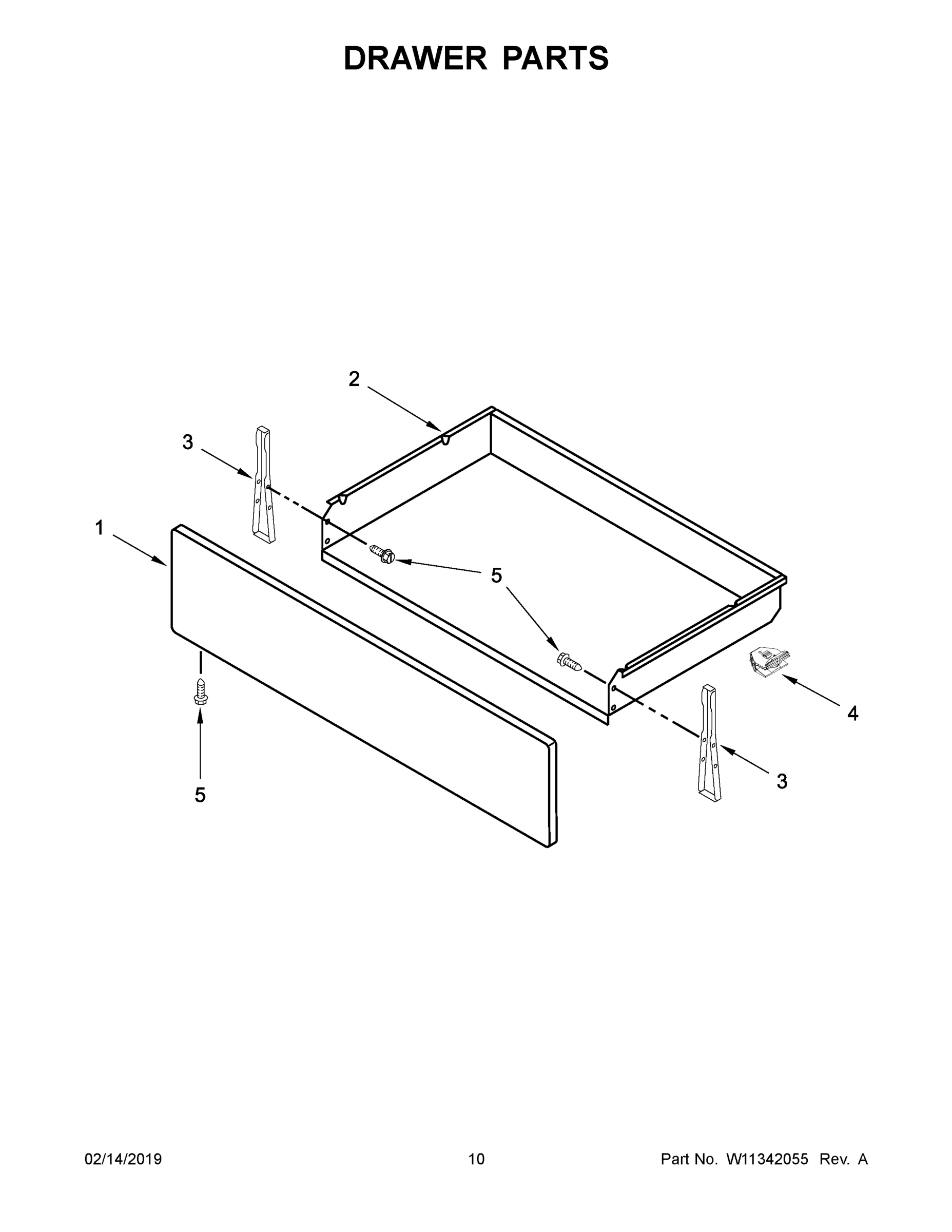

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag YAER6603SFS2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10310922 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10330070 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W10877842 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1B
SHEET, TECH MAY W10842032 Contact Us For Availability
1C
DIAGRAM, WIRING MAY W10873908 Contact Us For Availability
2
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
2
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
2
TUBE, VENT MAY W10134285 Contact Us For Availability
2
SCREW MAY W10163951 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
3
PANEL, CONSOLE (STAINLESS) MAY W11157021 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462910 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10853125 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT AND LEFT REAR) MAY 3148951 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SWITCH, INFINITE (GREEN) (RIGHT REAR) MAY 3148953 Contact Us For Availability
4A
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
4B
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10434452 Contact Us For Availability
5
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
5
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
5
SEAL, DOOR MAY W10658354 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5
SCREW MAY 3196165 Contact Us For Availability
5A
ELEMENT (1200W) (LEFT REAR, RIGHT FRONT) MAY W10248261 Contact Us For Availability
5B
ELEMENT (1800W) (RIGHT REAR) MAY 8273993 Contact Us For Availability
6
SCREW MAY 3196178 Contact Us For Availability
6
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
6
GLASS, INNER MAY 9758162 Contact Us For Availability
7
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
7
KNOBS (STAINLESS) MAY W10844802 Contact Us For Availability
7
ELEMENT, BAKE MAY W11111743 Contact Us For Availability
7
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
7A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
8
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
8
SHIELD, HEAT MAY W10134247 Contact Us For Availability
8
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
8
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
8A
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
9
SCREW MAY 3196169 Contact Us For Availability
9
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
9
SCREW MAY 3400882 Contact Us For Availability
9
GLASS, OUTER (STAINLESS) MAY W11170209 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
RACK, OVEN MAY W10268578 Contact Us For Availability
10
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
10A
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
11
CONTROL, ELECTRONIC (LCX) (BLACK) MAY W11204489 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
SCREW MAY W10327235 Contact Us For Availability
12
SCREW MAY W10067840 Contact Us For Availability
12
SCREW MAY W10031780 Contact Us For Availability
13
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
STRAP, DOOR MAY W10544179 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
SCREW MAY W10200660 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
BADGE (STAINLESS) MAY W10846752 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
FRAME, GLASS MAY W10316950 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
19
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
23
SENSOR, OVEN MAY W10181986 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
25
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
26
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
27
SCREW MAY 3196154 Contact Us For Availability
28
SWITCH, DOOR MAY W10627802 Contact Us For Availability
29
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
30
ROD, LATCH MAY W10078380 Contact Us For Availability
31
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
32
SCREW MAY 3196560 Contact Us For Availability
33
ASSEMBLY, LATCH (REAR) MAY W10107840 Contact Us For Availability
34
CORD, POWER MAY W10624591 Contact Us For Availability
35
SCREEN, VENT MAY W11092984 Contact Us For Availability
36
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
37
SCREW MAY W11034869 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, COOKTOP (RIGHT) MAY W11134551 Contact Us For Availability
NI
HARNESS, COOKTOP (LEFT) MAY W11134603 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) MAY W11188500 Contact Us For Availability
NI
INSULATION, FLUE MAY W10333344 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
INSULATION, BACK MAY W11127325 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL,OVEN LINER TOUCH UP PAIN MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. UNIVERSAL SILVER) MAY 8212473 Contact Us For Availability
× ![]()
