Model LG XL9T Bluetooth Speaker – Common Parts & Diagrams
Diagram 0

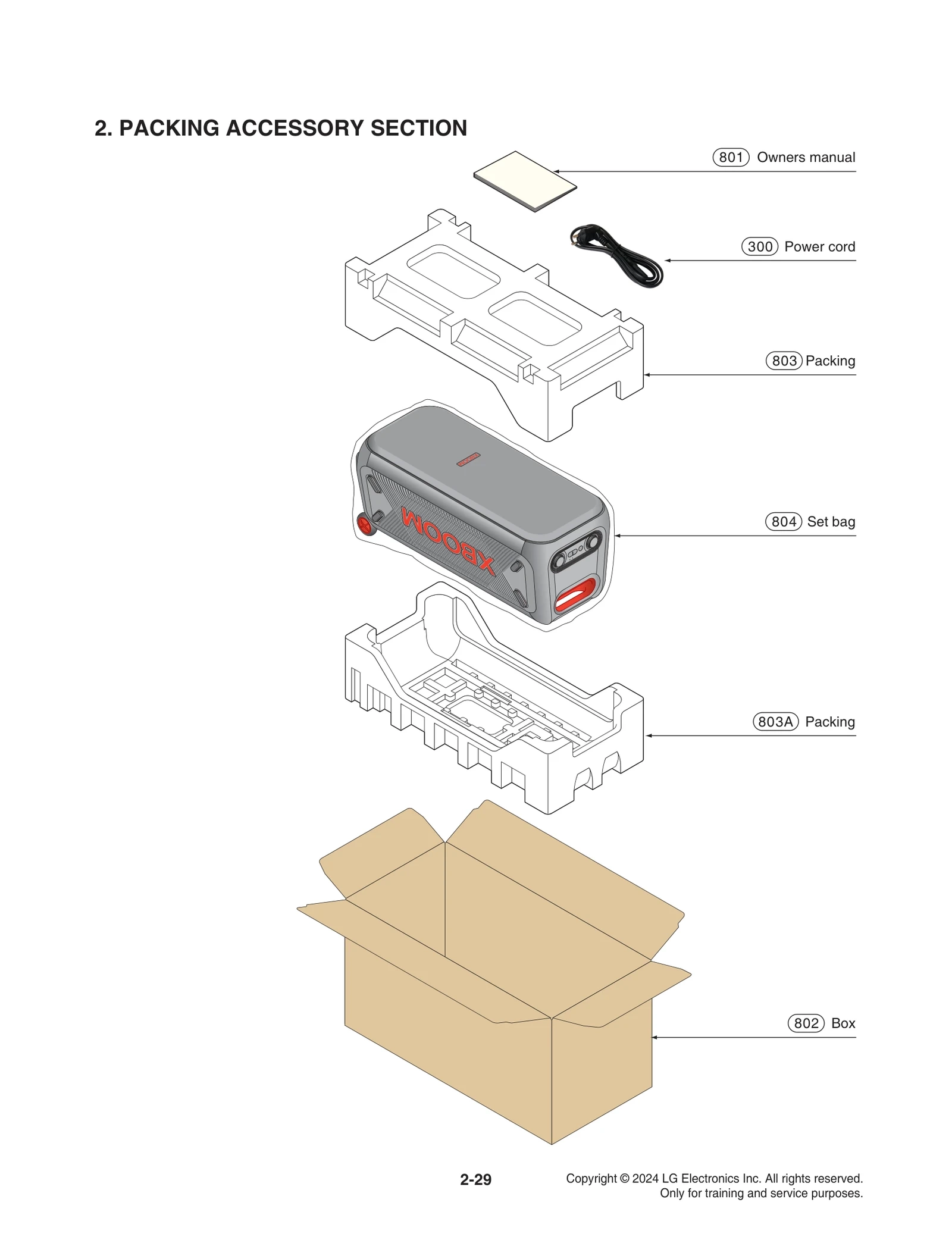

Diagram 1
Diagram 2
Common parts from model LG XL9T Bluetooth Speaker
252L
Panel Assembly,Audio LGE AGL30194101 Contact Us For Availability
252R
Panel Assembly,Audio LGE AGL30194201 Contact Us For Availability
253
Handle Assembly LGE AED75500801 Contact Us For Availability
254
Cover LGE MCK71792901 Contact Us For Availability
255
Handle LGE MEB65436301 Contact Us For Availability
256
Cover LGE MCK71792401 Contact Us For Availability
257
Button LGE MBG67870701 Contact Us For Availability
258
Button LGE MBG67870702 Contact Us For Availability
259
Knob LGE MEY65474001 Contact Us For Availability
260
Button LGE MBG67870801 Contact Us For Availability
261
Speaker,Tweeter LGE EAB62873007 Contact Us For Availability
263
Lens LGE MFB65487301 Contact Us For Availability
264
Lens LGE MFB65487101 Contact Us For Availability
265
Lens LGE MFB65487001 Contact Us For Availability
266
Lens LGE MFB65487201 Contact Us For Availability
267
Lens LGE MFB65486901 Contact Us For Availability
268
Lens LGE MFB65487401 Contact Us For Availability
270
Chassis LGE MBS65054801 Contact Us For Availability
271
Cover LGE MCK71792601 Contact Us For Availability
272
Fan Module LGE EAL60700910 Contact Us For Availability
273
Button LGE MBG67870901 Contact Us For Availability
274
Socket,Power LGE EAG63233213 Contact Us For Availability
275
Panel,Rear LGE MGC66442101 Contact Us For Availability
276
Cover LGE MCK71792701 Contact Us For Availability
277
Duct LGE MCZ65401401 Contact Us For Availability
278
Cover LGE MCK71792801 Contact Us For Availability
279
Foot LGE MDP64335401 Contact Us For Availability
281
Cover LGE MCK71794801 Contact Us For Availability
282
Ring LGE MGZ65561901 Contact Us For Availability
283
Cover Assembly LGE ACQ30612201 Contact Us For Availability
284
Cover Assembly LGE ACQ30662901 Contact Us For Availability
285
Frame LGE MDQ66796401 Contact Us For Availability
286
Sheet LGE MHK67919601 Contact Us For Availability
287
Cap LGE MBL68744901 Contact Us For Availability
288
Speaker,Woofer LGE EAB65028520 Contact Us For Availability
443
SCREW,DRAWING LGE 1SZZR-0098M Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
530
Screw,Customized LGE FAB30093410 Contact Us For Availability
801
Manual Assembly,Owners LGE AFN30110310 Contact Us For Availability
802
Box,Master LGE MAY70123212 Contact Us For Availability
803
Packing LGE MFZ67482301 Contact Us For Availability
803A
Packing LGE MFZ67482302 Contact Us For Availability
804
Bag LGE MAF61906463 Contact Us For Availability
A33
Cover Assembly LGE ACQ30612501 Contact Us For Availability
A41
PCB Assembly LGE EBR41424401 Contact Us For Availability
A42
PCB Assembly LGE EBR41425201 Contact Us For Availability
A43
PCB Assembly LGE EBR41426101 Contact Us For Availability
A44
PCB Assembly LGE EBR41430701 Contact Us For Availability
A45
PCB Assembly LGE EBR43238101 Contact Us For Availability
A46
Option Code Assembly LGE EBR41630806 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR40569401 Contact Us For Availability
A48
PCB Assembly LGE EBR43241301 Contact Us For Availability
A49
PCB Assembly LGE EBR41431101 Contact Us For Availability
A50
PCB Assembly LGE EBR41430401 Contact Us For Availability
A52
PCB Assembly LGE EBR41429901 Contact Us For Availability
A53
PCB Assembly LGE EBR41429201 Contact Us For Availability
A54
PCB Assembly LGE EBR41428801 Contact Us For Availability
A55
PCB Assembly,Sub LGE EBR37969903 Contact Us For Availability
A60
Cover Assembly LGE ACQ30612303 Contact Us For Availability
CABLE1
Harness,Single LGE EAD65988002 Contact Us For Availability
CABLE2
Harness,Single LGE EAD65366213 Contact Us For Availability
CABLE3
Harness,Single LGE EAD65988004 Contact Us For Availability
CABLE4
Harness,Single LGE EAD66024001 Contact Us For Availability
CABLE5
Harness,Single LGE EAD66024101 Contact Us For Availability
CABLE6
Harness,Single LGE EAD66024002 Contact Us For Availability
CABLE8
Harness,Single LGE EAD66024003 Contact Us For Availability
CABLE10
PCB Assembly,Sub LGE EBR41896201 Contact Us For Availability
CABLE11
Harness,Single LGE EAD65988302 Contact Us For Availability
CABLE12
Harness,Single LGE EAD65988003 Contact Us For Availability
CABLE13
Harness,Single LGE EAD66023901 Contact Us For Availability
IC501A
S/W,System Program LGE SAA43869003 Contact Us For Availability
IC502A
S/W,System Program LGE SAA43869103 Contact Us For Availability
ICT301A
S/W,System Program LGE SAA43869203 Contact Us For Availability
× ![]()
