Model LG XG9QBK – Common Parts & Diagrams

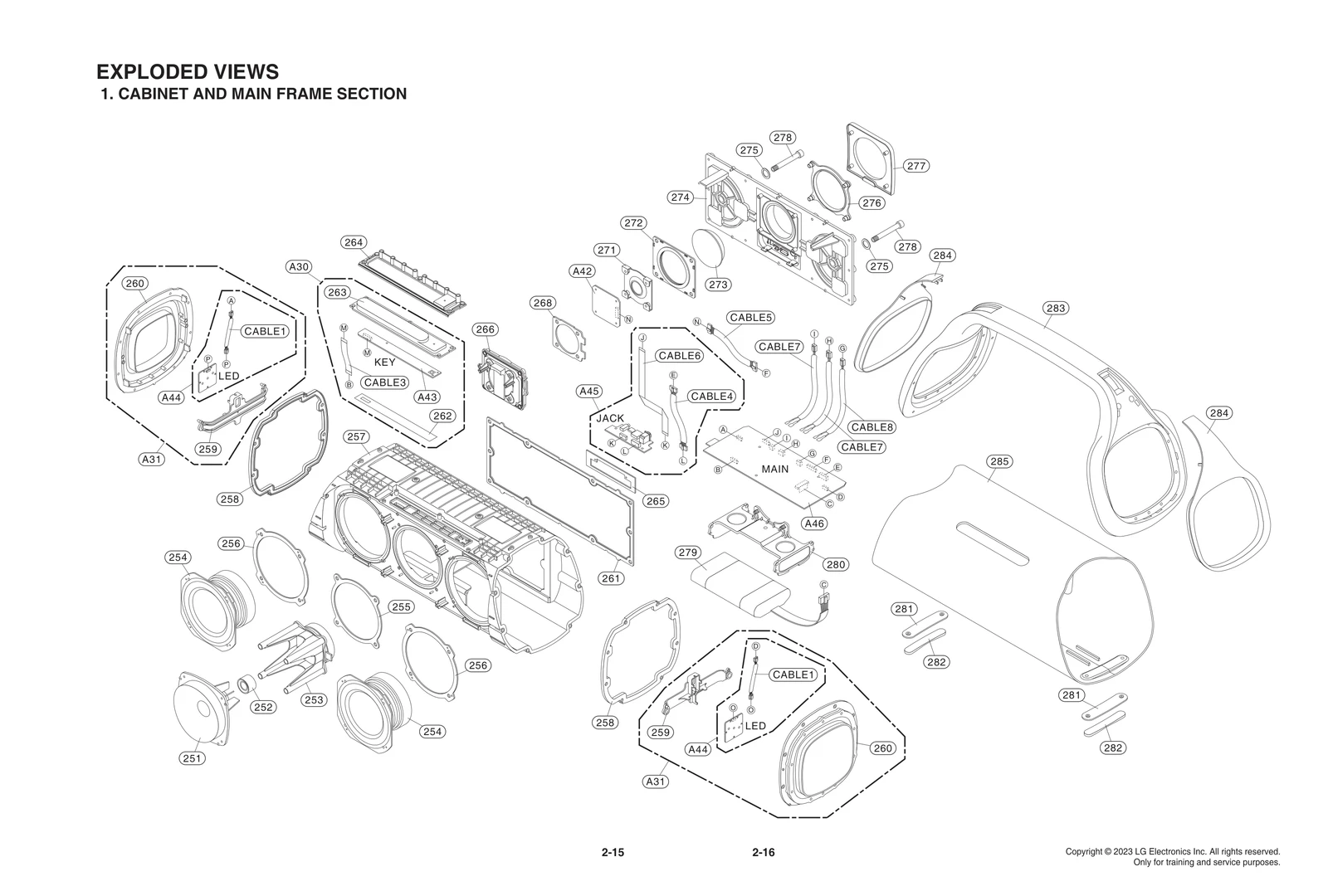

Diagram 0
Diagram 1
Diagram 2
Common parts from model LG XG9QBK
252
Gasket LGE MDS67636201 Contact Us For Availability
253
Speaker,Tweeter LGE EAB63208409 Contact Us For Availability
254
Speaker,Woofer LGE EAB65088205 Contact Us For Availability
255
Gasket LGE MDS67636101 Contact Us For Availability
256
Gasket LGE MDS67636001 Contact Us For Availability
257
Case LGE MBN66535701 Contact Us For Availability
258
Gasket LGE MDS67635901 Contact Us For Availability
259
Holder LGE MEG66700101 Contact Us For Availability
260
Decor Assembly LGE ACW76654601 Contact Us For Availability
261
Gasket LGE MDS67636301 Contact Us For Availability
262
Sheet LGE MHK67811101 Contact Us For Availability
263
Button LGE MBG67865502 Contact Us For Availability
264
Holder Assembly LGE AEJ76309301 Contact Us For Availability
265
Gasket LGE MDS67642801 Contact Us For Availability
266
Holder LGE MEG66700301 Contact Us For Availability
268
Damper LGE MCQ70868401 Contact Us For Availability
271
Plate LGE MGJ67457001 Contact Us For Availability
272
Gasket LGE MDS67636401 Contact Us For Availability
273
Lens LGE MFB65484002 Contact Us For Availability
274
Case LGE MBN66536001 Contact Us For Availability
275
Gasket LGE MDS67660101 Contact Us For Availability
276
Cover LGE MCK71661101 Contact Us For Availability
277
Cover LGE MCK71661001 Contact Us For Availability
278
Bolt,Common LGE FAA34340201 Contact Us For Availability
279
Rechargeable Battery,Lithium Ion LGE EAC64790801 Contact Us For Availability
280
Cover LGE MCK71660401 Contact Us For Availability
281
Holder LGE MEG66700411 Contact Us For Availability
282
Foot LGE MDP64332901 Contact Us For Availability
283
Handle Assembly LGE AED75498611 Contact Us For Availability
284
Decor Assembly LGE ACW76656601 Contact Us For Availability
285
Frame Assembly LGE ADV30066311 Contact Us For Availability
802
Box,Master LGE MAY70137603 Contact Us For Availability
802A
Box LGE MAY69986801 Contact Us For Availability
803
Packing LGE MFZ67388901 Contact Us For Availability
803A
Packing LGE MFZ67388902 Contact Us For Availability
804
Bag LGE MAF66405219 Contact Us For Availability
833
Adapters,Desktop LGE EAY63032212 Contact Us For Availability
A30
Button Assembly LGE ABH30004701 Contact Us For Availability
A31
Board Assembly,Sub LGE AAX76999601 Contact Us For Availability
A42
PCB Assembly LGE EBR38672701 Contact Us For Availability
A43
PCB Assembly LGE EBR37067701 Contact Us For Availability
A44
PCB Assembly LGE EBR37064101 Contact Us For Availability
A45
PCB Assembly LGE EBR37067301 Contact Us For Availability
A46
Option Code Assembly LGE EBR37418702 Contact Us For Availability
CABLE1
Harness,Single LGE EAD63325212 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD63425611 Contact Us For Availability
CABLE4
Harness,Single LGE EAD63925604 Contact Us For Availability
CABLE5
Harness,Single LGE EAD65366210 Contact Us For Availability
CABLE6
Cable,FFC LGE EAD63425612 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR38464101 Contact Us For Availability
CABLE8
PCB Assembly,Sub LGE EBR38464201 Contact Us For Availability
IC103A
S/W,System Program LGE SAA43585202 Contact Us For Availability
IC104A
S/W,System Program LGE SAA43585302 Contact Us For Availability
× ![]()
