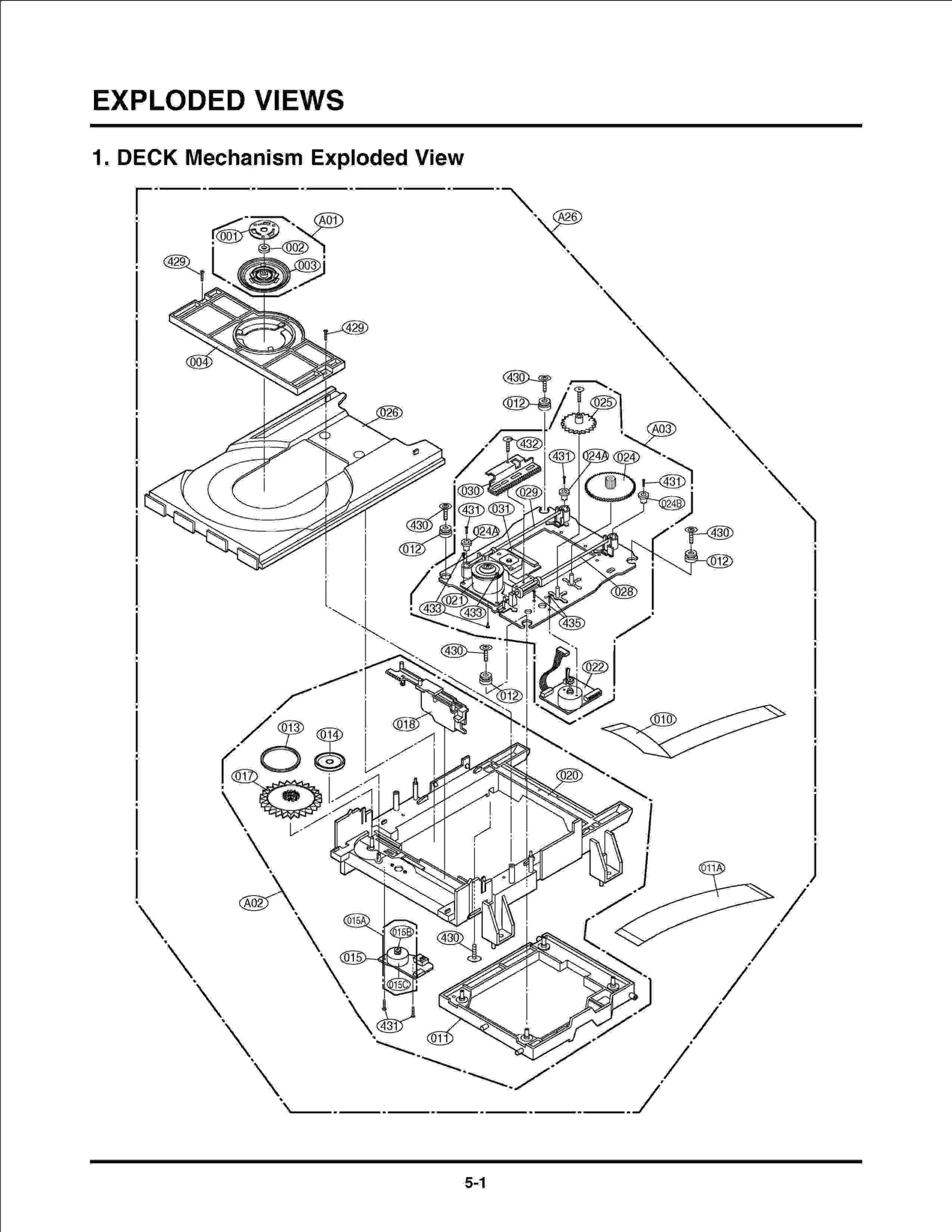

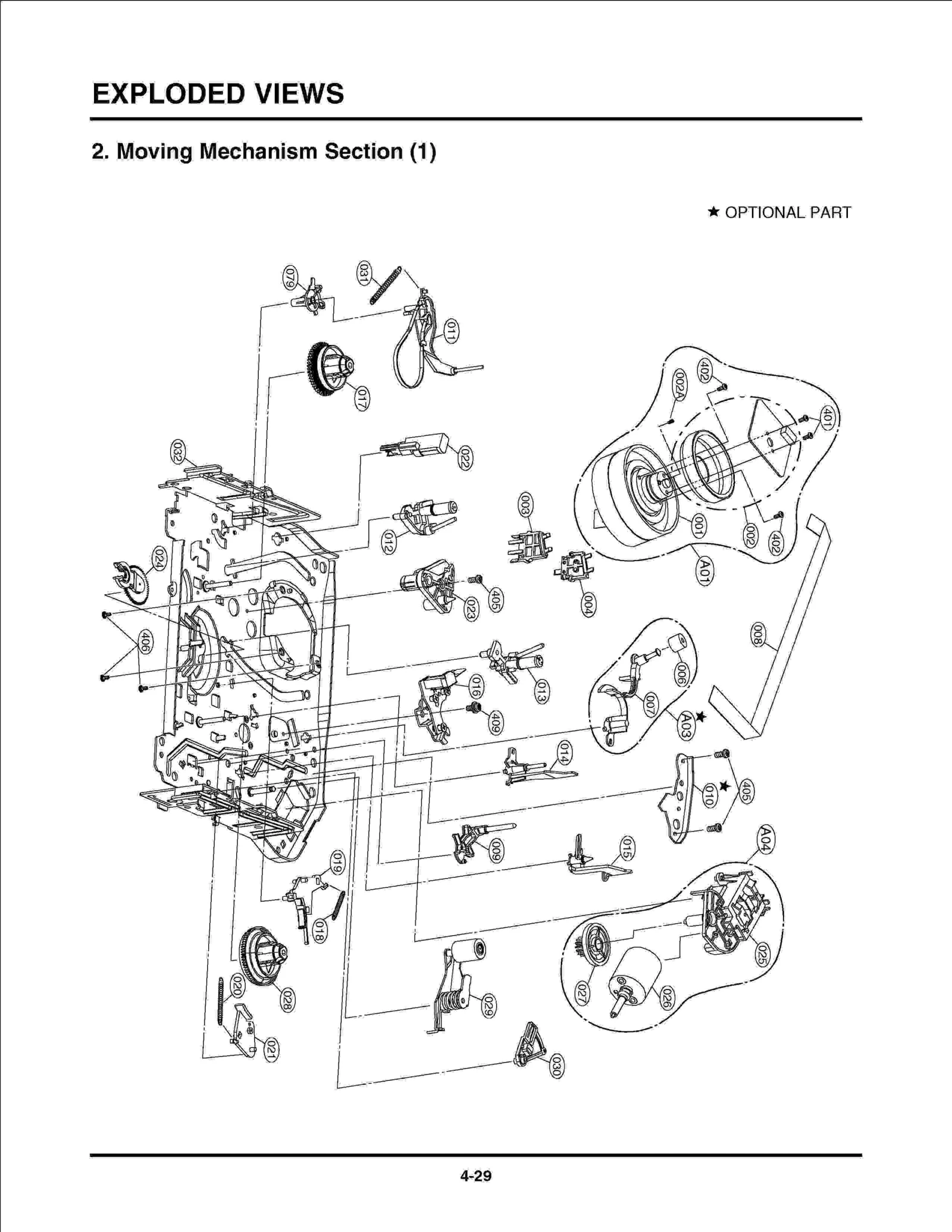

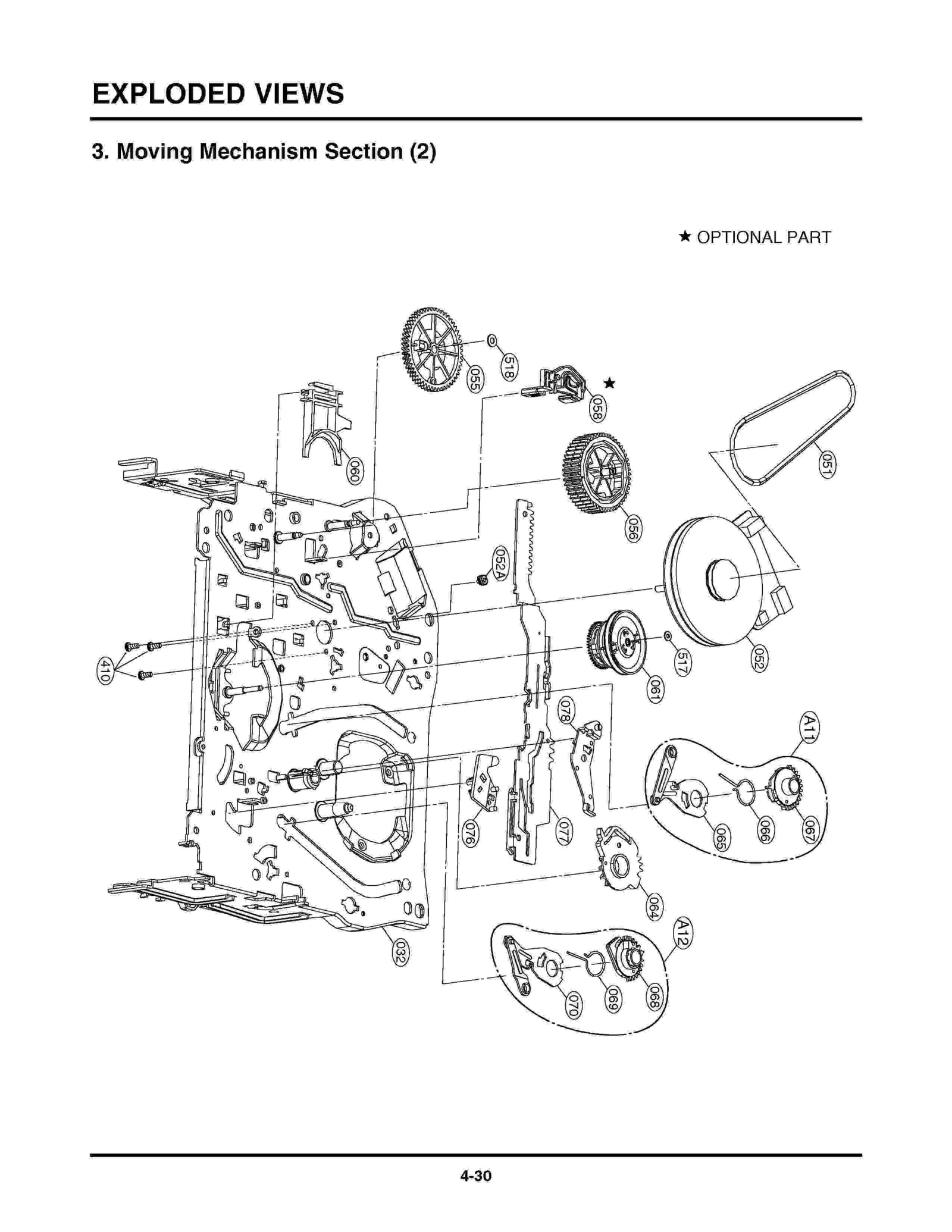

Common parts from model LG XBV342 DVD+VCR Combo, Progressive Scan
001
Drum,Assembly LGE 6723R-0306A Contact Us For Availability
001
PLATE LGE 3300R-0547A Contact Us For Availability
002
MAGNET LGE 5016H-1016B Contact Us For Availability
003
LGE 4930R-0284A LGE 4930R-0284A Contact Us For Availability
003
CLAMP LGE 4860R-0006A Contact Us For Availability
004
HOLDER LGE 4930R-0171A Contact Us For Availability
008
GEAR LGE 4470R-0047A Contact Us For Availability
009
GEAR LGE 4470R-0053A Contact Us For Availability
010
CABLE,FLAT LGE 6850R-GK22Z Contact Us For Availability
012
LGE 5040R-0047A LGE 5040R-0047A Contact Us For Availability
012
RUBBER LGE 5040R-0047B Contact Us For Availability
013
BELT LGE 4400R-0006B Contact Us For Availability
013
BELT LGE 4400R-0006A Contact Us For Availability
014
GEAR LGE 4470R-0055A Contact Us For Availability
015
PWB(PCB) ASSEMBLY,TO LGE 6871R-4415D Contact Us For Availability
016
GEAR LGE 4470R-0050A Contact Us For Availability
017
GEAR LGE 4470R-0056A Contact Us For Availability
018
GUIDE LGE 4974R-0023A Contact Us For Availability
020
BASE LGE 3040R-0024A Contact Us For Availability
024
ARM ASSEMBLY LGE 4261R-0029A Contact Us For Availability
026
TRAY LGE 3390R-0005A Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019B Contact Us For Availability
029
ARM ASSEMBLY LGE 4261R-0019C Contact Us For Availability
029
LGE 4261R-0019D LGE 4261R-0019D Contact Us For Availability
029
ARM ASSY LGE 4261R-0019A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A006A Contact Us For Availability
052
MOTOR(MECH) LGE 4680R-A007A Contact Us For Availability
052
LGE 4680R-A008A LGE 4680R-A008A Contact Us For Availability
061
CLUTCH ASSEMBLY LGE 4265R-0006A Contact Us For Availability
250
CASE LGE 3110R-V004C Contact Us For Availability
260
FRAME LGE 3210R-V002A Contact Us For Availability
276
HOLDER,SHELF LGE 4930R-0298B Contact Us For Availability
285
DOOR,CASE LGE 3580R-T049C Contact Us For Availability
300
POWER CORD LGE 6410RAHX02A Contact Us For Availability
330
CHASSIS LGE 3140R-V001A Contact Us For Availability
405
SCREW,DRAWING LGE 1SZZR-0031B Contact Us For Availability
406
PAN HEAD MACHINE SCREW S/W + LGE 1MEC0302018 Contact Us For Availability
410
SCREW TAP TITE(B),PA LGE 1APF0262218 Contact Us For Availability
430
SCREW LGE 1SZZH-1003A Contact Us For Availability
431
SCREW, LGE 1SZZH-1007B Contact Us For Availability
431
SCREW, LGE 1SZZR-0012A Contact Us For Availability
432
SCREW, LGE 1SZZR-0011A Contact Us For Availability
467
SCREW,DRAWING LGE 353-051G Contact Us For Availability
801
INSTRUCTION ASSEMBLY LGE 3835RM0056U Contact Us For Availability
802
LGE 3890R-H813G LGE 3890R-H813G Contact Us For Availability
803
LGE 3920R-E080A LGE 3920R-E080A Contact Us For Availability
804
LGE 292-053E LGE 292-053E Contact Us For Availability
806
CABLE,COAXIAL LGE 6850R-CAA81 Contact Us For Availability
808
BATTERY,MN LGE 841-0021 Contact Us For Availability
810
CABLE ASSEMBLY LGE 6851R-0032B Contact Us For Availability
811
PLUG ASSEMBLY LGE 6611R1D003A Contact Us For Availability
812
PLUG ASSEMBLY LGE 6611R2D003A Contact Us For Availability
900
REMOTE CONTROL LGE 6711R1N112A Contact Us For Availability
A00
DECK ASSEMBLY,VIDEO LGE 6721RH0740D Contact Us For Availability
A01
DRUM(CIRC) ASSEMBLY LGE 6723R-0403A Contact Us For Availability
A01
CLAMP ASSEMBLY LGE 4861R-0006B Contact Us For Availability
A02
LGE 3041R-0056C LGE 3041R-0056C Contact Us For Availability
A03
BASE ASSEMBLY LGE 3041R-0054F Contact Us For Availability
A26
DECK ASSEMBLY,VIDEO LGE 6721RH0353B Contact Us For Availability
A42
BOARD ASSEMBLY LGE 3501R-9902A Contact Us For Availability
A43
PANEL ASSEMBLY,FRONT LGE 3721R-F342E Contact Us For Availability
A46
BOARD ASSEMBLY LGE 3501R-8510E Contact Us For Availability
A46A
SUB PWB(PCB) ASSEMBL LGE 6885R-1101P Contact Us For Availability
A48
PWB(PCB) ASSEMBLY,TO LGE 6871R-8511B Contact Us For Availability
A49
BOARD ASSEMBLY LGE 3501R-9901A Contact Us For Availability
BD02
Filter,Bead LGE 636-004C Contact Us For Availability
BD101
DIODE S1WBA60 (1A 600V) LGE 0DD160000DA Contact Us For Availability
C2A6
Capacitor,Ceramic,Chip LGE 0CH1102K562 Contact Us For Availability
C2B4
Capacitor,Ceramic,Chip LGE 0CH1683F942 Contact Us For Availability
C2B5
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C2C1
Capacitor,Ceramic,Chip LGE 0CH1103K562 Contact Us For Availability
C2D7
Capacitor,Ceramic,Chip LGE 0CH1152K562 Contact Us For Availability
C2E4
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C2M2
Capacitor,Ceramic,Chip LGE 0CH1682K562 Contact Us For Availability
C6G2
Capacitor,AL,Chip LGE 0CE4775C638 Contact Us For Availability
C101
Capacitor,Film,Box LGE 624-088S Contact Us For Availability
C103
CAPACITOR,AL.ELECTROLYTIC LGE 0CE157CR610 Contact Us For Availability
C105
CAPACITOR,POLYESTER LGE 0CQ1031Y519 Contact Us For Availability
C109
Capacitor,Ceramic,Axial LGE 0CN223AK948 Contact Us For Availability
C110
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
C111
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C123
Capacitor,AL,Radial LGE 0CE477BH630 Contact Us For Availability
C126
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE2276H638 Contact Us For Availability
C127
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C128
Capacitor,AL,Radial LGE 0CE3376D638 Contact Us For Availability
C129
Capacitor,AL,Radial LGE 0CE228BF630 Contact Us For Availability
C131
Capacitor,AL,Radial LGE 624-082H Contact Us For Availability
C132
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C133
Capacitor,Film,DIP LGE 0CQ1042K409 Contact Us For Availability
C163
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C207
Capacitor,Ceramic,Chip LGE 0CH1105D942 Contact Us For Availability
C240
Capacitor,Ceramic,Chip LGE 0CH1222K562 Contact Us For Availability
C299
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4220K412 Contact Us For Availability
C312
Capacitor,AL,Radial LGE 0CE3364F638 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH1821K516 Contact Us For Availability
C344
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
C346
Capacitor,AL,Radial LGE 0CE4764F638 Contact Us For Availability
C349
Capacitor,Ceramic,Chip LGE 0CH1333K566 Contact Us For Availability
C412
Capacitor,Ceramic,Chip LGE 0CH4271K412 Contact Us For Availability
C416
Capacitor,Ceramic,Chip LGE 0CH1102K512 Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE 0CH1392K562 Contact Us For Availability
C425
CAPACITOR,CHIP[CERAM LGE 0CH1104K942 Contact Us For Availability
C504
Capacitor,Ceramic,Chip LGE 0CH1223K516 Contact Us For Availability
C514
Capacitor,Ceramic,Chip LGE 0CH4240K416 Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CH4270K416 Contact Us For Availability
C546
Capacitor,Ceramic,Chip LGE 0CH4221K412 Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CH1333H516 Contact Us For Availability
C555
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C557
Capacitor,Ceramic,Chip LGE 0CH4270K412 Contact Us For Availability
C574
Capacitor,Ceramic,Chip LGE 0CH4102K416 Contact Us For Availability
C578
Capacitor,AL,Radial LGE 0CE2274C638 Contact Us For Availability
C584
Capacitor,AL,Radial LGE 0CE4764C638 Contact Us For Availability
C589
Capacitor,Ceramic,Chip LGE 0CH4221K416 Contact Us For Availability
C595
LGE 0CH4120K416 LGE 0CH4120K416 Contact Us For Availability
C596
Capacitor,Ceramic,Chip LGE 0CH4180K416 Contact Us For Availability
C597
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C602
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
C609
Capacitor,AL,Radial LGE 0CE2264F638 Contact Us For Availability
C610
Capacitor,AL,Radial LGE 0CE1074C638 Contact Us For Availability
C612
Capacitor,Ceramic,Axial LGE 0CN1020K518 Contact Us For Availability
C706
LGE 0CH4300K416 LGE 0CH4300K416 Contact Us For Availability
C846
C.ELECTROLYTIC 4.7M SRA 50VGVP LGE 0CE4754K638 Contact Us For Availability
C849
Capacitor,Ceramic,Chip LGE 0CH1105F946 Contact Us For Availability
C872
Capacitor,Ceramic,Chip LGE 0CH4560K416 Contact Us For Availability
CS501
LGE 6600M000002 LGE 6600M000002 Contact Us For Availability
D101
DIODE LGE 0DD010009CA Contact Us For Availability
D101
DIODE LGE 0DD221009AA Contact Us For Availability
D102
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D102
DIODE EU01W(R-FORM) T R-B413M LGE 0DD010009AC Contact Us For Availability
D111
Diode,Schottky LGE 0DR158220AA Contact Us For Availability
D115
DIODE,RECTIFIER LGE 0DR104009AB Contact Us For Availability
D201
LGE 0DR495009AA LGE 0DR495009AA Contact Us For Availability
D401
DIODE,SWITCHING LGE 0DSRM00118A Contact Us For Availability
D802
DIODE,SWITCHING LGE 0DS141489BB Contact Us For Availability
F603
FILTER(CIRC),EMI LGE 6200HJC901A Contact Us For Availability
IC2A1
IC,LINEAR LGE 0ILNRHI003A Contact Us For Availability
IC2A4
LGE 0IKE393000G LGE 0IKE393000G Contact Us For Availability
IC2M1
LGE 0IFA303200A LGE 0IFA303200A Contact Us For Availability
IC2M1
IC,LINEAR LGE 0ILNRFA013A Contact Us For Availability
IC3F1A
LGE 6957R-254AJ LGE 6957R-254AJ Contact Us For Availability
IC101
IC,POWER MANAGEMENT LGE 0IPMGFF001A Contact Us For Availability
IC102
SENSOR LTV-817B PHOTO COUPLER LGE 657-063A Contact Us For Availability
IC103
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC151
IC,POWER MANAGEMENT LGE 0IPMGKE008B Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGFA046A Contact Us For Availability
IC152
IC,POWER MANAGEMENT LGE 0IPMGKE022B Contact Us For Availability
IC201
LGE 0ILNRHY002B LGE 0ILNRHY002B Contact Us For Availability
IC203
IC,ELITE MEMORY TECH LGE 0IEB121616B Contact Us For Availability
IC301
IC, CUSTOMIZED LGE 0ICTMHY011A Contact Us For Availability
IC301
LGE 0IXL957210C LGE 0IXL957210C Contact Us For Availability
IC301
IC,LINEAR LGE 0ILNRSA012A Contact Us For Availability
IC302
IC,JRC LGE 0IJR223400D Contact Us For Availability
IC305
LGE 0IHY576532A LGE 0IHY576532A Contact Us For Availability
IC305
IC,MEMORIES LGE 0IMMRHY025A Contact Us For Availability
IC401
IC,PERIPHERALS LGE 0IPRPCI003B Contact Us For Availability
IC402
IC,JRC LGE 0IJR458000B Contact Us For Availability
IC501
IC,MICRO CONTROLLER LGE 0IMCRMI051B Contact Us For Availability
IC501
IC,NATIONAL SEMICOND LGE 0INS860100A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRCB001A Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRAL012A Contact Us For Availability
IC503
IC,CMOS LGE 0IFA742440F Contact Us For Availability
IC504
IC KEC KIA7031P 3P 3.1V RES LGE 0IKE703100A Contact Us For Availability
IC505
IC KIA7042P SP 4.2V RESET, KE LGE 0IKE704200B Contact Us For Availability
IC506
IC,POWER MANAGEMENT LGE 0IPMGA7001A Contact Us For Availability
IC601
IC,LINEAR LGE 0ILNRPY001A Contact Us For Availability
IC601
IC,PERIPHERALS LGE 0IPRPMT002A Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRPMT006A Contact Us For Availability
IC801
IC,LINEAR LGE 0ILNRSA013A Contact Us For Availability
JK601
JACK,RCA LGE 6612J00025E Contact Us For Availability
JK601
JACK,RCA LGE 6612JH003AC Contact Us For Availability
JK602
JACK,RCA LGE 6612JH003AB Contact Us For Availability
JK603
JACK,RCA LGE 6612JH003AA Contact Us For Availability
JK603
JACK,FIBER OPTIC LGE 6612K00003A Contact Us For Availability
JK603
JACK,FIBER OPTIC LGE 6612K00003B Contact Us For Availability
L102
FILTER(CIRC),DRAWING LGE 616-145P Contact Us For Availability
L122
COIL,CHOKE LGE 633-088G Contact Us For Availability
L301
Inductor,Wire Wound,Radial LGE 0LR1000K035 Contact Us For Availability
L302
FILTER(CIRC),EMI LGE 6200HJC102A Contact Us For Availability
L305
INDUCTOR RADIAL LEAD R-E41M 1U LGE 0LR0102K035 Contact Us For Availability
L510
INDUCTOR RADIAL LEAD 68M K 6X6 LGE 0LR0682K035 Contact Us For Availability
L511
INDUCTOR,RADIAL LEAD LGE 0LR0221J0N5 Contact Us For Availability
L601
LGE 0LA0101K018 LGE 0LA0101K018 Contact Us For Availability
L601
INDUCTOR RADIAL LEAD 470M K 6X LGE 0LR4700K035 Contact Us For Availability
LD601
LGE 6301R2U008B LGE 6301R2U008B Contact Us For Availability
LED601
Optic Element,Unclassified LGE 0DL112000AJ Contact Us For Availability
MS501
LGE 6600JB8005C LGE 6600JB8005C Contact Us For Availability
Q2A6
LGE 0TR388209AA LGE 0TR388209AA Contact Us For Availability
Q156
TRANSISTOR KTC3205-TP-Y (KEC2 LGE 0TR320509AB Contact Us For Availability
Q161
TRANSISTOR,BIPOLARS LGE 0TR126809BA Contact Us For Availability
Q162
TRANSISTOR KTC3198-TP-BL(KTC1 LGE 0TR319809AC Contact Us For Availability
Q162
TRANSISTOR KTC-3199-BL MINI T LGE 0TR319909AF Contact Us For Availability
Q162
TRANSISTOR LGE 0TR534309BA Contact Us For Availability
Q305
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q305
TR,Bipolar LGE 0TR928009AD Contact Us For Availability
Q405
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q501
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q507
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q702
TRANSISTOR KTC3203-TP-Y(KTC212 LGE 0TR320309AA Contact Us For Availability
R2A1
Resistor,Chip LGE 0RH0912C622 Contact Us For Availability
R2B4
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R2F1
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R2F3
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R2F8
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R2G4
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R2M3
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R2M7
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R2N4
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R2N5
Resistor,Chip LGE 0RH1202C622 Contact Us For Availability
R2N6
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R2P7
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R100
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R101
RESISTOR 2.7/2W CEMENT SMPS V LGE 614-007A Contact Us For Availability
R104
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R106
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R112
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R113
Resistor,Carbon Film LGE 0RD2201F608 Contact Us For Availability
R115
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R116
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R117
Resistor,Carbon Film LGE 0RD2700F608 Contact Us For Availability
R119
RESISTOR FIXED CARBON FILM 100 LGE 0RD1003F608 Contact Us For Availability
R131
RESISTOR FIXED CARBON FILM 220 LGE 0RD2203F608 Contact Us For Availability
R156
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R159
Resistor,Carbon Film LGE 0RD3300F608 Contact Us For Availability
R163
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R207
Resistor,Chip LGE 0RH1004C622 Contact Us For Availability
R218
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R273
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R274
Resistor,Chip LGE 0RH6200C622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH0221D622 Contact Us For Availability
R319
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R403
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R411
Resistor,Chip LGE 0RH6801C622 Contact Us For Availability
R413
Resistor,Chip LGE 0RH8201C622 Contact Us For Availability
R419
Resistor,Chip LGE 0RH3300C622 Contact Us For Availability
R433
Resistor,Chip LGE 0RH5600C622 Contact Us For Availability
R501
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R506
Resistor,Chip LGE 0RH1001C422 Contact Us For Availability
R507
Resistor,Chip LGE 0RH1100C622 Contact Us For Availability
R515
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R531
Resistor,Chip LGE 0RH1201C622 Contact Us For Availability
R588
Resistor,Chip LGE 0RH0752C622 Contact Us For Availability
R597
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R611
Resistor,Carbon Film LGE 0RD6800F608 Contact Us For Availability
R613
Resistor,Carbon Film LGE 0RD1201F608 Contact Us For Availability
R616
Resistor,Carbon Film LGE 0RD3301F608 Contact Us For Availability
R619
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R621
Resistor,Carbon Film LGE 0RD1501F608 Contact Us For Availability
R822
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
RC601
REMOTE CONTROLLER RECEIVER LGE 6712R0838GA Contact Us For Availability
RS501
LGE 6500RAB007A LGE 6500RAB007A Contact Us For Availability
SW601
SWITCH,TACT LGE 6600R-SH18A Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 6170RNGW12A Contact Us For Availability
TU701
TUNER LGE 6700NFNL04A Contact Us For Availability
TU701
LGE 6700NFNG04A LGE 6700NFNG04A Contact Us For Availability
V101
VARISTOR LGE 656-004C Contact Us For Availability
W5C2
WIRE,JUMP LGE 874-000T Contact Us For Availability
X201
LGE 6202R-BM04C LGE 6202R-BM04C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2271F Contact Us For Availability
X501
CRYSTAL,STANDARD LGE 6202R-BL06C Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6202R-DA01B Contact Us For Availability
X501
Crystal LGE 6212AC2327E Contact Us For Availability
X502
LGE 6212AA2143F LGE 6212AA2143F Contact Us For Availability
ZD103
Diode,Zener LGE 0DZ132609AB Contact Us For Availability
ZD501
LGE 0DZ560009CJ LGE 0DZ560009CJ Contact Us For Availability
ZD751
LGE 0DZ102609BB LGE 0DZ102609BB Contact Us For Availability
ZD752
Diode,Zener LGE 0DZ562609BA Contact Us For Availability
× ![]()
Login and Registration Form
