Model Whirlpool X10002W03 AIR CONDITIONER – Common Parts & Diagrams
01 - UNIT, LIT/OPTIONAL
03 - CABINET

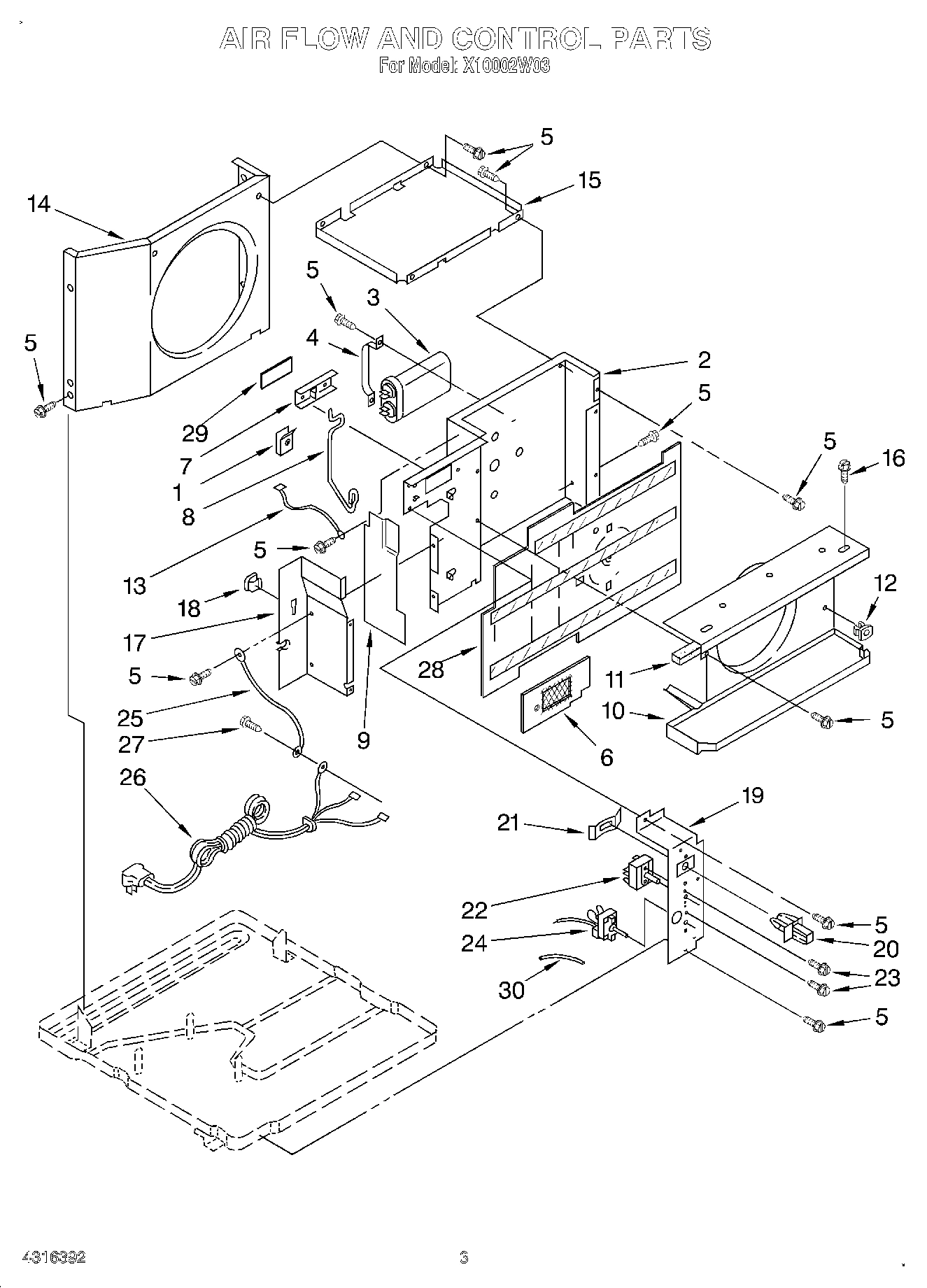

02 - AIR FLOW AND CONTROL

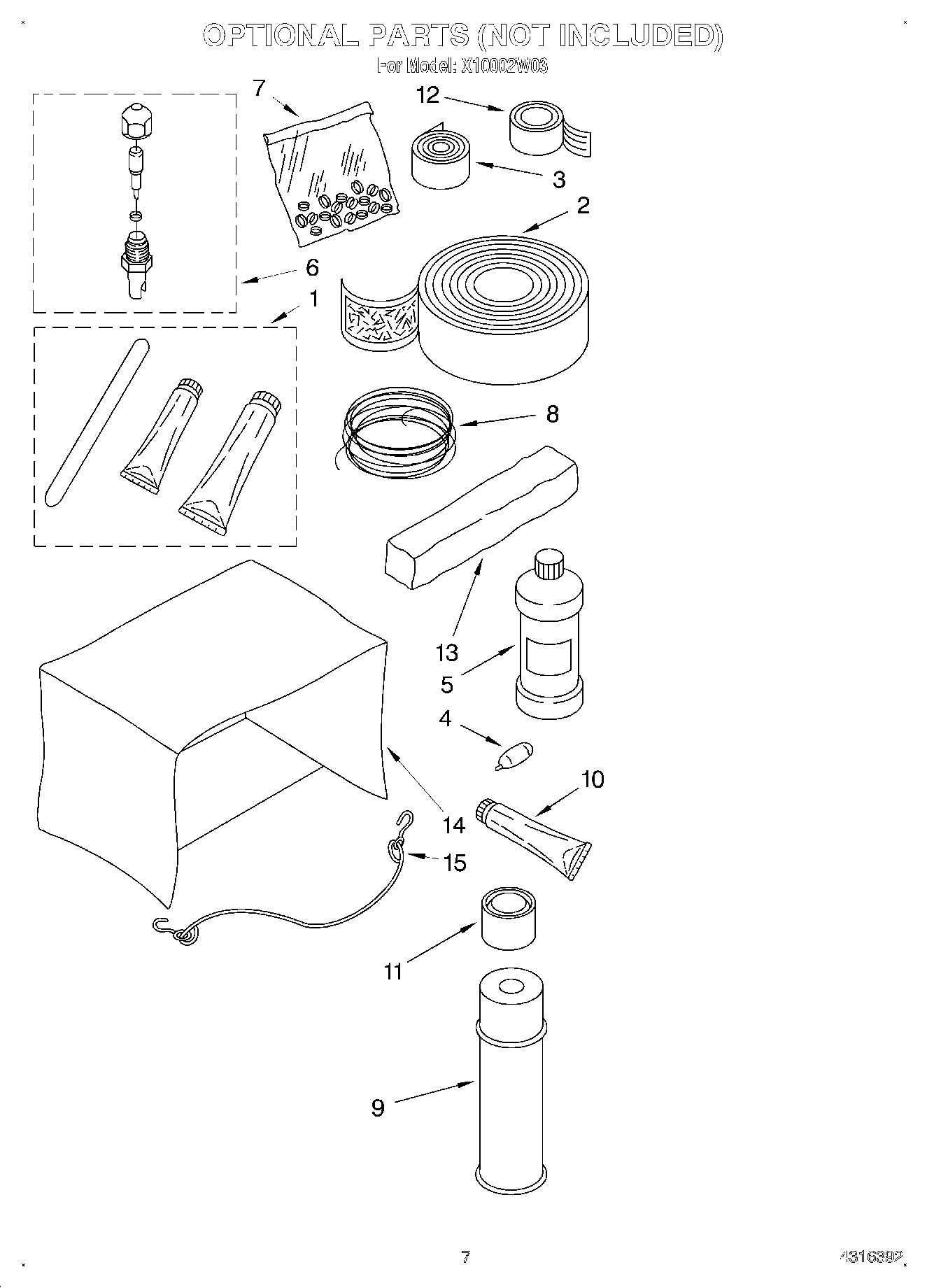

04 - OPTIONAL
Common parts from model Whirlpool X10002W03 AIR CONDITIONER
1
Seal, Meeting Rail WPL 469877 Contact Us For Availability
1
Clip, Exhaust Door WPL 1162627 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Cabinet WPL 1163513 Contact Us For Availability
2
Wall, Dividing WPL 1156321 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 952384 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
4
Bracket, Running Capacitor WPL 856105 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Channel, Top Mounting WPL 993786 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Housing, Curtain (R.S.) WPL 855572 Contact Us For Availability
7
Housing, Curtain L.S. WPL 855573 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Curtain (2) WPL 947160 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Retainer, Curtain (2) WPL 644224 Contact Us For Availability
9
Insulation, Dividing Wall WPL 1163514 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
10
Shroud, Evaporator (Includes No.11) WPL 948219 Contact Us For Availability
11
Louver, Vertical WPL 1159980 Contact Us For Availability
11
Insulation, Evaporator Cover WPL 948220 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Link, Vertical Louver WPL 855158 Contact Us For Availability
12
Fastener, snap WPL 487808 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
13
Handle, Vertical Louver WPL 1161636 Contact Us For Availability
13
Wire, Capacitor Ground WPL 857568 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Spring, Detent WPL 644006 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Clamp, Cable WPL 852451 Contact Us For Availability
15
Plate, Escutcheon WPL 1158167 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
17
Knob, Control (2) WPL 1162672 Contact Us For Availability
17
Extension, Dividing Wall WPL 994560 Contact Us For Availability
18
Evaporator WPL 1156532 Contact Us For Availability
18
Cover, Hole WPL 1157126 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
19
Tube, Restrictor WPL 1161573 Contact Us For Availability
19
Front, Cabinet WPL 1158196 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
20
Condenser WPL 1160065 Contact Us For Availability
20
Clip, Vertical Louver (2) WPL 1158294 Contact Us For Availability
20
Actuator, Door WPL 953066 Contact Us For Availability
21
Bend, Return Evaporator (12) WPL 708531 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
21
Spring, Detent WPL 858765 Contact Us For Availability
22
Bend, Return Condenser (13) Evaporator (2) WPL 708532 Contact Us For Availability
22
Insulation Cabinet Top WPL 1163429 Contact Us For Availability
22
Switch, Rotary WPL 950283 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
23
Filter, Air WPL 855246 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
24
Tube, Extension WPL 1160032 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
24
Control, Tempetature WPL 949431 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 1155460 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
26
Cable, Appliance WPL 646139 Contact Us For Availability
27
Screw, Thumb (2) WPL 475581 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Round Head Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
28
Insulation Dividing Wall WPL 1163432 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
29
Spacer WPL 1159175 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Insul. Cabinet (Right, Side) WPL 1163430 Contact Us For Availability
30
Insul. Cabinet (Left Side) WPL 1163431 Contact Us For Availability
30
Insulator, Sleeve Temp. Control WPL 475841 Contact Us For Availability
31
Insul. To Cond. WPL 1158501 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
32
Screw (2) WPL 1159222 Contact Us For Availability
33
Tube, Suction WPL 1163999 Contact Us For Availability
34
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (2) WPL 1158407 Contact Us For Availability
38
Bend, Return (2) WPL 1156533 Contact Us For Availability
40
Base WPL 950019 Contact Us For Availability
41
Tube, Discharge WPL 1161574 Contact Us For Availability
× ![]()
