Model Electrolux WWX233RBS1 WASHER – Common Parts & Diagrams
01 - COVER

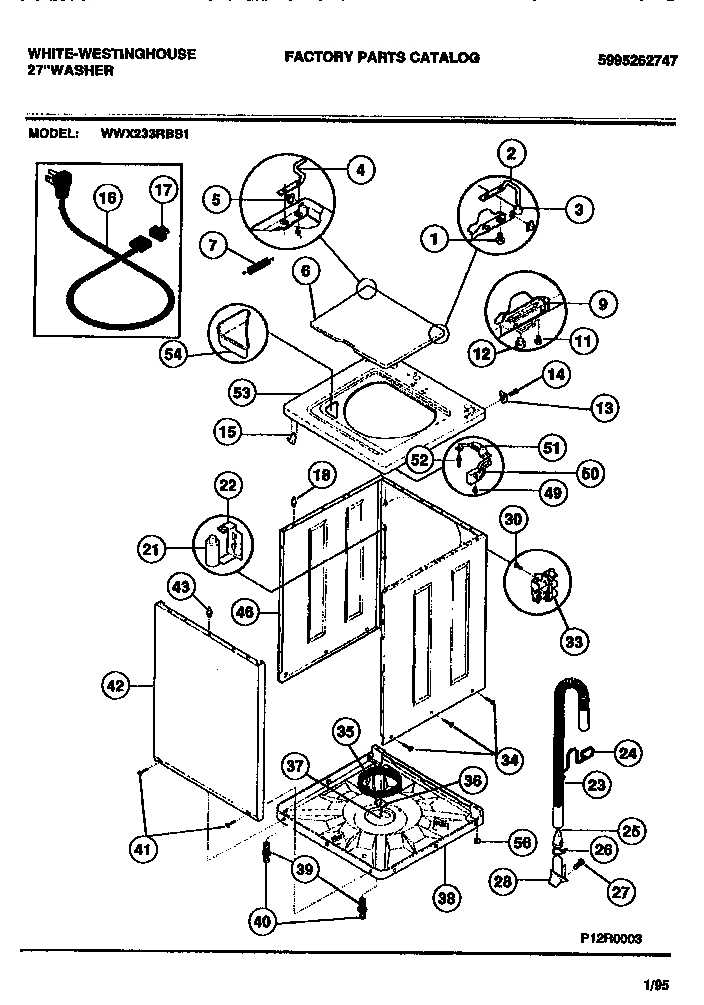

02 - CABINET, TOP PANEL, BASE

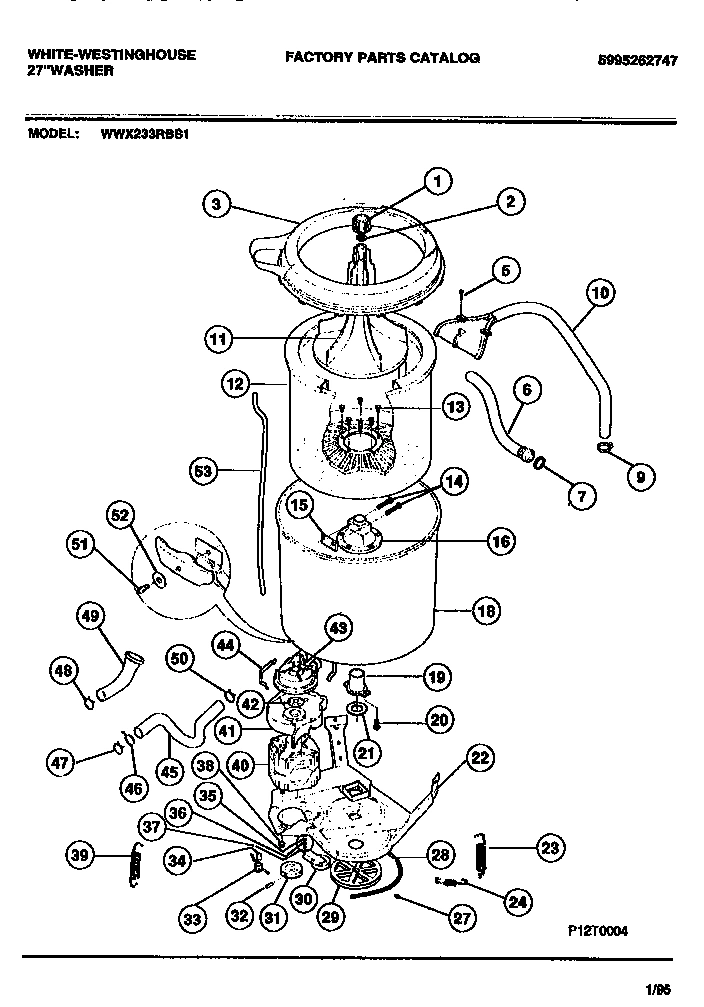

03 - TUBS, HOSES, MOTOR

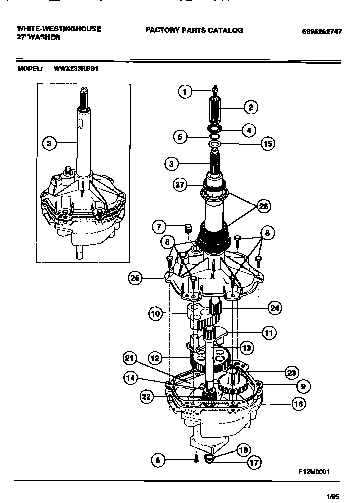

04 - TRANSMISSION

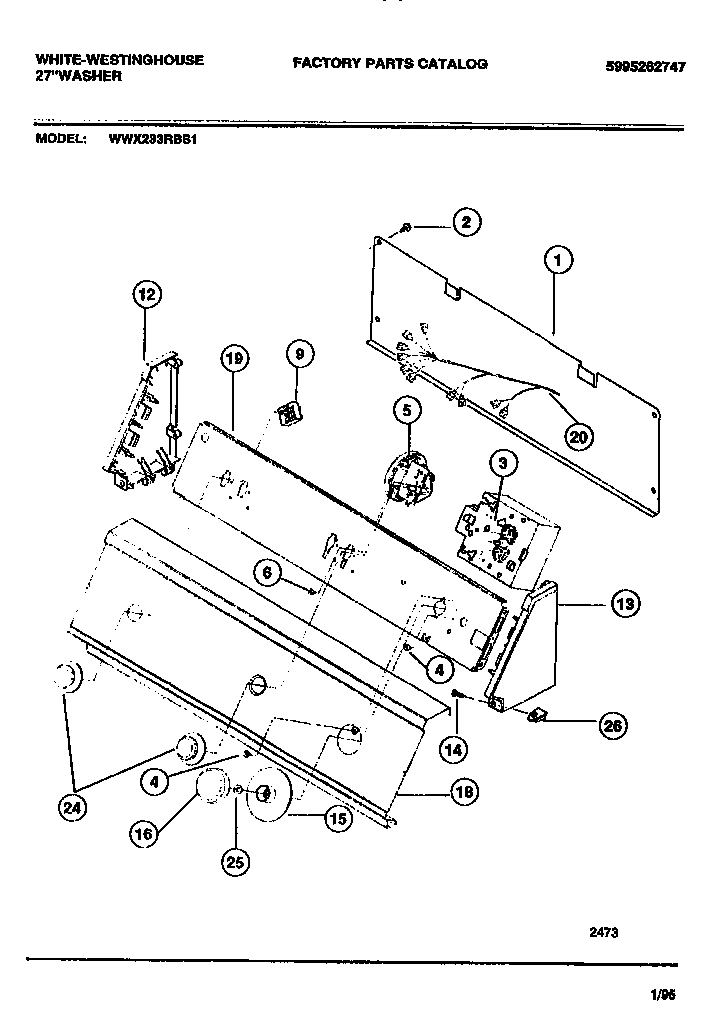

05 - CONSOLE & CONTROLS
Common parts from model Electrolux WWX233RBS1 WASHER
*66001
WCI 5303212877 WCI 5303212877 Contact Us For Availability
*66003
SCREW-GRD-CABINET WCI 5303281035 Contact Us For Availability
1
STUD CAP WCI 131206800 Contact Us For Availability
1
WCI 5303208779 WCI 5303208779 Contact Us For Availability
1
WCI 3205898 WCI 3205898 Contact Us For Availability
2
WCI 3204396 WCI 3204396 Contact Us For Availability
3
WCI 131237800 WCI 131237800 Contact Us For Availability
4
SCREW WCI 3161188 Contact Us For Availability
5
WCI 131047500 WCI 131047500 Contact Us For Availability
7
WCI 5303161224 WCI 5303161224 Contact Us For Availability
8
SCREW WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
WCI 131047000 WCI 131047000 Contact Us For Availability
10
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
11
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
12
GEAR-CRANK WCI 5308015496 Contact Us For Availability
12
WCI 5303291343 WCI 5303291343 Contact Us For Availability
13
WCI 5303208751 WCI 5303208751 Contact Us For Availability
13
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
13
WCI 5303291351 WCI 5303291351 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
14
WCI 5303297854 WCI 5303297854 Contact Us For Availability
15
DIAL WCI 131118503 Contact Us For Availability
16
WCI 131362000 WCI 131362000 Contact Us For Availability
16
KNOB - TIMER WCI 131118401 Contact Us For Availability
17
WCI 5303161223 WCI 5303161223 Contact Us For Availability
18
WCI 5308002475 WCI 5308002475 Contact Us For Availability
18
WCI 131240100 WCI 131240100 Contact Us For Availability
19
BRACKET CONTROLS WCI 131157806 Contact Us For Availability
20
WCI 131165600 WCI 131165600 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
22
WCI 131375100 WCI 131375100 Contact Us For Availability
23
DRAIN HOSE WCI 131210200 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
24
KNOB-ROTARY WCI 131118603 Contact Us For Availability
25
WCI 5308015493 WCI 5308015493 Contact Us For Availability
25
WCI 5303206931 WCI 5303206931 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
CLIP WCI 131197000 Contact Us For Availability
27
THRUST WASHER WCI 5303161232 Contact Us For Availability
30
WCI 131312800 WCI 131312800 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
SPRING WASHER WCI 5303161306 Contact Us For Availability
38
HEX NUT (4) WCI 5303283079 Contact Us For Availability
40
MOTOR-MAIN WCI 3205647 Contact Us For Availability
41
WCI 131081700 WCI 131081700 Contact Us For Availability
42
WCI 131104303 WCI 131104303 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
WCI 131208500 WCI 131208500 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
WASHER WCI 131315800 Contact Us For Availability
54
BLEACH DISPENSER WCI 5303208778 Contact Us For Availability
× ![]()
