Model GE WWC7190CBL Washer – Common Parts & Diagrams
0

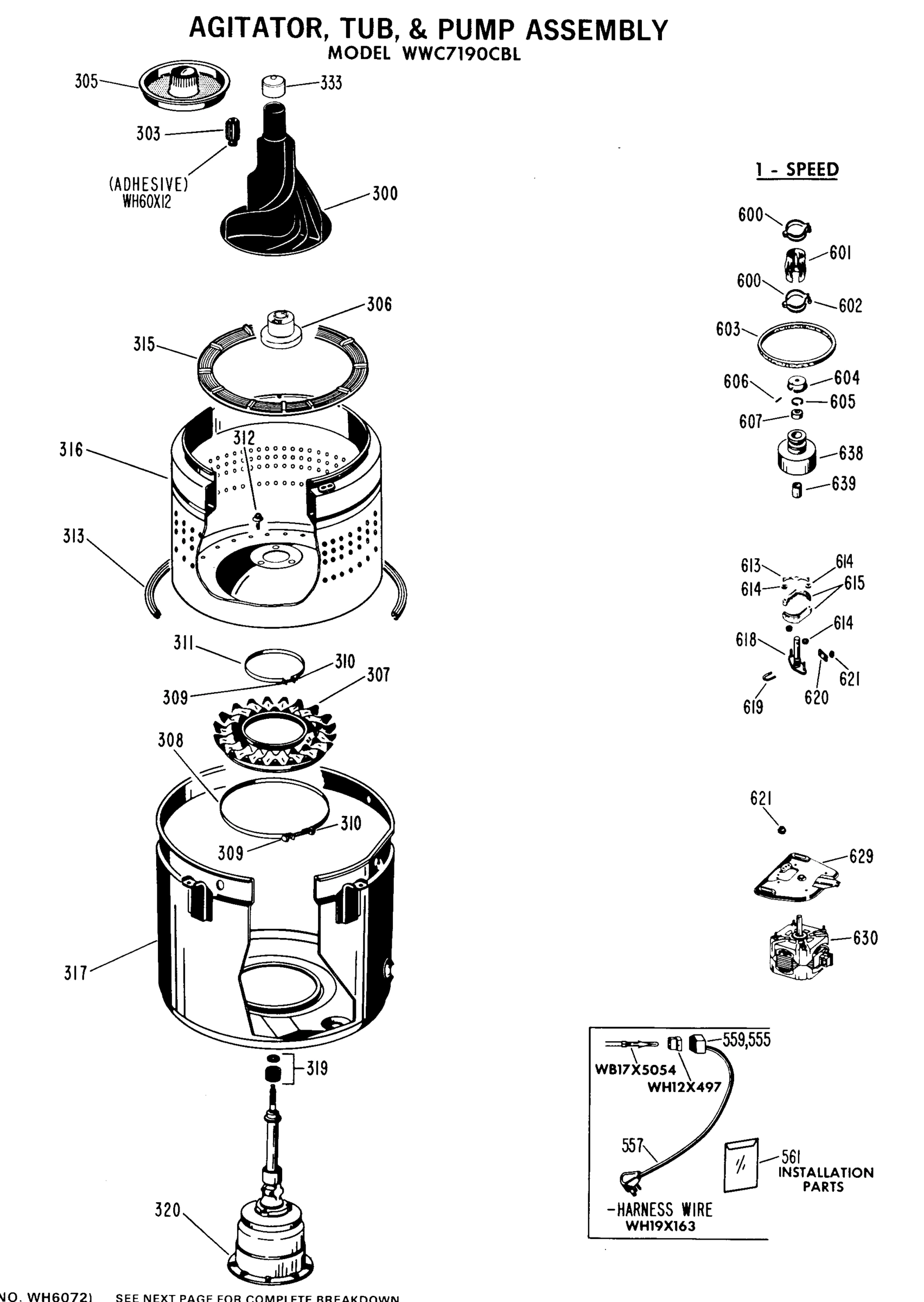

AGITATOR, TUB, & PUMP ASSEMBLY

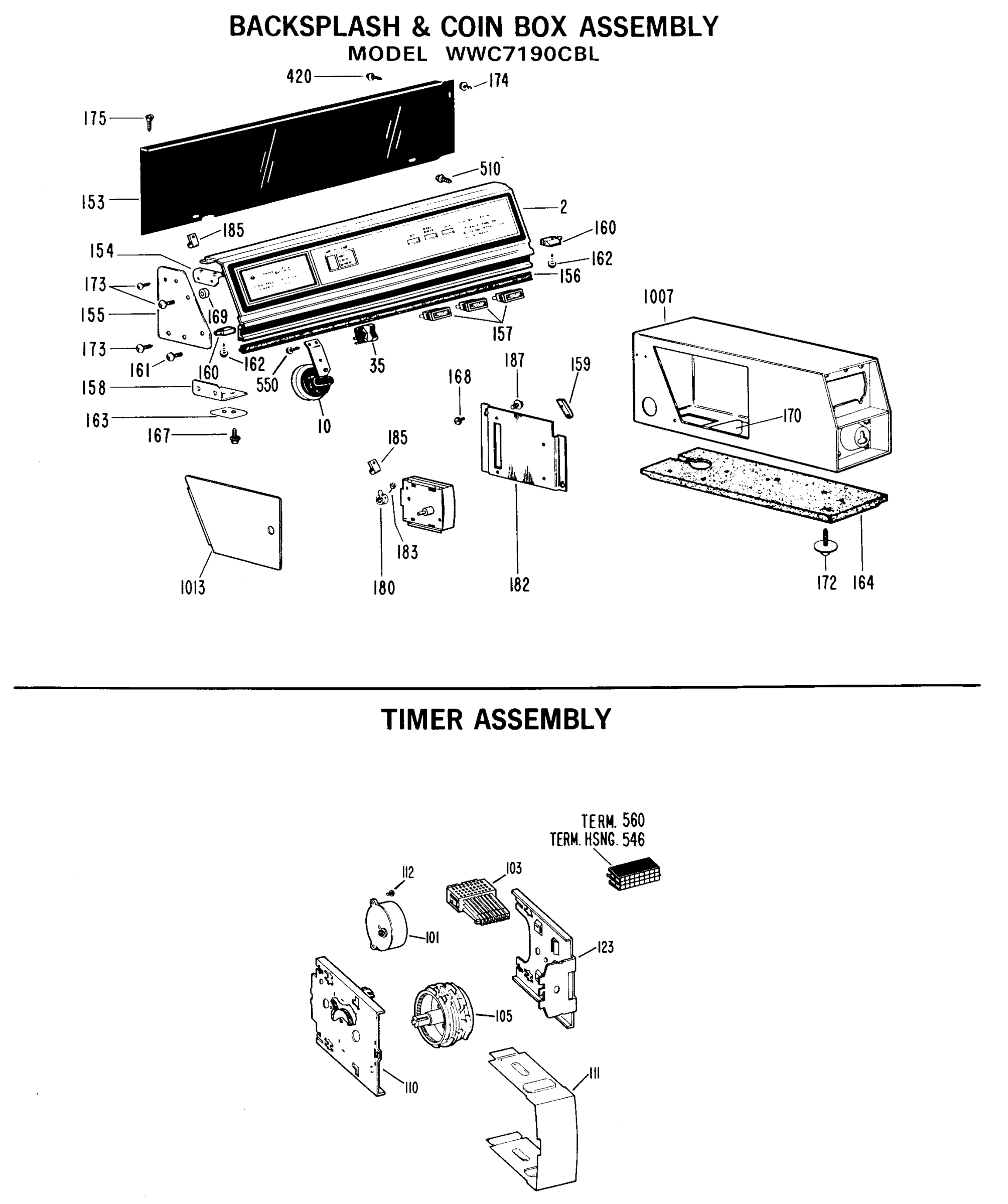

BACKSPLASH & COIN BOX ASSEMBLY

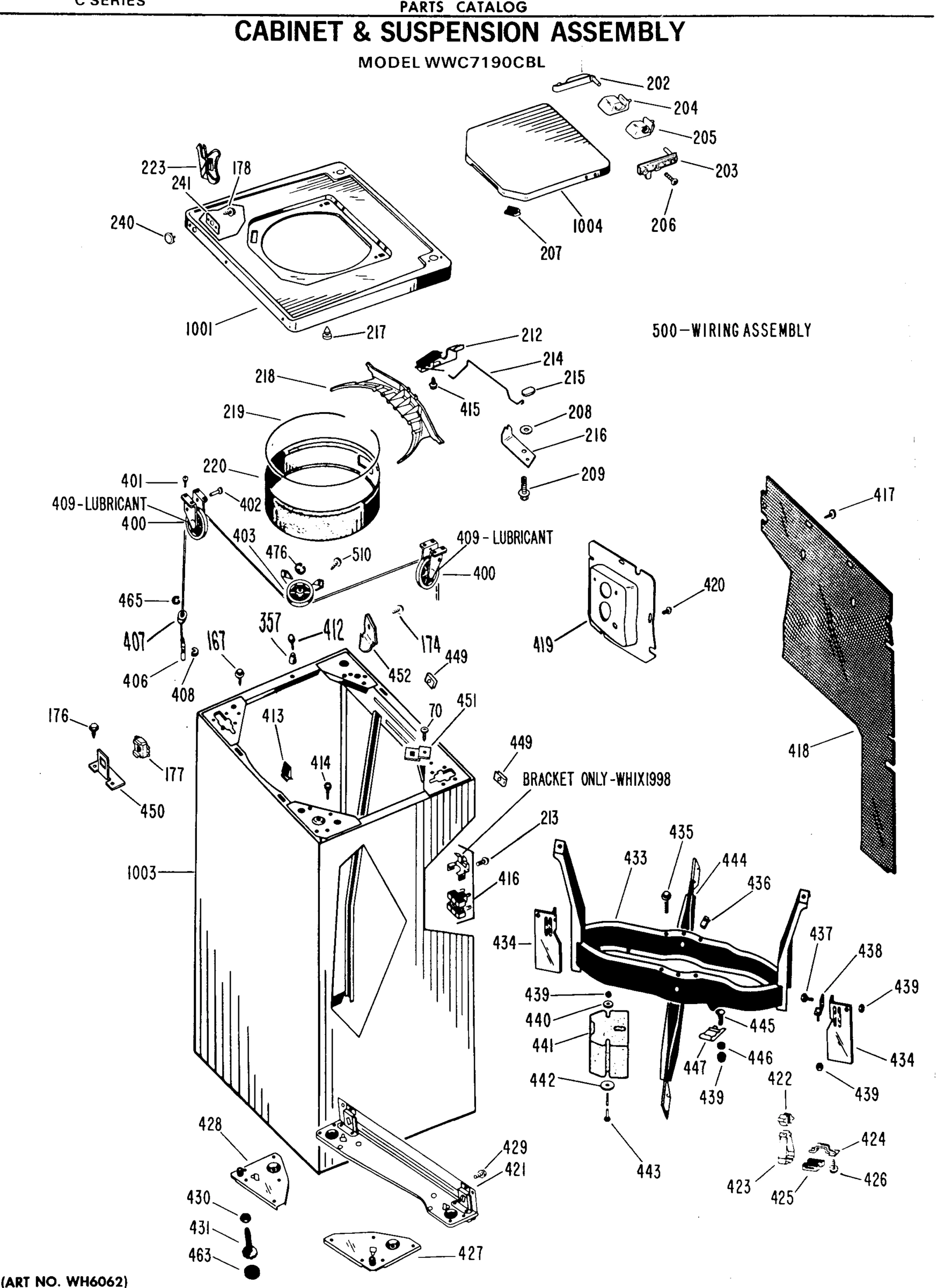

CABINET & SUSPENSION ASSEMBLY

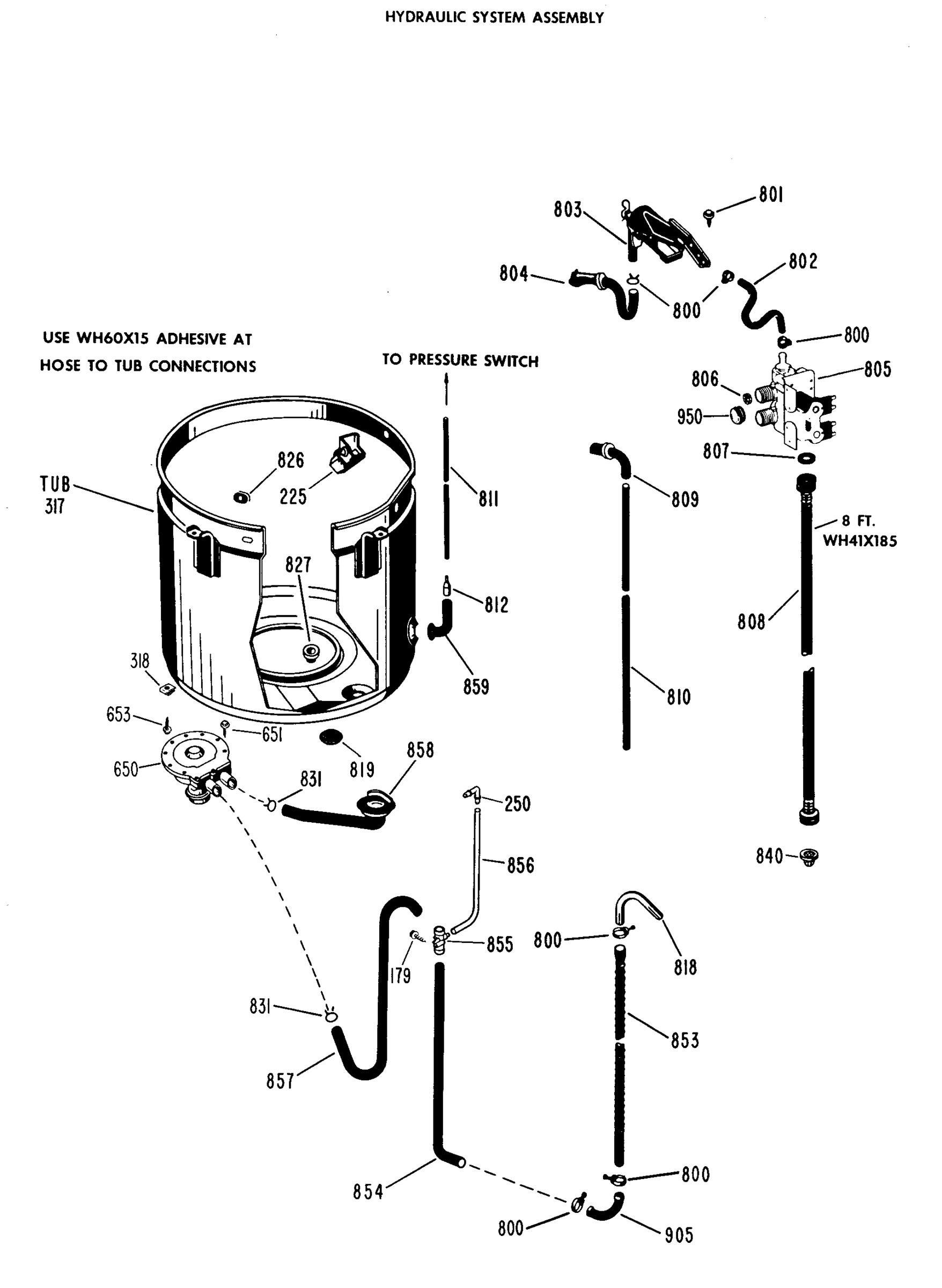

HYDRAULIC SYSTEM ASSEMBLY
Common parts from model GE WWC7190CBL Washer
2
GEN WH42X2080 GEN WH42X2080 Contact Us For Availability
10
GEN WH12X0639 GEN WH12X0639 Contact Us For Availability
35
GEN WH12X0660 GEN WH12X0660 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
70
SCR 10-15 A HXW 7/16 S GEN WH02X0937 Contact Us For Availability
100
GEN WH12X0702 GEN WH12X0702 Contact Us For Availability
101
GEN WH12X0673 GEN WH12X0673 Contact Us For Availability
103
GEN WH12X0827 GEN WH12X0827 Contact Us For Availability
105
GEN WH12X0708 GEN WH12X0708 Contact Us For Availability
110
GEN WH12X0707 GEN WH12X0707 Contact Us For Availability
111
GEN WH12X0705 GEN WH12X0705 Contact Us For Availability
112
GEN WZ05X0248 GEN WZ05X0248 Contact Us For Availability
123
GEN WH12X0706 GEN WH12X0706 Contact Us For Availability
153
GEN WE01X0911 GEN WE01X0911 Contact Us For Availability
154
GEN WE01X0913 GEN WE01X0913 Contact Us For Availability
155
GEN WE01X0948 GEN WE01X0948 Contact Us For Availability
156
GEN WE01X0949 GEN WE01X0949 Contact Us For Availability
157
GEN WE01X0950 GEN WE01X0950 Contact Us For Availability
157
GEN WH12X0624 GEN WH12X0624 Contact Us For Availability
158
GEN WE01X0951 GEN WE01X0951 Contact Us For Availability
159
GEN WE01X0952 GEN WE01X0952 Contact Us For Availability
160
GEN WE01X0953 GEN WE01X0953 Contact Us For Availability
161
GEN WE02X0273 GEN WE02X0273 Contact Us For Availability
162
GEN WE02X0274 GEN WE02X0274 Contact Us For Availability
163
GEN WE09X0048 GEN WE09X0048 Contact Us For Availability
164
GEN WE09X0050 GEN WE09X0050 Contact Us For Availability
167
SCR 1/4-14 AB HXW 3/4 S GEN WE02X0186 Contact Us For Availability
168
GEN WZ02X0468 GEN WZ02X0468 Contact Us For Availability
169
BUMPER GEN WH01X2194 Contact Us For Availability
170
GEN WH49X0192 GEN WH49X0192 Contact Us For Availability
172
GEN WH02X0735 GEN WH02X0735 Contact Us For Availability
173
GEN WH02X0932 GEN WH02X0932 Contact Us For Availability
174
SCR 10-16 AB SH 1/2 S GEN WH02X0934 Contact Us For Availability
175
GEN WH02X0933 GEN WH02X0933 Contact Us For Availability
176
GEN WH02X0931 GEN WH02X0931 Contact Us For Availability
177
NUT CLIP GEN WH02X0923 Contact Us For Availability
178
GEN WH02X0939 GEN WH02X0939 Contact Us For Availability
179
SCR 10-16 BT HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
183
GEN 8-32X5/16 GEN 8-32X5/16 Contact Us For Availability
185
HANGER-CABLE GEN WZ20X0007 Contact Us For Availability
187
GEN WH02X0946 GEN WH02X0946 Contact Us For Availability
202
GEN WH01X2085 GEN WH01X2085 Contact Us For Availability
203
HINGE-PIVOT R.H. GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE L.H. GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE R.H. GEN WH01X2086 Contact Us For Availability
206
SCR 8-18 B RT 1/2 SS GEN WH02X0819 Contact Us For Availability
207
GEN WH01X1654 GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
SCR 1/4-14 BT HXW 3/4 SS GEN WH02X0820 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
214
GEN WH01X2090 GEN WH01X2090 Contact Us For Availability
215
GEN WH01X2089 GEN WH01X2089 Contact Us For Availability
216
GEN WH16X0376 GEN WH16X0376 Contact Us For Availability
217
BUMPER LID GEN WH01X1480 Contact Us For Availability
218
GEN WH16X0413 GEN WH16X0413 Contact Us For Availability
219
WIRE GEN WH16X0370 Contact Us For Availability
220
GEN WH08X0295 GEN WH08X0295 Contact Us For Availability
223
GEN WH01X2054 GEN WH01X2054 Contact Us For Availability
223
GEN WH01X2232 GEN WH01X2232 Contact Us For Availability
223
GEN WH01X2234 GEN WH01X2234 Contact Us For Availability
225
GEN WH01X2255 GEN WH01X2255 Contact Us For Availability
240
GEN WH01X2266 GEN WH01X2266 Contact Us For Availability
241
GEN WH01X2268 GEN WH01X2268 Contact Us For Availability
250
GEN WH01X2256 GEN WH01X2256 Contact Us For Availability
300
GEN WH43X0087 GEN WH43X0087 Contact Us For Availability
303
GEN WH01X1944 GEN WH01X1944 Contact Us For Availability
306
GEN WH08X0292 GEN WH08X0292 Contact Us For Availability
307
GEN WH08X0246 GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
SCR 5/16-18 HX 7/8 S GEN WH02X0681 Contact Us For Availability
313
GEN WH08X0305 GEN WH08X0305 Contact Us For Availability
315
GEN WH42X1062 GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAPACITY GEN WH45X0103 Contact Us For Availability
317
TUB ASM GEN WH45X0069 Contact Us For Availability
318
NUT SHEET METAL GEN WL02X0071 Contact Us For Availability
320
GEN WH38X0038 GEN WH38X0038 Contact Us For Availability
333
GEN WH43X0089 GEN WH43X0089 Contact Us For Availability
357
GEN WH01X2187 GEN WH01X2187 Contact Us For Availability
393
GEN WH46X0172 GEN WH46X0172 Contact Us For Availability
393
GEN WH46X0195 GEN WH46X0195 Contact Us For Availability
393
GEN WH46X0198 GEN WH46X0198 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
402
GEN WH01X1633 GEN WH01X1633 Contact Us For Availability
403
GEN WH07X0041 GEN WH07X0041 Contact Us For Availability
406
CABLE STD CAPACITY GEN WH16X0374 Contact Us For Availability
407
GEN WH01X2081 GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
GEN WH01X2060 GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
412
SCR 10-12 A RD 1 1/8 S GEN BUY LOCAL Contact Us For Availability
413
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
414
SCR 12-14 B HX 3/4 S GEN WH02X0715 Contact Us For Availability
416
GEN WH12X0629 GEN WH12X0629 Contact Us For Availability
417
GEN WH02X0694 GEN WH02X0694 Contact Us For Availability
418
GEN WH44X0925 GEN WH44X0925 Contact Us For Availability
419
GEN WH16X0373 GEN WH16X0373 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
421
WELD ASM REAR BASE GEN WH46X0188 Contact Us For Availability
422
PAD FRICTION GEN WH01X2296 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
GEN WH01X1862 GEN WH01X1862 Contact Us For Availability
425
GEN WH01X1953 GEN WH01X1953 Contact Us For Availability
426
SCR 14-10 A HX 3/4 S GEN WH02X0882 Contact Us For Availability
427
GEN WH46X0181 GEN WH46X0181 Contact Us For Availability
428
GEN WH46X0182 GEN WH46X0182 Contact Us For Availability
429
SCR 1/4-14 B HX 3/8 S GEN WH02X0795 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
431
GEN WH01X0209 GEN WH01X0209 Contact Us For Availability
433
GEN WH17X0067 GEN WH17X0067 Contact Us For Availability
434
DAMPING FIN STD. CAP. GEN WH16X0364 Contact Us For Availability
435
GEN WH02X1056 GEN WH02X1056 Contact Us For Availability
436
GEN WH02X0739 GEN WH02X0739 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
438
GEN WH16X0405 GEN WH16X0405 Contact Us For Availability
439
NUT GEN WH02X0707 Contact Us For Availability
440
GEN WH02X0810 GEN WH02X0810 Contact Us For Availability
441
GEN WH01X2056 GEN WH01X2056 Contact Us For Availability
442
GEN WH02X0811 GEN WH02X0811 Contact Us For Availability
443
SCR 1/4-20 HX 5 S GEN WH02X0812 Contact Us For Availability
444
DAMPING FIN & SUPT-14# GEN WH16X0361 Contact Us For Availability
445
SCR 1/4-20 M RD 11/16 S GEN WH02X0798 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
447
GEN WH02X0801 GEN WH02X0801 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
450
GEN WH16X0430 GEN WH16X0430 Contact Us For Availability
451
GEN WH16X0410 GEN WH16X0410 Contact Us For Availability
452
BRACKET HINGE GEN WH16X0431 Contact Us For Availability
465
RING E GEN WZ13X0024 Contact Us For Availability
476
RING E GEN WZ13X0031 Contact Us For Availability
500
GEN WH19X0253 GEN WH19X0253 Contact Us For Availability
500
GEN WH19X0267 GEN WH19X0267 Contact Us For Availability
546
GEN WH12X0604 GEN WH12X0604 Contact Us For Availability
548
TERMINAL GEN WB17X0151 Contact Us For Availability
549
TERMINAL GEN WB17X0145 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
GEN WH12X0417 GEN WH12X0417 Contact Us For Availability
553
INSULATOR GEN WH01X2010 Contact Us For Availability
554
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
GEN WH19X0225 GEN WH19X0225 Contact Us For Availability
558
TERMINAL GEN WH01X2038 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
560
TERMINAL GEN WH12X0603 Contact Us For Availability
561
GEN WH49X0236 GEN WH49X0236 Contact Us For Availability
600
GEN WH01X1621 GEN WH01X1621 Contact Us For Availability
601
GEN WH01X1722 GEN WH01X1722 Contact Us For Availability
602
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
605
GEN WH02X0190 GEN WH02X0190 Contact Us For Availability
606
PIN ROLL GEN WZ11X0050 Contact Us For Availability
607
GEN WH04X0012 GEN WH04X0012 Contact Us For Availability
613
GEN WH01X1309 GEN WH01X1309 Contact Us For Availability
614
GEN WH02X0539 GEN WH02X0539 Contact Us For Availability
615
GEN WH07X0101 GEN WH07X0101 Contact Us For Availability
618
GEN WH40X0151 GEN WH40X0151 Contact Us For Availability
619
GEN WH02X0543 GEN WH02X0543 Contact Us For Availability
620
GEN WH01X1169 GEN WH01X1169 Contact Us For Availability
621
NUT & WASHER GEN WZ08X0006 Contact Us For Availability
629
GEN WH17X0086 GEN WH17X0086 Contact Us For Availability
630
GEN WH20X0064 GEN WH20X0064 Contact Us For Availability
638
DRUM-CLUTCH MACH GEN WH05X0174 Contact Us For Availability
639
GEN WH02X0581 GEN WH02X0581 Contact Us For Availability
650
GEN WH23X0053 GEN WH23X0053 Contact Us For Availability
651
GEN WH02X0888 GEN WH02X0888 Contact Us For Availability
652
GEN WH08X0296 GEN WH08X0296 Contact Us For Availability
653
SCR 10-16 AB HXW 1 3/8 S GEN WH02X0938 Contact Us For Availability
654
GEN WH16X0432 GEN WH16X0432 Contact Us For Availability
735
SEAL ACTIVATOR SHAFT ASM GEN WH08X0291 Contact Us For Availability
736
GEN WH02X0786 GEN WH02X0786 Contact Us For Availability
737
GEN WH02X0207 GEN WH02X0207 Contact Us For Availability
738
GEN WH40X0148 GEN WH40X0148 Contact Us For Availability
739
BEARING ASM AGIT SHAFT GEN WH04X0085 Contact Us For Availability
741
GEN WH01X1834 GEN WH01X1834 Contact Us For Availability
742
GEN WH04X0093 GEN WH04X0093 Contact Us For Availability
744
SHAFT PINION GEN WH40X0159 Contact Us For Availability
746
GEN WH01X2335 GEN WH01X2335 Contact Us For Availability
747
GEN WH01X1842 GEN WH01X1842 Contact Us For Availability
748
GEN WH10X0045 GEN WH10X0045 Contact Us For Availability
749
GEN WZ11X0055 GEN WZ11X0055 Contact Us For Availability
751
GEN WH02X0671 GEN WH02X0671 Contact Us For Availability
752
GEN WH02X0659 GEN WH02X0659 Contact Us For Availability
753
GEN WH02X0201 GEN WH02X0201 Contact Us For Availability
758
GEN WH08X0242 GEN WH08X0242 Contact Us For Availability
759
GEN WH40X0149 GEN WH40X0149 Contact Us For Availability
761
GEN WH04X0081 GEN WH04X0081 Contact Us For Availability
762
GEN WH07X0057 GEN WH07X0057 Contact Us For Availability
763
GEN WH07X0058 GEN WH07X0058 Contact Us For Availability
764
GEN WH01X2147 GEN WH01X2147 Contact Us For Availability
765
GEN WH40X0145 GEN WH40X0145 Contact Us For Availability
766
GEN WH40X0146 GEN WH40X0146 Contact Us For Availability
768
GEN WZ13X0032 GEN WZ13X0032 Contact Us For Availability
771
GEN WH39X0040 GEN WH39X0040 Contact Us For Availability
775
GEN WZ01X0032 GEN WZ01X0032 Contact Us For Availability
801
SCR 8-18 B HXW 15/32 S GEN WD02X5063 Contact Us For Availability
802
GEN WH41X0099 GEN WH41X0099 Contact Us For Availability
803
GEN WH41X0132 GEN WH41X0132 Contact Us For Availability
804
GEN WH41X0170 GEN WH41X0170 Contact Us For Availability
806
GEN WH01X1400 GEN WH01X1400 Contact Us For Availability
809
GEN WH08X0253 GEN WH08X0253 Contact Us For Availability
810
GEN WH01X1807 GEN WH01X1807 Contact Us For Availability
811
GEN WH41X0128 GEN WH41X0128 Contact Us For Availability
812
GEN WH01X1584 GEN WH01X1584 Contact Us For Availability
818
NOZZLE-DRAIN GEN WH41X0035 Contact Us For Availability
819
GEN WH01X1813 GEN WH01X1813 Contact Us For Availability
826
GEN WH08X0284 GEN WH08X0284 Contact Us For Availability
827
GEN WH01X1966 GEN WH01X1966 Contact Us For Availability
840
SCREEN & WASHER GEN WH01X2267 Contact Us For Availability
853
GEN WH41X0146 GEN WH41X0146 Contact Us For Availability
854
GEN WH41X0187 GEN WH41X0187 Contact Us For Availability
855
GEN WH41X0192 GEN WH41X0192 Contact Us For Availability
856
GEN WH41X0193 GEN WH41X0193 Contact Us For Availability
857
GEN WH41X0194 GEN WH41X0194 Contact Us For Availability
858
GEN WH41X0091 GEN WH41X0091 Contact Us For Availability
859
GEN WH41X0130 GEN WH41X0130 Contact Us For Availability
905
GEN WH01X1617 GEN WH01X1617 Contact Us For Availability
950
GEN WH01X1732 GEN WH01X1732 Contact Us For Availability
1001
GEN WH44X1021 GEN WH44X1021 Contact Us For Availability
1001
GEN WH44X1026 GEN WH44X1026 Contact Us For Availability
1001
GEN WH44X1028 GEN WH44X1028 Contact Us For Availability
1004
GEN WH44X1044 GEN WH44X1044 Contact Us For Availability
1004
GEN WH44X1045 GEN WH44X1045 Contact Us For Availability
1004
GEN WH44X1047 GEN WH44X1047 Contact Us For Availability
1007
GEN WH42X2083 GEN WH42X2083 Contact Us For Availability
1007
GEN WH42X2085 GEN WH42X2085 Contact Us For Availability
1007
GEN WH42X2086 GEN WH42X2086 Contact Us For Availability
1013
GEN WE01X0908 GEN WE01X0908 Contact Us For Availability
1013
GEN WH42X1097 GEN WH42X1097 Contact Us For Availability
1013
GEN WH42X1098 GEN WH42X1098 Contact Us For Availability
1013
GEN WH42X1165 GEN WH42X1165 Contact Us For Availability
32767
CONNECTOR-HOUSING GEN WB17X5073 Contact Us For Availability
32767
GEN WH12X0416 GEN WH12X0416 Contact Us For Availability
32767
HOUSING TERMINAL GEN WH12X0488 Contact Us For Availability
32767
HOUSING TERMINAL GEN WH12X0489 Contact Us For Availability
32767
GEN WH02X0935 GEN WH02X0935 Contact Us For Availability
32767
GEN WH01X1986 GEN WH01X1986 Contact Us For Availability
32767
GEN 30-9598 GEN 30-9598 Contact Us For Availability
32767
GEN 49-9097-1 GEN 49-9097-1 Contact Us For Availability
32767
GEN WH00X0529 GEN WH00X0529 Contact Us For Availability
32767
GEN WH00X0551 GEN WH00X0551 Contact Us For Availability
32767
GEN WH01X1092 GEN WH01X1092 Contact Us For Availability
32767
GEN WH01X2042 GEN WH01X2042 Contact Us For Availability
32767
CLAMP-HUB MACH GEN WH01X2083 Contact Us For Availability
32767
GEAR-SECTOR MACH GEN WH05X0 Contact Us For Availability
32767
GEN WH01X2233 GEN WH01X2233 Contact Us For Availability
32767
GEN WH44X1025 GEN WH44X1025 Contact Us For Availability
32767
GEN WH44X1046 GEN WH44X1046 Contact Us For Availability
32767
GEN WH46X0197 GEN WH46X0197 Contact Us For Availability
× ![]()
