Model GE WWA5710MAL – Common Parts & Diagrams

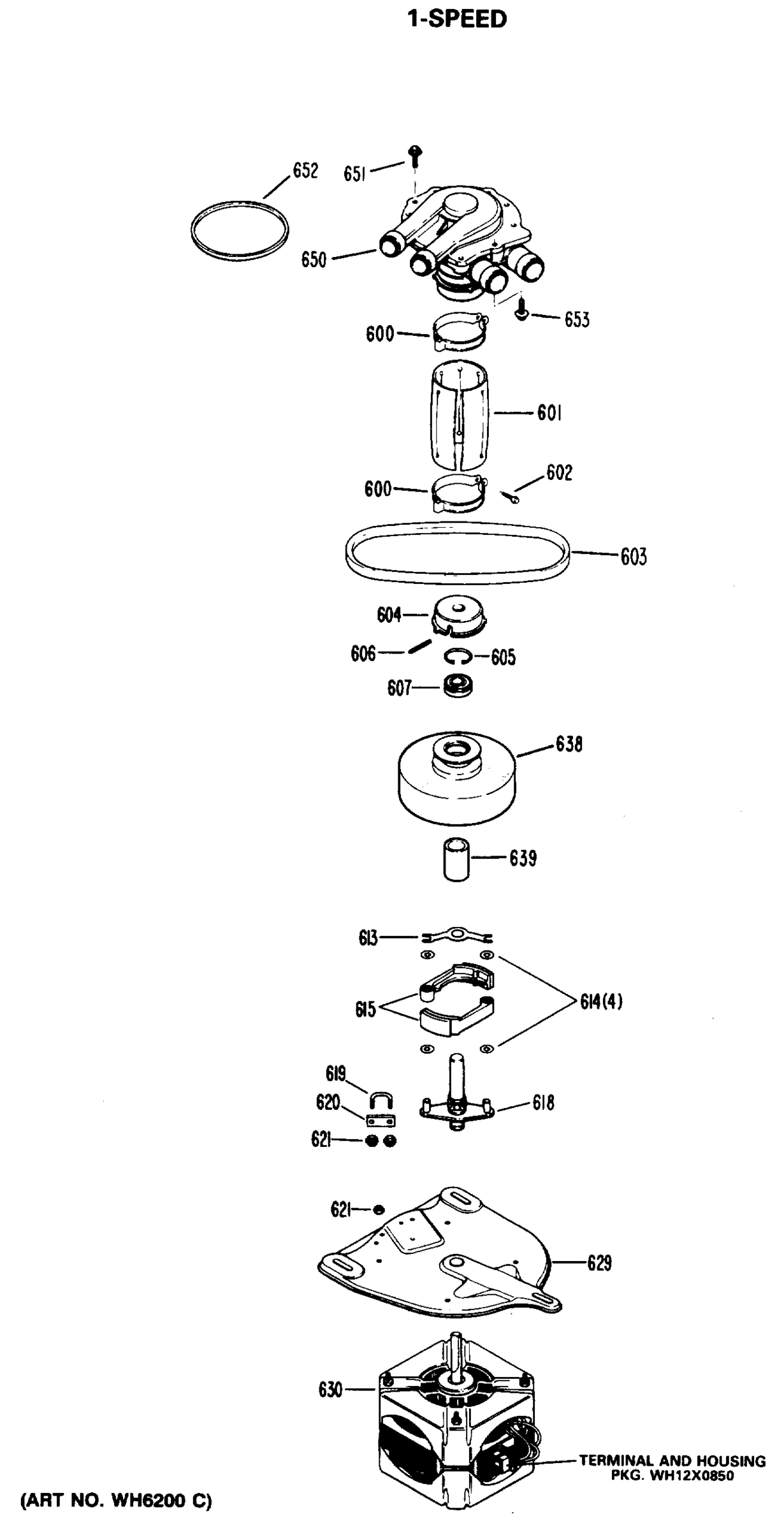

1-SPEED

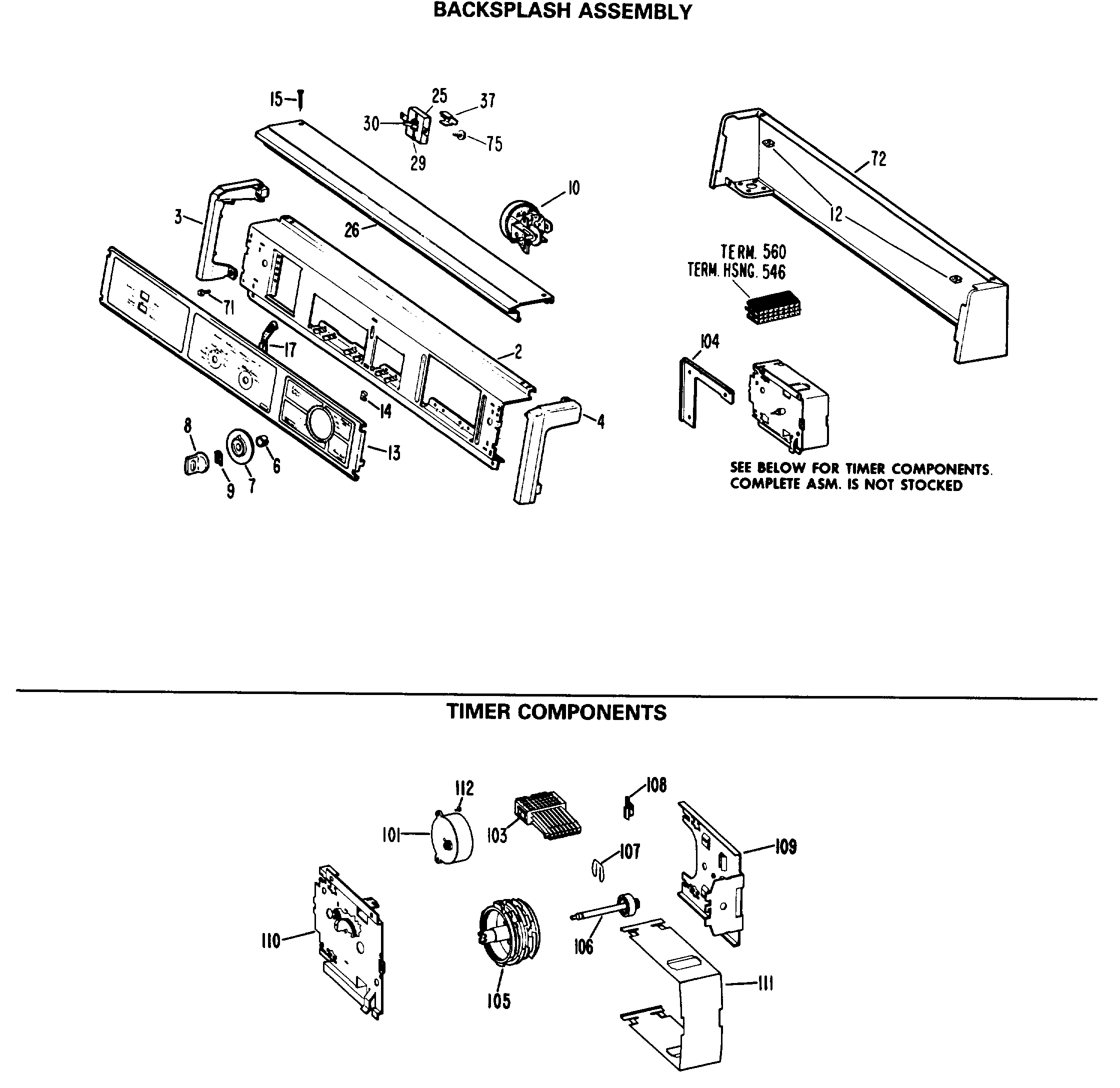

BACKSPLASH ASSEMBLY

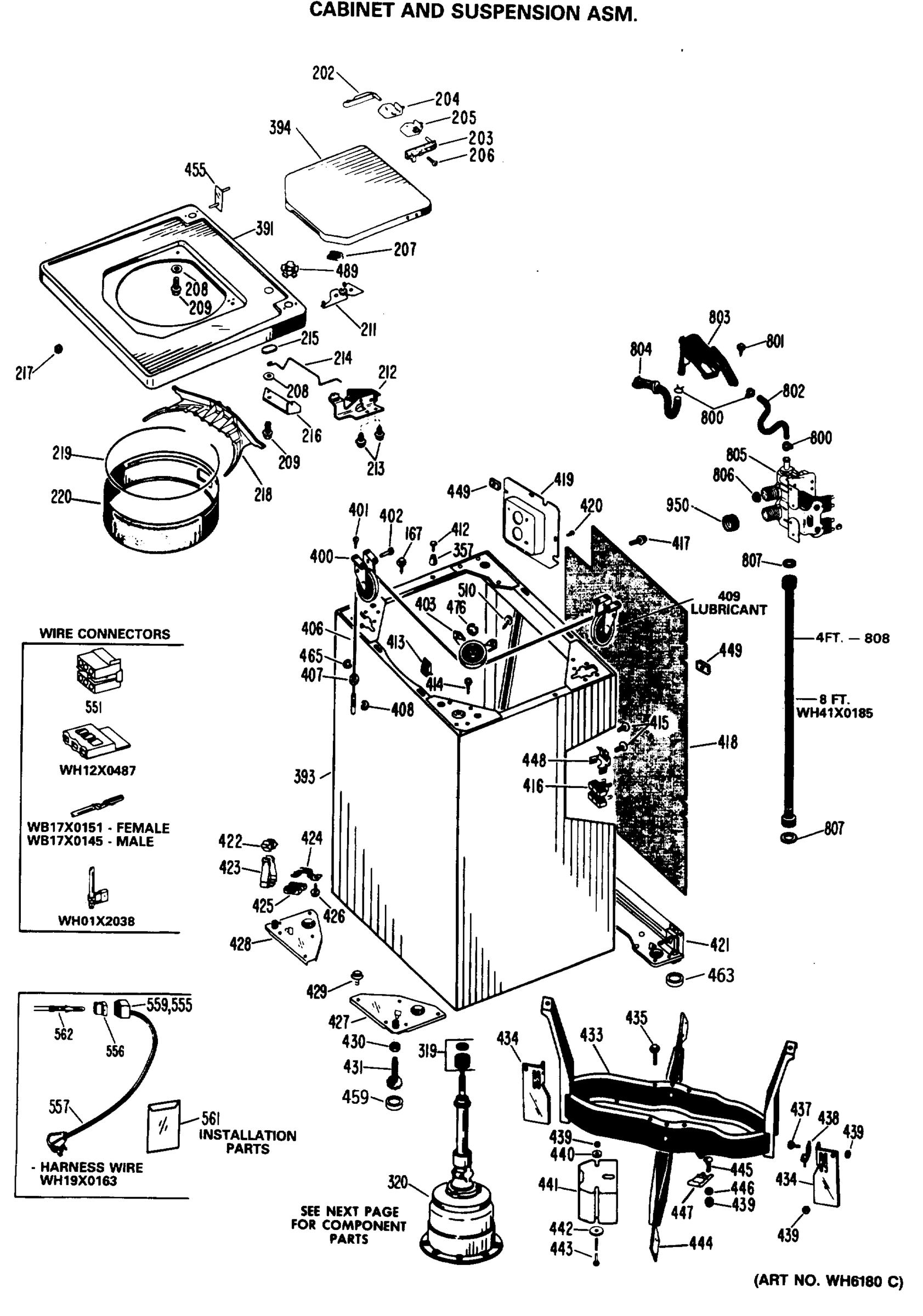

CABINET AND SUSPENSION ASM.

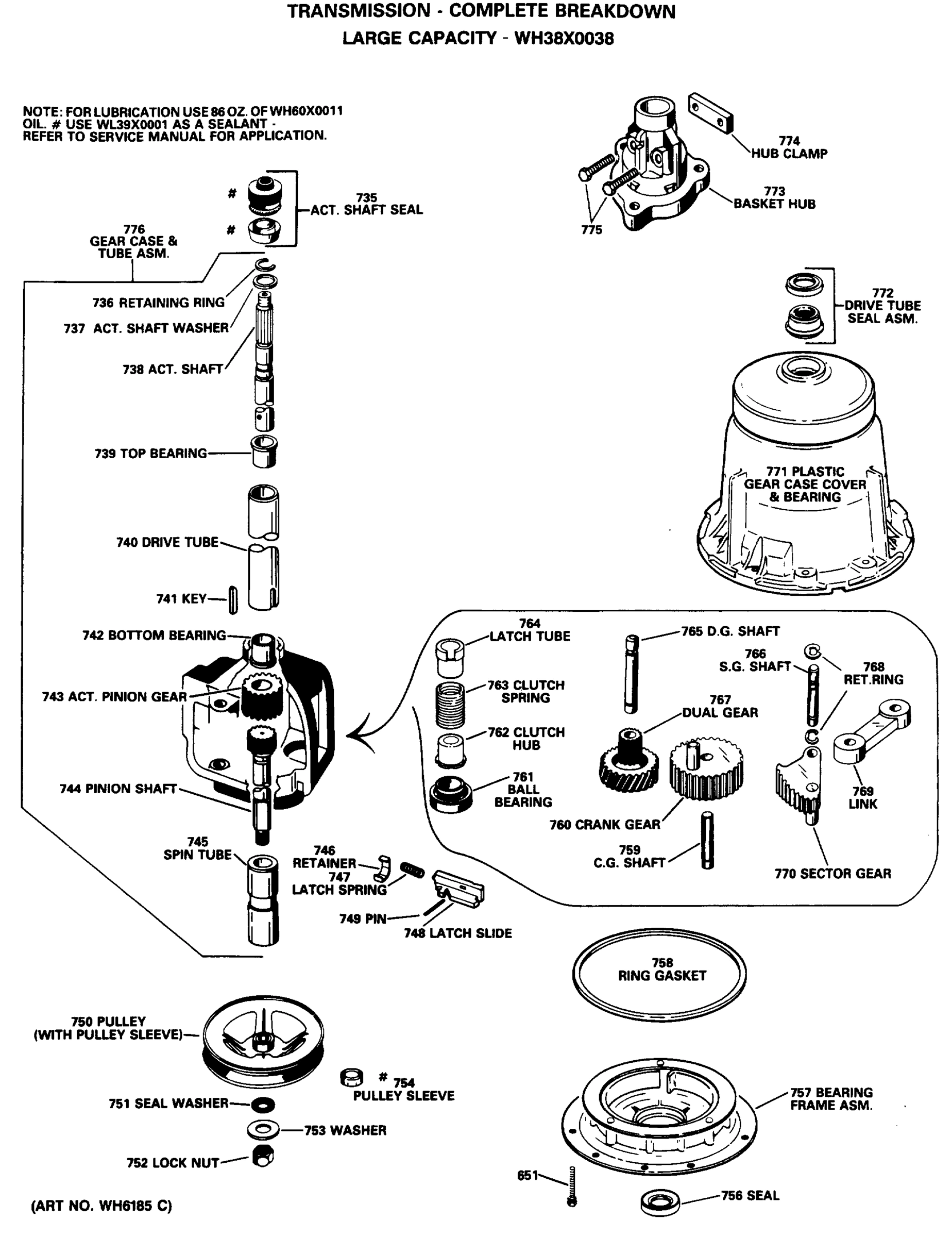

TRANSMISSION - COMPLETE BREAKDOWN

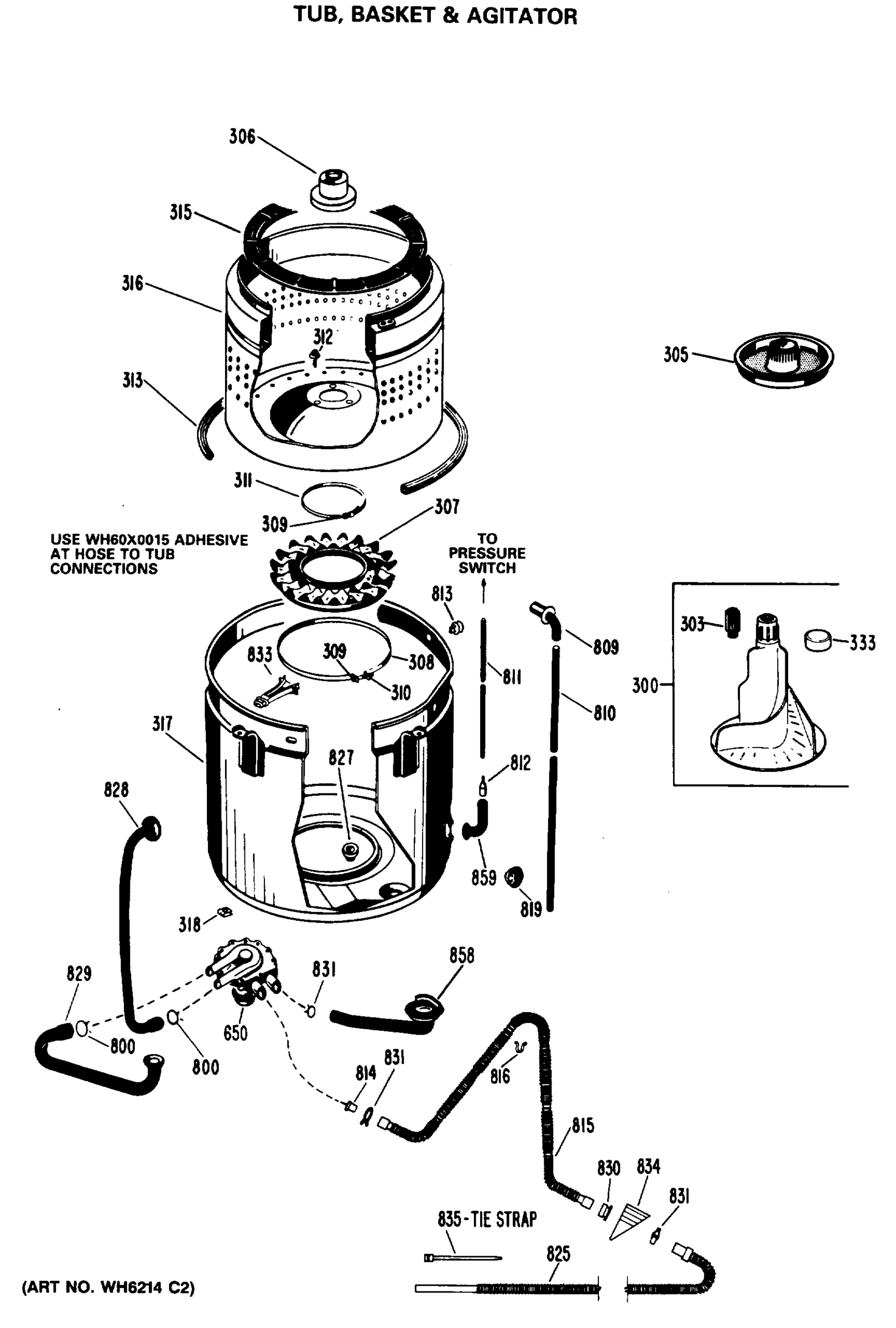

TUB, BASKET & AGITATOR
Common parts from model GE WWA5710MAL
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WH42X2199 GEN WH42X2199 Contact Us For Availability
4
GEN WH42X2200 GEN WH42X2200 Contact Us For Availability
6
RING COMP GEN WH02X0650 Contact Us For Availability
7
GEN WH11X0091 GEN WH11X0091 Contact Us For Availability
8
CONTROL KNOB ASM GEN WH01X2119 Contact Us For Availability
10
GEN WH12X0874 GEN WH12X0874 Contact Us For Availability
15
GEN WE02X0367 GEN WE02X0367 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
25
GEN WH12X0873 GEN WH12X0873 Contact Us For Availability
26
GEN WH42X2201 GEN WH42X2201 Contact Us For Availability
29
GEN WH01X1394 GEN WH01X1394 Contact Us For Availability
32
GEN WH16X0370 GEN WH16X0370 Contact Us For Availability
37
GEN WH16X0429 GEN WH16X0429 Contact Us For Availability
46
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
70
GEN WH02X0937 GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
100
GEN WH12X0929 GEN WH12X0929 Contact Us For Availability
101
GEN WH12X0644 GEN WH12X0644 Contact Us For Availability
103
GEN WH12X0631 GEN WH12X0631 Contact Us For Availability
104
GEN WH16X0474 GEN WH16X0474 Contact Us For Availability
105
GEN WH11X0111 GEN WH11X0111 Contact Us For Availability
106
GEN WH01X2280 GEN WH01X2280 Contact Us For Availability
107
GEN WH01X2281 GEN WH01X2281 Contact Us For Availability
108
GEN WH01X2282 GEN WH01X2282 Contact Us For Availability
109
GEN WH12X0700 GEN WH12X0700 Contact Us For Availability
110
GEN WH12X0699 GEN WH12X0699 Contact Us For Availability
111
GEN WH12X0701 GEN WH12X0701 Contact Us For Availability
112
GEN WH02X0948 GEN WH02X0948 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
180
GEN WR01X1747 GEN WR01X1747 Contact Us For Availability
202
HINGE PIVOT L.H. GEN WH01X2085 Contact Us For Availability
203
HINGE PIVOT R.H. GEN WH01X2222 Contact Us For Availability
204
PAD-HINGE L.H. GEN WH01X2087 Contact Us For Availability
205
PAD-HINGE R.H. GEN WH01X2086 Contact Us For Availability
206
GEN WH02X0819 GEN WH02X0819 Contact Us For Availability
207
GEN WH01X1654 GEN WH01X1654 Contact Us For Availability
208
GEN WH01X2088 GEN WH01X2088 Contact Us For Availability
209
GEN WH02X0820 GEN WH02X0820 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
212
GEN WH12X0494 GEN WH12X0494 Contact Us For Availability
214
GEN WH01X2090 GEN WH01X2090 Contact Us For Availability
215
GEN WH01X2089 GEN WH01X2089 Contact Us For Availability
216
GEN WH16X0376 GEN WH16X0376 Contact Us For Availability
218
GEN WH16X0413 GEN WH16X0413 Contact Us For Availability
220
GEN WH08X0366 GEN WH08X0366 Contact Us For Availability
300
GEN WH43X0087 GEN WH43X0087 Contact Us For Availability
303
GEN WH01X1944 GEN WH01X1944 Contact Us For Availability
305
GEN WH01X2269 GEN WH01X2269 Contact Us For Availability
306
GEN WH08X0292 GEN WH08X0292 Contact Us For Availability
307
GEN WH08X0246 GEN WH08X0246 Contact Us For Availability
308
GEN WH01X1580 GEN WH01X1580 Contact Us For Availability
310
GEN WH02X0936 GEN WH02X0936 Contact Us For Availability
311
GEN WH01X1292 GEN WH01X1292 Contact Us For Availability
312
GEN WH02X0681 GEN WH02X0681 Contact Us For Availability
313
GEN WH08X0305 GEN WH08X0305 Contact Us For Availability
315
GEN WH42X1062 GEN WH42X1062 Contact Us For Availability
316
BASKET ASM STD CAP GEN WH45X0103 Contact Us For Availability
317
GEN WH45X0069 GEN WH45X0069 Contact Us For Availability
319
SUPPORT AGITATOR GEN WH01X1986 Contact Us For Availability
320
GEN WH38X0038 GEN WH38X0038 Contact Us For Availability
333
GEN WH43X0089 GEN WH43X0089 Contact Us For Availability
357
GEN WH01X2187 GEN WH01X2187 Contact Us For Availability
391
GEN WH44X0894 GEN WH44X0894 Contact Us For Availability
391
GEN WH44X0980 GEN WH44X0980 Contact Us For Availability
391
GEN WH44X0983 GEN WH44X0983 Contact Us For Availability
393
GEN WH46X0172 GEN WH46X0172 Contact Us For Availability
393
GEN WH46X0195 GEN WH46X0195 Contact Us For Availability
393
GEN WH46X0198 GEN WH46X0198 Contact Us For Availability
394
GEN WH44X0525 GEN WH44X0525 Contact Us For Availability
394
GEN WH44X0976 GEN WH44X0976 Contact Us For Availability
394
GEN WH44X0979 GEN WH44X0979 Contact Us For Availability
400
GEN WH07X0040 GEN WH07X0040 Contact Us For Availability
401
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
402
GEN WH01X1633 GEN WH01X1633 Contact Us For Availability
403
GEN WH07X0041 GEN WH07X0041 Contact Us For Availability
406
CABLE STD CAPACITY GEN WH16X0374 Contact Us For Availability
407
GEN WH01X2081 GEN WH01X2081 Contact Us For Availability
407
GEN WH01X2082 GEN WH01X2082 Contact Us For Availability
408
GEN WH01X2060 GEN WH01X2060 Contact Us For Availability
409
GEN WL39X0003 GEN WL39X0003 Contact Us For Availability
412
SCREW GEN BUY LOCAL Contact Us For Availability
413
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
414
SCR 12-14 B HX 3/4 S GEN WH02X0715 Contact Us For Availability
416
GEN WH12X0235 GEN WH12X0235 Contact Us For Availability
417
GEN WH02X0694 GEN WH02X0694 Contact Us For Availability
418
GEN WH44X1134 GEN WH44X1134 Contact Us For Availability
419
GEN WH16X0483 GEN WH16X0483 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
422
GEN WH01X2296 GEN WH01X2296 Contact Us For Availability
423
GEN WH01X1951 GEN WH01X1951 Contact Us For Availability
424
GEN WH01X1862 GEN WH01X1862 Contact Us For Availability
425
GEN WH01X1953 GEN WH01X1953 Contact Us For Availability
426
GEN WH02X0882 GEN WH02X0882 Contact Us For Availability
427
GEN WH46X0181 GEN WH46X0181 Contact Us For Availability
428
GEN WH46X0182 GEN WH46X0182 Contact Us For Availability
429
SCREW TUB GEN WH02X0795 Contact Us For Availability
430
GEN WH02X1137 GEN WH02X1137 Contact Us For Availability
430
GEN WZ07X0040 GEN WZ07X0040 Contact Us For Availability
432
GEN WL02X0071 GEN WL02X0071 Contact Us For Availability
433
GEN WH17X0087 GEN WH17X0087 Contact Us For Availability
434
GEN WH16X0364 GEN WH16X0364 Contact Us For Availability
435
GEN WH02X1121 GEN WH02X1121 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
438
GEN WH16X0405 GEN WH16X0405 Contact Us For Availability
439
GEN WH02X0707 GEN WH02X0707 Contact Us For Availability
440
GEN WH02X0810 GEN WH02X0810 Contact Us For Availability
441
GEN WH01X2056 GEN WH01X2056 Contact Us For Availability
442
WASHER GEN WH02X0811 Contact Us For Availability
443
GEN WH02X0812 GEN WH02X0812 Contact Us For Availability
444
GEN WH16X0361 GEN WH16X0361 Contact Us For Availability
447
GEN WH02X0801 GEN WH02X0801 Contact Us For Availability
448
GEN WH01X1998 GEN WH01X1998 Contact Us For Availability
449
GEN WH02X0896 GEN WH02X0896 Contact Us For Availability
454
SPEEDNUT GEN WB01X0358 Contact Us For Availability
455
GEN WH01X1946 GEN WH01X1946 Contact Us For Availability
463
GEN WH01X2628 GEN WH01X2628 Contact Us For Availability
465
GEN WZ13X0024 GEN WZ13X0024 Contact Us For Availability
476
GEN WZ13X0031 GEN WZ13X0031 Contact Us For Availability
489
GEN WH01X2572 GEN WH01X2572 Contact Us For Availability
546
GEN WH12X0870 GEN WH12X0870 Contact Us For Availability
550
GEN WE02X0281 GEN WE02X0281 Contact Us For Availability
551
GEN WH12X0417 GEN WH12X0417 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
GEN WH19X0225 GEN WH19X0225 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
560
GEN WD01X1434 GEN WD01X1434 Contact Us For Availability
561
GEN WH49X0272 GEN WH49X0272 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
600
GEN WH01X1621 GEN WH01X1621 Contact Us For Availability
601
GEN WH01X1722 GEN WH01X1722 Contact Us For Availability
602
SCREW COUPLE CLAMP GEN WH02X0941 Contact Us For Availability
604
GEN WH07X0045 GEN WH07X0045 Contact Us For Availability
605
GEN WH02X0190 GEN WH02X0190 Contact Us For Availability
606
GEN WZ11X0050 GEN WZ11X0050 Contact Us For Availability
613
GEN WH01X1309 GEN WH01X1309 Contact Us For Availability
614
GEN WH02X0539 GEN WH02X0539 Contact Us For Availability
615
GEN WH07X0110 GEN WH07X0110 Contact Us For Availability
618
GEN WH40X0151 GEN WH40X0151 Contact Us For Availability
619
GEN WH02X0543 GEN WH02X0543 Contact Us For Availability
620
GEN WH01X1169 GEN WH01X1169 Contact Us For Availability
621
NUT & WASHER GEN WZ08X0006 Contact Us For Availability
629
GEN WH17X0086 GEN WH17X0086 Contact Us For Availability
630
GEN WH20X0064 GEN WH20X0064 Contact Us For Availability
638
GEN WH05X0174 GEN WH05X0174 Contact Us For Availability
639
GEN WH02X0581 GEN WH02X0581 Contact Us For Availability
650
GEN WH23X0042 GEN WH23X0042 Contact Us For Availability
651
GEN WH02X0888 GEN WH02X0888 Contact Us For Availability
653
SCR 10-16 AB HXW 1 3/8 S GEN WH02X0938 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
735
GEN WH08X0291 GEN WH08X0291 Contact Us For Availability
736
GEN WH02X0786 GEN WH02X0786 Contact Us For Availability
737
GEN WH02X0207 GEN WH02X0207 Contact Us For Availability
738
GEN WH40X0148 GEN WH40X0148 Contact Us For Availability
740
GEN WH40X0153 GEN WH40X0153 Contact Us For Availability
741
GEN WH01X1834 GEN WH01X1834 Contact Us For Availability
742
GEN WH04X0093 GEN WH04X0093 Contact Us For Availability
743
GEN WH05X0227 GEN WH05X0227 Contact Us For Availability
746
GEN WH01X2335 GEN WH01X2335 Contact Us For Availability
747
GEN WH01X1842 GEN WH01X1842 Contact Us For Availability
748
GEN WH10X0045 GEN WH10X0045 Contact Us For Availability
749
GEN WZ11X0055 GEN WZ11X0055 Contact Us For Availability
750
GEN WH07X0046 GEN WH07X0046 Contact Us For Availability
751
GEN WH02X0671 GEN WH02X0671 Contact Us For Availability
752
GEN WH02X0659 GEN WH02X0659 Contact Us For Availability
753
GEN WH02X0201 GEN WH02X0201 Contact Us For Availability
754
GEN WH01X2042 GEN WH01X2042 Contact Us For Availability
757
GEN WH17X0068 GEN WH17X0068 Contact Us For Availability
758
GEN WH08X0367 GEN WH08X0367 Contact Us For Availability
759
GEN WH40X0149 GEN WH40X0149 Contact Us For Availability
760
GEN WH05X0216 GEN WH05X0216 Contact Us For Availability
761
GEN WH04X0081 GEN WH04X0081 Contact Us For Availability
762
GEN WH07X0057 GEN WH07X0057 Contact Us For Availability
764
GEN WH01X2147 GEN WH01X2147 Contact Us For Availability
765
GEN WH40X0145 GEN WH40X0145 Contact Us For Availability
766
GEN WH40X0146 GEN WH40X0146 Contact Us For Availability
767
GEN WH05X0209 GEN WH05X0209 Contact Us For Availability
768
GEN WZ13X0032 GEN WZ13X0032 Contact Us For Availability
769
GEN WH05X0188 GEN WH05X0188 Contact Us For Availability
771
GEN WH39X0046 GEN WH39X0046 Contact Us For Availability
772
GEN WH08X0347 GEN WH08X0347 Contact Us For Availability
773
GEN WH17X0069 GEN WH17X0069 Contact Us For Availability
775
GEN WZ01X0032 GEN WZ01X0032 Contact Us For Availability
776
GEAR CASE & TUBES ASM GEN WH37X0035 Contact Us For Availability
802
GEN WH41X0099 GEN WH41X0099 Contact Us For Availability
803
GEN WH41X0132 GEN WH41X0132 Contact Us For Availability
804
GEN WH41X0170 GEN WH41X0170 Contact Us For Availability
806
GEN WH01X1400 GEN WH01X1400 Contact Us For Availability
809
GEN WH08X0253 GEN WH08X0253 Contact Us For Availability
810
GEN WH01X1807 GEN WH01X1807 Contact Us For Availability
811
GEN WH41X0128 GEN WH41X0128 Contact Us For Availability
812
GEN WH01X1584 GEN WH01X1584 Contact Us For Availability
813
GEN WH01X1980 GEN WH01X1980 Contact Us For Availability
814
GEN WH41X0158 GEN WH41X0158 Contact Us For Availability
815
GEN WH41X0325 GEN WH41X0325 Contact Us For Availability
816
GEN WH16X0372 GEN WH16X0372 Contact Us For Availability
827
GEN WH01X1966 GEN WH01X1966 Contact Us For Availability
828
GEN WH41X0296 GEN WH41X0296 Contact Us For Availability
829
GEN WH41X0140 GEN WH41X0140 Contact Us For Availability
830
GEN WH01X2595 GEN WH01X2595 Contact Us For Availability
833
GEN WH41X0143 GEN WH41X0143 Contact Us For Availability
834
GEN WH16X0493 GEN WH16X0493 Contact Us For Availability
858
GEN WH41X0091 GEN WH41X0091 Contact Us For Availability
859
GEN WH41X0130 GEN WH41X0130 Contact Us For Availability
950
GEN WH01X1732 GEN WH01X1732 Contact Us For Availability
3097
GEN WE01X0762 GEN WE01X0762 Contact Us For Availability
3120
GEN WE02X0279 GEN WE02X0279 Contact Us For Availability
32767
GEN 31-2112 GEN 31-2112 Contact Us For Availability
32767
GEN 31-2280 GEN 31-2280 Contact Us For Availability
× ![]()
