Model Electrolux WW334AGW2 WASHER – Common Parts & Diagrams

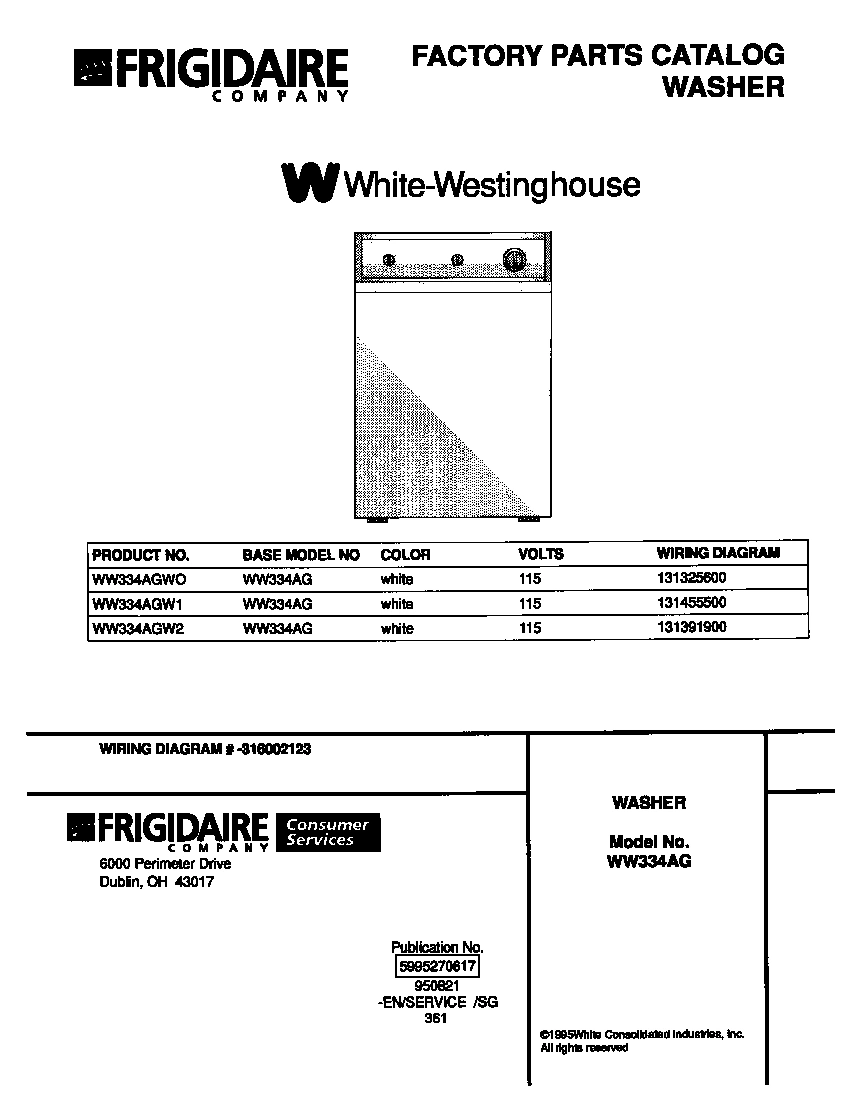

01 - COVER

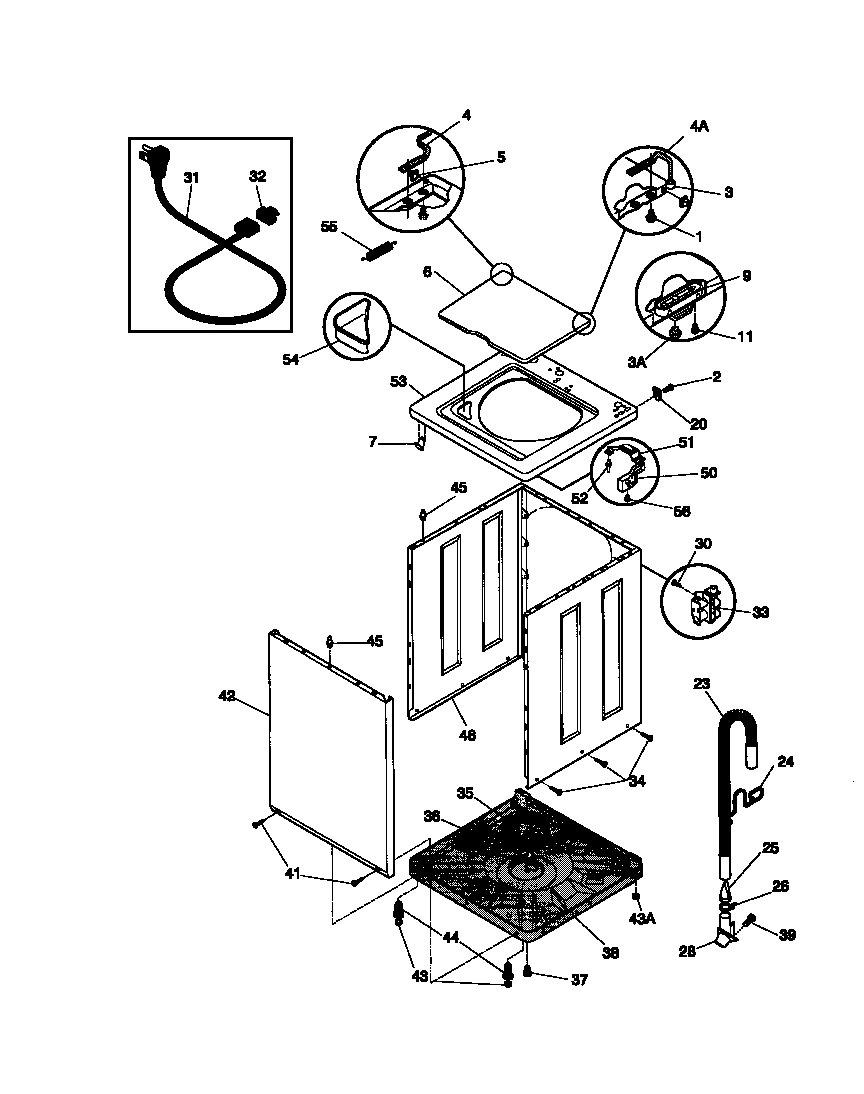

02 - CABINET/TOP

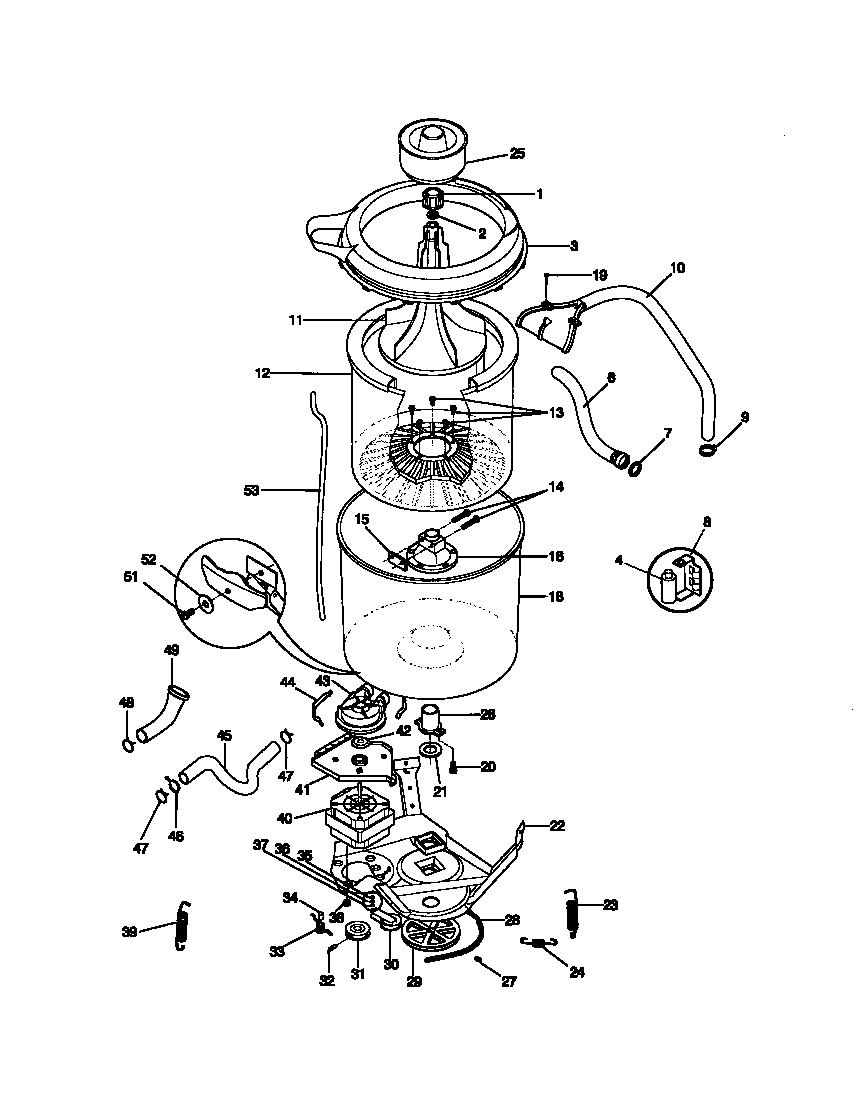

03 - MOTOR/TUB

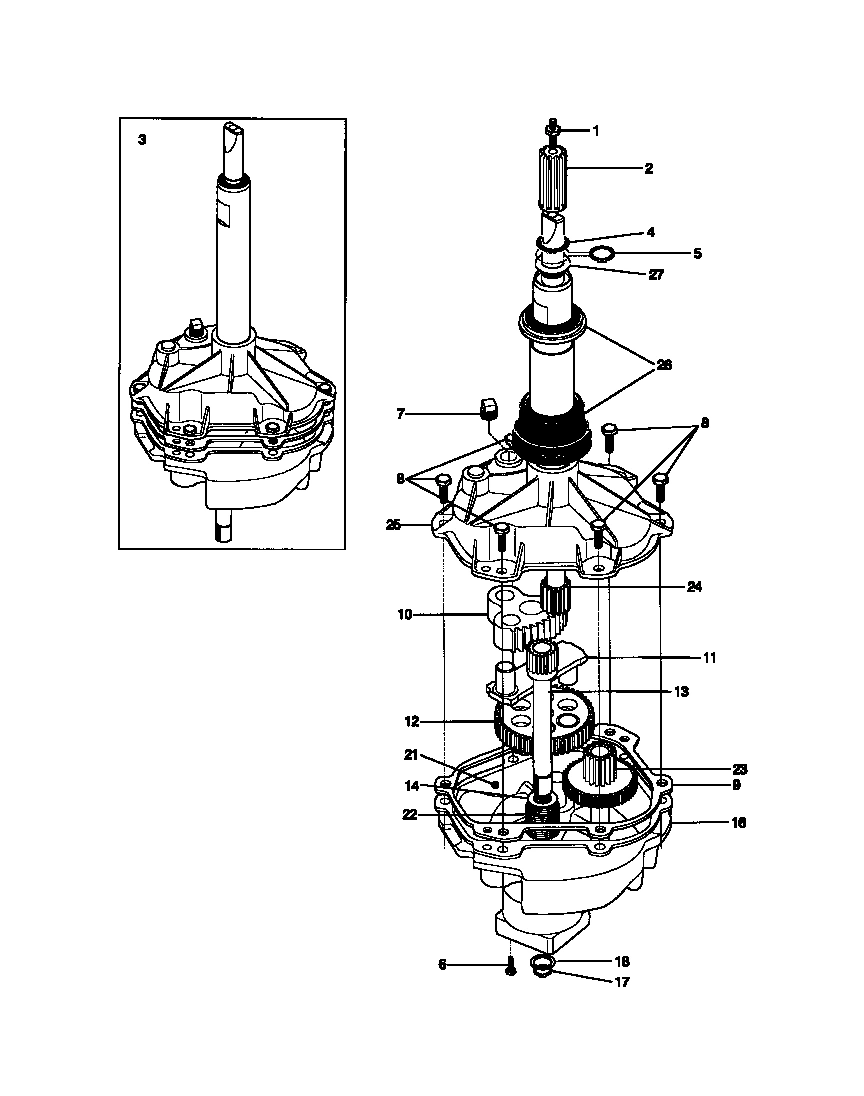

04 - TRANSMISSION

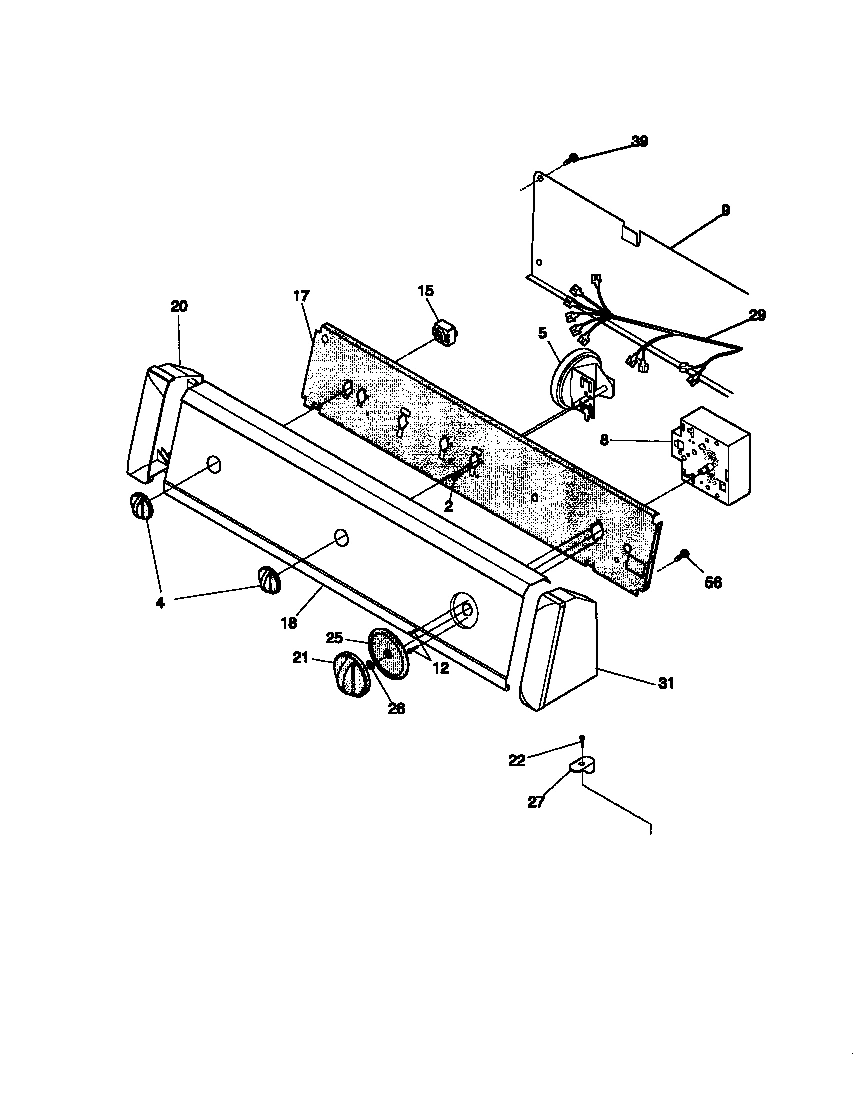

05 - CONTROL PANEL

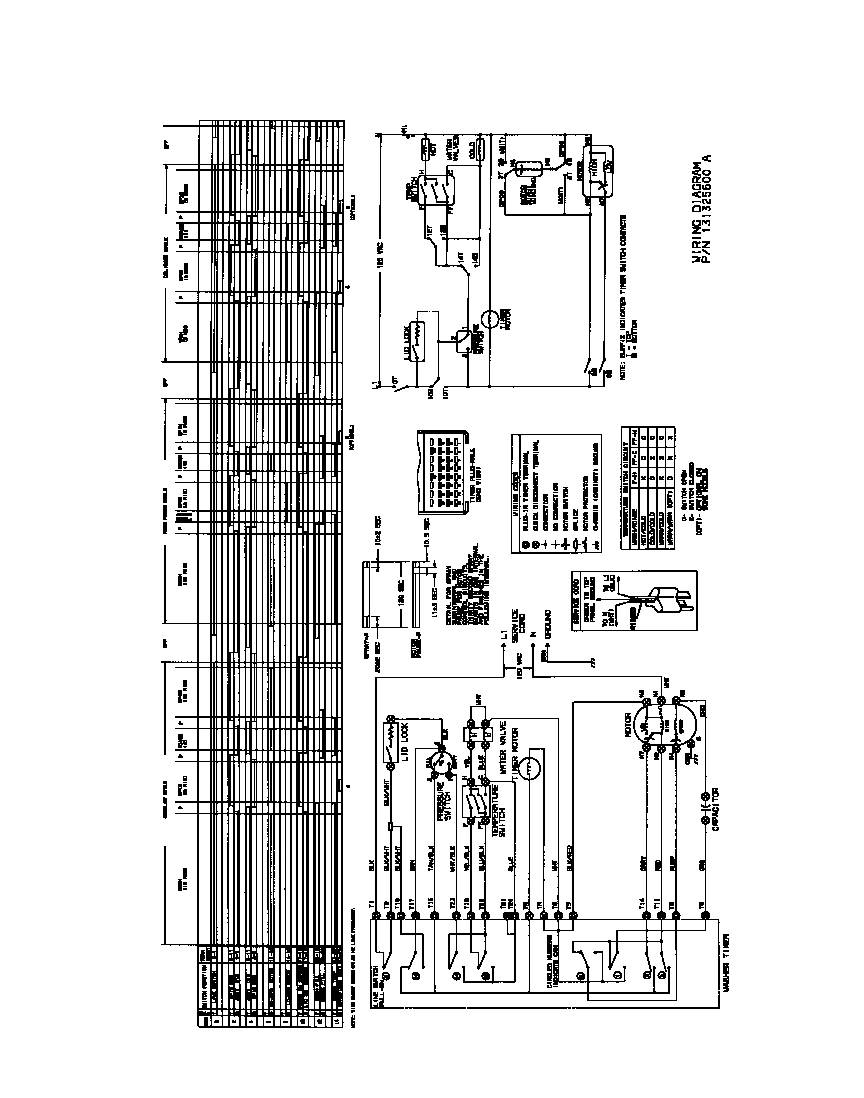

06 - WIRING DIAGRAM

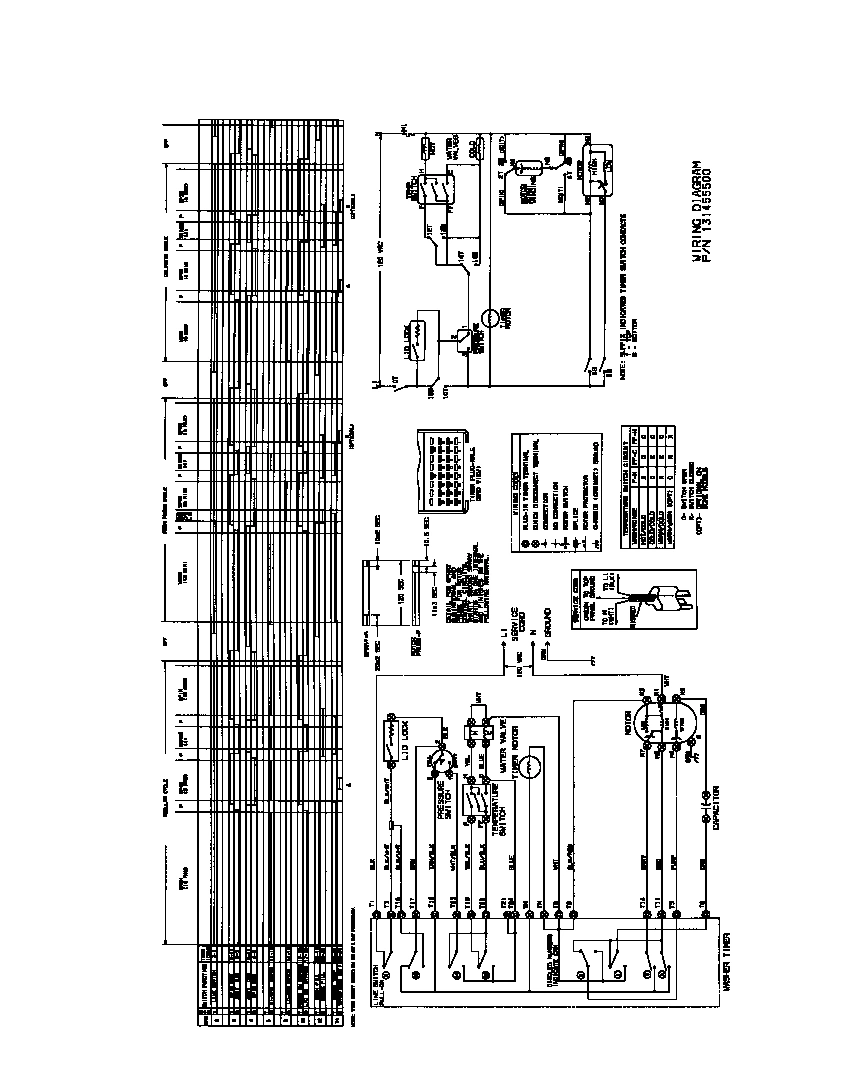

07 - WIRING DIAGRAM

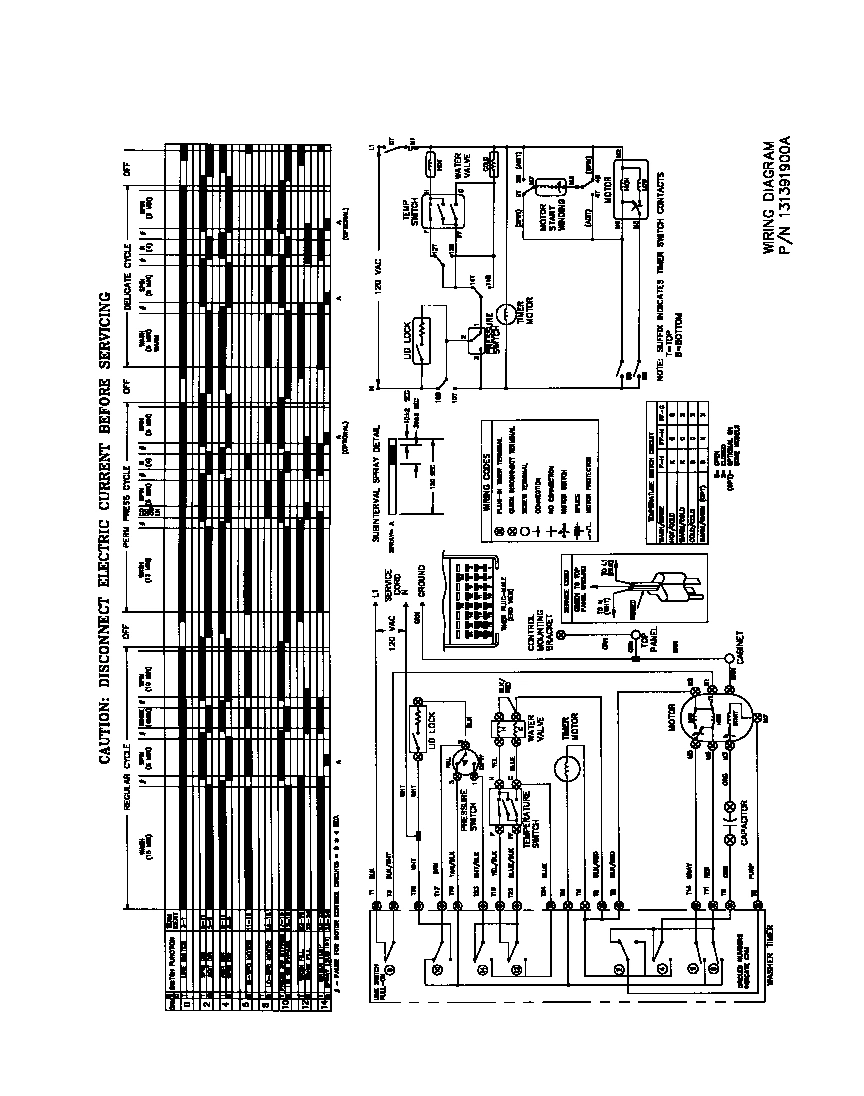

08 - WIRING DIAGRAM
Common parts from model Electrolux WW334AGW2 WASHER
*15641
INSERT-SPRING ADJ WCI 5303212877 Contact Us For Availability
1
WCI 131206800 WCI 131206800 Contact Us For Availability
1
WCI 131325600A WCI 131325600A Contact Us For Availability
1
WCI 131455500 WCI 131455500 Contact Us For Availability
1
WCI 131391900A WCI 131391900A Contact Us For Availability
2
WCI 3204396 WCI 3204396 Contact Us For Availability
4
WCI 131385910 WCI 131385910 Contact Us For Availability
4
WCI 131081000 WCI 131081000 Contact Us For Availability
5
RING-RETAINING WCI 5303161223 Contact Us For Availability
5
WCI 131047500 WCI 131047500 Contact Us For Availability
8
WCI 131360300 WCI 131360300 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
BACKSHEET-CONSOLE WCI 5303205838 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
12
SCREW-TIMER, PTH ST, 8-32NC-2A X .25 WCI 3161188 Contact Us For Availability
14
WASHER-THRUST WCI 5303161226 Contact Us For Availability
15
WCI 131047000 WCI 131047000 Contact Us For Availability
17
WCI 131297306 WCI 131297306 Contact Us For Availability
18
WASHER-SPACER WCI 5308002475 Contact Us For Availability
18
WCI 131356700 WCI 131356700 Contact Us For Availability
20
END CAP, BLACK, LH WCI 5303291344 Contact Us For Availability
20
HINGE-REAR CABINET WCI 5303208751 Contact Us For Availability
21
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
21
WCI 5308014337 WCI 5308014337 Contact Us For Availability
22
WCI 131373610 WCI 131373610 Contact Us For Availability
22
WCI 131417600 WCI 131417600 Contact Us For Availability
22
WCI 131266300 WCI 131266300 Contact Us For Availability
23
WCI 131210200 WCI 131210200 Contact Us For Availability
23
GEAR-IDLER WCI 5303161175 Contact Us For Availability
24
WCI 131373900 WCI 131373900 Contact Us For Availability
24
RETAINER-DRAIN HOSE WCI 5303204987 Contact Us For Availability
24
WCI 5308015507 WCI 5308015507 Contact Us For Availability
25
WCI 5303205527 WCI 5303205527 Contact Us For Availability
25
DIAL WCI 5303295581 Contact Us For Availability
26
SEAL-TUB WCI 5303279394 Contact Us For Availability
26
WCI 5308015493 WCI 5308015493 Contact Us For Availability
27
WCI 131197000 WCI 131197000 Contact Us For Availability
29
WCI 131341400 WCI 131341400 Contact Us For Availability
31
END CAP, BLACK, RH WCI 5303291352 Contact Us For Availability
31
WCI 3204423 WCI 3204423 Contact Us For Availability
32
PIN-ROLL WCI 3204424 Contact Us For Availability
33
WCI 3204425 WCI 3204425 Contact Us For Availability
35
WCI 5308002385 WCI 5308002385 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
37
WASHER-SPRING WCI 5303161306 Contact Us For Availability
42
WCI 131104303 WCI 131104303 Contact Us For Availability
43
WCI 131422100 WCI 131422100 Contact Us For Availability
45
WCI 131346400 WCI 131346400 Contact Us For Availability
45
HOSE-PMP TO COUPLER WCI 3204454 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
54
WCI 5303208778 WCI 5303208778 Contact Us For Availability
× ![]()
