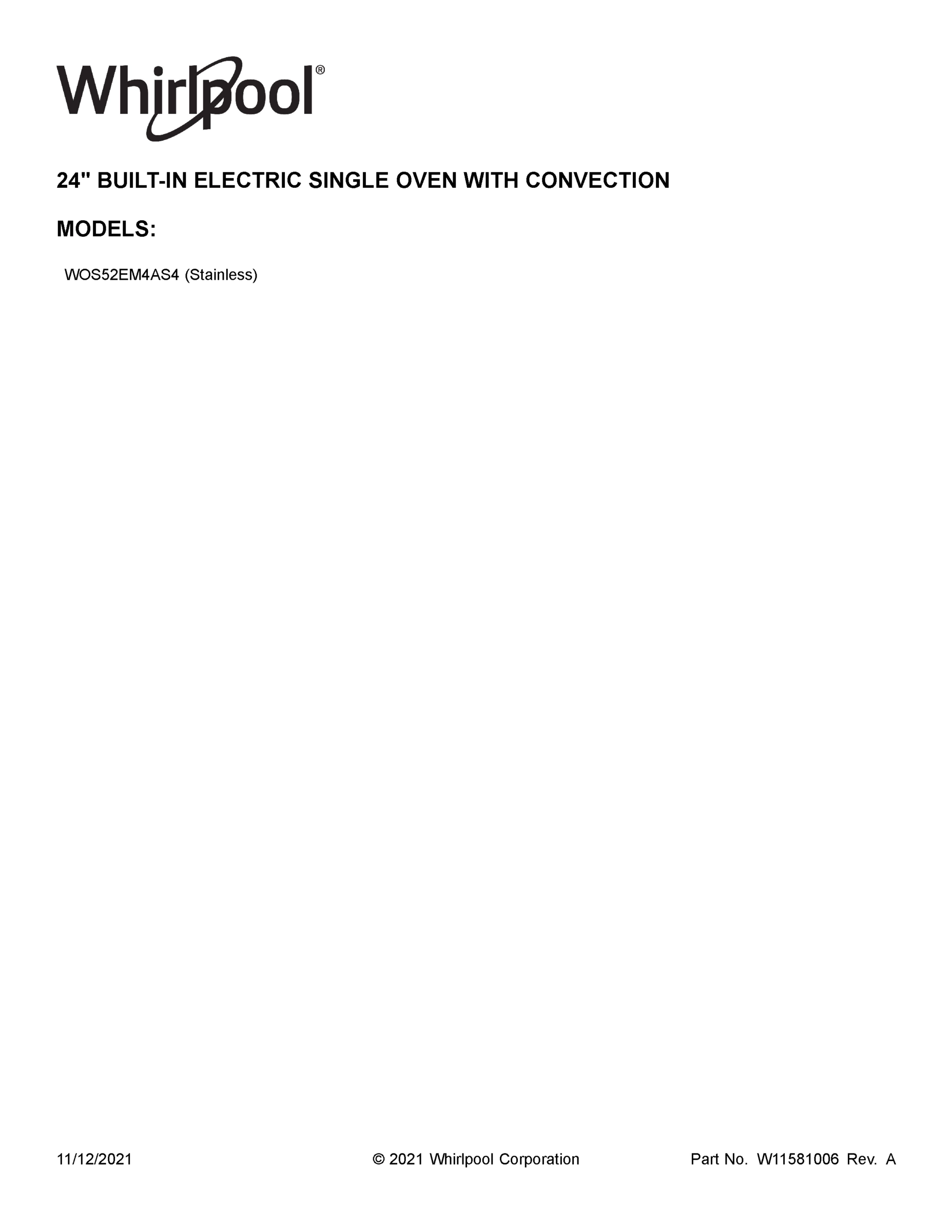

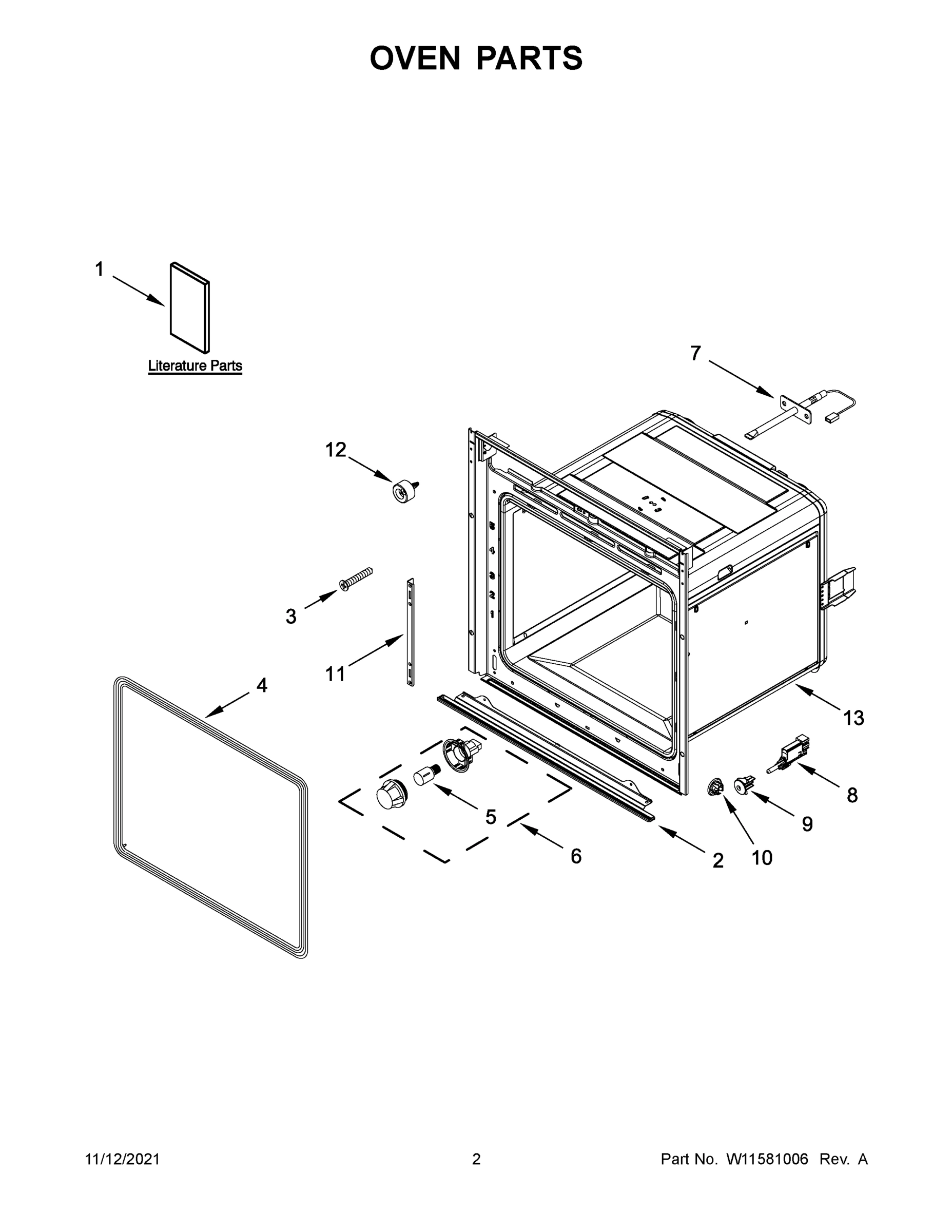

Model Whirlpool WOS52EM4AS4 WALL OVEN, ELECTRIC, SINGLE, 24 INCH – Common Parts &amp; Diagrams

1

INSTALLATION INSTRUCTIONS WPL 501931002022 Contact Us For Availability

1

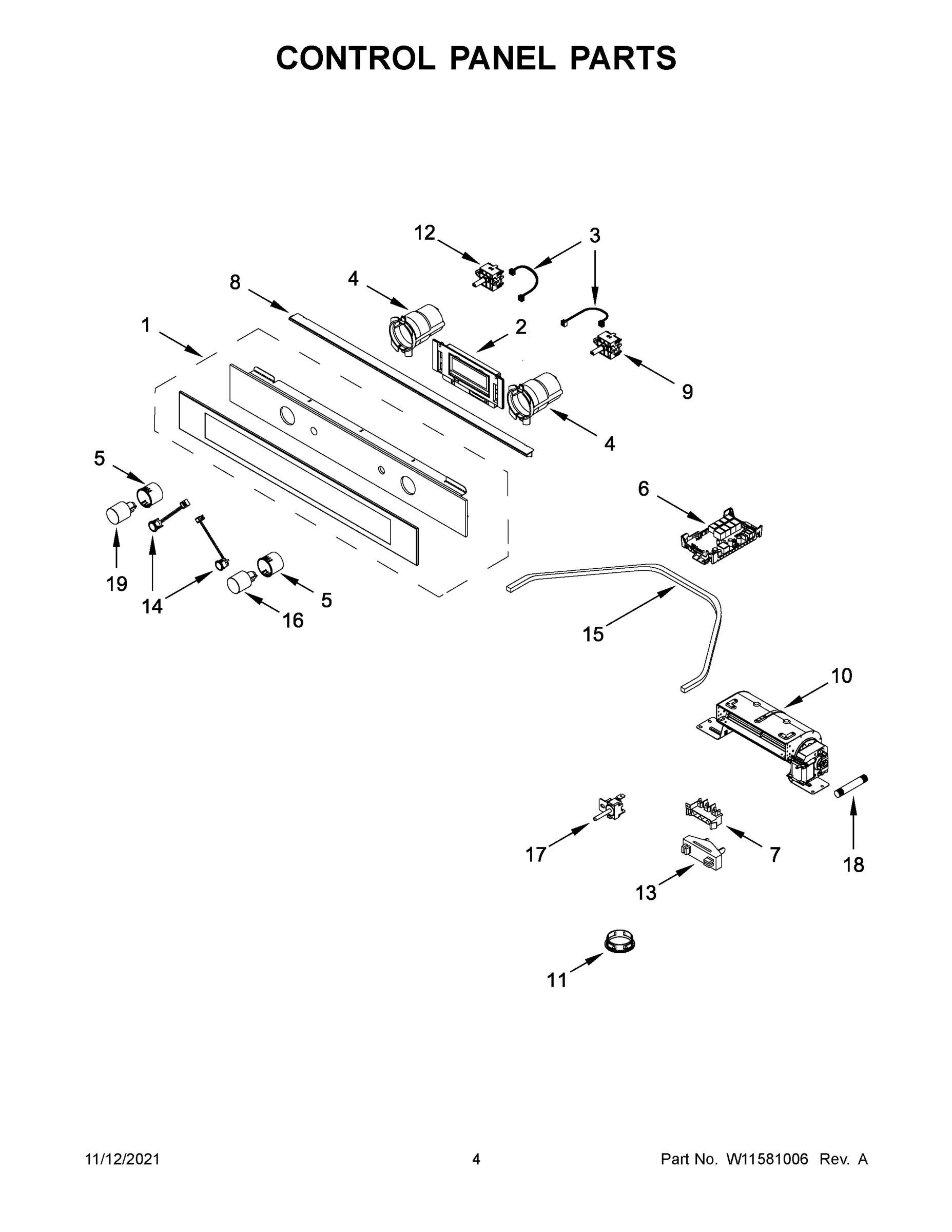

PANEL, CONTROL GLASS AND FRAME WPL W10519058 Contact Us For Availability

1

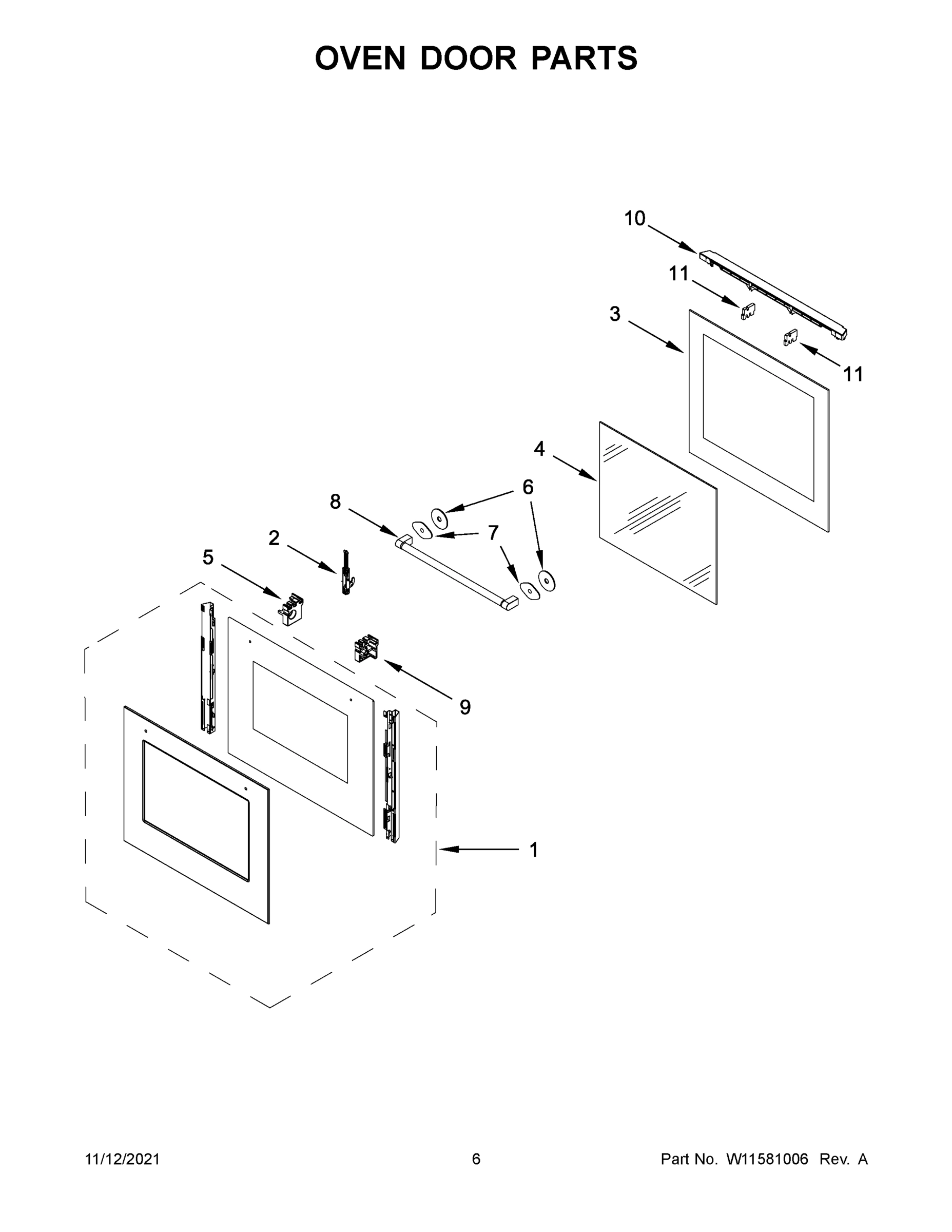

DOOR, OVEN OUTER ASSEMBLY WPL W10683366 Contact Us For Availability

1A

USE AND CARE GUIDE WPL 501931001359 Contact Us For Availability

1B

TECH SHEET WPL 501931002023 Contact Us For Availability

2

W10517979 Whirlpool Trim Assembly Backorder WPL W10517979 $82.59

2

DISPLAY Backorder WPL W10836476 $301.93

2

W11236920 Whirlpool Support Bracket Backorder WPL W11236920 $53.25

2

HINGE, DOOR WPL W10648945 Contact Us For Availability

3

W10519818 Whirlpool Screw Backorder WPL W10519818 $10.34

3

HARNESS, DISPLAY SELECTOR SWITCH WPL W10519030 Contact Us For Availability

3

GLASS, INNER DOOR WPL W10513684 Contact Us For Availability

3

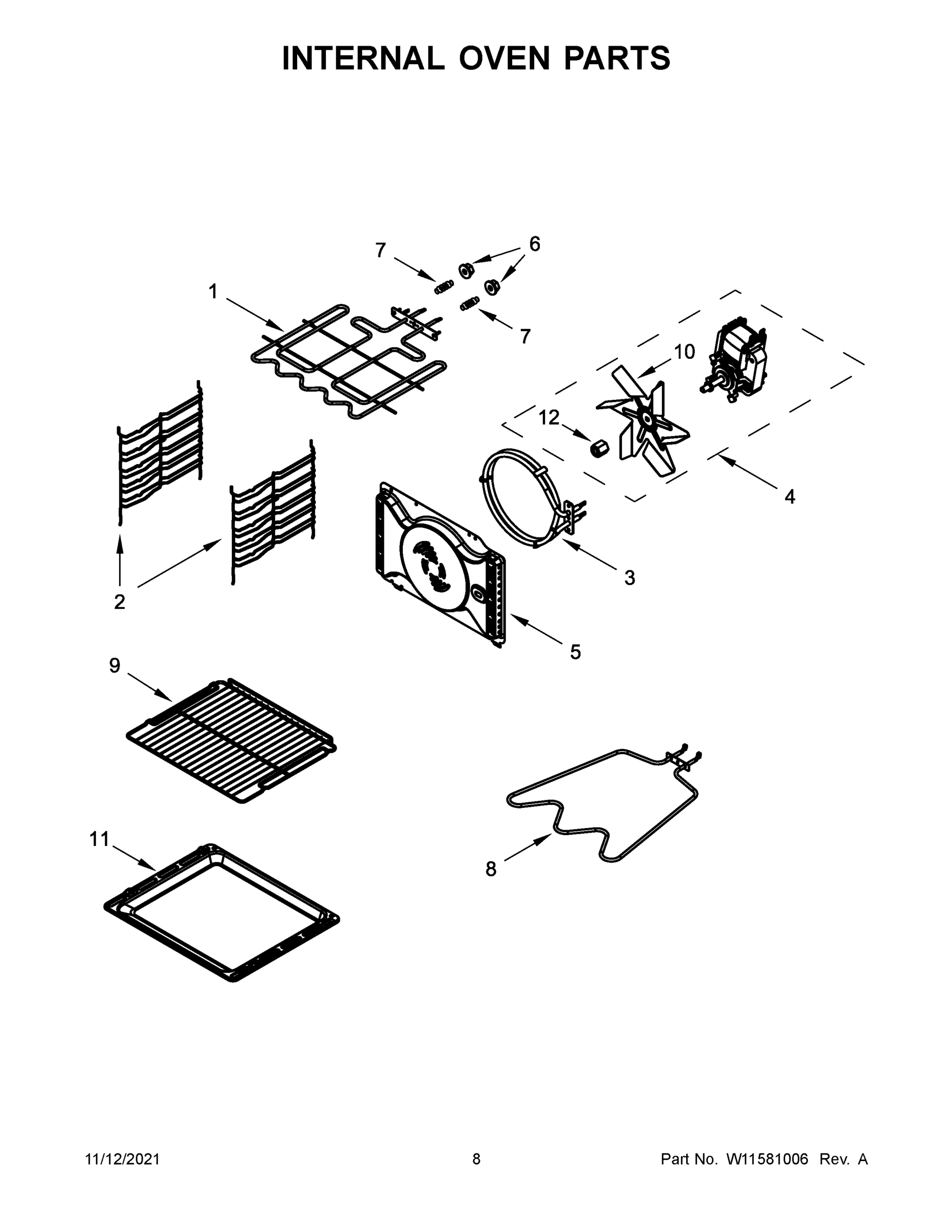

ELEMENT, CONVECTION 2000 WATTS WPL W10519049 Contact Us For Availability

4

GASKET, DOOR WPL W10519051 Contact Us For Availability

4

SUPPORT, PUSH BUTTON WPL W10519812 Contact Us For Availability

4

GLASS, DOOR WPL W10582564 Contact Us For Availability

4

MOTOR, FAN CONVECTION WPL W10781691 Contact Us For Availability

5

BULB-LIGHT Backorder WPL W10518971 $55.51

5

RING, PUSH TURN KNOB WPL W10519068 Contact Us For Availability

5

SUPPORT, DOOR GLASS (LEFT) WPL W10589909 Contact Us For Availability

5

BAFFLE, CONVECTION FAN WPL W10696902 Contact Us For Availability

6

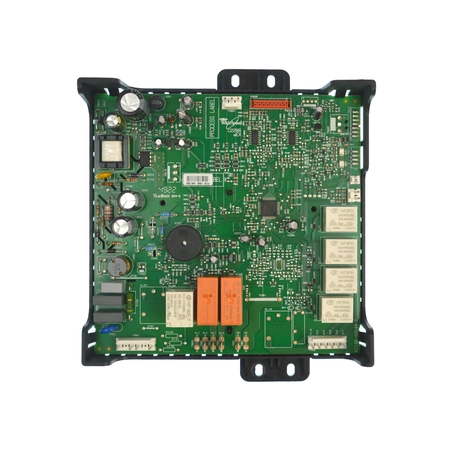

W11582710-includeCORE Whirlpool W11582710 Was Backorder WPL W11582710-includeCORE $232.09

6

ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER WPL W10638530 Contact Us For Availability

6

WASHER, DOOR HANDLE WPL W10519080 Contact Us For Availability

6

NUT, UPPER ELEMENT M4 WPL W11266647 Contact Us For Availability

7

W10240564 Whirlpool Spacer Backorder WPL W10240564 $6.03

7

BLOCK-TERM Backorder WPL W10518946 $47.12

7

PROBE, OVEN TEMPERATURE WPL W10519097 Contact Us For Availability

7

SPRING, UPPER ELEMENT WPL W10519809 Contact Us For Availability

8

W11236834 Whirlpool Oven Trim Panel Backorder WPL W11236834 $56.89

8

W11237289 Whirlpool Bake Element Backorder WPL W11237289 $103.56

8

ASSEMBLY, DOOR SWITCH WPL W10519088 Contact Us For Availability

8

HANDLE, DOOR WPL W10519027 Contact Us For Availability

9

W11236918 Whirlpool Rack Backorder WPL W11236918 $25.19

9

JOINT, DOOR SWITCH WPL W10519094 Contact Us For Availability

9

SWITCH, SELECTOR +/- INCREMENTAL WPL W10519035 Contact Us For Availability

9

SUPPORT, DOOR GLASS (RIGHT) WPL W10593001 Contact Us For Availability

PLUG, OVEN WPL W10519101 Contact Us For Availability

BLOWER, COOLING FAN WPL W10517958 Contact Us For Availability

VENT, DOOR TRIM TOP WPL W10632458 Contact Us For Availability

BLADE, FAN WPL W10781712 Contact Us For Availability

W11581007 Whirlpool Hinge Bracket Backorder WPL W11581007 $17.25

GROMMET, CABLE WPL W10518942 Contact Us For Availability

SPACER, DOOR TRIM TOP WPL W10633369 Contact Us For Availability

PAN, DEEP WPL W10674817 Contact Us For Availability

12

W10578780 Whirlpool Bumper Backorder WPL W10578780 $14.02

12

SWITCH, OVEN 11 POSITION WPL W10519034 Contact Us For Availability

12

NUT WPL W10781713 Contact Us For Availability

13

CLAMP Backorder WPL W10516534 $13.22

14

BUTTON, PUSH WPL W10519071 Contact Us For Availability

15

GASKET Backorder WPL W10519009 $13.81

16

KNOB, PUSH BUTTON WPL W10567301 Contact Us For Availability

17

THERMOSTAT WPL W10532969 Contact Us For Availability

18

FUSE, 315MA WPL W10518970 Contact Us For Availability

19

KNOB, OVEN WPL W10519074 Contact Us For Availability

NI

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

NI

KIT, POWER CORD (NO PLUG) WPL W10472786 Contact Us For Availability
